XONTEL XT-20P User manual

Contents
Summary .......................................................................................................................................................................................3
Safety Precaution............................................................................................................................................................................3
Product Introduction........................................................................................................................................................................4
Interface Description.......................................................................................................................................................................4
Introduction...................................................................................................................................................................................5
Packing List ....................................................................................................................................................................................5
Wiring..............................................................................................................................................................................................6
User-define Terminal Parameters................................................................................................................................................6
Login Webpage...............................................................................................................................................................................6
Protocol...........................................................................................................................................................................................8
Network Parameters.......................................................................................................................................................................8
Server Parameters..........................................................................................................................................................................9
SIP Parameters.............................................................................................................................................................................10
Audio Parameters.........................................................................................................................................................................11
Multicast Setting ...........................................................................................................................................................................12
Password Settings........................................................................................................................................................................13
Language Settings........................................................................................................................................................................13
Firmware Upgrade........................................................................................................................................................................14
Factory Reset ............................................................................................................................................................................... 15
Reboot Device.............................................................................................................................................................................. 15
System logs.................................................................................................................................................................................. 16
Fault Exclude ..............................................................................................................................................................................17

Summary
Safety Precaution
•Read the safety precaution carefully before installing or using.
•Please abide by the warning and the relevant safety tips. Please put this manual in convenient place for futurereference.
Warning
This symbol means there are potential safe troubles, it may cause death or serious injury withincorrect operation.
This symbol used to remind the user that this device attached the important operation and maintenance instructions.
Setting and Installing Device
1) Avoid wet by water.
Do not put the machine to be exposed to rain water or other liquid stained environment, otherwise it may lead to fire or get an electric
shock.
2) Do not use the other power voltage.
Using the device marked voltage to connect it.
It may lead to fire or electric shock if using the higher voltage.
3) Do not scratch the power cord.
Don’t scratch, cut or twist the power cord.
Please keep the power line far away from the heated object and do not put heavy things on it, otherwise it may lead to fires or
electric shock.
Using Machine
1) In case of the anomalies appears
Please shut off the power supply immediately when finding the following abnormal phenomena within using, please contact with
supplier. It may cause fires or electric shock if it`s still using it.
·When the device with smoking or strange flavor.
·The device internal is invaded by water or other things.
·Device fall off or device shell is damaged.
·The power cord is damaged (wire core is exposed or broken etc).
·Device fault (it can`t connect network, no sound etc.).
2) Do not open the device internal or modify the device
Don`t make other things invaded to the device internal.
Don’t make the metal items or inflammable objects inserting to device internal, otherwise it will cause fires or electric shock.
3) Do not touch when lightning
To avoid electric shock, please do not touch the device and the plug while lightning.
4) Do not put the liquid container or metal object on the device
If the container is fall down and make the liquid permeate into the device, it will cause fire or electric shock.
5) Do not open the device internal or modify the device
The device internal contains high voltage parts, once open the cover or modify the device, it may cause fires or cause shock. All
about device maintenance and modification should be operated by professional personnel.
6) The notice for maintenance or long time without using
Please shut down the power and pull out the power line while maintenance or the device won`t be used for 10 days or more. It may
cause electric shock or fires if do not make it.

Product Introduction
IP network ceiling speaker embedded XonTel IP Audio Digital Network audio technology with independent intellectual property
rights. It can accept broadcasting initiated by other terminals and servers and support function settings through browser. With
Circuit fault detection function, it can detect the working status of the horn and display on the serversoftware.
⚫Receive broadcast: it can receive a broadcast from a server or other terminals.
⚫Circuit detection: With Circuit fault detection function, it can detect the working status of the speaker.
⚫Timing broadcast: it will upload all the audio source need to be daily broadcast on server, and make broadcasting schedule.
Ceiling speakers can be configured by the server's scheduled task to achieve automatic broadcast.
⚫System settings through browser: the user can set the network parameters, audio parameters, and change the password
etc. to realize the personalization.
⚫Support POE power supply.
Interface Description
①Network interface: Insert a cable to the switch or POE switch.
②Power Supply Port: DC24V/1A, provide the power for IP ceiling speaker (This equipment is supportive of POE power supply. If
the network interface has connected to POE switcher, it does not need to connect to the power.)
Note: ③ for reserved interface, not yet enabled.

Introduction
Packing List
IP ceiling speaker is including the following fittings, please check the fittings before the installation, if any missing, please contact
the distributor.
（1） IP ceiling speaker 1 pcs
（2） Waterproof connector 1 pcs
（3） Wiring terminal （3.81-2P）1pcs
（4） Power adapter（24V/1A）1pcs （Optional）

Wiring
Wiring method 1:
Wiring method 2:
Note: POE switcher cannot be connected, when using power adapter.
Basic Network Settings
Enter into the webpage of IP ceiling speaker, and then modify all the parameters according to the live environment. After
finishing, click “save”.
User-define Terminal Parameters
Login Webpage
1) Please input the IP address of IP ceiling speaker to the address column of the browser (the factory default IP address is
192.168.1.101, it will automatically play the IP address when the press the terminal key without the cable inserted), then
enter.

（2）Enter the user name and password in the web page (the default user name and password is admin）
(3) Click OK to enter into IP ceiling speaker webpage.

Protocol
XonTel XT-20P supports XonTel protocol (NAS) and SIP protocol (the default is SIP protocol), please select the corresponding
protocol as per the server type of the log-in terminal, then set up accordingly. After completing setting and saving it, please restart
the device. At the same time, it is necessary to restart the browser.
Note: The web pages for different protocols are slightly different. Please refer to the actual interface.
Network Parameters
Terminal IP
IP address of the device, the factory default is 192.168.1.101
Subnet Mask
Please set the subnet mask (factory default: 255.255.255.0)
Gateway
The gateway of the network where the device is located (factory default: 192.168.1.1)
DNS1
The preferred domain name interpreter IP of the terminal
DNS2
The standby domain name interpreter IP of the terminal

Server Parameters
In order to configure server options, XT-20P communication protocol should be NAS.
Terminal ID
The only number to identify terminal, it cannot repeat with other terminals or hosts, the factory
default is 1.
Local Port
The device port number defaults to 2046. Do not modify without special situation.
Primary server
IP address of the IP broadcast server. The default port is 2048.
Secondary server
IP address of the alternate broadcast server, when the alternate broadcast server cannot be
connected and preferred broadcast server can be connected, terminal re-login the preferred
server.
Version server
IP address of the version server.
FTP server
IP address of the FTP server.
FTP Username
FTP server login username.
FTP Password
FTP server login password.
Login interval(s)
Set time interval of login sever in seconds.

SIP Parameters
In order to configure server options, XT-20P communication protocol should be SIP.
SIP Server
The address of the SIP server of the device. Please fill in the IP address or
domain name of the SIP server correctly. Do not modify without special situation (default is 5060).
Account
The SIP account of the terminal, it cannot repeat with other terminals.
Password
The SIP account registration password.
Local Port
Configure the local port according to actual situation.
Audio Port
Configure the audio port according to actual situation.
Switch to Multicast
Calling transfer to multicast can be enabled settings (calling transfer to multicast, when receiving
the SIP call initiated by IP phones, the multicast streams will be sent to itself and SIP speakers).
Audio Codec
The audio codec that XonTel XT-20P will use.
Destination multicast
address
Enable calling transfer to multicast, when IP phone initiate call to SIP account, it is
available to initiate multicast to “destination multicast address and port”, other terminals
under the multicast address will receive multicast broadcasting.
Assistant ringing
account
Enable and set up the assistant ringing SIP account, once any talk or broadcast to the
assistant ringing account, the speaker will output the ringing sound.
The ringing SIP account and the SIP phone can be put into a group. Whencalling to group phone,
all terminals in the same group will be ringing. The ringing will be stopped after the call be
connected.
Ringing SIP
account/password
Set ringing SIP account /password

Audio Parameters
Broadcast volume
The total volume of audio input by the device during broadcasting, range: 0-15;
Buffer time
Set the broadcast playback buffer time (that is, how many seconds later to broadcast after
the broadcast task is received), to ensure the broadcast output quality when the network
environment is poor.
Audio check
Enable: when the real-time noise of the device is less than or equal to the average noise, the
server will pop up the window to display the fault information; Disable, loop detection is
disable;
Dynamic volume
adjust
Enable: based on the noise level, the device adjusts the output volume during broadcasting.
Disable: the dynamic volume is disable, and the web page "Run Status" page displays the
real-
time volume level.
Wan Audio Buffering
Enable: based on the noise level, the device adjusts the output volume during broadcasting.
Disable: the dynamic volume is disable, and the web page "Run Status" page displays the
real-
time volume level
Network Audio
Synchronization
After enable WAN Audio Synchronization function, it will ensure no postponement when
receiving network broadcasts. However, if under very poor network environment, voice will
occur discontinuities.
Note: While Enabling WAN Audio Buffering, WAN Audio Synchronization will be turned off.
Noise detect adjust (dB)
Set the noise detection calibration value (default is 16dB). The larger the value, the larger the
detected real-time noise value.
Note: Noise detection calibration value = noise dB of the decibel meter test when the
calibration value is 0 - the average noise decibel value detected by the device.
Noise Reference (dB)
Under normal situation, the average noise decibel value, the default is 60dB
Noise detect interval (s)
Set the average noise detection interval, the default is 30 seconds. Average noise varies
according to set time.

Multicast Setting
Multicast IP Address
Set whether to enable multicast or not. In the case where there are multiple servers in the LAN, different
servers must fill in different addresses and port numbers when they initiate multicast broadcasts without
interference.
Support up to 10 multicast addresses as maximum and priority settings (priority from high to low is 1-10).
Beep
Set whether to enable the broadcast prompt tone or not.

.

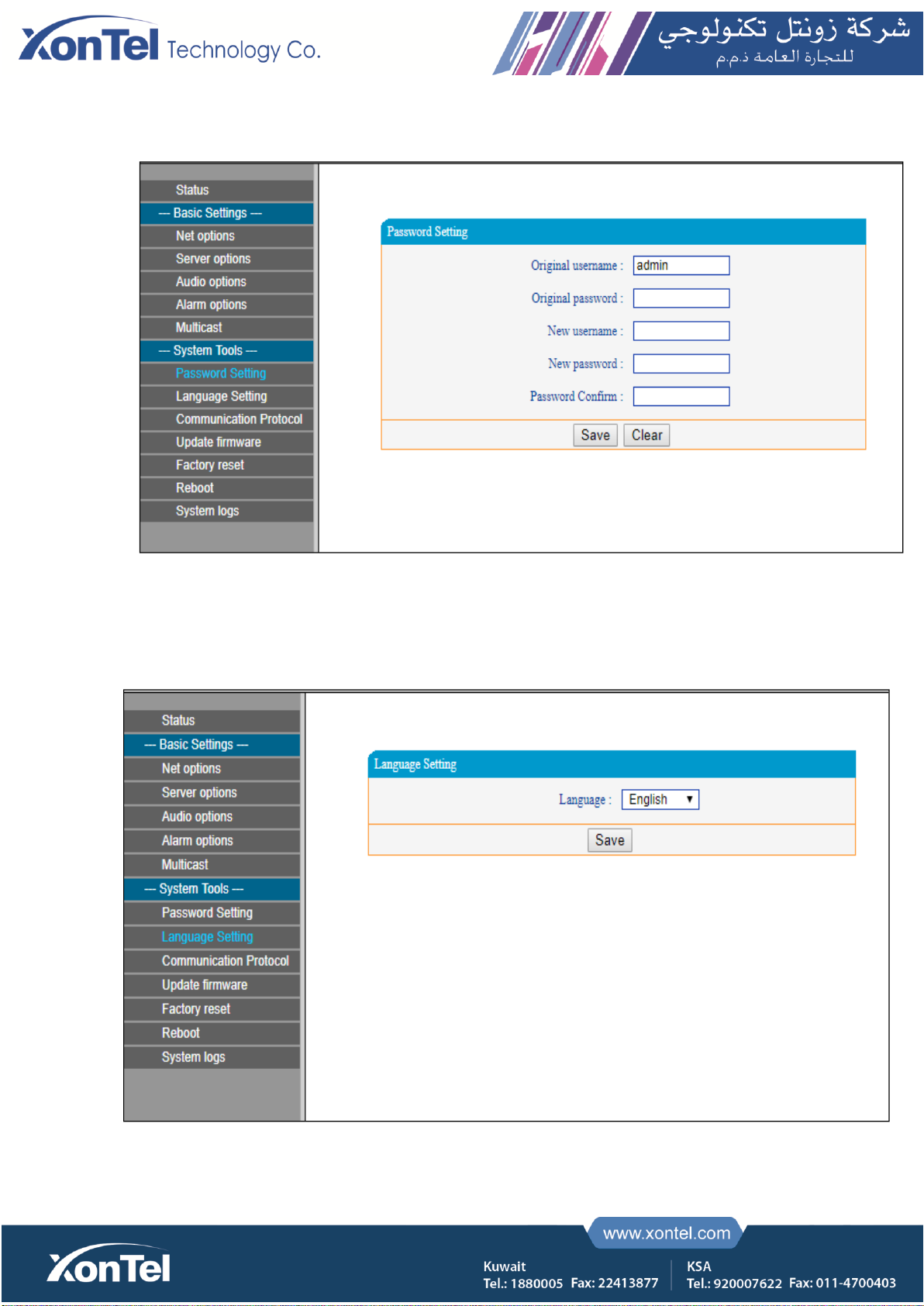

Password Settings
The username and password of the login web page can be modified from here.
Language Settings
The language of the web page can be switched between Chinese and English

.
Firmware Upgrade
1. Click the "Update" button, you will enter the firmware upgrade mode after 15 seconds.
Note: Do not power off during the upgrade process, otherwise the upgrade may fail and the device fails.
2. Refresh the page then click "Choose File", select the upgrade file provided by the manufacturer, and click "Update"
to start the upgrade

.

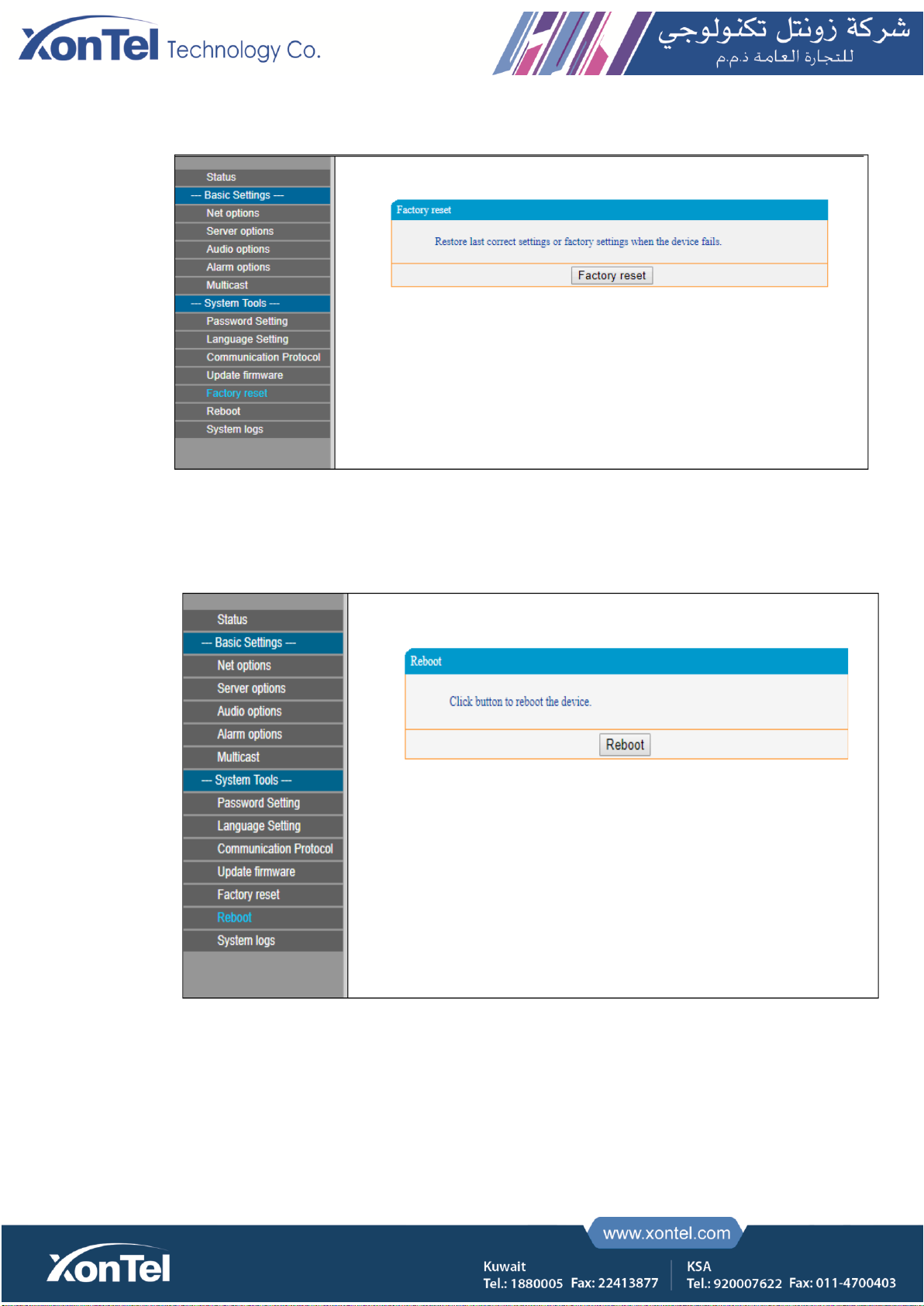

Factory Reset
Factory Reset: all parameters need to be reset to defaults.
Reboot Device
User can click "Reboot" to reboot the device.

.

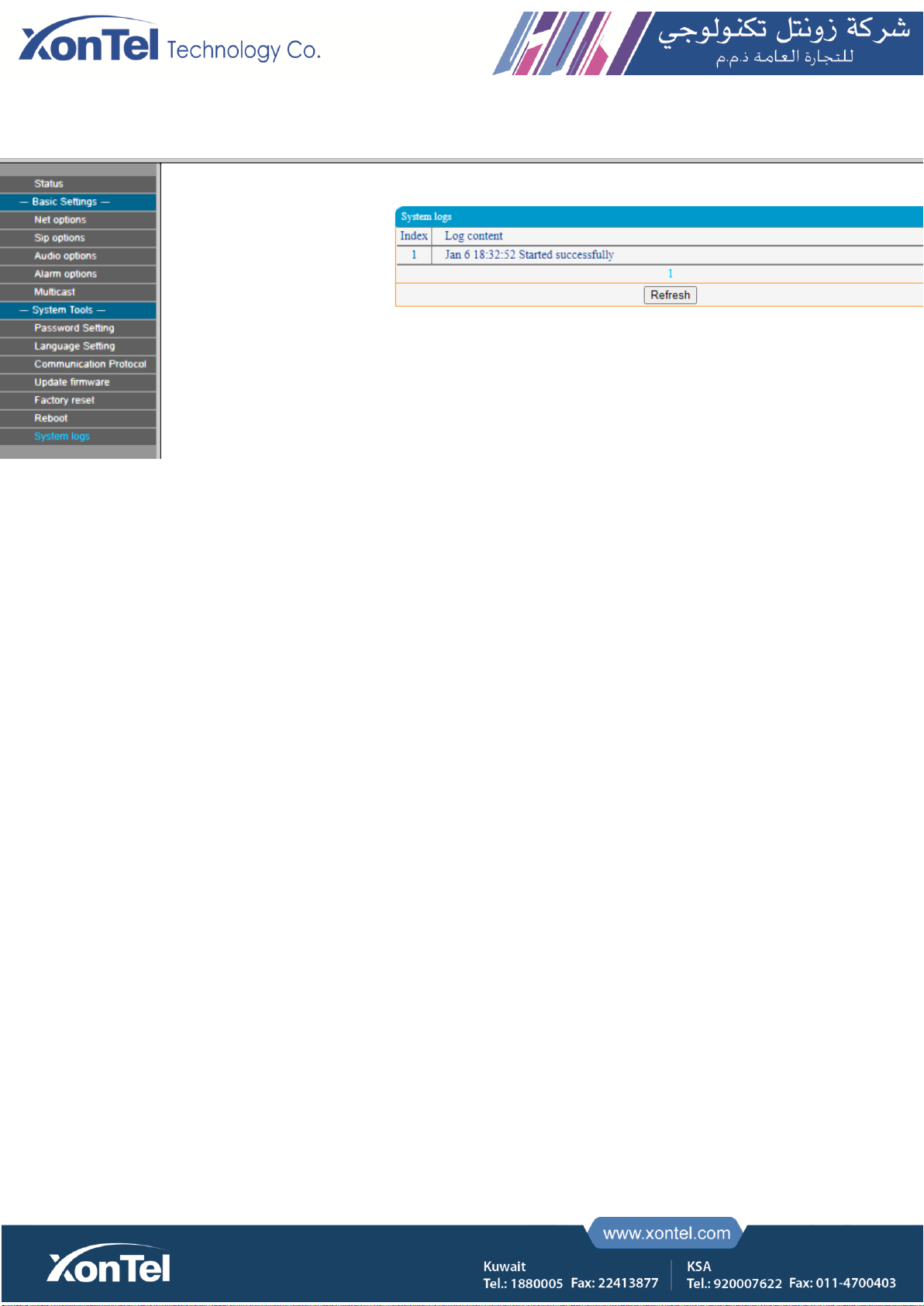

System logs
From here User can check the XT-20P speaker logs.

.
Fault Exclude
Why the terminal cannot login the server?
1). Check the software server and the main controller is normal opened or not. It`s required to close all
firewall before open the software server (including system built-in firewall and other antivirus software
firewall).
2). Check the network connection is normal or not. After theterminal powered on, the networkport green
light is norm on, meantime the orange light will be short and fast flash, it means the network cable hard-
connected normal. Ifthe network portgreen light is not on, itmeans thenetwork hard-connectedproblem,
please check the terminal network cable and switcher whether they work normal, damaged and
disconnect or not etc.
3). Check the terminal IP setting. Please check the terminal ID, sever IP, local IP, gateway IP ...etc
parameters.
Why it appears "terminal network services (UDP) start fail" warning within the process of start
server software?
Appearing this warning information, it’s usually the local network connection has been disconnected,
please connect the local network cable well and exit the software, then restart it.
Why web show abnormal?
Please clear the caches or change the browser.
How to change the web login account and password?
1. Click the password setting in webpage.
2. Input the old account and old password.
3. Input the new account and new password.
4. Input the new password again forconfirmation.
5. Click save.
