XONTEL XT-20P User manual

Contents
Summary .........................................................................................................................................................................................3
Safety Precaution .............................................................................................................................................................................3
Product Introduction..........................................................................................................................................................................4
Interface Description.........................................................................................................................................................................4
Introduction.....................................................................................................................................................................................5
Packing List ......................................................................................................................................................................................5
Wiring ...............................................................................................................................................................................................5
User-define Terminal Parameters..................................................................................................................................................6
Login Webpage.................................................................................................................................................................................6
Network Parameters.........................................................................................................................................................................7
Server Parameters............................................................................................................................................................................8
SIP Parameters ................................................................................................................................................................................9
Audio Parameters...........................................................................................................................................................................10
Password Settings..........................................................................................................................................................................11
Language Settings..........................................................................................................................................................................11
Firmware Upgrade..........................................................................................................................................................................12
Reset to Defaults............................................................................................................................................................................12
Reboot the Device..........................................................................................................................................................................13
Fault Exclude ................................................................................................................................................................................14

Summary
Safety Precaution
•Read the safety precaution carefully before installing orusing.
•Please abide by the warning and the relevant safety tips. Please put this manual in convenient place for future reference.
Warning
This symbol means there are potential safe troubles, it may cause death or serious injury with incorrect operation.
This symbol used to remind the user that this device attached the important operation and maintenance instructions.
Setting and Installing Device
1) Avoid wet by water.
Do not put the machine to be exposed to rain water or other liquid stained environment, otherwise it may lead to fire or get an
electric shock.
2) Do not use the other power voltage.
Using the device marked voltage to connect it.
It may lead to fire or electric shock if using the higher voltage.
3) Do not scratch the power cord.
Don’t scratch, cut or twist the power cord.
Please keep the power line far away from the heated object and do not put heavy things on it, otherwise it may lead to fires or
electric shock.
Using Machine
1) In case of the anomalies appears
Please shut off the power supply immediately when finding the following abnormal phenomena within using, please contact
with supplier. It may cause fires or electric shock if it`s still using it.
·When the device with smoking or strange flavor.
·The device internal is invaded by water or other things.
·Device fall off or device shell is damaged.
·The power cord is damaged (wire core is exposed or brokenetc).
·Device fault (it can`t connect network, no sound etc.).
2) Do not open the device internal or modify the device
Don`t make other things invaded to the deviceinternal.
Don’t make the metal items or inflammable objects inserting to device internal, otherwise it will cause fires or electric shock.
3) Do not touch when lightning
To avoid electric shock, please do not touch the device and the plug while lightning.
4) Do not put the liquid container or metal object on the device
If the container is fall down and make the liquid permeate into the device, it will cause fire or electric shock.
5) Do not open the device internal or modify the device
The device internal contains high voltage parts, once open the cover or modify the device, it may cause fires or cause shock.
All about device maintenance and modification should be operated by professional personnel.
6) The notice for maintenance or long time without using
Please shut down the power and pull out the power line while maintenance or the device won`t be used for 10 days or more. It
may cause electric shock or fires if do not make it.
3

Product Introduction
XonTel XT-20P IP network ceiling speaker embedded IP Audio Digital Network audio technology with independent
intellectual property rights. It can accept broadcasting initiated by other terminals and servers and support function settings
through browser. With Circuit fault detection function, it can detect the working status of the horn and display on the server
software.
Line input: ceiling speaker can be connected to other equipment audio signals as a broadcast sound source.
Line output: it support to output the audio signals.
Circuit detection: With Circuit fault detection function, it can detect the working status of thespeaker.
Receive broadcast: it can receive a broadcast from a server or other terminals.
Timing broadcast: it will upload all the audio source need to be daily broadcast on server, and make broadcasting schedule.
Ceiling speakers can be configured by the server's scheduled task to achieve automaticbroadcast.
System settings through browser: the user can set the network parameters, audio parameters, and change the password
etc. to realize the personalization.
Support POE power supply.
Interface Description

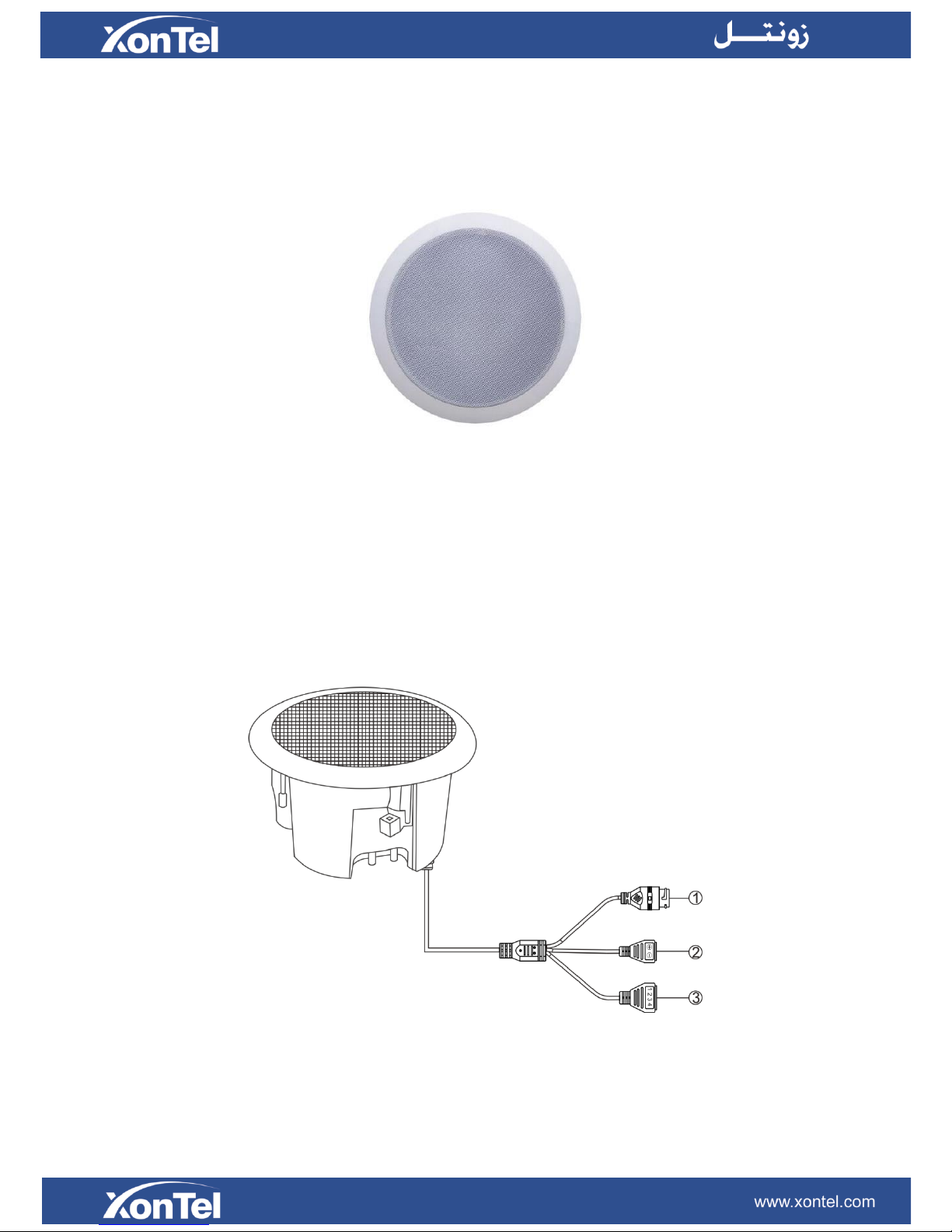

①Network interface: connect POE switcher with cables.(there is needn’t to connect the power as the device support POE
power supply).
Note: ②③or reserved interface, not yet enabled.
4

Introduction
Packing List
IP ceiling speaker is including the following fittings, please check the fittings before the installation, if any missing, please
contact the distributor.

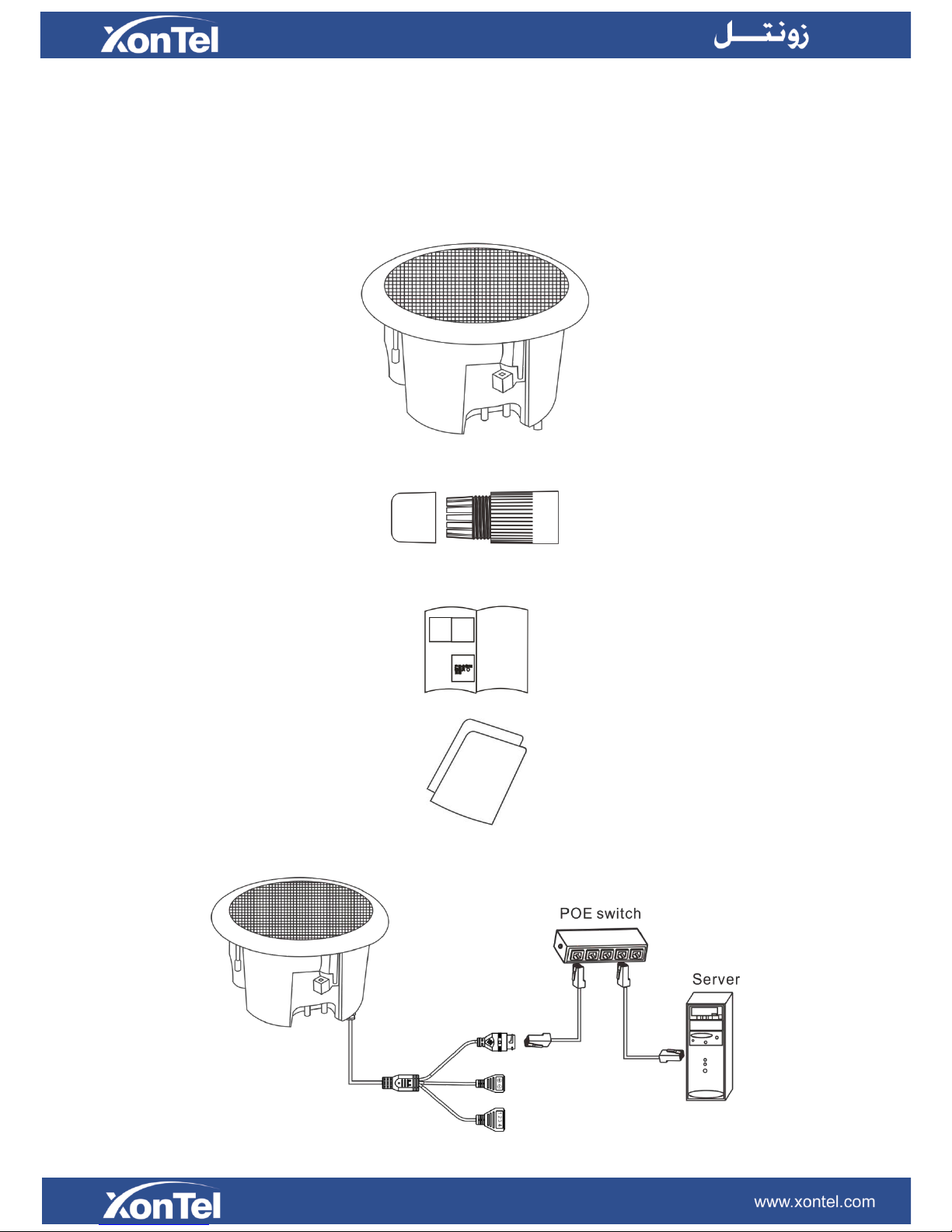

（1） IP ceiling speaker 1 pcs
（2） Waterproof connector 1 pcs
（3） certification 1 pcs
（4） Installation manual 1pcs
Wiring
5

Basic Network Settings
Enter into the webpage of XonTel XT-20P IP ceiling speaker, and then modify all the parameters according to the live
environment. After finishing, click “save”.
User-define Terminal Parameters
Login Webpage

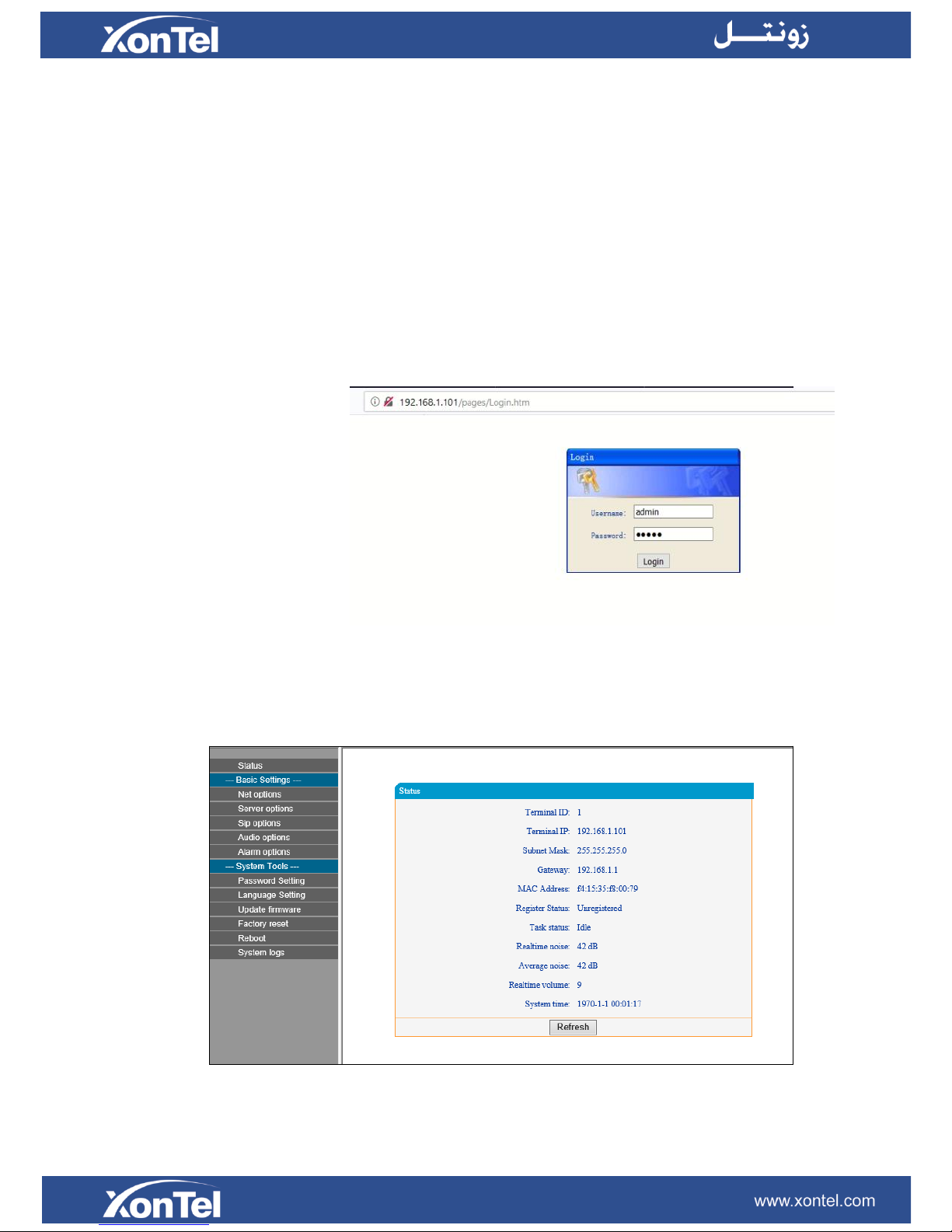

1) Please input the IP address of XonTel XT-20P IP ceiling speaker to the address column of the browser (the factory
default IP address is 192.168.1.101, it will automatically play the IP address when the press the terminal key without
the cable inserted), then enter.
（2）Enter the user name and password in the web page （the default user name and password is admin）
(3) Click OK to enter into XonTel XT-20P IP ceiling speaker web page.
6

Network Parameters
The parameters specification as following:
Terminal IP
IP address of XT-20P IP ceiling speaker, default as 192.168.1.101
Subnet mask
Please set Subnet mask ( default as 255.255.255.0)
Gateway
The network gateway of XT-20P IP ceiling speaker (default as 192.168.1.1)
DNS1
The IP of preferred DNS server.
DNS2
The IP of alternate DNS server.
7

Server Parameters

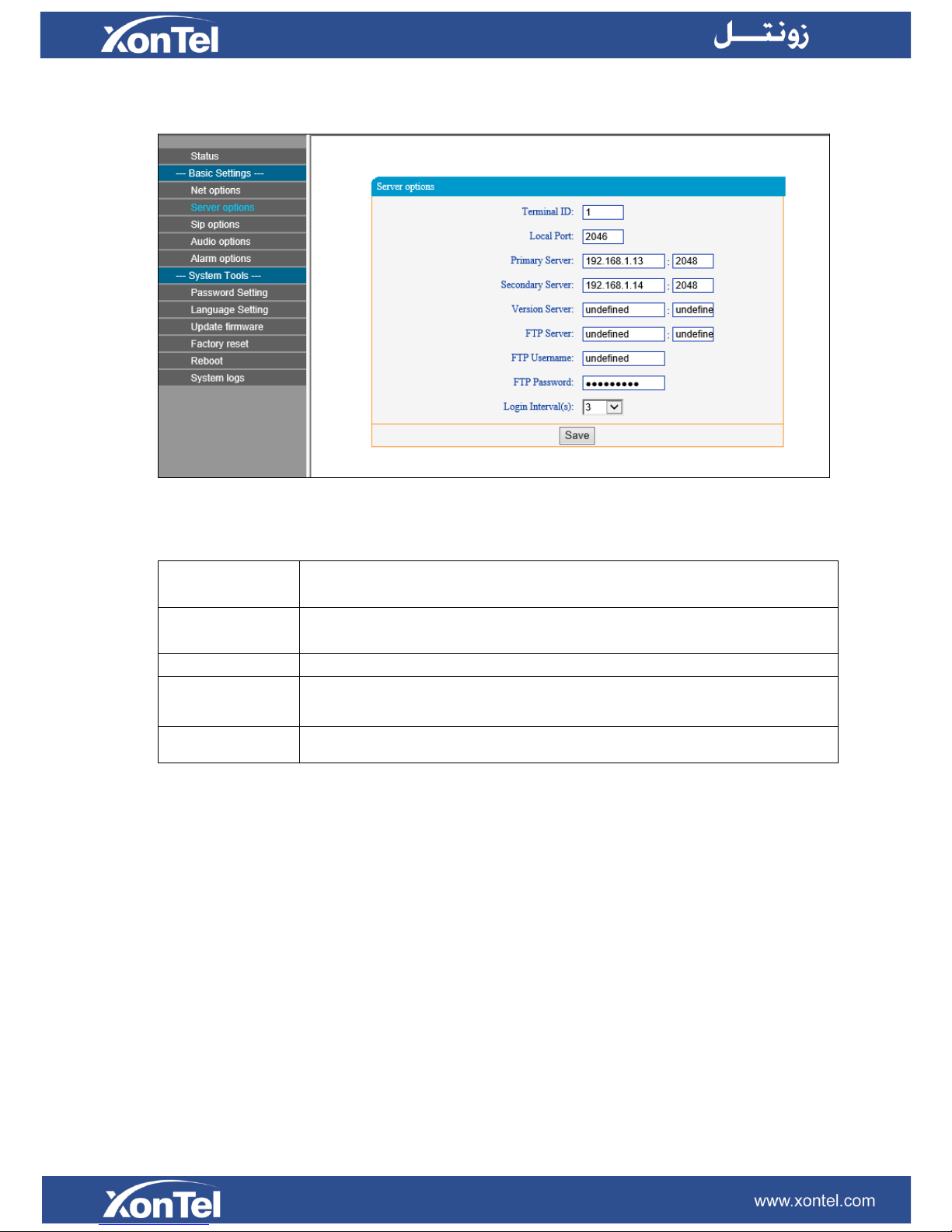

The parameters specification as following:
Terminal ID
The unique No. that to identify the IP ceiling speaker, and cannot repeat with other
main master. The default is 1.
Terminal Port
The device port number default to be 2046, please don’t modify if no exceptional
circumstance.
Primary server
The IP address of IP broadcast server, the default port is 2048.
Secondary server
When the preferred server cannot be connected, you can choose the alternate server.
After the preferred server can be connected, you can re-login the preferred server.
Login interval
Setting the interval time which is ceiling speaker to login the server.
8

SIP Parameters

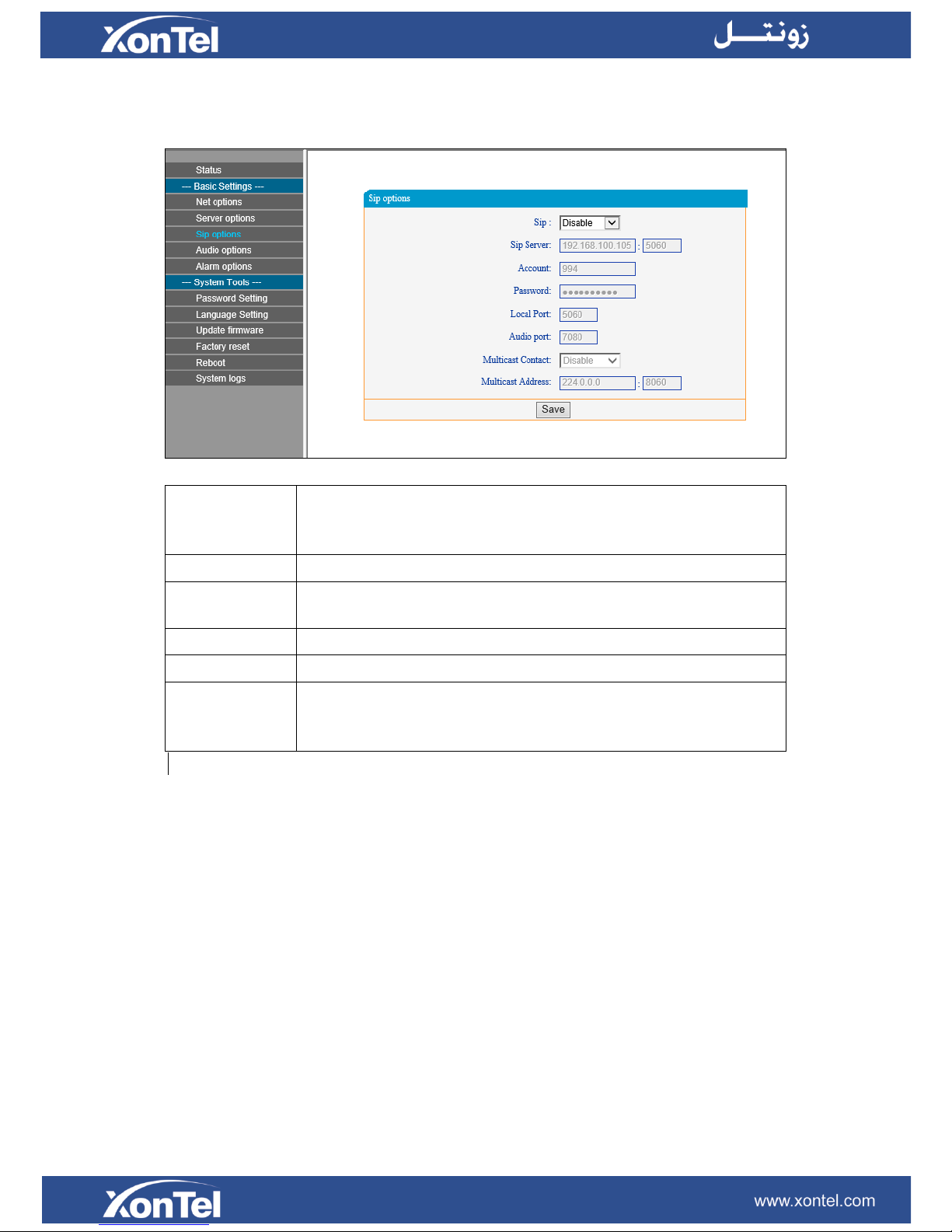

The parameters specification as following:
SIP server
The SIP server IP address of terminal, please fill with correct with SIP server IP
address or domain name. The port cannot be modified if no exceptional
circumstances. ( default is 5060)
Account
The SIP account of terminal, which is cannot repeat with other terminal.
Password
The SIP server password of the terminal, which is cannot repeat with other
terminal.
Local port
Configure the local port according to the actual situation.
Audio port
Configure the audio port according to the actual situation.
Multicast
There are multiple servers in the LAN, it must fill out different address and the
port number to prevent not be disturbed when different server initiate
broadcasting.
9

Audio Parameters
The parameters specification as following:
Broadcast output volume
The total volume of the device broadcasting audio output, the volume is 0-15.
Buffer time
The buffer time of broadcasting (that is to make sure the broadcasting output
quality under the bad network environment).
Audio check
Enable the Audio check function, the server will pop up the window to show
the failures when the timing noise is less than or equal to the arrange noise.
Disabled, this function cannot be used.
Dynamic volume control
Enabled, the device will adjust the broadcasting output volume according to
the noise.
Disabled, this function cannot be used and the timing volume will be showed
on the “operation status” interface of webpage.
Noise detect adjust(dB)
The number of noise monitor calibration (default is 16dB). The bigger the
number is, the bigger the calibrated timing noise is.
Note: the noise monitor calibration = with the calibration 0, the noise dB
monitored by decibel meter –the average noise dB detected by device.
Noise Reference(dB）
Under the normal environment, the default of average noise is 60 dB.
Noise detect interval(s)
Set the average noise detection interval, default is 30s. The average noise
changes with the setting time.
10

Password Settings
The account and password to log in the webpage can be changed in WEB management parameters.
How to change the web login account and password?

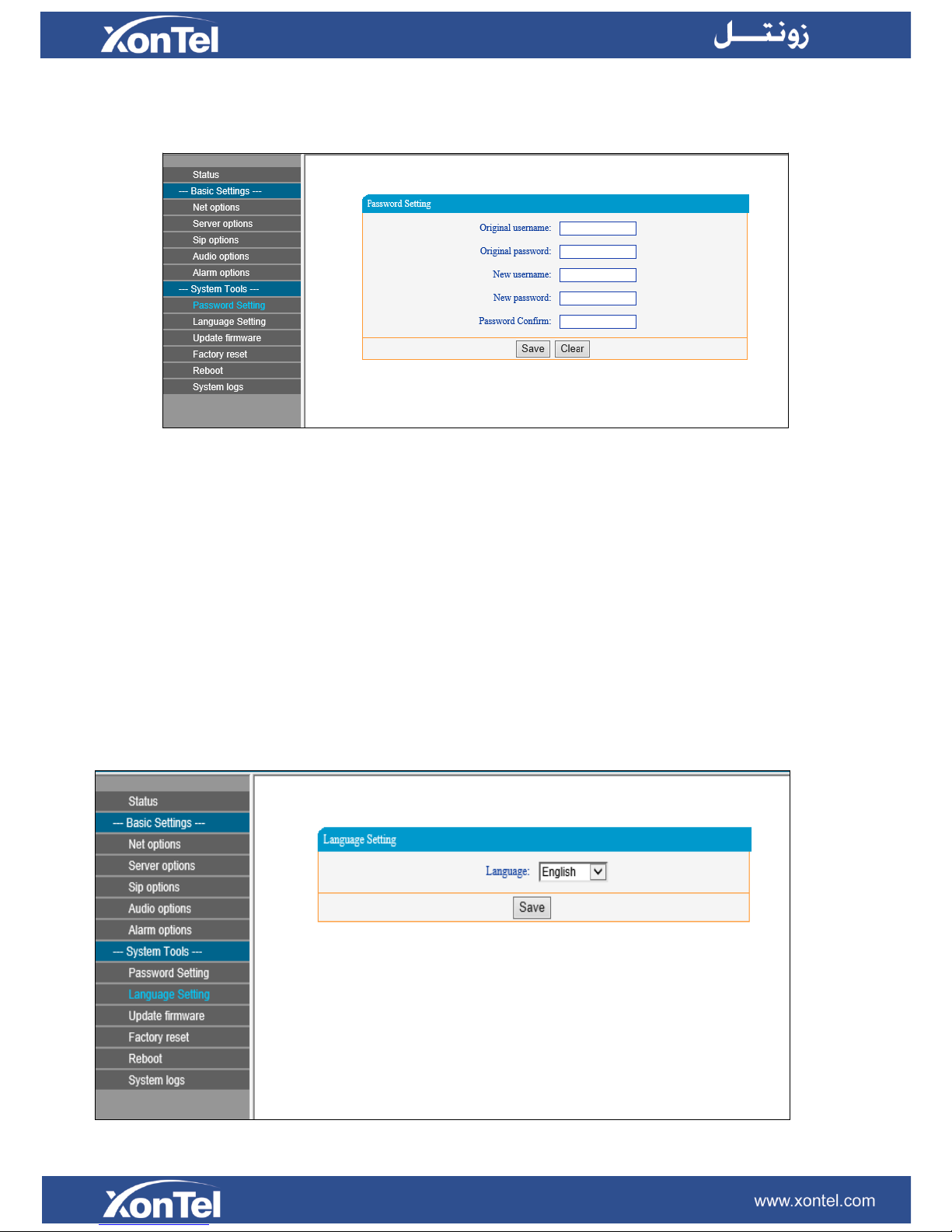

1 .Click the password setting in web page.
2. Input the old account and old password.
3. Input the new account and new pass word.
4. Input the new password again for confirmation
5.Click save.
The new account and new password will be effective after reboot.
Language Settings
The webpage language can switch between Chinese and English.
11

Firmware Upgrade
Enter the firmware upgrade mode after 15 seconds to click “Upgrade”, then click “Browser” to choose the
upgrade file by manufacturers, and click “Upgrade”.
Note: Do not power off during the upgrade process, or it may cause the upgrade to fail, and the device fails.
Reset to Defaults
Reset to defaults: all parameters need to be reset to defaults.
12

Reboot the Device

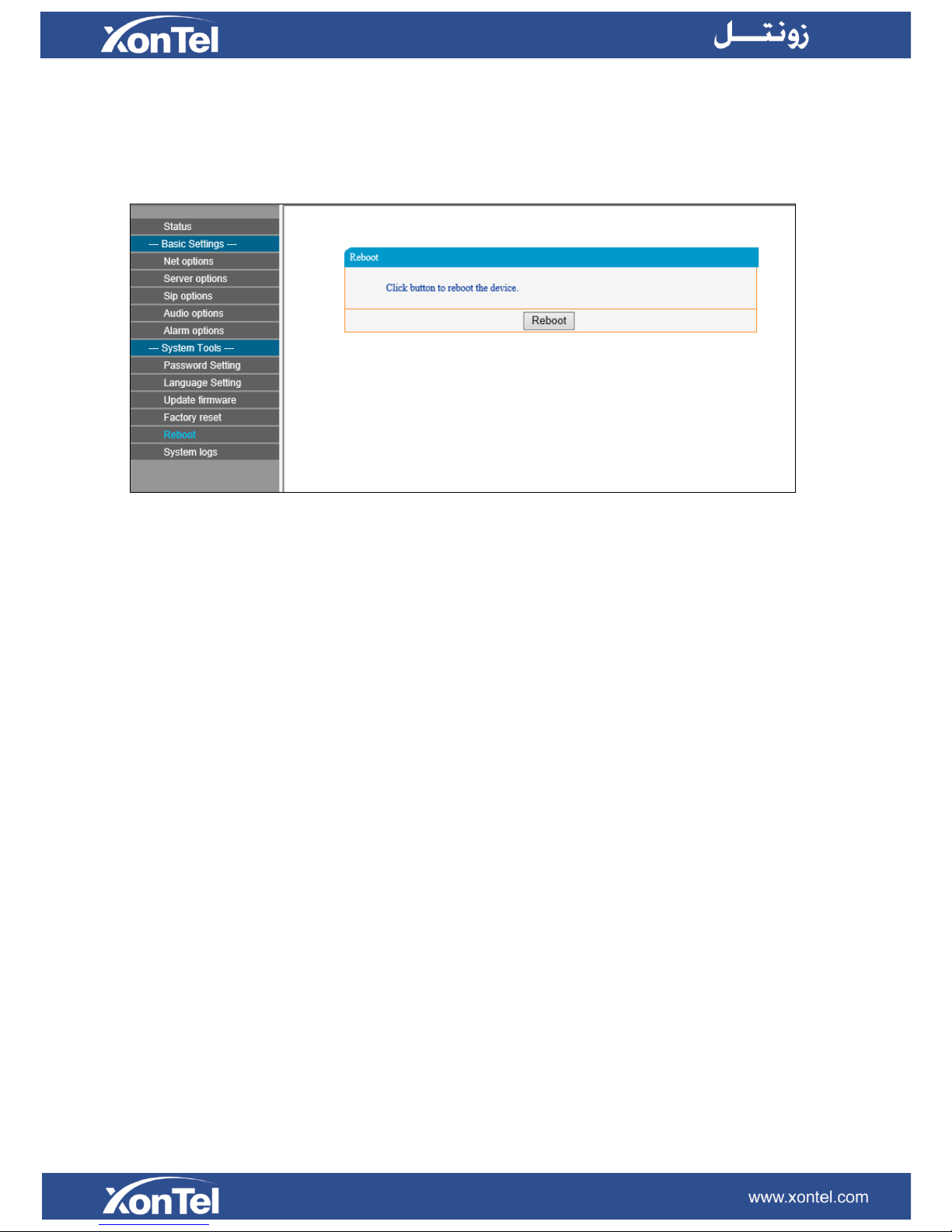

Users can click the “Reboot” to reboot the XT-20P ceiling speakers.
13

Fault Exclude
Why the terminal cannot login the server?
1).Check the software server and the main controller is normal opened or not. It`s required to close all firewall before open the
software server (including system built-in firewall and other antivirus software firewall) .
2).Check the network connection is normal or not. After the terminal powered on, the network port green light is norm on,
meantime the orange light will be short and fast flash, it means the network cable hard-connected normal. If the network port
green light is not on, it means the network hard-connected problem, please check the terminal network cable and switcher
whether they work normal, damaged and disconnect or not etc.
3).Check the terminal IP setting. Please check the terminal ID, sever IP, local IP, gateway IP ...etc parameters.
Why it appears "terminal network services (UDP) start fail" warning within the process of start server software?
Appearing this warning information, it’s usually the local network connection has been disconnected, please connect the local
network cable well and exit the software, then restart it.
Why web show abnormal?
Please clear the caches or change the browser.
