Xpedition Archery Xcursion 6 HD User manual

© Hanson Briggs Specialty Advertising Inc.
Introduction
Welcome to the Xpedition Archery Team! We appreciate your recent purchase and want to insure you that we
are committed to insuring you get the appropriate customer support, service and product quality. Thank you
for joining our team.
Bow Purchasing Record
Below is an area for you to record all the information regarding your newly purchased bow. This record is for your
own personal reference. Your Xpedition Archery warranty will be valid upon the online registration of your bow by an
authorized Xpedition Archery retailer or yourself at www.xpeditionarchery.com within 30 days of the purchase date of
the original purchaser.
Original Owner Information
Name: _________________________________________________________________
Address: _______________________________________________________________
City: ________________________________ State: ___________ Zip: ____________
Bow Information
Model & Year:___________________________
Serial Number: ____________ (found on riser, opposite side of the model decal)
Purchased At: __________________________________________________________
(Authorized Xpedition Archery Dealer)
Purchase Date: _______________________________________
Sales Associate: ______________________________________
Purchase Price: ____________
Draw Length: ____________ Draw Weight: ____________ String Length: ____________
C. Cable Length: ____________ Y. Cable Length: ____________
Product Warranty
All Xpedition Archery bows have a limited lifetime warranty to the original owner. Each bow has a serial number found on
the riser, opposite side of the model decal, which will be required along with the original owner’s full name to obtain this
warranty service. If you experience the need for repairs you need to consult your local authorized Xpedition Archery retailer.
They can assist you through your repair process and if they deem necessary will contact Xpedition Archery on your behalf.
The authorized Xpedition Archery retailer may charge for service work that accompanies warranty fulfillment.
Limitation of Liability
Xpedition Archery shall not be liable for any special or consequential damages that result from the performance and use of
the products, even if Xpedition Archery has been advised of the possibility of such damages. Applicable law may not allow
the limitations of exclusion or liability or incidental or consequential damages, so the above limitations or exclusions may
not apply to you. Furthermore the buyer agrees to hold harmless Xpedition Archery and all associated parties from liability
for any and all damage to persons or property, for any reason, from the use of this product.
Owners Manual - Xcursion 6 HD, Xcursion 7 HD

© Hanson Briggs Specialty Advertising Inc.
Limited Lifetime Warranty
This Xpedition Archery bow has a warranty against defects in materials and workmanship to the original registered owner
when purchased at an authorized Xpedition Archery retailer, for the life of the original owner. This warranty includes all
bow parts, except the string, cables, decals, rubber string suppressors, rubber dampeners, cable guard, speed nocks, and
cosmetic appearance (chips, dings, scratches) caused by normal use and wear. All warranty claims need to be taken to an
authorized Xpedition Archery retailer, if need be the authorized retailer will contact Xpedition Archery on your behalf.
NOTE: Xpedition Archery reserves the right to make substitutions on warranty coverage for any reason, including
but not limited to availability of parts and/or decorating finishes.

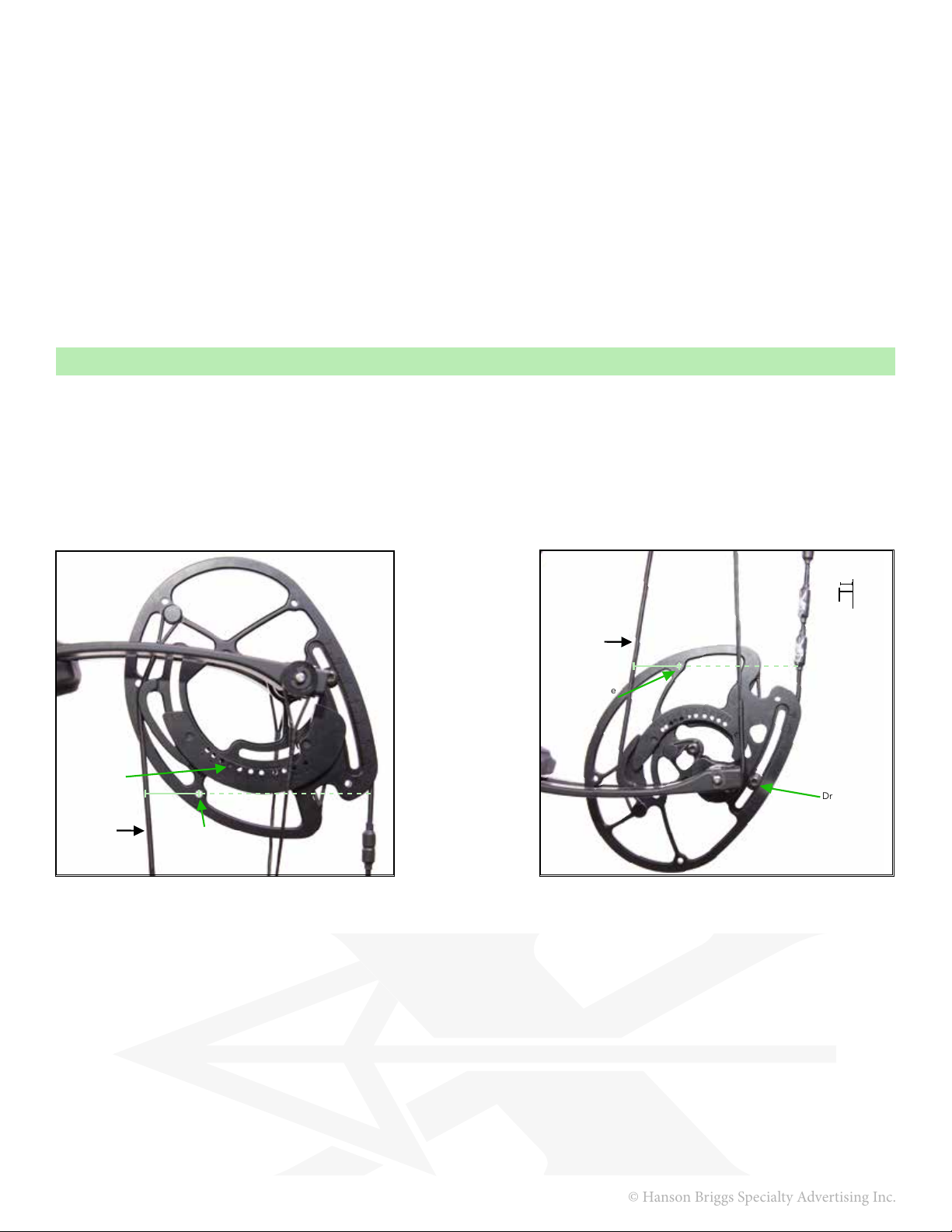

Figure 1
XS-HD
Top Cam
Figure 2
XS-HD
Bottom Cam
Cable
1"
Reference
Hole
Rotating
Mod Post
1"
Reference
Hole
Draw Stop
Standoff
Distance
between
reference
hole and
cable is
within 1"
1"
Cable
Adjustments and Tuning
It is important that your new bow is adjusted to fit you properly. Your authorized Xpedition Archery retailer should be
able to aide in properly fitting your bow to you to achieve maximum performance. When replacing strings and cables on
your bow it is important to closely follow Xpedition's string and cable specifications to ensure ease of tuning and proper
function.
Each XS-HD cam on your Xcursion 6 HD / Xcursion 7 HD bow has a tuning reference hole. The cable on the top cam should
be within 1" of the reference hole and on the bottom cam the cable should be within 1" of the reference hole. There is a
tolerance of plus or minus 3 twists in each cable and string to optimize tuning. See Figure 1 & 2.

© Hanson Briggs Specialty Advertising Inc.
Xcursion 6 HD / Xcursion 7 HD XS-HD Cam
The XS-HD cams have rotating modules that achieve
multiple draw lengths when rotated. These draw lengths
are designated by the numbering system that is charted
below. The top and bottom modules must always have
the same corresponding number for each draw length.
Mod position determined by rotating mod post (see
Figure 1). Prior to changing draw length the draw stop
stand offs on both cams should be loosened and moved
to the end of each track. This will eliminate any possible
contact issue between the head of the draw stop standoff
screw and the new location of the rotating mod.
Draw Length Modification Reference Guide
Adjusting Draw Stops
Once the modules are adjusted to desired draw length using the chart above the draw stops must now be set and
retightened. There are reference numbers and tick marks along the draw stop track on the bottom cam. Using the chart
below set the bottom draw stop by centering the head of the Torx screw with the reference numbers on cam track. Charted
is the range for each draw length, slight adjustment either way may be necessary. Once bottom stop is set to the desired
feel and let-off, draw bow and set the top stop so it comes in contact with the top limb at the same time the bottom stop
comes into contact with the bottom limb.
Xcursion 6 HD XS-HD Cam
Xcursion 6 HD XS-HD Cam
Draw Length Mod Chart
Position XS-HD Cam/Mod
11 25.5"
10 26"
9 26.5"
8 27"
7 27.5"
6 28"
5 28.5"
4 29"
3 29.5"
2 30"
1 30.5"
Xcursion 7 HD XS-HD Cam
Draw Length Mod Chart
Position XS-HD Cam/Mod
11 26.5"
10 27"
9 27.5"
8 28"
7 28.5"
6 29"
5 29.5"
4 30"
3 30.5"
2 31"
1 31.5"
40# DW** 50# DW** 60# DW** 65# DW** 70# DW**
Draw Length Draw Stop* Draw Length Draw Stop* Draw Length Draw Stop* Draw Length Draw Stop* Draw Length Draw Stop*
30.5" 1 5/8 - 1 7/8 30.5" 1 5/8 - 1 7/8 30.5" 1 5/8 - 1 7/8 30.5" 1 5/8 - 1 7/8 30.5" 1 5/8 - 1 7/8
30.0" 1 7/8 - 2 1/8 30.0" 1 7/8 - 2 1/8 30.0" 1 7/8 - 2 1/8 30.0" 1 7/8 - 2 1/8 30.0" 1 7/8 - 2 1/8
29.5" 2 - 2 1/4 29.5" 2 - 2 1/4 29.5" 2 - 2 1/4 29.5" 2 - 2 1/4 29.5" 2 - 2 1/4
29.0" 2 3/8 - 2 5/8 29.0" 2 3/8 - 2 5/8 29.0" 2 3/8 - 2 5/8 29.0" 2 3/8 - 2 5/8 29.0" 2 3/8 - 2 5/8
28.5" 2 7/8 - 3 1/8 28.5" 2 7/8 - 3 1/8 28.5" 2 7/8 - 3 1/8 28.5" 2 7/8 - 3 1/8 28.5" 2 7/8 - 3 1/8
28.0" 3 3/8 - 3 5/8 28.0" 3 3/8 - 3 5/8 28.0" 3 3/8 - 3 5/8 28.0" 3 3/8 - 3 5/8 28.0" 3 3/8 - 3 5/8
27.5" 3 7/8 - 4 1/8 27.5" 3 7/8 - 4 1/8 27.5" 3 7/8 - 4 1/8 27.5" 3 7/8 - 4 1/8 27.5" 3 7/8 - 4 1/8
27.0" 4 3/8 - 4 5/8 27.0" 4 3/8 - 4 5/8 27.0" 4 3/8 - 4 5/8 27.0" 4 3/8 - 4 5/8 27.0" 4 3/8 - 4 5/8
26.5" 4 7/8 - 5 1/8 26.5" 4 7/8 - 5 1/8 26.5" 4 7/8 - 5 1/8 26.5" 4 7/8 - 5 1/8 26.5" 4 7/8 - 5 1/8
26.0" 5 3/8 - 5 5/8 26.0" 5 3/8 - 5 5/8 26.0" 5 3/8 - 5 5/8 26.0" 5 3/8 - 5 5/8 26.0" 5 3/8 - 5 5/8
25.5" 6 5/8 - 6 7/8 25.5" 6 5/8 - 6 7/8 25.5" 6 5/8 - 6 7/8 25.5" 6 5/8 - 6 7/8 25.5" 6 5/8 - 6 7/8
Xcursion 7 HD XS-HD Cam
40# DW** 50# DW** 60# DW** 65# DW** 70# DW**
Draw Length Draw Stop* Draw Length Draw Stop* Draw Length Draw Stop* Draw Length Draw Stop* Draw Length Draw Stop*
31.5" 1 5/8 - 1 7/8 31.5" 1 5/8 - 1 7/8 31.5" 1 5/8 - 1 7/8 31.5" 1 5/8 - 1 7/8 31.5" 1 5/8 - 1 7/8
31.0" 1 7/8 - 2 1/8 31.0" 1 7/8 - 2 1/8 31.0" 1 7/8 - 2 1/8 31.0" 1 7/8 - 2 1/8 31.0" 1 7/8 - 2 1/8
30.5" 2 1/8 - 2 3/8 30.5" 2 1/8 - 2 3/8 30.5" 2 1/8 - 2 3/8 30.5" 2 1/8 - 2 3/8 30.5" 2 1/8 - 2 3/8
30.0" 2 3/8 - 2 5/8 30.0" 2 3/8 - 2 5/8 30.0" 2 3/8 - 2 5/8 30.0" 2 3/8 - 2 5/8 30.0" 2 3/8 - 2 5/8
29.5" 2 7/8 - 3 1/8 29.5" 2 7/8 - 3 1/8 29.5" 2 7/8 - 3 1/8 29.5" 2 7/8 - 3 1/8 29.5" 2 7/8 - 3 1/8
29.0" 3 3/8 - 3 5/8 29.0" 3 3/8 - 3 5/8 29.0" 3 3/8 - 3 5/8 29.0" 3 3/8 - 3 5/8 29.0" 3 3/8 - 3 5/8
28.5" 3 7/8 - 4 1/8 28.5" 3 7/8 - 4 1/8 28.5" 3 7/8 - 4 1/8 28.5" 3 7/8 - 4 1/8 28.5" 3 7/8 - 4 1/8
28.0" 4 1/2 - 4 3/4 28.0" 4 1/2 - 4 3/4 28.0" 4 1/2 - 4 3/4 28.0" 4 1/2 - 4 3/4 28.0" 4 1/2 - 4 3/4
27.5" 4 7/8 - 5 1/8 27.5" 4 7/8 - 5 1/8 27.5" 4 7/8 - 5 1/8 27.5" 4 7/8 - 5 1/8 27.5" 4 7/8 - 5 1/8
27.0" 5 1/2 - 5 3/4 27.0" 5 1/2 - 5 3/4 27.0" 5 1/2 - 5 3/4 27.0" 5 1/2 - 5 3/4 27.0" 5 1/2 - 5 3/4
26.5" 6 1/2 - 6 3/4 26.5" 6 1/2 - 6 3/4 26.5" 6 1/2 - 6 3/4 26.5" 6 1/2 - 6 3/4 26.5" 6 1/2 - 6 3/4
*Bottom cam draw stop location is referenced by centering the head of the Torx screw of stop with the draw stop reference numbers indicated on the
cam. This is the starting point for each draw length, slight adjustment either way or modifying string and cable lengths by twisting/untwisting may be
necessary. Once bottom cam draw stop is set, draw bow and set the top stop so it comes in contact with the top limb at the same time the bottom stop
comes into contact with the bottom limb.
**This refers to the bows peak draw weight.
Draw Length Adjustments

© Hanson Briggs Specialty Advertising Inc.
Changing Draw Weight
On the top side of one of the bottom limbs is a sticker that has the string and cable lengths as well as the bow's capable
peak draw weight. The peak weight is achieved by the limb bolts being completely tighten down. The peak draw weight
can be turned down 8 pounds with each bow model. With an Allen wrench loosen the top and bottom limb bolts. One full
turn reduces weight by approximately 2 pounds. Never back off more the 4 turns. Make sure the adjustment to the top
limb bolt and bottom limb bolt is identical. See Figure 3.
1665 Prosperity Rd • Decorah, IA 52101
1/19
Safety & Maintenance
• All models of Xpedition Archery bows should only be put in bow presses that compress by limb tip contact only.
• The strings have factory installed speed nocks. Changing or removing these will reduce the performance of your
bow.
• Avoid storing your bow in an environment where it is subject to high heat and always make sure the bow is dry
when storing.
• Never dry fire your bow. This will cause damage to your bow and make it unsafe to shoot.
• Before shooting, inspect arrows to insure there are no defects or damages such as cracks in the shaft or nock.
• Periodically apply a light coating of bowstring wax to the string and cables.
• Never attempt to shoot your bow without a nock set.
• Nock or D-loop should be set so that arrow sets at a 90 degree angle with the string.
• Never reduced the draw weight of the bow more than 8 pounds below the specified peak weight.
• Never draw bow without draw stops installed properly.
• Anytime a mod screw is removed, a dab of blue locktight should be applied for reinstall.
Draw Weight Adjustments

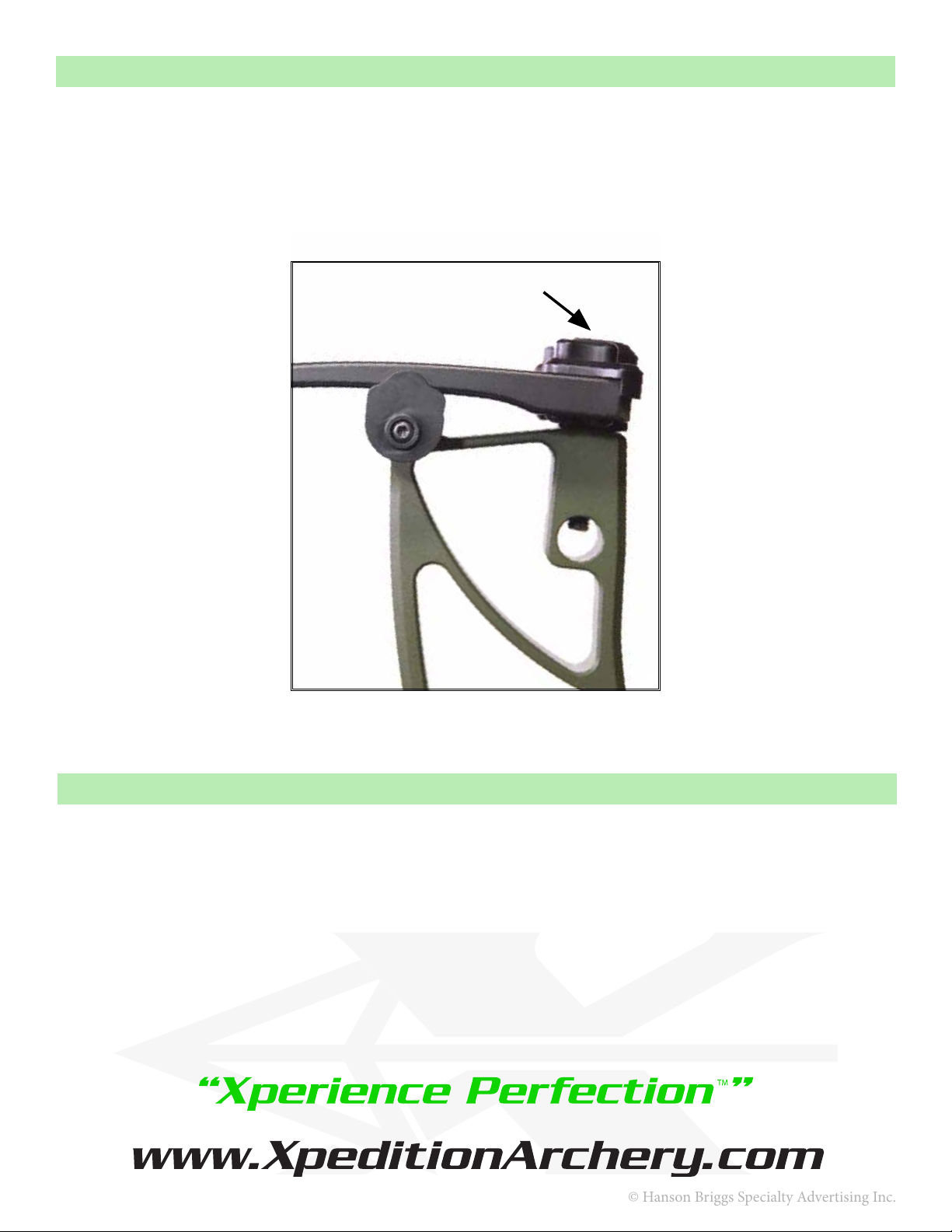

Figure 3 Allen limb bolt
