XPOtool 63361 User manual

Operation Manual

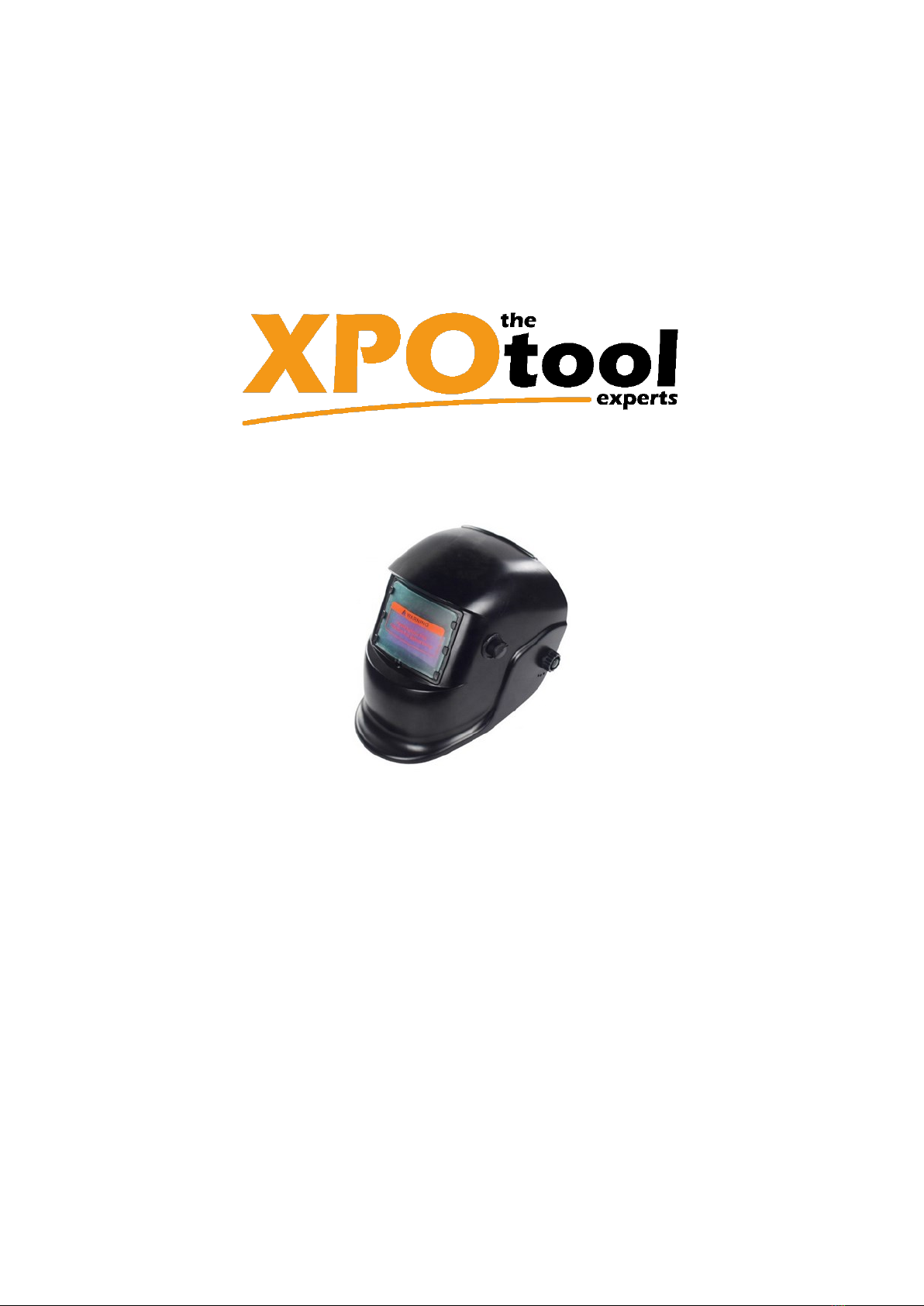

Auto Darkening Welding Helmet
63361, 63394, 63395
Illustration similar, may vary depending on model
Read and follow the operating instructions and safety information before using for the first time.
Technical changes reserved!
Due to further developments, illustrations, functioning steps, and technical data can differ insignificantly.
Updating the documentation
If you have suggestions for improvement or have found any irregularities, please contact us.

https://www.XPOtool.com Item 63361, 63394, 63395 Page 2
The Tool Experts
05 2022-1
The information contained in this document may alter at any time without previous notice. It is prohibited
to copy or spread any parts of this document in any way without prior written allowance. All rights re-
served.
The WilTec Wildanger Technik GmbH cannot be held accountable for any possible mistakes in this
operating manual, nor in the diagrams and figures shown.
Even though, the WilTec Wildanger Technik GmbH has undergone biggest possible efforts to ensure
that the operating manual is complete, faultless, and up to date, mistakes cannot be entirely avoided.
If you should find a mistake or wish to make a suggestion for improvement, we look forward to hearing
from you.
Send an e-mail to:
[email protected]
or use our contact form:
https://www.wiltec.de/contacts/
The most recent version of this manual in various languages can be found in our online shop via:
https://www.wiltec.de/docsearch
Our postal address is:
WilTec Wildanger Technik GmbH
Königsbenden 12
52249 Eschweiler
Germany
To return orders for exchange, repair, or other purposes, please use the following address. Attention!
To allow for a smooth execution of your complaint or return, it is important to contact our customer
service team before returning the goods.
Returns Department
WilTec Wildanger Technik GmbH
Königsbenden 28
52249 Eschweiler
E-mail: [e-mail]
Tel: [phone]
Fax: [phone]

https://www.XPOtool.com Item 63361, 63394, 63395 Page 3
The Tool Experts
05 2022-1
Introduction
Thank you for purchasing this quality product. To minimise the risk of injury we urge that our clients
take some basic safety precautions when using this device. Please read the operation instruc-
tions carefully and make sure you have understood its content.
Keep these operation instructions safe.
•It is your job to protect yourself and others from the hazards associated with welding. To do this,
you must familiarize yourself with the safety regulations for arc welding, the handling of high-
pressure gas cylinders and the general safety regulations.
•Arc welding produces fumes that are a potential health hazard. Always provide adequate venti-
lation.
•Never carry out welding work without adequate eye protection.
•Always wear appropriate safety equipment when welding.
•Make sure that the welding helmet is suitable for the work you intend to do and that all parts
and components are in good working order.
•Make sure that the solar cells that supply power to the welding helmet are in good working order
and ready for use.
•Adjust the headgear according to your head size.
•Set the dark shade state to the correct scale number according to the shade scale. Make sure
that the shade scale number you have chosen is correct and appropriate for the work to be
done.
• Warning! Make sure that the power supply is correct and ready for use. If not, replace
immediately with a new filter unit. Never use a welding helmet without power.
•If the welding current is high, set the sensitivity control to “Low.”
•Always check the front cover of the welding protection filter and make sure that it is clean and
that no dirt is covering the sensors of the filter cartridge.
•Check all parts of the welding protection filter and replace them if they are worn or damaged.
Scratches, cracks, or dents can cause serious injury.
•The welding helmet is equipped with an automatic switch-on function. When you put on the
welding helmet, the power turns on automatically.
•The welding helmet is not suitable for laser welding.
•The welding helmet and the filter cartridge must not be placed on hot surfaces.
•Never dismantle the auto-darkening filter.
•The welding helmet does not protect against heavy impacts.
•The welding helmet does not protect against explosive devices or corrosive liquids. Do not make
any modifications to the filter or helmet that are not described in this manual. Do not use spare
parts that are not specified in this manual. Unauthorized modifications and the use of unsuitable
spare parts will void the warranty and increase the risk of property damage and personal injury.
•If the welding helmet does not darken when the arc is ignited, stop welding immediately and
have the welding helmet checked by a qualified specialist.
•The welding helmet may only be used at temperatures from -5 ℃ to 55 ℃.
Shade Setting
•Turn the shade pre-set knob to a suitable scale according to the welding procedure and the
welding table. The shade scale can be manually adjusted continuously between DIN 9 and
DIN 13.
•The sensitivity is adjusted with the sensitivity control. The sensitivity can be adjusted clockwise
from low to high. When the welding current is high, the sensitivity must be low, and when the
welding current is low or when welding with direct current, the sensitivity must be high. The
sensitivity must be set according to the welding process. If the welding ampere and DC current
are low, the pulse values are low or non-pulse welding is used, a high sensitivity must be used.
•The recovery time can be adjusted with the delay control. Depending on the welder's needs, the
recovery time can be set from 0.1 s to 0.8 s.

https://www.XPOtool.com Item 63361, 63394, 63395 Page 4
The Tool Experts
05 2022-1
•-When the knob is turned to “grind,” the darkening function is switched off, allowing a clear view
for grinding a weld. The helmet then serves as a face shield. Make sure that the shade function
is turned back on before welding again.
Warning! Do not weld in direct sunlight when using this welding helmet!
Operation
When you are sure that you are familiar with all the above information and everything is ready for using
the welding helmet, follow the instructions below:
1. When you put on the welding helmet, the unit switches on automatically.
1. Put the helmet on. At this moment you should be able to see your workpiece and the surround-
ing area clearly.
2. Try a strike. The viewing window will immediately switch to the darkness shade you have set.
Otherwise, readjust the sensitivity. If this fails, stop immediately and check the welding helmet.
Do not use the helmet if you are not sure that it is working properly.
3. Always turn the sensitivity control to “Low” when you have finished working. Put the helmet
down with the face shield facing downwards so that the unit switches off automatically.
Caution!
•When welding with low ampere, DC welding or low/non-pulse welding, keep away from strong
ambient light, especially direct sunlight.
•When the welding helmet is removed or stored, the filter sensors of the helmet should always
point downwards and the sensitivity control should be turned to “Low.”
Maintenance and care
•There are no components/parts that need to be repaired by the user.
•The user must not remove the automatic blackout filter. The filter must be removed by a qualified
professional.
•The welding helmet can be cleaned with a clean, lint-free fabric or cotton cloth.
•Do not immerse the visor in water or other liquids. Never use abrasive cleaners, solvents, or oil-
based cleaners.
•Do not attempt to open the auto-darkening welding filter.
•Do not immerse the filter in water.
•Do not use solvents on the filter or the helmet parts.
•Protect the filter from contact with liquids and dirt.
•Clean the surfaces of the filter regularly. Do not use harsh cleaning solutions. Always keep the
sensors and solar cells clean with a clean, lint-free cloth.
•Replace the face shield regularly if it is cracked, scratched, or chipped.
Storage
•The helmet and the welding filter must be stored in a dry, well-ventilated place. Do not expose
the helmet to direct sunlight.
•The storage temperature is –20 ℃ to +70 ℃.
•Make sure that the welding filter does not get dirty.

https://www.XPOtool.com Item 63361, 63394, 63395 Page 5
The Tool Experts
05 2022-1
Specifications
Filter size (㎜)
110 × 90 × 9
Arc sensors
2
Power supply
Solar cells and Lithium Ion backup batteries
Ultraviolet ray transmittance rate (%)
313–365 nm: < 3.,4×10–6
Infrared ray transmittance rate (%)
780–1300 nm: < 0.0027
1300–2000 nm: < 0.0097
Switching time bright/dark (s)
1⁄30.000
Recovery time dark/bright (s)
0.1–0.8
Temperature (℃)
–5–+55
Dark shade range
DIN 9–13, adjustable on the outside
Light shade number
DIN 4
Sensitivity control
Yes
Delay time control
Yes
Grinding function
Yes
Replaceable lithium battery
Yes
Welding chart
ARC CURRENT (A)
WELDING PROCESS
10
20
30
40
60
80
100
125
150
175
200
225
250
275
300
350
400
450
MMA
9
10
11
12
13
MIG (heavy metal)
10
11
12
13
MIG (light metal)
10
11
12
13
MAG
10
11
12
13
TIG
9
10
11
12
13
SAW
10
11
12
13
PAW
9
10
11
12
13
PAC
11
12
13
•MMA = Manual metal arc welding
•MIG = Metal inert gas welding
•MAG = Metal active gas welding
•TIG = Tungsten inert gas welding
•SAW = Submerged arc welding
•PAW = Plasma arc welding
•PAC = Plasma arc cutting
Important notice:
The reprint or reproduction, even of excerpts, and any commercial use, even in part, of this instruction
manual require the written permission of WilTec Wildanger Technik GmbH.
