XPower AP-2500D User manual

Air Scrubber Owner's Manual
Model
AP-2500D
(115V~60HZ)
Read and save these instructions
Index: NA-1-A40
Edition: 1.1.Final
www.xpower.com | 1-(855)-855-8868 | [e-mail]

English - 2
Safety Instructions
WARNING - READ AND SAVE THIS INSTRUCTIONS BEFORE USING THIS PRODUCT.
The user of electrical products may create hazards that include, but are not limited to
injury, fire, electrical shock. Failure to follow these instructions may damage and/or
impair its operation and void the warranty.
• Before operating, remove all packaging material and check for any damage that may
have occurred during shipping or any missing items.
• Check power supply to ensure it matches the appliance’s specification.
• DO NOT operate any fan with a damaged cord or plug. Discard fan or return it to an
authorized service facility for examination and/or repair.
• Use only on GFCI protected receptacles. Please contact a qualified electrician for
verification and / or installation of a GFCI receptacle if necessary.
• DO NOT run cord under carpeting. DO NOT cover cord with throw rugs, runners, or
similar coverings. DO NOT route cord under furniture or appliances. Arrange cord away
from traffic area and where it will not be tripped over.
• To reduce the risk of fire or electric shock, DO NOT use this machine with any solid-
state speed control device.
• DO NOT touch this appliance or the plug with wet hands or while standing in water.
• DO NOT operate the appliance in any pooled water.
• DO NOT use the product in areas where gasoline, paint or other flammable goods and
objects are used or stored.
• DO NOT insert or allow objects to enter any ventilation or exhaust opening as this may
damage the appliance and void the warranty.
• DO NOT cover the air inlet or outlet on the appliance.
• DO NOT direct the air flow at human faces or bodies.
• DO NOT allow children to play with this appliance.
• AUTOMATICALLY OPERATED DEVICE – To reduce the risk of injury, disconnect from
power supply before servicing.
• Remove the power cord from the electrical receptacle by grasping and pulling on the
power cord plug-end only, DO NOT pull the cord directly.
• DO NOT attempt to repair or adjust any electrical or mechanical functions of this
appliance, as this may cause danger and void the warranty.
• If the appliance is damaged or it malfunctions, DO NOT continue to use it. Unplug the
product from the electrical outlet. Refer to troubleshooting guide or contact XPOWER.
• Store in a dry area, away from exposure to sunlight, extreme temperature and humidity,
or other extreme environments, when not in use.
• An electronic instruction manual can be obtained through website: www.xpower.com.
!

English - 3
1
2
3
4
5
6 7 8
910
11
12
15
16
17
18 19 20
21 22 23 24 25 28
29 30
31 32 33
34
35
36
37
26 27
13 14
Parts Description

English - 4
Items Included
XXXManual De Usuario (página 10)
XXXMode d'emploi (page 18)
Model / Modelo / Modèle:
(115V 60HZ)
Readand save these instructions before use
Leay guarde estas instrucciones antes de usar la unidad
Lireet conser ver ces instructions avantutilisation
• Owner’s Manual x 1• Air Scrubber x 1
(1) Inlet Grille Cover Screw
(2) Inlet Grille Cover
(3) Rigid Polyester Filter
(4) Pleated Media Filter
(5) Plastic V-Shaped HEPA
Filter
(6) Motor Housing Fixator
Assembly
(7) Motor Fixator
(8) Motor Right Housing
(9) Heat Insulation Plate
(10) Motor
(11) Bushing
(12) Fan
(13) Motor Left Housing
(14) Motor Control Circuit
Board Assembly
(15) Rivet Nut
(16) Filter Fixator
(17) Flange Nut
(18) Handle Cover
(19) Handle Tube
(20) Housing
(21) Air Quality Sensor Cover
(22) Air Quality Sensor
(23) Power Switch
(24) Speed Switch Knob
(25) Control Panel
(26) Speed Switch Circuit
Board
(27) Circuit Breaker
(28) Air Quality Sensor Box
(29) Pressure Gauge
(30) Power Cord Container
Cover
(31) Power Cord
(32) Wheel Assmebly
(33) Wheel Chassis
(34) Handle Screw Sleeve
(35) Handle Screw
(36) Rubber Pad
(37) Motor Inlet Grille Cover

English - 5
Installation and Operation Guide
Extension Setup (Optional)
Exhaust Ducting
• Turn off the machine.
• Attach the ducting hose to
the exhaust.
Selecting a Location (Important)
• Enclosed Area: For optimal efficiency and longer filter lifespan, the Air Scrubber should
be operated in an enclosed area. Keep all doors, windows and other outside entrances
to the room closed.
• Air Circulation: It’s suggested to have a constant efficient air circulation inside your
working area.
• Environment Humidity: For optimal efficiency and higher filter lifespan, the Air
Scrubber should not be operated in an environment with a high relative humidity level.
High humidity level could cause blockage and damage to filters.
• Power Cord: The power cord has a length of 25 feet (7.6 meters). Select a location
where the power cord can reach the power source.
• Inlet and Outlet Orientation: Also pay attention to the orientation of the air inlet and
air outlet. Make sure the airflow won’t influence any object nearby the Air Scrubber.
• IMPORTANT: The effectiveness of the Air Scrubber can be influenced by different
factors. You may also find that installing multiple Air Scrubbers may be required for
larger enclosed areas.

English - 6
Air Quality Monitor
• When this monitor blinks, it indicates the Air Quality Sensor is now preparing for
detection.
• The digital display will show the concentration of fine particulate matter (PM2.5) in the
environment in μg/m3.
• The index light will indicate the air quality category of the environment. According to the
Air Quality Index developed by the United States Environmental Protection Agency (EPA),
the index light corresponds to different levels of health concern as below:
Control Panel
Circuit BreakerAir Quality Monitor
Power Switch Speed Switch
Air Quality Sensor
Pressure Gauge
R
E
S
E
T
P
R
E
S
S
T
O
0
1
0
0
2
0
0
3
0
0
4
0
0
5
0
0
OFF
MAX
MIN
Air Quality
Good Moderate Poor
Circuit BreakerAir Quality Monitor
Power Switch Speed Switch
Air Quality Sensor
Pressure Gauge
R
E
S
E
T
P
R
E
S
S
T
O
0
1
0
0
2
0
0
3
0
0
4
0
0
5
0
0
OFF
MAX
MIN
Air Quality
Good Moderate Poor
Circuit BreakerAir Quality Monitor
Power Switch Speed Switch
Air Quality Sensor
Pressure Gauge
R
E
S
E
T
P
R
E
S
S
T
O
0
1
0
0
2
0
0
3
0
0
4
0
0
5
0
0
OFF
MAX
MIN
Air Quality
Good Moderate Poor
Circuit Breaker
If the machine stops working, pressing the RESET BUTTON to reset the machine.
Power Switch
• Turn to “O” position to switch the Air Scrubber OFF. Turn to “I” position to switch the Air
Scrubber ON.
Index Light Levels of Health Concern according to the AQI by EPA
Green / Good Good
Orange (Yellow) /
Moderate
Moderate or, Unhealthy for Sensitive Groups
Red / Poor Unhealthy, or Very Unhealthy, or Hazardous

English - 7
Wheels
Trolley
Handle Exhuast
Transportation
Control Panel (Continued)
Transport with Trolley Handle
• Press down the trolley handle to tilt up the air scrubber on the wheels.
• Push forward to transport with the trolley handle.
Speed Switch
• Turn to “OFF” position to switch the Ventilateur Axial OFF. Turn clock-wisely to any
position between “MAX” and “MIN” to switch the Ventilateur Axial ON.
• You can adjust to any desired speed variably. “MAX” is the highest speed and “MIN” is
the lowest speed.
Preesure Gauge
This measures the negative pressure between the motor inlet and filter outlet. If the
negative pressure exceeds 350 Pascals, it indicates that the filters might have exceeded
the maximum capacity of particles, and the filtration efficiency as well as the airflow
have diminished. You should check, clean or replace the filters. (See Page 9: Filter
Maintenance)

English - 8
User Maintenance Instructions
Frequent maintenance is recommended on this appliance. Failure to follow the
maintenance instructions may cause failure of the appliance and void the warranty.
Before performing any maintenance or cleaning, always disconnect the Air Scrubber from
its power source.
Machine Maintenance
• When not in use, unplug, and uninstall power cords and all the extensions. Store the
appliance in a dry and cool indoor place. Make sure it’s out of reach of children.
• Use a damp cloth to wipe the surface of the housing. Do not clean the unit with water
directly.
• Check if the grille covers are clean. Remove dirt or any other objects that could block
the air inlet and air outlet.
Organize the Cord
• Power cord can be stored into the power cord container at the rear of the air
scrubber.
REAR VIEW
Trolley
Handle
Power
Cord
Container
Control
Panel
Power
Cord

English - 9
Clean the filters (See Also Page 3: Parts Description)
• Rigid Polyester Filters*: These filters are washable with water. Use a vacuum or clean
cloth to remove loose debris. And then further clean the filter with water. Use a cloth to
remove the water on the filter and dry it naturally in the air.
• Pleated Media Filters: This filter is not washable. Use a vacuum to remove loose
debris. If filter change light still illuminates, you might need to replace the filter.
• HEPA Filters*: This filter is not washable or reusable. Highly concentrated particles are
captured by the HEPA filter and cleaning this filter can be hazardous to human health
and contaminate the nearby environment. You must replace the filter if all the other
filters are clean and however the filter clean/change light still illuminates.
Filter Maintenance
Unload the filters (See Also Page 3: Parts Description)
To ensure the best filtration efficiency and to prevent secondary pollution of used filters,
you should replace or clean the filters frequently or when the filter clean/change light
illuminates. Please follow the instructions below.
• Screw off the screw on the inlet grill cover and take out the inlet grill cover.
• Screw off the 4 screws on sides, and release the filter fixator.

English - 10
Reload the filters
To ensure the best efficiency and lifespan, each filter must be reloaded in a correct
position, sequence and orientation.
WARNING: DISPOSAL OF FILTERS NO LONGER IN USE
The particles captured by a used filter can cause adverse human health effects and
contaminate the nearby environment once the filter is exposed to the open air. Adequate
personal protection equipment (PPE) is required during the whole process, for example,
industry approved masks, eye protectors, gloves and coveralls. You should place the used
filters in a sealed plastic bag before disposing. Follow local disposal regulations.
!
Tips:
• On one of the side of each filter,
there is a label with an arrow
showing the airflow direction.
• When placing the filter, the side
with label should face up. The
arrow on the label should point
to the exhaust.
Airflow Direction
* All replacement filters are available on www.xpower.com.
Filter storage
• When not in use for a long time, you should store the filter separately from the
machine.
• Always clean the filters before storage. Place the filters in a sealed plastic bag and
store it in a dry and cool indoor place.

English - 11
Troubleshooting Guide
If troubleshooting does not resolve your problem, please contact XPOWER or other
parties authorized by XPOWER for further instructions.
PROBLEM POSSIBLE CAUSE SOLUTION
Air Scrubber does
not start
No electricity. Check for power supply.
The power cord is not properly
plugged in.
Remove and reconnect the
power cord.
The circuit breaker on the
additional electrical receptacle
(Daisy chain) trips.
Remove all appliances on
the additional electrical
receptacle and press circuit
reset button.
Unit runs but no
or very low air
movement
Air outlet is blocked. Remove blockage.
Filters are fully loaded. The
filter clean/change light
illuminates.
Clean or replace the loaded
filters. (See Page 8: Filter
Maintenance)
The additional
electrical
receptacle has no
power
The circuit breaker trips. Press circuit reset button.

English - 12
Technical Specication

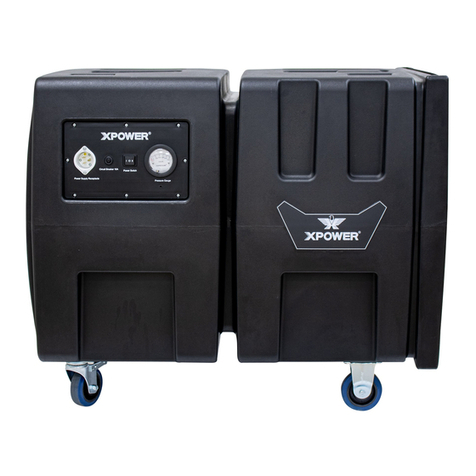

MODEL NUMBER AP-2500D
Voltage/Frequency 115 V~60 Hz
Amperage 8.0 A
Rated Airflow 2000 CFM
Speed Control Variable Speeds
Cord Length 25 ft. / 7.6 m
Unit Dimension
(L) x (W) x (H) 29.4 x 26.7 x 38.8 in. / 74.8 x 67.8 x 98.6 cm
Unit Weight 98.66 lbs. / 44.75 kg
Machine Specication
FILTER MODEL
NUMBER Type of Filter Size Thickness Function
RP-24 Rigid Polyester
Filter
24 x 24 in.
1 in.
Primary filtration for
visible and coarse
particles.
PF-24 Pleated Media
Filter 1.8 in. Medium filtration for fine dust.
HEPA-300-PV Plastic V-Shaped
HEPA Filter 12 in. Final filtration for micro particles.
Filter Specication

English - 13
1 YEAR LIMITED WARRANTY
XPOWER-branded products purchased in the U.S. from authorized distributors include
a 1-year limited warranty. Contact XPOWER to confirm warranty information about your
product(s).
This limited warranty covers defects in materials and workmanship in your XPOWER-
branded products, purchased in the U.S. ONLY. Local warranty policy (if any) in your
country will cover products purchased outside the U.S.
XPOWER Limited Warranty (USA)
Items mentioned but not limited to below are not covered by warranty:
(1) Power cord, filters or any other components considered as a “consumable parts” by
XPOWER.
(2) Normal wear and tear.
(3) Problems that result, directly or indirectly, at XPOWER’s sole discretion, from:
(3.1) External causes such as accident, abuse, misuse or problems with electrical power
supply.
(3.2) Disassembling, servicing or modification not authorized by XPOWER.
(3.3) Usage that is not accordant with product instructions stated in Owner’s Manual.
(3.4) Failure to follow the product instructions or lack of necessary maintenance stated
in Owner’s Manual.
Before contacting XPOWER, please try one or more of the following:
(1) Consult this Owner’s Manual and follow the instructions of troubleshooting guide.
(2) Access www.xpower.com for more advice and information that could be helpful to
address your problems.
If you need additional assistance from XPOWER, please:
(1) Email [e-mail].
(2) Call XPOWER U.S. Customer Service Department at 855-855-8868 or other numbers
provided on www.xpower.com.
(3) Visit XPOWER U.S. Head Office at 668 S. 6th Ave., City of Industry, CA 91746 USA or
the most current address provided on www.xpower.com.
Please also have your original proof of purchase and the serial number(s) of your
product(s) ready when you contact XPOWER.
IMPORTANT:
(1) Please finish the online warranty registration before usage. Visit www.xpower.com/
service-support/warranty-registration.
(2) This Limited Warranty applies with its own timeliness. Contact XPOWER or visit
www.xpower.com for more information.
!

English - 14
If you are instructed to return the unit for service or replacement, please:
(1) Request a RMA (Return-Merchandise-Authorization) number.
(2) Use the original or an equivalent packaging, prepay shipping charges at your own
expense to the address provided by XPOWER, with the RMA number on the shipping
label or the packaging.
(3) Include all the original parts and components.
XPOWER will inspect, assess and advise the repairs needed and applicable cost, if any.
For products under warranty, we will pay to ship the repaired or replaced product(s) to
you if you use an address within the Contiguous United States. Otherwise, we will ship
the product(s) to you at your own expense.

English - 15

Read and save these instructions
Index: NA-1-A40
Edition: 1.1.Final
www.xpower.com | 1-(855)-855-8868 | [e-mail]
668 S. 6th Ave.,
City of Industry, CA 91746 USA
XPOWER Manufacture, INC.
