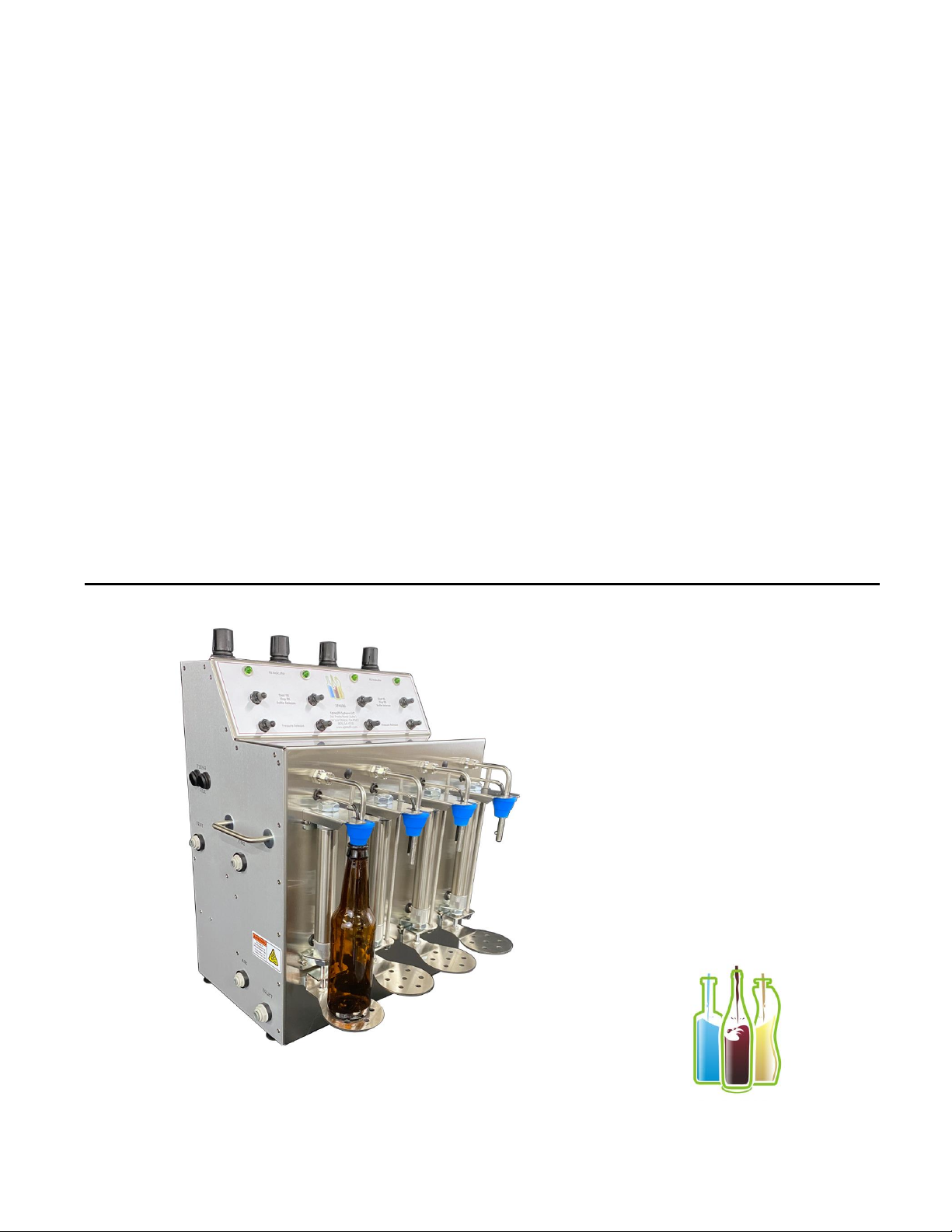

XpressFill XF4500 User manual

XpressFill XF4500

Congratulations on the purchase of your XpressFill Bottle filling machine.
Thank you for choosing our handcrafted bottle filler as the technology to bottle your passion. We look forward to
assisting you in experiencing the best performance from your filler.
This manual is written with your safety and convenience in mind. We highly recommend reading the manual before
using your filler for the first time.
If you have any questions or comments, please do not hesitate to contact us.
XpressFill Systems LLC
265 Prado Road, Suite 1
San Luis Obispo, CA 93401
US
805.541.0100
Toll free 844.361.2750
[email protected]
www.xpressfill.com
Important Safety Instructions
Misuse of the bottle-filling machine can result in serious injury or death. Do not use the machine in any way not
covered in this manual or for any purpose other than those explained in the following pages.
Severe product damage and/or injury could result from the use of unqualified Service Technicians or non-original
replacement parts. All repairs must be performed by a qualified Service Technician or with the approval from an
XpressFill Technician. Only original factory replacement parts should be used.
Electrical shock or fi re could result if the electrical supply for the bottle filler covered in this manual is not correctly
installed or if the bottle filler has been improperly grounded. Do not use the bottle filler covered in this manual
unless you are certain the electrical supply has been correctly installed and the bottle filler has been properly
grounded.
265 Prado Road, Suite 1 | San Luis Obispo, CA 93401 | 805.541.0100 | xpressfill.com | [email protected]
3| XpressFill Systems LLC

Safety Warnings

Table of Contents
1Introduction
2Know Your Filler
3Set Up Your Filler
4Operating Procedures
5Troubleshooting
6Cleaning and Sanitizing
7Additional Information
265 Prado Road, Suite 1 | San Luis Obispo, CA 93401 | 805.541.0100 | xpressfill.com | [email protected]
5| XpressFill Systems LLC
1
Introduction
XpressFill Product Guarantee
We guarantee our products to be free of defects in materials and workmanship. The filler will be repaired or replaced
if, upon inspection at the factory, the filler is found to be defective in materials or workmanship.
This guarantee does not apply to damage resulting from normal wear and tear, accident, abuse, negligence or
shipping. The guarantee may be rendered invalid if the customer has made repairs or alteration to the machine
without first consulting XpressFill Systems LLC.

2
Know Your Filler
1. Fill indicator light
2. Bottle pressure adjustment
3. Fill toggle switch (3 positions)
∙ Start fill
∙ Stop fill
∙ Bottle release
4. Pressure release switch
5. Bottle foot rest
6. Upper spout / product filling
7. Lower spout / pressurizing, venting & release
8. Bottle neck filling stopper
9. Pneumatic ram
265 Prado Road, Suite 1 | San Luis Obispo, CA 93401 | 805.541.0100 | xpressfill.com | [email protected]
6| XpressFill Systems LLC
The below diagram highlights the important features on your filler, which will be referenced throughout this manual.
Being familiar with each of these and their functions will make your filling experience easier.
2
1
3
4
5
6
7
8
9
Detail Highlight

1. Fill Indicator Light: This green light will turn on
when the fluid solenoid valve is getting a signal to
open.
2. Bottle Pressure Adjustment Knob: This knob allows
you to adjust the pressure inside your bottle. Turning
the knob counterclockwise will lower the pressure,
while turning it clockwise will increase the pressure.
This will typically only need to be adjusted when
starting a new filling session and during cleaning.
3. Fill Switch: The three (3) position fill switch turns
the fill cycle on (up position), turns the fill cycle off
but maintains a seal (center position), and releases
the bottle supporting foot rest after the bottle
pressure has been safely released (down position).
4. Pressure Release Switch: This switch electrically
activates a pressure release valve to release the
pressure inside your bottle. It will be used at the end
of each fill sequence or in an emergency.
5. Bottle Foot Rest: These feet will hold your bottle
securely in place once the fill sequence is started.
Avoid putting your hands between the bottle and the
foot to prevent injury.
6. Larger Spout: This spout is used for the gas flush
and filling sequences of the bottle.
7. Smaller Spout: This spout is vented to relieve the
pressure in your bottle and acts as the sensor for the
automatic shut off of the level filling system.
8. Stopper: The stopper seals your bottle and helps to
control the level your bottles is filled to. While the
stoppers are already set for the level of a typical
12 oz. beer bottle, they can be adjusted up and down
on the spout to fill to your own specifications.
9. Pneumatic Ram: The pneumatic ram raises the
bottle and foot rest and is activated when the filling
sequence begins.
265 Prado Road, Suite 1 | San Luis Obispo, CA 93401 | 805.541.0100 | xpressfill.com | [email protected]
7| XpressFill Systems LLC

265 Prado Road, Suite 1 | San Luis Obispo, CA 93401 | 805.541.0100 | xpressfill.com | [email protected]
8| XpressFill Systems LLC
3
Setting Up Your Filler
and Filling Your First Bottle
Required Equipment
•XF4500 bottle filler
•Pressurized CO2 tank and 1/4" hosing (an additional CO2 tank can be used or a ‘Y’ fitting from your CO2 tank)
•Air compressor and 1/4" hosing
•Outlet container and 1/4" hosing
(See Figure 2 on page 9)

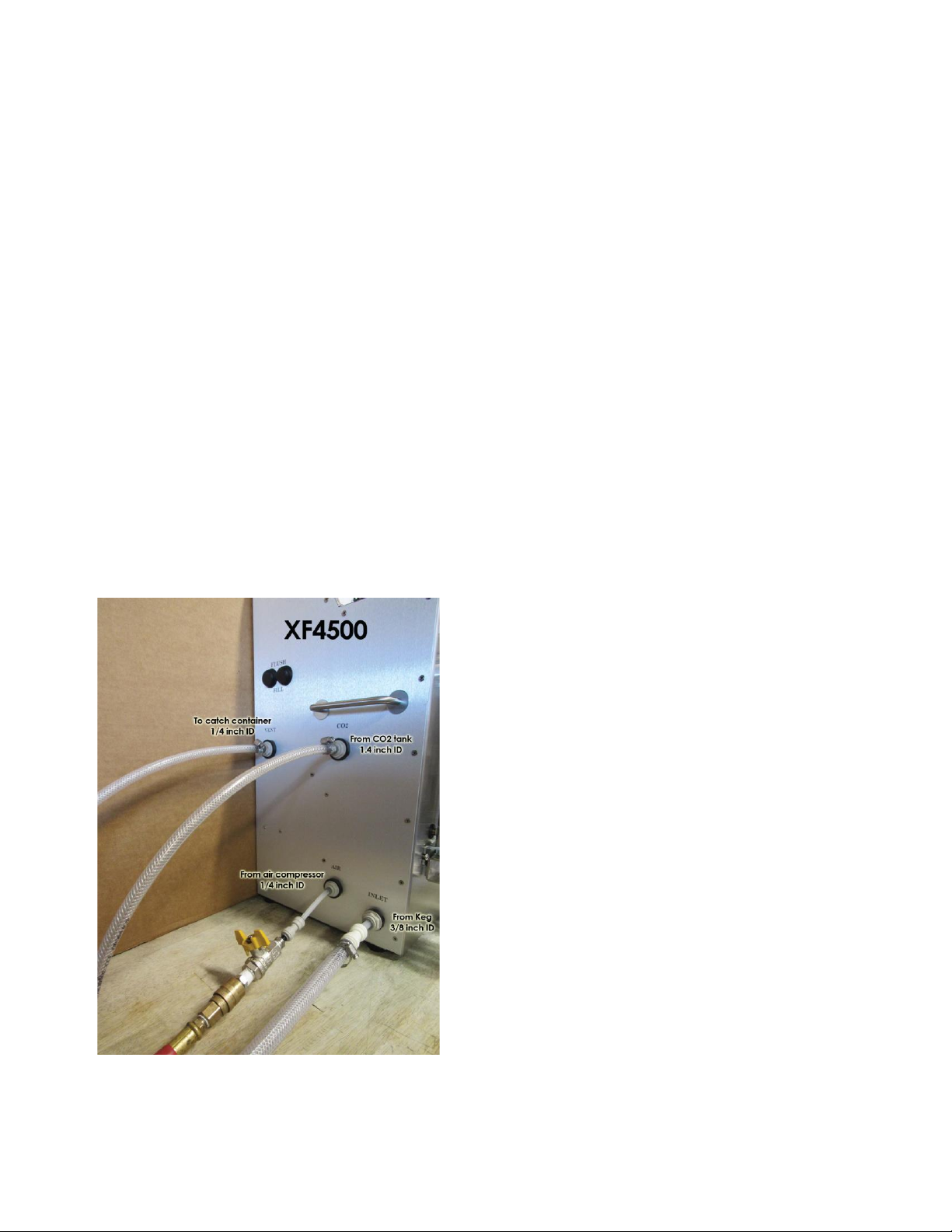

Connect the air/CO2 and inlet from the keg hosing
to their respective attachment points shown in
Figure 1.
Note: Some air/CO2 and liquid will come out of
the vent in operation. The output labeled “Vent”
should be connected to a container to collect any
liquid.
Figure 1

265 Prado Road, Suite 1 | San Luis Obispo, CA 93401 | 805.541.0100 | xpressfill.com | [e-mail]
9| XpressFill Systems LLC

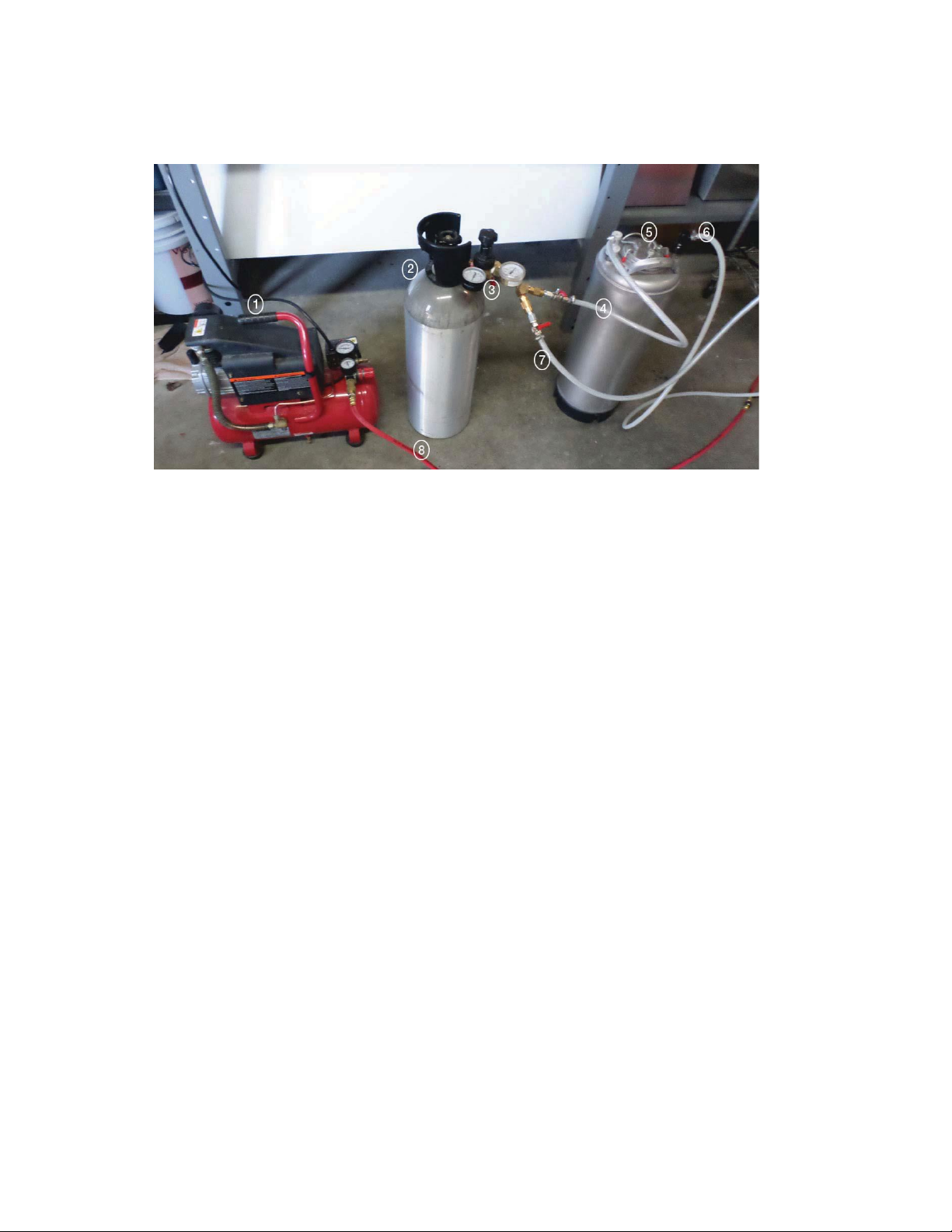

1. Air compressor
2. CO2 tank
3. CO2 regulator
4. CO2 line to keg inlet
5. Pressurized keg
6. Line to “Inlet” input on filler
7. CO2 line to “CO2” input on filler
8. Compressed air line to “Air” input on filler
The recommended operating pressures for the CO2 and air compressor are listed below. Please keep in mind that
varying temperatures and product properties will mean that adjusting the pressures will be necessary for your
product. You are encouraged to adjust these pressures carefully until you find a combination that works for your
product and bottling environment.
Pressure Recommendations
Air: 30 psi recommended
CO2: 30 psi recommended
Tip: Please see page 12 for “Adjusting Pressure” to set pressures outside the recommended settings.
Warning: Follow the recommended settings of the equipment you are using. Exceeding manufacture recommended
settings may result in injury to self and others, as well as damage and/or failure of the machine.
Figure 2

265 Prado Road, Suite 1 | San Luis Obispo, CA 93401 | 805.541.0100 | xpressfill.com | [e-mail]
10 | XpressFill Systems LLC
4
Operating Procedures
Step By Step
1. You will first want to unpack your filler from the
shipping box and spread the components out on a
large flat surface. Make sure that you also have the
following:
a. Pressurized CO2 tank with regulator and
connecting hosing (we recommend a wye as well,
see setup diagram for details).
b. Air compressor and 1/4" hosing
c. A small (.5 liter or so) catch container for
collecting vented liquid.
2. Place your filler on a flat surface where you plan to
bottle, ensuring that you have access to a standard
wall outlet or extension cord. Place the liquid and
CO2 tanks, as well as the air compressor, nearby.
3. Attach the support legs by sliding the legs between
the enclosure and the rubber feet. The support legs
should extend forward, however if you extend them
out the back you need to clamp them to the flat
surface.
4. Begin by plugging the provided power cord into your
machine, and then plug it into the wall outlet. Flip the
Power Switch on the right side to turn on the filler.
Confirm the cleaning switches on the left side are in
the down position (Fill Mode).
5. Toggle the fill switches to the full up position (Start
Fill Position). Wait a few seconds to verify that the
green fill light illuminates.
6. Flip the fill switch back down to the Release Bottle
Position, the green fill light will turn off.
7. Once you are sure the filler is powering up
properly, turn off the power switch on the right
side of filler.
8. Make sure the Pressure Relief Switch is in the off
position (Down).
It is highly recommended that water be used during the initial set up procedure. Water allows you to familiarize
yourself with the filler by removing most variables related to your product, for ease of operation, and the
reduction of waste of your product.

265 Prado Road, Suite 1 | San Luis Obispo, CA 93401 | 805.541.0100 | xpressfill.com | [e-mail]
11 | XpressFill Systems LLC
The valves on the tanks should be off for steps 9-11
9. Plug the hose from your liquid container into the port
marked “Inlet” on the left side of the machine using
one of the provided 3/8” barbed fittings.
See “Adjusting Pressure” on page 12.
10. Plug one end of the provided 4’ x 1/4” tube into the
port marked “Vent” on the left side of the machine,
and place the other end into your catch basin.
11. Plug your air compressor into the port marked “Air”
on the left side of the machine using one of the
provided 1/4” barbed fittings.
12. Plug your CO2 tank into the port marked “CO2” on
the left side of the machine using one of the
provided 1/4” barbed fittings.
13. Once you are sure that all components are plugged
in correctly, you can open the valves on your tanks
and turn on the air compressor.
14. Turn on your machine by flipping the power switch
on the right side of your machine so that is it lit up.
15. You are now ready to place a bottle on your
machine. While pressing down on the Bottle Foot
Rest, place a bottle on the Bottle Foot Rest and
allow the return spring to lightly hold the bottle
against the stopper.
Note: During the purge process, the bottle will
temporarily unseat from the stopper to allow air to
escape.
16. Make sure the Pressure Release Switch is in the off
position (DOWN).
Always keep your hands clear of the bottle and foot
rest during step 17.
17. Flip the Fill Switch to the full up position. The filler
will purge the bottle for a few seconds, after which
the Bottle Foot Rest will immediately lift the bottle
into a sealing position against the stopper and
pressurize the bottle.
18. After the purge and bottle pressurization, the fill
light will come on and liquid begins to flow into the
bottle. If no flow is visible, then the Pressure Relief
needs adjustment.
See “Adjusting Pressure” on page 12.
Repeat steps 15 –18 for the other spouts.
19. Once the green fill light deactivates, put the Fill
Toggle Switch to the middle position (do not flip to
the full down position), then you can turn on the
Pressure Release Switch (UP).
20. Hold the bottle with one hand and flip the Fill
Toggle Switch to the full down position to release
air in the pneumatic ram and remove the bottle.
Note: You can use the silicone surgical tubing included
to fill from the bottom of the bottle or even halfway to
the bottom.
Congratulations,
you have now filled your first bottle using
the XF4500 Counter-Pressure Filling System!

265 Prado Road, Suite 1 | San Luis Obispo, CA 93401 | 805.541.0100 | xpressfill.com | [e-mail]
12 | XpressFill Systems LLC
Adjusting Pressures
It is the pressure differential between keg/brite tank pressure and bottle pressure that determines the rate of filling,
amount of foam and retention of CO2 in your product. Therefore, adjusting either or both pressures can result in a
more favorable fill.
1. Each spout must have its bottle pressure set individually.
2. The pressures during filling are adjusted to obtain a quick rate of filling with limited foaming. Excessive foaming
will trigger the fill sensors and stop filling prematurely. The bottle will begin filling again as the foam settles, but
this significantly slows down the filling rate.
3. Typical maximum inlet pressures from a keg or brite tank are 30 psi and 15 psi, respectively.
4. Turning the Bottle Pressure Knob counterclockwise will start venting the pressure in the bottle and allow product
to flow into the bottle. The more the bottle vents, the quicker it will fill, but foam can start to develop. The Bottle
Pressure Knob can be adjusted to achieve an acceptable rate of fill as evidenced by the visual presence of limited
foaming.
5. The inlet pressures can also be adjusted in conjunction with bottle pressures to change the filling rate and foaming
characteristics.

If at any time you have issues with the setup or adjustment of your XF4500 bottle filling machine, or any other
questions about filling your product, please contact us at the number listed at the front of this manual. We are always
happy to assist you.
Excessive Foaming
Excessive foaming is usually the result to the keg pressure not being high enough, too high fluid temperature, or the
indicated pressure on the filler gauge is too low. The difference between the keg pressure and the counter pressure
indicated on the filler should be around 5 psi. The higher the pressure, the more CO2 will stay in solution.
Turning the Bottle Pressure Adjustment Knob clockwise will increase the bottle pressure and reduce foaming.
The higher the bottle pressure and lower the temperature, the more CO2 will stay in solution.
265 Prado Road, Suite 1 | San Luis Obispo, CA 93401 | 805.541.0100 | xpressfill.com | [e-mail]
13 | XpressFill Systems LLC
5
Troubleshooting
Premature Shut Off
The XF4500 is a Level Fill Machine, meaning when liquid
touches a spout and probe, it will automatically shut off. If
moisture is allowed to collect between the spout and the probe,
the filler will shut off prematurely, stopping the fill or not
allowing the fill to begin at all, which is characterized by the
green LED fill indicator light to flash quickly and stay off as the
machine senses a full bottle is in place.
Dry the area between the spout and the probe with a clean
towel or use the compressor to air dry. Once completely dry, the
fill will resume.

6
Cleaning and Sanitizing
Cleaning your XpressFill is quick and easy, and is the single most important maintenance you can administer to
ensure long life and solid performance from your filler. Please use extreme caution when using any cleaning
product.
For general cleaning, we highly recommend a product called PBW by Five Star Chemicals. It is safe, fast, and
effective, and our customers have been happy with the results. To clean your XpressFill, begin by flushing your
filler with 2 gallons of plain warm (not boiling) water from a pressurized keg, which is pressurized with air. Follow
that with a 3-gallon mix of PBW cleaner, and let the PBW sit inside your filler for a few minutes in order to do its
cleaning job. Follow the cleaning with a sanitizer.
For sanitizing, we recommend Saniclean, from the same manufacturer. Saniclean has low foaming
characteristics, is highly effective, and completely food grade if diluted correctly per the manufacturer’s instructions.
Use the sanitizer with about 3 gallons of water, and follow the steps according to the manufacturer’s instructions.
After sanitizing, flush your filler with 2 gallons of warm water. Before storing your XpressFill filler, make sure you
get all water out of the flow path. Allow to run until pressurized keg with cleaning solution is empty and runs dry,
blowing the remaining water out of the filler vent.
See step-by-step instructions and diagrams on the following pages.
265 Prado Road, Suite 1 | San Luis Obispo, CA 93401 | 805.541.0100 | xpressfill.com | [e-mail]
14 | XpressFill Systems LLC

1. Flip the Fill/Flush switches to flush mode (Rocker
switches located left of machine).
2. Place bottles under spouts.
3. Turn on the main power switch (Green rocker switch
located right side of the machine).
4. Turn on the spout switch, full on position all the way
up. Then turn on the Release Switch (UP) to allow
flushing through the vent area. Also turn the pressure
release dial on the top counter-clockwise to open up
the valve for fast flow.
5. Let solution fill the bottle completely and allow it to
run for a while after full.
6. Turn the spout switch to the middle position (stop
fill).
7. Turn on the spout switch again all the way up (This
runs the purge cycle again and allows the CO2 flow
path to be cleaned as well) Repeat step 7 a few times.
8. When satisfied with the cleaning put the Fill/Flush
switches back to Fill mode (down).
9. Turn off the spout switch completely. This will allow
you to remove the bottle and empty it of the
remaining cleaning solution.
10. This is the end of part one of the two part process for
cleaning your machine.
265 Prado Road, Suite 1 | San Luis Obispo, CA 93401 | 805.541.0100 | xpressfill.com | [e-mail]
15 | XpressFill Systems LLC
Part One
Attach cleaning hoses as pictured below. Hosing and connectors are supplied in the accessory packet.

1. Turn on main power switch with bottles in place.
(Green switch located right side)
2. Push in to close quick release knobs.
3. With gas line on turn on spout switch and allow gas to
flow through the filling system.
4. Turn spout switch to middle position, and then back
up to full on position. Repeat this several times to
allow the purge path to ventilate completely.
5. Turn the release pressure knob at top of machine
clockwise to close valve about half way,
approximately ten turns.
6. Turn on the Pressure Release Switch (UP) for
maximum ventilation through the flow path.
7. When you are satisfied with the results turn off the
spout switch and remove the bottles.
8. Turn off the air/gas supply and remove all the hoses.
9. Turn off the machine.
Note: Instead of using CO2, you can use an oil-free air
compressor as well.
265 Prado Road, Suite 1 | San Luis Obispo, CA 93401 | 805.541.0100 | xpressfill.com | [e-mail]
16 | XpressFill Systems LLC
Part Two
Attach cleaning hoses as pictured below. Hosing and connectors are supplied in the accessory packet.

265 Prado Road, Suite 1 | San Luis Obispo, CA 93401 | 805.541.0100 | xpressfill.com | [e-mail]
17 | XpressFill Systems LLC
6
Additional Information

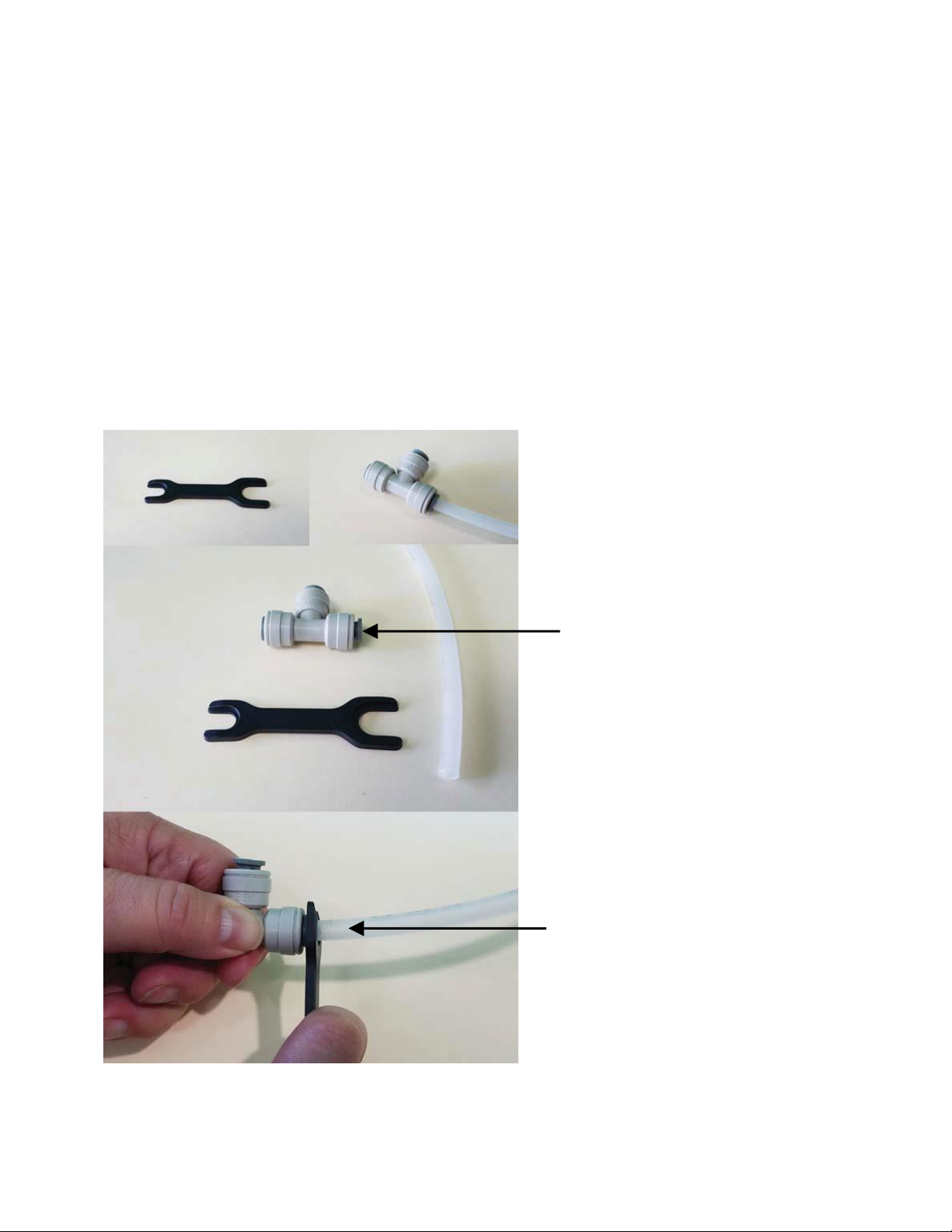

Collet Release Tool
Our fillers use “Push-to-Connect” type connectors which are standard in the beverage industry. Installation simply
requires pushing a hose into the fitting and pulling lightly to check that the connection is secure. Removal requires
using the collet release tool to firmly push the collet and remove the tube. A tool is included with the filler and can
be found inside the filler.
Push collet in with tool to remove hosing
Collet

265 Prado Road, Suite 1 | San Luis Obispo, CA 93401 | 805.541.0100 | xpressfill.com | [e-mail]
18 | XpressFill Systems LLC
Spare Fuse
There is a spare fuse in the power entry connector (where the power cord plugs in). Unplug the machine and set a
screwdriver on the notch (do not remove screws) and pop the spare fuse holder toward you, then replace the fuse.
XpressFill Part No. 200002 - Bussmann Series by Eaton, Model BK/GDB-2A, 5mm x 20mm
Delay-Timer Adjustment
Each spout has two delay timers.
To adjust time, turn the blue knobs with
the arrow counter clockwise to reduce the
purge time or clockwise to increase purge
time.
The top delay timers control the time of
CO2 flow.
The bottom delay timers control the time
the vent solenoid is open, purging the
bottle.
Note: The top timer should always be set
for a bit longer than the lower timer,
allowing the bottle to pressurize.

265 Prado Road, Suite 1 | San Luis Obispo, CA 93401 | 805.541.0100 | xpressfill.com | [e-mail]
19 | XpressFill Systems LLC
Fluid Solenoid Valve Deep-Cleaning Instructions
Note: This maintenance is needed only when the filler is not performing properly.
Remove the solenoid valve from the filler. Use the
release tool provided to disconnect the push-to-connect
fittings. If you disconnect the two wires, it does not
matter which wire goes back into which terminal.
Loosen the hex nut at the top of the coil assembly.
Unscrew the base from the coil assembly. Use a
screwdriver as needed. Remove the center shaft. Note
and keep track of the flat O-ring. A pair of pliers may
be needed to grip the metal shaft to “crack” open for
unscrewing the shaft.
Now clean out all openings inside and outside of the
solenoid valve, removing any particulates and
stickiness that may have accumulated.
Reassemble and replace in the filler.
The white plastic body is marked #1 for output and
#2 for input. The valve may leak if installed back-
wards.

265 Prado Road, Suite 1 | San Luis Obispo, CA 93401 | 805.541.0100 | xpressfill.com | [e-mail]
20 | XpressFill Systems LLC
CO2 Purge Solenoid Valve Deep-Cleaning Instructions
Remove the solenoid valve from the filler. Use the
release tool provided to disconnect the push-to-connect
fittings from the tubes.
Slide off the clip from the top of the coil assembly.
Remove the coil assembly off the center shaft. Unscrew
the shaft from the stainless steel base. It is not necessary
to unscrew the tubing adaptors from the stainless steel
base.
Now rinse out all the openings inside and outside of the
solenoid valve, removing any particulates and
stickiness that may have accumulated.
Reassemble and replace in the filler.
Stainless steel valve body is marked #1 for input,
#2 for output. Note: Valve may leak if installed
backwards.
Note: This maintenance is needed only when the filler is not performing properly.
