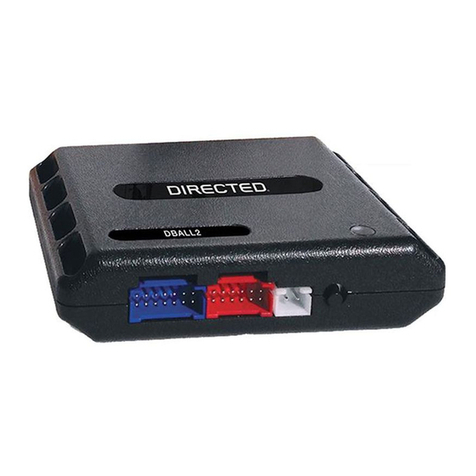

Xpresskit DBALL2 User manual

Installation Guide
Update Alert: Firmware updates are posted on the web on a regular basis. We recommend
that you check for firmware and/or install guide updates prior to installing this product.
SmartStart Compatible
SmartStart 200/250 Revision B is equipped with D2D, which means it can be connected to an interface module and
used in Remote Start Ready (RSR) mode without the use of a remote starter. See the Module Programming
section for more information.
Remote Start Ready (RSR) is a function that enables the interface module to remote start the vehicle completely
on its own. Consequently, there is no need for an aftermarket or an OEM remote starter in order to start the vehicle
from a distance.
® Volkswagen is a registered trademark and property of its respective company.
Vehicle Application Guide.....................................................................................................................................................................
Installation (Wiring Diagrams & Vehicle Wiring Reference Charts)
Type 1..................................................................................................................................................................................................
Type 2..................................................................................................................................................................................................
Type 3..................................................................................................................................................................................................
Type 4..................................................................................................................................................................................................
Immobilizer Interface............................................................................................................................................................................
Programming
SmartStart/XL202 Installation Notes....................................................................................................................................................
Module Programming...........................................................................................................................................................................
Module Reset.......................................................................................................................................................................................
Feature and Option List........................................................................................................................................................................
Feature Programming..........................................................................................................................................................................
LED Diagnostics & Troubleshooting....................................................................................................................................................
Parking Light Error Codes....................................................................................................................................................................
Limited One-Year Consumer Warranty................................................................................................................................................
Quick Reference Guide.......................................................................................................................................................................
02
03
05
07
09
11
13
14
16
17
17
18
20
21
22
Index
The installer must make sure the RFTD Output feature option is active in order to benefit from RSR. See the
Feature & Option List section for more information.
This guide supports the installation of a DBALL in Remote Start Ready (RSR) mode. This solution
offers three (3) configuration options to control your system: 3x OEM Lock Remote Start Activation,RF
Kit or SmartStart (both sold separately).
Refer to the Quick Reference Guide (QRG) at the end of this guide for more information on how to use
the various features offered with this product.
This firmware does not support transponder override. One (1) programmed OEM key must be wired
into the vehicle to complete installation of a remote starter.
During remote start sequence, the car console will indicate “no key located”. This is normal due to
the key wrapped in the installation. At vehicle takeover, the message will disappear.
Platform: DBALL2
Firmware: VW09 Remote Start Ready (RSR) Installation
© 2017 Directed. All rights reserved.
Rev.: 20170420
Wire jump template

Vehicle Application Guide Page 2
Vehicles
2017 2016 2015 2014 2013 2012 2011 PK-Immobilizer Bypass-RFID Key Req'd CC-Power Windows Rollup DL-Arm Factory Security DL-Disarm Factory Security DL-Door Lock Control DL-Door Unlock DL-Driver Priority Unlock RS-3x LOCK START (Start control using OEM Remote) RS-3x LOCK STOP (Stop control using OEM Remote) RS-RAP Shut Down (Retained ACC Power) RS-Remote Start Ready RS-SmartStart RS-Tach / RPM Output SS-Entry Monitoring ALL Door Pins SS-Entry Monitoring Hood Pin SS-Entry Monitoring Trunk/Hatch Pin ST-Brake Status (foot brake) ST-E-Brake Status
Volkswagen
EOS (Smart Key) 1 1 1 ••••••••••••••••••
Golf (Smart Key) 2 2 2 ••••••••••••••••••
GTI (Smart Key) 2 2 2 2 ••••••••••••••••••
Jetta (Smart Key) 3 3 3 4 4 4 4 ••••••••••••••••••
Jetta GLI (Smart Key) 1 1 1 1 ••••••••••••••••••
Passat (Smart Key) 1 1 1 1 1 ••••••••••••••••••
Tiguan (Smart Key) 1 1 1 ••••••••••••••••••
Legend: AV: Horn & Lights Controls
D: Data-to-Data (D2D) only CC: Comfort & Convenience Controls
•: D2D and Wire-to-Wire (W2W) DL: OE Door Lock & Alarm Controls
FOB: Sync CAN Interface w/ FOB Remote
PK: Transponder & Immobilizer Override
RS: Remote Start & Engine Controls
SS: Integrated Security & Monitoring
ST: Function/Feature Status
Note: Before attempting takeover, make sure all vehicle doors are closed.
Platform: DBALL2
Firmware: VW09 Remote Start Ready (RSR) Installation
© 2017 Directed. All rights reserved.
Rev.: 20170420
Wire jump template

52 112441
42 1
25
12
29
28
VESCM
Driver side under dashboard
BC A
(+) Brake:
Black/Red,
pin 17
VESCM - conn. C
(brown 52-pin conn.)
Page 3
Installation Type 1
Important!
The Hood Pin and Remote Start Safety Override Switch are mandatory safety devices, but are NOT supplied with the DBALL.
10
RF
LED
4
14 12 2
Electronic Steering
Column Lock Module
(behind steering
column trim)
14
FT CAN Low: Orange/Brown, pin 15 FT CAN High: Orange/Green, pin 16
1
9
8
16
HS CAN Low:
Orange/Brown, pin 14
HS CAN High:
Orange/Black,
pin 6
FT CAN High: Orange/Green: 5
HS CAN High: Tan/Black: 3
FT CAN Low: Orange/Brown: 6
(+) Parking Light Output: Brown: 7
Parking Light Interrupt
(veh. side): Yellow: 8
Parking Light Interrupt
(conn. side): Orange/Yellow: 9
HS CAN Low: Tan: 4
(-) PTS Output: Green/Black: 2
(+) Brake Activation Output: Gray: 6
You can connect to either a XL202
RFTD OR a SmartStart module.
Refer to the SmartStart/XL202
Installation Notes for more
information.
6: White/Black: (-) Hood Input
(+) 12V Input: Red: 13
(-) Ground: Black: 14 Hood Pin
Remote Start Safety
Override Switch
Note: Hood pin only required
on vehicles not equipped
with a factory hood pin.
Prog. Button
DBALL2
OBDII
Diagnostic
Connector
(-) PTS 2: pin 4
Diode 1A
Diode 1A
(-) PTS 1: pin 13
Unless specified otherwise, all connectors are displayed from the wire side, with the exception of the ODBII diagnostic connector.
(-) Ground:
Brown, pin 4
(+) 12V:
Red/Yellow,
pin 16
8
16
1
9
[1] Key Wrap: Brown/Red: 12
[1] Key Wrap: Yellow/Red: 11
[1] Key Wrap: Orange/Red: 10
10 9 7 6
5 4 2 1
8
3
Parking Light
Interrupt:
pin 8
(+) Parking
Light: pin 3
Parking light conn.
(Black conn. at
parking light switch)
CUT
[1] For Key Wrap instructions refer to Immobilizer Interface section.
Platform: DBALL2
Firmware: VW09 Remote Start Ready (RSR) Installation
© 2017 Directed. All rights reserved.
Rev.: 20170420
Wire jump template

Platform: DBALL2
Firmware: VW09 Remote Start Ready (RSR) Installation
© 2017 Directed. All rights reserved.
Rev.: 20170420
Page 4
Vehicle Wiring Reference Chart - Type 1
Function Color Pin Polarity Location Color Pins
VW EOS (Smart key) 2013-2015
Parking Light Gray/Yellow 3 (+) Headlight Switch. Black 10
Parking Light Interupt Red/Blue or Red/White 8 cut Headlight Switch. Black 10
HS CAN High Orange/Black 6 Data OBDII. Black 16
HS CAN Low Orange/Brown 14 Data OBDII. Black 16
12V Red /Yellow 16 (+) OBDII. Black 16
FT CAN High Orange/Green 16 Data ESCLCM - Under steering column. White 16
FT CAN Low Orange/Brown 15 Data ESCLCM - Under steering column. White 16
PTS 1 Brown/Red 13 (-) ESCLCM - Under steering column. White 16
PTS 2 Brown/Blue 4 (-) ESCLCM - Under steering column. White 16
Brake Black/Red 17 (+) VESCM connector C. Brown 52
VW Jetta GLI (Smart key) 2012-2015
Parking Light White/Black or Gray/Yellow 3 (+) Headlight Switch. Black 10
Parking Light Interupt Red/White or Red/Green 8 cut Headlight Switch. Black 10
HS CAN High Orange/Black 6 Data OBDII. Black 16
HS CAN Low Orange/Brown 14 Data OBDII. Black 16
12V Red /Yellow 16 (+) OBDII. Black 16
FT CAN High Orange/Green 16 Data ESCLCM - Under steering column. Black 16
FT CAN Low Orange/Brown 15 Data ESCLCM - Under steering column. Black 16
PTS 1 Violet/Yellow 13 (-) ESCLCM - Under steering column. Black 16
PTS 2 Violet/Black 4 (-) ESCLCM - Under steering column. Black 16
Brake Black/Red 17 (+) VESCM connector C. Brown 52
VW Passat (Smart key) 2012-2016
Parking Light Gray/Yellow 3 (+) Headlight Switch. Black 10
Parking Light Interupt Red/Green 8 cut Headlight Switch. Black 10
HS CAN High Orange/Black 6 Data OBDII. Black 16
HS CAN Low Orange/Brown 14 Data OBDII. Black 16
12V Red /Yellow 16 (+) OBDII. Black 16
FT CAN High Orange/Green 16 Data ESCLCM - Under steering column. Black 16
FT CAN Low Orange/Brown 15 Data ESCLCM - Under steering column. Black 16
PTS 1 Violet/Yellow 13 (-) ESCLCM - Under steering column. Black 16
PTS 2 Violet/Black 4 (-) ESCLCM - Under steering column. Black 16
Brake Black/Red 17 (+) VESCM connector C. Black 52
VW Tiguan (Smart key) 2014-2016
Parking Light Gray/Yellow 3 (+) Headlight Switch. Black 10
Parking Light Interupt Red/Blue 8 cut Headlight Switch. Black 10
HS CAN High Orange/Black 6 Data OBDII. Black 16
HS CAN Low Orange/Brown 14 Data OBDII. Black 16
12V Red /Yellow 16 (+) OBDII. Black 16
FT CAN High Orange/Green 16 Data ESCLCM - Under steering column. Black 16
FT CAN Low Orange/Brown 15 Data ESCLCM - Under steering column. Black 16
PTS 1 Violet/Blue 13 (-) ESCLCM - Under steering column. Black 16
PTS 2 White/Violet 4 (-) ESCLCM - Under steering column. Black 16
Brake Black/Red 17 (+) VESCM connector C. Brown 52
Wire Information Connector Information
Wire jump template

52 112441
42 1
25
12
29
28
VESCM
Driver side under dashboard
BC A
(+) Brake:
Black/Red,
pin 17
VESCM - conn. C
(brown 52-pin conn.)
Page 5
Installation Type 2
Important!
The Hood Pin and Remote Start Safety Override Switch are mandatory safety devices, but are NOT supplied with the DBALL.
TX
(-) Ground
RX
(+)12V
10
RF
LED
4
14 12 2
Electronic Steering
Column Lock Module
(behind steering
column trim)
14
FT CAN Low: Orange/Brown, pin 15 FT CAN High: Orange/Green, pin 16
1
9
8
16
HS CAN Low:
Orange/Brown, pin 14
HS CAN High:
Orange/Black,
pin 6
FT CAN High: Orange/Green: 5
HS CAN High: Tan/Black: 3
FT CAN Low: Orange/Brown: 6
(+) Parking Light Output: Brown: 7
Parking Light Interrupt
(veh. side): Yellow: 8
Parking Light Interrupt
(conn. side): Orange/Yellow: 9
HS CAN Low: Tan: 4
(-) PTS Output: Green/Black: 2
(+) Brake Activation Output: Gray: 6
You can connect to either a XL202
RFTD OR a SmartStart module.
Refer to the SmartStart/XL202
Installation Notes for more
information.
6: White/Black: (-) Hood Input
(+) 12V Input: Red: 13
(-) Ground: Black: 14
Hood Pin
Remote Start Safety
Override Switch
Note: Hood pin only required
on vehicles not equipped
with a factory hood pin.
Prog. Button
DBALL2
OBDII
Diagnostic
Connector
(-) PTS 2: pin 4
Diode 1A
Diode 1A
(-) PTS 1: pin 13
Unless specified otherwise, all connectors are displayed from the wire side, with the exception of the ODBII diagnostic connector.
[1] For Key Wrap instructions refer to Immobilizer Interface section.
(-) Ground:
Brown, pin 4
(+) 12V:
Red/Yellow,
pin 16
8
16
1
9
[1] Key Wrap: Brown/Red: 12
[1] Key Wrap: Yellow/Red: 11
[1] Key Wrap: Orange/Red: 10
10 9 7 6
5 4 2 1
8
3
Parking Light
Interrupt:
Red/Blue or
Red/White, pin 8
(+) Parking Lights:
White/Black, pin 1
Parking light conn.
(Black conn. at
parking light switch)
CUT
Platform: DBALL2
Firmware: VW09 Remote Start Ready (RSR) Installation
© 2017 Directed. All rights reserved.
Rev.: 20170420
Wire jump template

Platform: DBALL2
Firmware: VW09 Remote Start Ready (RSR) Installation
© 2017 Directed. All rights reserved.
Rev.: 20170420
Vehicle Wiring Reference Chart - Type 2
Page 6
Function Color Pin Polarity Location Color Pins
VW Golf (Smart key) 2012-2014
Parking Light White/Black 1 (+) Headlight Switch. Black 10
Parking Light Interupt Red/Blue or Red/White 8 cut Headlight Switch. Black 10
HS CAN High Orange/Black 6 Data OBDII. Black 16
HS CAN Low Orange/Brown 14 Data OBDII. Black 16
12V Red /White 16 (+) OBDII. Black 16
FT CAN High Orange/Green 16 Data ESCLCM - Under steering column. Black 16
FT CAN Low Orange/Brown 15 Data ESCLCM - Under steering column. Black 16
PTS 1 Violet 13 (-) ESCLCM - Under steering column. Black 16
PTS 2 Violet/Blue 4 (-) ESCLCM - Under steering column. Black 16
Brake Black/Red 17 (+) VESCM connector C. Brown 52
VW GTI (Smart key) 2011-2014
Parking Light White/Black 1 (+) Headlight Switch. Black 10
Parking Light Interupt Red/Blue or Red/White 8 cut Headlight Switch. Black 10
HS CAN High Orange/Black 6 Data OBDII. Black 16
HS CAN Low Orange/Brown 14 Data OBDII. Black 16
12V Red /White 16 (+) OBDII. Black 16
FT CAN High Orange/Green 16 Data ESCLCM - Under steering column. Black 16
FT CAN Low Orange/Brown 15 Data ESCLCM - Under steering column. Black 16
PTS 1 Violet/Yellow 13 (-) ESCLCM - Under steering column. Black 16
PTS 2 Violet/Black 4 (-) ESCLCM - Under steering column. Black 16
Brake Black/Red 17 (+) VESCM connector C. Brown 52
Wire Information Connector Information
Wire jump template

Platform: DBALL2
Firmware: VW09 Remote Start Ready (RSR) Installation
© 2017 Directed. All rights reserved.
Rev.: 20170420
37
63
73
17
16
1
Page 7
Installation Type 3
Important!
The Hood Pin and Remote Start Safety Override Switch are mandatory safety devices, but are NOT supplied with the DBALL.
TX
(-) Ground
RX
(+)12V
10
RF
LED
4
14 12 2
Electronic Steering Column
Lock Module (behind steering
column trim)
14
FT CAN Low: Orange/Brown, pin 15 FT CAN High: Orange/Green, pin 16
1
9
8
16
HS CAN Low:
Orange/Brown, pin 14
HS CAN High:
Orange/Black,
pin 6
FT CAN High: Orange/Green: 5
HS CAN High: Tan/Black: 3
FT CAN Low: Orange/Brown: 6
(+) Parking Light Output: Brown: 7
Parking Light Interrupt
(veh. side): Yellow: 8
Parking Light Interrupt
(conn. side): Orange/Yellow: 9
HS CAN Low: Tan: 4
(-) PTS Output: Green/Black: 2
(+) Brake Activation Output: Gray: 6
You can connect to either a XL202
RFTD OR a SmartStart module.
Refer to the SmartStart/XL202
Installation Notes for more
information.
6: White/Black: (-) Hood Input
(+) 12V Input: Red: 13
(-) Ground: Black: 14
Hood Pin
Remote Start Safety
Override Switch
Note: Hood pin only required
on vehicles not equipped
with a factory hood pin.
Prog. Button DBALL2
OBDII
Diagnostic
Connector
(-) PTS 2: Violet/Black,
pin 4
(-) PTS 1:
Violet/Yellow,
pin 13
[2] (MUX) OutputLock/Unlock : Violet/Brown: 9
[2] (-) Trunk Release Output: Blue/Red: 12
Unless specified otherwise, all connectors are displayed from the wire side, with the exception of the ODBII diagnostic connector.
(-) Ground:
Brown, pin 4
(+) 12V:
Red/Yellow,
pin 16
8
16
1
9
[1] Key Wrap: Brown/Red: 12
[1] Key Wrap: Yellow/Red: 11
[1] Key Wrap: Orange/Red: 10
VESCM - Driver side under dashboard
A Plug (Black) at VESCM
[2] (-) Trunk Release: Violet, pin 23
[2] (MUX) Lock/Unlock: Blue/Red, pin 24
(+) Brake: Black/Red, pin 43
10 9 7 6
5 4 2 1
8
3
Parking Light Interrupt:
Red/Yellow, pin 8
(+) Parking Light:
White/Black or Gray/Red, pin 3
CUT
Diode 1A
Diode 1A
B Plug
White A Plug
Black
Parking light conn.
(Black conn. at
parking light switch)
[1] For Key Wrap instructions refer to Immobilizer Interface section.
[2] Locks and trunk release output ONLY required if door locks or trunk are not supported in data.
Wire jump template

Platform: DBALL2
Firmware: VW09 Remote Start Ready (RSR) Installation
© 2017 Directed. All rights reserved.
Rev.: 20170420
Page 8
Vehicle Wiring Reference Chart - Type 3
Function Color Pin Polarity Location Color Pins
VW Jetta (Smart key) 2015-2017
Parking Light White/Black or Gray/Red 3 (+) Headlight Switch. Black 10
Parking Light Interupt Red/Yellow 8 cut Headlight Switch. Black 10
HS CAN High Orange/Black 6 Data OBDII. Black 16
HS CAN Low Orange/Brown 14 Data OBDII. Black 16
12V Red /White 16 (+) OBDII. Black 16
FT CAN High Orange/Green 16 Data ESCLCM - Under steering column. Black 16
FT CAN Low Orange/Brown 15 Data ESCLCM - Under steering column. Black 16
PTS 1 Violet/Yellow 13 (-) ESCLCM - Under steering column. Black 16
PTS 2 Violet/Black 4 (-) ESCLCM - Under steering column. Black 16
Brake Black/Red 43 (+) VESCM connector A. Black 73
Trunk Release Violet 23 (-) VESCM connector A. Black 73
Door Locks Blue/Red 24 MUX VESCM connector A. Black 73
Wire Information Connector Information
Wire jump template

Platform: DBALL2
Firmware: VW09 Remote Start Ready (RSR) Installation
© 2017 Directed. All rights reserved.
Rev.: 20170420
37
63
73
17
16
1
Page 9
Installation Type 4
Important!
The Hood Pin and Remote Start Safety Override Switch are mandatory safety devices, but are NOT supplied with the DBALL.
TX
(-) Ground
RX
(+)12V
10
RF
LED
4
14 12 2
Electronic Steering Column
Lock Module (behind steering
column trim)
14
FT CAN Low: Orange/Brown, pin 15 FT CAN High: Orange/Green, pin 16
1
9
8
16
HS CAN Low:
Orange/Brown, pin 14
HS CAN High:
Orange/Black,
pin 6
FT CAN High: Orange/Green: 5
HS CAN High: Tan/Black: 3
FT CAN Low: Orange/Brown: 6
(+) Parking Light Output: Brown: 7
(+) 12V Input: Yellow: 8
HS CAN Low: Tan: 4
(-) PTS Output: Green/Black: 2
(+) Brake Activation Output: Gray: 6
You can connect to either a XL202
RFTD OR a SmartStart module.
Refer to the SmartStart/XL202
Installation Notes for more
information.
6: White/Black: (-) Hood Input
(+) 12V Input: Red: 13
(-) Ground: Black: 14
Hood Pin
Remote Start Safety
Override Switch
Note: Hood pin only required
on vehicles not equipped
with a factory hood pin.
Prog. Button DBALL2
OBDII
Diagnostic
Connector
(-) PTS 2: Violet/Black,
pin 4
(-) PTS 1:
Violet/Yellow,
pin 13
[2] (MUX) OutputLock/Unlock : Violet/Brown: 9
[2] (-) Trunk Release Output: Blue/Red: 12
Unless specified otherwise, all connectors are displayed from the wire side, with the exception of the ODBII diagnostic connector.
[1] For Key Wrap instructions refer to pages 7 and 8.
(-) Ground:
Brown, pin 4
(+) 12V:
Red/Yellow,
pin 16
8
16
1
9
[1] Key Wrap: Brown/Red: 12
[1] Key Wrap: Yellow/Red: 11
[1] Key Wrap: Orange/Red: 10
VESCM - Driver side under dashboard
A Plug (Black) at VESCM
[2] (-) Trunk Release: Violet, pin 23
[2] Lock/Unlock: Blue/Red, pin 24
(+) Brake: Black/Red, pin 43
Diode 1A
Diode 1A
B Plug
White A Plug
Black
(+) Parking Light:
White/Black or
Gray/Red, pin 14
Parking light conn.
(Black conn. at
parking light switch)
17 16 15 13 12 11 10
9 8 7 6 5 43 2 1
14
[2] Locks and trunk release output ONLY required if door locks or trunk are not supported in data.
Wire jump template

Platform: DBALL2
Firmware: VW09 Remote Start Ready (RSR) Installation
© 2017 Directed. All rights reserved.
Rev.: 20170420
Function Color Pin Polarity Location Color Pins
VW Jetta (Smart key) 2011-2014
HS CAN High Orange/Black 6 Data OBDII. Black 16
HS CAN Low Orange/Brown 14 Data OBDII. Black 16
12V Red /White 16 (+) OBDII. Black 16
FT CAN High Orange/Green 16 Data ESCLCM - Under steering column. Black 16
FT CAN Low Orange/Brown 15 Data ESCLCM - Under steering column. Black 16
PTS 1 Violet/Yellow 13 (-) ESCLCM - Under steering column. Black 16
PTS 2 Violet/Black 4 (-) ESCLCM - Under steering column. Black 16
Parking Light White/Black or Gray/Red 14 (+) Headlight Switch. Black 17
Brake Black/Red 43 (+) VESCM connector A. Black 73
Trunk Release Violet 23 (-) VESCM connector A. Black 73
Door Locks Blue/Red 24 MUX VESCM connector A. Black 73
Wire Information Connector Information
Vehicle Wiring Reference Chart - Type 4
Page 10
Wire jump template

Platform: DBALL2
Firmware: VW09 Remote Start Ready (RSR) Installation
© 2017 Directed. All rights reserved.
Rev.: 20170420
Immobilizer Interface
Page 11
For vehicles with Keyless Entry you must remove battery from OEM key (your OEM
remote may differ from the models shown in the illustrations).
IMPORTANT!: Not all OEM keys can be inserted in 556U because of their size.
Make sure the key will fit, otherwise it is recommended to use a different method.
Method 1: Immobilizer interface with 556U (PTS)
556U or 556UW is sold SEPARATELY.
10
DBALL/
DBALL2
RF
Prog. Button
LED
4
14 12 2
Note: OEM immobilizer receiver is located
on the underside of the steering column,
where the ignition switch would normally be.
OEM
Immobilizer
Receiver
PIN 5 Violet
PIN 1 Red
PIN 6 Green
PIN 4 Black
PIN 2 Blue
PIN 3 Violet
(+) 12V
(-) Ground
Relay N.O.: Brown/Red: 12
Relay Common: Yellow/Red: 11
Wire jump template

Platform: DBALL2
Firmware: VW09 Remote Start Ready (RSR) Installation
© 2017 Directed. All rights reserved.
Rev.: 20170420
Page 12
OEM
Immobilizer
Receiver
OEM
Immobilizer
Receiver
NO Relay 2: Brown/Red: 12
COM Relay 2: Yellow/Red: 11
NC Relay 2: Orange/Red: 10
Immobilizer ECU
Method 3: Key wrap for Push-To-Start (PTS) - Alternate
4-6 loops
Note: OEM immobilizer receiver is located
on the underside of the steering column,
where the ignition switch would normally be.
Note: OEM immobilizer receiver is located
on the underside of the steering column,
where the ignition switch would normally be.
Remove battery from
OEM Remote Control
4-6
loops
4-6
loops
*
Method 2: Key wrap for Push-To-Start (PTS)
- Make 4-6 loops and place them as close to the front of the OEM Immobilizer Receiver as possible.
NOTE:
- Test and secure mounted loops before reassembling the vehicle.
- Make 4-6 loops and place them around the front of the plastic body of the vehicle’s coded key as shown above.
NO Relay 2: Brown/Red: 12
COM Relay 2: Yellow/Red: 11
* When possible use valet key for key wrap, if blade key is used, battery must be removed.
10
DBALL/
DBALL2
RF
Prog. Button
LED
4
14 12 2
10
DBALL/
DBALL2
RF
Prog. Button
LED
4
14 12 2
Remove battery from
OEM Remote Control
Wire jump template

Platform: DBALL2
Firmware: VW09 Remote Start Ready (RSR) Installation
© 2017 Directed. All rights reserved.
Rev.: 20170420
The optional XL202 and antenna are not included and MUST be purchased separately.
Refer to the Passive Keyless Entry (PKE) Installation Guide (N2102T) for detailed wiring information.
4
4
XL202
Antenna
XOVER
SmartStart is optional and not included. It MUST be purchased separately.
SmartStart is optional and not included. It MUST be purchased separately.
The DBALL Remote Start Ready (RSR) solution offers three (3) configuration options to control your system:
3x OEM Lock Remote Start Activation, RF Kits or SmartStart (all sold separately). This section provides specific installation
information for SmartStart and XL202.
Configuration Wires (Gray & White)
Connect Gray wire to (-) Ground
5 pins
D2D (4 pins, white)
4 pins
2 pins,
not used
CABLE
CABLE
The modules must be connected in a specific order. Refer to the Module Programming section for more information.
1. Use the D2D Crossover (XOVER) cable that is provided with XL202, and NOT the one in the DBALL package.
2. The modules must be connected in a specific order. Refer to the Module Programming section for more information.
The modules must be connected in a specific order. Refer to the Module Programming section for more information.
SmartStart/XL202 Installation Notes
SmartStart Revision B
RF Kit
RF Kit & PKE Combination
Refer to the Passive Keyless Entry (PKE) Installation Guide (N2102T) for detailed wiring information.
RF Kit, PKE & SmartStart BT Combination
SmartStart Revision A
LED
Prog.
Button
D2D (4 pins, white)
4 pins
2 pins,
not used
OR
SmartStart
Configuration Wires (White & Brown or Blue)
Cut Brown or Blue Loop
LED
THIS SIDE UP
LED
Page 13
DBALL/
DBALL2
DBALL/
DBALL2
DBALL/
DBALL2
Wire jump template

Module Programming Page 14
Go to the next page to complete the module programming.
3Make sure the key is inside the vehicle.
Key Inside
the Vehicle
2Press the unlock button on the OEM remote.
PRESS
UNLOCK
Important
1
10-pin
D2D
st
1
12-pin
14-pin
nd
2
rd
3
&
Solid
Connect the 10-pin, 12-pin and 14-pin harnesses to
DBALL, then wait until the LED turns ON solid red.
10-pin
D2D
XL202
10-pin
D2D
SmartStart
OR
The DBALL module must be disconnected from any power source before SmartStart can
be connected to it. Failing to do so could damage DBALL.
a. To ensure that the D2D communication between SmartStart and DBALL works properly, the
Gray wire must be connected to a ground source (Rev B SmartStart), and the Brown or Blue
loop must be cut (Rev A SmartStart).
b. Do NOT connect the 2-pin harness (on SmartStart). Power and ground will be provided by
the DBALL D2D connector.
Connect SmartStart to DBALL using the D2D port.
SmartStart Installation
Connect XL202 to DBALL using the D2D port.
XL202 Installation
Refer to the LED Diagnostics section for more information and for troubleshooting purposes.
Make all the required connections to the vehicle, as described in the wiring diagram(s) found in this guide, and double check to
ensure everything is correct prior to moving onto the next step.
Note: Before connecting either the XL202 or SmartStart module to DBALL, it is important to ensure that the proper feature and
function programming is selected using XpressVIP (version 4.5 or higher). Visit www.directechs.com to download the latest
version of the application.
Warning! To take advantage of advanced features, you must use XpressVIP 4.5 (and higher) or the Directechs Mobile app.
When the flashing operation is successful, you can proceed with the programming instructions below.
Flashing a module using your computer:
1. Connect the interface module to your computer using the
XKLoader2.
2. Go to www.directechs.com using Internet Explorer, and
select the Config for RSR button.
3. Follow the instructions to select your vehicle, installation
type, and configure your options.
4. Once you have configured the firmware options, click on the
FLASH button.
Flashing a module using your smartphone or tablet
1. Connect the interface module to your XKLoader3.
2. Launch the Directechs Mobile app on your smartphone or
tablet.
3. Select FLASH YOUR MODULE and follow the on screen
instructions.
Platform: DBALL2
Firmware: VW09 Remote Start Ready (RSR) Installation
© 2017 Directed. All rights reserved.
Rev.: 20170420
Wire jump template

Platform: DBALL2
Firmware: VW09 Remote Start Ready (RSR) Installation
© 2017 Directed. All rights reserved.
Rev.: 20170420
Page 15
4
5
6
The green LED turns ON for 3 seconds and shuts off. &
Solid x3 secs OFF
Important: Do NOT press the brake pedal.
Press the Push-to-Start (PTS) button once to turn
the ignition ON. The LED flashes green.
Press the Push-to-Start (PTS) button once more
to turn the ignition OFF. 1X ENGINE
START
STOP
PUSH
&
1X ENGINE
START
STOP
PUSH
Do NOT
press the
brake pedal
Flash
You have successfully completed the module programming sequence.
Wire jump template

Page 16
Module Reset
1If required for your installation, connect the 10-pin & 12-pin
harnesses to the module. Press and hold the programming
button, then connect the 14-pin harness to the module.
10-pin
D2D
st
1
12-pin
14-pin
nd
2
th
4
rd
3
Warning Against Executing a Hard Reset!
A hard reset will revert the flashed firmware back to its default settings. Depending on the installation, some settings (such
as RFTD and D2D options) may have to be reconfigured. See the Feature & Option List section of this guide.
2
Solid
&
Release
3 Release the programming button. The LED turns ON solid red.
Hard Reset
2& &
1
Wait 3 seconds until the LED turns ON solid orange then release the
programming button. The LED turns ON solid red.
If required for your installation, connect the 10-pin & 12-pin
harnesses to the module. Press and hold the programming
button, then connect the 14-pin harness to the module.
10-pin
D2D
st
1
12-pin
14-pin
nd
2
th
4
rd
3
A module reset will only erase programming performed in the previous steps. All settings (firmware) and settings flashed
to the module using the web config tool will not be affected.
Solid Release Solid
Solid Flashes
&
Wait 3 seconds until the LED turns ON solid orange, and wait 10 more seconds
until the LED starts to flash orange and red.
Platform: DBALL2
Firmware: VW09 Remote Start Ready (RSR) Installation
© 2017 Directed. All rights reserved.
Rev.: 20170420
Wire jump template

Page 17
Feature & Option List
It is recommended to configure all the features and options listed below using the configuration tool found on the module
flashing page on www.directechs.com. The web offers more options; however, manual configuration of the features is possible
using the information on this page.
Feat. Operation Flashes/Option Description
1. No RF Output * Module is connected to a remote starter using a standard installation.
2. RFTD Output Module is connected to an XL202 using an RSR or RXT installation (when available).
3. SmartStart Module is connected to SmartStart using an RSR or RXT installation (when available).
1. Driver priority* Unlocks only the driver door when the button is first pressed, and unlocks all doors when it is
pressed a second time within 5 seconds.
2. All Unlocks all doors when the button is first pressed.
1. Disabled * No Action
2. Enabled Module will disarm OEM alarm by cycling ignition and transponder. Use in the case where the
disarm function is not supported by the module. (ie: Beetle)
* Default Option
OEM Alarm Disarm
Using Transponder
3
RFTD Output Type
2Unlock Driver
Priority
1
To enter feature programming routine
-Turn the ignition ON, then OFF.
-Within 5 seconds, press and HOLD the programming button until the LED turns ON orange (after 3 seconds). Release the
Programming button.
-The LED will flash green once slowly to indicate the feature number is 1. After a short delay, the LED flashes red rapidly to indicate
the current option of feature 1 (i.e. 1x green followed by 1x red indicates feature 1 is set to option 1). The flashing sequence will
repeat until a new command is entered.
Changing feature options
-Press the lock/arm or unlock/disarm button on aftermarket transmitter to change the option of the selected feature. When installing the
DBALL in RSR using 3x OEM Lock Remote Start Activation only, there is no aftermarket transmitter on which to press lock/unlock to
change the options of the selected feature. Tapping the green or blue lock/unlock wires on the black 10-pin harness to ground will
change the option for the selected feature.
-The LED flashes red rapidly the number of times equal to the current option number. After a short delay, the LED flashes green slowly
the number of times to indicate the current feature. The flashing sequence will repeat until a new command is entered.
Accessing another feature
-Press and release the programming button a number of times to advance from the current feature to the next desired feature.
-The LED flashes green slowly the number of times equal to the feature number. After a short delay, the LED flashes red rapidly to
indicate the current option of the current feature. The flashing sequence will repeat until a new command is entered.
When the maximum number of features or options is reached, the LED will start flashing again from the first feature or option.
Once a feature is programmed
-Other features can be programmed.
-The feature programming can be exited.
Exiting feature programming
-No activity for 30 seconds; after 30 seconds, the LED will turn ON orange for 2 seconds to confirm the end of the programming
sequence.
OR
-Press and HOLD the programming button for 3 seconds. After 3 seconds, the LED will turn ON orange for 2 seconds to confirm the
end of the programming sequence.
Feature Programming Programming
Button
Platform: DBALL2
Firmware: VW09 Remote Start Ready (RSR) Installation
© 2017 Directed. All rights reserved.
Rev.: 20170420
Wire jump template

Page 18
LED Diagnostics & Troubleshooting
LED Description Troubleshooting
Module has no power.
Make sure the D2D harness is connected or that the 12 Volt is
present between the red and black wires. If the 12 Volt is present,
the module may be defective.
Waiting to begin the programming
sequence. Ensure the correct programming procedure is being followed.
Initialization failed. Reset the module and complete the programming again. If the issue
persists, please contact Technical Support.
Transponder functions were skipped. (If compatible) when RXT mode is not desired or convenience features
are needed, please reset and reprogram the module.
All required CAN networks has been
detected. Normal operation.
1 of 2 CAN networks has been detected. Normal operation
Key2GO initiated. Please follow the steps indicated in “Module programming” to
complete the Key2GO programming.
Module was successfully programmed
with all functions. Normal operation
Module was successfully programmed
without transponder functions. Normal operation.
CAN2 not detected.
Check the CAN2 Orange/Green and Orange/Brown wire connections.
Wake up the data bus by turning the ignition on and try again. If your
installation does not require this connection, skip this step by
pressing the programming button 5 times.
J1850 not detected. Check the J1850 wire connection. Wake up the data bus by turning
the ignition on and try again.
CAN1 not detected.
Check the CAN1 Tan and Tan/Black wire connections. Wake up the
data bus by turning the ignition on and try again. If your installation
does not require this connection, skip this step by pressing the
programming button 5 times.
Bypass data not detected.
Check the bypass line connection. If more than one wire is used,
make sure they are not inverted. Ensure the vehicle still operates
correctly using the factory key.
Bypass processing error. The bypass calculation failed. Reset the module and try again. If the
condition persists, please contact Technical Support.
ISO 1 not detected.
The Yellow/Black wire did not detect the expected signal. Refer to
"Installation (wiring diagrams & vehicle wiring reference charts)" to
check the connections.
ISO 2 not detected.
The Orange/Black wire did not detect the expected signal. Refer to
"Installation (wiring diagrams & vehicle wiring reference charts)" to
check the connections.
MUX not detected.
The Violet/Green or Violet/Brown wire did not detect the expected
voltage value. Refer to "Installation (wiring diagrams & vehicle wiring
reference charts)" to check the connections.
Skip programming. If the BCM programming still fails after making sure doors are
unlocked, press on the programming button 5 times to skip this step.
BCM programming. Failed to program the BCM. Check if doors are locked. They need to
be unlocked to solve the problem.
Module Programming
Module Programming - Error Codes
Solid red
Flashes red
x 1
Flashes red
x 1
Flashes red
x 2
Flashes red
x 3
Flashes red
x 4
Flashes red
x 5
Flashes red
x 6
Flashes red
x 7
Flashes red
x 12
Flashes red
x 11
Solid green
x 3 secs
Flashes
green
Solid orange
Flashes red
& green
Off
Flashes
orange
Flashes
orange
slowly
Solid orange
x 3 secs
Platform: DBALL2
Firmware: VW09 Remote Start Ready (RSR) Installation
© 2017 Directed. All rights reserved.
Rev.: 20170420
Wire jump template

Platform: DBALL2
Firmware: VW09 Remote Start Ready (RSR) Installation
© 2017 Directed. All rights reserved.
Rev.: 20170420
Page 19
LED Description Troubleshooting
OBDII feature is not supported. The diagnostic data bus was not detected, therefore the
SmartStart features will be limited.
Ground When Running (Status) command received. The module has initialized the remote start sequence.
Ignition ON command received. The module has received the Ignition ON command and
is processing the remote start sequence.
Start ON command received. The module has received the Start ON command and is
processing the remote start sequence.
PTS shutdown error. The PTS output from the module was not activated due
to safety protection.
CAN bus incorrectly detected.
Verify the CAN1 and CAN2 connections. Refer to
“Installation (wiring diagrams & vehicle wiring reference
charts)” to check the connections.
LOCK command received.
UNLOCK command received.
TRUNK command received.
AUX1 command received.
AUX2 command received.
AUX3 command received.
Takeover successful. Normal operation.
Runsafe was not disabled. No UNLOCK command was received prior to opening the
door, or the 45 second timer expired in takeover mode.
Brake was not detected. The brakes were not detected, which prevents the
system from shutting down the vehicle.
Smart key was not detected. The smart key was not detected, which prevents the
system from shutting down the vehicle.
Speed was detected. The vehicle was detected as moving, which prevents the
system from shutting it down.
3x OEM Lock Remote Start Activation was attempted
when RFTD feature is disabled.
Activated from Web automatically when using RSR flash
tool or can be done manually. Refer to feature
programing section for more information.
Feature error. An RSR feature file mismatch was detected. Please
contact Technical Support.
RSR codes
External module synchronization
Commands
Activation Ground When Running (Status)
If the bypass module fails to flash, it did not receive the
signal. Commands can come from RF or D2D.
Shutdown codes
(Flashes red,
red then
orange) x 10
Flashes red
& orange
Flashes red
x 21
Flashes red
x 2
Flashes red
x 4
Flashes red
x 7
Flashes red
x 9
Flashes red
x 10
Flashes red
x 1
Flashes red
x 3
Flashes
green
Flashes
green
quickly
Flashes
green x 1
Flashes
orange x 1
Flashes
orange x 2
Flashes
orange x 3
Flashes
orange x 5
Flashes
orange x 4
Flashes
orange x 6
Wire jump template

Platform: DBALL2
Firmware: VW09 Remote Start Ready (RSR) Installation
© 2017 Directed. All rights reserved.
Rev.: 20170420
Flashes Diagnostic
1 Runtime expired.
2 Over-rev shutdown.
3 Low/No RPM.
4 Transmitter shutdown.
5 Brake shutdown.
6 Hood shutdown/Remote start safety override switch is ON*.
7 Remote start safety override switch is ON*.
The parking lights on your vehicle will flash a specific number of times 3 seconds following an unscheduled shutdown or
failure to start. Each flashing pattern is described below.
* If the vehicle hood status is supported through data, safety override switch input will report 7 flashes.
Parking Light Error Codes
Page 20
Wire jump template
