Programing Guide for Spektrum DX8i with GPS
1. Carefully unbox radio and contents.
2. Internal battery in the DX8 radio will be partially charged out of box,
be sure to fully charge the radio prior to flying.

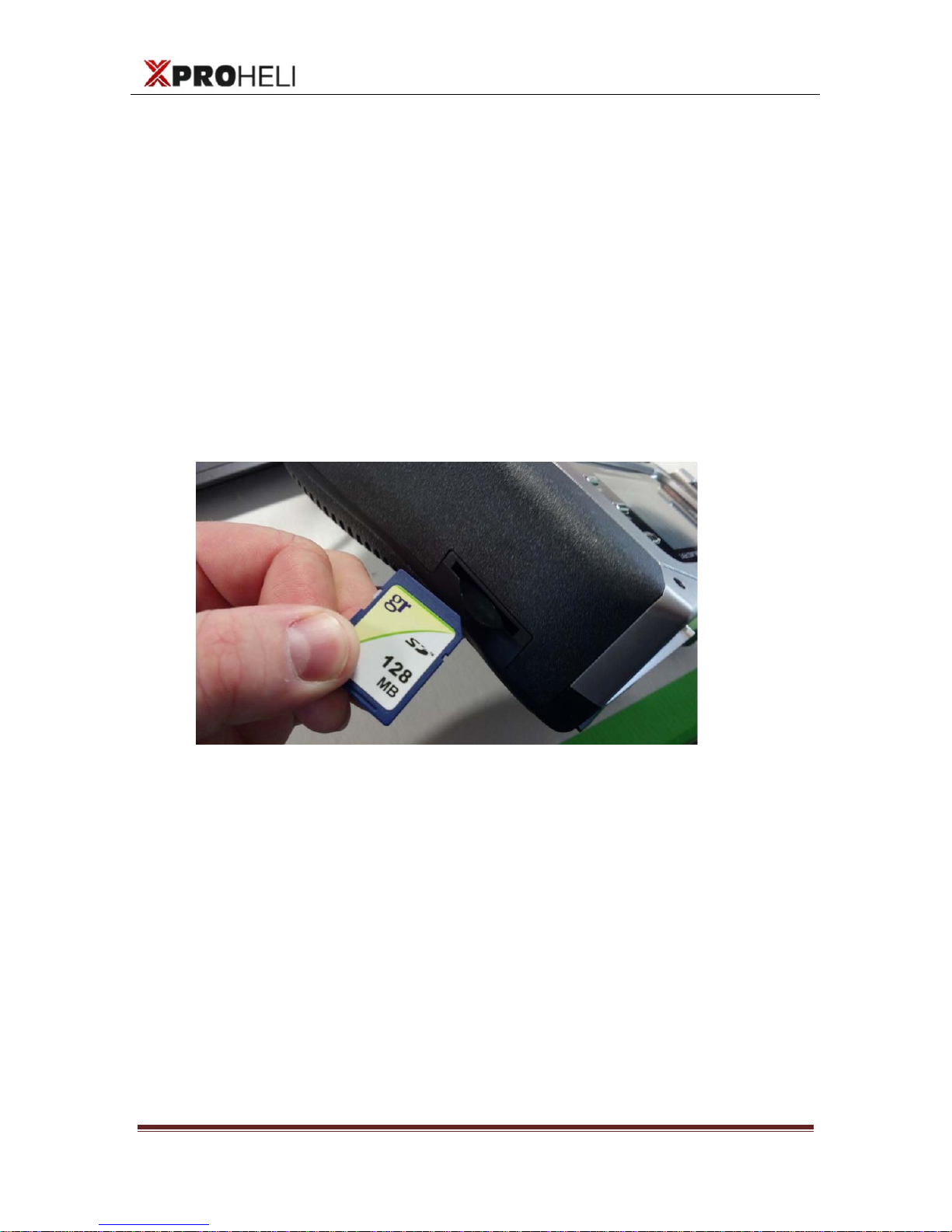

3. Find the provided 128mb SD flash card disk and install it into the
card slot on the left side of the radio.
4. Preprogramming checklist:
a. Make sure DX8 is binded to receiver (see Spektrum manual)
b. Double check all receiver to NAZA controller connections.
c. Make sure GPS is connected to NAZA PMU and NAZA
controller.
5. On the radio, put all switches (flaps, f.mode, aux 2 etc…) to the
back position.

User Manual
XProHeli XPG Brushless Gimbal
XP2 Quadcopter GPS Page 1
©2014 XPROHELI. All Rights Reserved.

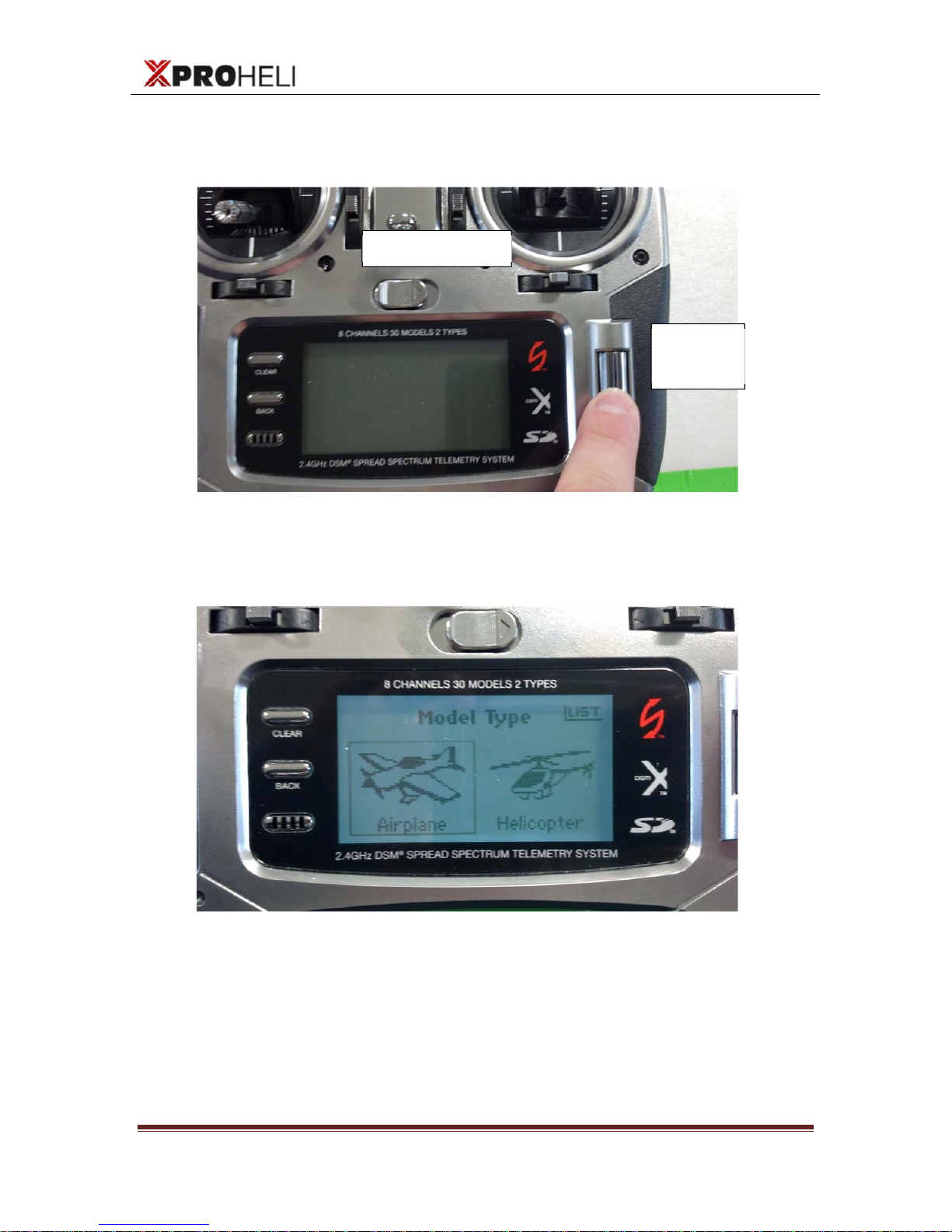

6. Hold the menu select roller down on radio and turn on.
7. Scroll down to system setup and put model type as Airplane and
the model name as XP2 GPS.
HOLD
DOWN
Power on - >

User Manual
XProHeli XPG Brushless Gimbal
XP2 Quadcopter GPS Page 2
©2014 XPROHELI. All Rights Reserved.

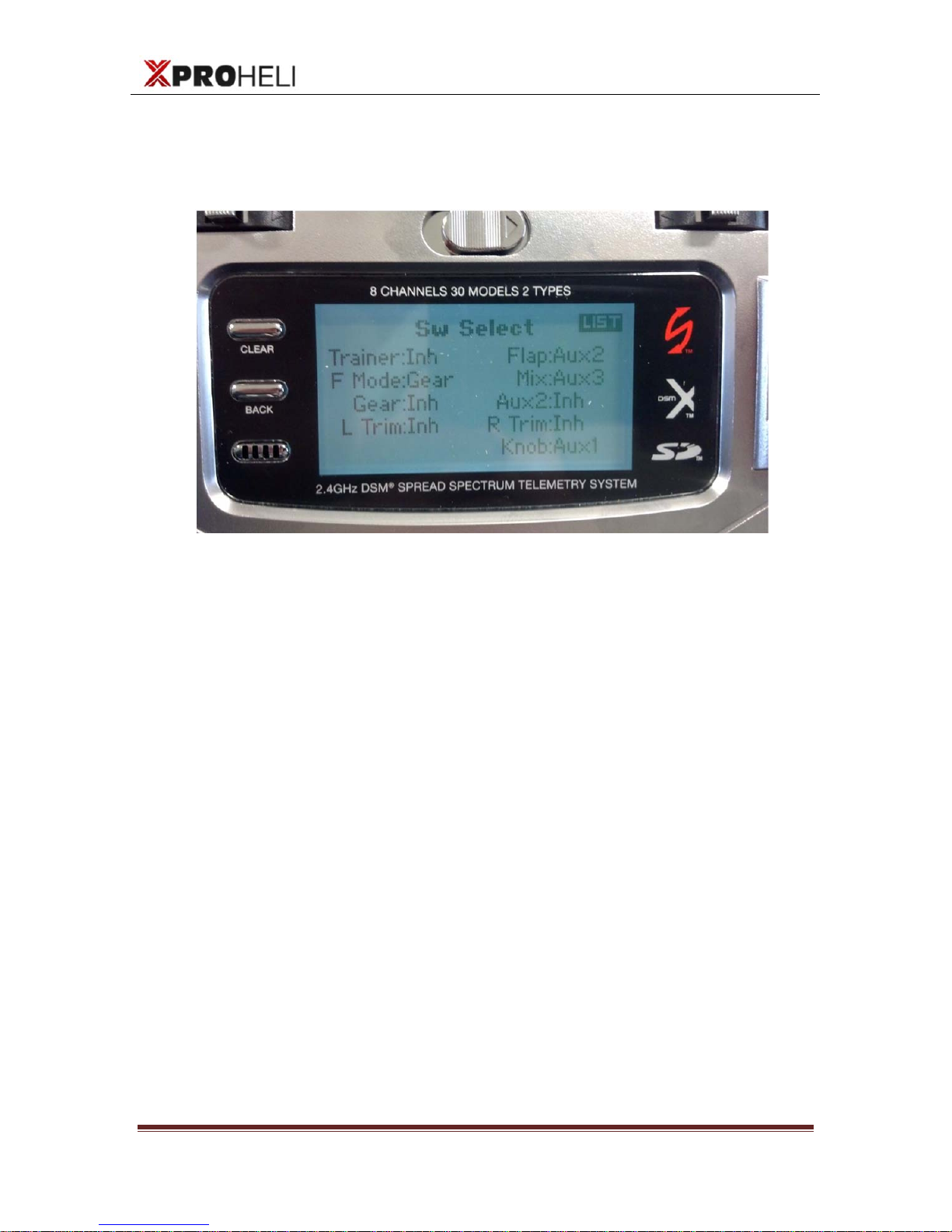

8. Go to switch select. Switch all to parameters to Inh (inactive) first
and then change the values so it matches as follows:
OPTIONAL:
To control the tilt of the XPG gimbal with the Flap switch you will
want to setup the switch selection so that Flap is set to Aux3 and Mix
is set to Aux2. If you would like to control the tilt with the Knob you
will have to set Knob to Aux3.
9. Exit out to Main Screen, Radio will restart, press down roll button to
enter the Function List.

User Manual
XProHeli XPG Brushless Gimbal
XP2 Quadcopter GPS Page 3
©2014 XPROHELI. All Rights Reserved.
10.Go to servo setup. Scroll to select Reverse, then below that scroll to
select Gear. Set Gear to REV (reverse) so that the right side of the
box is shaded:
11. With the props off of your XP2, Connect your NAZA controller to the
computer and plug in your flight battery. If this is your first time

User Manual
XProHeli XPG Brushless Gimbal
XP2 Quadcopter GPS Page 4
©2014 XPROHELI. All Rights Reserved.
running the NAZA software you may need to install the drivers for
the NAZA connection. Windows should take care of this
automatically. If not go to DJI’s website to download the latest
drivers and software: http://www.dji.com/download/naza-m-v2-
downloads/
12. Open the latest version of the DJI NAZA Assistant. Install any
updates to the firmware if necessary (software will prompt you).
After the upgrade the bar at the bottom will blink from red to green.
Unplug the flight battery, then plug back in to restart the controller.

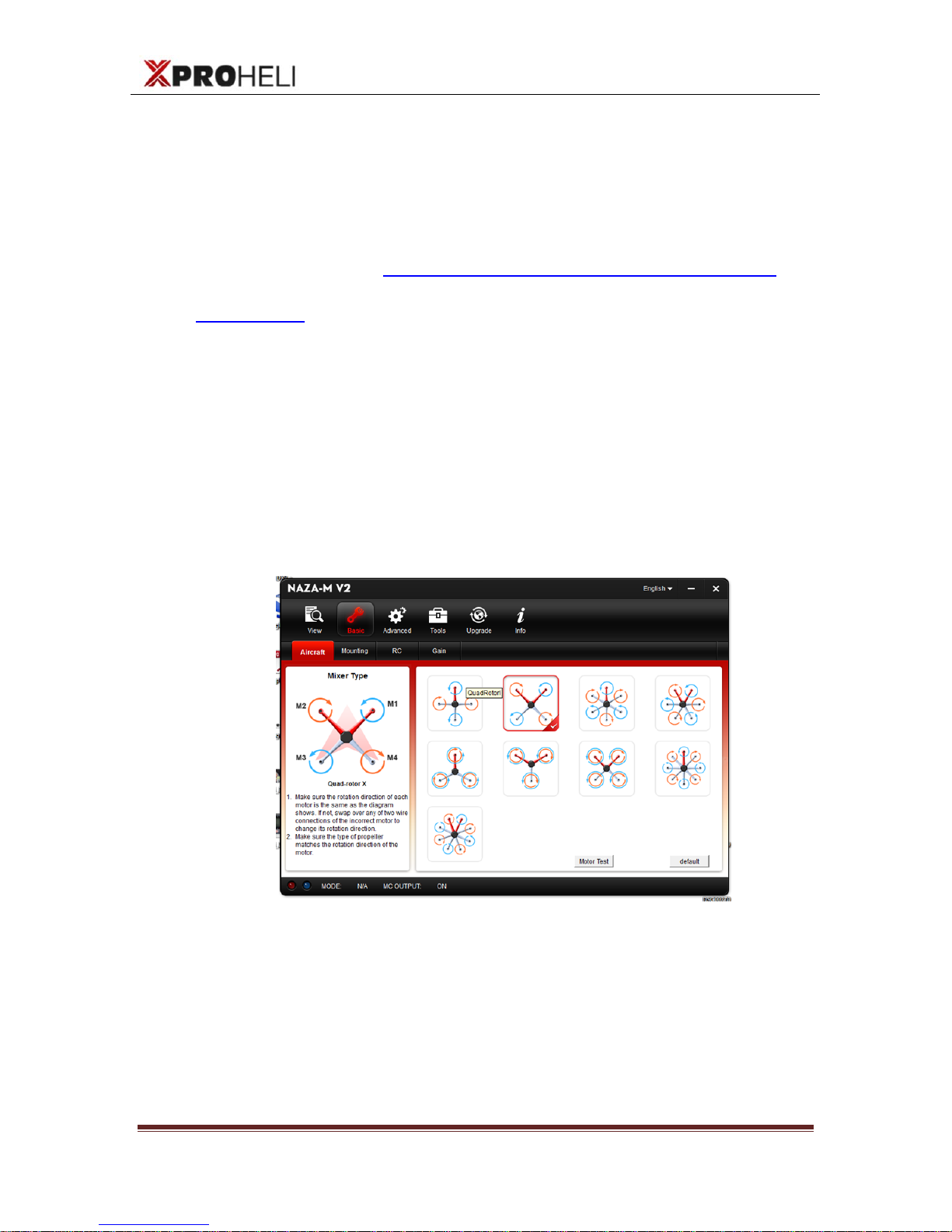

13. Go to Motor Mixer on computer and select Quad-rotor x.

User Manual
XProHeli XPG Brushless Gimbal
XP2 Quadcopter GPS Page 5
©2014 XPROHELI. All Rights Reserved.
14. Go back to Mounting on the computer. In the 3 boxes provided
enter X as -8 cm, Y as 8 cm, and Z as -1 cm.

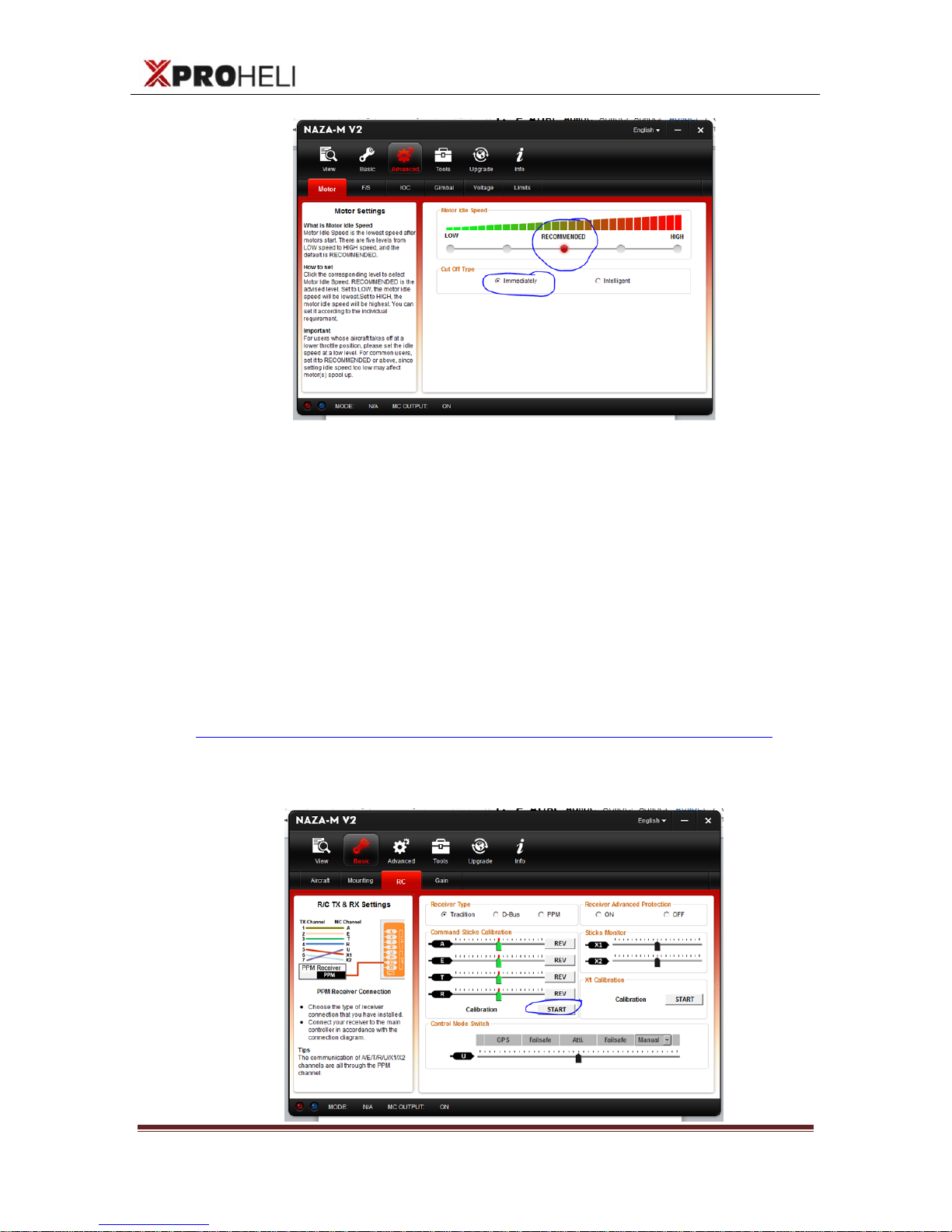

15. Go to RC Tab and select Tradition and then go to Advanced –
Motor tab and set to Immediately

User Manual
XProHeli XPG Brushless Gimbal
XP2 Quadcopter GPS Page 6
©2014 XPROHELI. All Rights Reserved.
16. Go Back to the RC tab to calibrate the main controller toggles by
clicking Start. On the radio, move the sticks around to the furthest
to all four corners. Click Finish on the computer. Using the toggles
again, make sure throttle stick up is right and throttle stick down is
left, right is right and left is left. If they do not correspond, click the
buttons on the right side to switch. See:
http://community.xproheli.com/training/naza-software-updates for
additional video tutorial.

User Manual
XProHeli XPG Brushless Gimbal
XP2 Quadcopter GPS Page 7
©2014 XPROHELI. All Rights Reserved.

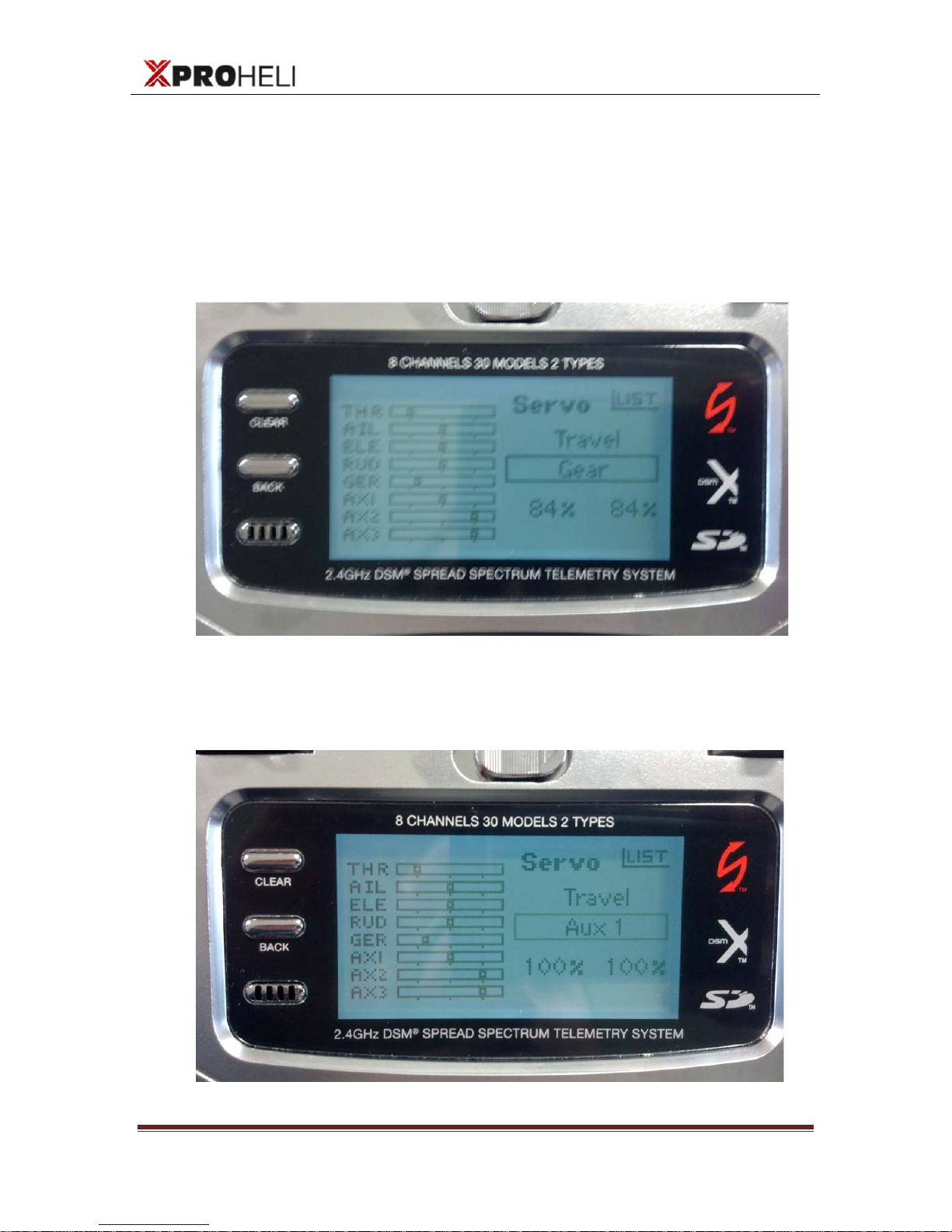

17. On the radio, go to servo setup again. Select Gear under the
second heading. Using the F mode toggle (3 way switch left side of
controller) adjust the percentages both to 84% for now. This will be
checked later.
18. Select Aux 1 and make sure both percentages are 100%.

User Manual
XProHeli XPG Brushless Gimbal
XP2 Quadcopter GPS Page 8
©2014 XPROHELI. All Rights Reserved.

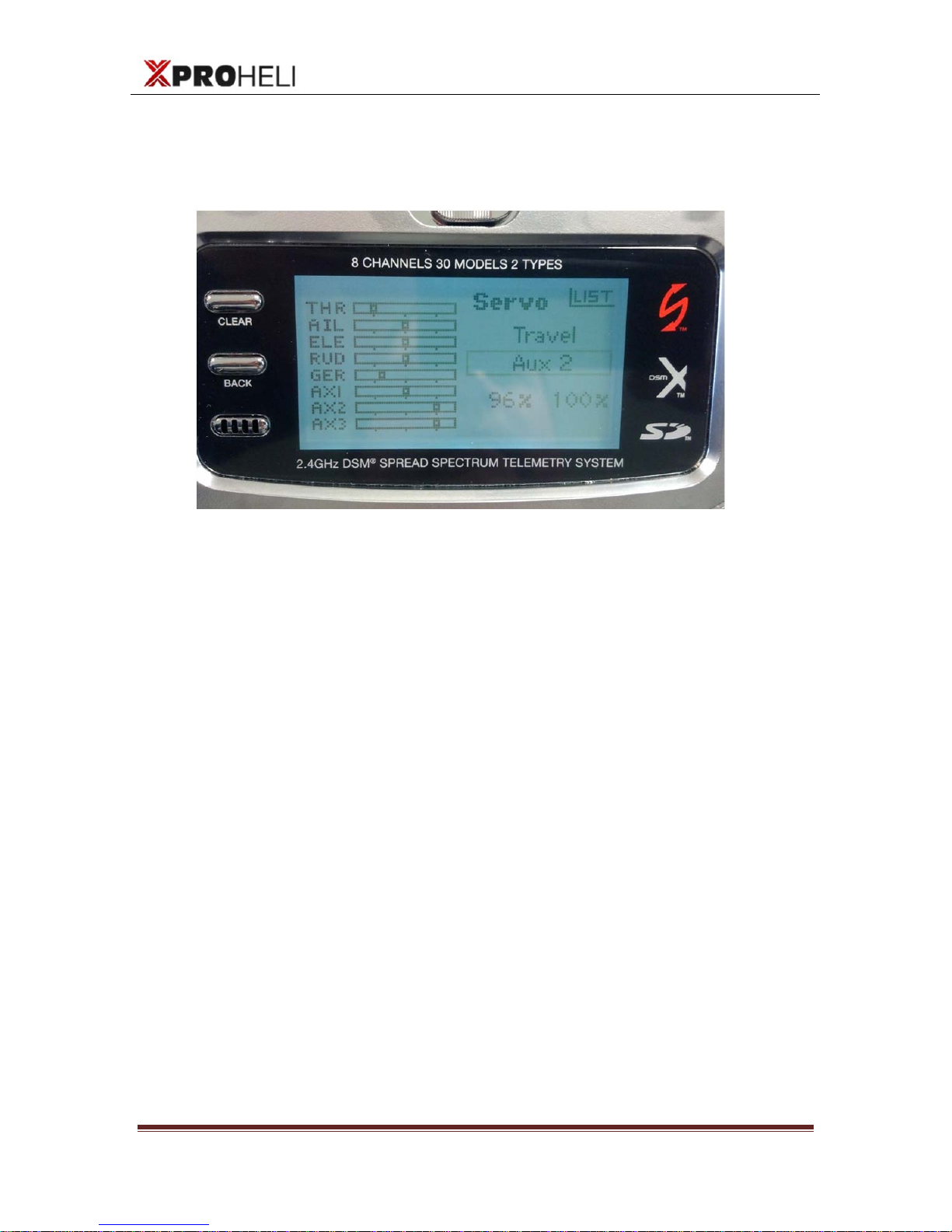

19.Select Aux 2. Using the Flap toggle, adjust the percentages to 96%
for the left side and 100% for the right side.

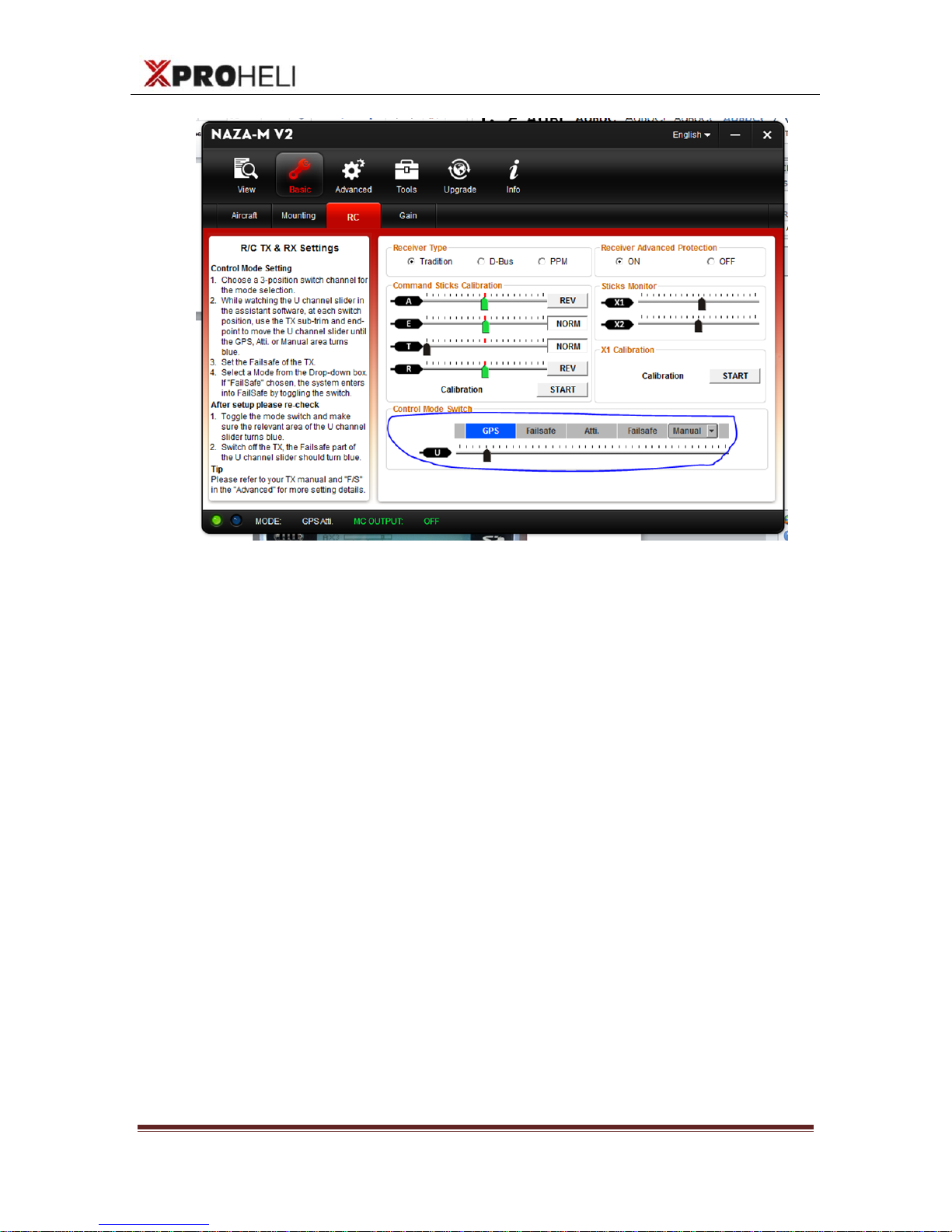

20. Go to the RC tab to verify that the F Mode (Flight Mode) toggle
switch is operating the flight mode slider at the bottom of the
screen and highlighting all three flight mode functions: GPS, ATT.
and Manual. Also check that the failsafe is activating correctly by
flipping the return to home switch (back right two-way switch), the
indicator on the slider should move and highlight in blue the failsafe
mode.

User Manual
XProHeli XPG Brushless Gimbal
XP2 Quadcopter GPS Page 9
©2014 XPROHELI. All Rights Reserved.
OPTIONAL:
You can select the 3
rd
flight mode on the right of the slider (switch
position 0) to Manual, Attitude or Failsafe. We recommend Manual,
however if you are a beginner pilot setting it to Attitude is not a bad
idea as it will prevent you from possibly flipping your quad upside if
you are unaware that you are in manual mode. It is best to practice
manual mode in a safe open environment.
21. Go to the RC tab once again and verify that the Flap switch for
AUX 2 is operating X2 in the Naza software correctly (low med high)

User Manual
XProHeli XPG Brushless Gimbal
XP2 Quadcopter GPS Page 10
©2014 XPROHELI. All Rights Reserved.
22. Verify the Course Lock/ Home Lock functions by going to the
Advanced – IOC tab. Make sure intelligent orientation control is
checked. Verify Flap switch controls the slider on the screen. You
may have to go outside and calibrate the GPS/Compass first to
confirm that this setting is functioning correctly. Do this with the
props off. GPS calibration video link:
https://www.youtube.com/watch?v=xF5-H0SwBt4
Once the calibration is complete, connect your NAZA back to your
computer to verify the course lock / home lock function is
activating correctly.

User Manual
XProHeli XPG Brushless Gimbal
XP2 Quadcopter GPS Page 11
©2014 XPROHELI. All Rights Reserved.
23. Go to the Basic – Gain tab and set the gains as follows:

User Manual
XProHeli XPG Brushless Gimbal
XP2 Quadcopter GPS Page 12
©2014 XPROHELI. All Rights Reserved.
24.On the Advanced - F/S (failsafe) tab Select Go-Home & Landing.
25. Select Aux 3. Using the Mix toggle, adjust the percentages to 105%
for the left side and 102% for the right side.
OPTIONAL:
To setup XPG tilt set AUX 3 left 100% right 29%, then set the Subtrim
to -67%. See the DX8 XPG tilt video at:
http://xproheli.com/pages/training

User Manual
XProHeli XPG Brushless Gimbal
XP2 Quadcopter GPS Page 13
©2014 XPROHELI. All Rights Reserved.
26. Return to the Function List and scroll down to mixing.
27. Highlight box and scroll to select Mix 1. Change to AUX3>GER. Set
the first two percentages to 0% and the one below to -54%
OPTIONAL:
To Setup the mix to control the tilt of the XPG gimbal on the FLAP
switch change the mix to AX2 > GER

User Manual
XProHeli XPG Brushless Gimbal
XP2 Quadcopter GPS Page 14
©2014 XPROHELI. All Rights Reserved.
28. Skip Gimbal on computer and select Voltage instead. Set Voltage
protection switch to OFF. This is done because the external voltage
alarms that we use will alert you if a single cell in the battery is low.
29. All of the settings in the NAZA software should automatically save
to the NAZA.
30. Next we will set the control sticks EXPO settings, this is optional but is
highly recommended for everyone.
31. To set the EXPO settings go to the Function List and scroll down to
select D/R and Expo

User Manual
XProHeli XPG Brushless Gimbal
XP2 Quadcopter GPS Page 15
©2014 XPROHELI. All Rights Reserved.
32. Set Aileron as follows:
33. On the channel (Chan) select Elevator and set as follows:

User Manual
XProHeli XPG Brushless Gimbal
XP2 Quadcopter GPS Page 16
©2014 XPROHELI. All Rights Reserved.
34. On the channel (Chan) select Rudder and set as follows:
35. IMPORTANT! Next you will want to save the settings on your DX8 to
the SD flash card. To do this turn off the controller. Hold down roller
on radio and turn on to enter into the System Setup menu. Scroll
down to Transfer SC Card. Go to Select Option and select. Scroll to
Export Model. Then select Export at the bottom.
