Xstream X-HWTR3524GEN User manual

operation manual
X-HWTR3524GEN
HOT WATER
PRESSURE WASHER

2

3
table of contents
Safety
6 Safety Rules
7 Safety Warnings
Features
13 Features
Installation & Preparation
16 Attire
16 Set-Up
18 Engine/Burner Fuel Tanks
18 Dual Lance Asssembly with Adjustable Pressure
19 Nozzle Review
20 Nozzle Connection
20 Unloader
20 Generator
21 Water Supply
21 Pre-Start Inspection Procedures
Operation
22 Flushing the System
22 Start-Up/Cold Water Operation
23 Hot Water Operation
24 Steam Operation
24 Shutdown
24 Options
Storage & Maintenance
26 Specific Maintenance
26 Maintenance - Every 3 Months
28 Maintenance - Every 6 Months
29 Maintenance - Every 12 Months
30 Seasonal Maintenance
31 Maintenance Chart
Troubleshooting
32 Troubleshooting Chart

4
Using the Operator’s manual
The operating manual is an important part of your Pressure washer and
should be read thoroughly before initial use, and referred to often to make
sure adequate safety and service concerns are being addressed.
Reading the owner’s manual thoroughly will help avoid any personal injury
or damage to your pump. By knowing how best to operate this machine
you will be better positioned to show others who may also operate the
unit.
You can refer back to the manual at any time to help troubleshoot any
specific operating functions, so store it with the machine at all times.
Attention: Read through the complete
manual prior to the initial use of your
Pressure washer
introduction

5
product identification
Record Identification Numbers
Pressure washer
If you need to contact an Authorized Dealer or Customer Service line (1-
866-770-1711) for information on servicing, always provide the
product model and identification numbers.
You will need to locate the model and serial number for the pump and
record the information in the places provided below.
Date of Purchase:
Dealer Name:
Dealer Phone:
Product Identification Numbers
Model Number:
Serial Number:

6
safety
The safety alert symbol ( ) is used with a signal word (DANGER,
CAUTION, WARNING), a pictorial and/or a safety message to alert
you to hazards.
DANGER indicates a hazard which, if not avoided, will result in death
or serious injury.
WARNING indicates a hazard which, if not avoided, could result in
death or serious injury.
CAUTION indicates a hazard which, if not avoided, might result in
minor or moderate injury.
NOTICE indicates a situation that could result in equipment damage.
Follow safety messages to avoid or reduce the risk of injury or death.
Hazard Symbols and Meanings
Save these Instructions
SAFETY RULES
This is the safety alert symbol. It is used
to alert you to potential personal injury
hazards. Obey all safety messages that
follow this symbol to avoid possible injury
or death.
explosion fire
toxic fumes
hot surface
flying objects injection
moving parts
electric
shock

7
safety
WARNING
Serious injury or death may occur from normal sparks in
the multiple ignition sources or engine/burner exhaust.
Serious injury or death may occur as a result of improper
fueling.
Serious injury or death may occur from the battery.
• Always operate pressure washer in a well ventilated area free of
flammable vapors, combustible dust, gases or other combustible
materials.
• Do not store the pressure washer near an open flame or any equipment
such as a stove, furnace, water heater, etc., which utilizes a pilot light or
sparking device.
• Do not use this pressure washer to spray flammable material!
• Do not smoke while filling burner fuel tank.
• Never fill the burner fuel tank while the pressure washer is running or
hot. Allow to cool two minutes before refueling.
• Always refuel slowly to avoid the possibility of spilled fuel which may
cause a risk of fire.
• Do not refuel indoors or in a poorly ventilated area.
Engine Fuel Tank:
• If using a Gasoline Engine, refuel with gasoline only. Do not use diesel
or fuel oil.
Diesel Fuel Tank:
• If using a Diesel Engine, refuel with diesel only. Do not use gasoline.
Burner Fuel Tank:
• When refueling the Burner Fuel Tank, use No. 1 or No. 2 fuel oil/diesel
or kerosene. Do not use gasoline, crankcase drainings, or oil containing
gasoline or solvents.
• Do not operate the unit if gasoline or diesel fuel is spilled. Wipe the
pressure washer clean and move it away from the spill. Avoid creating
any ignition until the gasoline or diesel fuel has evaporated.
• When the battery is being activated, hydrogen and oxygen gases in
the battery are extremely explosive. Keep open sparks and flames away
from the battery at all times, especially when charging the battery.
• Be certain to disconnect the battery ground terminal before servicing.
When disconnecting the cable from the battery, start with the negative
terminal, and when connecting them, start with the positive cable.
• When charging the battery, remove the battery vent plugs.
• Use only a voltmeter or hydrometer to check a battery charge.
• DO NOT jump start the battery unless both batteries are of equal
voltage and amperage.

8
safety
WARNING
Serious injury or death may occur from inhaling engine/
burner exhaust or dangerous vapors. The engine
exhaust from this product contains chemicals known to
the State of California to cause cancer, birth defects, or
other reproductive harm.
• Never operate this pressure washer in an enclosed area. Always make
certain there is adequate ventilation (fresh outside air) for breathing
and combustion. This will prevent the buildup of dangerous carbon
monoxide gases. Beware of poorly ventilated areas, or areas with
exhaust fans which can cause poor air exchange.
• Follow all safety instructions provided with the materials you are
spraying. Use of a respirator may be required when working with
some materials. Do not use this pressure washer to dispense
hazardous detergents.
WARNING
Serious injury or death may occur from a ground fire
caused by a muffler spark.
Serious injury or death may occur if system safety’s are
not properly maintained.
• A spark arrester must be added to the muffler of this engine when
using on land covered with any flammable agricultural crop (hay and
grain), and if they are used in or near brush or forested areas. The
arrester must be maintained in effective working order by the operator.
In the state of California, the above is required by law. (Section 4442
and 4443 of the California Public Resources Code.) Other states may
have similar laws. Federal laws apply on Federal lands.
• This pressure washer has a Safety Relief Valve which should never
be altered, modified, removed or made inoperative. If the device fails,
replace immediately with genuine manufacturer replacement part.

9
safety
WARNING
Serious injury or death could occur from high pressure
spray penetrating the skin.
• Keep clear of nozzle and spray! Never put your hand, fingers or body
directly over the spray nozzle.
• Do not direct discharge stream at persons or self.
• This product is to be used only by trained operators.
• Always keep operating area clear of all persons.
• Close supervision is necessary when used near children. DO NOT
allow children to operate this unit!
• SEEK EMERGENCY MEDICAL CARE if the spray appears to have
penetrated the skin! DO NOT TREAT AS A SIMPLE CUT!!
• High pressure hoses and fuel lines should be inspected daily for signs
of wear. If evidence of failure exists, promptly replace all suspect
hoses and fuel lines to prevent the possibility of injury from the high
pressure spray. If a hose or fitting is leaking, NEVER PLACE YOUR
HAND DIRECTLY ON THE LEAK.
• NEVER operate the gun with the trigger wired in the open position.
To prevent accidental discharge, the trigger gun should be securely
locked when not in use.
• Before removing the spray nozzle or servicing the unit, ALWAYS shut
off the unit and trigger the gun to release trapped pressure. (Even af-
ter you shut off the unit, there is high pressure water left in the pump,
hose and gun until you release it by triggering the gun.)
WARNING
Serious injury or death may occur from contact with
electricity.
• Do not direct spray on or into electrical installations of any kind! This
includes electrical outlets, light bulbs, fuse boxes, transformers, the
unit itself, etc.
• Do not allow metal components of the pressure washer to come in
contact with live electrical components.

10
safety
WARNING
Serious injury may occur from a pressure washer
malfunction or exploding accessories if incorrect
system components, attachments or accessories are
used.
Serious injury or death may occur if attempting to start
the pressure washer when the pumping system is
frozen.
• Never make adjustments to the factory set pressures.
• Never exceed manufacturers maximum allowable pressure rating of
attachments.
• Do not allow any hoses to make contact with heat exchanger to
prevent the possibility of bursting. Avoid dragging the hoses over
abrasive surfaces such as cement.
• Use only manufacturer recommended repair parts for your pressure
washer.
• In freezing temperatures, the unit must always be warm enough to
ensure there is no ice formation in the pump. Do not start the pressure
washer if it has been transported in an open or under heated vehicle
without first allowing the pump to thaw.
WARNING
Serious injury may occur to the operator from moving
parts on the pressure washer.
• Before making any adjustments, be certain the engine is turned off.
Be certain to disconnect the battery ground terminal before servicing
and the ignition cable(s) is removed from the spark plug(s). Turning
the machinery over by hand during adjustment or cleaning might start
the engine and machinery with it.
• Do not operate the unit without all protective covers in place.
WARNING
Serious injury may occur from touching the heat ex-
changer. This area can remain hot for some time after
the pressure washer is shutdown.
• Never allow any part of your body to contact the engine, muffler or
heat exchanger.

11
safety
WARNING
Serious injury or death may occur from detergents con-
tacting the skin.
Serious injury can occur from loose debris being pro-
pelled at a high speed from the spray gun.
Injury may occur if the operator loses his balance
caused by the thrust of water traveling through the
spray nozzle.
Injury may occur from the pressure washer.
• SEEK EMERGENCY MEDICAL CARE if you are using cleaning
agents and the spray appears to have penetrated the skin! DO NOT
TREAT AS A SIMPLE CUT! Be prepared to tell a physician exactly
what kind of detergents you were using by reading the Material Safety
Data Sheet (MSDS) provided with your detergent.
• Never use any solvents or highly corrosive detergents or acid type
cleaners with this pressure washer.
• Protective equipment such as rubber suits, gloves and respirators are
advisable, especially when using cleaning detergents.
• Keep all detergents out of the reach of children!
• ALWAYS wear protective goggles when operating the unit to shield
the eyes from flying debris and detergents.
• DO NOT direct spray toward fragile materials such as glass for shat-
tering could occur.
• Stay alert-watch what you are doing. Do not operate the unit when
fatigued or under the influence of alcohol or drugs.
• NEVER squeeze the trigger unless securely braced.
• DO NOT overreach or stand on unstable support.
• Wet surfaces can be slippery, wear protective foot gear and keep
good footing and balance at all times.
• NEVER trigger the gun while on a ladder or roof.
• ALWAYS hold on firmly to the gun/lance assembly when starting and
operating the unit. Failure to do so can cause the lance to fall and
whip dangerously.
• Know how to stop the pressure washer and bleed pressures quickly.
Be thoroughly familiar with controls.
• Follow the maintenance instructions specified in the manual.
• DO NOT leave pressurized unit unattended. Shut off the pressure
washer and release trapped pressure before leaving.
• DO NOT operate the unit if you see any fuel, oil or water leaks from
the machine. DO NOT resume operation until the unit has been in-
spected and repaired by a qualified service person.

12
safety
• Never run the unit with the governor disconnected or operate at ex-
cessive speeds.
• Place unit in a clean, dry, flat area for servicing. Before servicing the
unit: turn the unit off, relieve the water pressure from the trigger gun,
and allow the unit to cool down. Service in clean, dry, flat area. If ap-
plicable, block wheels to prevent unit from moving.
• Do not move the unit by pulling on the hose.

13
features
10 Operator's Manual
HS FEATURES
HS FEATURES-032905-RZ

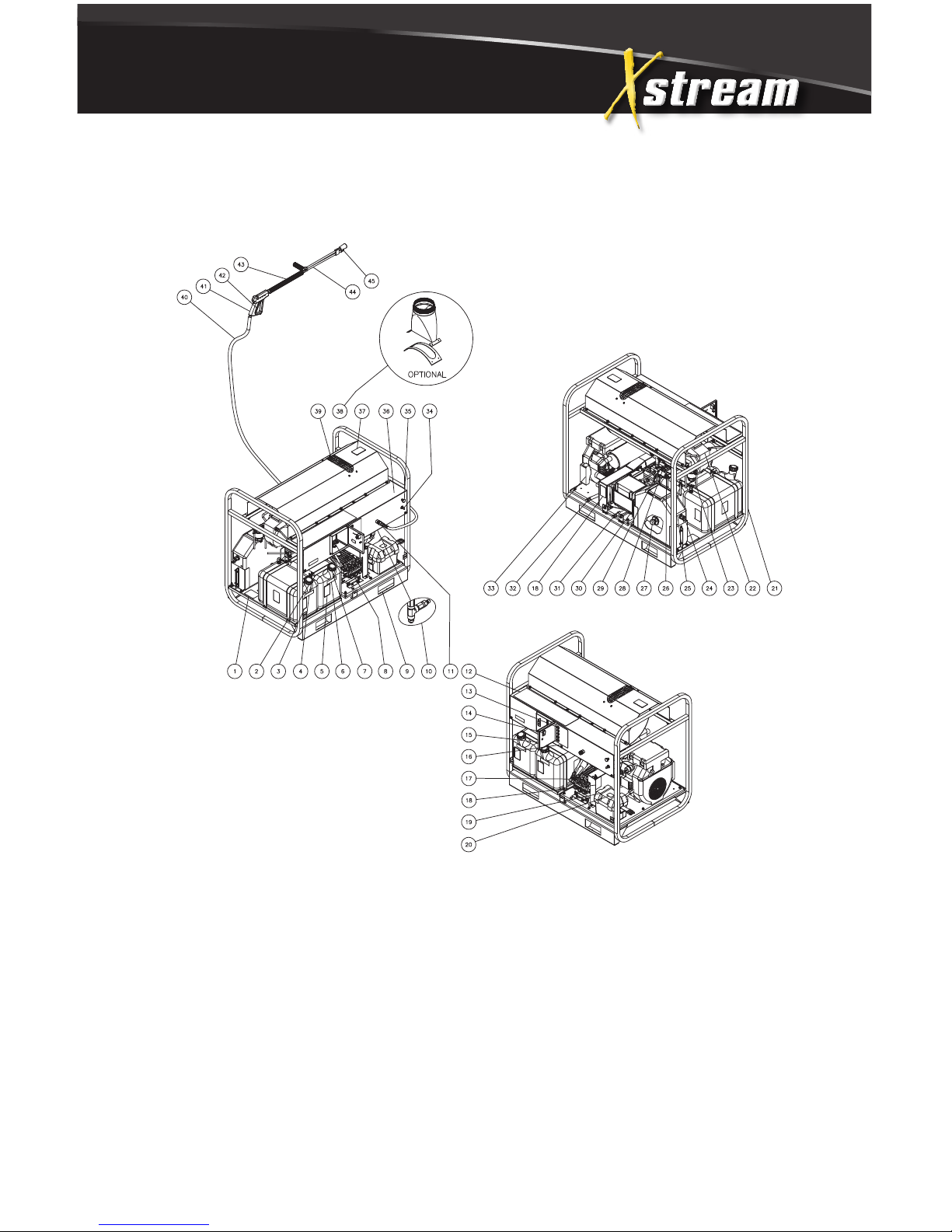

Features

14
1. Decal- Data Plate
2. Gas Tank- Red / 10 Gallon (Gasoline Driven Units Only)
Fuel Tank- Green / 10 Gallon (Diesel Driven Units Only)
3. Decal- Caution: Risk of Fire- Do not use Diesel or Fuel Oil
(Gasoline Driven Units Only)
Decal- Caution: Risk of Fire- Do not use Gasoline
(Diesel Driven Units Only)
4. Decal- Gasoline Only (Gasoline Driven Units Only)
Decal-Diesel Only (Diesel Driven Units Only)
5. Decal- Caution: Risk of Fire- Do not use Gasoline
6. Decal- Diesel Only
7. Fuel Tank- Green / 10 Gallon
8. Hinged Electric Box
9. Fork Truck Access
10. Pressure Relief Valve
11. Water Outlet
12. Decal- Warning/Caution/Operation
13. Quick Connect Nozzle Holder
14. Burner Rocker Switch
15. Decal- Electric Panel
16. Decal- Nozzles
17. High Pressure Pump
18. Decal- Warning: Risk of Injury- Exposed Pulleys
19. Battery and Battery Box
20. Decal- Caution: Disconnect Battery
21. Power Coated Roll Cage Frame Assembly
22. Burner Air Adjustment
23. Fuel Filter / Water Separator
24. Water Inlet
25. Float Tank
26. Heat Dump Valve
27. Water Strainer
28. Pressure Switch
29. Unloader Valve
30. Generator- 2500 Watts
features

15
features
31. Pump Oil Drain
32. Engine Oil Drain
33. Engine
34. Engine Key Switch
35. Engine Choke
36. Control Panel
37. Decal- Warning: Hot Surfaces
38. Stack Adapter Kit- AW-9400-0000
Stack Adapter- 50-0177
Insulation Gasket- 850-0324
39. Heat Exchanger Outlet
40. High Pressure Hose
41. Trigger Gun
42. Trigger Safety Lock
43. Insulated Lance
44. Adjustable Pressure Dual Lance
45. High Pressure Nozzle

16
installation & preparation
ATTIRE
Proper attire is essential to your safety. It is advised to utilize whatever
means necessary to protect eyes, ears, and skin. Additional safety
attire (such as respiratory mask) may be required when using detergent
cleaning agents with this washer.
SET-UP
1. This unit should only be placed on a level surface to ensure proper
lubrication for the water pump while operating. NEVER spray water
directly on the unit.
2. Do not use unit in an area:
a. with insufficient ventilation.
b. where there is evidence of oil or fuel leaks.
c. where flammable gas vapors may be present.
3. Engage brake to prevent the unit from moving while operating.
4. Do not allow the unit to be exposed to rain, snow or freezing
temperatures. If any part of the unit becomes frozen, excessive
pressure may build up in the unit which could cause it to burst
resulting in possible serious injury to the operator or bystanders.
5. Pump oil level should be checked before each use. Make certain
the oil is on the “Full” mark on the dipstick or in the center of the oil
sight glass. If the level appears to be low, fill with SAE20 or 30 non-
detergent pump oil.
6. Your pressure washer is equipped with an Electric Starter. On initial
start-up, wear proper eye and skin protection when filling the battery
with acid. Fully charge the battery to allow Electric Starter to function.
7. Battery Specifications:
DIESEL UNITS:
- RV / Marine Dual Purpose Deep Cycle / Cranking Battery.
- BCI Group 24DC
- Battery Box Size: 11” L x 7 1/2” W x 8 1/4” H (Battery can be slightly
taller and still be covered by lid.)
- Battery should have lifting strap for easy installation.
GASOLINE UNITS:
- Lawn Tractor Battery.
- 175 CCA
- Battery Box Size: 8 1/2” L x 6” W x 6 1/4” H (Battery can be slightly
taller and still be covered by lid.)
- Battery should have lifting strap for easy installation.
Installation & Preparation

17
DANGER
• WHEN CHARGING BATTERIES, THEY GENERATE
A HIGHLY EXPLOSIVE HYDROGEN GAS. A SPARK
COULD CAUSE AN EXPLOSION OR FIRE.
• DO NOT JUMP START BATTERY UNLESS BOTH
BATTERIES ARE OF EQUAL VOLTS AND AMPS.
• DO NOT SMOKE OR ALLOW SPARKS OR FLAMES
NEAR THE BATTERY.
• DO NOT PLACE UNIT IN AN AREA WHERE
FLAMMABLE GAS VAPORS MAY BE PRESENT. A
SPARK COULD CAUSE AN EXPLOSION OR FIRE.
• DO NOT STORE/OPERATE UNIT IN FREEZING
ENVIRONMENTS!
WARNING
DO NOT OPERATE IN AN ENCLOSED AREA. USE
THIS PRODUCT ONLY IN WELL VENTILATED
AREAS!
THE EXHAUST CONTAINS CARBON MONOXIDE, A
POISONOUS, ODORLESS AND INVISIBLE GAS.
BREATHING THIS GAS CAN CAUSE SERIOUS
INJURY, ILLNESS & POSSIBLE DEATH.
installation & preparation

18
DANGER
DO NOT SMOKE WHILE FUELING!
DO NOT FILL THE FUEL TANK WHILE UNIT IS
RUNNING OR HOT. ALLOW UNIT TO COOL FOR
TWO MINUTES BEFORE RE-FUELING.
DO NOT FILL FUEL TANK TO POINT OF
OVERFLOWING. ALLOW APPROXIMATELY 1/4” OF
TANK SPACE FOR FUEL EXPANSION.
ALWAYS STORE FUEL AWAY FROM THE WASHER
WHILE THE UNIT IS RUNNING OR HOT.
ENGINE/BURNER FUEL TANKS
1. Review “Risk of Explosion or Fire” warnings, before fueling.
2. Locate the Safety Decals on your unit and heed their warnings.
3. Engines: See Engine Owner’s Manual for fuel requirements.
Burner Fuel: When filling tank, use No. 1 or No 2 fuel oil/diesel or
kerosene.
4. Check the engine oil level before starting the engine. (See Engine
Manual.)
5. Refer to the Engine Manual supplied with this unit for proper engine
adjustment procedures.
6. Review the Engine Manual accompanying this pressure washer for
correct engine start-up and maintenance procedures.
DUAL LANCE ASSEMBLY WITH ADJUSTABLE PRESSURE
This unit features an Adjustable Pressure Dual Lance which allows the
user to select a high or low pressure “fan” spray. Simply rotate the adjust-
able grip on the dual lance to achieve the desired pressure selection.
1. Selection of high pressure can be achieved by turning the adjustable
grip on the Dual Lance assembly counterclockwise.
2. Selection of low pressure can be achieved by turning the adjustable
grip on the Dual Lance clockwise.
14 Operator's Manual
installation & preparation
adJustable pressure dual lance:
This unit features an Adjustable Pressure Dual Lance which allows the user to
select a high or low pressure “fan” spray. Simply rotate the adjustable grip on
the dual lance to achieve the desired pressure selection.
1. Selection of high pressure can be achieved by turning the adjustable grip on
the Dual Lance assembly counterclockwise as shown in the gure below.
2. Selection of low pressure can be achieved by turning the adjustable grip on
the Dual Lance clockwise as shown in the gure below.
dual lance connection:
1. Be certain the trigger gun is locked in the “OFF” position.
2. Connect the dual lance assembly to the trigger gun assembly at this time
(if applicable). Be certain the connection is securely tightened.
water supply:
1. Select a water supply hose which is a quality grade of garden hose measuring
at least 3/4” ID and no longer than 50 feet.
2. If your unit is equipped with a water strainer, ensure it is clean and free of
any obstructions. Periodic cleaning of the water strainer will help prevent
pump problems. As a strainer becomes obstructed, it restricts proper ow of
water to the pump. This can result in cavitation which will cause premature
failure of pump packings.
a. Unscrew the strainer bowl from the unit.
b. Remove strainer screen and clean or replace.
3. Connect one end of the water supply hose to the water inlet of the unit.
Connect the other end of the hose to your pressurized water supply.
NOTE: If there is a high mineral content in your water, it is recommended that a
water softener be used to prevent the possibility of excessive scale buildup
inside the heat exchanger coil.
4. Follow the incoming water requirements listed below:
a. Water pressure must be between a minimum of 20 pounds per square
inch (PSI) and a maximum of 125 PSI.
b. Incoming GPM must be approximately one gallon more than the outgoing
GPM stated on the pressure washer nameplate. (You can check GPM by
timing how long it takes to ll a 5 gallon container.)
c. Incoming water temperature must not exceed 125°F. Excessive pump
damage may result if the water temperature exceeds this acceptable
level.
5. Never allow the unit to operate without the incoming water line attached and
the water supply completely turned on.
WARNING
risKof inJection causing
seVere inJury!
-tHe trigger gun sHould
always be locKed in tHe off
position wHen not in use!
-neVer looKdirectly at
tHe noZZle unless it is
disconnected from tHe
trigger gun/dual lance
assembly!
installation & preparation

19
WARNING
THE TRIGGER GUN SHOULD ALWAYS BE LOCKED IN THE OFF
POSITION WHEN NOT IN USE! NEVER LOOK DIRECTLY AT THE
NOZZLE UNLESS IT IS DISCONNECTED FROM THE TRIGGER
GUN/DUAL LANCE ASSEMBLY!
installation & preparation
NOZZLE REVIEW
Various nozzles may be quick-connected into the end of the dual lance to
change the spray pattern. The detergent nozzle has been pre-installed at
the factory. When using quick-connects (Q.C.), be certain the connection
is securely locked as shown at right. If not, the high pressure water may
shoot the nozzle from the lance, causing severe injury or serious dam-
age. To determine spray fan, refer to the actual number stamped on the
nozzle. The first two digits indicate the spray fan degree: 00=0°, 15=15°,
25=25°, 40=40°, 65=65°.
1. The 0° nozzle (RED): This is a blasting nozzle. It delivers a very con-
centrated stream of water. Be cautious when using the straight narrow
stream. It is not recommended for use on painted or wood surfaces,
or items attached with adhesive backings. Uses: Removing weeds
from sidewalk cracks, stubborn stains from concrete, masonry, alumi-
num and steel, caked mud from equipment, and cleaning lawn mower
undersides.
2. The 15° nozzle (YELLOW): This is a chiseling nozzle. The spray should
be directed at a 45° angle to the surface and used like a scraper to
remove paint, grease and dirt. Uses: Surface preparation (removing
mildew stains and paint chips).
3. The 40° nozzle (WHITE ): This is a wash nozzle. This wide spray
pattern disperses the water pressure over a large area and is recom-
mended for moderate washing. Uses: Washing down aluminum siding,
cleaning windows, washing vehicles, spraying sidewalks, driveways,
and patios.
4. The 25° nozzle (GREEN ):
a. On standard units, this is a flushing nozzle. This pattern is best suited
for flushing dirt, mud, and grime. Uses: Wet sweeping leaves from
walks, curbs and driveways, cleaning stable floors, washing swimming
pool bottoms, degreasing engines.
b. On units with steam option, this nozzle is used for 250°F Wet Steam
operation. This nozzle is sized for operation with the unloader and
steam valve (where applicable) to provide high pressure wet steam.
Replacement of this nozzle with an improperly sized nozzle may cause
operational problems with the machine.

20
UNLOADER
GENERATOR
The unloader has been preset at the factory.
This unit is equipped with a 11115 Volt AC generator. The generator
provides power to the burner, and the control and safety circuits of the
machine.
1. Always ensure the burner switch is in the OFF position before start-
ing the engine. Allow the engine to reach full RPM before turning the
burner switch to the ON position. Failure to do so can damage the
generator or burner.
2. Do not spray water at or around generator. Electrocution and/or dam-
age to the generator, burner, and any auxiliary equipment may result.
installation & preparation
5. The 65° nozzle: (included in dual lance.) This is a detergent nozzle. The
broad spray pattern distributes solution over vast areas. Uses: Deter-
gent application, misting or rinsing.
NOZZLE LOCK NOZZLES
12
12 Operator's Manual
INSTALLATION & PREPARATION
WATER SUPPLY:
1. Select a water supply hose which is a quality grade of garden hose measuring
at least 3/4" ID and no longer than 50 feet.
2 Check the water inlet strainer to ensure it is clean and free of any obstructions.
As a strainer becomes obstructed, it restricts proper ow of water to the
pump. This can result in cavitations which will prematurely cause failure
of pump packings.
a. Using a screwdriver, remove the screen from the water inlet.
b. Clean or replace if necessary.
3. Connect the hoses.
a. Connect one end of the water supply hose to the water inlet of the unit.
b. Connect the other end of the hose to your pressurized water supply.
NOTE 1: Do not use a non-pressurized water supply (i.e. from a pond or
well) with this unit.
NOTE 2: When connecting the water inlet to the water supply mains, local
regulations of your water company must be observed. In some
areas, the unit must not be connected directly to the public drinking
water supply. This is to ensure there is no feedback of detergents
into the water supply. (Direct connection is permitted if a backow
preventer is installed. Check with local authorities for approval.)
NOTE 3: If there is a high mineral content in your water, it is highly
recommended that a water softener and an additional water strainer
be added to the water inlet to help prevent the possibility
of excessive scale buildup inside the heat exchanger coil. Clean
both strainers before starting your pressure washer.
NOZZLE REVIEW:
Various nozzles may be quick-connected into the end of the wand to change the
spray pattern or use the detergent feature. When using Quick Connects (Q.C.),
be certain the connection is securely locked. If not, the high pressure water
may shoot the nozzle from the wand, causing severe injury or serious damage.
To determine spray fan, refer to the actual number stamped on the nozzle. The
rst two digits indicate the spray fan in degrees, i.e.; 00=0”, 15=15°, 40=40°.
1. The 0° nozzle (RED): This is a blasting nozzle. It delivers a very concentrated
stream of water. Be cautious when using the straight narrow stream. It is
not recommended for use on painted or wood surfaces, or items attached
with adhesive backings. Uses: Removing weeds from sidewalk cracks,
stubborn stains from concrete, masonry, aluminum and steel, caked mud
from equipment, and cleaning lawn mower undersides.
2. The 15° nozzle (YELLOW): This is a chiseling nozzle. The spray should
be directed at a 45° angle to the surface and used like a scraper to remove
paint, grease and dirt. Uses: Surface preparation (removing mildew stains
and paint chips).
3. The 40° nozzle (WHITE):
This is a wash nozzle. This wide spray pattern disperses the water pressure
over a large area and is recommended for moderate washing. Uses: Washing
aluminum siding, cleaning windows, washing vehicles, spraying sidewalks,
driveways, and patios.
NOZZLE CONNECTION:
1. Be certain the trigger gun is locked in the “OFF” position. See WARNING, left.
2. The nozzle assembly should be disconnected from the gun/wand assembly
at this by retracting the locking ring on the quick-connect tting to remove
the nozzle.
WARNING
RISK OF INJECTION CAUSING
SEVERE INJURY!
NEVER LOOK DIRECTLY AT THE
NOZZLE ORIFICE UNLESS IT
IS DISCONNECTED FROM THE
GUN/WAND ASSEMBLY!
CONNECTION OF Q.C. NOZZLES
QUICK-CONNECT FITTING
WARNING
RISK OF SEVERE INJURY!
THE TRIGGER GUN SHOULD
ALWAYS BE LOCKED IN THE OFF
POSITION WHEN NOT IN USE!
QUICK-CONNECT (Q.C.)
0°
15°
40°
Operator's Manual 19
PREPARATION
QUICK-CONNECT NOZZLES:
Various nozzles may be quick connected into the end of the adjustable pressure
dual lance to change the spray pattern or use the detergent feature. When
using Quick- connects (Q.C.), be certain the connection is securely locked.
(See illustration #11). If not, the high pressure water may shoot the nozzle
from the lance, causing severe injury or serious damage. To determine
spray fan, (see illustration #12) refer to the actual number stamped on the
nozzle. The rst two digits indicate the spray fan in degrees, i.e., 00=0°,
15=15°, 25=25°, 40=40°.
1. The 0° nozzle (RED): This is a blasting nozzle. It delivers a very concentrated
stream of water. Be cautious when using the straight narrow stream. It is
not recommended for use on painted or wood surfaces or items attached
with adhesive backings. Uses: Removing weeds from sidewalk cracks,
stubborn stains from concrete, masonry, aluminum and steel, caked mud
from equipment, and cleaning lawn mower undersides.
2. The 15° nozzle (YELLOW): This is a chiseling nozzle. The spray should
be directed at a 45° angle to the surface and used like a scraper to
remove paint, grease and dirt. Uses: Surface preparation (removing
mildew stains and paint chips).
3. The 25° nozzle (GREEN):
a. This is a ushing nozzle. This pattern is best suited for ushing
dirt, mud, and grime. Uses: Wet sweeping leaves from walk,
curbs and driveways, cleaning stable oors, washing swimmin
pool bottoms, degreasing engines.
b. On units with steam option, this nozzle is used for 250°F Wet
Steam operation. This nozzle is sized for operation with the
unloader and steam valve (where applicable) to provide high
pressure wet steam. Replacement of this nozzle with an improp-
erly sized nozzle may cause operational problems with the
machine.
4. The 40° nozzle (WHITE): This is a wash nozzle. This wide spray pattern
disperses the water pressure over a large area and is recommended
for moderate washing. Uses: Washing down aluminum siding, cleaning
windows, washing vehicles, spraying sidewalks, driveways, and
patios.
ILLUSTRATION #11
QUICK CONNECT
ILLUSTRATION #12
Q.C. NOZZLES
1. Ensure the trigger gun is locked in the OFF position. (See illustration
#13)
2. The quick-connect nozzle should be disconnected from the adjustable
pressure dual lance at this time. As shown in illustration #14, retract the
locking ring on the quick-connect tting to remove the nozzle.
ILLUSTRATION #14
NOZZLE CONNECTION
NOZZLE CONNECTION:
WARNING
RISKOF INJECTION CAUSING
SEVERE INJURY!
THE TRIGGER GUN SHOULD
ALWAYS BE LOCKED IN THE OFF
POSITION WHEN NOT IN USE!
NEVER LOOKDIRECTLY AT
THE NOZZLE UNLESS IT IS
DISCONNECTED FROM THE
TRIGGER GUN/DUAL LANCE
ASSEMBLY!
ILLUSTRATION #13
GUN LOCK
NOZZLE CONNECTION
1. Ensure the trigger gun is locked in the OFF position.
2. Quick-connect nozzles can be connected or disconnected from the
dual lance assembly by retracting the locking ring on the quick-con-
nect fitting. When connecting the desired nozzle, push the locking ring
over the quick connect nozzle to secure connection.
Operator's Manual 19
PREPARATION
QUICK-CONNECT NOZZLES:
Various nozzles may be quick connected into the end of the adjustable pressure
dual lance to change the spray pattern or use the detergent feature. When
using Quick- connects (Q.C.), be certain the connection is securely locked.
(See illustration #11). If not, the high pressure water may shoot the nozzle
from the lance, causing severe injury or serious damage. To determine
spray fan, (see illustration #12) refer to the actual number stamped on the
nozzle. The rst two digits indicate the spray fan in degrees, i.e., 00=0°,
15=15°, 25=25°, 40=40°.
1. The 0° nozzle (RED): This is a blasting nozzle. It delivers a very concentrated
stream of water. Be cautious when using the straight narrow stream. It is
not recommended for use on painted or wood surfaces or items attached
with adhesive backings. Uses: Removing weeds from sidewalk cracks,
stubborn stains from concrete, masonry, aluminum and steel, caked mud
from equipment, and cleaning lawn mower undersides.
2. The 15° nozzle (YELLOW): This is a chiseling nozzle. The spray should
be directed at a 45° angle to the surface and used like a scraper to
remove paint, grease and dirt. Uses: Surface preparation (removing
mildew stains and paint chips).
3. The 25° nozzle (GREEN):
a. This is a ushing nozzle. This pattern is best suited for ushing
dirt, mud, and grime. Uses: Wet sweeping leaves from walk,
curbs and driveways, cleaning stable oors, washing swimmin
pool bottoms, degreasing engines.
b. On units with steam option, this nozzle is used for 250°F Wet
Steam operation. This nozzle is sized for operation with the
unloader and steam valve (where applicable) to provide high
pressure wet steam. Replacement of this nozzle with an improp-
erly sized nozzle may cause operational problems with the
machine.
4. The 40° nozzle (WHITE): This is a wash nozzle. This wide spray pattern
disperses the water pressure over a large area and is recommended
for moderate washing. Uses: Washing down aluminum siding, cleaning
windows, washing vehicles, spraying sidewalks, driveways, and
patios.
ILLUSTRATION #11
QUICK CONNECT
ILLUSTRATION #12
Q.C. NOZZLES
1. Ensure the trigger gun is locked in the OFF position. (See illustration
#13)
2. The quick-connect nozzle should be disconnected from the adjustable
pressure dual lance at this time. As shown in illustration #14, retract the
locking ring on the quick-connect tting to remove the nozzle.
ILLUSTRATION #14
NOZZLE CONNECTION
NOZZLE CONNECTION:
WARNING
RISKOF INJECTION CAUSING
SEVERE INJURY!
THE TRIGGER GUN SHOULD
ALWAYS BE LOCKED IN THE OFF
POSITION WHEN NOT IN USE!
NEVER LOOKDIRECTLY AT
THE NOZZLE UNLESS IT IS
DISCONNECTED FROM THE
TRIGGER GUN/DUAL LANCE
ASSEMBLY!
ILLUSTRATION #13
GUN LOCK
