ERG550W WATER ROWING MACHINE
OWNER’S MANUAL
PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW ROWER

Table Of Contents
1
2
4
13
14
15
16
23
24
25
Product Registration
Important Safety Instructions
ERG550W Assembly Instructions
Fill and Empty the Tank
Adjustment Guides
Transport & Storage
Console Operation
Manufacturer’s Limited Warranty
Exploded View
Parts List
Thank you for your purchase of this quality rower from XTERRA Fitness. Your new
rower has been manufactured by one of the leading tness manufacturers in the world.
XTERRA Fitness will do all we can to make your ownership experience as pleasant as
possible for many years to come. If you have questions, or if parts are missing or damaged,
or you require customer service, call [phone]. Please have your model number and
serial number handy when you call.
Please take a moment to record where you purchased your machine, as well as the date of
purchase for future reference. We appreciate your condence in XTERRA Fitness and we
will always remember that you are the reason that we are in business. Please complete and
mail your registration card today and enjoy your new rower.
Yours in Health,
XTERRA Fitness
Congratulations On Your New Rower and Welcome to the XTERRA Fitness Family!
ERG550W_VER3_20230101

ERG550W Rower
1
ATTENTION
THIS ROWER IS INTENDED FOR RESIDENTIAL USE ONLY AND IS WARRANTED FOR THE
APPLICATION. ANY OTHER APPLICATION VOIDS THIS WARRANTY IN ITS ENTIRETY.
Record Your Serial Number
Please record the Serial Number of this tness product in the space provided below.
Serial Number
Register Your Purchase
The self-addressed product registration card must be completed in full and returned to
XTERRA Fitness. You can also go to www.xterratness.com/warranty to register on-
line.
Product Registration
Purchase Location
Purchase Date

2
ERG550W Rower
• Do not operate equipment on deeply padded, plush or shag carpet. Damage to both carpet and
equipment may result.
• Before beginning this or any exercise program, consult a physician. This is especially important for
persons over the age of 35 or persons with pre-existing health conditions.
• Keep hands away from all moving parts.
• Do not attempt to use your equipment for any purpose other than for the purpose it is intended.
• Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use on your
equipment. Quality athletic shoes are recommended to avoid leg fatigue.
• Wear proper clothing for exercising, loose clothing could become caught in the machine.
• Only one person at a time should use the machine.
• If the user experiences dizziness, nausea, chest pain, or any other abnormal symptoms, STOP the workout
at once. CONSULT A PHYSICIAN IMMEDIATELY.
• Do not place any sharp object around the machine.
• Always use caution when moving and storing your equipment.
• User Weight Limit: 300 LB
Important Safety Instructions
When using an appliance, basic precautions should always be followed, including the following:
Read all instructions before using this appliance.
WARNING - To reduce the risk injury to persons:
1. Do not operate under blanket.
2. Operate the machinery with ample free space around it to easily get on and o󰀨 the machine.
3. This exercise equipment is not intended for use by persons with reduced physical, sensory or mental capa-
bilities, or lack of experience and knowledge.
4. Keep children and pets away from the machine at all times. DO NOT leave children unattended in the same
room with the machine.
5. Use this appliance only for its intended use as described in this manual. Do not use attachments not
recommended by the manufacturer.
6. Never operate this appliance if it is not working properly, if it has been dropped or damaged, or dropped into
water. Return the appliance to a service center for examination and repair.
7. Keep the appliance away from heated surfaces.
8. Never operate the appliance with the air openings blocked. Keep the air openings free of lint, hair, and the
like.
9. Never drop or insert any object into any opening.
10. Do not use outdoors.
11. The appliance is intended for household use.
12. After assembly, make sure to tighten all nuts and bolts.
SAVE THESE INSTRUCTIONS - THINK SAFETY!
Fitness Equipment Safety Instructions
CAUTION!! Please be careful when unpacking the carton.
Failure to follow all guidelines may compromise the e󰀨ectiveness of the exercise experience, expose
yourself (and possibly others) to injury, and reduce the longevity of the equipment.
WARNING: This product can expose you to chemicals including Toluene and Acrylamide which are
known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov

ERG550W Rower
3
Before you begin
Thank you for selecting our revolutionary XTERRA ERG550W Water Rowing Machine. A rower is an e󰀨ective
exercise for increasing cardiovascular tness, building endurance, and toning the body. Our Water Rowing
Machine provides an impressive selection of features designed to make your workouts at home more e󰀨ective
and enjoyable.
For your benet, read this manual carefully before you use the ERG550W Water Rowing Machine. To help us
assist you, note the product model number and serial number before contacting us. Before reading further,

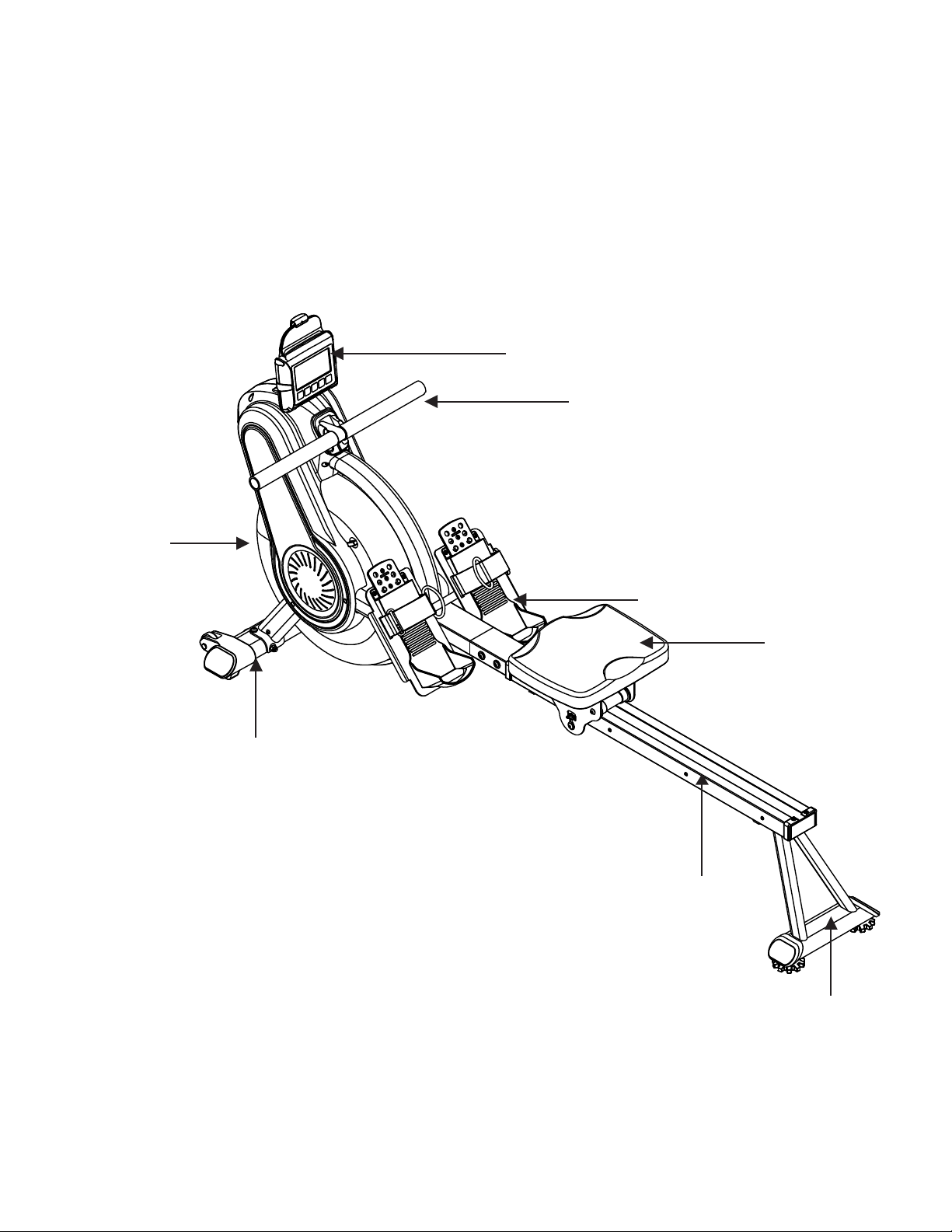

please familiarize yourself with the parts that are labeled in the drawing below.
Console
Handle Bar
Pedals
Seat
Rear Stabilizer
Sliding Rail
Front Stabilizer
Tank

4
ERG550W Rower
ERG550W Assembly Part Checklist
NO.1 NO.17
NO.3
NO.83、
NO.2
NO.4
NO.90
NO.91
NO.54
104

ERG550W Rower
5
ERG550W Assembly Part Checklist
Part No Description Q’ty
1 Main Frame 1
3 Front Stabilizer 1
54 Console 1
17 Seat 1
90 Funnel 1
4 Front Stabilizer 1
2 Slide Rail 1
83 Pedal Plate L 1
104 Pedal Plate R 1
91 Siphon Pump 1
User Manual 1
Hardware Parts 1
Note: Above parts are all needed to assemble this machine. Before you start to assemble, please check
the hardware packing to make sure they are included.

6
ERG550W Rower
ERG550W Assembly Pack Checklist
260
260
(#74) Flat Washer 1pcs
Step 2
Step 4
Step 1
Step 6
Step 3
(#51) Hex Socket Round Head
Screw M8*65 1pcs
(#111) 1pcs
(#112) 1pcs
(#80) Hex Nut
M8 1pcs
Step 5
(#99) Curved
Washer 4pcs
(#74) Flat Washer
4pcs
(#67) Hex Socket Round
Head Screw M8*15 4pcs
(#66) Hex Socket Screw
M8*15 4pcs
(#73) Hex Socket Round Head Screw M8*95 2pcs
(#27) Flat
Washer 4pcs
(#62) Hex Bolt M8*10 4pcs (#65) Hex Socket
Screw M6*10 2pcs
(#40) Rubber pad 1pc
(#80) Hex
Nut M8 2pcs
(#67) Hex Socket Round
Head Screw M8*15 2pcs
(#27) Flat
Washer 2pcs
Hardware Package
(#101) ST4*8 2pcs
(#114) Hex Bolt M12*18 4pcs

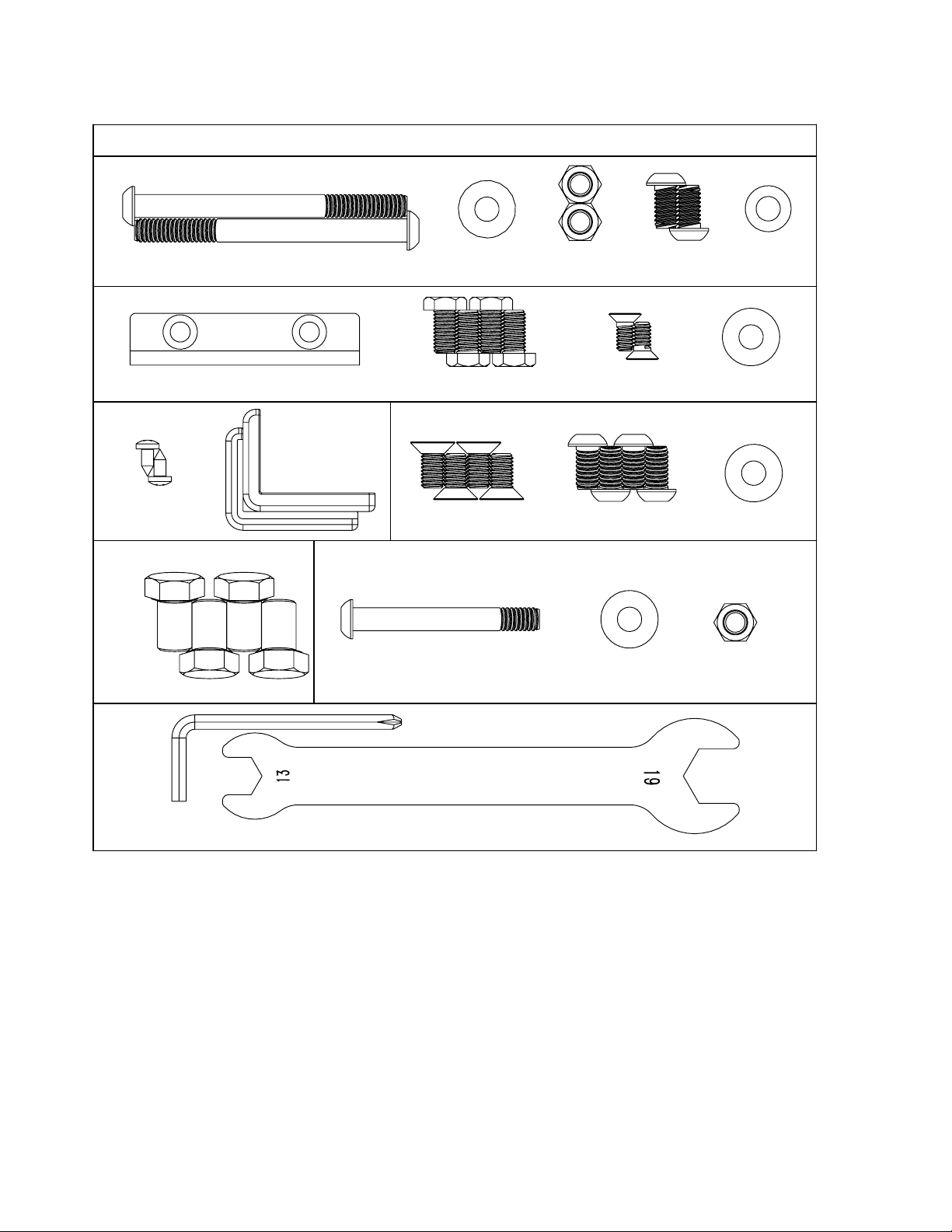

(#97) Multi-Hex Tool with Phillips Screwdriver (#96) Allen Wrench
2022/6/5
A
R27002
1:1
5'
10'
20'
1~3
>6~30
>3~6
>30~120
>120~400
>400~1000
>1000~2000
A1
1R2709002
�合件
1pcs
with Phillips Screwdriver
Open Wrench
10

ERG550W Rower
7
NOTE: We recommend having 2 people to assemble the product. Please be careful
when assembling Step 1. The Main Frame is easy to topple.

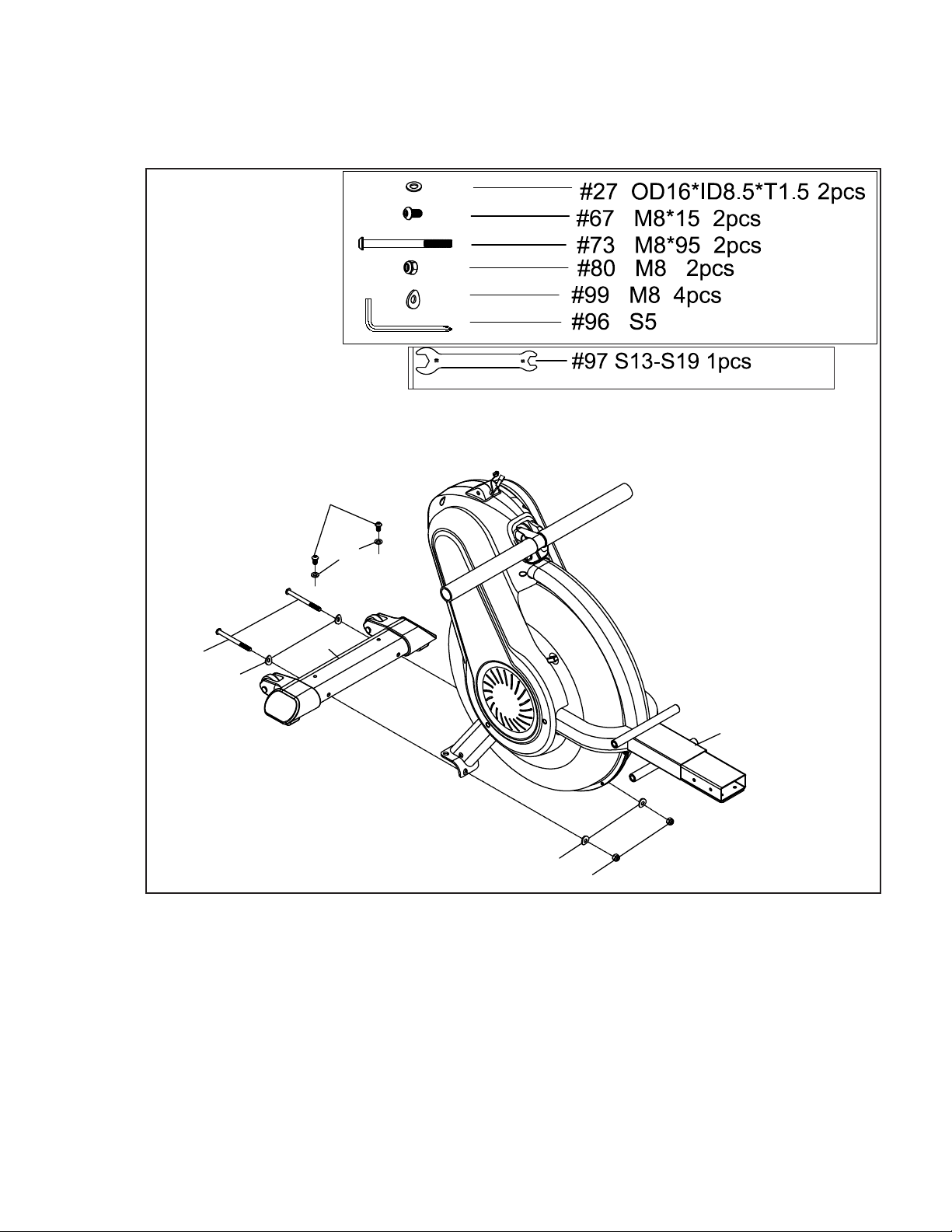

1. Attach the Front Stabilizer (No.4) onto the Main Frame (No.1) with 4 Curved
Washers (No.99) and 2 Hex Socket Round Head Screws (No.73) and 2 Nylon
Hex Nuts (No.80).
2. Secure the Front Stabilizer (No.4) to the Main Frame (No.1) with 2 Flat Washers
(No.27), 2 Hex Socket Round Head Screws (No.67).
3. Tighten using the Allen Wrench with Phillips Screwdriver (No.96) and Open
Wrench (No.97) provided.
ERG550W Assembly Instructions
99
73
1
4
99
80
67
27
Front Stabilizer
1
40
65
2
17
27
27
62 62
17
3

8
ERG550W Rower
Rear Stabilizer and Seat
2

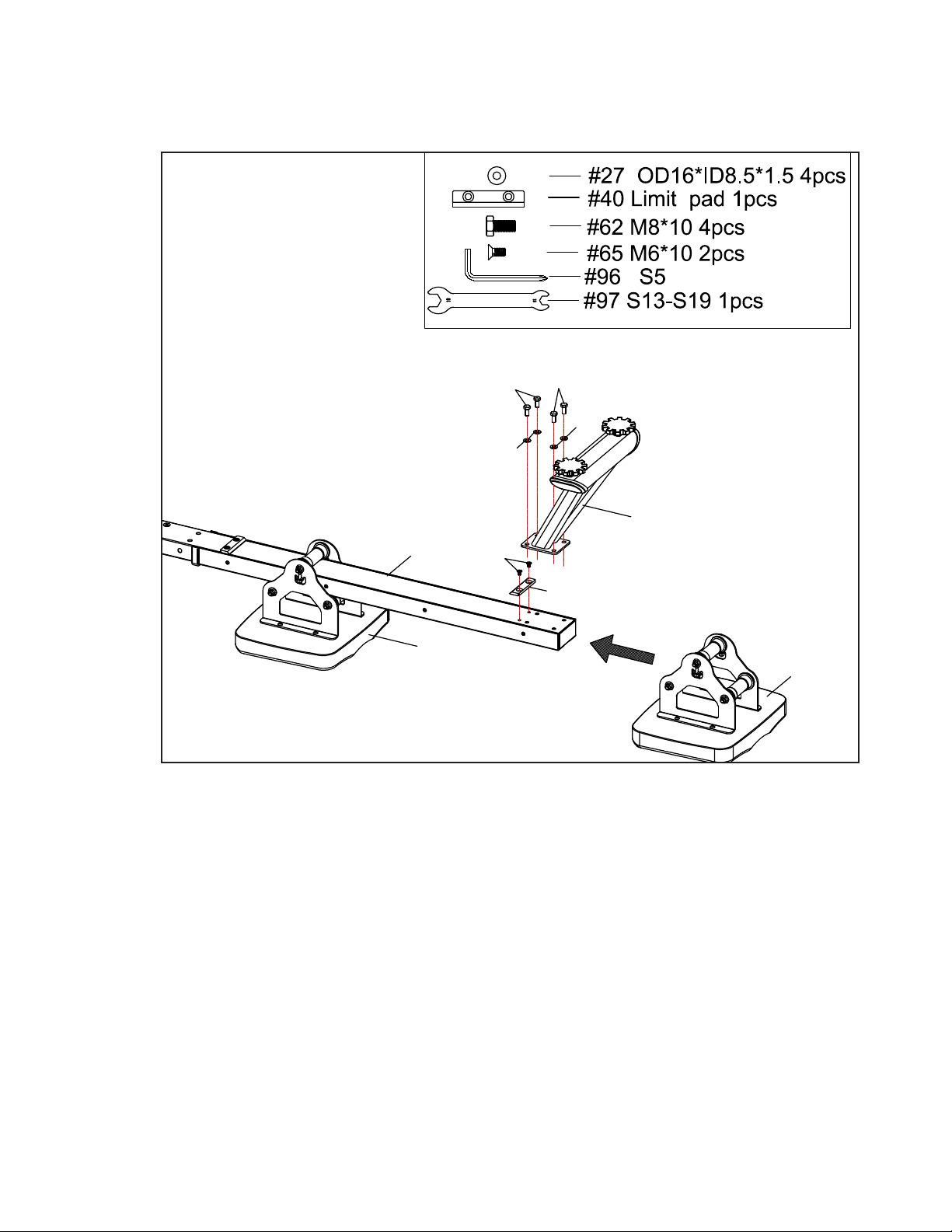

1. Turn over the Slide Rail (No.2) and Seat (No.17) as shown.
2. Slide the Seat (No.17) onto the Slide Rail (No.2).
3. Secure the Limit Pad (No.40) with 2 Hex Socket Screws (No.65). Then attach
the Rear Stabilizer (No.3) to the Slide Rail (No.2) with 4 Flat Washers (No.27)
and 4 Hex Bolts (No.62).
4. Tighten with Allen Wrench with Phillips Screwdriver (No.96) and the Open
Wrench (No.97) .
40
65
2
17
27
27
62 62
17
3

ERG550W Rower
9

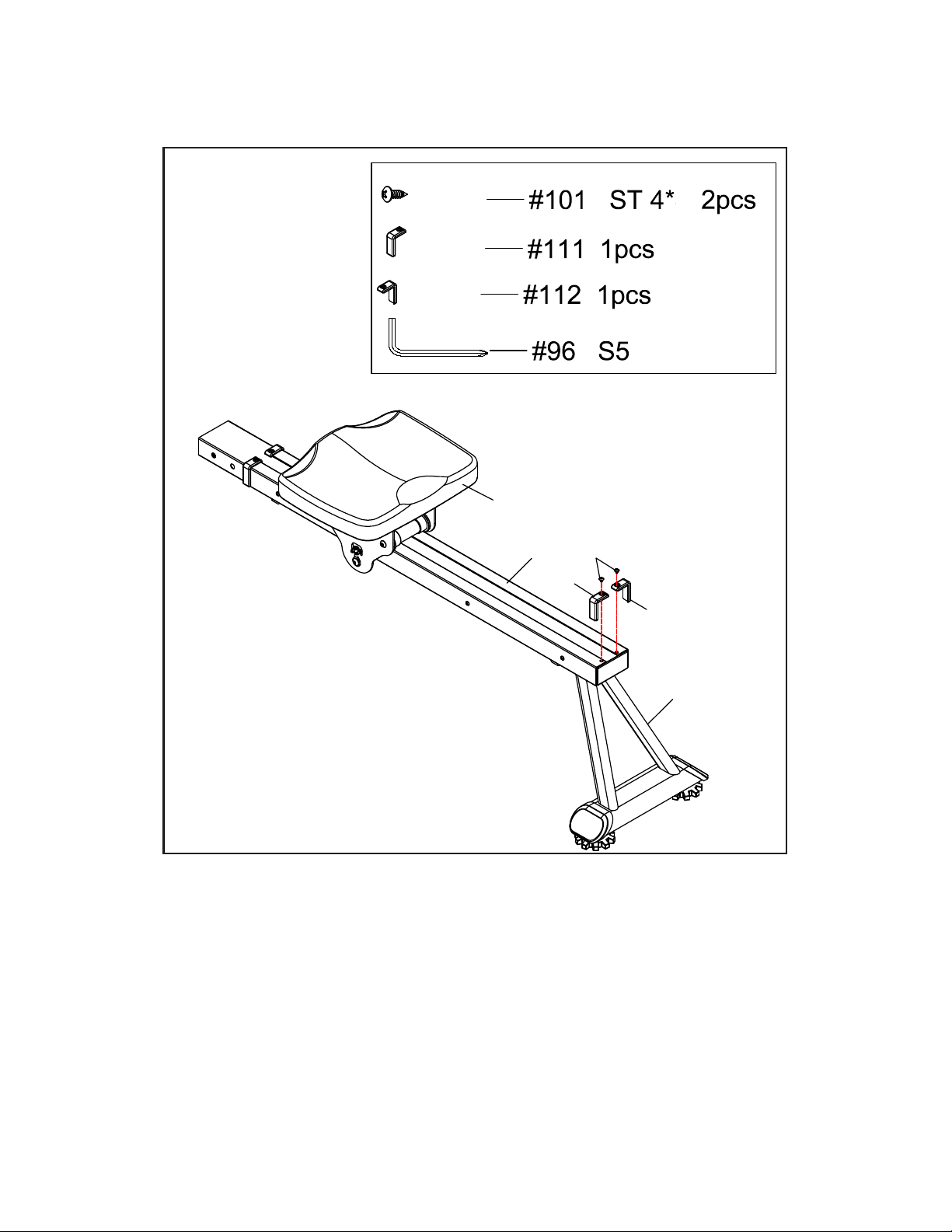

1. Attach the Stop Brackets L / R (No.111 / 112) to the Sliding Rail (No.2) and
tighten the caps with 2 Self-tapping screws (No.101).
2. Tighten using the Allen Wrench with Phillips Screwdriver (No.96)
provided.
17
2101
111
112
3
Seat Stop
3
10

10
ERG550W Rower
Main Frame
4
NOTE: Move the Seat (No.17) to the front of the Slide Rail (No.2) before assembly to
prevent it from sliding down during assembly.
1. Attach the Slide Rail (No.2) to the Main Frame (No.1) using 4 Flat Washers
(No.74), 4 Hex Socket Round Hex Screws (No.67) and 4 Hex Socket Screws
(No.66). Insert all 8 screws partially into the holes rst, and then tighten using the
Allen Wrench with Phillips Screwdriver (No.96).
66
66
74 67
74
67
1
2
17
5

ERG550W Rower
11
1. Screw the Pedal Plate L (No.83) into the Main Frame (No.1) with 2 Hex
Bolts (No.114) using the Open Wrench (No.97). Tighten.
2. Repeat for Pedal Plate R (No.104) to Main Frame (No.1).
67
104
114
114
83
Pedals
5

12
ERG550W Rower
Console
6
1. Connect the wire of Console (No.54) to the Sensor Wire Set (No.95) from the
Main Frame (No.1).
2. Attach the Console Bracket (No.8) which is pre-installed on the Console
(No.54) onto the Main Frame (No.1) with 1 Hex Socket Round Head Screw
(No.51), 1 Flat Washer (No.74) and 1 Nylon Hex Nut (No.80).
3. Tighten using the Allen Wrench with Phillips Screwdriver (No.96) and Open
Wrench (No.97) provided.
1
51
74
80
54
95
8

ERG550W Rower
13
How to Fill and Empty the Tank
1. Remove the Fill Plug (No.50) from the Upper Tank Cover (No.24).

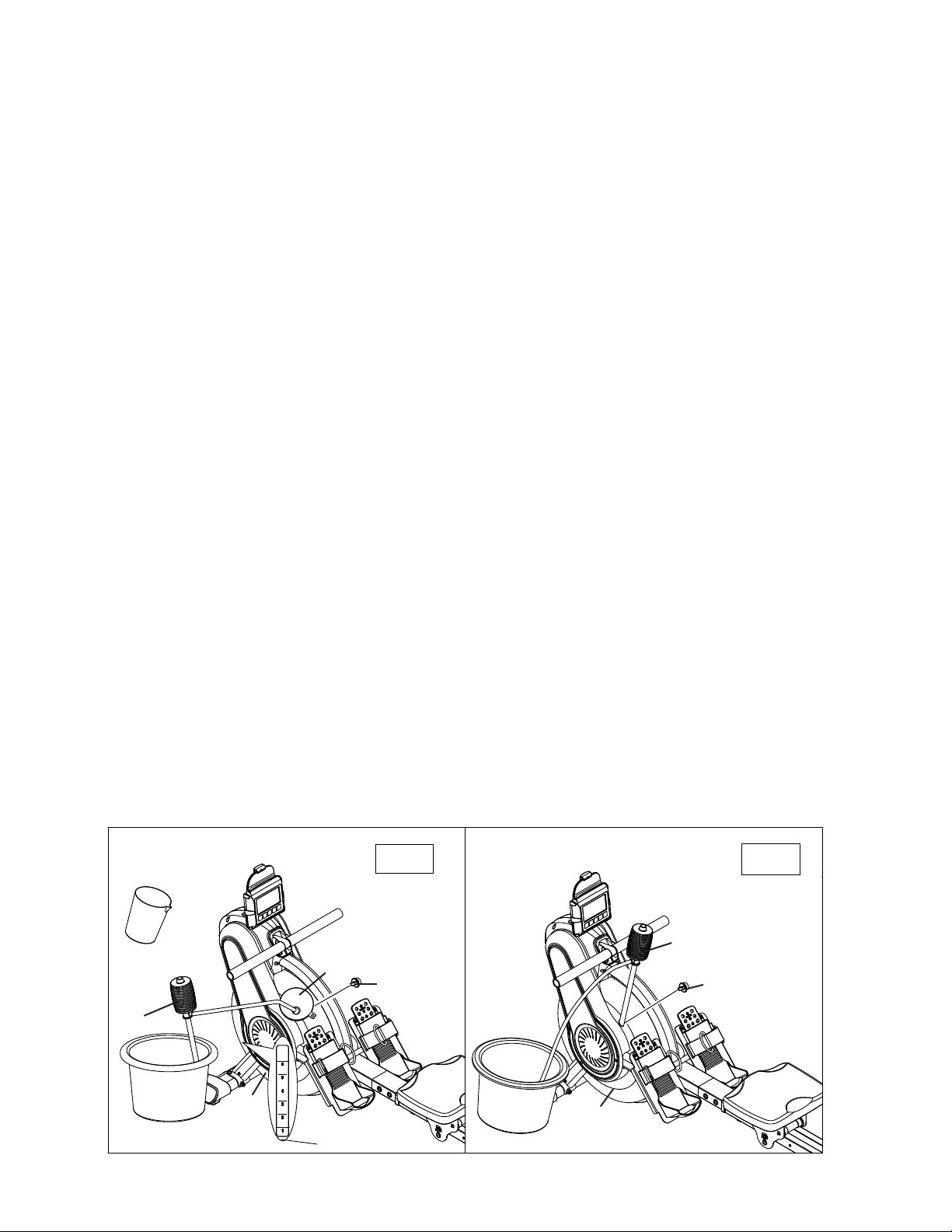

2. To ll tank with water, refer to Fig. A. Insert the Funnel (No.90) into the tank, then use a cup or
the Siphon Pump (No.91) and a bucket to ll the tank. Use the water level gauge on the side
of the tank to measure desired water level in the tank.
3. To empty the tank, refer to Fig. B. Place a bucket next to the rower, and use the Siphon Pump
(No.91) to pump out the water from the tank into the bucket.
4. Insert the Fill Plug (No.50) into the Upper Tank Cover (No.24). Wipe excess water o󰀨 of the
frame.
NOTE:
• Fill the tank only with tap water. Never use pool chlorine or chlorine bleach. This will damage
the tank and void the warranty.
• Add a Water Purication Tablet every 6 months or as needed. Humidity and temperature can
play a role. If water remains cloudy, replace the water in the tank.
• Water from the tank is not suitable for consumption. Dispose the water after pumping it out
from the tank.
• To extend the life of your rower and prolong use between tank cleanings, please purchase wa-
ter cleaning tablets at www.xterratness.com, or by calling 1-[phone].
WATER LEVEL
• See Fig. A. The water level gauge is on the side of the tank. The maximum ll level is 6. Never
ll it over this limit. Filling the tank over this limit will void the warranty.
• The resistance depends on the water level in the tank.
Water level 1 is the lowest resistance. Level 6 is the highest resistance.
Fig. A Fig. B
Water level label
50
90
91
24 24
50
91

14
ERG550W Rower
Adjustment Guides

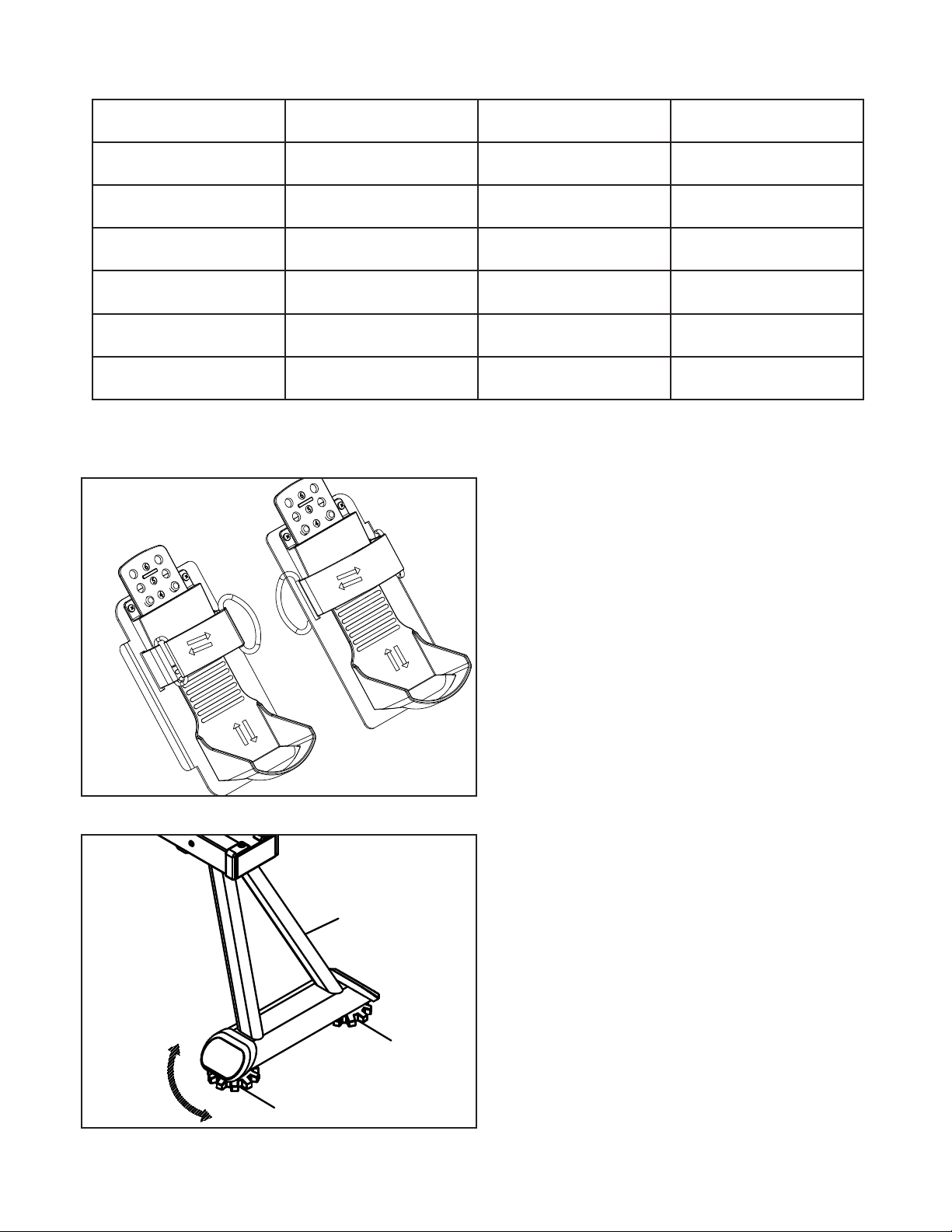

The pedal strap is adjustable and can be
personalized to t the user’s foot size.
To adjust the pedal strap, remove the Velcro
end of the strap from the mesh side by
pulling it upward and over to the side.
Once removed, you may increase the
opening of the pedal strap by pulling the
mesh end up and to the side.
To tighten, pull the Velcro end of the pedal
strap upward then over and down to secure it
to the mesh side of the strap.
Water Tank Capacity
Adjusting the Balance
Adjust the Adjustable Floor Stabilizers
(No.19) below the Rear Stabilizer (No.3) of
the machine if the machine is unbalanced
during use.
CAUTION!
Moving parts, such as the seat, can crush
and cut. Keep hands clear of the Slide Rail
during use.
3
17
2
19
19
Level Capacity (Liters) Capacity (Gallons) Capacity (Quarts)
L1 6.5 1.72 6.86
L2 7.1 1.87 7.50
L3 7.8 2.06 8.24
L4 8.4 2.22 8.87
L5 9 2.38 9.50
L6 10 2.64 10.56

ERG550W Rower
15
To move the machine, lift up the rear
stabilizer until the transportation wheels
on the front stand touch the ground.
With the wheels on the ground, you can
transport the rower to the desired location
with ease.
Transport and Storage
CAUTION!
Move the Seat (No.17)
to front of Slide Rail
(No.2) rst or it will glide
down when raising the
rower up!
CAUTION!
Move with caution when
you raise the rower up, as
your head may touch the
Rear Stabilizer (No. 3).
CAUTION!
When not in use, you can save space
by storing the rower vertically. Lift by the
Rear Stabilizer (No.3) to raise the rower
to vertical position.
If not using the rower for more than a
month, empty the tank before storing.
3
17
2
3
2
17

16
ERG550W Rower
Operation of Your Console
ERG550W Console
UP / DOWN: Press these two buttons to scroll through available selection.
To adjust the function value upward and downward.
ENTER: Press to conrm your selection
During training, press the button to cycle scan each display function.
START / STOP: To start and stop your selected workout program.
RESET: To return the computer back to the main menu.
Press and hold to reset values.
Button Functions
Our computerized display console on the Water Rowing Machine allows the user to tailor a
personalized workout by monitoring their progress. During a workout, the display console will
alternately and repeatedly display the Time, Time/500M, SPM, Distance, Strokes, Total Strokes,
Calories Burned and Pulse (all of the above).
ENTERRESET

ERG550W Rower
17
Functions
TIME: Set a target time by pressing the UP and/or DOWN buttons (1min ~ 99
min), in 1 minute increments.
TIME / 500M: Your average time to reach 500 meters is automatically displayed.
SPM: Strokes per minute.
DISTANCE: Preset a target value by pressing the UP and/or DOWN buttons
(0 ~ 99900 meters), 100 meters increments.
STROKES: Set a target value by pressing the UP and/or DOWN buttons (0~9990
strokes). 10 strokes increments.
TOTAL
STROKES: Accumulates total strokes from 0 up to 9999.
CALORIES: Set a target value by pressing the UP and/or DOWN buttons (10~9990
Cal). 10 caloric increments.
PULSE: (Wireless chest strap sensor sold separately) - In Manual Mode,
set the target heart rate value by pressing up/down (available range is
30 to 240 in 1 BPM increments). The computer will display user’s
heart rate during training. When you are out of range of the target value
during exercise, the computer will beep and PULSE will blink until target
range is resumed or wireless chest strap sensor is removed. The pulse
measurement function is only usable with the optional wireless chest
strap sensor.
WATT: Current workout watts with available range from 0 up to 999.

18
ERG550W Rower
Operation of Your Console

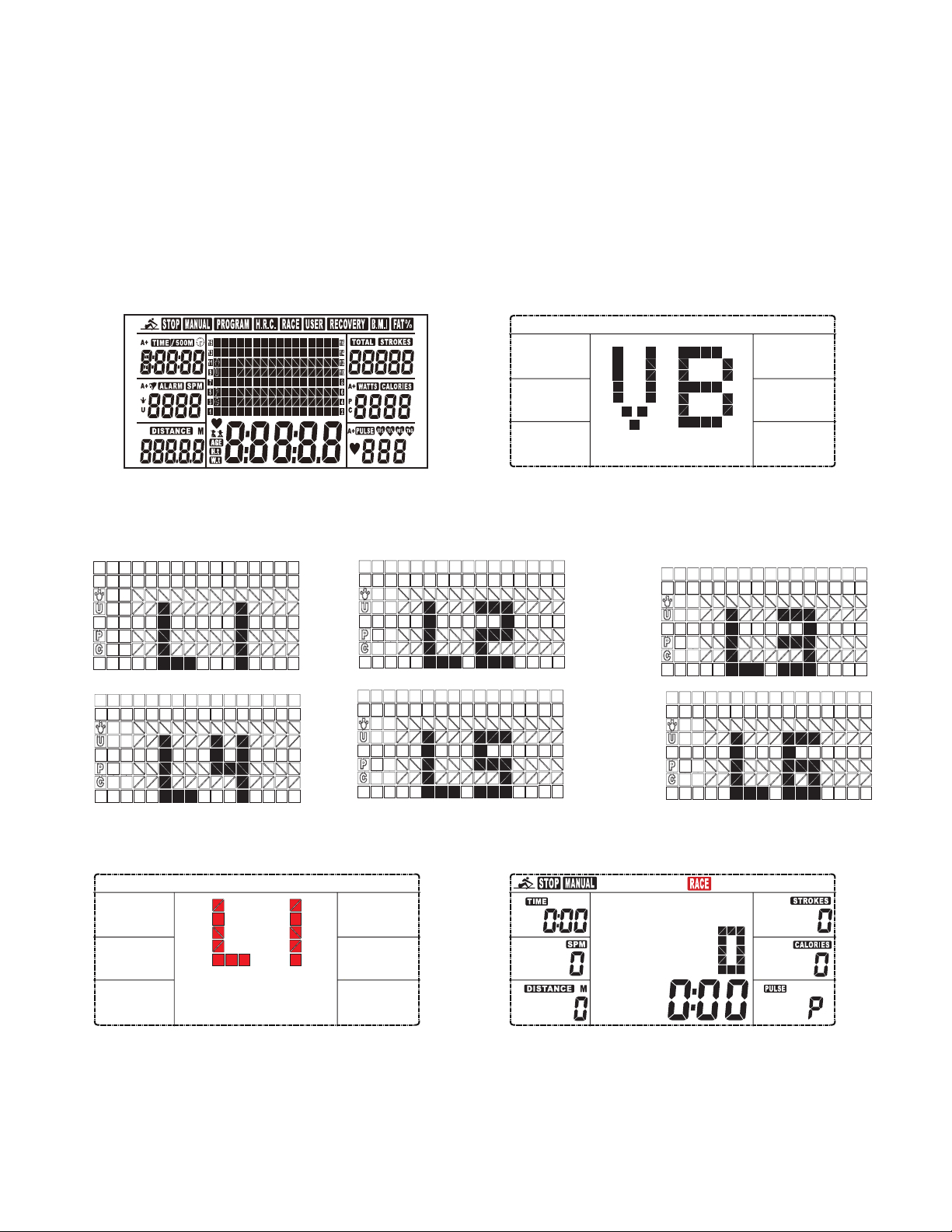

1. Install 2 AA batteries (included) and computer will beep for 2 seconds (Fig.1).
2. The console will display the type for 2 seconds (Fig 2), then the console will prompt you to
enter the Water Level (L1~L6), and the window displays the Water Level value and ash
to indicate selection. (Fig 3).
3. The user can press up or down to select level. After conrming, the user will enter the
training mode.(Fig 4)
Fig.4Fig.3
Fig.2Fig.1
WATER LEVEL (LOAD)
The menu at the top of the screen will blink to have you choose between MANUAL & RACE
mode. Press UP or DOWN to select, then press ENTER and conrm your desired workout
mode.
