Xtreme Elliptical XFIT CLOUD User manual

Elliptical
User’s Manual
* Product specifications may differ from the photo and are subject to change without notice.

83
61
16 100
46
70
56
EXPLOSIVEDRAWING
55
53
52R
13 64 65
60
40 54
63 103
67
63 23R
9B
107 15
68 52L
7 107
98
6 75 95 57 35
71
23L
86 88
87
12R 10 48
41
74A
8
74B
73
21 49
29 34
8 51
7 63 72 6 7
9B 84 102
12L 97 50 47 89 45
18
69 84 7 9 45 37 94
72
41 17 14 41
9 44
77
80R 8 7 943
60 63 93R
93L 26
40 24
42 41 101
72 1
96 19 9A 7 6 22 4 9B 7 8 3 6 7 9C
32L 80L
32R
107
104R
102
31
72 84 11R
9B 7 6 33
66 38
104L
63 5R 81 8 7 20 2 5L 39
107 79
11L 110
60
108
58
109
59
27 28 90 62 30 84
102
85 91 92 36R 36L

PART LIST
NO.
DESCRIPTION
Q’TY
NO.
DESCRIPTION
Q’TY
1
Main frame
1
20
Cup nut(M8x1.25x15L,8.8grade)
4
2
Front Stabilizer Welding Set
(silver)
1
21
Foot pedal 350*140*60
2
3
Slide Rail Welding Set (chrome)
2
22
Adjustable round wheel
(D59*M10*40L)
2
4
Tube Cap (elliptical,40*80*33)
2
23R
Up foot lid (80*50*87,right,black)
2
5L
Roll foot cap （Left）
1
23L
Up foot lid (80*50*87,left,black)
2
5R
Roll foot cap (Right)
1
24
Anti-slide nut(M10*1.25*7T)
2
6
Curved
washer(chrome,D22xD8.5x1.5T)
12
25
/
7
Spring washer (D15.4xD8.2x2T)
30
26
C-shape ring(D22.5*D18.5*1.2T)
2
8
Flat washer
18
27
Upper computer cable (800L)
1
9
Allen bolt
(chrome,M8x1.25x15L,8.8grade)
10
28
Lower computer cable (600L)
1
9A
Allen bolt
(chrome,M8x1.25x95L,8.8grade)
2
29
Upper tension cable
1
9B
Allen bolt
(chrome,M8x1.25x20L,8.8grade)
12
30
Lower tension cable
1
9C
Allen bolt
(chrome,M8x1.25x55L,8.8grade)
2
31
Circumvolve axle welding set
2
10
Handlebar post welding set
（silver）
1
32R
Left pedal frame welding set(silver)
1
11L
Left pedal bottom tube welding
set(silver)
1
32L
Right pedal frame welding set(silver)
1
11R
Right pedal bottom tube welding
set(silver)
1
33
Crank welding set
2
12L
Left sway support tube welding
set(silver)
1
34
/
/
12R
Right sway support tube welding
set(silver)
1
35
Multi-groove belt(1321 PJ6)
1
13
Bearing(#99502ZZ)
4
36L
Left chain cover（829.4*671.4）
1
14
Flat washer (D20*D11*2T)
2
36R
Right chain cover（829.4*671.4）
1
15
Tube cap (black,mushroom)
2
37
Flywheel set
1
16
Idle wheel(D23.8xD38x24，with
6000ZZ bearing)
1
38
Roll wheel(D70*43)
2
17
Anti-loosen nut (M10*1.5*10T)
2
39
Side cover(D36*14)
2
18
Slide rail link tube welding
set(silver）
1
40
Hex. bolt(M8x1.25x20)
4
19
Rear stabilizer welding set
1
41
Plastic flat washer (D10*D24*0.4T)
10

NO.
DESCRIPTION
Q’TY
NO.
DESCRIPTION
Q’TY
42
Short axle(Zn,D19*44L)
2
68
Computer bracket
（left,black,218.2*124.7*64）
1
43
Bearing(#6004ZZ)
2
69
Pedal tube welding set(silver)
2
44
Belt wheel (multi-groove,D310x19)
1
70
Idle wheel fixation set（Zn）
1
45
Anti-loosen nut(Zn,M8*1.25*8T)
1
71
C-shapering(S-16)
2
46
Flat washer(Zn,D25*D8.5*2.0T)
1
72
Bushing(black)
18
47
Plastic flat washer
(black,D50*D10*1.0T)
1
73
Bolt(M6*1*15L)
4
48
/
/
74A
Front pedal axle cover(upper,black
105*78*48.5)
2
49
Upper protective cover(170*66)
1
74B
Front pedal axle cover(lower,black
105*78*48.5)
2
50
Plastic bushing (D3*30L)
1
75
Curvedwasher(D21xD16x0.3T)
2
51
Spring(D3*30L)
1
76
/
/
52L
Left handlebar welding set(silver)
1
77
Nut(M6*1.0*5T)
4
52R
Right handlebar welding set(silver)
1
78
/
/
53
High-density
foam(black,HDR,D30x3Tx500L)
2
79
Round Chain Cover (D454*3.25T)
2
54
High-density
foam(black,D30x4Tx125L)
2
80L
Left pedal reinforced piece welding set
1
55
Tube cap (mushroom,black,D1
1/4"*45L)
2
80R
Left pedal reinforced piece welding set
1
56
Spring(Zn,D3.5xD18x52L)
1
81
Square bolt （ M8x1.25x60L ， 8.8grade ）
4
57
Hex. bolt (M6x1.0x15L, 8.8grade)
4
83
Hex.nut (M8*1.25*25L 8.8grade)
1
58
C-shape ring(S-15)
4
84
Curvedwasher(D26*D19.5*0.3T)
10
59
Curved washer(D21xD16.2x0.3T)
2
85
Bolt(ST4.2x1.4x20L)
11
60
Flat washer(D25xD8.5x2.0T)
8
86
Six angle nut(M6*1*6T)
2
61
Crank axle welding set
1
87
Nylonwasher(D6*D19*1.5T)
1
62
Round magnet(M51)
1
88
Anti-loosennut(M6x1.0x6T)
4
63
Screw(ST4*1.41*15L)
22
89
Hex.nut(M8*1.25*6T)
1
64
Computer（TZ2186）
1
90
Bolt(M5*0.8*10L)
1
65
Hand pulse（PE18）
2
91
Screw(Zn,ST4*1.41*15L)
16
Hand pulse cable
2
92
Flatwasher(D12*D4.3*1T)
16
66
Roll Axle（D15*49）
2
93R
Rear axle cover(right,black
126.9*131.5*50.9)
2
67
Computer bracket
（right,black,218.2*124.7*60）
1
93L
Rear axle cover(left,black
126.9*131.5*48)
2

NO.
DESCRIPTION
Q’TY
NO.
DESCRIPTION
Q’TY
94
Footcap(black,56*51*38)
2
103
Cablecap(D4*D12*13)
2
95
Hex.bolt(Zn,M6*65L,8.8grade)
1
104L
Axlecover(left,black,91.5*37*72)
2
96
Curvedwasher(D27*D21*0.3T)
1
104R
Axlecover(right,black,91.5*40*72)
2
97
Magnet fixation bracket welding
set(Zn)
1
105
/
/
98
Bolt(ST4.2x1.4x15L)
4
106
/
/
99
/
/
107
Bolt(M5*0.8*15L)
8
100
Hex.bolt(Zn,M6*1*6T)
1
108
Spacer(D11.5*D8*3.5T)
4
101
Flatwasher(D26*D21*1.5T)
1
109
Roll wheel stop piece(86*59*3T)
2
102
C-shapering(D21.5xD17.5x1.2T)
8
110
Allenbolt(M8*1.25*20L)
4

Technical Features
Disc weight:
8 Kg
Resistance system:
Magnetic
Maximum user weight:
160 kg
Stride Length:
45 cm
Bearings:
Heart Rate Measurement:
On Handles
Dimensions:
L: 158 x W: 72 x H: 169 cm
Machine Weight:
65 kg
Display functions:
LCD display. Indications: Time, Speed, Distance,
Calories, Heart Rate and Resistance.
Certification:
CE-ROHS-EN957
THE WARRANTY IS NOT VALID IF:
The machine is placed outdoors or exposed to sun and dust.
CAUTION! The company does not have no responsibility for causing damage due to misuse of the product
and non-compliance with the instructions for use.
CAUTION! The heart rate sensor and calorie counter are not medical devices. Several factors can affect
the accuracy of the indications. The heart rate sensor is only intended as an aid during exercise to monitor
your heart rate in general.
Check and tighten the screws at regular intervals, as they may loosen due to vibrations. Damage
that may be caused by a lack of maintenance is not covered by the warranty.
CAUTION! During exercise, heavy sweating can cause mechanical and electrical damage to the machine.
Like any other liquid substance, sweat is capable of causing damage mainly to the electrical parts of the
machine (dial, cables, etc.). The best solution is to use a towel during exercise, and wipe the machine after
each use to avoid any unwanted damage.

Assembly step 1
Note: Assembly requires 2 people.
(x4) (x2)
81 9A
7 7
D22*D8.5*1.5T
9B
7
20
1 7
20 8
7
8 9B
7 81
6 19
M8*1.25*20L
D15.4*D8.2*2T
(x4)
(x4)
(x2)
(x2)
2 81
(A)
9A 7 6 19 36
94 18 7 9C
8
7
9B
1
Assemble the front stabilizer welding set (2) to the main frame (1) using the cup nut
(20), spring washer (7), flat washer (8), and square bolt (81). Assemble the rear
stabilizer welding set (19) to the main frame (1) using the cup nut (20), spring
washer (7), flat washer (8), inner six angle bolt (9B), curved washer (6), and
square bolt (81).

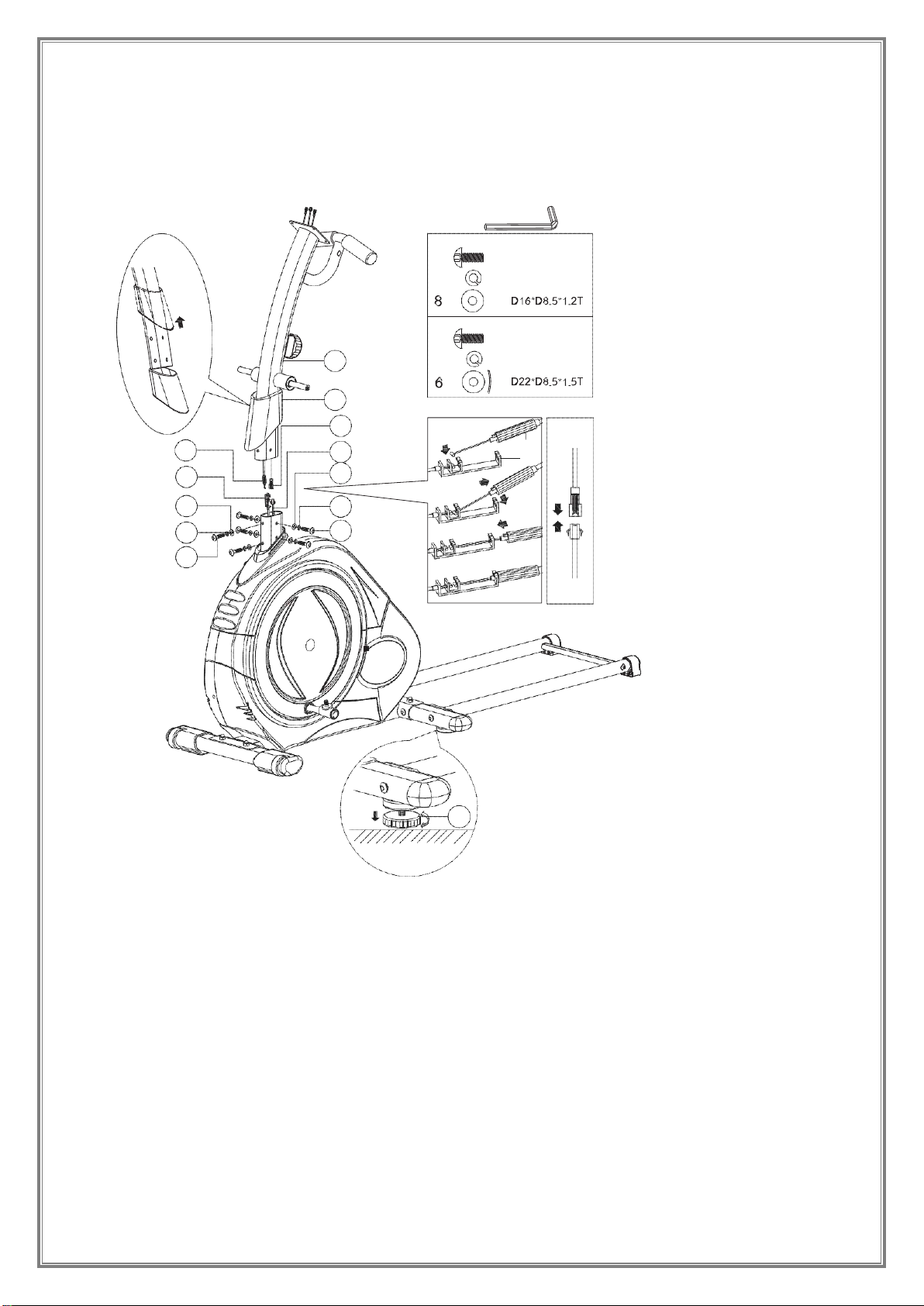

Assembly step 2
3
0
(A)9
7
9
10 7
49
(x4)
M8*1.25*15L
D15.4*D8.2*2T
(x2)
M8*1.25*15L
D15.4*D8.2*2T
27 B-1 (C)
29 28 29
30 8
6 7
7 9
9
B-2
B-3
B-4
22
2
Assemble the (10) to the main frame (1) using the upper protective cover (49), flat
washer (8), spring washer (7), inner six angle bolt (9), upper tension cable (27),
lower tension cable (28), upper computer cable (29), lower computer (30), curved
washer (6).

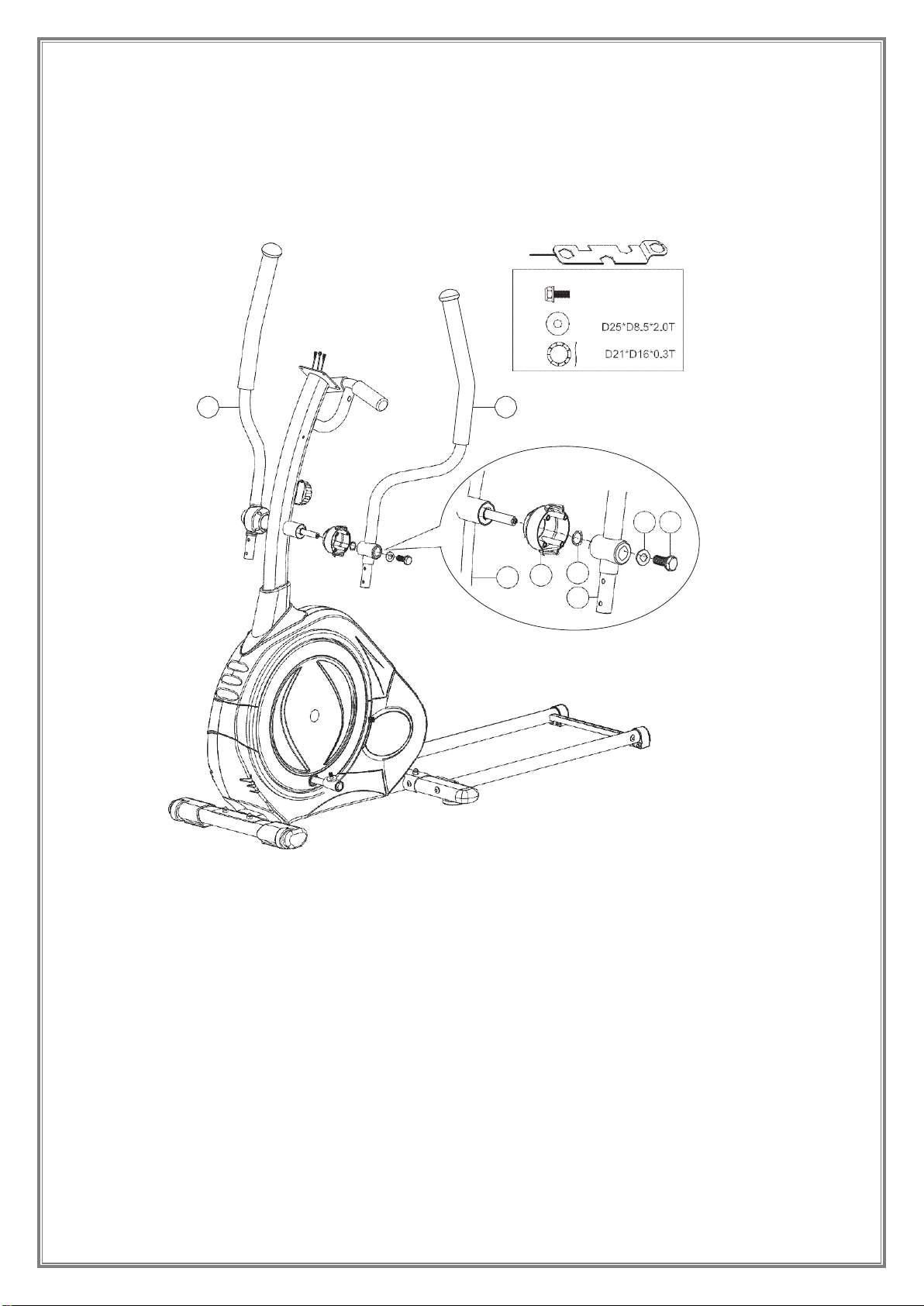

Assembly step 3
(x2)
40 M8*1.25*20L
60
75
52R 52L
10 23L
75
52L
60
40
x2
3
Assemble the left handlebar welding set (52L) & right handlebar welding set (52R) to
the main frame (1) using the handlebar post welding set (10), up foot lid (23L), curved
washer (75), flat washer (60), angle bolt (40).

Assembly step 4
17
14
41
41
73
77
38
110
109
110
60
108
21 73 77
17
14
41
11L
4-1 4-2 74A
11L x2
74B
41 x2 63
31 4
Assemble the left pedal bottom tube welding set (11L) to the main frame
(1) using the anti-loosen nut (17), flat washer (14), plastic flat washer (41),
circumvolve axle welding set (31), front pedal axle cover(74A), front pedal axle
cover(74B), screw (63).
Assemble the roll wheel (38) to the main frame (1) using the inner six angle bolt
(110), flat washer (60), spacer (108), roll wheel stop piece (109).

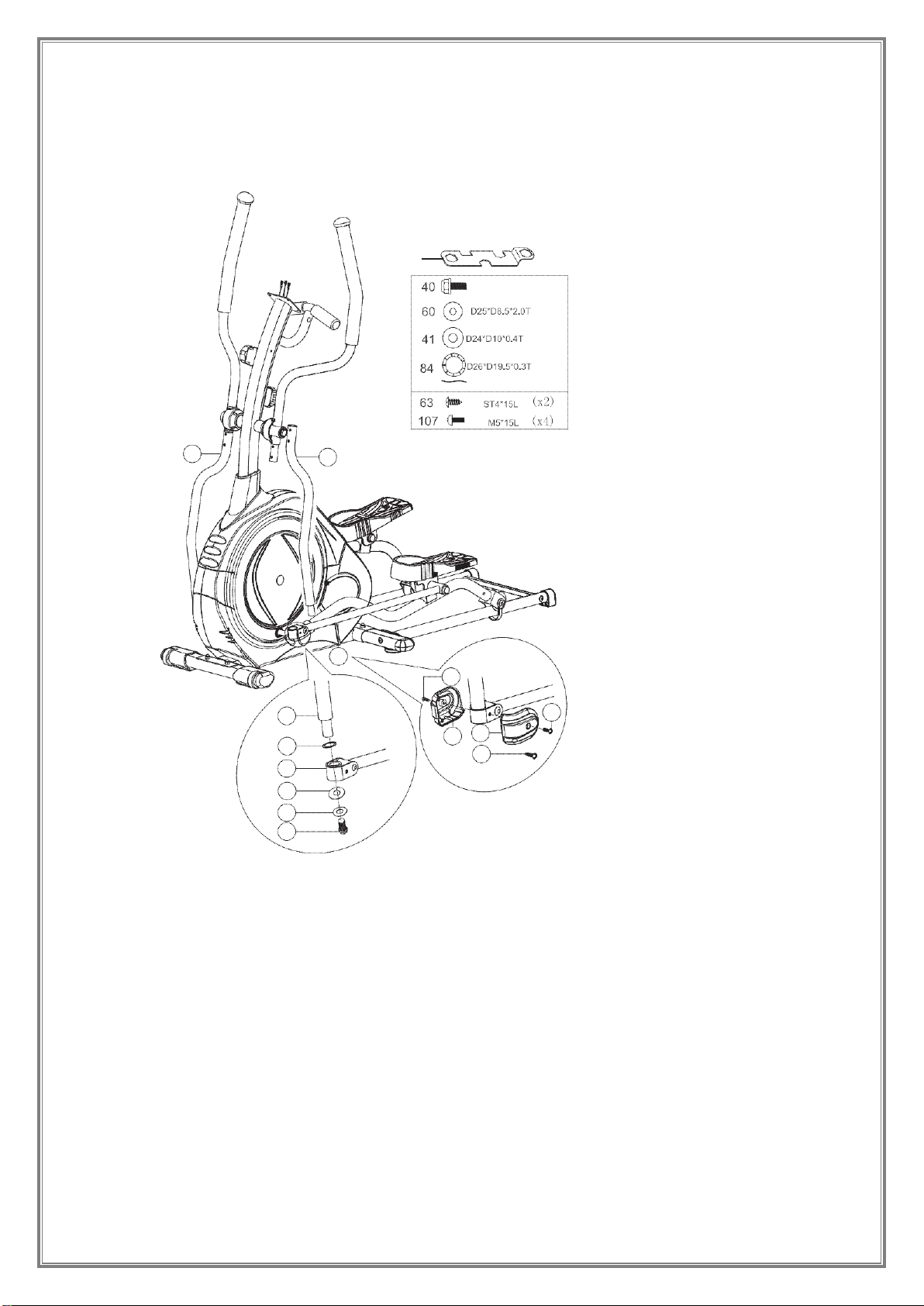

Assembly step 5
M8*1.25*20L
(x2)
(x2)
(x2)
(x2)
12R 12L
32L 5-2
107
5-1
12L 107
104R 104L
84 63
32L x2
41 x2
60
40 5
Assemble the right pedal frame welding set (32L) to the main frame (1) using the
left sway support tube welding set (12L), curved washer (84), plastic flat washer
(41), flat washer (60), six angle bolt (40).
Assemble the axle cover (104L) & axle cover (104R) to the right pedal frame
welding set (32L) using the bolt (107), screw (63).

Assembly step 6
64
64
65 6
27 ST4*15L (x16)
10 6-2
52R
52L
52L
23L
23R
63
x2 6-1
9B
7
6
6-3
x2
52L
12L
63
11L
6
93R x2
3 93L
Assemble the left handlebar welding set(52L) to the left sway support tube
welding set (12L), inner six angle bolt(9B), spring washer (7), curved washer (6).
Assemble the left handlebar welding set (52L) to the up-foot lid (23R) using the
screw (63).
Assemble the rear axle cover (93L) & rear axle cover (93R) to the slide rail
welding set (3) using the screw (63), left pedal bottom tube welding set (11L)
Assemble the computer (64) to the handlebar post welding set (10) using the hand
pulse and hand pulse cable (65), upper computer cable (30).

Assembly step 7
63
107
ST4*15L (x2)
M5*15L (x2)
63
67
107 68
10 107
7
Assemble the computer bracket (67) & computer bracket (68) to the handlebar
post welding set (10) using the bolt (107), screw (63).

18
CONSOLE FUNCTION TZ-2186
FUNCTION BUTTONS
MODE 1. Press the button to select hour, minute, year, month and date for setting.
2. Press the button to select TIME, DISTANCE, CALORIES and PULSE to preset.
3. Press the button for selection function display on main LCD, or enter after setting.
4. Press the button to confirm setting value of gender, age, height and weight.
5. Press the button and hold for 2 seconds to reset all value to zero.
(When the user replace batteries, all the values will reset to ZERO automatically.)
SET 1. To set up the hour, minute, year, month and date.
2. To set up the target value of Time, Distance, Calories and Pulse. You can hold
the button to increase the value fast. (The computer has to be in stop
condition.)
3. To set up the personal data of gender, age, height and weight for Body fat test.
RESET Press the button to reset function value when setting.
(When the user replace batteries, all the values will reset to ZERO automatically.)
BODY FAT Press this button to enter Body Fat measure function, then press MODE key to enter
the setting mode of your personal data of Gender, Age, Height and Weight. After
finished setting, press it again to measure your Body fat ration (FAT%) and BMI.
RECOVERY To act the heart rate recovery function after pulse signal in. Press any button to
return to the main display.
LCD full display:

19
FUNCTIONS
SCAN Automatically scan through each mode in sequence every 6 seconds. The display
loop is RPM - Speed –Time –Distance –Calorie - Pulse on the main screen.
TIME Accumulates total time from 00:00 up to 99:59. The user may preset target time by
pressing SET & MODE button. Each increase is 1 minute.
RPM Displays the Rotation per Minute (RPM). The RPM and SPEED will switch to
another display in every 6 seconds after exercise starts.
SPEED Displays current training speed. Maximum speed is 99.9 km/h or mile/h.
DISTANCE Accumulates total distance from 0.00 up to 99.99 km or mile. The user may preset
target distance data by pressing SET & MODE button. Each increase setting is 0.5
km or mile.
CALORIES Accumulates calories consumption during training from 0 to max. 999 calories. The
user may also preset the target calorie before training by press SET & MODE
button. Each setting increase is 10 cal.
Note: This data is a rough guide for comparison of different exercise sessions
which cannot be used in medical treatment.
PULSE The monitor will display the user's heart rate in beats per minute during training. You
may set the target heart rate by press the SET & MODE button.
CALENDAR The monitor will display date, month, and year when the monitor is in sleep mode.
CLOCK The monitor will display current clock time when the monitor is in sleep mode.
TEMPERATURE: Displays current room temperature from 10℃to 60℃when the monitor is in
sleep mode.
OPERATION ORDER:
1. Power on –
Installs 2 pieces of 1.5V UM-3 or AA batteries. The monitor start to segment test with a long beep
sound. (Whenever batteries are removed, all the functions values will be reset to zero or default
value.)
2. Set current data –
Press the SET and MODE buttons to set up current clock time, year, month, and date. After the
first setting till batteries be replaced next time, those preset data will be updated automatically.
3. Select and preset target value –
Get access to the setting function of Time, Distance, Calories and Target Pulse. When you are in
each setting mode. For instance the Time setting, when the time value is glitter, you can press
the SET button to adjust the value. Press the MODE button for confirmation and skip to next
setting. The setting of Distance & Calories is the same as Time setting.
4. After entering speed signal, each function of SPEED-RPMTIME-DISTANCE-CALORIES- PULSE
will skip to display in every 6 seconds.
5. You can also press the MODE button to select single function display on the main screen except
RPM & SPEED. The RPM & SPEED function will switch display in 6 seconds.

20
6. If you have preset any function target before, the function starts to count down from the target
when the training starts. Once the target is achieved, the monitor will beep and the function will
count up from zero automatically if the training is still going.
7. Pulse measurement –
After you hold on two handgrip sensors in a few seconds, the monitor will show up your
current heart rate in beats per minute. To ensure the heart rate readout precisely, please do
not hold one hand only. You may preset target pulse before training starts. Once your current
heart rate is achieved to the target, the value of pulse will beep to remind you.
8. Recovery –
When the PULSE is working, you can press “RECOVERY” button to start the recovery test
function. The monitor will count down from 0:60 second to 0:00 and the heart beat symbol
will be glitter till counting down to “0:00”. During 60 seconds counting period, please keep
heart rate sensor is attached. Then the screen will display “F1 to F6” to show your recovery
status. F1 is the best, and the F6 is the worst. You may keep exercising to improve your heart
rate recovery status, and check it by using Recovery function.
9. Body Fat -
9-1 Press BODY FAT key to enter body fat measurement.
9-2Press MODE and SET buttons to input your personal data. Each personal data available
setting area is described as the following:
AGE: 10 ~ 99 years
HEIGHT: 100 ~ 250 cm (or 3’03”~ 8’02“)
WEIGHT: 10 ~ 200 kg (or 22 ~ 440 lb)
9-3After all personal data have been input, you can press BODY FAT button and hold on grip
conductors to start the body fat testing.
9-4It takes few seconds to test the body fat. If you did not hold on the conductor during the testing
procedure, the LCD will show the error sign Err after 10 seconds period.
9-5After the testing is finished, you will see fat advice in percentage and BMI figure (body mass
Index) display on the main LCD in sequence by scan mode.
BODY FAT %: Calculate from your personal data to show the value from 5%~50%.
BMI: Calculate from your personal data to show the value from 1.0~99.99.
9-6Press any key to return to the main display.
Note
1. Stop training for 4 minutes, the screen will show up room temperature, clock, and calendar display
automatically.
2. Once the computer did not receive any speed signal or any key input for one minute, the LED
backlight will turn off automatically. Any speed signal input or key input can turn on the led
backlight automatically.
3. If the computer displays abnormally, please re-install the battery and try again.
4. Battery Spec: 1.5V UM-3 or AA (2PCS).

21
TERMS OF WARRANTY
•Warranty period is 2 years for mechanical, electrical / electronic parts and 5 years for the metal
frame.
•X-TREME STORES S.A. undertakes to repair the machine free of charge in the event of damage
due solely to a manufacturing fault. The warranty covers the cost of the spare parts. Replacement
of spare parts or not is up to the company technicians. The customer is responsible for the control
and adjustment of the machine.
•This warranty note is only valid if it is accompanied by legal proof of purchase (invoice or retail
receipt). The warranty period is not extended for any reason and the transfer of it to a third party is
excluded.
•Any damage is repaired as soon as possible and any claim for damages due to lack of spare parts
and delay in repairing the damage is excluded. The costs of transporting the machine to or from the
dealership will be borne by the customer after 6 months of purchase.
•The warranty conditions are set by the manufacturers of machinery and are governed by European
regulations.
•Upon expiry of the warranty, any replacement part is covered by a 6-month warranty.
THE WARRANTY SHALL NOT APPLY:
•When the machine is used for any purpose other than home use (gyms, clubs, institutes, hotels,
studios, etc.).
•When the fault is the result of misuse, alterations, poor connection, poor maintenance, voltage
fluctuations in the PPC network.
•Components damaged by user fault such as broken plastic parts, damaged belt with improper
adjustment, incorrect or incomplete lubrication, damage when moving the machine.
•Components such as side pads and cushions are considered consumables and are covered by a 6
month warranty.
•When the machine is opened or repaired by third parties.
•When the damage is caused by the buyer's negligence & the instructions for use have not been
followed.
•When the machine is outdoors or exposed to sun or dust.
•When electronic components (console) are damaged by intense sweating or other liquid that has
come into contact with or penetrated inside them.
Tel.: [phone] –Fax: [phone] –e-mail: [email protected]

Koupi Avenue 34, Koropi P.C. 19441 P.O.Box 6201
Tel.: [phone] - FAX: [phone]
E-mail: [email protected] • f/xtrstores • /@xtr.gr
Tel for all Greece:
801.11.15.100
www.xtr.gr
