Xtreme X-400 User manual

Page
1
(photos may vary)
X-Treme TM Electric Scooters
Model: X-400
Product Handbook

Page
2
PLEASE BE SAFE WHEN RIDING
ALWAYS WEAR AHELMET AND OBEY ALL LAWS!
BATTERY MAINTENANCE and
CHARGING INSTRUCTIONS
1. You MUST charge completely prior to initial use. (Follow
charging instructions in your Product Handbook)
2. Charge immediately after each use.
3. Charge before storage. You must charge every 30 days if not
in use.
4. Charge the unit for 6-8 hours after the light on the charger turns
green.
5. DO NOT allow this unit to deep discharge the battery.
6. For safety purposes, DO NOT charge for over 24 hours.
7. Turn the unit OFF when not in use.
This PRODUCT IS NOT INTENDED FOR EXTREME or
OFF-ROAD Use! Please take care of your X-400!
DO NOT JUMP or ABUSE THIS PRODUCT!
DO NOT RIDE IN WET/ICY CONDITIONS!
Failure to follow these instructions will
VOID YOUR WARRANTY!
IMPORTANT
Failure to follow these INSTRUCTIONS will
VOID YOUR WARRANTY!

Page
3
WARNING
This product does not conform to Federal Motor Vehicle Standards and is not
intended for operation on public streets, roads or highways. Serious injury can
result from the unsafe operations of this product. Operator can minimize these
risks by using certain safety equipment such as: safety helmet, goggles, gloves,
elbow and kneepads and appropriate footwear.
DO NOT operate this product in traffic, on wet, frozen, oily or unpaved surfaces or
under the influence of drugs and/or alcohol. Avoid uneven surfaces, potholes,
surface cracks and obstacles.
DO NOT use a water hose to clean this product. See Product Handbook for more
information.
This product is recommended for riders 12 YEARS OF AGE and older.
SAFETY
Persons without excellent vision, balance, coordination, reflex, muscle and
bone strength and good decision-making capabilities should not use this
product.
Minors without adult supervision should not use this product.
Persons unwilling or unable to take responsibility for their own actions should
not use this product.
The user of this product assumes ALL risks associated with its use. To
minimize these RISKS, the user must wear safety helmet, goggles, gloves,
elbow and kneepads and appropriate footwear.
This product is ELECTRIC! DO NOT ride this product in wet conditions,
puddles or rainy weather.
IMPORTANT
PLEASE READ THIS BEFORE USING THIS PRODUCT
READ THIS FIRST!

Page
4
SAFETY GUIDE
The recommended age for riding this scooter is 16 years old.
To avoid damage to the motor and footplate, do not overload the scooter.
Never ride with more than one person.
Inspect your scooter thoroughly before each use for loose or missing parts.
Avoid unintentional starts by turning the scooter off while not in use.
To avoid the risk of a short circuit in the electrical parts, do not use your
X-Treme Electric scooter in the rain and never spray or wash off your scooter
with water.
Do not place the battery near fire or heat.
To avoid damage to the battery, do not use the charger if it has been damaged
in any way.
Keep hands, face, feet and hair away from all moving parts.
Do not touch the motor or wheels while they are rotating.
Brakes are designed to control speed as well as stop the scooter. Practice
braking for proper slowing down and smooth stops.
Maintain your X-Treme X-400 as recommended in this Product Handbook.
Use only quality replacement parts as recommended by the manufacturer.
Inspect the entire scooter prior to each use. Replace any part that is cracked,
chipped or damaged before use.
*NEVER ALLOW CHILDREN TO OPERATE THE SCOOTER WITHOUT ADULT
SUPERVISION.
*NEVER ATTEMPT TO OPERATE THE SCOOTER WHILE UNDER THE
INFLUENCE OF ALCOHOL.
If a situation arises that is not covered in the manual,
proceed with caution and use good judgment.
Contact your dealer or X-Treme (www.x-tremescooters.com/support/)
if you need further assistance
QUICK
REFERENCE
SAFETY GUIDE

Page
5
TABLE OF CONTENTS
IMPORTANT NFORMATION…………………………………….………………2-3
QUICK REFERENCE……………………………………………………………….4
TABLE OF CONTENTS……………………………….…………….………………5
GETTING TO KNOW YOUR X-TREME X-400…………………………………..6
PACKAGE CONTENTS…………………………………………………………….7
GETTING STARTED/ASSEMBLY....……………………………..………………..7
CHARGING…………….…………………………………………………………….8
RIDING…………………….……….………………………..……………………….9
STOPPING AND BRAKING. …………………………………….…………………9
FOLDING & STORAGE………………………………………………………..……9
BRAKING SYSTEM…………..…………………………………….…………….…9
ADJUSTING THE BRAKES……….…………….………………………..……9-10
TIRES……………………………………………………….………………………11
BATTERIES…………………..……………………………………...……………..11
MAINTENANCE…….….…………………………………………………………..11
ADJUSTING THE CHAIN………………………...……………………………….11
MAINTENANCE SCHEDULE…………………………………………………….12
OTHER QUESTIONS…………………………………………………………...…12
GENERAL INFORMATION/TECH SUPPORT………………………………….13

Page
6
GETTING TO KNOW YOUR X-TREME X-400
(Photo’s may vary)

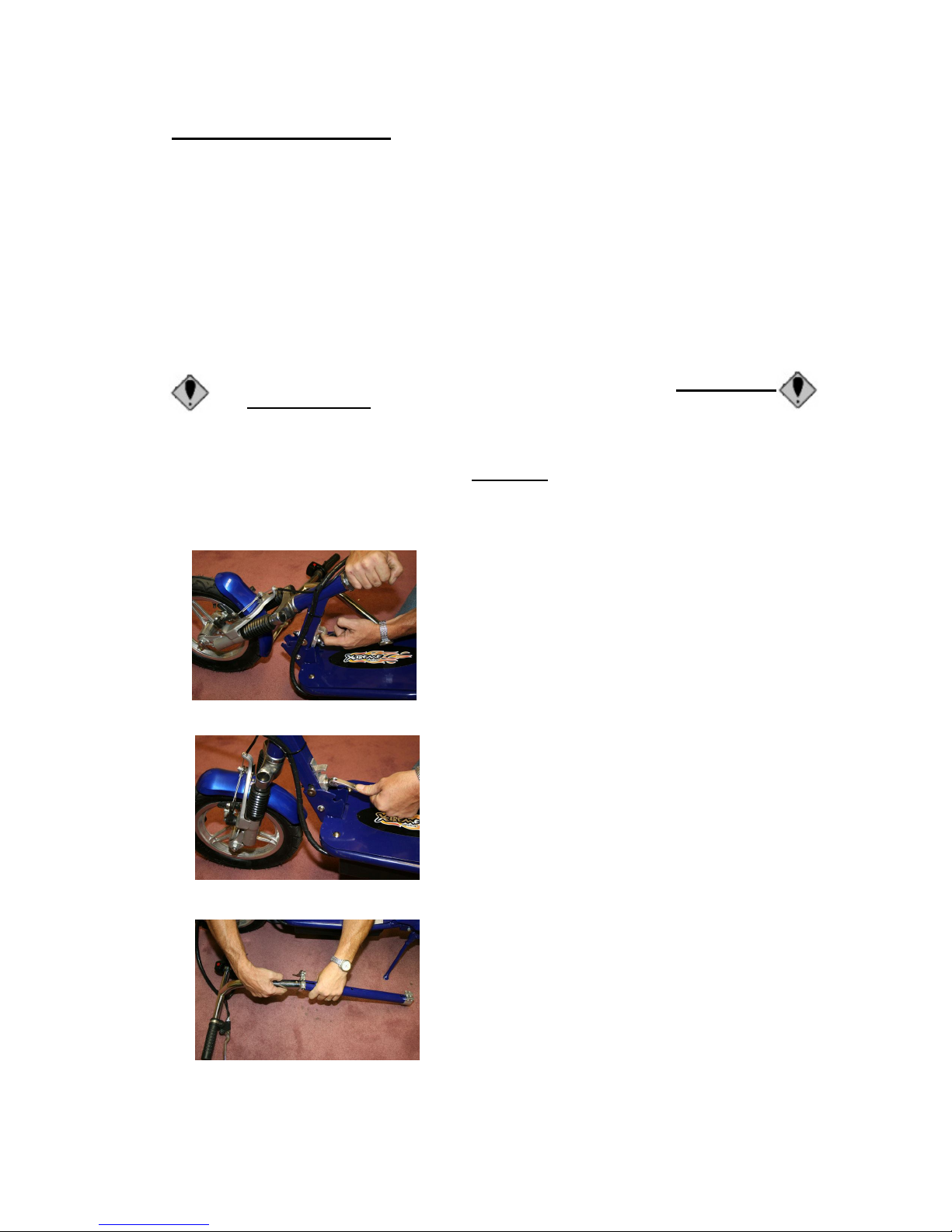

Page
7
PACKAGE CONTENTS
Your X-Treme X-400 comes with the following items in the box. Please locate
all of the following:
1. The X-Treme X-400 Scooter
2. 36V Battery Charger
3. Tool Kit
4. Product Handbook
5. Seat & Seat Post
GETTING STARTED
Please read and understand these instructions and the OPERATING
PROCEDURES section, prior to starting or riding your X-400
Fig, 1
Fig. 2
Fig. 3
Assembly
1. Carefully remove the X-400 from the box.
2. To unfold the X-400, begin by lifting up on
the FOLDING HANDLE CLAMO with one
hand (Fig.1), while gently pulling up on the
handlebars with the other (Fig.1)
3. Secure the handlebars in the upright
position by tightening the handlebar-folding
clamp. Fig. 2
4. Assemble the T-Handlebar by inserting it
into the handlebar post. Fig. 3
5. Secure the T-handlebar to the post by
tightening the clamp at the desired position.
This setting is adjustable if required. Fig.
3
6. Insert the assembled T-Handlebar into the
Front Fork as shown in figure 4.
7. Tighten the bottom handlebar clamp using
the appropriate tools as shown in figure 5.
8. Insert the seat into the silver seat post and
tighten the nuts securely.
9. Insert the assembled seat and seat post
into the seat post as shown in figure 6.
10. Finally insert the seat post into the seat
post receiver in the frame and tighten the
clamp. Fig. 7

Page
8
Fig. 4 Fig. 5
Fig. 6 Fig. 7
Charging
Your scooter comes charged out of the carton. We still recommend charging the unit for
8-10 hours prior to it’s first use. We also recommend charging your scooter after each
use and prior to storage.
WARNING: Do not allow your scooter to go into deep discharge, as this will damage the
batteries.
Fig. 8
Fig. 9
1. Make sure unit is turned off.
2. Open the charging socket cover
located on the right side of the
scooter frame, under the
footplate. (Fig. 8)
3. Locate your Battery Charger.
(Fig. 9) Find the charger socket
end plug it into the scooter.
4. Next, plug the AC plug into a wall
outlet.
When first plugged in, the charger has
two red lights that will illuminate at the
same time, indicating that the charging
process has started. Once the light on
the charger turns green, you may remove
the charger and close the safety cap.

Page
9
Fig. 10
**Your scooter has a variable speed hand throttle. You can control the speed of your
scooter by the amount of pressure you use when rotating the hand throttle. The more
you rotate, the faster you will go.
Kill Switch
The kill switch is located on the right handlebar next to the throttle. This switch when
depressed kills all power to the motor.
STOPPING & BRAKING
To brake, release the THROTTLE GRIP and depress the BRAKE LEVERS (on the
left/right side of the handlebars. Depressing the brake will disengage power to the motor.
When the unit feels like it is loosing power or not accelerating to full speed, the scooter is
ready to be re-charged.
FOLDING & STORAGE
When you are done riding the X-400 you can fold it for compact storage and transportation.
To fold down the X-400, loosen the handlebar-folding clamp. Raise the clamp while
pulling the handlebar down with your other hand. BE CAREFUL NOT TO HIT YOUR
HEAD WITH THE HANDLEBAR. Push down until you feel the mechanism lock into the
down position.
BRAKING SYSTEM
The X-400 uses a pinch braking system for the front, and a hub system for the rear. They
are both activated by a hand brake lever on the left and right side of the handlebar.
Squeezing the hand brake lever with your left hand activates the rear brake. Squeezing
the hand brake lever with your right hand activates the front brake. Make sure to release
the HAND THROTTLE GRIP when engaging the brakes. Practice braking on a smooth,
dry surface to get used to the feel of the braking system. Braking distance is affected by
wet conditions and loose and uneven riding surfaces.
ADJUSTING THE BRAKES
The Brakes on the X-400 should come fully adjusted from the factory.
However, it may be necessary to adjust the brakes from time to time.
RIDING
1. Make sure that all of the exposed bolts and screws
are tightened.
2. Raise the kickstand to its upright position.
3. Turn the scooter on using the key switch located on
the left side of the scooter under the footplate. Fig.
10
4. Gently rotate the THROTTLE GRIP, on the right
side of the handlebars. The X-400 will begin to
move on its own power.

Page
10
Fig. 11
Fig. 12
Fig. 13
Fig. 14
Fig. 15
To adjust the Rear Brakes:
For brakes that are adjusted too tight:
1. Loosen the tension screw on the
left right hand brake lever by
rotating it counter-clockwise until
the wheel spins freely. (Fig. 11)
For brakes that are adjusted too loose:
2. Tighten the tension screw on the
left hand brake lever by rotating it
clockwise until the wheel has a
slight drag. (Fig. 11)
For further adjustment, locate the
adjustment screw on the rear brake hub
and follow the instructions below.
For brakes that are adjusted too tight:
3. Loosen the tension screw on the
brake hub by rotating it clockwise
until the wheel spins freely. (Fig. 12)
For brakes that are adjusted too loose:
4. Tighten the tension screw on the
brake hub by rotating it
counter-clockwise until the wheel
has a slight drag. (Fig. 12)
For further adjustment:
5. Locate the adjustment screw on the
front brake assembly (located
above the front wheel, Fig. 123)
Tighten or loosen as necessary.
To adjust the Front Brakes:
**For brakes that are adjusted too tight
or too loose, follow steps 1-2 above.
For further adjustment, follow the steps
below.
To adjust the brakes to the desired
tension:
1. Loosen the pinch nut by turning
counterclockwise. Fig. 12
2. Using your free hand, pinch the
brake arms and pull or loosen the
crossover brake cable to the
desired tension. Fig. 13
3. When the desired tension has been
obtained, tighten the pinch nut by
turning clockwise. Fig. 14

Page
11
TIRES
The X-Treme X-360 uses an identical tire on the front and rear wheels, which
means that the tires can be rotated. Tire wear will differ based on rider weight,
riding conditions and care. Replacement tires can be obtained at your local
X-Treme dealer, through motorcycle shops, or from the X-Treme website at
www.x-tremescooters.com
Tire Pressure
The tires must be inflated to a maximum of 36 P.S.I. It is also recommended to
use a tube additive like Slime, available from any motorcycle shop, to avoid
inconvenient punctures.
Batteries
The X-400 is a 36V system. The batteries are located under the footplate of
the scooter. Should you need to service the batteries, simply unscrew the two
bolts that hold the footplate down and raise the plate.
MAINTENANCE
RECOMMENDED TOOLS
To adjust and service the X-Treme X-400 you will need the following tools:
Allen Wrenches: 3/4/5/6 mm
Wrenches: 10/13/13 mm Open end wrench
Large Adjustable Crescent Wrench
Philips Head Screwdrivers
Oil, Grease or Lubricant
ADJUSTING THE CHAIN
The chain will come adjusted from the factory. However, it may be necessary
to adjust the chain from time to time. The chain must be well aligned onto the
sprockets in order to avoid uneven wear. This will result in shortened chain
life.
How tight should the chain be?
If the chain is skipping or jumping on the sprockets, this is too
loose and may be harmful.
If the chain is making a humming sound when the wheel is
turning, this is too tight and may cause the chain to snap.
The correct tension is achieved by adjusting the chain from its
loose position to when it becomes lightly tense.

Page
12
Fig. 15
Fig. 16
MAINTENANCE SCHEDULE
Proper care of your X-Treme X-400 will insure optimal performance and longer
life span. The following are a few maintenance suggestions that will keep your
X-Treme X-400 running in top condition:
Daily Maintenance
Perform each time you ride your X-400
Clean the exterior of the unit with a soft, damp rag.
Check that all nuts and bolts are securely tightened.
Lubricate the chain with any silicone spray, 3&1 oil or any good
clean motor oil.
Check battery charger for any frayed/cut wires.
OTHER QUESTIONS
For additional questions, service instructions, further information and important
phone numbers, please go to the X-Treme website at www.x-tremescooters.com
Thank you for purchasing an X-Treme X-400 and please tell your friends how much fun
you’re having on the X-Treme X-400
To tighten the chains:
Slightly loosen the two axle bolts on both
sides of the rear wheel. (Fig.15). Then slowly
adjust the two adjusting screws on each side
of the rear tire (Fig.16) until chain reaches the
proper tension.
Rotate the rear wheel to make sure
the chain is aligned.
Finally, lock and tighten the rear
axle bolts prior to riding.

Page
13
For General Information or Parts Visit
www.x-tremescooters.com
For Technical Support or Assistance Visit
www.x-tremescooters.com/support/
