Xtreme XG-565 A-Blaze Signature Series User manual

1
X-Treme™ Gas Scooters
XG-565
Owner’s Manual
PLEASE BE SAFE WHEN RIDING
ALWAYS WEAR A HELMET AND OBEY ALL LAWS!

2
TABLE OF CONTENTS
Table of Contents………………………………………………………………………………………2
Important Information………………………………………………………………………………3
Safety Information…………………………………………………………………………………….4
Getting To Know Your XG-565…..……………………………………………………………… 5
Package Contents…………………………………………………………………………………….. 6
Getting Started………………………………………………………………………………………….6
Folding and Storage…………………………………………………………………………………..8
Operating Procedures………………………………………………………………………………. 8
Fuel Mixture Table…………………………………………………………………………9
Maintenance……………………………………………………………………………………………. 10-14
Recommended Tools……………………………………………………………………. 10
Carburetor Adjustments………………………………………………………………..10
Braking System………………………………………………………………………………11
Tires and Wheels………………………………………………………………………….. 12
Adjusting the Head Unit…………………………………………………………….... 12
Adjusting the Belt and Chain………………………………………………………… 13
Maintenance Schedule…………………………………………………………………. 14
Warranty/Technical Support……………………………………………………………………. 14

3
PLEASE READ THIS FIRST BEFORE OPERATING THIS PRODUCT
WHERE TO USE YOUR XG-565:
This product does not conform to Federal Motor Vehicle Standards and is not intended for
operation on public streets, roads or highways. Serious injury can result from the unsafe
operations of this vehicle. Operators can minimize these risks by using certain safety
equipment such as: safety helmet, goggles, gloves elbow and kneepads and appropriate
footwear.
HOW TO USE THIS PRODUCT:
DO NOT operate this product in traffic, on wet, frozen, oily or unpaved surfaces or under the
influence of drugs and/or alcohol. Avoid uneven surfaces, potholes, surface cracks and
obstacles. This product is designed for paved or tarred smooth flat surfaces. BE CAREFUL when
riding this product in the rain or in wet conditions.
CHECKS:
It is the customer’s responsibility to check all nuts and bolts (as per box) and ensure that the
product is in a safe roadworthy condition at all times.
WARNING!!
Never let a child or inexperienced person operate this product.
Not intended for use of children under the age of 16 years old.
Never start the engine inside a closed room or building. Breathing exhaust fumes can be
fatal.
This product should not be used by persons without excellent vision, balance,
coordination, reflexes, muscle and bone strength and good decision-making capabilities.
This product should not be used by minors without adult supervision.
This product should not be used by persons unwilling or unable to take responsibility for
their own actions.
The user of this product assumes ALL risks associated with its use. To minimize these
RISKS, the user must wear safety helmet, goggles, gloves, elbow and kneepads and
appropriate footwear.

4
FUEL SAFETY
Mix and pour fuel outdoors away from sparks and flames.
Use only a container approved for fuel.
Do not smoke or allow smoking near the scooter while working on the engine, or while the engine is
running.
Wipe up and clean all fuel spills before starting the engine.
Move at least 10 meters away from where you fueled before starting the engine.
Stop the engine before removing the fuel cap.
It is recommended that you empty the fuel tank prior to shipping or storage to prevent any fuel leaks.
Do not store your scooter near open flames, furnaces, electric motors or switches.
MAINTENACE SAFETY
Maintaining your scooter is recommended in this Owner’s Manual.
Disconnect the spark plug cap before performing any engine maintenance, except carburetor
adjustments.
Keep others away while making carburetor adjustments.
Use only quality replacement parts as recommended by the manufacturer.
TRANSPORTATION AND STORAGE
Carry your scooter by the handlebar down tube with the engine turned off and the muffler away from
your body.
Allow the engine to cool, empty the fuel tank and fold the scooter before carrying or storage.
It is recommended that you empty the fuel tank prior to shipping or storage to prevent any fuel leaks.
Clean the scooter carefully and store in a cool, dry place.
PRODUCT SAFETY
Keep hands and feet away from moving parts.
Inspect the entire product prior to each use. Replace damaged parts. Check for fuel leaks and make sure
all fasteners are in place and securely fastened.
Replace all parts that are cracked, chipped or damaged before use.
Use only parts and accessories that are recommended by the manufacturer.
If a situation arises that is not covered in this manual,
Proceed with caution and use good judgment.
Contact your dealer or X-Treme (www.x-tremescooters/support) if you need further
assistance.

5
Getting To Know Your
A-Blaze Signature Series
XG-565
1. Gas/Throttle Lever 13. Choke
2. Front Brake Lever 14. Belt Cover and Mud Guard
3. Rear Brake Lever 15. Handlebar Down Tube
4. Gearshift –NOT ON THIS MODEL 16. Pull Starter
5. Front Disc Brake 17. Gas Tank
6. 2-Stroke Engine 18. Gas Cap
7. Front Fork Folding Mechanism 19. Choke Lever
8. Kickstand 20. Carburetor
9. Head Unit 21. Carburetor Cover
10. Foot Deck 22. Muffler
11. Brake Caliper 23. Muffler Cover
12. Rear Disk Brake 24. Spark Plug

6
PACKAGE CONTENTS
Your X-Treme™ A-Blaze Signature Series XG-565 Gas Scooter comes with the following
items in the box:
Please locate all of the following:
1. The XG-565 Gas Scooter
2. Allen Wrench
3. Owner’s Manual
GETTING STARTED
Please read and understand these instructions and the OPERATING PROCEDURES section
prior to starting or riding your XG-565!
Unfolding
1.) Carefully remove the XG-565 from the box.
2.) To unfold the XG-565, begin by pressing down on the FOLDING HANDLE with one
hand, (Fig. 1) while gently pulling up on the handlebar post with the other (Fig. 2).
3.) Fully extend the handlebar post to the upright position until
you feel the mechanism lock into place (Fig. 3).
4.) Detach the handlebar from the post and mount the handlebar
on to the post using the 4 bolts provided. Ensure the
handlebars are in the center.
5.) Adjust the Gas and Brake Levers using the provided Allen
Wrench, loosen the tension bolt and adjust the levers to a
comfortable position (Fig. 4 next page).
**BE CAREFUL NOT TO PULL ON THE CABLES!!!
Fueling
This is a 2-stroke engine. Always run the engine using fuel
mixed with 2-cycle engine oil.
PLEASE READ OPERATING PROCEDURES BEFORE FUELING!!
6.) Mix fuel (unleaded) and 2-cycle engine oil in separate
container. Use between 40:1 and 60:1 oil mixture ration
depending on the quality of fuel in your area. (Refer to Fuel Guide
on page 9). Make sure the fuel is well mixed by shaking the
container.
7.) Make sure that the engine is off!

7
8.) Slowly open the GAS CAP, so that possible over pressure
disappears.
9.) Clean the tank cap area to make sure that it is free from
excess dirt and debris.
10.) Pour pre-mixed Gas/Oil mixture into the GAS TANK. Tank
capacity is 0.9 liters.
**Do not overfill.
11.) After fueling, replace the GAS CAP and tighten.
Starting
Move at least 10 meters away from where you filled the gas tank!
12.) Set the CHOKE LEVER to the CHOKED (UP) position (Fig. 5).
13.) Pull the PULL STARTER briskly, making sure to hold the
handle in your grasp (Fig. 6).
14. Only use the choke system when the engine is cold, make
sure NOT to pull the gas lever when pulling the pull starter.
When starting a warm engine, DO NOT use the choke system, but
gently squeeze the gas lever.
When starting the XG-565 for the first time, it may be
necessary to pull the starter handle 15-20 times until it
starts. This is because the gas needs to cycle into the engine.
15.) Once the engine has started, quickly move the CHOKE LEVER
to the RUN (Down) position (Fig. 5).
16.) After the engine is started, let it warm up for 2-3 minutes
before riding.
IF THE MOTOR KEEPS STALLING AT IDLE SPEED, IT MAY BE NECESSARY TO ADJUST THE
IDLE SPEED ON THE CARBURETOR. Please refer to Carburetor Adjustment in the
Maintenance Section on Page 12 for instructions on how to adjust idle speed.
17.) Make sure that all the exposed bolts and screws are tightened.
18.) Raise the kickstand to its upright position.
19.) Make sure the engine is running.
20.) Put one foot on the deck of the XG-565. While pushing off with the other foot, press
the GAS LEVER on the right side of the handlebars. The XG-565 will begin to move on its
own.

8
21.) Control your speed by pressing and releasing the gas lever.
The harder you squeeze, the faster you will go.
Changing Gears

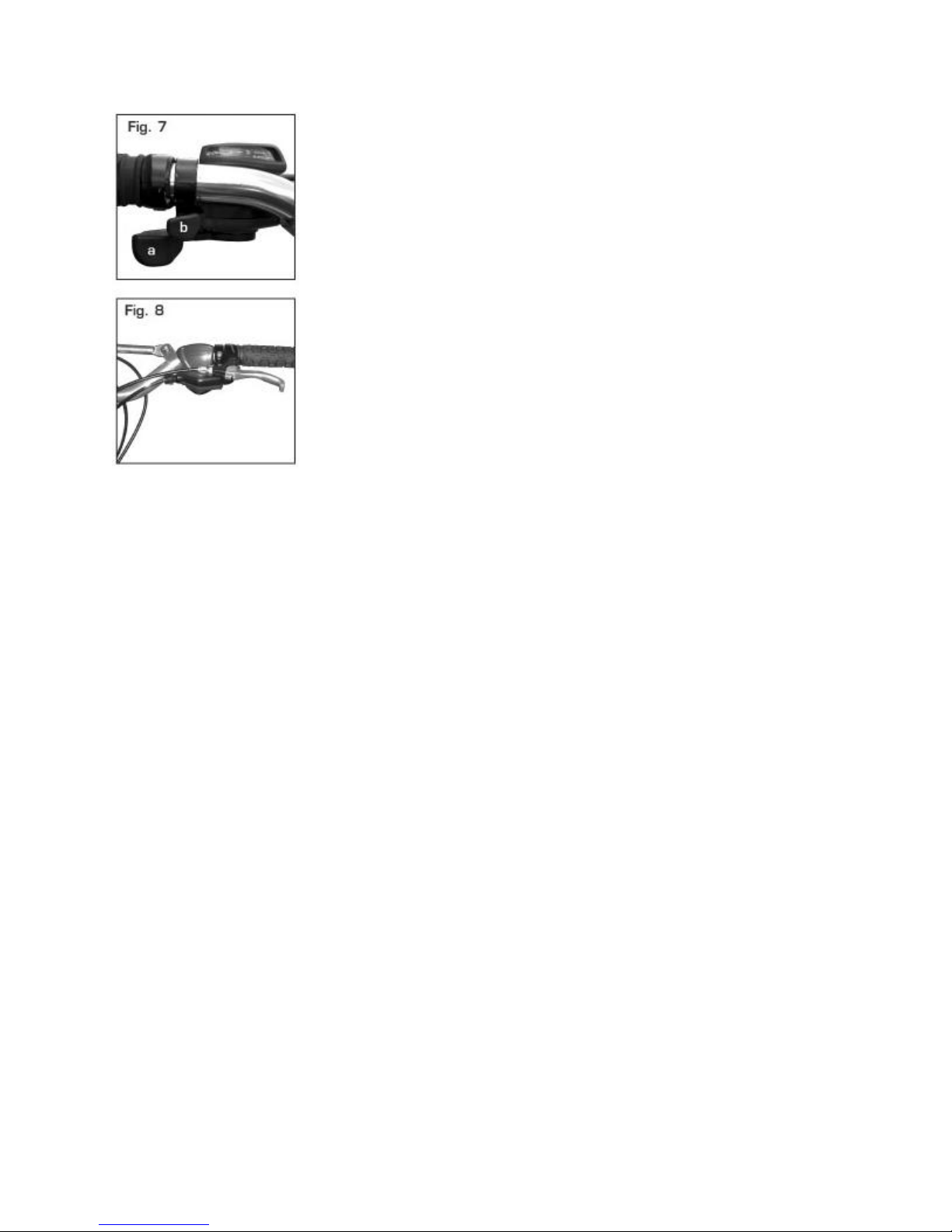

22.) As max RPM is achieved, second gear can be selected by
pressing (a). The return to first gear; press (b) (Fig. 7).
Braking
23.) To brake, release the GAS LEVER and gently press either
BRAKE LEVERS (Fig. 8).
FOLDING AND STORAGE
When you are done riding the A-Blaze Signature Series XG-565 Gas Scooter you can fold it
down for compact storage, carrying and transportation. To fold down the XG-565, use one
hand to push down the front folding handle mechanism while gently pushing down on the
handlebars. BE CAREFUL NOT TO HIT YOUR HEAD WITH THE HANDLEBARS!
Push down until you feel the mechanism lock into down position.
Note: If the lever is pulled aggressively, the locking spring may become
stretched and then the steering will not lock into position, it is also advisable to
ensure scooter locks firmly, prior to riding.
You can now carry the XG-565 Gas Scooter by the handlebar down tube.
OPERATING PROCEDURES
Fuel
WARNING!!
This is a 2-stroke engine. Only run the engine on fuel, which is properly mixed with
2-cycle engine oil.
Provide good ventilation when fueling or handling fuel.
Always use gas with a minimum octane number of 91 unleaded.
Use Active 2-stoke oil only (for warranty purposes). Mix 40:1 (Non-Synthetic oil) or
60:1 (Synthetic oil) (or 3%), gas:oil mixture.
Never use multi-grade (1 OW/30) or waste oil.

9
Always mix fuel and oil in a separate clean, gas safe container. Always start by
adding half the amount of fuel which is to be used. Then add the whole amount of 2-
cycle oil. Mix (shake) the fuel container. Add the remaining amount of fuel. Mix
(shake) the fuel oil thoroughly before filling the tank.
Fueling
WARNING!
1.) Always shut the engine off before refueling.
2.) Slowly open the fuel tank, so that possible over-pressure disappears.
3.) Before fueling, clean the tank cap area carefully, to insure that no dirt falls into the
tank. Make sure that the fuel is well mixed by shaking the container.
4.) Tighten the fuel cap carefully after fueling.
5.) Always move the unit at least 10 meters from fueling area before starting.
Starting
1.) Set the CHOKE LEVER to the CHOKED (UP) position.
2.) Pull the pull starter handle briskly, making sure to keep the handle in your grasp,
not allowing it to snap back.
3.) One the engine is running, move the CHOKE LEVER to the RUN (Down) position.
NOTE: At this stage, if the engine does not start, repeat the starting procedure.
4.) After starting the engine, allow the engine 2-3 minutes to warm up prior to riding.
Stopping
Gradually decrease the engine speed to an idle speed and press the kill-switch on the
handlebar down tube.

10
MAINTENANCE
RECOMMENDED TOOLS
To adjust and service the A-Blaze Signature Series XG-565 Gas Scooter you will need the
following tools:
Allen Keys: 3/4/5/6mm
Wrenches: 10/13/17mm –Open and Ring Combination
Short Reach Spark Plug Socket
Water Pump Pliers
Philips Head Screwdrivers
Oil, Grease or Lubricant
CARBURETOR ADJUSTMENT
WARNING!! Never start the engine without the complete clutch cover assembled!
Otherwise the clutch can come loose and cause personal injuries.
In the carburetor, fuel is mixed with air. When the engine is test run at the factory, the
carburetor is basically adjusted. A further adjustment may be required from time to time,
depending on climate and altitude.
The carburetor has only one possible adjustment (Tanaka Engine Only):
T = idle speed adjustment screw

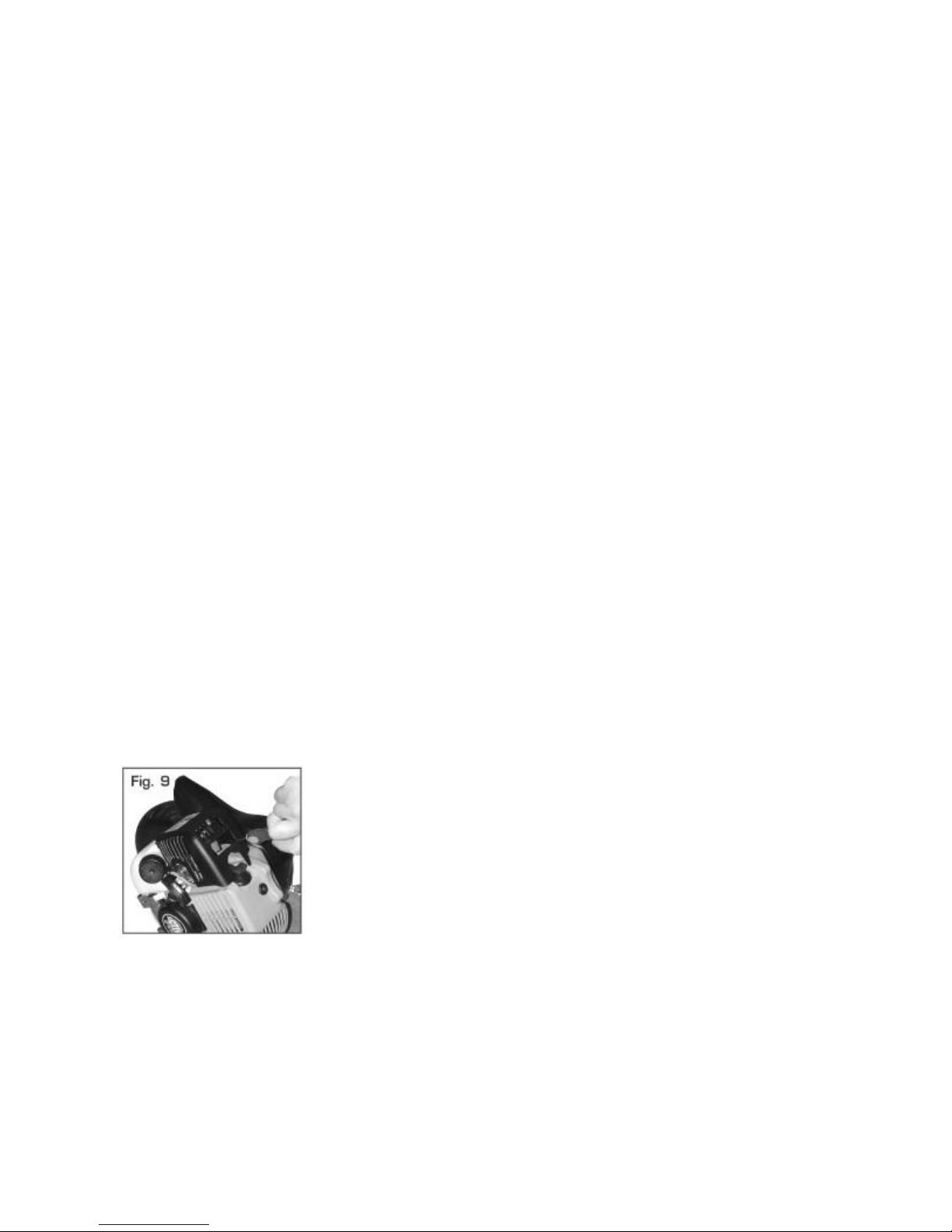

Idle Speed Adjustment (Fig. 9)
When the idle speed is adjusted properly, the engine will run smoothly, without pressing
the GAS LEVER.
1.) Start the engine.
2.) Using a long Philips head screwdriver gently close
(clockwise) the T-screw (Fig. 9) until the XG-565 Gas Scooter
starts to move forward.
3.) Then open (counter-clockwise) the screw until the scooter
stops.
4.) You have reached the correct idle speed when the engine runs smoothly below the RPM
when the scooter starts to move.
WARING!! When the engine is idling, under NO CIRCUMSTANCES should your scooter
be moving!!!

11
If the scooter continues to move after idle speed adjustment,
contact Technical Support at www.x-tremescooter/support.
Cleaning the Air Filter
It is a good idea to occasionally clean the air filter to ensure
optimum performance.
(Replacement of Air filter with anything other than the X-Treme™ replacement
parts will automatically void warranty)
1.) Using a Philips head screwdriver, remove the carburetor cover
by turning the cover screw counter-clockwise (Fig. 10).
2.) Remove and clean the air filter (the spongy material on top of
the air intake) by washing the sponge with soap (Fig. 11).
3.) Rub the filter with some oil and place the air filter back into its
original position and replace the cover.
BRAKING SYSTEM
The XG-565 Gas Scooter uses both a floating front wheel disc/caliper system activated by a
hand lever on the handlebar. Familiarize yourself with the braking system before use. The
front brake is activated by squeezing the BRAKE LEVER with your left hand. Make sure to
release the GAS LEVER when engaging the brakes.
Practice braking on a smooth, dry surface to get used to the feel of the braking system.
Braking distance is affected by wet conditions and loose and uneven riding surfaces.
Adjusting the Brakes
The brakes on the scooter should come fully adjusted from the factory. However, it is
important to adjust the brake from time to time.
1.) With one hand, depress the brake caliper using your thumb or
forefinger (Fig. 12).
2.) With the other hand, loosen the locknut of the tension screw
on the brake line.
3.) Turn the tension screw counter-clockwise to tighten the
brake.
4.) Tighten cable free play until the front wheel stops turning
freely and turn the tension screw clockwise a quarter turn. The front wheel should turn
freely now.
5.) Turn the locknut counter clockwise on the tension screw to secure the tension screw.
(DO NOT turn the tension screw)

12
Squeaky Brakes
The brakes may squeak before they are driven in. This is normal and will not affect the
function or performance of the brakes. With continued use, the squeak should go away.
TIRES AND WHEELS
The XG-565 Gas Scooter uses an identical rim and tire assembly for the front and rear
wheel, which means the tires can be rotated. The wheels are actually two wheel halves
(split rim) bolted together to make is easier to remove and replace the tire and tube.
Always make sure that the tire is deflated before opening the bolts.
The rear wheel is fitted with a special spacer to accommodate the belt pulleys, while the
front wheel has a brake for the disc brake.
Tire war will differ based on rider weight, riding conditions and care. Replacement tires
can be obtained by visiting the X-Treme Website or contacting a representative by phone.
Tire Pressure
The tire must be inflated to a maximum of 2.5 Bar. It is also recommended to use a tube
additive like Slime® which can be purchased at any motorcycle shop to avoid inconvenient
punctures. Empty all the air from the tire, prior to loosening the bolt to split the rim.
ADJUSTING THE HEAD UNIT –(STEERING TUBE)
The head unit should come adjusted from the factory. However,
riding on rough terrain and general use may cause the head unit to
become loose over time. It may be necessary to adjust the head unit
from time to time.

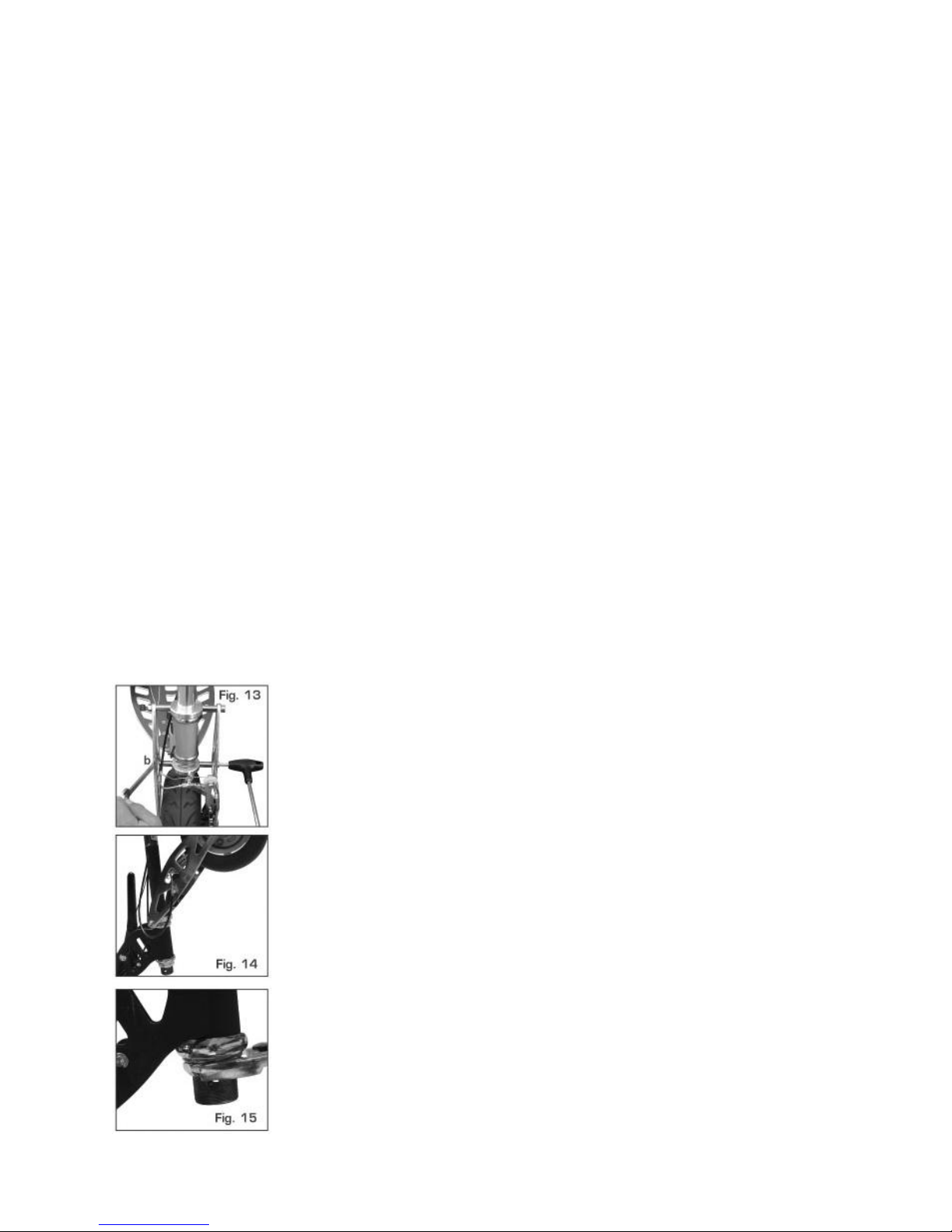

1.) Loosen (a) and remove the long bolt (b) shown in Fig. 13.
2.) Rotate the complete front wheel and fork assembly upwards so
that the large bearing lock nuts are accessible (Fig. 14).
3.) Using 2 large adjustable wrenches, loosen both nuts (Fig. 15).
4.) Tighten the nut closest to the bearing to the desired tightness.
The handlebar should still be able to turn freely however with no
backwards and forwards free play.
5.) Then securing the 1st nut, tighten the 2nd nut against the first
insuring it is locked securely.
6.) Lower complete wheel and fork assembly and place bolt and
brushes in same order as disassembled.
7.) Ensure that top and bottom bolts are tightened.

13
**DO NOT OVER TIGHTEN OR IT WILL DAMAGE THE BEARINGS!!
**DO NOT CONTINUE TO USE PRODUCT IF THERE IS TOO MUCH FREE PLAY AS THIS
WILL DAMAGE THE BEARINGS!!
ADJUSTING THE BELTS
The belts will come adjusted from the factory. However, it may be necessary to adjust the
pulleys from time to time. The belts must be well aligned onto the pulleys otherwise they
may start to rube and chafe, which will result in shortened belt life.
How tight should the belt be?
If the belt is skipping or jumping on the pulley teeth, this is too loose and may be
harmful.
If the belt is making a humming sound when the wheel is turning, this is too tight
and may cause the belt to snap.
The correct tension is achieved by adjusting the belt from its loose position to when
it becomes lightly tense.
To Tighten the Belts:
1.) Remove the rear mud guard.
2.) Rotate the rear wheel to assess the alignment of the belts.
Adjust the Two Primary Belts First:

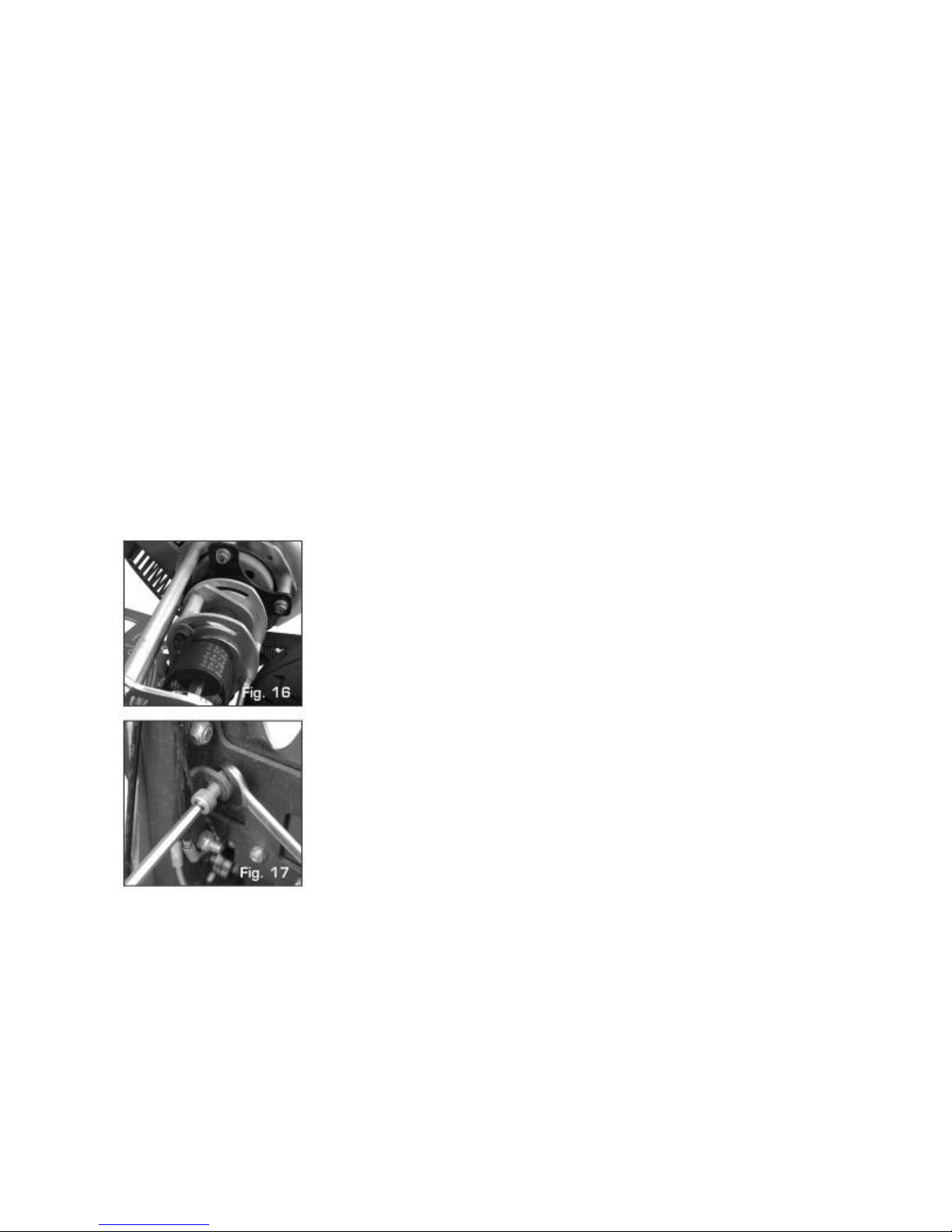

3.) Loosen the tensioned lock nut on the cam slotted plate (Fig.
16).
4.) Rotate the bush until the correction tension is achieved,
making sure to turn the wheel in the direction of use to ensure
bush is correctly seated and aligned. Both belts are adjusted at
the same time. Tighten bolt again ensuring position of bush is
maintained.
Adjust the Large Belt Now:
5.) Turn the scooter onto its left side.
6.) With both spanner and Allen key, adjust the tension (Fig. 17).
7.) Ensure that the lock nut is securely fastened against the plate. If this is not done
correctly, the belt will loosen immediately and there is a possibility of loosing the tension
bolt.

14
Adjusting the Free Play of the Gear Selector –ONLY FOR THE
XG-575DS
1.) The gear selector mechanism uses the same system to adjust
as the front and rear brakes.
2.) Correct tension is achieved when gear selector is in 1st gear,
the scooter should free wheel backwards. When the scooter is in
2nd gear, it should not be able to free wheel backwards.
3.) It is critical to ensure that when 2nd gear is selected (Fig. 18) that the clutch arm
pressure plate (a) is 90° to the gearbox. This can be adjusted by (b). Ensure that the nuts
are securely fastened.
**FAILURE TO DO THE ABOVE WILL RESULT IN BEARING FAILURE!!
MAINTENANCE SCHEDULE
Proper care of your A-Blaze Signature Series XG-565 will ensure optimal performance and
longer life span. The following are a few maintenance suggestions that will keep your
scooter running in top condition.
Daily Maintenance
Perform each time you ride your scooter.
Clean the exterior of the unit with a soft, damp rag.
Check that all nuts and bolts are securely tightened.
Weekly/Monthly Maintenance
Check the starter, especially the cord and return spring.
Clear the exterior of the spark plug.
Remove the spark plug and check the electrode gap. Adjust it to 0.6mm or change
the spark plug.
Clean the cooling fins on the cylinder head and check that the air intake at the
starter is not clogged.
Clean the air filter.
Check the tires and brakes.
WARRANTY AND TECHNICAL SUPPORT
X-Treme Scooters offers a 90-day limited bumper-to-bumper manufacturers warranty on
all A-Blaze Signature Series XG-565 Gas Scooters that are purchased from an authorized
dealer or direct. Original purchase receipt required.

15
X-Treme Scooters will NOT offer any warranty on any products purchased from second
hand sellers, non authorized X-Treme Scooter Dealers, products purchased used, or
products that are purchased via outlet centers. X-Treme Scooters will offer free lifetime
technical support access on these products & if parts are needed, those parts may be
purchased from X-Treme Scooters.
Warranty does not cover cosmetic damage or damage due to acts of God, accidents, misuse,
abuse, neglect, commercial use or modification of, or to any part of the Product, including
the motor. This warranty does not include improper fuel or engine oil mixture or
attempted repair by any other than a facility authorized by X-Treme to service this product.
If you need technical support, contact a technician at www.x-tremescooters.com/support.
If you are in need of replacement parts for your XG-565, please visit our site at
http://www.x-tremescooters.com/owning/parts.

16
DO NOT RETURN TO STORE!
IF YOU NEED HELP,
CALL [phone] OR
GO ONLINE TO
www.x-tremescooters.com/support
Revised 3/27/12
