Xult XT-24-FS User manual

A
B
11X
E
6X
D
6X
C
10X
UPRIGHT
W/SERIAL #
LEFT FRONT
J-CUP
PAIR
SEE 6' CHIN BAR ASSEMBLY GUIDE
SEE 4' CHIN BAR ASSEMBLY GUIDE
286.50
7277.10
108.25
2749.55
86.30
2192
ITEM
NO.
PART
NUMBER
DESCRIPTION QTY.
A XR03S XULT;RIG;UPRIGHT 9FT W/SERIAL#/MTG HW 1
B XR03 XULT;RIG;UPRIGHT 9FT W/MTG HW 11
C XR02 XULT;RIG 6' CHIN BAR 10
D XR01 XULT;RIG 4' CHIN BAR 6
E XR11 XULT; J-CUP SET (RIGHT & LEFT) 6

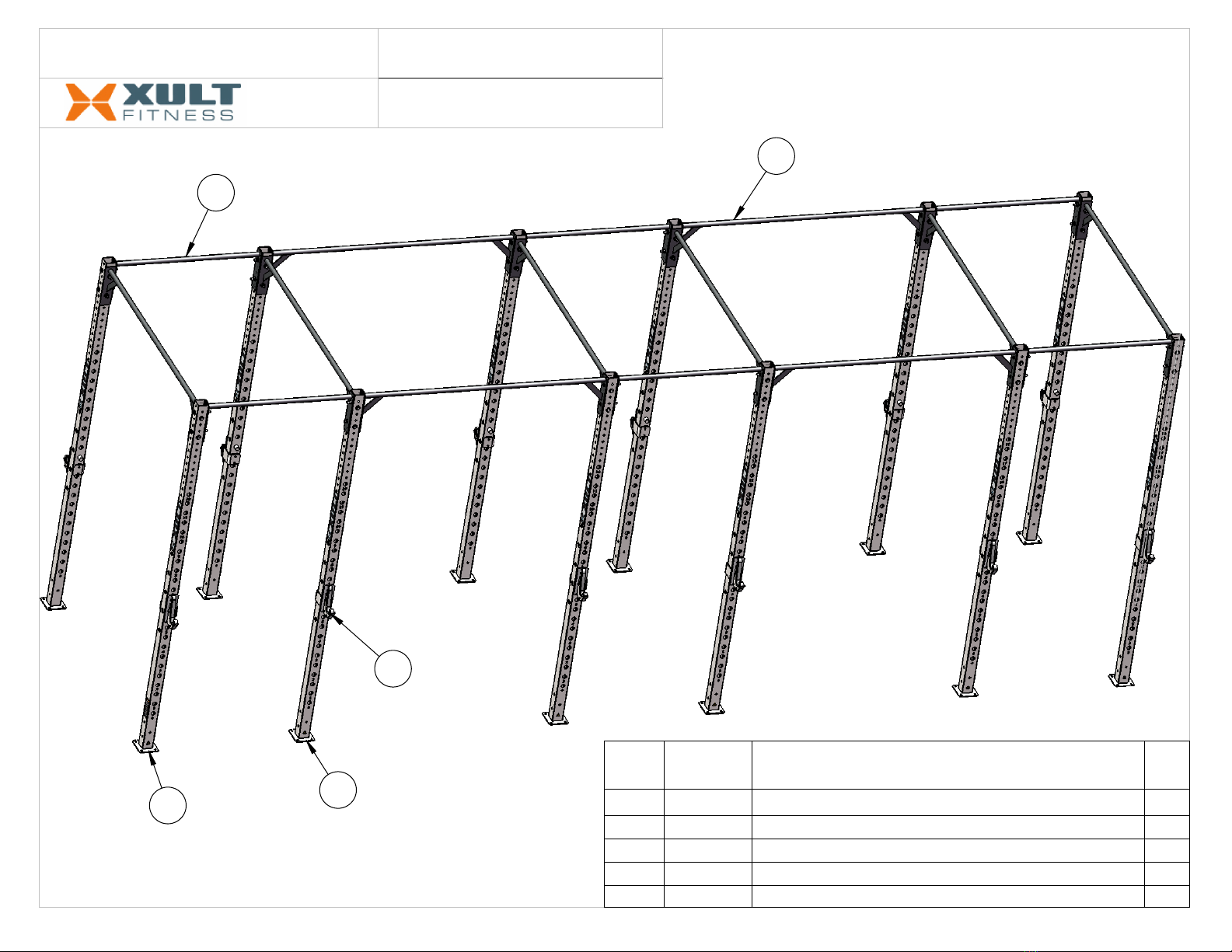

ASSEMBLY GUIDE
XT-24-FS DRAWING NAME: LAST UPDATED: 2017.NOV.08
DESCRIPTION:
MODEL:
RIG 24FT FREE STAND
XT-24-FS

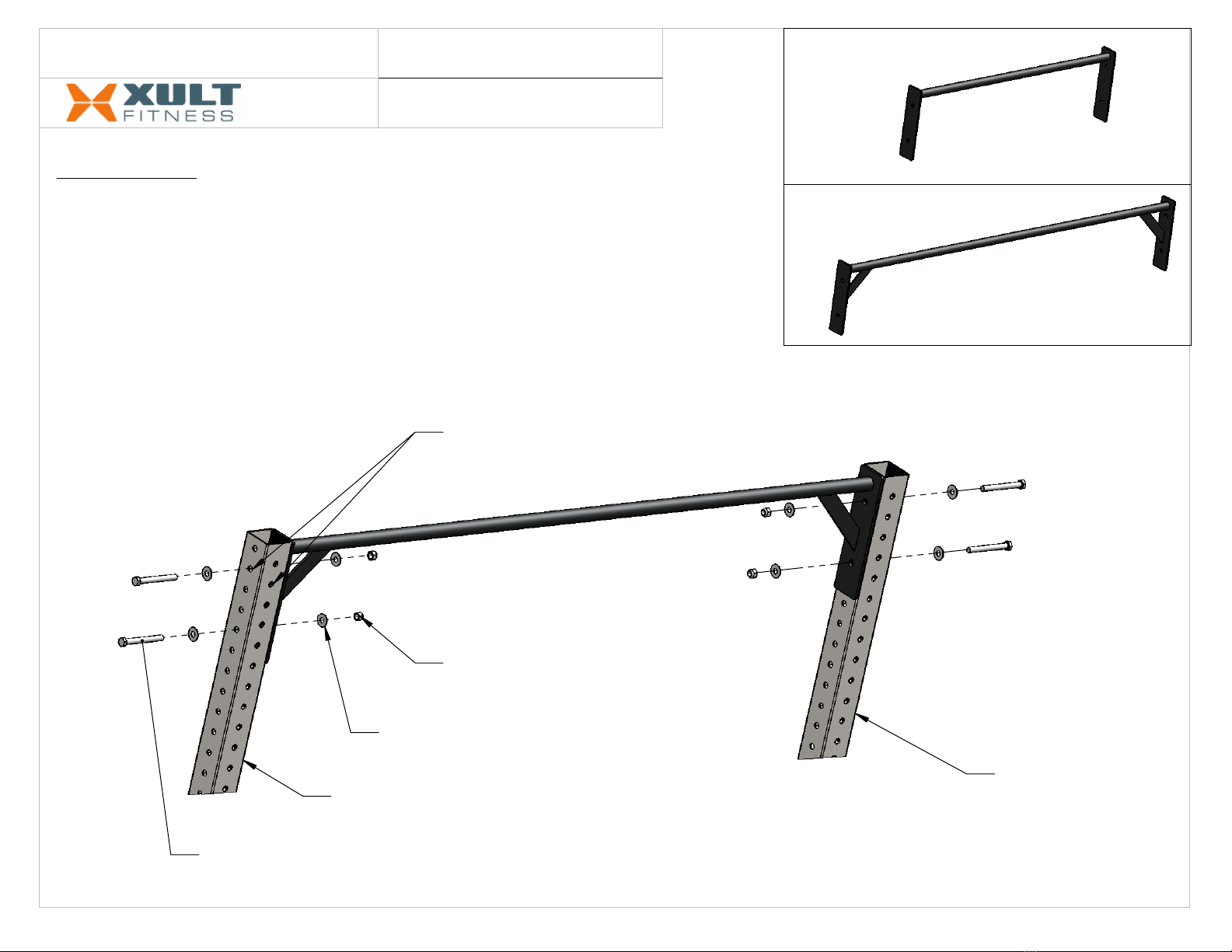

6' CHIN BAR
(SHOWN IN EXPLODED VIEW)
UPRIGHT
UPRIGHT
CHIN BAR MOUNTING
2ND HOLE LOCATION
SCREW;HEX HEAD 0.500-13
4 PLACES
WASHER;FLAT 0.500"
8 PLACES
NUT;NYLOCK 0.500"-13
4 PLACES
CHIN BAR (4' & 6')
4' CHIN BAR
TOOLS NEEDED: 3/4" WRENCHES X 2.
TORQUE SCREWS TO 57 ft-lbs
ASSEMBLE WITH HARDWARE PROVIDED WITH UPRIGHTS
(EXPLODED VIEW SHOWN FOR REFERENCE ONLY)
ITEM NO.
PART
NUMBER
English Part Name
GUIDE_ASSY/QTY.
1 104-266 Weldment;6' Chin Bar;Rig 1
2 818-007 WASHER;FLT;USS;Φ0.500XΦ1.250X.063;ZN; 8
3 817-820 NUT;NLK;.500-13;ZN; 4
4 810-818 SCREW;HH;.500-13 x 4.50;ZN; 4
5 402-854 3" X 3" .120 WALL TUBE; 108" 2
ITEM
NO.
PART
NUMBER
English Part Name
Default/QTY.
1 104-266 Weldment;6' Chin Bar;Rig
1
ITEM
NO.
PART
NUMBER
English Part Name
Default/QTY.
1 104-265 Weldment;4' Chin Bar;Rig;
1
ITEM NO.
PART
NUMBER
English Part Name
QTY.
1 104-265 Weldment;4' Chin Bar;Rig; 1
1.1 250-919 1 1/4"OD X .120 WALL;41.5" 1
1.2 503-732 1/4" PLASMA;PLATE 3" X 12" 2
1.2.1 -
ITEM NO.
PART
NUMBER
English Part Name
QTY.
1 104-266 Weldment;6' Chin Bar;Rig 1
1.1 250-920 1 1/4"OD X .120 WALL;69.5" 1
1.2 503-732 1/4" PLASMA;PLATE 3" X 12" 2
1.2.1 -
1.3 503-733 1/4" PLASMA; GUSSET 2
1.3.1 -
ASSEMBLY GUIDE
XR01 & XR02 ASSY GUIDE DRAWING NAME: LAST UPDATED: 2017.OCT.19
DESCRIPTION:
MODEL:
XULT;RIG 6' CHIN BAR
XR01 & XR02

PROPER USAGE
1. Do not exceed weight limits of the exercise device.
2. If applicable, set safety stops to appropriate height.
3. Exercise using no more weight than you can safely lift and control.
. In a controlled manner, perform exercise.
5. Return weight to its fully-supported start position.
IMPORTANT SAFETY INFORMATION
It is the sole responsibility of the purchaser of Xult products to instruct all individuals, whether they are the end user or supervising personnel on
proper usage of the equipment.
It is recommended that all users of Xult exercise equipment be informed of the following information prior to its use.
Do not use any equipment in any way other than designed or intended by the manufacturer. It is imperative that Xult equipment be used
properly to avoid injury.
INSTALLATION
•STABLE AND LEVEL SURFACE: Xult exercise equipment must be installed on a stable base and properly leveled.
•SECURING EQUIPMENT: Manufacturer recommends that all stationary Xult strength equipment be secured to the floor to stabilize equipment
and eliminate rocking or tipping over. This must be performed by a licensed contractor. All floor anchor points must be able to withstand 750
lbs. (3.3 kN) pull-out force. All wall anchor points must be able to withstand a minimum pull-out force of 2.2 kN (500 LBS) from the walls
MAINTENANCE
•DO NOT use any equipment that is damaged and or has worn or broken parts.
•MAINTAIN LABELS AND NAMEPLATES: Do not remove labels for any reason.
•MAINTAIN ALL EQUIPMENT: Preventative maintenance is the key to smooth operating equipment as well as keeping your liability to a
minimum. Equipment needs to be inspected at regular intervals.
•Ensure that any person(s) making adjustments or performing maintenance or repair of any kind is qualified to do so.
XULTFITNESS.COM
Action Frequency
Inspect Hardware Monthly
Inspect Frame Bi-Annually
Clean Machine As needed
Maintenance Checkli t
Tech Spec
Max User Weight 136 kg / 300 lbs
Max Training Weight 318 kg / 700 lbs
Dimensions (L x D x H) 286.5" x 86.3" x 108.25"
Product Weight 359 kg / 790 lbs
Product Specification
Frame 10 years
Finish 5 years
Accessories 3 years
Labor 1 year
Warranty

WARNING
DEATH OR SERIOUS INJURY CAN OCCUR ON THIS EQUIPMENT. FOLLOW THESE PRECAUTIONS TO
AVOID INJURY!
1. Keep children under the age of 1 away from this strength training equipment. Teenagers must be
supervised at all times while using this equipment.
2. This equipment is not intended for use by persons with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the equipment by a person responsible for their safety.
3. All warnings and instructions should be read and proper instruction obtained prior to use. Use this
equipment for its intended purpose ONLY.
. Inspect the machine before use. DO NOT use machine if it appears damaged or inoperable.
5. Do not exceed weight capacity of this equipment.
6. ALWAYS use a spotter if using free weights.
7. Balance the weight applied to this equipment and/or any barbell. Where applicable, use retention
devices to retain weight discs.
8. Injuries to health may result from incorrect or excessive training. Cease exercise if you feel faint or
dizzy. Obtain a medical exam before beginning an exercise program.
9. Keep body, clothing, hair, and fitness accessories free and clear of all moving parts.
10. Do not allow the lifting bar to drop suddenly.
11. Adjustable stops must be used at all times.
12. ALWAYS set both adjustable stops to the same height when using this machine.
13. Visually ensure lifting bar catches are fully engaged and seated in the hooks before releasing the
load and exiting the machine.
1 . PROPER adjustable stop height depends on the exercise performed. Adjust as follows:
• Remove weight from lifting bar.
• For squats, perform the exercise and determine the lowest comfortable position of the bar that
ensures no spinal compression. For other exercises, perform the movement and determine the
lowest point of bar travel that is comfortable without the bar contacting your body.
• Position both stop catches to stop the bar at this point. Ensure that they are fully engaged.
• Load weights onto the lifting bar and carefully perform the exercise.
15. Manufacturer requires this equipment to be secured to the floor to stabilize and eliminate rocking
or tipping over. Use a licensed contractor.
