Xycom 1341 User manual



2007 XYCOM AUTOMATION, L.L.C. Printed in the United States of America
1341
Embedded Node PC

Revision Record
144810(C)
Revision Description Date
A Manual Released 9/06
B FSB and memory features revised 10/06
C Name change, correct where applicable with document 4/07
Part Number 144810 (C)
Trademark Information
Xycom and Xycom Automation are trademarks of Xycom Automation, L.L.C.
Xycom Automation, L.L.C. now is referred to as Pro-face through a D.B.A. The Pro-face name and logo will replace
the Xycom name and logo on all documents where possible.
Pro-face is a trademark of Digital Electronics Corporation.
Brand or product names are registered trademarks of their respective owners. Windows is a registered trademark of
Microsoft Corp. in the United States and other countries.
Copyright Information
This document is copyrighted by Xycom Automation, L.L.C. (Xycom) and shall not be reproduced or copied without
expressed written authorization from Xycom Automation, L.L.C.
The information contained within this document is subject to change without notice. Pro-face does not guarantee the
accuracy of the information.
United States FCC Part 15, Subpart B, Class A EMI Compliance Statement:
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his or her own expense.
For European Users - WARNING:
This is a Class A product. In a domestic environment this product may cause radio interference in which case the
user may be required to take adequate measures.
INSTALLATION: Electromagnetic Compatibility WARNING:
The connection of non-shielded equipment interface cables to this equipment will invalidate FCC EMI and European
Union EMC compliance and may result in electromagnetic interference and/or susceptibility levels which are in
violation of regulations applying to the legal operation of this device. It is the responsibility of the system integrator
and/or user to apply the following directions relating to installation and configuration:
All interface cables must include shielded cables. Braid/foil type shields are recommended. Communication cable
connectors must be metal, ideally zinc die-cast backshell types, and provide 360-degree protection about the
interface wires. The cable shield braid must be terminated directly to the metal connector shell, ground drain wires
alone are not adequate.
Protective measures for power and interface cables as described within this manual must be applied. Do not leave
cables connected to unused interfaces or disconnected at one end. Changes or modifications to this device not
expressly approved by the manufacturer could void the user’s authority to operate the equipment.
EMC compliance is, in part, a function of PCB design. Third party add-on AT/XT peripheral PCB assemblies installed
within this apparatus may void EMC compliance. FCC/CE compliant PCB assemblies should always be used where
possible. PRO-FACE can accept no responsibility for the EMC performance of this apparatus after system
integrator/user installation of PCB assemblies not manufactured and/or expressly tested and approved for
compliance by PRO-FACE. It is the responsibility of the system integrator/user to ensure that installation and
operation of such devices does not void EMC compliance.

i 144810(C)
Table of Contents
CHAPTER 1 – INTRODUCTION .................................................................................................................................1
GENERAL INFORMATION ...............................................................................................................................................1
Standard Features ...............................................................................................................................................1
UNPACKING THE SYSTEM .............................................................................................................................................3
QUICK STARTUP .........................................................................................................................................................3
CHAPTER 2 — INSTALLATION .................................................................................................................................4
INSTALLATION OVERVIEW.............................................................................................................................................4
MOUNTING OPTIONS....................................................................................................................................................7
Wall Mounting ......................................................................................................................................................7
PCI CARD INSTALLATION .............................................................................................................................................8
JUMPER SETTINGS ....................................................................................................................................................10
JP6: CLEAR CMOS SETUP.......................................................................................................................................10
CHAPTER 3 – AWARD BIOS SETUP.......................................................................................................................11
SYSTEM TEST AND INITIALIZATION ...............................................................................................................................11
CHAPTER 4 – DRIVER INSTALLATION ..................................................................................................................13
Windows  2000 Reinstallation ..........................................................................................................................13
Windows  XP Reinstallation .............................................................................................................................14
APPENDIX A – I/O INFORMATION ..........................................................................................................................15
APPENDIX B TECHNICAL SPECIFICATIONS.........................................................................................................18
HARDWARE SPECIFICATIONS ......................................................................................................................................18
ENVIRONMENTAL SPECIFICATIONS ..............................................................................................................................19
APPENDIX C – WATCHDOG TIMER........................................................................................................................19

1 144810(C)
Chapter 1 – Introduction
General Information
The 1341 Embedded Node PC combines a high performance Intel®Celeron®M
processor with a fanless design to offer a powerful and compact package for the
factory floor and other harsh environments. USB 2.0, Ethernet and 4 Serial ports
allow communication with diverse devices with a high transfer rate. Furthermore, the
1341 series can concurrently support three tiers of expansion interfaces: PCI,
PCMCIA and mini-PCI. These interfaces are fully integrated within the 1341 and
allow an upgrade to their usefulness.
Standard Features
The 1341 comes standard with the following features:
•
••
• CPU board equipped with a high performance Intel®Celeron®M 1.3GHz CPU
with 400MHz front system bus and 512KB cache
•
••
• AGP Video Controller, 4M of system DRAM, up to 32M
•
••
• 10/100 Base T Ethernet
•
••
• DDR 266, 512MB SODIMM
•
••
• PS/2 Keyboard and Mouse
•
••
• Four RS-232 ports
•
••
• Audio(in/out/mic)
•
••
• Printer Port
•
••
• Four USB 2.0 ports
•
••
• One half length PCI slot
•
••
• Dual externally accessible PCMCIA ports
•
••
• VGA Port
•
••
• CompactFlash slot
•
••
• 9-30 Volt regulated DC input
•
••
• Power on/off switch
•
••
• Reset button
•
••
• Power LED indicator
•
••
• HDD active LED indicator (active only with HDD installed)
•
••
• Wall or shelf mountable
Optional Features:
•
••
• 4GB or 8GB CompactFlash
•
••
• Microsoft®Windows XP or Windows 2000 Operating System

1341 Embedded Node PC Chapter 1 – Introduction
2 144810(C)
The figures below show the internal and external components on the front and back
panels of the unit to help you locate features relevant to installation.
Front Side
Figure 1-1. Front Side
Rear Side
Figure 1-2. Rear Side
Caution
Before any installation or un-installation, please take precautions to prevent
damage to the components due to static electricity.
P
PCMCIA x 2
Compact Flash card slot
USB Port x 4Power LED
Reset
HDD LED
Power Switch
Power Inlet
VGA
Ethernet4 Serial
Ports
Audio
Printer Port
PCI slot
PS/2 Keyboard and PS/2 Mouse

1341 Embedded Node PC Chapter 1 – Introduction
3 144810(C)
Unpacking the System
When you remove the system from its shipping container, verify that you have the
parts listed below. Save the box and inner wrapping in the event you need to reship
the unit.
•
••
• 1341 Unit
•
••
• Documentation kit, which includes:
o Documentation and Support Library CD-ROM
o Mounting hardware
o Operating System Recovery Media or retail operating system (CD-ROM)
(only with units purchased with an operating system).
Quick Startup
This section gives you the steps to get the system up and running without explaining
the capabilities and options.
Warning
Remove power from the unit and disconnect the power cord before making any
adjustments to the inside or outside of the computer.
To prepare the system for use, perform the following steps.
1. Attach optional keyboard to the keyboard port, and optional mouse to the mouse
port.
2. Attach DC power cable from AC Adapter. Attach the power cord from the power
receptacle to a properly grounded 100-240 VAC, 50-60 Hz outlet.
3. Turn on power to the unit (via an outlet power switch if applicable). The system
will boot up into the operating system.
4. Install application software via the CompactFlash, or the network.

4 144810(C)
Chapter 2 — Installation
Installation Overview
The rugged design of the 1341 unit allows it to be installed in most industrial
environments. The system is generally placed in a NEMA 4/4X/12 enclosure to
protect against contaminants such as dust, and moisture. Metal enclosures also help
minimize the effects of electromagnetic radiation that nearby equipment can generate.
Read the following sections carefully to be sure that you are complying with all the
safety requirements.
1. Select a NEMA rated enclosure and place the unit in a position to allow easy
access to the system ports.
2. Be sure to account for the unit’s depth when choosing the depth of the enclosure.
3. The 1341 unit can be mounted in a vertical or horizontal position.
4. Attach DC power cable from AC Adapter to the power receptacle on the 1341
and the other end to a properly grounded 100-240 VAC, 50-60 Hz outlet.
5. Turn on power to the system. The system will boot up the installed operating
system.
Additional aspects to take into account when mounting your 1341:
•
••
• Consider locations of accessories such as AC power outlets and lighting (interior
lighting and windows) for installation and maintenance convenience
•
••
• Prevent condensation by installing a thermostat-controlled heater or air
conditioner
•
••
• To allow for maximum cooling, avoid obstructing the airflow
•
••
• Place any fans or blowers close to the heat generating devices. If using a fan,
make sure that outside air is not brought into the enclosure unless a fabric or
other reliable filter is used. This filtration prevents conductive particles and other
harmful contaminants from entering the enclosure.
•
••
• Do not select a location near equipment that generates excessive electromagnetic
interference (EMI) or radio frequency interface (RFI). Examples of these types
of equipment are: high power welding machines; induction heating equipment;
and large motor starters.
•
••
• Place incoming power line devices (such as isolation or constant voltage
transformers, local power disconnects, and surge suppressers) away from the
system. The proper location of incoming line devices keeps power wire runs as
short as possible and minimizes electrical noise transmitted to the unit.
•
••
• Make sure the location does not exceed the unit’s shock, vibration, and
temperature specifications

1341 Embedded Node PC Chapter 2 – Installation
5 144810(C)
•
••
• Install the unit in the rack or panel in such a way as to ensure that it does not
cause a hazard from uneven mechanical loading
•
••
• Incorporate a readily-accessible disconnect device in the fixed wiring on
permanently connected equipment
•
••
• Avoid circuit overloading of the supply circuit

1341 Embedded Node PC Chapter 2 – Installation
6 144810(C)
Mechanical Dimensions
Note: All dimensions in mm
Figure 2-1. Unit Dimensions

7 144810(C)
Mounting Options
Wall Mounting
The 1341 is suitable for wall mount using the included brackets and hardware.
Secure the bracket to the unit with the 4 screws as shown below.
Figure 2-2. Wall Mounting

1341Embedded Node PC Chapter 3 – Award BIOS Setup
8 144810(C)
PCI Card Installation
Step 1: Unfasten the two screws on the rear panel.
Step 2: Unfasten the three screws on the front panel.
Step 3: Unfasten the six screws on the bottom lid.
Step 4: Remove the screw with your finger (Figure 2-3) and get the PCI card ready to install. You
should keep the shield and screw for use later.
Figure 2-3
PCI Slot shield
Screw

1341Embedded Node PC Chapter 3 – Award BIOS Setup
9 144810(C)
Step 5: Insert the PCI card into the PCI slot and reattach the screw.
Step 6: Unfasten the screws (Figure 2-4) and push the bracket to lock the PCI card into position
(Figure 2-5).
(Figure 2-4) (Figure 2-5)
Step 7: Close the bottom lid of the 1341 and fasten six screws on the bottom lid.
Step 8: Fasten the three screws on the front panel and the two screws on the rear panel.

1341Embedded Node PC Chapter 3 – Award BIOS Setup
10 144810(C)
Jumper Settings
The CPU board has a number of jumpers that allow you to configure your system to suit your
application. The table below shows the function of each of the board’s jumpers:
Jumper Function
JP1 ATX Power to AT Function
JP2 Audio Out Selection
JP3 LCD Voltage Selection
JP4 COM4 Ring/+5V/+12V Selection
JP5 COM3 Ring/+5V/+12V Selection
JP6 Clear CMOS
JP6: Clear CMOS Setup
If the CPU board fails to boot due to improper BIOS settings, use this jumper to clear the CMOS
data and reset the system BIOS information. To do this, use the jumper cap to close pins 2 and 3
for a few seconds then reinstall the jumper clip back to pins 1 and 2.
If the “CMOS Settings Wrong” message display during the boot up process, you may then try to
correct the fault by pressing the F1 to enter the CMOS Setup menu. You may then do one of the
following:
• Enter the correct CMOS setting
• Load Optimal Defaults
• Load Failsafe Defaults
After you have done one of the above options, save your changes and exit the CMOS Setup
menu.
JP6 Description
1-2 Normal
2-3 Clear CMOS

1341Embedded Node PC Chapter 3 – Award BIOS Setup
11 144810(C)
Chapter 3 – Award BIOS Setup
System Test and Initialization
These routines test and initialize board hardware. If the routines encounter an error during the tests,
you will either hear a few short beeps or see an error message on the screen. There are two kinds of
errors: fatal and non-fatal. The system can usually continue the boot up sequence with non-fatal errors.
Non-fatal error messages usually appear on the screen along with the following instructions:
Press <F1> to RESUME
Write down the message and press the F1 key to continue the boot up sequence.
System configuration verification
These routines check the current system configuration against the values stored in the CMOS
memory. If they do not match, the program outputs an error message. You will then need to run the
BIOS setup program to set the configuration information in memory.
There are three situations in which you will need to change the CMOS settings:
1. You are starting your system for the first time
2. You have changed the hardware attached to your system
3. The CMOS memory has lost power and the configuration information has been erased.
The 1341 CMOS memory has an integral lithium battery backup for data retention. However, you will
need to replace the complete unit when it finally runs down.
3.2 Award BIOS Setup
Awards BIOS ROM has a built-in Setup program that allows users to modify the basic system
configuration. This type of information is stored in battery-backed CMOS RAM so that it retains the
Setup information when the power is turned off.
Entering Setup

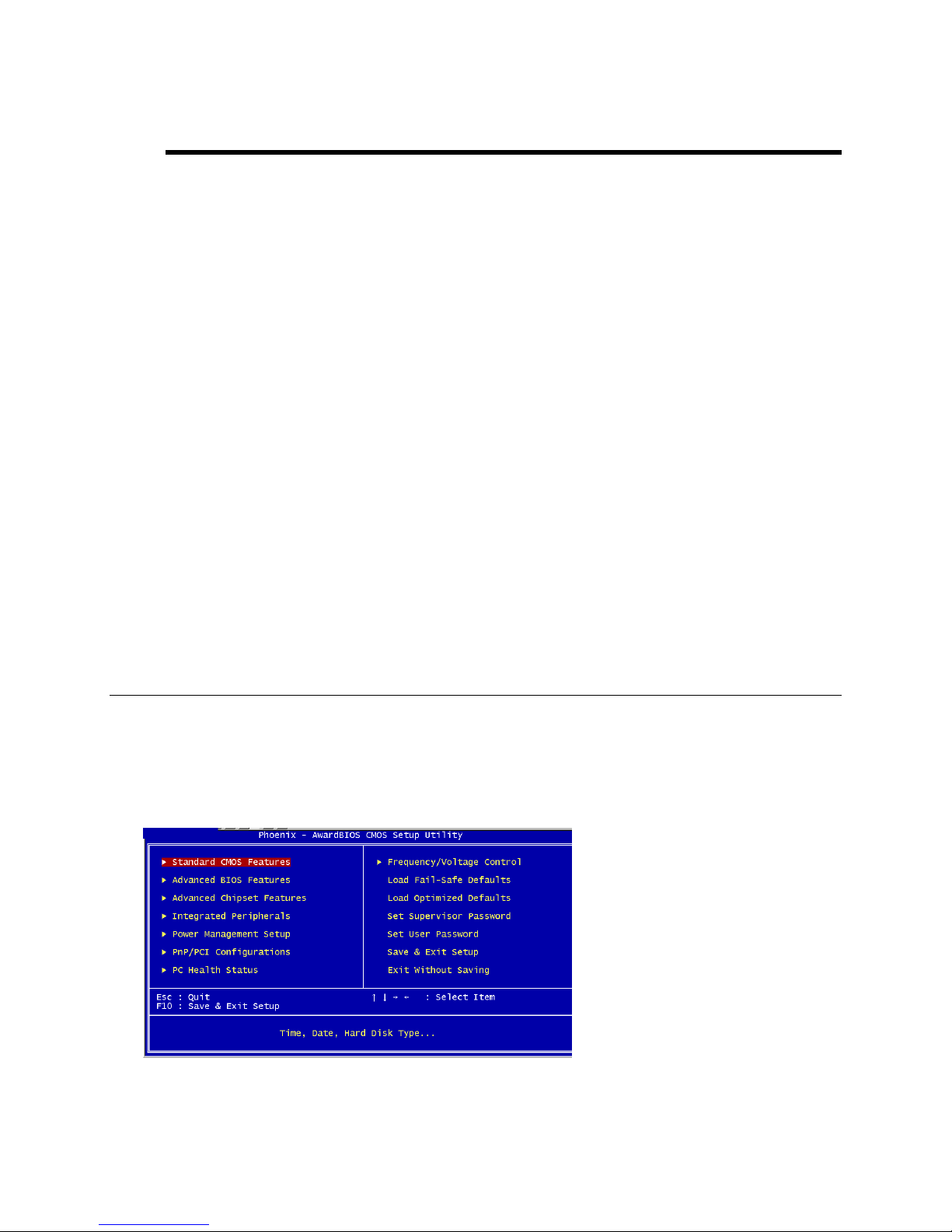

Power on the computer and press <Del> immediately. This will allow you to enter Setup.
Standard CMOS Features

1341Embedded Node PC Chapter 3 – Award BIOS Setup
12 144810(C)
Use this menu for basic system configuration. (Date, time, IDE, etc.)
Advanced BIOS Features
Use this menu to set the advanced features available on your system.
Advanced Chipset Features
Use this menu to change the values in the chipset registers and optimize your system performance.
Integrated Peripherals
Use this menu to specify your settings for integrated peripherals. (Primary slave, secondary slave,
keyboard, mouse, etc.)
Power Management Setup
Use this menu to specify your settings for power management. (HDD power down, power on by ring,
KB wake up, etc.)
PnP/PCI Configurations
This entry appears if your system supports PnP/PCI.
PC Health Status
This menu allows you to set the shutdown temperature for your system.
Frequency/Voltage Control
Use this menu to specify your settings for auto detect DIMM/PCI clock and spread spectrum.
Load Fail-Safe Defaults
Use this menu to load the BIOS default values for the minimal/stable performance for your system to
operate.
Load Optimized Defaults
Use this menu to load the BIOS default values that are factory settings for optimal performance system
operations. While AWARD has designated the custom BIOS to maximize performance, the factory has
the right to change these defaults to meet their needs.
Set Supervisor/User Password
Use this menu to set Supervisor/User Passwords.
Save and Exit Setup
Save CMOS value changes to CMOS and exit setup.
Exit Without Saving
Abandon all CMOS value changes and exit setup.

13 144810(C)
Chapter 4 – Driver Installation
The 1341 comes with the Pro-face Documentation and Support Library CD that contains all drivers
and utilities that meet your needs. Pro-face recommends connecting a parallel port or USB CD-ROM
drive to the 1341 to install drivers or connecting the host computer to the 1341.
Follow the sequence below to install the drivers:
Step 1 – Install INF Driver
Step 2 – Install VGA Driver
Step 3 – Install LAN Driver
Step 4 – Install Audio Driver
USB 2.0 Drivers are available for download using Windows Update for both Windows XP and
Windows 2000. For additional information regarding USB 2.0 support in Windows XP and Windows
2000, please visit www.microsoft.com/hwdev/usb/.
Please refer to the driver install instructions included in the 1341 Readme.txt file for detailed
installation information.
Windows 

 2000 Reinstallation
If you need to reinstall the Windows® 2000 operating system, refer to the
Pro-face/Xycom Workstation Recovery Media Software Installation Instructions
for Microsoft® Windows® 2000 (shipped with systems preinstalled with Windows
2000). This document is devoted to the reinstallation of your Windows 2000
operating system and drivers, utilizing the Recovery Media provided with your
Pro-face/Xycom industrial computer. If you want to install a new operating system
or reinstall a current operating system, refer to the operating system’s manual for
directions.
Note
This procedure assumes that the computer hard disk drive has been completely
corrupted or replaced.
Warning
This procedure will destroy data that may exist on the hard disk drive.

1341 Embedded Node PC Chapter 4 – Driver Installation
14 144810(C)
Windows 

 XP Reinstallation
If you need to reinstall the Windows® XP operating system, refer to the
Pro-face/Xycom Workstation Software Installation Instructions For Microsoft
Windows XP (shipped with systems preinstalled with Windows XP). This document
is devoted to the reinstallation of your Windows XP operating system and drivers,
utilizing the XP CD provided with your Pro-face/Xycom industrial computer. If you
want to install a new operating system or reinstall a current operating system, refer
to the Windows XP Professional CD-ROM (shipped with systems preinstalled with
Windows XP Professional).
Note
This procedure assumes that the computer hard disk drive has been completely
corrupted or replaced.
Warning
This procedure will destroy data that may exist on the hard disk drive.

15 144810(C)
Appendix A – I/O Information
A.1 I/O Address Map

1341 Embedded Node PC Appendix A – I/O Information
16 144810(C)
A.2 Memory Address Map

1341 Embedded Node PC Appendix A – I/O Information
17 144810(C)
A.3 IRQ Mapping Chart
A.4 DMA Channel Assignments
