CD-15A Rapid Charger
The CD-15A is a Rapid Charger that enables recharging of the Lithium-ion Battery Packs
for the Yaesu transceiver.
Operation
1. Insert the DC plug from the SAD-11B, PA-48B, PA-48C or PA-48U into the DC jack on
the CD-
15A rear panel, then plug the SAD-11B, PA-48B, PA-48C or PA-48U into the
AC line outlet.
2. Insert the battery pack into the CD-15A. If charging with the transceiver attached,
the antenna jack should be at the left side when viewing the charger from the front. If
charging a pack alone (not attached to the transceiver), refer to the illustration below
for details on proper positioning of the pack; align the slot of the battery pack with the
guide in the nest of the CD-15A.
3. If the battery pack is inserted correctly, the Red “CHARGING” indicator will glow.
A fully-discharged FNB-80LI battery pack will be charged completely in approximate-
ly 2.5 hours.
4. When charging is completed, the Red “CHARGING” indicator will disappear, and the
Green “FULL” indicator will glow. Disconnect the pack from the CD-15A, and unplug
the
SAD-11B, PA-48B, PA-48C or PA-48U from the AC line outlet.
Important Notes!
Do not connect an improper charger. Use only the
SAD-11B, PA-48B, PA-48C or PA-
48U with the CD-15A.
 Donotchargeanimproperbattery(onenotspecicallydesignedforuseintheCD-
15A).
Disconnect the pack from the CD-15A, and unplug the
SAD-11B, PA-48B, PA-48C or
PA-48U from the AC line outlet, when charging is completed.
The
SAD-11B, PA-48B, PA-48C or PA-48U and/or CD-15A will generate a moderate
amount of heat during the charging process. This is a normal condition.
The
SAD-11B, PA-48B, PA-48C or PA-48U is not designed to power the transceiver
for transmission.
Caution!!
When charging a battery pack alone (not attached to the transceiver), do not allow
any metal object to short the terminals on top of the pack.
Do not allow any metal objects to short the terminals in the nest of the CD-15A, as a
short-circuit could cause overheating of the charger circuitry.
Specications
Input Voltage Range: DC 12.0 ~ 16.0 V
Charging Current (approx.): 600 mA
Charge Time (approx.): 2.5 hours (FNB-80LI)
Operating Temperature Range: +5 °C to +35 °C
Case Size (WxHxD): 90 x 61x81 mm
Weight (approx.): 145 g
SAD-11B: USA Version
PA-48B: USA/EXP (Non European) Version
PA-48C: EU Version
PA-48U: UK Version
PA-48B, PA-48C and PA-48U are produced in LEI.
Symbols placed on the equipment
Direct current

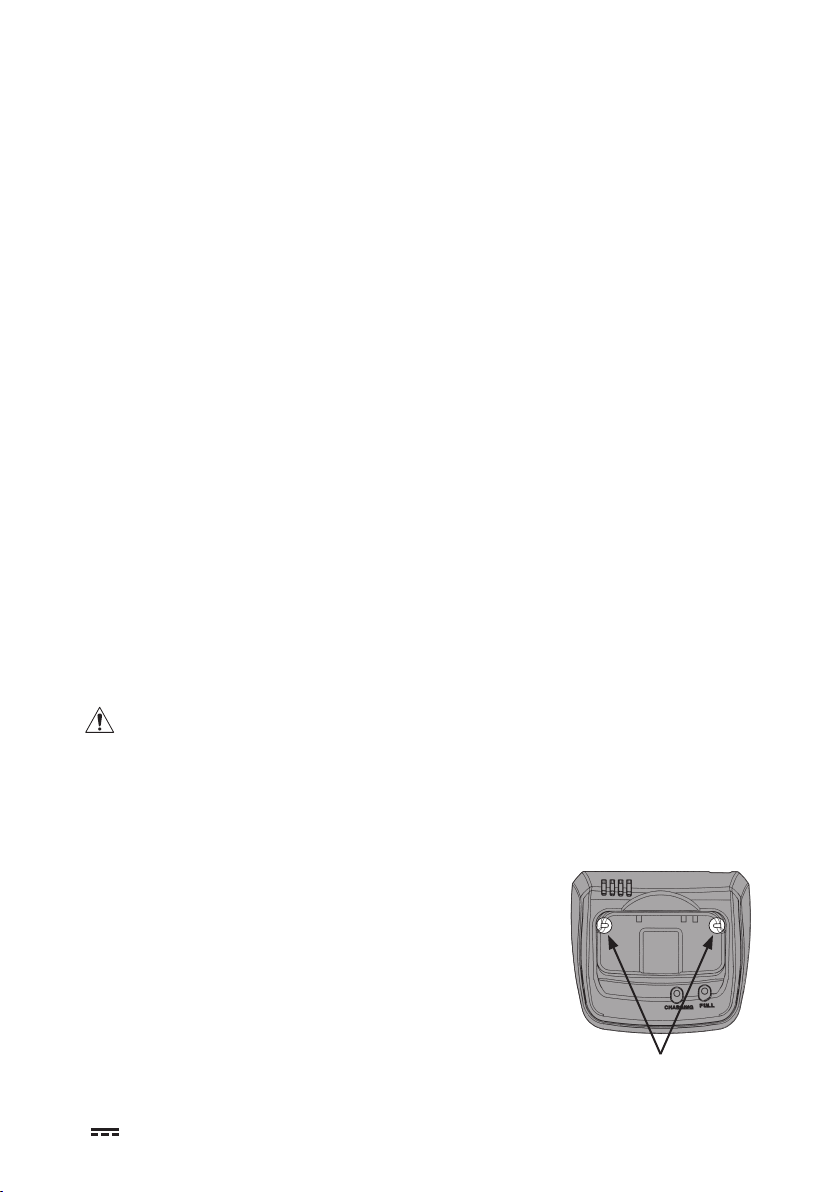

Align the slot of the bat-
tery pack with the guide in
the nest of the CD-15A.

Check with the latest or your dealer for a list of the
transceivers that can be used with the CD-15A.
YAESU MUSEN CO., LTD.

Declaration of Conformity
We, YAESU UK LTD. certify and declare under our sole responsibility that the following
equipment complies with the essential requirements of the Directive 1999/5/EC and
2011/65/EU.
Type of Equipment: Battery Charger
Brand Name: YAESU
Model Number: CD-15A/ PA-48C, PA-48U
Manufacturer: YAESU MUSEN CO., LTD.
Address of Manufacturer: Tennozu Parkside Building, 2-5-8 Higashi-Shinagawa,
Shinagawa-ku,Tokyo 140-0002 Japan
Applicable Standards:
This equipment is tested and conforms to the essential requirements of directive, as
included in following standards.
Safety Standards: EN 60950-1:2006 + A12:2011
EMC Standards: EN 301 849-1 V1.9.2
EN 301 849-15 V1.2.1
RoHS2 Standards: EN 50581:2012
The technical documentation as required by the Conformity Assessment procedures is
kept at the following address:
Company: Yaesu UK Ltd.
Address: Unit 12, Sun Valley Business Park, Winnall Close, Winchester
Hampshire, SO23 0LB, U.K.
Disposal of your Electronic and Electric Equipment
Products with the symbol (crossed-out wheeled bin) cannot be disposed as household
waste.
Electronic and Electric Equipment should be recycled at a facility capable of
handling these items and their waste by products.
In EU countries, please contact your local equipment supplier representa-
tive or service center for information about the waste collection system in
your country.
