MIDI Functions
When this instrument and a computer are connected via commercially available USB-MIDI interface,
MIDI communication can be performed. The explanations here cover the settings necessary for per-
formingMIDI communication between both devices.
Local Control determines whether or not notes played on the instrument are sounded by its internal tone generator system; the inter-
nal tone generator is active when Local Control is set to ON, and inactive when Local Control is set to OFF.
1Enter the Local Control settingfunction.
2Turn Local Control ON/OFF.
3Press the [FUNCTION] button to exit from the Function mode.
• For instructions on how to connect this instrument to the computer, refer to the “Computer-related Operations”
downloadable from the Yamaha Manual Library.
Local Control
• Normally, this should be set to ON—since you’ll want to hear the sound of the instrument as you play it. However,
for external sequencer applications, you may need to set this to OFF to avoid getting “double” notes, in which the
sounds of the instrument are played twice—once from the pads and pedals, then once again by the pad data and
the pedal data routed through the sequencer.
• When you record your performance to application software on a computer via MIDI, set this parameter to OFF.
Press the [FUNCTION] button once, then press the [DRUM 3] or [BACKING] button a num-
ber of times until the “LCL” item appears. After a while, the current ON/OFF status
appears next to the “LCL” indication.
Turn the dial clockwise to set to ON, and turn it counter-clockwise to set it to OFF.
• Default setting is ON.
• Regardless of the Local Control setting, the instrument’s performance data is always sent to the MIDI OUT
terminals for transmission to external MIDI devices.
NOTE
NOTE
LCL
oFF on
NOTE
NOTE

MIDI Functions
DD-75 MIDI Reference 3
Connecting the instrument by MIDI cable to an external MIDI device, such as a sequencer, time based functions (song playback,
etc.) must be controlled by the internal clock (OFF) or an external clock (ON). When the internal clock (OFF) is enabled, timing will be
controlled by the instrument’s internal clock. When an external clock (ON) selected, time based functions will be controlled by the
sequencer’s or computer’s clock.
1Enter the External Clock settingfunction.
2Turn External Clock ON/OFF.
3Press the [FUNCTION] button to exit from the Function mode.
External Clock
Press the [FUNCTION] button once, then press the [DRUM 3] or [BACKING] button a num-
ber of times until the “ECL” item appears. After a while, the current ON/OFF status
appears next to the “ECL” indication.
Turn the dial clockwise to set to ON, and turn it counter-clockwise to set it to OFF.
• Default setting is OFF.
ECL
oFF on
NOTE

MIDI Functions
DD-75 MIDI Reference
4
When MIDI Note Number Auto Selection is on and you strike the pad or press the pedal, the MIDI Note Number corresponding to the
pad (voice) you strike or pedal (voice) you press is sent via the MIDI OUT terminal.
On the other hand, when MIDI Note Number Auto Selection is off and you strike the pad or press the pedal, the MIDI Note Number
that you’ve specifically assigned to the pad or pedal (page 5) is sent via the MIDI OUT terminal.
1Enter the MIDI Note Number Auto Selection settingfunction.
2Turn MIDI Note Number Auto Selection ON/OFF.
3Press the [FUNCTION] button to exit from the Function mode.
MIDI Note Number Auto Selection
Press the [FUNCTION] button once, then press the [DRUM 3] or [BACKING] button a num-
ber of times until the “AnS” item appears. After a while, the current setting (ON/OFF)
appears next to the “AnS” indication.
Turn the dial clockwise to set to ON, and turn it counter-clockwise to set it to OFF.
• Default setting is ON.
• MIDI Note Number Auto Selection ON/OFF is automatically turned off when a MIDI Note Number (page 5) is
changed.
• When you select a Drum Kit or Custom Kit, the MIDI Note Number will be applied to the default value. If the
Auto Kit Select is set to ON and another Song is selected, the MIDI Note Number will be applied to the
default value.
AnS
oFF on
NOTE
NOTE

MIDI Functions
DD-75 MIDI Reference 5
Each pad and pedal can be assigned a specific MIDI Note Number anywhere from C-2 to G8.
1Enter the MIDI Note Number settingfunction.
2Select a pad or pedal to be assigned a MIDI Note Number.
3Assign a MIDI Note Number.
4Press the [FUNCTION] button to exit from the Function mode.
MIDI Note Number
• For information on transmit notes and voices, refer to the “Drum Map” on page 11.

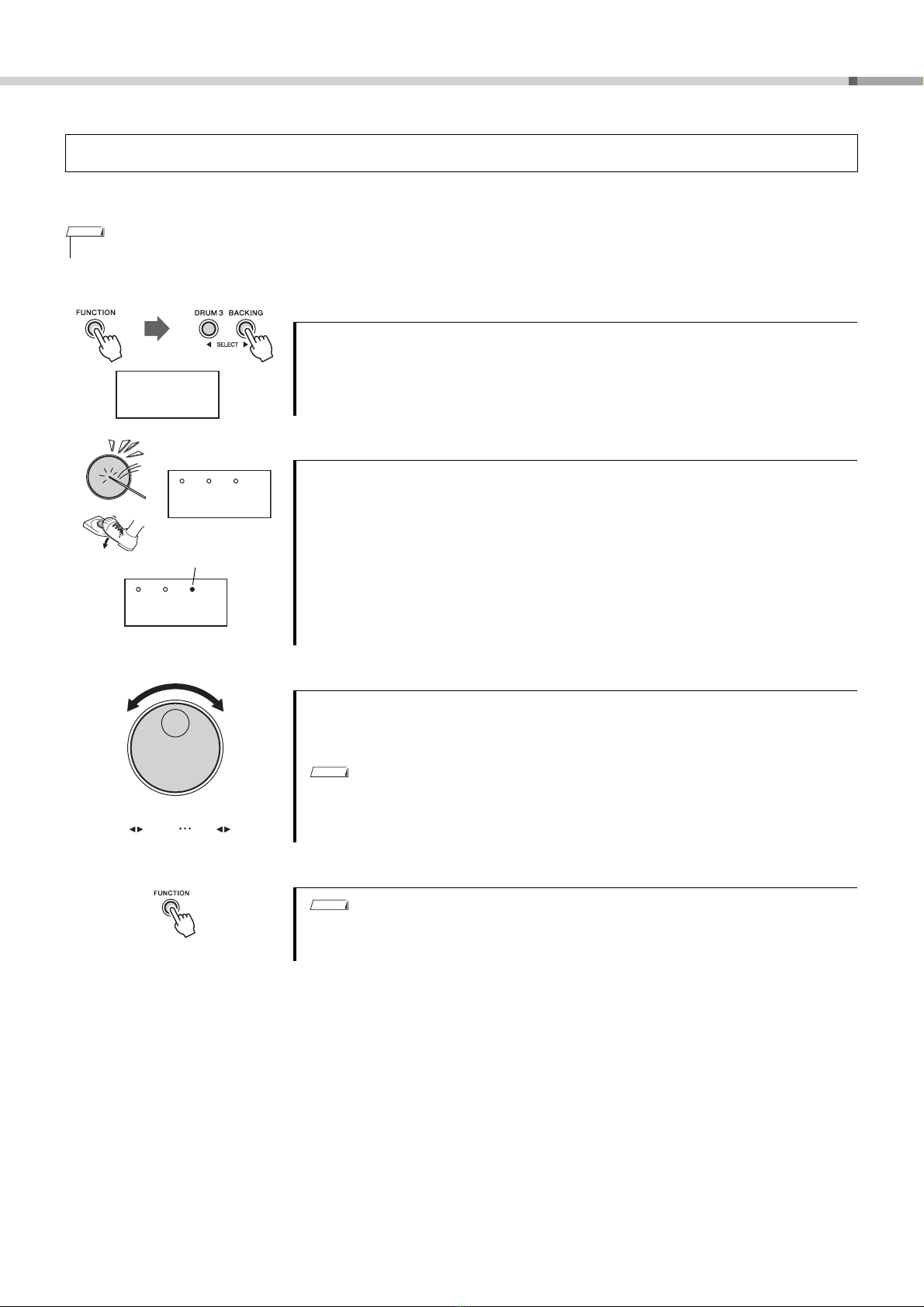

Press the [FUNCTION] button once, then press the [DRUM 3] or [BACKING] button a num-
ber of times until the “not” item appears. After a while, the MIDI Note Number currently
assigned to Pad 1 appears next to the “not” indication.
Strike any pad or pedal to see the currently assigned MIDI note number for the pad or
pedal in the display. Sharp notes are indicated by a beat lamp on the right side of the dis-
play.
To select the desired MIDI Note Number, turn the dial to the right (clockwise) and the MIDI
Note Numbers will increase. Turn the dial to the left (counter-clockwise) and MIDI Note
Numbers will decrease.
• You can also select the MIDI Note Number by striking the pad or pressing the pedal repeatedly. Every time
the pad is struck or the pedal is pressed, the value will increase by semitone steps.
• MIDI Note Number Auto Selection ON/OFF is automatically turned off when a MIDI Note Number is changed.
NOTE
A1
−C2
not
−C2 −C,2 F,8G8
#(sharp)
Indicates the note number
is C#-2
(C#-2)(C-2) (G8)(F#8)
NOTE
NOTE

DD-75 MIDI Reference
6
MIDI Data Format
Bank Select MIDI
Program
Change#
(1–128)
Voic e Name
MSB
(0–127)
LSB
(0–127)
PIANO
0 112 1 Grand Piano
0 112 2 Bright Piano
0 112 3 MIDI Grand Piano
0 112 4 Honky-tonk Piano
0 112 7 Harpsichord
E.PIANO
0 112 5 Funky Electric Piano
0 114 5 Cool! Galaxy Electric Piano
0 112 6 DX Modern Electric Piano
0 113 6 Hyper Tines
0 114 6 Venus Electric Piano
01133CP80
01128Clavi
ORGAN
0 112 17 Jazz Organ
0 113 17 Jazz Organ 2
0 116 17 Bright Organ
0 112 18 Click Organ
0 112 19 Rock Organ
0 114 19 Purple Organ
0 127 19 Theater Organ
0 112 20 Pipe Organ
0 113 20 Chapel Organ
0 120 20 16'+4' Organ
0 121 20 16'+2' Organ
0 112 21 Reed Organ
ACCORDION
0 112 22 Musette Accordion
0 113 22 Traditional Accordion
0 112 23 Harmonica
0 113 24 Bandoneon
GUITAR
0 112 25 Classical Guitar
0 112 26 Folk Guitar
0 113 26 12String Guitar
0 112 27 Jazz Guitar
0 113 27 Octave Guitar
0 112 28 Clean Guitar
0 117 28 60s Clean Guitar
0 112 29 Muted Guitar
0 112 30 Overdriven Guitar
0 112 31 Distortion Guitar
0 113 31 Crunch Guitar
BASS
0 112 33 Acoustic Bass
0 112 34 Finger Bass
0 112 35 Pick Bass
0 112 36 Fretless Bass
0 112 37 Slap Bass
0 112 39 Synth Bass
011339Hi-QBass
0 113 40 Dance Bass
STRINGS
0 112 41 Violin
011243Cello
0 112 44 Contrabass
0 112 45 Tremolo Strings
0 112 46 Pizzicato Strings
011247Harp
0 112 106 Banjo
0 112 49 Strings
0 112 50 Chamber Strings
0 113 50 Slow Strings
0 115 50 Marcato Strings
0 112 51 Synth Strings
0 112 56 Orchestra Hit
CHOIR
0 112 53 Choir
0 113 53 Vocal Ensemble
0 112 54 Vox Humana
0 112 55 Air Choir
BRASS
0 112 57 Trumpet
0 115 57 Sweet! Trumpet
0 112 58 Trombone
0 113 58 Trombone Section
0 112 59 Tuba
0 112 60 Muted Trumpet
0 112 61 French Horn
0 112 62 Brass Section
0 113 62 Big Band Brass
011962MellowHorns
0 112 63 Synth Brass
0 113 63 80s Brass
0 114 63 Techno Brass
WOODWIND
0 112 65 Soprano Sax
0 113 65 Sweet! Soprano Sax
011266AltoSax
0 112 67 Tenor Sax
0 114 67 Breathy Tenor Sax
011667SaxSection
0 117 67 Sweet! Tenor Sax
011268BaritoneSax
011269Oboe
0 112 70 English Horn
0 112 71 Bassoon
0 112 72 Clarinet
0 112 73 Piccolo
011274Flute
0 115 74 Sweet! Classical Flute
0 112 75 Recorder
0 112 76 Pan Flute
0 112 80 Ocarina
SYNTH
0 112 81 Square Lead
0 112 82 Sawtooth Lead
0 115 82 Analogon
011982Fargo
0 112 86 Voice Lead
0 112 89 Under Heim
0 113 90 Dark Moon
0 112 92 Fantasia
0 112 95 Xenon Pad
0 112 99 Equinox
0112101StarDust
0113101BellPad
0 112 102 Brightness
0 112 9 Celesta
011211MusicBox
0 112 12 Vibraphone
0 112 13 Marimba
0 112 14 Xylophone
0 112 15 Tubular Bells
0 112 48 Timpani
0 112 115 Steel Drums
DRUM KITS
127 0 1 Standard Kit 1
127 0 2 Standard Kit 2
127 0 3 Maple Kit
127 0 4 Oak Kit
127 0 9 Room Kit
127 0 17 Rock Kit
Bank Select MIDI
Program
Change#
(1–128)
Voice Name
MSB
(0–127)
LSB
(0–127)
Voice List ..............................................................................................................................

MIDI Data Format
DD-75 MIDI Reference 7
127 0 19 Hard Rock Kit
127 0 25 Electronic Kit
127 0 26 Analog Kit
127 0 33 Jazz Kit
127 0 41 Brush Kit
127 0 49 Symphony Kit
127 0 59 Analog T8 Kit
127 0 88 Stereo Power Kit 1
127 0 89 Stereo Power Kit 2
127 0 113 Dance Kit
127 0 121 Vox Kit
126 0 1 SFX Kit 1
126 0 2 SFX Kit 2
126 0 35 China Kit
126 0 37 Arabic Kit
126 0 40 Indian Kit 1
126 0 44 Pop Latin Kit
126 0 98 Brazil Kit
126 0 113 Sound Effect Kit
126 0 114 World Kit
126 0 115 Indian Kit 2
126 0 124 Metronome Kit
XG PIANO
0 0 1 Grand Piano
0 1 1 Grand Piano KSP
0 40 1 Piano Strings
0411Dream
0 0 2 Bright Piano
0 1 2 Bright Piano KSP
0 0 3 Electric Grand Piano
0 1 3 Electric Grand Piano KSP
0 32 3 Detuned CP80
0 0 4 Honky-tonk Piano
0 1 4 Honky-tonk Piano KSP
0 0 5 Electric Piano 1
0 1 5 Electric Piano 1 KSP
0 32 5 Chorus Electric Piano 1
0 0 6 Electric Piano 2
0 1 6 Electric Piano 2 KSP
0 32 6 Chorus Electric Piano 2 *
0 41 6 DX + Analog Electric Piano
007Harpsichord
0 1 7 Harpsichord KSP
0 35 7 Harpsichord 2
008Clavi
018ClaviKSP
XG CHROMATIC
009Celesta
0 0 10 Glockenspiel
0011MusicBox
06411MusicBox2
0 0 12 Vibraphone
0 1 12 Vibraphone KSP
0 0 13 Marimba
0 1 13 Marimba KSP
0 64 13 Sine Marimba
09713Balimba
0 98 13 Log Drums
0 0 14 Xylophone
0 0 15 Tubular Bells
0 96 15 Church Bells
0 97 15 Carillon
0 0 16 Dulcimer
03516Dulcimer2
0 96 16 Cimbalom
0 97 16 Santur
XG ORGAN
0 0 17 Drawbar Organ
0 32 17 Detuned Drawbar Organ
0 33 17 60s Drawbar Organ
0 34 17 60s Drawbar Organ 2
0 35 17 70s Drawbar Organ
Bank Select MIDI
Program
Change#
(1–128)
Voic e Name
MSB
(0–127)
LSB
(0–127)
0 37 17 60s Drawbar Organ 3
0 40 17 16'+2'2/3 Organ
06417OrganBass
0 65 17 70s Drawbar Organ 2
0 66 17 Cheezy Organ
0 67 17 Drawbar Organ 2
0 0 18 Percussive Organ
0 24 18 70s Percussive Organ
0 32 18 Detuned Percussive Organ
03318LightOrgan
0 37 18 Percussive Organ 2
0019RockOrgan
0 64 19 Rotary Organ
06519SlowRotaryOrgan
0 66 19 Fast Rotary Organ
0 0 20 Church Organ
0 32 20 Church Organ 3
0 35 20 Church Organ 2
04020NotreDame
06420OrganFlute
0 65 20 Tremolo Organ Flute
0 0 21 Reed Organ
04021PuffOrgan
0022Accordion
0 0 23 Harmonica
0 32 23 Harmonica 2
0 0 24 Tango Accordion
0 64 24 Tango Accordion 2
XG GUITAR
0 0 25 Nylon Guitar
0 43 25 Velocity Guitar Harmonics
09625Ukulele
0 0 26 Steel Guitar
0 35 26 12String Guitar
0 40 26 Nylon & Steel Guitar
0 41 26 Steel Guitar with Body Sound
0 96 26 Mandolin
0 0 27 Jazz Guitar
03227JazzAmp
0 0 28 Clean Guitar
0 32 28 Chorus Guitar
0 0 29 Muted Guitar
0 40 29 Funk Guitar
0 41 29 Muted Steel Guitar
04529JazzMan
0 0 30 Overdriven Guitar
0 43 30 Guitar Pinch
0 0 31 Distortion Guitar
0 40 31 Feedback Guitar
0 41 31 Feedback Guitar 2
0 0 32 Guitar Harmonics
0 65 32 Guitar Feedback
0 66 32 Guitar Harmonics 2
XG BASS
0 0 33 Acoustic Bass
0 40 33 Jazz Rhythm
0 45 33 Velocity Crossfade Upright Bass
0 0 34 Finger Bass
01834FingerBassDark
0 40 34 Bass & Distorted Electric Guitar
0 43 34 Finger Slap Bass
04534FingerBass2
0 65 34 Modulated Bass
0 0 35 Pick Bass
0 28 35 Muted Pick Bass
0 0 36 Fretless Bass
0 32 36 Fretless Bass 2
0 33 36 Fretless Bass 3
0 34 36 Fretless Bass 4
0 0 37 Slap Bass 1
0 32 37 Punch Thumb Bass
0 0 38 Slap Bass 2
Bank Select MIDI
Program
Change#
(1–128)
Voice Name
MSB
(0–127)
LSB
(0–127)

MIDI Data Format
DD-75 MIDI Reference
8
0 43 38 Velocity Switch Slap
0 0 39 Synth Bass 1
0 40 39 Techno Synth Bass
0 0 40 Synth Bass 2
0 6 40 Mellow Synth Bass
0 12 40 Sequenced Bass
0 18 40 Click Synth Bass
0 19 40 Synth Bass 2 Dark
0 40 40 Modular Synth Bass *
04140DXBass
XG STRINGS
0 0 41 Violin
0 8 41 Slow Violin
0 0 42 Viola
0043Cello
0 0 44 Contrabass
0 0 45 Tremolo Strings
0 8 45 Slow Tremolo Strings
0 40 45 Suspense Strings
0 0 46 Pizzicato Strings
0 0 47 Orchestral Harp
0 40 47 Yang Qin
0 0 48 Timpani
XG ENSEMBLE
0 0 49 Strings 1
0 3 49 Stereo Strings
0 8 49 Slow Strings
0 35 49 60s Strings
04049Orchestra
04149Orchestra2
0 42 49 Tremolo Orchestra
0 45 49 Velocity Strings
0 0 50 Strings 2
0 3 50 Stereo Slow Strings
0 8 50 Legato Strings
0 40 50 Warm Strings
0 41 50 Kingdom
0 0 51 Synth Strings 1
0 0 52 Synth Strings 2
0 0 53 Choir Aahs
0 3 53 Stereo Choir
0 32 53 Mellow Choir
0 40 53 Choir Strings
0 0 54 Voice Oohs
0 0 55 Synth Voice
0 40 55 Synth Voice 2
0 41 55 Choral
0 64 55 Analog Voice
0 0 56 Orchestra Hit
0 35 56 Orchestra Hit 2
06456Impact
XG BRASS
0 0 57 Trumpet
0 32 57 Warm Trumpet
0 0 58 Trombone
0 18 58 Trombone 2
0 0 59 Tuba
0 0 60 Muted Trumpet
0061FrenchHorn
0661FrenchHornSolo
0 32 61 French Horn 2
0 37 61 Horn Orchestra
0 0 62 Brass Section
0 35 62 Trumpet & Trombone Section
0 0 63 Synth Brass 1
0 20 63 Resonant Synth Brass
0 0 64 Synth Brass 2
0 18 64 Soft Brass
0 41 64 Choir Brass
XG REED
0 0 65 Soprano Sax
0066AltoSax
Bank Select MIDI
Program
Change#
(1–128)
Voic e Name
MSB
(0–127)
LSB
(0–127)
04066SaxSection
0 0 67 Tenor Sax
0 40 67 Breathy Tenor Sax
0068BaritoneSax
0069Oboe
0 0 70 English Horn
0 0 71 Bassoon
0 0 72 Clarinet
XG PIPE
0 0 73 Piccolo
0074Flute
0 0 75 Recorder
0 0 76 Pan Flute
0077BlownBottle
0 0 78 Shakuhachi
0079Whistle
0 0 80 Ocarina
XG SYNTH LEAD
0 0 81 Square Lead
0 6 81 Square Lead 2
0 8 81 LM Square
01881Hollow
0 19 81 Shroud
06481Mellow
0 65 81 Solo Sine
0 66 81 Sine Lead
0 0 82 Sawtooth Lead
0 6 82 Sawtooth Lead 2
0 8 82 Thick Sawtooth
0 18 82 Dynamic Sawtooth
0 19 82 Digital Sawtooth
0 20 82 Big Lead
0 96 82 Sequenced Analog
0 0 83 Calliope Lead
0 65 83 Pure Lead
0 0 84 Chiff Lead
0 0 85 Charang Lead
0 64 85 Distorted Lead
0 0 86 Voice Lead
0 0 87 Fifths Lead
03587BigFive
0 0 88 Bass & Lead
01688Big&Low
06488Fat&Perky
06588SoftWhirl
XG SYNTH PAD
0 0 89 New Age Pad
06489Fantasy
0090WarmPad
0 0 91 Poly Synth Pad
0 0 92 Choir Pad
0 66 92 Itopia
0 0 93 Bowed Pad
0 0 94 Metallic Pad
0095HaloPad
0 0 96 Sweep Pad
XG SYNTH EFFECT
0097Rain
0 65 97 African Wind
06697Carib
0 0 98 Sound Track
0 27 98 Prologue
0099Crystal
0 12 99 Synth Drum Comp
0 14 99 Popcorn
01899TinyBells
0 35 99 Round Glockenspiel
0 40 99 Glockenspiel Chimes
04199ClearBells
0 42 99 Chorus Bells
06599SoftCrystal
0 70 99 Air Bells
Bank Select MIDI
Program
Change#
(1–128)
Voice Name
MSB
(0–127)
LSB
(0–127)

MIDI Data Format
DD-75 MIDI Reference 9
07199BellHarp
0 72 99 Gamelimba
0 0 100 Atmosphere
0 18 100 Warm Atmosphere
0 19 100 Hollow Release
0 40 100 Nylon Electric Piano
0 64 100 Nylon Harp
065100HarpVox
0 66 100 Atmosphere Pad
0 0 101 Brightness
0 0 102 Goblins
0 64 102 Goblins Synth
0 65 102 Creeper
0 67 102 Ritual
0 68 102 To Heaven
0 70 102 Night
071102Glisten
0 96 102 Bell Choir
0 0 103 Echoes
00104Sci-Fi
XG WORLD
00105Sitar
0 32 105 Detuned Sitar
035105Sitar2
0 97 105 Tamboura
0 0 106 Banjo
0 28 106 Muted Banjo
0 96 106 Rabab
0 97 106 Gopichant
098106Oud
0 0 107 Shamisen
00108Koto
0 96 108 Taisho-kin
0 97 108 Kanoon
0 0 109 Kalimba
0 0 110 Bagpipe
0 0 111 Fi d dl e
0 0 112 Shehnai
XG PERCUSSIVE
0 0 113 Tinkle Bell
0 96 113 Bonang
097113Altair
0 98 113 Gamelan Gongs
0 99 113 Stereo Gamelan Gongs
0 100 113 Rama Cymbal
0 0 114 Agogo
0 0 115 Steel Drums
0 97 115 Glass Percussion
0 98 115 Thai Bells
0 0 116 Woodblock
0 96 116 Castanets
0 0 117 Taiko Drum
0 96 117 Gran Cassa
0 0 118 Melodic Tom
0 64 118 Melodic Tom 2
0 65 118 Real Tom
066118RockTom
0 0 119 Synth Drum
0 64 119 Analog Tom
0 65 119 Electronic Percussion
XG SOUND EFFECTS
00120ReverseCymbal
00121FretNoise
0 0 122 Breath Noise
0 0 123 Seashore
0 0 124 Bird Tweet
0 0 125 Telephone Ring
00126Helicopter
0 0 127 Applause
0 0 128 Gunshot
64 0 1 Cutting Noise 1
64 0 2 Cutting Noise 2
Bank Select MIDI
Program
Change#
(1–128)
Voic e Name
MSB
(0–127)
LSB
(0–127)
64 0 4 String Slap
64 0 17 Flute Key Click
64033Shower
64 0 34 Thunder
64035Wind
64 0 36 Stream
64037Bubble
64 0 38 Feed
64049Dog
64050Horse
64 0 51 Bird Tweet 2
64 0 56 Maou
64 0 65 Phone Call
64 0 66 Door Squeak
64 0 67 Door Slam
64068ScratchCut
64069ScratchSplit
64070WindChime
64 0 71 Telephone Ring 2
64 0 81 Car Engine Ignition
64 0 82 Car Tires Squeal
64083CarPassing
64 0 84 Car Crash
64085Siren
64086Train
64 0 87 Jet Plane
64088Starship
64089Burst
64 0 90 Roller Coaster
64 0 91 Submarine
64 0 97 Laugh
64 0 98 Scream
64 0 99 Punch
64 0 100 Heartbeat
64 0 101 Footsteps
64 0 113 Machine Gun
64 0 114 Laser Gun
64 0 115 Explosion
64 0 116 Firework
• The Voice List includes MIDI program change numbers for each voice.
Use these program change numbers when playing the instrument via
MIDI from an external device.
• Program Numbers 001 to 128 directly relate to MIDI Program Change
Numbers 000 to 127. That is, Program Numbers and Program Change
Numbers differ by a value of 1. Remember to take this into consideration.
• The voice with an asterisk (*) is XGlite optional voice.
Bank Select MIDI
Program
Change#
(1–128)
Voice Name
MSB
(0–127)
LSB
(0–127)
NOTE

MIDI Data Format
DD-75 MIDI Reference
10
Effect Map.............................................................................................................................
• If the received value does not contain an effect type in the TYPE LSB, the LSB will be directed to TYPE 0.
• By using an external sequencer, which is capable of editing and transmitting the system exclusive messages and parameter changes, you can select
the Reverb and Chorus effect types which are not accessible from the [FUNCTION] button.
• The effect type with an asterisk (*) can be set from the [FUNCTION] button.
REVERB
CHORUS
TYPE
MSB
TYPE LSB
00 01 02 08 16 17 18 19 20
000 *No Effect
001 *Hall 1 *Hall 2 *Hall 3
002 Room *Room 1 *Room 2
003 Stage *Stage 1 *Stage 2
004 Plate *Plate 1 *Plate 2
005...127 No Effect
TYPE
MSB
TYPE LSB
00 01 02 08 16 17 18 19 20
000...064 No Effect
065 Chorus Chorus 2
066 Celeste Chorus 1
067 Flanger Flanger 1 Flanger 2
068...127 No Effect

MIDI Data Format
DD-75 MIDI Reference 11
Drum Map .............................................................................................................................
• “ ” indicates that in the column on the immediate left.
• “ ” indicates no sounds.
• Each voice uses one note.
• If you strike several pads simultaneously which are assigned to the same alternate assign number, the instrument will sound only one voice.
• The alternate assign number only applies to the voices of MSB 127.
MSB (0–127) / LSB (0–127) / PC (1–128) 127/000/001 127/000/002 127/000/003 127/000/004 127/000/009 127/000/017
MIDI Key
off
Alternate
Group
Standard Kit 1 Standard Kit 2 Maple Kit Oak Kit Room Kit Rock Kit
Note# Note
13 C#-1 3 Surdo Mute
14 D -1 3 Surdo Open
15 D#-1 Hi Q
16 E -1 Whip Slap
17 F -1 4 Scratch H
18 F#-1 4 Scratch L
19 G -1 Finger Snap
20 G#-1 Click Noise
21 A -1 Metronome Click
22 A#-1 Metronome Bell
23 B -1 Seq Click L
24 C 0 Seq Click H
25 C#0 Brush Tap
26 D 0 O Brush Swirl
27 D#0BrushSlap
28 E 0 O Brush Tap Swirl
29 F 0 O Snare Roll
30 F#0 Castanet
31 G 0 Snare Soft Snare Soft 2 Snare Noisy
32 G#0Sticks
33 A 0 Bass Drum Soft Maple Bass Drum 1 Maple Bass Drum 1
34 A#0 Open Rim Shot Open Rim Shot 2
35 B 0 Bass Drum Hard Maple Bass Drum 2 Maple Bass Drum 2 Bass Drum H
36 C 1 Bass Drum Bass Drum 2 Maple Bass Drum 3 Oak Bass Drum Bass Drum Rock
37 C#1SideStick Maple Side Stick Oak Side Stick
38 D 1 Snare Snare 2 Maple Snare Head Oak Snare Head Snare Room L Snare Rock
39 D#1 Hand Clap Hand Clap 2 Hand Clap 2
40 E 1 Snare Tight Snare Tight 2 Maple Snare Open Rim Oak Snare Open Rim Snare Room H Snare Rock Rim
41 F 1 Floor Tom L Maple Tom 1 Oak Tom 1 Tom Room 1 Tom Rock 1
42 F#1 1 Hi-Hat Closed Hi-Hat Closed Bright Hi-Hat Closed Dark
43 G 1 Floor Tom H Maple Tom 2 Oak Tom 2 Tom Room 2 Tom Rock 2
44 G#1 1 Hi-Hat Pedal Hi-Hat Pedal Bright Hi-Hat Pedal Dark
45 A 1 Low Tom Maple Tom 3 Oak Tom 3 Tom Room 3 Tom Rock 3
46 A#1 1 Hi-Hat Open Hi-Hat Open Bright Hi-Hat Open Dark
47 B 1 Mid Tom L Maple Tom 4 Oak Tom 4 Tom Room 4 Tom Rock 4
48 C 2 Mid Tom H Maple Tom 5 Oak Tom 5 Tom Room 5 Tom Rock 5
49 C#2 Crash Cymbal 1 Crash Cymbal Warm Crash Cymbal Bright
50 D 2 High Tom Maple Tom 6 Oak Tom 6 Tom Room 6 Tom Rock 6
51 D#2 Ride Cymbal 1 Ride Cymbal Warm 1 Ride Cymbal Bright
52 E 2 Chinese Cymbal Chinese Cymbal 2 Chinese Cymbal 2
53 F 2 Ride Cymbal Cup Ride Cymbal Cup Warm Ride Cymbal Cup Bright
54 F#2 Tambourine
55 G 2 Splash Cymbal Splash Cymbal 2 Splash Cymbal 2
56 G#2Cowbell
57 A 2 Crash Cymbal 2 Crash Cymbal Dark Crash Cymbal Dark 2
58 A#2Vibraslap
59 B 2 Ride Cymbal 2 Ride Cymbal Warm 2 Ride Cymbal Warm 2
60 C 3 Bongo H
61 C#3 Bongo L
62 D 3 Conga H Mute
63 D#3 Conga H Open
64 E 3 Conga L
65 F 3 Timbale H
66 F#3TimbaleL
67 G 3 Agogo H
68 G#3 Agogo L
69 A 3 Cabasa
70 A#3 Maracas
71 B 3 O Samba Whistle H
72 C 4 O Samba Whistle L
73 C#4GuiroShort
74 D 4 O Guiro Long
75 D#4Claves
76 E 4 Wood Block H
77 F 4 Wood Block L
78 F#4CuicaMute
79 G 4 Cuica Open
80 G#4 2 Triangle Mute Triangle 2 Mute Triangle 2 Mute
81 A 4 2 Triangle Open Triangle 2 Open Triangle 2 Open
82 A#4Shaker
83 B 4 Jingle Bells
84 C 5 Bell Tree
85 C#5
86 D 5
87 D#5
88 E 5
89 F 5
90 F#5
91 G 5

MIDI Data Format
DD-75 MIDI Reference
12
MSB (0–127) / LSB (0–127) / PC (1–128) 127/000/001 127/000/019 127/000/025 127/000/026 127/000/033 127/000/041 127/000/049
MIDI Key
off
Alternate
Group
Standard Kit 1 Hard Rock Kit Electronic Kit AnalogKit Jazz Kit Brush Kit Symphony Kit
Note# Note
13 C#-1 3 Surdo Mute
14 D -1 3 Surdo Open
15 D#-1 Hi Q
16 E -1 Whip Slap
17 F -1 4 Scratch H
18 F#-1 4 Scratch L
19 G -1 Finger Snap
20 G#-1 Click Noise
21 A -1 Metronome Click
22 A#-1 Metronome Bell
23 B -1 Seq Click L
24 C 0 Seq Click H
25 C#0 Brush Tap
26 D 0 O Brush Swirl
27 D#0BrushSlap
28 E 0 O Brush Tap Swirl Reverse Cymbal Reverse Cymbal
29 F 0 O Snare Roll
30 F#0 Castanet Hi Q 2 Hi Q 2
31 G 0 Snare Soft Snare Snappy Electronic Snare Noisy 4 SD Jazz H Light Brush Slap 2
32 G#0Sticks
33 A 0 Bass Drum Soft Bass Drum Hard Rock 1 Bass Drum H Bass Drum H Bass Drum Soft L
34 A#0 Open Rim Shot
35 B 0 Bass Drum Hard Bass Drum Hard Rock 2 Bass Drum Rock Bass Drum Analog L Gran Cassa
36 C 1 Bass Drum Bass Drum Hard Rock 3 Bass Drum Gate Bass Drum Analog H Bass Drum Jazz Bass Drum Jazz Gran Cassa Mute
37 C#1 Side Stick Side Stick Hard Rock Side Stick Analog
38 D 1 Snare Snare Head Hard Rock Snare Noisy 2 Snare Analog 1 Snare Jazz L Brush Slap 3 Band Snare 1
39 D#1 Hand Clap Hand Clap 2
40 E 1 Snare Tight Snare Open Rim Hard Rock Snare Noisy 3 Snare Analog 2 Snare Jazz M Brush Tap Band Snare 2
41 F 1 Floor Tom L Tom Hard Rock 1 Tom Electronic 1 Tom Analog 1 Tom Jazz 1 Tom Brush 1 Tom Jazz 1
42 F#1 1 Hi-Hat Closed Hi-Hat Closed Dark 2 Hi-Hat Closed Analog 1
43 G 1 Floor Tom H Tom Hard Rock 2 Tom Electronic 2 Tom Analog 2 Tom Jazz 2 Tom Brush 2 Tom Jazz 2
44 G#1 1 Hi-Hat Pedal Hi-Hat Pedal Dark 2 Hi-Hat Closed Analog 2
45 A 1 Low Tom Tom Hard Rock 3 Tom Electronic 3 Tom Analog 3 Tom Jazz 3 Tom Brush 3 Tom Jazz 3
46 A#1 1 Hi-Hat Open Hi-Hat Open Dark 2 Hi-Hat Open Analog
47 B 1 Mid Tom L Tom Hard Rock 4 Tom Electronic 4 Tom Analog 4 Tom Jazz 4 Tom Brush 4 Tom Jazz 4
48 C 2 Mid Tom H Tom Hard Rock 5 Tom Electronic 5 Tom Analog 5 Tom Jazz 5 Tom Brush 5 Tom Jazz 5
49 C#2 Crash Cymbal 1 Crash Cymbal Warm 2 Cymbal Analog Hand Cymbal 1
50 D 2 High Tom Tom Hard Rock 6 Tom Electronic 6 Tom Analog 6 Tom Jazz 6 Tom Brush 6 Tom Jazz 6
51 D#2 Ride Cymbal 1 Ride Cymbal Warm 3 Hand Cymbal 1 Short
52 E 2 Chinese Cymbal Chinese Cymbal 2
53 F 2 Ride Cymbal Cup Ride Cymbal Cup Warn 2
54 F#2 Tambourine
55 G 2 Splash Cymbal Splash Cymbal 2
56 G#2Cowbell Cowbell Analog
57 A 2 Crash Cymbal 2 Crash Cymbal Dark 3 Hand Cymbal 2
58 A#2Vibraslap
59 B 2 Ride Cymbal 2 Ride Cymbal Warm 2 Hand Cymbal 2 Short
60 C 3 Bongo H
61 C#3 Bongo L
62 D 3 Conga H Mute Conga Analog H
63 D#3 Conga H Open Conga Analog M
64 E 3 Conga L Conga Analog L
65 F 3 Timbale H
66 F#3TimbaleL
67 G 3 Agogo H
68 G#3 Agogo L
69 A 3 Cabasa
70 A#3 Maracas Maracas 2
71 B 3 O Samba Whistle H
72 C 4 O Samba Whistle L
73 C#4GuiroShort
74 D 4 O Guiro Long
75 D#4Claves Claves 2
76 E 4 Wood Block H
77 F 4 Wood Block L
78 F#4CuicaMute Scratch H Scratch H
79 G 4 Cuica Open Scratch L Scratch L
80 G#4 2 Triangle Mute Triangle 2 Mute
81 A 4 2 Triangle Open Triangle 2 Open
82 A#4Shaker
83 B 4 Jingle Bells
84 C 5 Bell Tree
85 C#5
86 D 5
87 D#5
88 E 5
89 F 5
90 F#5
91 G 5

MIDI Data Format
DD-75 MIDI Reference 13
MSB (0–127) / LSB (0–127) / PC (1–128) 127/000/001 127/000/059 127/000/088 127/000/089 127/000/113 127/000/121
MIDI Key
off
Alternate
Group
Standard Kit 1 AnalogT8 Kit Stereo Power Kit 1 Stereo Power Kit 2 Dance Kit Vox Kit
Note# Note
13 C#-1 3 Surdo Mute
14 D -1 3 Surdo Open
15 D#-1 Hi Q
16 E -1 Whip Slap
17 F -1 4 Scratch H
18 F#-1 4 Scratch L
19 G -1 Finger Snap Snare Hammer
20 G#-1 Click Noise Kick Zap Hard
21 A -1 Metronome Click Snare Garage L
22 A#-1 Metronome Bell Kick Tek Power
23 B -1 Seq Click L Kick Slimy
24 C 0 Seq Click H Kick T8 4
25 C#0 Brush Tap Snare Analog CR
26 D 0 O Brush Swirl Snare T8 7
27 D#0 Brush Slap Snare Clap Analog
28 E 0 O Brush Tap Swirl Snare T8 6 Reverse Cymbal
29 F 0 O Snare Roll Tom T8 5
30 F#0 Castanet Snare T8 5 Hi Q 2
31 G 0 Snare Soft Kick T8 3 Snare Soft Power Snare Soft Power Snare Techno
32 G#0 Sticks Snare T8 4
33 A 0 Bass Drum Soft Kick T8 2 Bass Drum Ambient+ Bass Drum Ambient+ Kick Techno Q
34 A#0 Open Rim Shot Snare T8 3 Open Rim Shot Power Open Rim Shot Power 2 Rim Gate
35 B 0 Bass Drum Hard T8 Kick Bass Bass Drum Open Power Bass Drum Open Power Kick Techno L Bass Drum Vox 1
36 C 1 Bass Drum Kick T8 1 Bass Drum Close Power Bass Drum Close Power Kick Techno Bass Drum Vox 2
37 C#1 Side Stick Snare T8 Rim Side Stick Power Side Stick Power Side Stick Analog
38 D 1 Snare Snare T8 2 Snare Power Snare Power 2 Snare Clap Snare Vox
39 D#1 Hand Clap Clap T9 Hand Clap Vox
40 E 1 Snare Tight Snare T8 1 Snare Rough Snare Rough 2 Snare Dry Snare Open Rim Vox
41 F 1 Floor Tom L Tom T8 1 Tom Power 1 Tom Power 1 Tom Analog 1 Tom Vox 1
42 F#1 1 Hi-Hat Closed Hi-Hat Closed T8 Hi-Hat Closed Power Hi-Hat Closed Power 2 Hi-Hat Closed Analog 3 Hi-Hat Closed Vox
43 G 1 Floor Tom H Tom T8 2 Tom Power 2 Tom Power 2 Tom Analog 2 Tom Vox 2
44 G#1 1 Hi-Hat Pedal Hi-Hat Pedal T8 Hi-Hat Pedal Power Hi-Hat Pedal Power Hi-Hat Closed Analog 4 Hi-Hat Pedal Vox
45 A 1 Low Tom Tom T8 3 Tom Power 3 Tom Power 3 Tom Analog 3 Tom Vox 3
46 A#1 1 Hi-Hat Open Hi-Hat Open T8 Hi-Hat Open Power Hi-Hat Open Power Hi-Hat Open Analog 2 Hi-Hat Open Vox
47 B 1 Mid Tom L Tom T8 4 Tom Power 4 Tom Power 4 Tom Analog 4 Tom Vox 4
48 C 2 Mid Tom H Tom T8 6 Tom Power 5 Tom Power 5 Tom Analog 5 Tom Vox 5
49 C#2 Crash Cymbal 1 Crash Cymbal T8 Crash Cymbal Power 1 Crash Cymbal Power 1 Cymbal Analog Crash Cymbal Vox 1
50 D 2 High Tom Tom T8 7 Tom Power 6 Tom Power 6 Tom Analog 6 Tom Vox 6
51 D#2 Ride Cymbal 1 Ride Cymbal T9 Ride Cymbal Power 1 Ride Cymbal Power 1 Ride Cymbal Vox
52 E 2 Chinese Cymbal Chinese Cymbal 2 Chinese Cymbal Power Chinese Cymbal Power Chinese Cymbal Vox
53 F 2 Ride Cymbal Cup Ride Cymbal Cup 2 Ride Cymbal Cup Power Ride Cymbal Cup Power Ride Cymbal Cup Vox
54 F#2 Tambourine Tambourine RX5 Tambourine 2 Tambourine 2
55 G 2 Splash Cymbal Splash Cymbal Splash Cymbal Power Splash Cymbal Power
56 G#2 Cowbell Cowbell T8 Cowbell Analog
57 A 2 Crash Cymbal 2 Crash Cymbal 4 Crash Cymbal Power 2 Crash Cymbal Power 2 Crash Cymbal Vox 2
58 A#2 Vibraslap Vibraslap T8
59 B 2 Ride Cymbal 2 Ride Cymbal 3 Ride Cymbal Power 2 Ride Cymbal Power 2
60 C 3 Bongo H Conga T8 5
61 C#3 Bongo L Conga T8 4
62 D 3 Conga H Mute Conga T8 3 Conga Analog H
63 D#3 Conga H Open Conga T8 2 Conga Analog M
64 E 3 Conga L Conga T8 1 Conga Analog L
65 F 3 Timbale H
66 F#3TimbaleL
67 G 3 Agogo H Glass H
68 G#3 Agogo L Glass L
69 A 3 Cabasa
70 A#3 Maracas Maracas T8 Maracas 2
71 B 3 O Samba Whistle H
72 C 4 O Samba Whistle L
73 C#4 Guiro Short Analog Shaker H
74 D 4 O Guiro Long Analog Shaker L
75 D#4 Claves Claves T8 Claves 2
76 E 4 Wood Block H Hi Q 3
77 F 4 Wood Block L Hi Q 4
78 F#4 Cuica Mute Scratch H 2 Scratch H
79 G 4 Cuica Open Scratch L 2 Scratch L
80 G#4 2 Triangle Mute
81 A 4 2 Triangle Open
82 A#4 Shaker Analog Shaker
83 B 4 Jingle Bells Sleigh Bells
84 C 5 Bell Tree Wind Chime Wind Chime Wind Chime
85 C#5Snare Hip 1
86 D 5 Snare Hip 2
87 D#5Snare Hip Gate
88 E 5 Snare Break 1
89 F 5 Kick Blip
90 F#5Snare Fx 1
91 G 5 Kick Fx Hammer

MIDI Data Format
DD-75 MIDI Reference
14
MSB (0–127) / LSB (0–127) / PC (1–128) 126/000/001 126/000/002 126/000/035 126/000/037 126/000/040 126/000/044
MIDI SFX Kit 1 SFX Kit 2 China Kit Arabic Kit Indian Kit 1 Pop Latin Kit
Note# Note
13 C#-1 Zarb Back mf Cajon L
14 D -1 Zarb Tom f Cajon Slap
15 D#-1 Zarb Eshareh Cajon Tip
16 E -1 Zarb Whipping
17 F -1 Tombak Tom f
18 F#-1 Neghareh Tom f Hand Clap
19 G -1 Tombak Back f
20 G#-1 Neghareh Back f
21 A -1 Tombak Snap f
22 A#-1 Neghareh Pelang f Hateli Long Conga H Tip
23 B -1 Tombak Trill Hateli Short Conga H Heel
24 C 0 Luo Big Khaligi Clap 1 Baya ge Conga H Open
25 C#0Zalgouta Open Baya ke Conga H Mute
26 D 0 Khaligi Clap 2 Baya ghe Conga H Slap Open
27 D#0Zalgouta Closed Baya ka Conga H Slap
28 E 0 Arabic Hand Clap Tabla na D Conga H Slap Mute
29 F 0 Tabel Tak 1 Tabla tin D Conga L Tip
30 F#0Sagat 1 Tablabaya dha D Conga L Heel
31 G 0 Tabel Dom Tabla tun Conga L Open
32 G#0Sagat 2 Tablabaya dhin Conga L Mute
33 A 0 Tabel Tak 2 Tabla di Conga L Slap Open
34 A#0Sagat 3 Tablabaya dhe Conga L Slap
35 B 0 Riq Tik 3 Tabla ti Conga L Slide
36 C 1 Cutting Noise 1 Phone Call Bangu Riq Tik 2 Tabla ne Bongo H Open 1 Finger
37 C#1 Cutting Noise 2 Door Squeak Dagu Mute Riq Tik Hard 1 Tabla taran Bongo H Open 3 Fingers
38 D 1 Door Slam Dagu Heavy Riq Tik 1 Tabla tak Bongo H Rim
39 D#1 String Slap Scratch Cut Paigu H Riq Tik Hard 2 Chipri Bongo H Tip
40 E 1 Scratch Paigu M Riq Tik Hard 3 Kanjira Open Bongo H Heel
41 F 1 Wind Chime Paigu L Riq Tish Kanjira Slap Bongo H Slap
42 F#1Telephone Ring Riq Snouj 2 Kanjira Mute Bongo L Open 1 Finger
43 G 1 Riq Roll Kanjira Bend Up Bongo L Open 3 Fingers
44 G#1Riq Snouj 1 Kanjira Bend Down Bongo L Rim
45 A 1 Riq Sak Dholak Open Bongo L Tip
46 A#1Riq Snouj 3 Dholak Mute Bongo L Heel
47 B 1 Riq Snouj 4 Dholak Slap Bongo L Slap
48 C 2 Riq Tak 1 Dhol Open Timbale L Open
49 C#2Riq Brass 1 Dhol Mute
50 D 2 Riq Tak 2 Dhol Slap
51 D#2Riq Brass 2 Dhol Slide
52 E 2 Flute Key Click Car Engine Ignition Zhongcha Mute Riq Dom Mridangam Normal
53 F 2 Car Tires Squeal Zhongcha Open Katem Tak Doff Mridangam Open Paila L
54 F#2Car Passing Zhongluo Mute Katem Dom Mridangam Mute Timbale H Open
55 G 2 Car Crash Zhongluo Open Katem Sak 1 Mridangam Slap
56 G#2Siren Xiaoluo Open Katem Tak 1 Mridangam Rim
57 A 2 Train Xiaocha Mute Katem Sak 2 Chimta Open
58 A#2Jet Plane Xiaocha Open Katem Tak 2 Chimta Normal
59 B 2 Starship Luo H Daholla Sak 2 Chimta Ring Paila H
60 C 3 Burst Daholla Sak 1 Dholki Open Cowbell Top
61 C#3Roller Coaster Daholla Tak 1 Dholki Mute
62 D 3 Submarine Daholla Dom Dholki Slap
63 D#3Daholla Tak 2 Dholki Slide
64 E 3 Tablah Prok Dholki Rim Guiro Short
65 F 3 Tablah dom 2 Khol Open Guiro Long
66 F#3Tabla Roll of Edge Khol Slide Metal Guiro Short
67 G 3 Tablah Tak Finger 4 Khol Mute Metal Guiro Long
68 G#3 Shower Laugh Bangzi Tablah Tak Trill 1 Manjira Open Tambourine
69 A 3 Thunder Scream Muyu H Tablah Tak Finger 3 Manjira Closed
70 A#3 Wind Punch Muyu MH Tablah Tak Trill 2 Jhanji Open
71 B 3 Stream Heartbeat Muyu M Tablah Tak Finger 2 Jhanji Closed
72 C 4 Bubble Footsteps Muyu ML Tablah Tak Finger 1 Mondira Open Maracas
73 C#4Feed Muyu L Tablah Tik 2 Mondira Closed Shaker
74 D 4 Tablah Tik 4 Mridang Open Cabasa
75 D#4Tablah Tik 3 Mridang Mute Cuica Mute
76 E 4 Tablah Tik 1 Mridang Rim Cuica Open
77 F 4 Tablah Tak 3 Mridang Slide
78 F#4Tablah Tak 1 Khomokh Normal
79 G 4 Tablah Tak 4 Khomokh Mute
80 G#4Tablah Tak 2 Khomokh Mltatk
81 A 4 Tablah Sak 2 Madal A2 Triangle 2 Mute
82 A#4Tablah Tremolo Madal A#2 Triangle 2 Open
83 B 4 Tablah Sak 1 Madal B2
84 C 5 Dog Machine Gun Tablah Dom 1 Madal C3 Wind Chime
85 C#5 Horse Laser Gun Madal C#3
86 D 5 Bird Tweet Explosion Madal D3
87 D#5Firework Madal D#3
88 E 5 Madal E3
89 F 5 Madal F3
90 F#5Madal F#3
91 G 5 Maou Madal G3

MIDI Data Format
DD-75 MIDI Reference 15
MSB (0–127) / LSB (0–127) / PC (1–128) 126/000/098 126/000/113 126/000/114 126/000/115 126/000/124
MIDI Brazil Kit Sound Effect Kit World Kit Indian Kit 2 Metronome Kit
Note# Note
13 C#-1 Quinto Slap
14 D -1 Quinto Open
15 D#-1 Chajchas Quinto Mute Indian Hand Clap
16 E -1 Cabasa Roll Quinto Heel Dafli Open
17 F -1 Tamborim 1 Open Quinto Tip Dafli Slap
18 F#-1 Tamborim 1 Mute Quinto Open-Slap Dafli Rim
19 G -1 Timbau Open Conga Open-Slap Duff Open
20 G#-1 Timbau Mute Conga Slap Duff Slap
21 A -1 Pandeiro Open Conga Open Duff Rim Metronome 1
22 A#-1 Pandeiro Tip Conga Mute Hatheli Long Metronome 1 Bell
23 B -1 Pandeiro Slap Conga Heel Hatheli Short
24 C 0 Repinique 1 Center
Drum Loop
Conga Tip Baya ge
25 C#0 Repinique 1 Rim Shot Conga 2 H Open-Slap Baya ke
26 D 0 Repinique 1 Hard Slap Conga 2 H Slap Baya ghe
27 D#0 Repinique 1 Rim Conga 2 H Open Baya ka
28 E 0 Repinique 2 Center Conga 2 H Mute Tabla na
29 F 0 Repinique 2 Rim Shot Conga 2 H Heel Tabla tin
30 F#0 Zabumba Mute Right Hand Conga 2 H Tip Tablabaya dha
31 G 0 Zabumba Open Right Hand Conga 2 L Slap Dhol 1 Open
32 G#0 Zabumba Stick Left Hand Conga 2 L Open Dhol 1 Slap
33 A 0 Surdo 2 Mute Conga 2 L Mute Dhol 1 Mute Metronome 2 Low
34 A#0 Surdo 2 Open Conga 2 L Heel Dhol 1 Open Slap Metronome 2 High
35 B 0 Surdo 2 Stop Conga 2 L Tip Dhol 1 Roll
36 C 1 Surdo 2 Side Stick Heartbeat Cajon 2 L Dandia Short
37 C#1 Caixa Open Rim Footsteps Cajon 2 Mute Dandia Long
38 D 1 Caixa Door Squeak Cajon 2 Slap Chutki
39 D#1 Tamborim 2 Rim Door Slam Orchestra Snare Left Hand Chipri
40 E 1 Tamborim 2 Open Applause Orchestra Snare Right Hand Khanjira Open
41 F 1 Tamborim 2 Finger Back Camera Djembe L Khanjira Slap
42 F#1 Tamborim 3 Down Horn Djembe Mute Khanjira Mute
43 G 1 Tamborim 3 Up Hiccup Djembe Slap Khanjira Bend Up
44 G#1 Surdo 1 Mute Cuckoo Clock African Claves Khanjira Bend Down
45 A 1 Surdo 1 Open Stream Darbuka Open Dholak 1 Open Mertronome 3 Cawbell Low
46 A#1 Surdo 1 Stop Frog Darbuka Mute Dholak 1 Mute Mertronome 3 Cawbell High
47 B 1 Surdo 3 Mute Rooster Darbuka Slap Dholak 1 Slap
48 C 2 Surdo 3 Open Dog Pot Drum Open Dhol 2 Open
49 C#2 Surdo 3 Stop Cat Pot Drum Closed Dhol 2 Slap
50 D 2 Tan Tan 1 Closed Right Hand Owl Cowbell 2 Dhol 2 Rim
51 D#2 Tan Tan 1 Open Right Hand Horse Gallop Mambo Cowbell Mridangam na
52 E 2 Tan Tan 1 Slap Right Hand Horse Neigh Mridangam din
53 F 2 Tan Tan 1 Body Left Hand Cow Talking Drum Open Mridangam ki
54 F#2 Pandeiro L Thumb Closed Lion Talking Drum Bend Up Mridangam ta
55 G 2 Pandeiro L Thumb Open Scratch Talking Drum Slap Mridangam Chapu
56 G#2 Pandeiro L Toe Rim Yo! Talking Drum Left Hand Open Mridangam L Closed
57 A 2 Pandeiro L Heel Go! Tumba Slap Mridangam L Open Mertronome 4 Sticks mf
58 A#2 Pandeiro L Slap Get up! Tumba Open Chimta Normal Mertronome 4 Sticks f
59 B 2 Pandeiro L Roll Whoow! Tumba Mute Chimta Ring
60 C 3 Reco-Reco
Huuaah!
Oodaiko Dholki H Open
61 C#3 Chocalho Oodaiko Rim Dholki H Mute
62 D 3 Caxixi Shake Timpani D1 Dholki L Open
63 D#3 Timbale H Rim Timpani D#1 Dholki H Slap
64 E 3 Timbale L Rim Timpani E1 Dholki L Slide
65 F 3 Timbale 2 H Yaguradaiko Khol Open
66 F#3 Timbale 2 L Yaguradaiko Rim Khol Slide
67 G 3 Agogo Bell 1 Bongo 2 H Mute Khol Mute
68 G#3 Agogo Bell 2 Bongo 2 L Open 1F Manjira Open
69 A 3 Agogo Click 1 Timbale 2 H Rim Manjira Closed
70 A#3 Agogo Click 2 Timbale 2 L Rim Jhanji Open
71 B 3 Cabasa Atarigane Jhanji Closed
72 C 4 Ganza
Uh!+Hit
Shimedaiko Mondira Open 1
73 C#4 Repique Anel Thumb Rim Left Hand Timpani F1 Mondira Closed 2
74 D 4 Repique Anel Thumb Rim Right Hand Timpani F#1 Indian Bhangra Scat 1 3
75 D#4 Repique Anel Mute Timpani G1 Indian Bhangra Scat 2 4
76 E 4 Repique Anel Open Tsudumi Indian Bhangra Scat 3 5
77 F 4 Cuica H Short Ainote Indian Bhangra Scat 4 6
78 F#4 Cuica M Short Timpani G#1 Khomokh Normal 7
79 G 4 Cuica L Short Timpani A1 Khomokh Mute 8
80 G#4 Triangulo Closed Timpani A#1 Khomokh Mltatk 9
81 A 4 Triangulo Open Timpani B1 Thavil Open 10
82 A#4 Repique de Mao Slap Timpani C2 Thavil Slap 11
83 B 4 Repique de Mao Thmb Rim Timpani C#2ThavilMute12
84 C 5 Repique de Mao Open Timpani D2 Khartaal 13
85 C#5 Whistle Short Timpani D#2 Dholak 2 Open 14
86 D 5 Apito L Short Timpani E2 Dholak 2 Slide 15
87 D#5 Whistle Long Timpani F2 Dholak 2 Rim 1 16
88 E 5 Timpani F#2 Dholak 2 Rim 2
89 F 5 Timpani G2 Dholak 2 Ring
90 F#5Timpani G#2 Dholak 2 Slap
91 G 5

MIDI Data Format
DD-75 MIDI Reference
16
YAMAHA [ DIGITAL PERCUSSION ] Date :28-Mar-2017
Model DD-75 MIDI Implementation Chart Version : 1.00
Transmitted Recognized Remarks
Function...
Basic Default 10 1 - 16
Channel Changed x x
Default 3 3
Mode Messages x x
Altered ************** x
Note 0 - 127 0 - 127
Number : True voice ************** 0 - 127
Velocity Note ON o 9nH,v=1-127 o 9nH,v=1-127
Note OFF x 9nH,v=0 x
After Key’s x x
Touch Ch’s x x
Pitch Bend x o 0-24 semi
Prog x o 0 - 127
Change : True # **************
System Exclusive o o
: Song Pos. x x
Common : Song Sel. x x
: Tune x x
Real Time: Commands o o
:All Sound OFF x o(120,126,127)
Aux :Reset All Cntrls x o(121)
:Local ON/OFF x o(122)
Mes- :All Notes OFF x o(123-125)
sages:Active Sense o o
:Reset x x
0,32 x o Bank Select
1 x o Modulation
7 x o Main Volume
10 x o Panpot
Control 11 x o Expression
84 x o Portament Control
Change 6,38 x o Data Entry
64 x o Sustain
71,72,73,74 x o
91 x o Reverb Send Level
93 x o Chorus Send Level
96,97 x o RPN Inc,Dec
100,101 x o RPN LSB,MSB
System : Clock o o
Mode 1 : OMNI ON , POLY Mode 2 : OMNI ON , MONO o : Yes
Mode 3 : OMNI OFF, POLY Mode 4 : OMNI OFF, MONO x : No
MIDI Implementation Chart

MIDI Data Format
DD-75 MIDI Reference 17
NOTE:
By default (factory settings) the instrument ordinarily functions as a 16-channel multi-timbral tone generator, and incoming data
does not affect the panel voices or panel settings. However, the MIDI messages listed below do affect the panel voices and songs.
• MIDI Master Tuning
• System exclusive messages for changing the Reverb Type and Chorus Type.
Messages for these control change numbers cannot be transmitted from the instrument itself. However, they may be transmitted
when playing Songs.
Exclusive
<GM System ON> F0H, 7EH, 7FH, 09H, 01H, F7H
• This message automatically restores all default settings for the instrument, with the exception of MIDI Master Tuning.
<MIDI Master Volume> F0H, 7FH, 7FH, 04H, 01H, ll, mm, F7H
• This message allows the volume of all channels to be changed simultaneously.
• The values of “mm” is used for MIDI Master Tuning. (Values for “ll” are ignored.)
<Reverb Type> F0H, 43H, 1nH, 4CH, 02H, 01H, 00H, mmH, llH, F7H
• mm : Reverb Type MSB
• ll : Reverb Type LSB
Refer to the Effect Map (page 10) for details.
<Chorus Type> F0H, 43H, 1nH, 4CH, 02H, 01H, 20H, mmH, llH, F7H
• mm : Chorus Type MSB
• ll : Chorus Type LSB
Refer to the Effect Map (page 10) for details.
When the accompaniment is started, an FAH message is transmitted. When accompaniment is stopped, an FCH message is trans-
mitted. When the clock is set to External, both FAH (accompaniment start) and FCH (accompaniment stop) are recognized.
Local ON/OFF
<Local ON> Bn, 7A, 7F
<Local OFF> Bn, 7A, 00
Value for “n” is ignored.
Manual Development Group
©2017 Yamaha Corporation
Published 03/2017 PO-A0
