Yamaha DTX6 User manual

ELECTRONIC DRUM RACK
RACK DE BATTERIE ÉLECTRONIQUE
電子ドラムラック
⭫啉᭥󰶍
Owner’s Manual
Benutzerhandbuch
Mode d’emploi
Manual do Proprietário
取扱説明書
EnglishDeutschFrançais
Português
JA
ZH
FR
DE
EN PT

2ELECTRONIC DRUM RACK Owner’s Manual
English
Before using, please read this manual, and use this product in a safe and proper manner.
* Please keep this manual in a safe place for future reference.
NOTICE
• Do not step on or place heavy objects on the product. It may result in damage.
• Do not use or keep the product in places with extremely high temperature (places in direct sunlight, close to a heater, in a
closed car, etc.) or high humidity (bathroom, outside on a rainy day, etc.). Doing so may result in deformation, discolor-
ation, damage or deterioration.
• When cleaning the product, do not use benzine, thinner or alcohol as it may result in discoloration or deformation. Please
wipe with a soft cloth or a damp cloth that has been wrung out thoroughly. If the product is soiled or sticky, use a neutral
detergent on a cloth then wipe with a damp cloth that has been wrung out thoroughly to remove any remaining detergent.
Also pay close attention so as not to let the water and detergent come into contact with the cushions used in the product;
doing so may result in deterioration.
INFORMATION
• The illustrations as shown in this manual are for instructional purposes only, and may appear somewhat different from
those on your product.
• The company names and product names in this manual are the trademarks or registered trademarks of their respective
companies.
PRECAUTIONS
WARNING If this symbol is ignored and the equipment is used improperly, fatal injury to
persons or serious damage could occur.
• Do not put burning items, such as candles, near the unit. A burning item may fall over and cause a fire.
CAUTION
If this symbol is ignored and the equipment is used improperly, there is a dan-
ger or injury to persons handling the equipment, and material damage could
occur.
• Assemble this product in the proper sequence by following the assembly instructions in this manual. Also, make sure
to tighten the bolts regularly. Failure to do so might result in damage to the product or even injury.
• Do not let small children assemble or set up this product by themselves, or they may be injured. Always assemble this
product with adult supervision.
• Be careful with the edges of the Cymbal Holders and the Tom Holders. The sharp holder ends may result in injury.
• Be sure to securely tighten bolts and other fasteners when setting up this product. In addition, be sure to proceed
slowly when loosening bolts. If this precaution is not observed, pads may fall off or the rack may collapse or fall over,
possibly causing injury.
• Always set the product on a flat and solid surface. Placement on a sloping, unstable surface or on steps may result in
the product being unstable and subject to overturning.
• Do not alter the product. Doing so may result in injury or damage/deterioration to the product.
• Do not sit or step on the rack. The rack may overturn or be damaged, resulting in injury.
• Be careful with your fingers and hands when adjusting clamps, to prevent them from becoming pinched and injured.
• Be careful around pipe ends and inside. Metal shavings, etc. may injure your fingers and hands.
• Do not attach acoustic drums to the electronic drum rack. Clamps may be damaged and drums may drop, causing
injury.
• Keep small parts out of the reach of infants. Your children may accidentally swallow them.
Yamaha cannot be held responsible for damage caused by improper use or modifications to the product.
Precautions

3
ELECTRONIC DRUM RACK Owner’s Manual
Precautions .................................................................. 2
Package Contents ........................................................ 4
Assembling the Rack ................................................... 6
Attaching the Holders................................................. 10
Troubleshooting.......................................................... 12
Specifications............................................................. 12
Contents

4ELECTRONIC DRUM RACK Owner’s Manual
After opening up the package containing your electronic drum rack, please verify that all of the follow-
ing components are present.

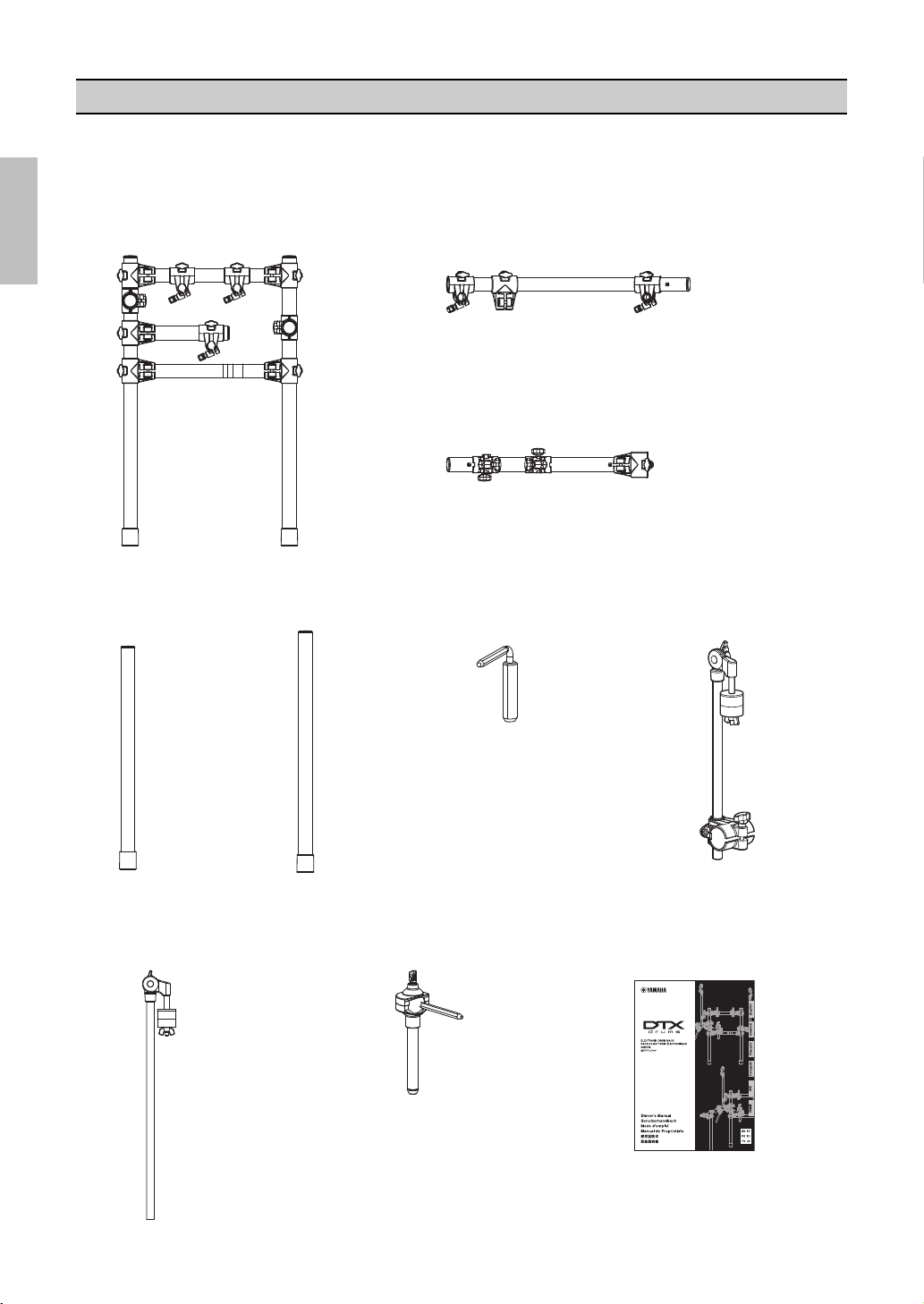

Package Contents
Main frame (×1) Left arm (×1)
Right arm (×1)
Left leg (×1) Right leg (×1) Tom holder (×3)
Cymbal holder (×2) Snare holder (×1) Owner’s Manual
(this booklet)
Hi-hat holder (×1)

5
ELECTRONIC DRUM RACK Owner’s Manual
Fully-assembled rack
Left arm
Clamp r
Clamp e
Clamp w
Clamp t
Right arm
Left leg Right leg
Main frame
Clamp q
For instruction on assembling the hi-hat holder, refer to the
Assembly Manual that came with this electronic drum kit.

6ELECTRONIC DRUM RACK Owner’s Manual
1. Lay the main frame down on a solid, level surface and loosen the key bolts in clamps qand wusing
the drum key.
2. Loosen the bolts on clamps q, w, and eand move the clamps all the way down to the center strut.
Following this, lightly tighten the clamp bolts.
3. Take the left arm from the package and loosen the key bolt in clamp rusing the drum key.
Assembling the Rack
NOTE
The drum key can be found in the pad set package.
The left and right arms look very alike, but the left arm is longer. Take care not to mix them up when
assembling the rack.
Clamp qClamp w
Key bolt
Key bolt
Drum key
Drum key
Clamp q
Clamp e
Center strut Clamp w
Loosen
Bolt
Lightly
tighten
Left arm Clamp r
Key bolt

7
ELECTRONIC DRUM RACK Owner’s Manual
4. Push the left arm as far as it will go into clamp qon the main frame.
When inserted, ensure that the arrow sticker ( ) on the left arm is lined up with the slit in clamp q.
5. Securely tighten the key bolt in clamp qusing the drum key.
6. Take the left leg from the package and push it as far as it will go into clamp r.
7. Securely tighten the key bolt in clamp rusing the drum key.
The left and right legs look very alike, but the left leg is shorter. Take care not to mix them up when
assembling the rack.
Left arm
Arrow
Clamp q
Slit
Left arm
Clamp q
Key bolt
Left leg
Clamp r
Key bolt

8ELECTRONIC DRUM RACK Owner’s Manual

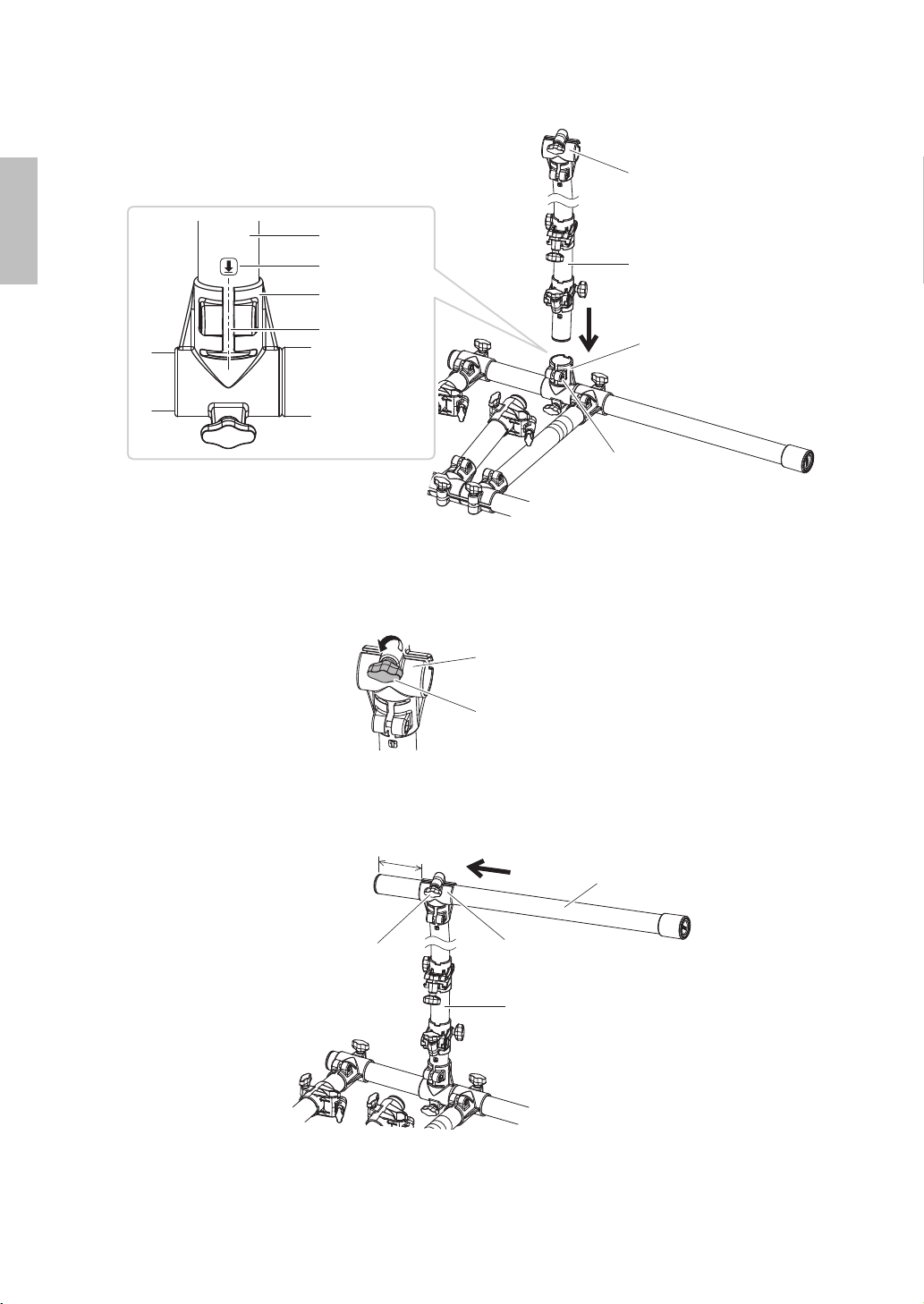

8. Take the right arm from the package and push it as far as it will go into clamp w.
When inserted, ensure that the arrow sticker ( ) on the right arm is lined up with the slit in clamp w.
9. Securely tighten the key bolt in clamp wusing the drum key.
10. Loosen the bolt on clamp t.
11. Take the right leg from the package and insert it into clamp t.
When inserted, ensure that the right leg protrudes from the clamp by approximately 7 cm.
12. Securely tighten the bolt on clamp t.
Right arm
Arrow
Clamp w
Slit
Key bolt
Clamp t
Right arm
Clamp w
Clamp t
Bolt
Clamp t
Right arm
Right leg
7 cm
Bolt

9
ELECTRONIC DRUM RACK Owner’s Manual

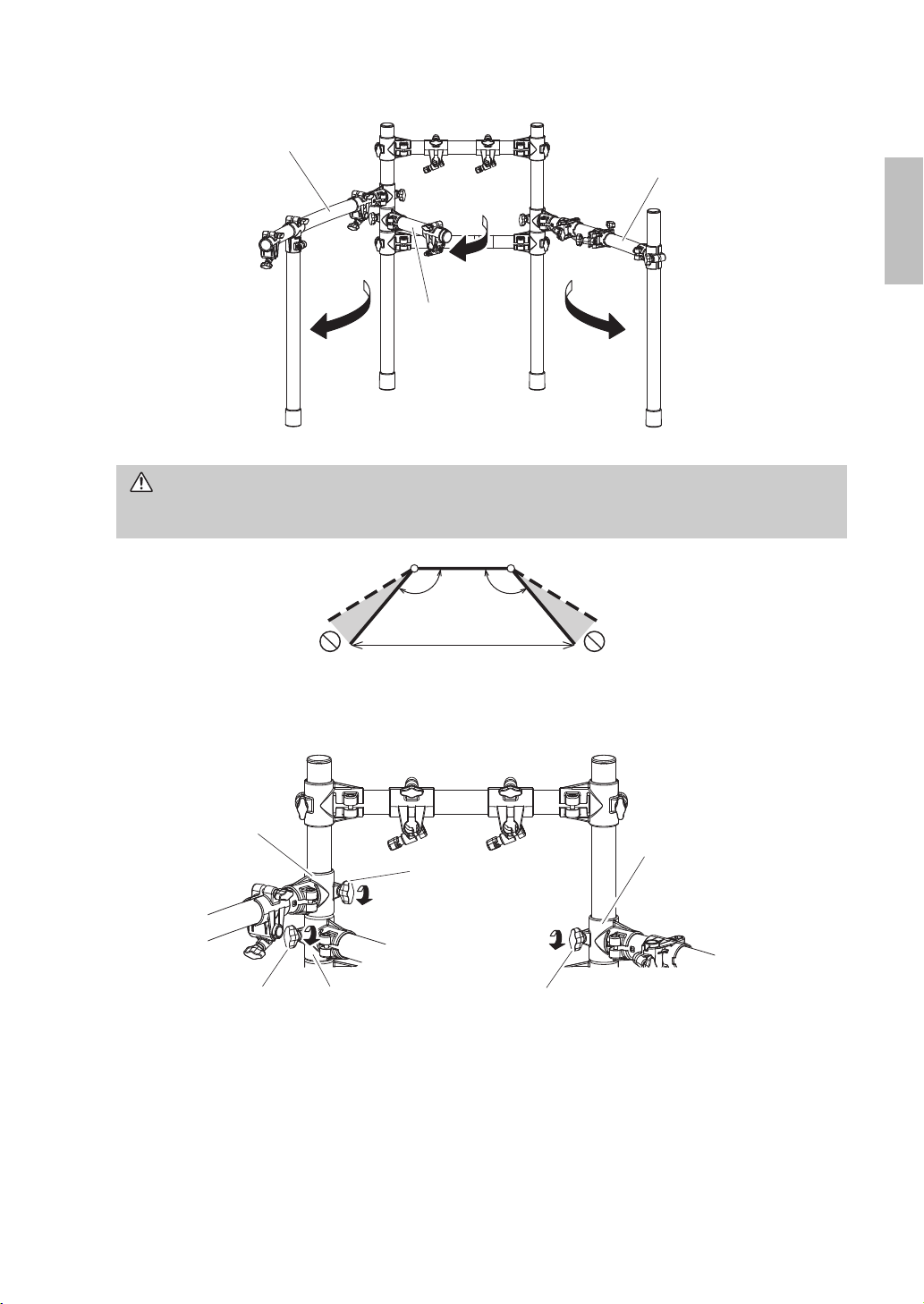

13. Lift up the main frame and open up the left arm, the right arm, and the snare arm.
14. Securely tighten the bolts on clamps q, w, and e.
15. Check all bolts and key bolts once again and ensure that they are tightly fastened.
CAUTION
Do not open up the rack’s left and right legs any more than shown in the figure below. Failure to observe
this precaution can lead to the rack toppling over and causing injury.
Right arm
Left arm
Snare arm
1,100 mm
130° 130°
Clamp q
Clamp w
Clamp eBolt Bolt
Bolt

10 ELECTRONIC DRUM RACK Owner’s Manual

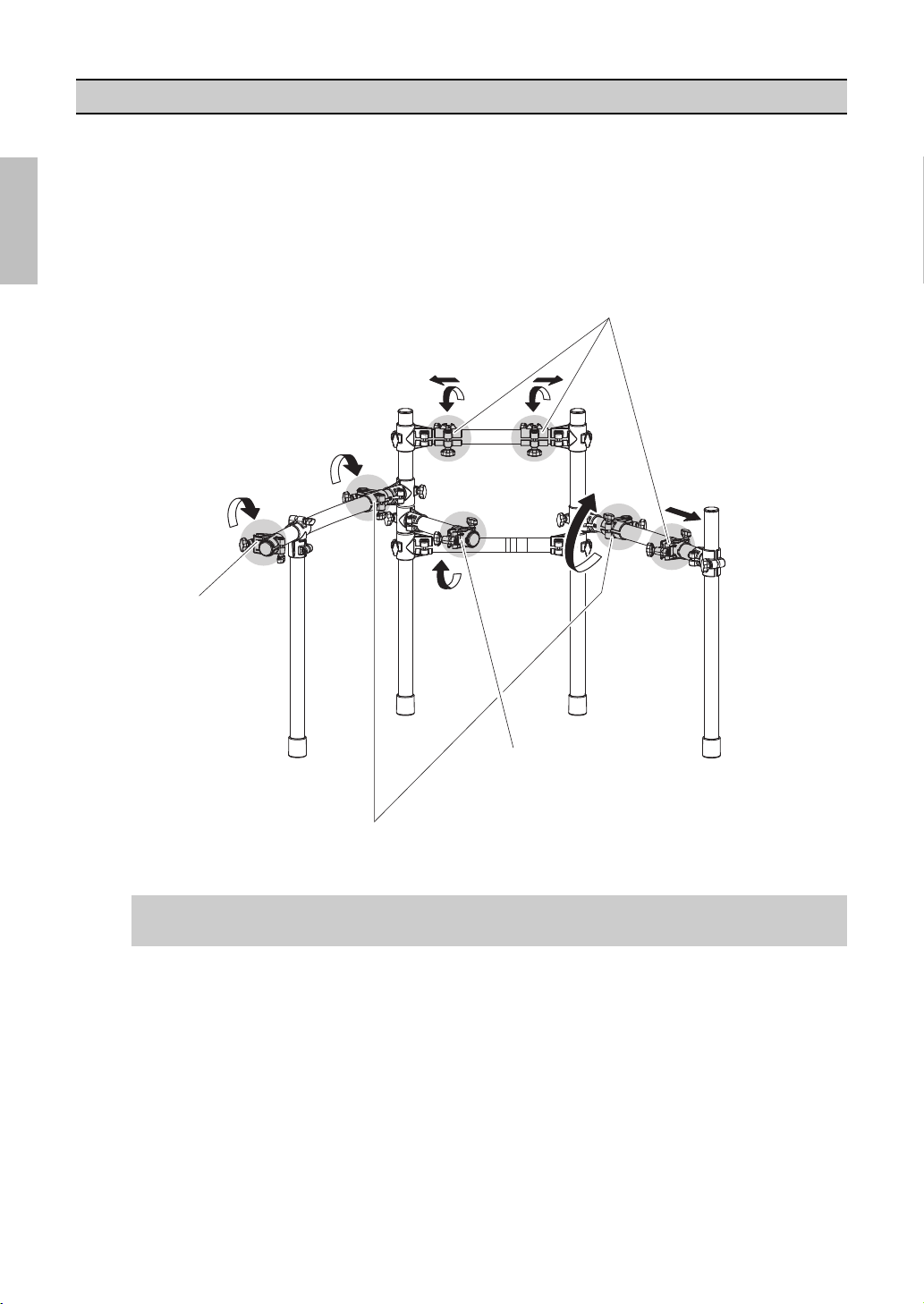

1. Loosen the bolts on the following seven clamps (Ato G) and rotate or move the clamps to the positions
shown below. Following this, securely tighten all of the bolts to lock the clamps in place.
• One snare clamp (A)
• Three tom clamps (B, C, and D)
• Two cymbal clamps (Eand F)
• One drum module clamp (G)
Attaching the Holders
NOTE
To m c l a m p Dshould be moved but not rotated. (All other clamps are rotated.)
G
EB C
A
F
D
Tom clamps (×3)
Drum module clamp
Snare clamp
Cymbal clamps (×2)

11
ELECTRONIC DRUM RACK Owner’s Manual

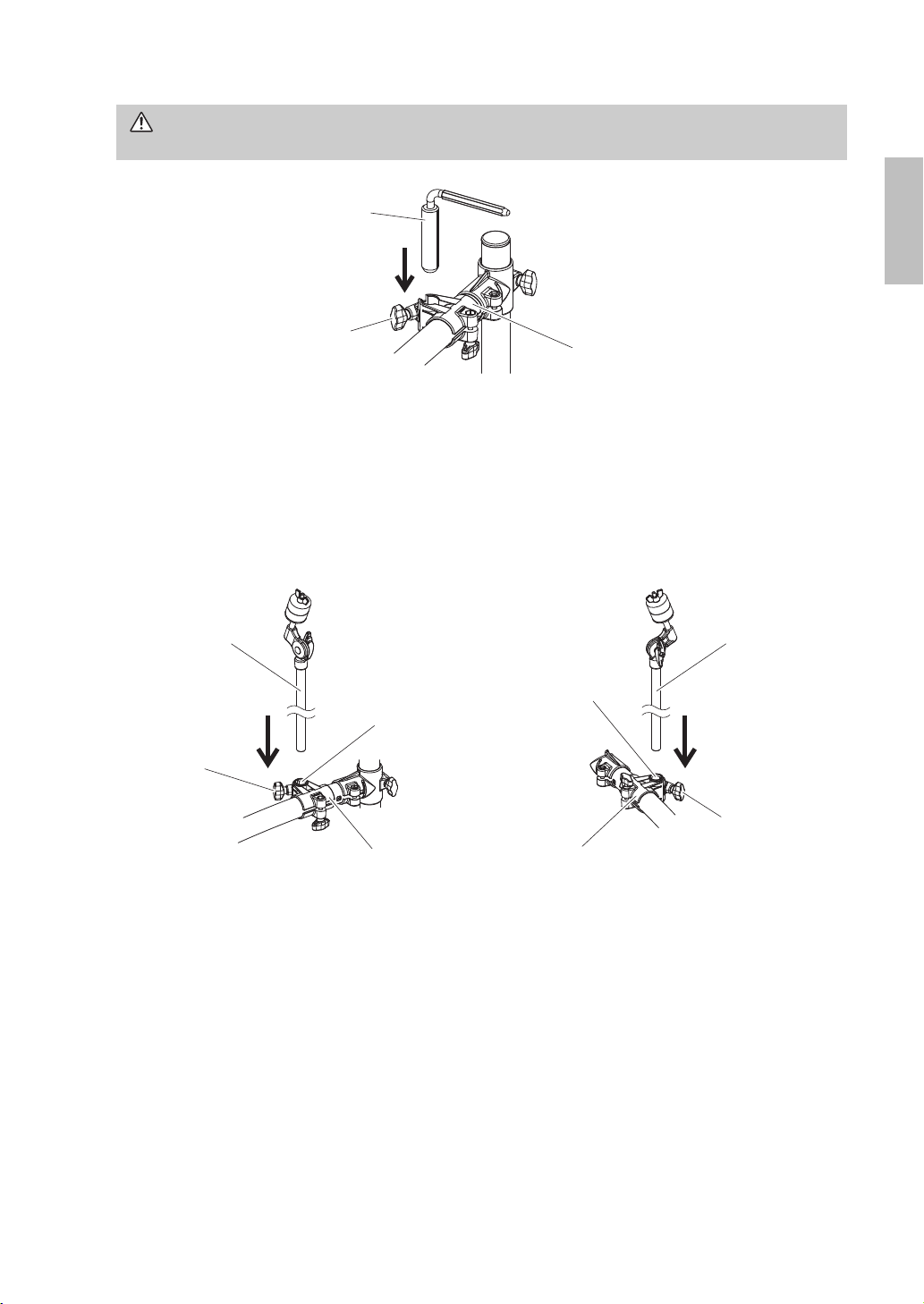

2. Attach a tom holder to each of the three tom clamps.
2-1. Loosen the bolt on the tom clamp.
2-2. Insert the tom holder.
2-3. Securely tighten the bolt on the tom clamp.
3. Attach a cymbal holder to each of the two cymbal clamps.
3-1. Loosen the bolt on the cymbal clamp.
3-2. Insert the cymbal holder.
3-3. Securely tighten the bolt on the cymbal clamp.
CAUTION
Take special care with tom holders as they have sharp tips that could cause injury.
To m c l a m p
Tom holder
Bolt
Cymbal holder
Bolt
Cymbal holder
Bolt
Cymbal clampCymbal clamp
Sleeve (black)
On the left arm On the right arm
Sleeve (black)

12 ELECTRONIC DRUM RACK Owner’s Manual
4. Attach the snare holder to the snare clamp.
4-1. Loosen the bolt on the snare clamp.
4-2. Insert the snare holder.
4-3. Securely tighten the bolt on the snare clamp.
The rack is unstable even though placed on a level surface.
Check whether the arrow stickers are lined up with the slits in the clamps. (See Step 4 and Step 8 of
Assembling the Rack on pages 7 and 8, respectively.) If they are not, loosen each of the clamp bolts,
adjust the arms to align the arrow stickers with the slits, and then retighten the bolts.
CAUTION
Take special care with the snare holder as the rod has a sharp tip that could cause injury.
Your electronic drum rack is now ready. For instructions on assembling the pads and the drum trig-
ger module, please refer to the Assembly Manual that came with this electronic drum kit.
Troubleshooting
Specifications
Weight: 8.6 kg
*: The contents of this manual apply to the latest specifications as of the publishing date. To obtain the latest manual, access the
Yamaha website then download the manual file. Since specifications, equipment or separately sold accessories may not be the
same in every locale, please check with your Yamaha dealer.
Bolt
Snare clamp
Snare holder
