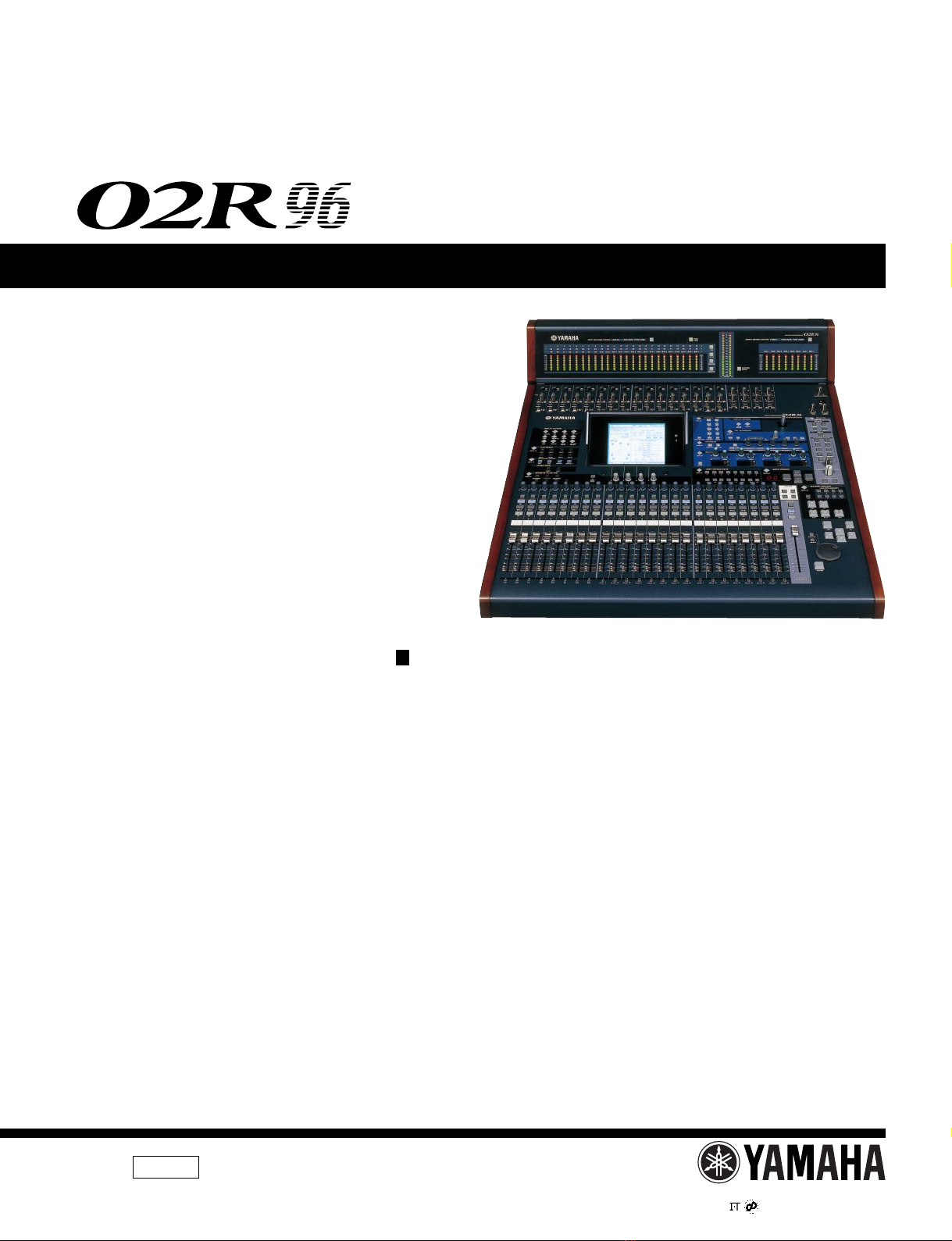

Yamaha O2R96 User manual

02R96
1
SERVICE MANUAL
PA 011640
1.29K-6096 Printed in Japan ’02.06
HAMAMATSU, JAPAN
CONTENTS
SPECIFICATIONS ................................................... 4
DIMENSIONS .......................................................... 16

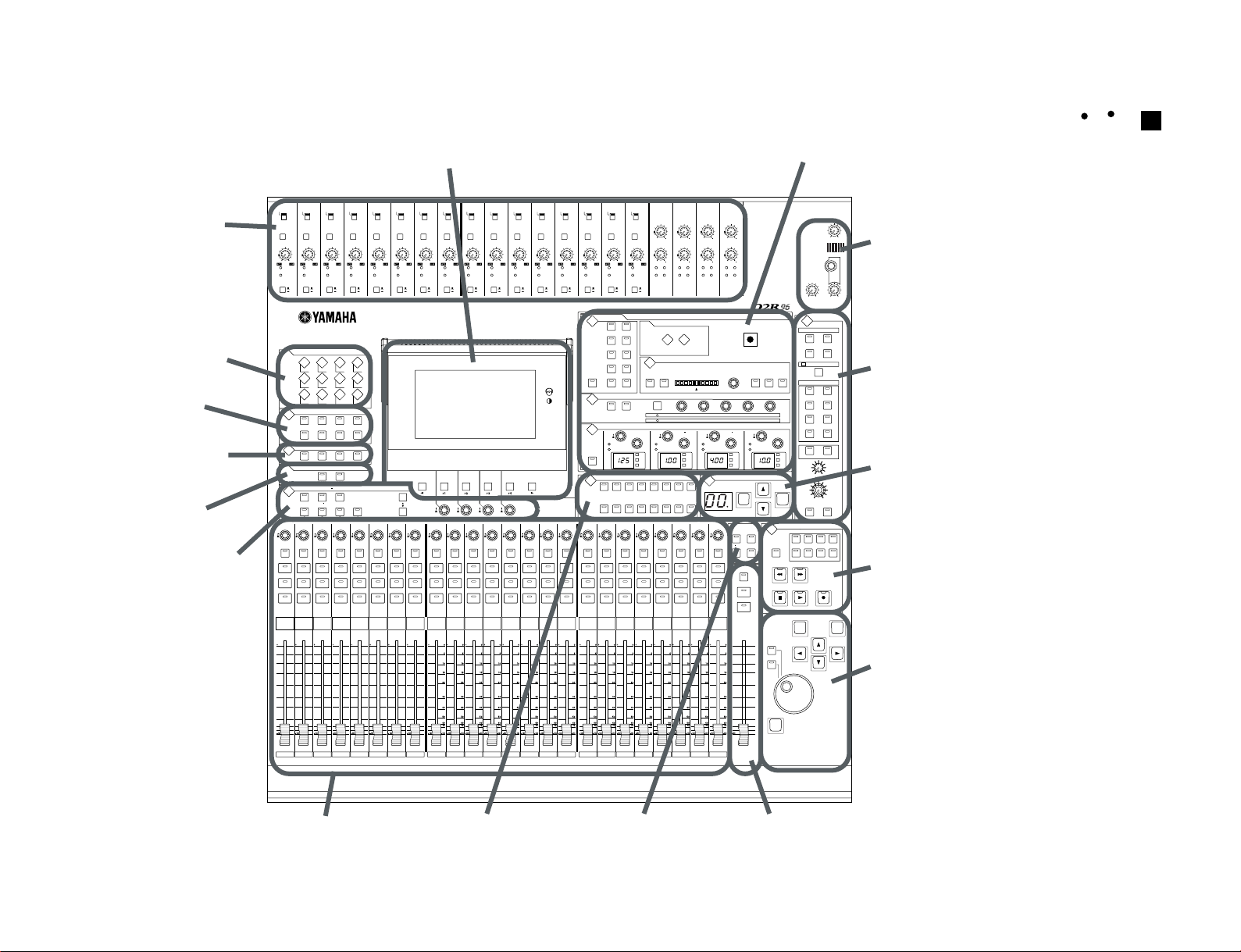

PANEL LAYOUT .................................. 17
CIRCUIT BOARD LAYOUT ............... 30
DISASSEMBLY PROCEDURE ............................ 34
INSTALLING I/O CARDS ....................... 52
LSI PIN DESCRIPTION ................................ 53
IC BLOCK DIAGRAM .................................. 64
CIRCUIT BOARDS ....................................... 71
INSPECTIONS ...................................................134/144
SERVICE CHECK PROGRAM .154/164
TEST PROGRAM .........................174/175
USING BULK DUMP ....................... 176
CHECKING THE BATTERY ................ 177
MIDI DATA FORMAT ............... 178
MIDI IMPLEMENTATION CHART ............................ 193
PARTS LIST
BLOCK DIAGRAM
OVERALL CONNECTOR CIRCUIT DIAGRAM
CIRCUIT DIAGRAM
This document is printed on chlorine free (ECF) paper with soy ink.
DIGITAL MIXING CONSOLE/
PEAK METER BRIDGE/WOODEN SIDE PANELS
/MB02R96/SP02R96

02R96
2
IMPORTANT NOTICE
This manual has been provided for the use of authorized Yamaha Retailers and their service personnel. It has been assumed
that basic service procedures inherent to the industry, and more specifically Yamaha Products, are already known and under-
stood by the users, and have therefore not been restated.
WARNING : Failure to follow appropriate service and safety procedures when servicing this product may result in per-
sonal injury, destruction of expensive components and failure of the product to perform as specified. For
these reasons, we advise all Yamaha product owners that all service required should be performed by an
authorized Yamaha Retailer or the appointed service representative.
IMPORTANT : This presentation or sale of this manual to any individual or firm does not constitute authorization certifi-
cation, recognition of any applicable technical capabilities, or establish a principal-agent relationship of
any form.
The data provided is belived to be accurate and applicable to the unit(s) indicated on the cover. The research engineering, and
service departments of Yamaha are continually striving to improve Yamaha products. Modifications are, therefore, inevitable
and changes in specification are subject to change without notice or obligation to retrofit. Should any discrepancy appear to
exist, please contact the distributor’s Service Division.
WARNING : Static discharges can destroy expensive components. Discharge any static electricity your body may have
accumulated by grounding yourself to the ground bus in the unit (heavy gauge black wires connect to
this bus.)
IMPORTANT : Turn the unit OFF during disassembly and parts replacement. Recheck all work before you apply power
to the unit.
WARNING: CHEMICAL CONTENT NOTICE!
The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (Where
applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly
other entities) to cause cancer and/or birth defects or other reproductive harm.
DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON WHAT
SO EVER!
Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose
eyes to solder/flux vapor!
If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling
food.
WARNING
Components having special characteristics are marked and must be replaced with parts having specification equal to those
originally installed.
WARNING: THIS APPARATUS MUST BE EARTHED
IMPORTANT
THE WIRES IN THIS MAINS LEAD ARE COLOURED IN
ACCORDANCE WITH THE FOLLOWING CODE:
GREEN-AND-YELLOW : EARTH
BLUE : NEUTRAL
BROWN : LIVE
As the colours of the wires in the mains lead of this apparatus may
not correspond with the coloured markings identifying the terminals in
your plug, proceed as follows:
The wire which is coloured GREEN and YELLOW must be
connected to the terminal in the plug which is marked by the letter E
or by the safety earth symbol or coloured GREEN and YELLOW.
The wire which is coloured BLUE must be connected to the terminal
which is marked with the letter N or coloured BLACK.
The wire which is coloured BROWN must be connected to the
terminal which is marked with the letter L or coloured RED.
* This applies only to products distributed by YAMAHA KEMBLE
MUSIC (U.K.) LTD.

02R96
3
LITHIUM BATTERY HANDLING
This product uses a lithium battery for memory back-up.
WARNING : Lithium batteries are dangerous because they can be exploded by improper handling. Observe the following pre-
cautions when handling or replacing lithium batteries.
Leave lithium battery replacement to qualified service personnel.
Always replace with batteries of the same type.
When installing on the PC board by soldering, solder using the connection terminals provided on the battery cells.
Never solder directly to the cells. Perform the soldering as quickly as possible.
Never reverse the battery polarities when installing.
Do not short the batteries.
Do not attempt to recharge these batteries.
Do not disasemble the batteries.
Never heat batteries or throw them into fire.
ADVARSEL!
Lithiumbatteri-Eksplosionsfare ved fejlagtig handtering. Udskiftning ma kun ske med batteri af samme fabrikat og type. lever det brugte
batteri tilbage til leverandren.
VARNING
Explosionsfara vid felaktigt batteribyte.
Anvand samma batterityp eller en ekvivalent typ som rekommenderas av apparattillverkaren.
Kassera anvant batteri enligt fabrikantens instruktion.
VAROITUS
Paristo voi rajahtaa, jos se on virheellisesti asennettu.
Vaihda paristo ainoastaan laitevalmistajan suosittelemaan tyyppiiin.
Havita kaytetty paristo valmistajan ohjeiden mukaisesti.
The following information complies with Dutch official Gazette 1995. 45; ESSENTIALS OF ORDER ON THE COLLECTION OF BATTERIES.
• Please refer to the diassembly procedure for the removal of Back-up Battery.
• Leest u voor het verwijderen van de backup batterij deze beschrijving.
Take care not to trap your fingers.

02R96
4
SPECIFICATIONS
02R96
General Spec
Number of scene memories 99
Sampling Frequency
Internal 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
External Normal rate: 44.1 kHz–10% to 48 kHz+6%
Double rate: 88.2 kHz–10% to 96 kHz+6%
Signal Delay Less than 2.0 ms CH INPUT to STEREO OUT (fs=48 kHz)
Less than 1.1 ms CH INPUT to STEREO OUT (fs=96 kHz)
Fader 100 mm motorized with touch sense ×25
Fader Resolution +10 to –96, –∞dB (256 steps/100 mm) input faders
0 to –130, – ∞dB (256 steps/100 mm) master faders, stereo fader
Total Harmonic Distortion
*1
(CH INPUT to STEREO OUT)
(Input Gain=Min.)
fs=48 kHz Less than 0.05% 20 Hz to 20 kHz @ +14 dB into 600Ω
Less than 0.01% 1 kHz @ +18 dB into 600 Ω (fs=48 kHz)
fs=96 kHz Less than 0.05% 20 Hz to 40 kHz @ +14 dB into 600 Ω
Less than 0.01% 1 kHz @ +18 dB into 600 Ω
Frequency Response
(CH INPUT to STEREO OUT) 20 Hz–20 kHz, 0.5, –1.5 dB @ +4 dB into 600 Ω(fs=48 kHz)
20 Hz–40 kHz, 0.5, –1.5 dB @ +4 dB into 600 Ω(fs=96 kHz)
Dynamic Range
(maximum level to noise level)
110 dB typ. DA Converter (STEREO OUT)
105 dB typ. AD+DA (to STEREO OUT) @ fs=48 kHz
105 dB typ. AD+DA (to STEREO OUT) @ fs=96 kHz
Hum & Noise
*2
(20 Hz–20 kHz)
Rs=150Ω
Input Gain=Max.
Input Pad =0 dB
–128 dB Equivalent Input Noise
–92 dB residual output noise. STEREO OUT (STEREO OUT off)
–92 dB (96 dB S/N) STEREO OUT (STEREO fader at nominal level and
all CH INPUT faders at minimum level)
–64 dB (68 dB S/N) STEREO OUTPUT (STEREO fader at nominal leve l
and one CH INPUT fader at nominal level)
Maximum Voltage Gain
74 dB CH INPUT (CH1–24) to STEREO OUT/OMNI (BUS) OUT
74 dB CH INPUT (CH1–24) to OMNI (AUX) OUT (via pre input fader)
74 dB CH INPUT (CH1–24) to CONTROL ROOM MONITOR OUT (via
STEREO bus)
Crosstalk
(@ 1 kHz)
Input Gain=Min.
–80 dB adjacent input channels (CH1–24)
–80 dB input to output
AD Input (1–16: A/B)
Phantom switch +48 V DC is supplied to A (XLR-3-31 type) input
Pad switch 0/26 dB attenuation
Gain control 44 dB (–60 to –16), detented
Peak indicator LED (red) turns on when post HA level reaches 3 dB below clipping
Signal indicator LED (green) turns on when post HA level reaches 20 dB below nomi-
nal
Insert I/O (pre AD converter)
Insert switch on/off
AD converter 24-bit linear, 128-times oversampling (fs=48 kHz)
AD Input (17–24)
Gain control 44 dB (–34 to +10), detented
Peak indicator LED (red) turns on when post HA level reaches 3 dB below clipping
Signal indicator LED (green) turns on when post HA level reaches 20 dB below nomi-
nal
AD converter 24-bit linear, 128-times oversampling (fs=48 kHz)
Analog Input
(2TR IN ANALOG 1, 2) AD converter 24-bit linear, 128-times oversampling (fs=48 kHz)

02R96
5
Option Input (SLOT 1–4) Available cards Optional digital interface cards (MY8, MY4 series)
Digital Input
(2TR IN DIGITAL 1–3) SRC On/off (1:3 and 3:1 maximum input to output sample rate ratio)
Input Channel CH1–56
Input patch —
Phase Normal/reverse
Gate-type
*3
On/off
Key in: 12 ch Group (1–12, 13–24, 25–36, 37–48, 49–56)/AUX1–8
Comp-type
*4
On/off
Key in: self /Stereo Link
Pre EQ/pre fader/post fader
Attenuator –96.0 to +12.0 dB (0.1 dB step)
EQ 4-band PEQ
*5
On/off
Delay 0–43400 samples
On/off —
Fader 100 mm motorized (INPUT/AUX1–8)
Aux send On/off
AUX1–8; pre fader/post fader
Solo On/off
Pre fader/after pan
Pan 127 positions (Left= 1–63, Center, Right= 1–63)
Surround pan 127 ×127 positions
LFE level –∞, –96 dB to +10 dB (256 step)
Routing STEREO, BUS1–8, DIRECT OUT
Direct out Pre EQ/pre fader/post fader
Metering Displayed on LCD
Peak hold on/off
TALKBACK
Level control Analog rotary potentiometer
AD converter 24-bit linear, 128-times oversampling
Talkback select Built-in microphone/AD IN 1–16
On/off —
OSCILLATOR
Level 0 to –96 dB (1 dB step)
On/off —
Waveform Sine 100 Hz, sine 1 kHz, sine 10 kHz, pink noise, burst noise
Routing BUS1–8, AUX1–8, STEREO L, R
STEREO OUT DA converter 24-bit linear, 128-times oversampling
OMNI OUT 1–8 Output patch SURROUND MONITOR, STEREO, BUS1–8, AUX1–8, DIRECT OUT
1–56, INSERT OUT (CH1–56, BUS1–8, AUX1–8, STEREO)
DA converter 24-bit linear, 128-times oversampling
CONTROL ROOM MONITOR
OUT
Monitor select
STEREO, 2TR IN DIGITAL 1, 2TR IN DIGITAL 2, 2TR IN DIGITAL 3, 2TR
IN ANALOG 1, 2TR IN ANALOG 2, ASSIGN 1, 2 (BUS 1–8/AUX 1–8)
Mono On/off
Dimmer On/off
DA converter 24-bit linear, 128-times oversampling
Level control Analog rotary potentiometer
Phones level Analog rotary potentiometer
STUDIO MONITOR OUT
Monitor select CONTROL ROOM, STEREO, AUX 7, AUX 8, TALKBACK
DA converter 24-bit linear, 128-times oversampling
Level control Analog rotary potentiometer

02R96
6
2TR OUT DIGITAL 1–3 Dither On/off
Word length 16, 20, 24-bit
Output patch STEREO, BUS1–8, AUX 1–8, DIRECT OUT 1–56, INSERT OUT,
CONTROL ROOM
Option Output (SLOT 1–4)
Available card Optional digital interface card (MY8, MY4 series)
Output patch SURROUND MONITOR, STEREO, BUS1–8, AUX1–8, DIRECT OUT
1–56, INSERT OUT (CH1–56, BUS1–8, AUX1–8, STEREO)
Dither On/off
Word length 16/20/24-bit
STEREO
Comp-type
*4
On/off
Pre EQ/pre fader/post fader
Attenuator –96.0 to +12.0 dB (0.1 dB step)
EQ 4-band PEQ
*5
On/off
On/off —
Fader 100 mm motorized
Balance 127 positions (Left=1–63, Center, Right=1–63)
Delay 0–43400 samples
Metering Displayed on LCD
Peak hold on/off
BUS1–8
Comp-type
*4
On/off
Pre EQ/pre fader/post fader
Attenuator –96.0 to +12.0 dB (0.1 dB step)
EQ 4-band PEQ
*5
On/off
On/off —
Fader 100 mm motorized
Delay 0–43400 samples
Bus to stereo Level (–∞, –130 dB to 0 dB)
On/off
Pan: 127 positions (Left=1–63, Center, Right=1–63)
Metering Displayed on LCD
Peak hold on/off
AUX1–8
Comp-type
*4
On/off
Pre EQ/pre fader/post fader
Attenuator –96.0 to +12.0 dB (0.1 dB step)
EQ 4-band PEQ
*5
On/off
On/off —
Fader 100 mm motorized
Delay 0–43400 samples
Metering Displayed on LCD
Peak hold on/off

02R96
7
SURROUND MONITOR
Mute On/off
Solo On/off
Source BUS1–8, SLOT 1–4
Monitor to C-R On/off
Oscillator Pink noise/500–2 kHz/1 kHz/50 Hz
Monitor matrix 5.1 → 5.1, 5.1→ 3-1, 5.1 → ST, 3.1 → 3.1, 3.1→ ST
Bass
management 5 presets
Monitor
alignment ATT (–12.0 dB to 12 dB 0.1 dB step), Delay (0–30.0 msec 0.02 msec
step)
INTERNAL EFFECTS
(EFFECT 1–4)
Bypass On/off
In/out 8-in, 8-out (EFFECT1): depends on effects type
2-in, 2-out (EFFECT2–4): depends on effects type
Effect-in from AUX1–8/INSERT OUT/effect-out
Effect-out to Input patch/effect-in
Power Requirements U.S.A./Canada 120 V, 60 Hz 200 W
Japan 100 V, 50/60 Hz 190 W
Other 220–240 V, 50/60 Hz 200 W
Dimensions (H x D x W) 239 x 697 x 667 mm (9.4" x 27.4" x 26.3")
Net weight 34 kg (75 lbs)
Operating free-air temperature range 10–35°C (50–95°F)
Storage temperature range –20 to 60°C (–4 to 140°F)
Supplied Accessories AC Cable
CD-ROM (Studio Manager)
Options Digital interface card (MY8, MY4 series)
PEAK METER BRIDGE: MB02R96
SIDE PANEL: SP02R96
*1. Total harmonic distortion is measured with a 6 dB/octave filter @ 80 kHz.
*2. Hum & Noise are measured with a 6 dB/octave filter @ 12.7 kHz; equivalent to a 20 kHz filter with infinite dB/octave
attenuation.
*3. See“Gate Parameters” on page 8.
*4. See“Comp Parameters” on page 8.
*5. See“EQ Parameters” on page 7.
LOW/HPF L-MID H-MID HIGH /LPF
Q
0.1–10.0
(41 points)
low shelving
HPF
0.1–10.0
(41 points)
0.1–10.0
(41 points)
high shelving
LPF
F21.2 Hz–20 kHz (1/12 oct step)
G±18 dB
(0.1 dB step)
HPF: on/off
±18 dB
(0.1 dB step)
±18 dB
(0.1 dB step)
LPF: on/off
EQ Parameters

02R96
8
Gate
Threshold –54 dB to 0 dB (0.1 dB step)
Range –70 dB to 0 dB (1 dB step)
Attack 0 ms–120 ms (1 ms step)
Hold
0.02 ms–1.96 s (216 points) @ 48 kHz
0.02 ms–2.13 s (216 points) @ 44.1 kHz
0.01 ms–981 ms (216 points) @ 96 kHz
0.01 ms–1.06 s (216 points) @ 88.2 kHz
Decay
5 ms–42.3 s (160 points) @ 48 kHz
6 ms–46.0 s (160 points) @ 44.1 kHz
3 ms–21.1 s (160 points) @ 96 kHz
3 ms–23.0 s (160 points) @ 88.2 kHz
Ducking
Threshold –54 dB to 0 dB (0.1 dB step)
Range –70 dB to 0 dB (1 dB step)
Attack 0 ms–120 ms (1 ms step)
Hold
0.02 ms–1.96 s (216 points) @ 48 kHz
0.02 ms–2.13 s (216 points) @ 44.1 kHz
0.01 ms–981 ms (216 points) @ 96 kHz
0.01 ms–1.06 s (216 points) @ 88.2 kHz
Decay
5 ms–42.3 s (160 points) @ 48 kHz
6 ms–46.0 s (160 points) @ 44.1 kHz
3 ms–21.1 s (160 points) @ 96 kHz
3 ms–23.0 s (160 points) @ 88.2 kHz
Compressor
Threshold –54 dB to 0 dB (0.1 dB step)
Ratio (x :1) x=1, 1.1, 1.3, 1.5, 1.7, 2, 2.5, 3, 3.5, 4, 5, 6, 8, 10, 20, ∞(16 points)
Out gain 0 dB to +18 dB (0.1 dB step)
Knee Hard, 1, 2, 3, 4, 5 (6 step)
Attack 0 ms–120 ms (1 ms step)
Release
5 ms–42.3 s (160 points) @ 48 kHz
6 ms–46.0 s (160 points) @ 44.1 kHz
3 ms–21.1 s (160 points) @ 96 kHz
3 ms–23.0 s (160 points) @ 88.2 kHz
Expander
Threshold –54 dB to 0 dB (0.1 dB step)
Ratio (x :1) x=1, 1.1, 1.3, 1.5, 1.7, 2, 2.5, 3, 3.5, 4, 5, 6, 8, 10, 20, ∞(16 points)
Out gain 0 dB to +18 dB (0.1 dB step)
Knee Hard, 1, 2, 3, 4, 5 (6 points)
Attack 0 ms–120 ms (1 ms step)
Release
5 ms–42.3 s (160 points) @ 48 kHz
6 ms–46.0 s (160 points) @ 44.1 kHz
3 ms–21.1 s (160 points) @ 96 kHz
3 ms–23.0 s (160 points) @ 88.2 kHz
Gate Parameters
Comp Parameters

02R96
9
Compander H
Threshold –54 dB to 0 dB (0.1 dB step)
Ratio (x :1) x=1, 1.1, 1.3, 1.5, 1.7, 2, 2.5, 3, 3.5, 4, 5, 6, 8, 10, 20 (15 points)
Out gain –18 dB to 0 dB (0.1 dB step)
Width 1 dB–90 dB (1 dB step)
Attack 0 ms–120 ms (1 ms step)
Release
5 ms–42.3 s (160 points) @ 48 kHz
6 ms–46.0 s (160 points) @ 44.1 kHz
3 ms–21.1 s (160 points) @ 96 kHz
3 ms–23.0 s (160 points) @ 88.2 kHz
Compander S
Threshold –54 dB to 0 dB (0.1 dB step)
Ratio (x :1) x=1, 1.1, 1.3, 1.5, 1.7, 2, 2.5, 3, 3.5, 4, 5, 6, 8, 10, 20 (15 points)
Out gain –18 dB to 0 dB (0.1 dB step)
Width 1 dB–90 dB (1 dB step)
Attack 0 ms–120 ms (1 ms step)
Release
5 ms–42.3 s (160 points) @ 48 kHz
6 ms–46.0 s (160 points) @ 44.1 kHz
3 ms–21.1 s (160 points) @ 96 kHz
3 ms–23.0 s (160 points) @ 88.2 kHz
INPUT 1–16
+48 V switch ON/OFF
PAD switch 0/26 dB
GAIN control –16 to –60 dB
INSERT switch ON/OFF
INPUT 17–24 GAIN control +10 to –34 dB
TALKBACK TALKBACK LEVEL control
STUDIO MONITOR OUT STUDIO LEVEL control
CONTROL ROOM MONITOR OUT CONTROL ROOM LEVEL control
PHONES PHONES LEVEL control
FADER MODE Section
AUX SELECT DISPLAY button
AUX 1, AUX 2, AUX 3, AUX 4, AUX 5, AUX 6, AUX 7, AUX 8
buttons (w/LED)
FADER MODE FADER, AUX button (w/LED)
ENCODER MODE DISPLAY button
PAN, AUX, ASSIGN 1, ASSIGN 2 buttons (w/LED)
DISPLAY CONTROL Section
DISPLAY ACCESS
buttons AUTOMIX, DIO, SETUP, UTILITY, MIDI, REMOTE, METER,
VIEW, PAIR, GROUP, INPUT PATCH, OUTPUT PATCH
EFFECTS/PLUG-INS DISPLAY access, ,
INTERNAL EFFECTS, PLUG-INS, CHANNEL INSERTS, 1, 2, 3, 4
Parameter control: 1, 2, 3, 4
Others , F1, F2, F3, F4,
buttons
LCD contrast control
Controls
Analog Section
Digital Section

02R96
10
SELECTED CHANNEL Section
ROUTING DISPLAY button
1, 2, 3, 4, 5, 6, 7, 8, STEREO, DIRECT, FOLLOW PAN buttons
(w/LED)
DISPLAY ACCESS PHASE/INSERT, DELAY buttons
DYNAMICS DISPLAY, GATE /COMP buttons
GATE ON, COMP ON buttons (w/LED)
Parameter control x 5
PAN/SURROUND
DISPLAY button
L, R, LINK, GRAB, EFFECT buttons (w/LED)
Pan control
Joystick (Sound image position control)
EQUALIZER
DISPLAY button
EQ ON button (w/LED)
GAIN controls: LOW, LOW-MID, HIGH-MID, HIGH
FREQUENCY/Q controls: LOW, LOW-MID, HIGH-MID, HIGH
controls (w/SW)
MONITOR Section
MONITOR DISPLAY button
STUDIO CONTROL ROOM, STEREO, AUX 7, AUX 8 buttons (w/LED)
SOLO CLEAR button
CONTROL ROOM
2TR D1, 2TR D2, 2TR D3, 2TR A1, 2TR A2, STEREO, ASSIGN
1, ASSIGN 2 buttons (w/LED)
SURROUND BUS, SLOT buttons (w/LED)
SURROUND MONITOR LEVEL control
Others TALKBACK, DIMMER buttons (w/LED)
CONTROL ROOM LEVEL control
SCENE MEMORY and USER
DEFINED KEYS section
SCENE MEMORY DISPLAY button
,
, STORE, RECALL buttons
USER DEFINED KEYS DISPLAY button
1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16 buttons
(w/LED)
MACHINE CONTROL Section LOCATOR DISPLAY button
LOCATE MEMORY: 1, 2, 3, 4, 5, 6, 7, 8, SET buttons (w/LED)
TRANSPORT
CONTROL REW, FF, STOP, PLAY, REC, SHUTTLE, SCRUB (w/LED)
CHANNEL STRIP Section
Encoders x 24 (1–24)
Buttons AUTO x 24 (1–24), SEL x 24 (1–24), SOLO x 24 (1–24), ON x
24 (1–24)
Faders (w/ touch
sense) x 24 (1–24)
MASTER Section
LAYER 1–24, 25–48, MASTER, REMOTE buttons (w/LED)
STEREO AUTO, SEL, ON buttons (w/LED)
Fader (w/touch sense) x 1
DATA ENTRY Section Buttons INC, DEC,
, , , , ENTER buttons
Encoder Parameter wheel

02R96
11
PEAK LED x24 INPUT 1–24
SIGNAL LED x24 INPUT 1–24
DISPLAY CONTROL Section DISPLAY 320 ×240 dot graphic LCD (w/contrast control potentiometer)
SELECTED CHANNEL Section
DYNAMICS GATE, COMP LEDs x2
PAN/SURROUND Pan position LEDs x10
EQUALIZER FREQUENCY, Q LEDs 2 ×4
dB, Hz, kHz 3 ×4
3-digit numeric LEDs x4 (parameter value)
MONITOR Section SOLO LED x1
SCENE MEMORY section Scene memory number 2-digit numeric LED x1
Effect library (EFFECT 1–4) Presets 52 (EFFECT 2–4: 44)
User memories 76
Compressor library Presets 36
User memories 92
Gate library Presets 4
User memories 124
EQ library Presets 40
User memories 160
Channel library Presets 2
User memories 127
Surround Monitor library Presets 1
User memories 32
Input patch library Presets 1
User memories 32
Output patch library Presets 1
User memories 32
Bus to Stereo library Presets 1
User memories 32
Indicators
Analog Section
Digital Section
Libraries

02R96
12
In these specifications, when dB represents a specific voltage, 0 dB is referenced to 0.775 Vrms.
For 2TR IN ANALOG 2 levels, 0 dBV is referenced to 1.00 Vrms.
All input AD converters (except INSERT I/O 1–16) are 24-bit linear, 128-times oversampling.
+48 V DC (phantom power) is supplied to CH INPUT (1–16) XLR type connectors via individual switches.
STEREO OUT [L, R], 0 dBV is referenced to 1.00 Vrms.
In these specifications, when dB represents a specific voltage, 0 dB is referenced to 0.775 Vrms.
All output DA converters (except INSERT OUT 1–16) are 24-bit, 128-times oversampling.
Input PAD GAIN Actual Load
Impedance
For Use
With
Nominal
Input level Connector
Sensitivity
*1
*1. Sensitivity is the lowest level that will produce an output of +4 dB (1.23 V) or the nominal output level when the unit
is set to maximum gain. (All faders and level controls are maximum position.)
Nominal Max.
before clip
INPUT A/B 1–16 0
–60
dB
3k Ω
50–600 Ω
Mics &
600 Ω
Lines
–70 dB
(0.245 mV) –60 dB (0.775 mV) –46 dB (3.88 mV) A: XLR-3-31 type
(Balanced)
*2
*2. XLR-3-31 type connectors are balanced (1=GND, 2=HOT, 3=COLD).
–16
dB
–26 dB
(38.8 mV) –16 dB (0.123 V) –2 dB (616 mV) B: Phone jack (TRS)
(Balanced)
*3
*3. Phone jacks are balanced (Tip=HOT, Ring=COLD, Sleeve=GND).
26 0 dB
(775 mV) +10 dB (2.45 V) +24 dB (12.28 V)
INPUT 17–24 —
–34
dB 4K Ω600 Ω
Lines
–44 dB
(4.89 mV) –34 dB (15.5 mV) –20 dB (77.5 mV) Phone jack (TRS)
(Balanced)
*3
+10
dB 0 dB (775 mV) +10 dB (2.45 V) +24 dB (12.28 V)
INSERT IN 1–16 — 10K Ω600 Ω
Lines –6 dB (388 mV) +4 dB (1.23 V) +18 dB (6.16 V) Phone jack (TRS)
*4
*4. Phone jacks are wired: Tip=OUT, Ring=IN, Sleeve=GND
2TR IN ANALOG
1 [L, R] — 10K Ω600 Ω
Lines +4 dB (1.23 V) +4 dB (1.23 V) +18 dB (6.16 V) Phone jack (TRS)
(Balanced)
*3
2TR IN ANALOG
2 [L, R] — 10K Ω600 Ω
Lines –10 dBV (0.316 V) –10 dBV (0.316 V) +4 dBV (1.58 V) Phono (Unbalanced)
Output Actual Source
Impedance
For Use
With
Nominal GAIN SW
*1
*1. The maximum output level of each OMNI OUT can be set internally.
Output level Connector
Nominal Max. before
clip
STEREO OUT [L, R] 600 Ω10k ΩLines — –10 dBV
(0.316 V) +4 dBV (1.58 V) Phono (Unbalanced)
150 Ω600 ΩLines — +4 dB
(1.23 V) +18 dB (6.16 V) XLR-3-32 type
(Balanced)
*2
*2. XLR-3-32 type connectors are balanced (1=GND, 2=HOT, 3=COLD).
STUDIO MONITOR OUT
[L, R] 150 Ω10k ΩLines — +4 dB
(1.23 V) +18 dB (6.16 V) Phone Jack (TRS)
(Balanced)
*3
*3. Phone jacks are balanced (Tip=HOT, Ring=COLD, Sleeve=GND).
C-R MONITOR OUT [L, R] 150 Ω10k ΩLines — +4 dB
(1.23 V) +18 dB (6.16 V) Phone Jack (TRS)
(Balanced)
*3
OMNI OUT 1–8 150 Ω10k ΩLines
+18 dB
(default) +4 dB (1.23 V) +18 dB (6.16 V) Phone Jack (TRS)
(Balanced)
*3
+4 dB –10 dB
(0.245 V) +4 dB (1.23 V)
INSERT OUT 1–16 600 Ω10k ΩLines — +4 dB
(1.23 V) +18 dB (6.16 V) Phone Jack (TRS)
*4
*4. Phone jacks are wired: Tip=OUT, Ring=IN, Sleeve=GND
PHONES 100 Ω8 ΩPhones — 4 mW 25 mW
Stereo Phone Jack (TRS)
(Unbalanced)
*5
*5. PHONES stereo phone jack is unbalanced (Tip=LEFT, Ring=RIGHT, Sleeve=GND).
40 Ω Phones — 12 mW 75 mW
Analog Input Spec
Analog Output Spec

02R96
13
Digital Input Spec
Digital Output Spec
Input Format Data length Level Connector
2TR IN DIGITAL
1AES/EBU 24-bit RS422 XLR-3-31 type (Balanced)
*1
*1. XLR-3-31 type connectors are balanced (1=GND, 2=HOT, 3=COLD).
2IEC-60958 24-bit 0.5 Vpp/75 ΩPhono
3IEC-60958 24-bit 0.5 Vpp/75 ΩPhono
CASCADE IN — — RS422 D-SUB Half Pitch Connector 68P
(Female)
Output Format Data length Level Connector
2TR OUT DIGITAL
1AES/EBU
*1
Professional use
*1. Channel status of 2TR OUT DIGITAL 1
Type: 2 audio channels
Emphasis: NO
Sampling rate: depends on the internal configuration
24-bit
*2
*2. Dither: word length 16/20/24 bit
RS422
XLR-3-32 type (Balanced)
*3
*3. XLR-3-32 type connectors are balanced (1=GND, 2=HOT, 3=COLD).
2IEC-60958
*4
Consumer use 24-bit
*2
0.5V pp/75 ΩPhono
3IEC-60958
*4
Consumer use
*4. Channel status of 2TR OUT DIGITAL 2, 3
Type: 2 audio channels
Category code: 2 channel PCM encoder/decoder
Copy prohibit: NO
Emphasis: NO
Clock accuracy: Level II (1000 ppm)
Samplin
g
rate: depends on the internal confi
g
uration
24-bit
*2
0.5V pp/75 ΩPhono
CASCADE OUT — — RS422 D-SUB Half Pitch Connec-
tor 68P (Female)

02R96
14
Each I/O SLOT accepts a digital interface card. Only SLOT #1 has a serial interface.
Card Name Function Accept Input Output Number of
available cards
MY8-AT ADAT YES 8 IN 8 OUT (depends on output
patch)
*1
*1. See the Digital I/O chapter.
Details depend on each interface card.
4
MY8-TD TASCAM YES 8 IN 8 OUT (depends on output
patch)
*1
4
MY8-AE AES/EBU YES 8 IN 8 OUT (depends on output
patch)
*1
4
MY4-AD ANALOG IN YES 4 IN — 4
MY8-AD ANALOG IN YES 8 IN — 4
MY4-DA ANALOG OUT YES — 4 OUT (depends on output
patch)
*1
4
MY8-AD24 ANALOG IN YES 8 IN — 4
MY8-AD96 ANALOG IN YES 8 IN — 4
MY8-DA96 ANALOG OUT YES — 8 OUT (depends on output
patch)
*1
4
MY8-AE96S AES/EBU YES 8 IN 8 OUT (depends on output
patch)
*1
2
MY8-AE96 AES/EBU YES 8 IN 8 OUT (depends on output
patch)
*1
4
I/O Port Format Level Connector in Console
TO HOST Serial — RS422 Mini DIN Connector 8P
USB USB 1.1 0 V–3.3 V B type USB connector
MIDI
IN MIDI — DIN Connector 5P
OUT MIDI — DIN Connector 5P
THRU MIDI — DIN Connector 5P
TIME CODE IN MTC MIDI — DIN Connector 5P
SMPTE SMPTE Nominal –10 dB/10k ΩXLR-3-31 type (Balanced)
*1
*1. XLR-3-31 type connectors are balanced (1=GND, 2=HOT, 3=COLD).
WORD CLOCK IN —TTL/75 Ω(ON/OFF)
*2
*2. This switch is on the rear panel.
BNC Connector
OUT — TTL/75 ΩBNC Connector
CONTROL — — D-SUB Connector 25P (Female)
METER — RS422 D-SUB Connector 15P (Female)
I/O Slot Spec (1-4)
Control I/O Spec

02R96
15
CASCADE IN CASCADE OUT
Pin Signal Pin Signal Pin Pin
1 GND 35 GND 1 GND 35 GND
2 INPUT 1-2(+) 36 INPUT 1-2(–) 2 OUTPUT 1-2(+) 36 OUTPUT 1-2(–)
3 INPUT 3-4(+) 37 INPUT 3-4(–) 3 OUTPUT 3-4(+) 37 OUTPUT 3-4(–)
4 INPUT 5-6(+) 38 INPUT 5-6(–) 4 OUTPUT 5-6(+) 38 OUTPUT 5-6(–)
5 INPUT 7-8(+) 39 INPUT 7-8(–) 5 OUTPUT 7-8(+) 39 OUTPUT 7-8(–)
6 INPUT 9-10(+) 40 INPUT 9-10(–) 6 OUTPUT 9-10(+) 40 OUTPUT 9-10(–)
7 INPUT 11-12(+) 41 INPUT 11-12(–) 7 OUTPUT 11-12(+) 41 OUTPUT 11-12(–)
8 INPUT 13-14(+) 42 INPUT 13-14(–) 8 OUTPUT 13-14(+) 42 OUTPUT 13-14(–)
9 INPUT 15-16(+) 43 INPUT 15-16(–) 9 OUTPUT 15-16(+) 43 OUTPUT 15-16(–)
10 DTR IN(+) 44 DTR IN(–) 10 DTR OUT(+) 44 DTR OUT(–)
11 RTS OUT(+) 45 RTS OUT(–) 11 RTS IN(+) 45 RTS IN(–)
12 GND 46 GND 12 GND 46 GND
13 WORD CLOCK IN(+) 47 WORD CLOCK IN(–) 13 WORD CLOCK OUT(+) 47 WORD CLOCK OUT(–)
14 WORD CLOCK OUT(+) 48 WORD CLOCK OUT(–) 14 WORD CLOCK IN(+) 48 WORD CLOCK IN(–)
15 CONTROL IN(+) 49 CONTROL IN(–) 15 CONTROL OUT(+) 49 CONTROL OUT(–)
16 CONTROL OUT(+) 50 CONTROL OUT(–) 16 CONTROL IN(+) 50 CONTROL IN(–)
17 GND 51 ID6 IN 17 GND 51 ID6 OUT
18 GND 52 ID6 OUT 18 GND 52 ID6 IN
19 INPUT 17-18(+) 53 INPUT 17-18(–) 19 OUTPUT 17-18(+) 53 OUTPUT 17-18(–)
20 INPUT 19-20(+) 54 INPUT 19-20(–) 20 OUTPUT 19-20(+) 54 OUTPUT 19-20(–)
21 INPUT 21-22(+) 55 INPUT 21-22(–) 21 OUTPUT 21-22(+) 55 OUTPUT 21-22(–)
22 INPUT 23-24(+) 56 INPUT 23-24(–) 22 OUTPUT 23-24(+) 56 OUTPUT 23-24(–)
23 RESERVED 57 RESERVED 23 RESERVED 57 RESERVED
24 RESERVED 58 RESERVED 24 RESERVED 58 RESERVED
25 RESERVED 59 RESERVED 25 RESERVED 59 RESERVED
26 RESERVED 60 RESERVED 26 RESERVED 60 RESERVED
27 ID0 IN 61 ID1 IN 27 ID0 OUT 61 ID1 OUT
28 ID2 IN 62 ID3 IN 28 ID2 OUT 62 ID3 OUT
29 ID4 IN 63 ID5 IN 29 ID4 OUT 63 ID5 OUT
30 ID0 OUT 64 ID1 OUT 30 ID0 IN 64 ID1 IN
31 ID2 OUT 65 ID3 OUT 31 ID2 IN 65 ID3 IN
32 ID4 OUT 66 ID5 OUT 32 ID4 IN 66 ID5 IN
33 MSB IN 67 2CH/LINE IN 33 MSB OUT 67 2CH/LINE OUT
34 FG 68 FG 34 FG 68 FG
Pin Pin
1 GPO0 14 GPO1
2 GPO2 15 GPO3
3 GPO4 16 GPO5
4 GPO6 17 GPO7
5 GND 18 GND
6 GND 19 GND
7 GND 20 GND
8 GND 21 +5V
9 +5V 22 GPI0
10 GPI1 23 N.C.
11 N.C. 24 SOLO
*1
12 SMODE
*1
*1. For 02R SOLO control.
25 MAS/SLV
*1
13 SPARE
*1
Signal Signal
Signal Signal
Connector Pin Assignments
MB02R96
Dimensions (W X H X D): 667 X 124 X 95 mm
Weight: 2.8 kg
CONTROL Port

02R96 16
DIMENSIONS
Top view Side view
697 mm
667 mm
239 mm
25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48
49 50 51 52 53 54 55 56 AUX 1AUX 2 AUX 3 AUX 4 AUX 5 AUX 6 AUX 7 AUX 8 BUS 1 BUS 2 BUS 3 BUS 4 BUS 5 BUS 6 BUS 7 BUS 8
PHONES
LEVEL
010
010
STUDIO
LEVEL
PHONES
23
24
21
22
GAIN 34
10
+
GAIN 34
10
+
GAIN 34
10
+
GAIN 34
10
+
GAIN 34
10
+
GAIN 34
10
+
GAIN 34
10
+
GAIN 34
10
+
20
19
PEAK
SIGNAL
PEAK
SIGNAL
PEAK
SIGNAL
PEAK
SIGNAL
1 9 10 11 12 13 14 15 16
ON
OFF
OFF
ON
26dB
-16 -60
GAIN
PEAK
SIGNAL
INSERT
+48V
2
ON
OFF
OFF
ON
26dB
-16 -60
GAIN
PEAK
SIGNAL
INSERT
+48V
3
ON
OFF
OFF
ON
26dB
-16 -60
GAIN
PEAK
SIGNAL
INSERT
+48V
4
ON
OFF
OFF
ON
26dB
-16 -60
GAIN
PEAK
SIGNAL
INSERT
+48V
5
ON
OFF
OFF
ON
26dB
-16 -60
GAIN
PEAK
SIGNAL
INSERT
+48V
6
ON
OFF
OFF
ON
26dB
-16 -60
GAIN
PEAK
SIGNAL
INSERT
+48V
7
ON
OFF
OFF
ON
26dB
-16 -60
GAIN
PEAK
SIGNAL
INSERT
+48V
8
ON
OFF
OFF
ON
26dB
-16 -60
GAIN
PEAK
SIGNAL
INSERT
+48V ON
OFF
OFF
ON
26dB
-16 -60
GAIN
PEAK
SIGNAL
INSERT
+48V ON
OFF
OFF
ON
26dB
-16 -60
GAIN
PEAK
SIGNAL
INSERT
+48V ON
OFF
OFF
ON
26dB
-16 -60
GAIN
PEAK
SIGNAL
INSERT
+48V ON
OFF
OFF
ON
26dB
-16 -60
GAIN
PEAK
SIGNAL
INSERT
+48V ON
OFF
OFF
ON
26dB
-16 -60
GAIN
PEAK
SIGNAL
INSERT
+48V ON
OFF
OFF
ON
26dB
-16 -60
GAIN
PEAK
SIGNAL
INSERT
+48V ON
OFF
OFF
ON
26dB
-16 -60
GAIN
PEAK
SIGNAL
INSERT
+48V ON
OFF
OFF
ON
26dB
-16 -60
GAIN
PEAK
SIGNAL
INSERT
+48V
DISPLAY
STUDIO
AUX7 AUX8
SOLO
CONTROL
ROOM STEREO
BUS SLOT
CONTROL ROOM
2TR D1 2TR A1
2TR D2 2TR A2
2TR D3 STEREO
ASSIGN1ASSIGN2
SURROUND
CLEAR
DIMMER
CONTROL ROOM LEVEL
100
100
TALKBA CK
SURROUND MONITOR LEVEL
EQUALIZER
EQ ON
LOW
Q
FREQUENCY
Q
FREQUENCY
Q
FREQUENCY
Q
FREQUENCY
DISPLAY
GAIN
LOW MID
GAIN
HIGH MID
GAIN
HIGH
GAIN
GATE ON COMP ON GATE
COMP
RANGE
RATIO
ATTA CK
ATTA CKTHRESHOLD
THRESHOLD
DYNAMICS
DISPLAY
GATE / COMP DECAY
RELEASE
HOLD
GAIN
SELECTED CHANNEL
LINK GRAB EFFECT
LEVEN R
LR
PAN / SUR ROUND
DISPLAY
ODD
DISPLAY ACCESS
PHASE /
INSERT DELAY
12
34
56
78
STEREOFOLLOW PAN DIRECT
DISPLAY
ROUTING
SCENE MEMORY
DISPLAY
STORE RECALL
USER DEFINED KEYS
12345678
910111213141516
DISPLAY
REC
REW FF
STOP PLAY
SET
DISPLAY
MACHINE CONTROL
LOCATE MEMORY
1234
5678
INCDEC
ENTER
SHUTTLE
SCRUB
ON
SEL
AUTO
70
60
50
40
30
20
15
10
5
0
STEREO
1 2 3 4 5 6 7 8 9 10111213141516 1718192021222324
ON
SOLO
SEL
AUTO
AUTOMIX DIO SETUP UTILITY
MIDI REMOTE METER VIEW
PAIR GROUP INPUT
PATCH OUTPUT PATCH
DISPLAY ACCESS
AUX 2AUX 1AUX 3AUX 4
AUX 6AUX 5AUX 7AUX 8
AUX SELECT
DISPLAY
AUXPAN ASSIGN 2ASSIGN 1
ENCODER MODE
DISPLAY
AUXFADER
FADER MODE
EFFECTS / PLUG INS
INTERNAL
EFFECTS CHANNEL INSERTS
PLUG INS
1234
DISPLAY
dB
Hz
kHz
dB
Hz
kHz
dB
Hz
kHz
dB
Hz
kHz
STEREO
12345678 9101112131415161718192021222324
50
40
30
20
15
10
10
5
0
5
50
40
30
20
15
10
10
5
0
5
50
40
30
20
15
10
10
5
0
5
50
40
30
20
15
10
10
5
0
5
50
40
30
20
15
10
10
5
0
5
50
40
30
20
15
10
10
5
0
5
50
40
30
20
15
10
10
5
0
5
50
40
30
20
15
10
10
5
0
5
50
40
30
20
15
10
10
5
0
5
50
40
30
20
15
10
10
5
0
5
50
40
30
20
15
10
10
5
0
5
50
40
30
20
15
10
10
5
0
5
50
40
30
20
15
10
10
5
0
5
50
40
30
20
15
10
10
5
0
5
50
40
30
20
15
10
10
5
0
5
50
40
30
20
15
10
10
5
0
5
50
40
30
20
15
10
10
5
0
5
50
40
30
20
15
10
10
5
0
5
50
40
30
20
15
10
10
5
0
5
50
40
30
20
15
10
10
5
0
5
50
40
30
20
15
10
10
5
0
5
50
40
30
20
15
10
10
5
0
5
50
40
30
20
15
10
10
5
0
5
50
40
30
20
15
10
10
5
0
5
17 18
18
17
19 20 21 22 23 24
MONITOR
DIGITALMIXING CONSOLE
ON
SOLO
SEL
AUTO
ON
SOLO
SEL
AUTO
ON
SOLO
SEL
AUTO
ON
SOLO
SEL
AUTO
ON
SOLO
SEL
AUTO
ON
SOLO
SEL
AUTO
ON
SOLO
SEL
AUTO
ON
SOLO
SEL
AUTO
ON
SOLO
SEL
AUTO
ON
SOLO
SEL
AUTO
ON
SOLO
SEL
AUTO
ON
SOLO
SEL
AUTO
ON
SOLO
SEL
AUTO
ON
SOLO
SEL
AUTO
ON
SOLO
SEL
AUTO
ON
SOLO
SEL
AUTO
ON
SOLO
SEL
AUTO
ON
SOLO
SEL
AUTO
ON
SOLO
SEL
AUTO
ON
SOLO
SEL
AUTO
ON
SOLO
SEL
AUTO
ON
SOLO
SEL
AUTO
ON
SOLO
SEL
AUTO
PAD
MASTER25 48
REMOTE1 24
LAYER
010
TALKBACK LEVEL

17
02R96
Control Panel
PANEL LAYOUT
02R96
25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48
49 50 51 52 53 54 55 56 AUX 1AUX 2 AUX 3 AUX 4 AUX 5 AUX 6 AUX 7 AUX 8 BUS 1 BUS 2 BUS 3 BUS 4 BUS 5 BUS 6 BUS 7 BUS 8
PHONES
LEVEL
010
010
010
TALKBACK LEVEL
STUDIO
LEVEL
PHONES
23
24
21
22
GAIN 34
10
+
GAIN 34
10
+
GAIN 34
10
+
GAIN 34
10
+
GAIN 34
10
+
GAIN 34
10
+
GAIN 34
10
+
GAIN 34
10
+
20
19
PEAK
SIGNAL
PEAK
SIGNAL
PEAK
SIGNAL
PEAK
SIGNAL
1 9 10 11 12 13 14 15 16
ON
OFF
OFF
ON
26dB
-16 -60
GAIN
PEAK
SIGNAL
INSERT
+48V
2
ON
OFF
OFF
ON
26dB
-16 -60
GAIN
PEAK
SIGNAL
INSERT
+48V
3
ON
OFF
OFF
ON
26dB
-16 -60
GAIN
PEAK
SIGNAL
INSERT
+48V
4
ON
OFF
OFF
ON
26dB
-16 -60
GAIN
PEAK
SIGNAL
INSERT
+48V
5
ON
OFF
OFF
ON
26dB
-16 -60
GAIN
PEAK
SIGNAL
INSERT
+48V
6
ON
OFF
OFF
ON
26dB
-16 -60
GAIN
PEAK
SIGNAL
INSERT
+48V
7
ON
OFF
OFF
ON
26dB
-16 -60
GAIN
PEAK
SIGNAL
INSERT
+48V
8
ON
OFF
OFF
ON
26dB
-16 -60
GAIN
PEAK
SIGNAL
INSERT
+48V ON
OFF
OFF
ON
26dB
-16 -60
GAIN
PEAK
SIGNAL
INSERT
+48V ON
OFF
OFF
ON
26dB
-16 -60
GAIN
PEAK
SIGNAL
INSERT
+48V ON
OFF
OFF
ON
26dB
-16 -60
GAIN
PEAK
SIGNAL
INSERT
+48V ON
OFF
OFF
ON
26dB
-16 -60
GAIN
PEAK
SIGNAL
INSERT
+48V ON
OFF
OFF
ON
26dB
-16 -60
GAIN
PEAK
SIGNAL
INSERT
+48V ON
OFF
OFF
ON
26dB
-16 -60
GAIN
PEAK
SIGNAL
INSERT
+48V ON
OFF
OFF
ON
26dB
-16 -60
GAIN
PEAK
SIGNAL
INSERT
+48V ON
OFF
OFF
ON
26dB
-16 -60
GAIN
PEAK
SIGNAL
INSERT
+48V
DISPLAY
STUDIO
AUX7 AUX8
SOLO
CONTROL
ROOM STEREO
BUS SLOT
CONTROL ROOM
2TR D1 2TR A1
2TR D2 2TR A2
2TR D3 STEREO
ASSIGN1ASSIGN2
SURROUND
CLEAR
DIMMER
CONTROL ROOM LEVEL
100
100
TALKBACK
SURROUND MONITOR LEVEL
EQUALIZER
EQ ON
LOW
Q
FREQUENCY
Q
FREQUENCY
Q
FREQUENCY
Q
FREQUENCY
DISPLAY
GAIN
LOW MID
GAIN
HIGH MID
GAIN
HIGH
GAIN
GATE ON COMP ON GATE
COMP
RANGE
RATIO
ATTACK
ATTACKTHRESHOLD
THRESHOLD
DYNAMICS
DISPLAY
GATE / COMP DECAY
RELEASE
HOLD
GAIN
SELECTED CHANNEL
LINK GRAB EFFECT
LEVEN R
LR
PAN / SURROUND
DISPLAY
ODD
DISPLAY ACCESS
PHASE /
INSERT DELAY
12
34
56
78
STEREOFOLLOW PAN DIRECT
DISPLAY
ROUTING
SCENE MEMORY
DISPLAY
STORE RECALL
USER DEFINED KEYS
12345678
9 10111213141516
DISPLAY
REC
REW FF
STOP PLAY
SET
DISPLAY
MACHINE CONTROL
LOCATE MEMORY
1234
5678
INCDEC
ENTER
SHUTTLE
SCRUB
ON
SEL
AUTO
70
60
50
40
30
20
15
10
5
0
STEREO
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
ON
SOLO
SEL
AUTO
AUTOMIX DIO SETUP UTILITY
MIDI REMOTE METER VIEW
PAIR GROUP INPUT
PATCH OUTPUT PATCH
DISPLAY ACCESS
AUX 2AUX 1AUX 3AUX 4
AUX 6AUX 5AUX 7AUX 8
AUX SELECT
DISPLAY
AUXPAN ASSIGN 2ASSIGN 1
ENCODER MODE
DISPLAY
AUXFADER
FADER MODE
EFFECTS / PLUG INS
INTERNAL
EFFECTS CHANNEL INSERTS
PLUG INS
1234
DISPLAY
dB
Hz
kHz
dB
Hz
kHz
dB
Hz
kHz
dB
Hz
kHz
STEREO
12345678 9101112131415161718192021222324
50
40
30
20
15
10
10
5
0
5
50
40
30
20
15
10
10
5
0
5
50
40
30
20
15
10
10
5
0
5
50
40
30
20
15
10
10
5
0
5
50
40
30
20
15
10
10
5
0
5
50
40
30
20
15
10
10
5
0
5
50
40
30
20
15
10
10
5
0
5
50
40
30
20
15
10
10
5
0
5
50
40
30
20
15
10
10
5
0
5
50
40
30
20
15
10
10
5
0
5
50
40
30
20
15
10
10
5
0
5
50
40
30
20
15
10
10
5
0
5
50
40
30
20
15
10
10
5
0
5
50
40
30
20
15
10
10
5
0
5
50
40
30
20
15
10
10
5
0
5
50
40
30
20
15
10
10
5
0
5
50
40
30
20
15
10
10
5
0
5
50
40
30
20
15
10
10
5
0
5
50
40
30
20
15
10
10
5
0
5
50
40
30
20
15
10
10
5
0
5
50
40
30
20
15
10
10
5
0
5
50
40
30
20
15
10
10
5
0
5
50
40
30
20
15
10
10
5
0
5
50
40
30
20
15
10
10
5
0
5
17 18
18
17
19 20 21 22 23 24
MONITOR
DIGITALMIXING CONSOLE
ON
SOLO
SEL
AUTO
ON
SOLO
SEL
AUTO
ON
SOLO
SEL
AUTO
ON
SOLO
SEL
AUTO
ON
SOLO
SEL
AUTO
ON
SOLO
SEL
AUTO
ON
SOLO
SEL
AUTO
ON
SOLO
SEL
AUTO
ON
SOLO
SEL
AUTO
ON
SOLO
SEL
AUTO
ON
SOLO
SEL
AUTO
ON
SOLO
SEL
AUTO
ON
SOLO
SEL
AUTO
ON
SOLO
SEL
AUTO
ON
SOLO
SEL
AUTO
ON
SOLO
SEL
AUTO
ON
SOLO
SEL
AUTO
ON
SOLO
SEL
AUTO
ON
SOLO
SEL
AUTO
ON
SOLO
SEL
AUTO
ON
SOLO
SEL
AUTO
ON
SOLO
SEL
AUTO
ON
SOLO
SEL
AUTO
PAD
MASTER25 48
REMOTE1 24
LAYER
AD Input Section (p. 18)
Channel strips (p. 18)
MACHINE CONTROL (p. 24)
AUX SELECT (p. 19)
FADER MODE (p. 19)
ENCODER MODE (p. 19)
DISPLAY ACCESS (p. 19)
EFFECTS/PLUG-INS (p. 20)
Display Section (p. 20) SELECTED CHANNEL Section (p. 21)
LAYER (p. 23) STEREO (p. 23)
Data Entry & Transport (p. 24)
Monitor , Phones & Talkback
Section (p. 25)
MONITOR Section (p.25)
SCENE MEMORY (p. 23)
USER DEFINED KEYS (p. 24)

02R96
18
q[+48V ON/OFF] switches
(AD 1–16)
w[PAD] switches (AD 1–16)
e[GAIN] controls
r[PEAK] indicators
t[SIGNAL] indicators
y[INSERT ON/OFF] switches
(AD 1–16)
AD Input Section
Channel strips
qEncoders
w[AUTO] buttons
e[SEL] buttons
r[SOLO] buttons
t[ON] buttons
yChannel faders
1
ON
OFF
OFF
ON
26dB
-16 -60
GAIN
PEAK
SIGNAL
INSERT
+48V
PAD
GAIN 34
10
+
GAIN 34
10
+
PEAK
SIGNAL
17 18
18
17
q
w
e
r
t
e
r
t
y
25
49
1
1
50
40
30
20
15
10
10
5
0
5
ON
SOLO
SEL
AUTO
q
w
e
r
t
y

19
02R96

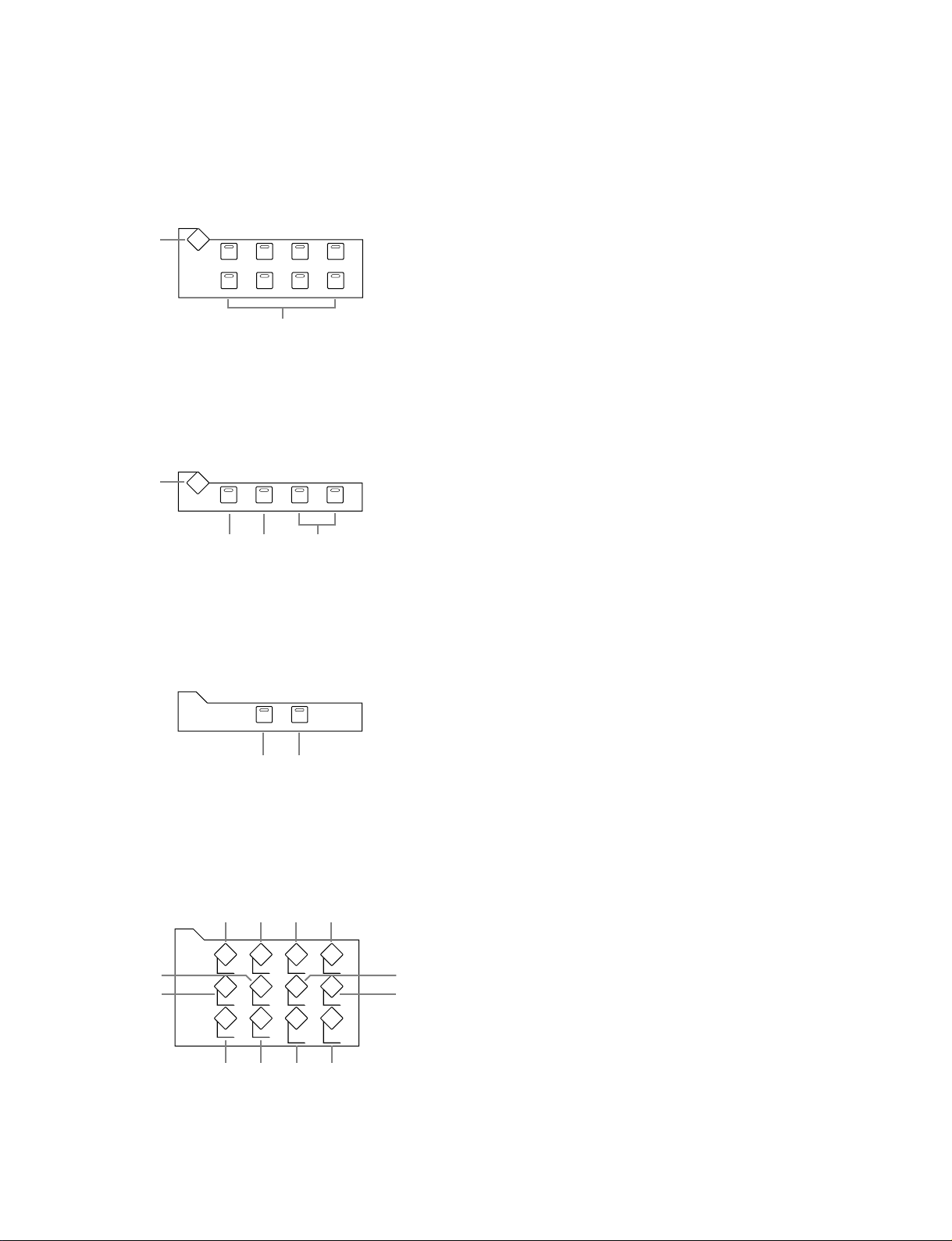

AUX SELECT
qAUX SELECT [DISPLAY] button
w[AUX 1]–[AUX 8] buttons
ENCODER MODE
qENCODER MODE [DISPLAY] button
w[PAN] button
e[AUX] button
r[ASSIGN 1] & [ASSIGN 2] buttons
FADER MODE
q[FADER] button
w[AUX] button
DISPLAY ACCESS
q[AUTOMIX] button
w[DIO] button
e[SETUP] button
r[UTILITY] button
t[REMOTE] button
y[MIDI] button
u[METER] button
i[VIEW] button
o[PAIR] button
!0 [GROUP] button
!1 [INPUT PATCH] button
!2 [OUTPUT PATCH] button
AUX 2 AUX 1 AUX 3 AUX 4
AUX 6 AUX 5 AUX 7 AUX 8
AUX SELECT
DISPLAY
q
w
AUXPAN
ASSIGN 2 ASSIGN 1
ENCODER MODE
DISPLAY
q
wer
AUXFADER
FADER MODE
qw
AUTOMIX DIO SETUP UTILITY
MIDI REMOTE METER VIEW
PAIR GROUP INPUT
PATCH OUTPUT PATCH
DISPLAY ACCESS
o
y
t
i
u
qwer
!0 !2!1

02R96
20
EFFECTS/PLUG-INS
qEFFECTS/PLUG-INS [DISPLAY] button
w[INTERNAL EFFECTS] button
e[PLUG-INS] button
r[CHANNEL INSERTS] button
tEFFECTS/PLUG-INS [1]–[4] buttons
yParameter Up/Down buttons
uParameter controls [1]–[4]
Display Section
qDisplay
wContrast control
e[F1]–[F4] buttons
rLeftTab Scroll button
tRightTab Scroll button
EFFECTS / PLUG INS
INTERNAL
EFFECTS CHANNEL INSERTS
PLUG INS
1234
DISPLAY
wer
t
q
yu
qw
e
rt
