Yamaha AW2816 User manual

AW2816
1
SERVICE MANUAL
PA 011573 1.386K-3012 Printed in Japan ’01.08
HAMAMATSU, JAPAN
CONTENTS
DIMENSIONS ............................................................ 3
SPECIFICATIONS ................................................4/8
PANEL LAYOUT .................................. 12
CIRCUIT BOARD LAYOUT ............... 18
BLOCK DIAGRAM .......................... 20
DISASSEMBLY PROCEDURE ............................ 25
INSTALLING AN INTERNAL HARD DISK
......................................... 29
INSTALLING A CD-RW DRIVE.............................................. 32
INSTALLING I/O CARD ................. 36
LSI PIN DESCRIPTION ................................ 37
IC BLOCK DIAGRAM .................................. 47
CIRCUIT BOARDS ....................................... 50
TEST PROGRAM .............................62/70
DISPLAY MESSAGE LIST ....................................78/82
MIDI IMPLEMENTATION CHART......................................... 86
PARTS LIST
OVERALL CIRCUIT DIAGRAM
SOFTWARE BLOCK DIAGRAM
WIRING
This document is printed on chlorine free (ECF) paper with soy ink.
PROFESSIONAL AUDIO WORKSTATION

AW2816
2
IMPOR TANT NOTICE FOR THE UNITED KINGDOM
Connecting the Plug and CoConnecting the Plug and Co
Connecting the Plug and CoConnecting the Plug and Co
Connecting the Plug and Corr
rr
rdd
dd
d
IMPORTANT. The wires in this main lead are coloured in
accordance with the following code:
BLUE: NEUTRAL
BROWN: LIVE
As the colours of the wires in the main lead of this apparatus may not
correspond with the coloured markings identifying the terminals in
your plug, proceed as follows:
The BLUE wire must be connected to the terminal that is marked with
the letter N (or coloured BLACK).
The BROWN wire must be connected to the terminal that is marked
with the letter L (or coloured RED).
Be certain that neither core is connected to the earth terminal of the
three pin plug.
IMPOR TANT NOTICE
This manual has been provided for the use of authorized Yamaha Retailers and their service personnel. It has been assumed
that basic service procedures inherent to the industry, and more specifically Yamaha Products, are already known and under-
stood by the users, and have therefore not been restated.
WARNING : Failure to follow appropriate service and safety procedures when servicing this product may result in per-
sonal injury, destruction of expensive components and failure of the product to perform as specified. For
these reasons, we advise all Yamaha product owners that all service required should be performed by an
authorized Yamaha Retailer or the appointed service representative.
IMPORTANT : This presentation or sale of this manual to any individual or firm does not constitute authorization certifi-
cation, recognition of any applicable technical capabilities, or establish a principal-agent relationship of
any form.
The data provided is belived to be accurate and applicable to the unit(s) indicated on the cover. The research engineering, and
service departments of Yamaha are continually striving to improve Yamaha products. Modifications are, therefore, inevitable
and changes in specification are subject to change without notice or obligation to retrofit. Should any discrepancy appear to
exist, please contact the distributor’s Service Division.
WARNING : Static discharges can destroy expensive components. Discharge any static electricity your body may have
accumulated by grounding yourself to the ground bus in the unit (heavy gauge black wires connect to
this bus.)
IMPORTANT : Turn the unit OFF during disassembly and parts replacement. Recheck all work before you apply power
to the unit.
WARNING: CHEMICAL CONTENT NOTICE!
The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (Where
applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly
other entities) to cause cancer and/or birth defects or other reproductive harm.
DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON WHAT
SO EVER!
Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose
eyes to solder/flux vapor!
If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling
food.
WARNING
Components having special characteristics are marked and must be replaced with parts having specification equal to those
originally installed.

AW2816
3
LITHIUM BA TTERY HANDLING
This product uses a lithium battery for memory back-up.
WARNING : Lithium batteries are dangerous because they can be exploded by improper handling. Observe the following pre-
cautions when handling or replacing lithium batteries.
Leave lithium battery replacement to qualified service personnel.
Always replace with batteries of the same type.
When installing on the PC board by soldering, solder using the connection terminals provided on the battery cells.
Never solder directly to the cells. Perform the soldering as quickly as possible.
Never reverse the battery polarities when installing.
Do not short the batteries.
Do not attempt to recharge these batteries.
Do not disasemble the batteries.
Never heat batteries or throw them into fire.
ADVARSEL!
Lithiumbatteri-Eksplosionsfare ved fejlagtig handtering. Udskiftning ma kun ske med batteri af samme fabrikat og type. lever det brugte
batteri tilbage til leverandren.
VARNING
Explosionsfara vid felaktigt batteribyte.
Anvand samma batterityp eller en ekvivalent typ som rekommenderas av apparattillverkaren.
Kassera anvant batteri enligt fabrikantens instruktion.
VAROITUS
Paristo voi rajahtaa, jos se on virheellisesti asennettu.
Vaihda paristo ainoastaan laitevalmistajan suosittelemaan tyyppiiin.
Havita kaytetty paristo valmistajan ohjeiden mukaisesti.
The following information complies with Dutch official Gazette 1995. 45; ESSENTIALS OF ORDER ON THE COLLECTION OF BATTERIES.
• Please refer to the diassembly procedure for the removal of Back-up Battery.
• Leest u voor het verwijderen van de backup batterij deze beschrijving.
IC with internal lithium battery
(DS12887)REAL TIME CLOCK
Part No.XV618A00
MAIN Circuit Board IC608
DIMENSIONS
480
428.9
141 7.6
Units: mm

AW2816
4
SPECIFICATIONS
General Specifications
Frequency Response 0 +1/-3 dB
(MIC/LINE IN - STEREO OUT)
20 Hz~20 kHz
(Nominal input/Output level)
20 kHz LPF
Dynamic range 109 dB typ.
103 dB min.
104 dB typ.
98 dB min.
DA converter (STEREO OUT)
DA converter (STEREO OUT)
AD + DA (LINE IN to STEREO OUT)
AD + DA (LINE IN to STEREO OUT)
(Maximum level to Noise level)
20 kHz LPF, IHF-A
AD converter 24-bit linear, 64-times oversampling
DA converter 24-bit linear, 128-times oversampling
Internal processing 32-bit
Sampling frequency Internal 44.1 kHz ( 6%)/48 kHz ( 6%)
External 44.1 kHz (-6%) to 48 kHz (+6%)
Audio input section max. 18 channels
8 channels
2 channels (stereo ×1)
max. 8 channels
MIC/LINE
DIGITAL STEREO IN
mini YGDAI card (option)
Audio output section max. 20 channels
2 channels (stereo ×1)
4 channels
2 channels (stereo ×1)
2 channels (stereo ×1)
2 channels (stereo ×1)
max. 8 channels
STEREO OUT
OMNI OUT
MONITOR OUT
PHONES
DIGITAL STEREO OUT
mini YGDAI card (option)
Mixing layer section 28 channels
8 channels
4 channels (stereo ×2)
16 channels (16 track direct out playback), or stereo
2 channels (stereo track playback)
Input channel
Internal effect return
Playback
Internal effects section
Multi-effects ×2
Bus section 18 channels
8 channels
6 channels
2 channels (stereo ×1)
2 channels (stereo ×1)
Bus
Aux
Stereo
Solo
Less than 0.02% 1 kHz (LINE IN to STEREO OUT)
Less than 0.2% 1 kHz (MIC IN to STEREO OUT)
Total harmonic distortion
Recorder section
Recording medium
Sound file format
Recording resolution
Sampling frequency
Tracks
Maximum recording time
2.5" IDE hard disk drive
AW2816 original format
16-bit, 24-bit
44.1 kHz/48 kHz
130 tracks
(16 tracks ×8 virtual tracks plus stereo track)
Approx. 230 min
(44.1 kHz, 16-bit, 16 tracks, 20 GB hard disk)
Power requirements U.S.A. & Canada 110-120V 65W, 50/60 Hz
Europe 220-240V 65W, 50 Hz
Dimensions (W ×H ×D) 480.0 ×141.0 ×428.9 mm
(18.9 × 5.5 ×16.9 inches)
Weight 9.5 kg (20.9 lbs)
Operating temperature range 5 to 35 C
Options 2.5" hard disk (HDD25-20G/DARA-212000), mini
YGDAI cards (MY8-AT, MY8-TD, MY8-AE, MY8-AD,
MY4-AD, MY4-DA, AP8-AD, AP8-DA), Footswitch
FC5, CD-RW drive

AW2816
5
Mixer section
Input/output
MIC/LINE input Channel 1, 2 (balanced, XLR-type, TRS phone jack)
-3 dB (clipping level)
3 kΩ
-46 dB to +4 dB
-52 dB
+22 dB
+48V DC phantom powering
PEAK LED
Input impedance
Nominal input level
Minimum input level
Maximum input level
MIC/LINE input channel 3-8 (balanced,TRS phone jack)
-3 dB (clipping level)
3 kΩ
-46 dB to +4 dB
-52 dB
+22 dB
PEAK LED
Input impedance
Nominal input level
Minimum input level
Maximum input level
MIC/LINE input (Hi-Z) channel 8 (unbalanced, phone jack)
500 kΩ
-46 dB to +4 dB
-52 dB
+20 dB
Input impedance
Nominal input level
Minimum input level
Maximum input level
STEREO OUT L, R (unbalanced, phono)
1 kΩ
10 kΩ
-10 dBV
+8 dBV
Output impedance
Nominal load impedance
Nominal output level
Maximum output level
MONITOR OUT L, R (balanced, TRS phone jack)
150Ω
10 kΩ
+4 dB
+22 dB
Output impedance
Nominal load impedance
Nominal output level
Maximum output level
OMNI OUT 1-4 (unbalanced, phone jack)
1 kΩ
10 kΩ
0 dB
+18 dB
Output impedance
Nominal load impedance
Nominal output level
Maximum output level
PHONES (unbalanced, TRS phone jack)
8-40 Ω
100 mW + 100 mW (40 Ωload)
Nominal load impedance
Maximum output level
DIGIT AL STEREO I/O Coaxial (phono)
Option card slot Slot ×1
MY8-AT (Adat)
MY8-TD (Tascam)
MY8-AE (AES/EBU)
MY8-AD (TRS phone jack ×8)
MY4-AD (XLR-type ×4)
AP8-AD (Apogee)
MY4-DA (XLR-type ×4)
AP8-DA (Apogee)
* 0 dB= 0.775Vrms, 0 dBV= 1.0Vrms
Digital I/O
Analog input
Analog output

AW2816
6
Digital mixer
Input channel (channel 1-8, playback 1-16)
Attenuator, Phase (normal, reverse), EQ (4-band
PEQ), Dynamics, Delay, On/Off, Fader (60 mm
motorized), Pan, Bus assign (stereo, bus, aux, solo,
direct out)
Internal effects return Attenuator, Phase (normal, reverse), EQ (4-band
PEQ), Delay, On/Off, Fader (60 mm motorized), Pan,
Bus assign (stereo, bus, aux, solo)
BusStereo L, R
Bus 1-8
Aux 1-6
Solo L, R
Attenuator, EQ (4-band PEQ), Dynamics, On/Off,
Fader (60 mm motorized), Balance
Attenuator
Attenuator
Fader 60 mm motorized ×9
Recorder section
General
Recording resolution 16-bit, 24-bit (set per song)
Sampling frequency 44.1 kHz, 48 kHz (set per song)
Maximum track of recording/ 16 Bit: 8 Tracks, Recording & 16Tracks, Playback
Playback simultaneously 24 Bit: 16 Tracks, Recording + Playback
Tracks 130 tracks (16 tracks ×8 virtual tracks plus stereo
track)
Format
File system AW2816 original format
Internal hard disk drive 2.5" IDE
64 GB/6.4 GB per 1 song
Approx. 30,000 songs
Max. hard disk capacity
Max. songs per hard disk
Edit
Song edit Name, Comment, Delete, Copy, Optimize, Protect,
Fade In/Out, Import
Track edit Name, Erase, Copy, Exchange, Slip,Time Compres-
sion/Expansion, Pitch Change, Import, Append, Export
Part edit Erase, Delete, Copy, Move, Insert, Time Compres-
sion/Expansion, Pitch Change, Export, Append
Region edit Name, Erase, Delete, Copy, Move, Divide, Trim In/
Out, Time Compression/Expansion, Pitch Change,
Import, Export
Others
Locate Direct locate:
Quick locate: data entry search (time, measure) Start, End, RTZ,A/B, Last REC In/
Out, Roll Back
Punch I/O Manual Punch I/O, Auto Punch I/O

AW2816
7
Controls
Analog section
Input (channel 1-8)
Input (channel 1, 2)
Output
Gain (variable)
+48V (phantom switch)
Phones level, monitor out level
Mixer section
WORK NAVIGATE buttons
UNIT buttons
MIXER buttons
FADERMODEbuttons
MIXINGLAYERbuttons
ON&SELbuttons,Faders
ON&SELbuttons,Encoder
SOLO buttons
Function buttons
SONG, FILE, CD, QUICK REC
SETUP, UTILITY, MIDI, PATCH
VIEW, PAN, EQ, DYN
AUX1,AUX2, AUX3,AUX4,AUX5,AUX6,REMOTE,
HOME
1-8 (INPUT), 1-8 (RECORDER), 9-16 (RECORDER)
INPUT 1-8, RECORDER 1-8, RECORDER 9-16,
STEREO
RTN1, RTN2
SHIFT, F1, F2, F3, F4, F5, CTRL
Recorder section
TRACK CUE button
METER button
REC TRACK SELECT buttons 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, ST,
ALL SAFE
RECORDER buttons TRACK, EDIT
Locate buttons NUM LOC ATE, , , MARK, AUTO PUNCH, IN,
OUT, SET, REPEAT, A, B, ROLL BACK, , RTZ,
, CANCEL
Transport buttons REW, FF, STOP, PLAY, REC
Others
AUTOMATION button AUTOMIX, SCENE
SCENE MEMORY button STORE, -, +, RECALL
UNDO button
REDO button
JOG ON button
CURSOR button , , ,
DATA ENTRY button JOG/SHUTTLE dial
ENTER button
Display 320 ×240 dots graphical LCD (with contrast control)
Control I/O
MIDI IN 5-pin DIN
MIDI OUT/THRU 5-pin DIN
MTC OUT 5-pin DIN
TO HOST 8-pin mini DIN
SCSI 50-pin half pitch D-Sub
Foot switch Phone
j
ack

AW2816
8

AW2816
9

AW2816
10

AW2816
11

AW2816
12

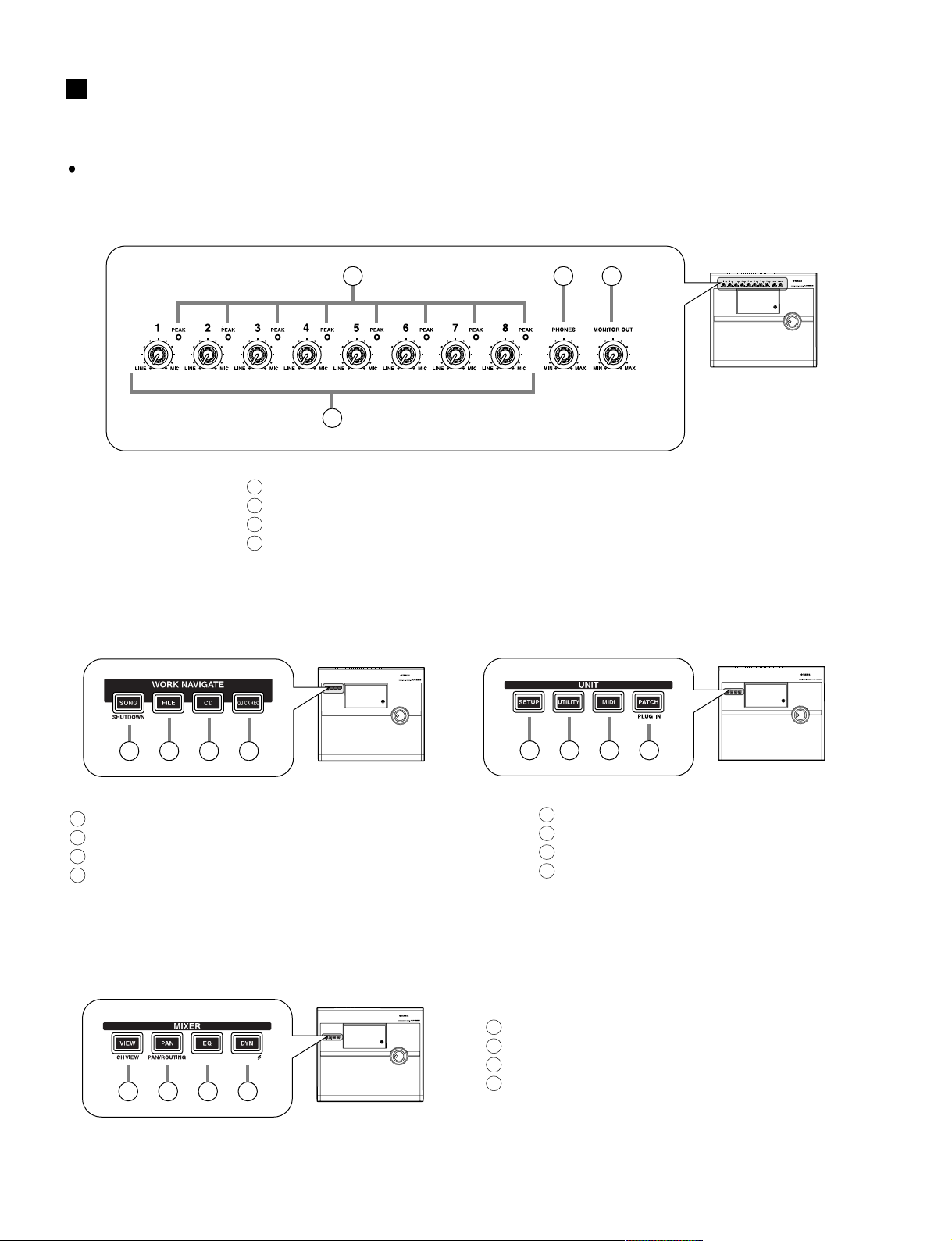

Top panel
1
2
3
4
[GAIN] control
[PEAK] indicators
[PHONES] (headphones) control
[MONITOR OUT] control
Analog input/output section
1
2
3
4
[SONG] key
[FILE] key
[CD] key
[QUICK REC] (Quick Record) key
WORK NAVIGATE section UNIT section
1
2
3
4
[SETUP] key
[UTILITY] key
[MIDI] key
[PATCH] key
PANEL LAYOUT
1234
1 2 3 4
MIXER section
1
2
3
4
[VIEW] key
[PAN] key
[EQ] (Equalizer) key
[DYN] (Dynamics) key
EQ/ATT/GRP DYN/DLY/
EQ/ATT/GRP DYN/DLY/
1 2 3 4
1
234

AW2816
13

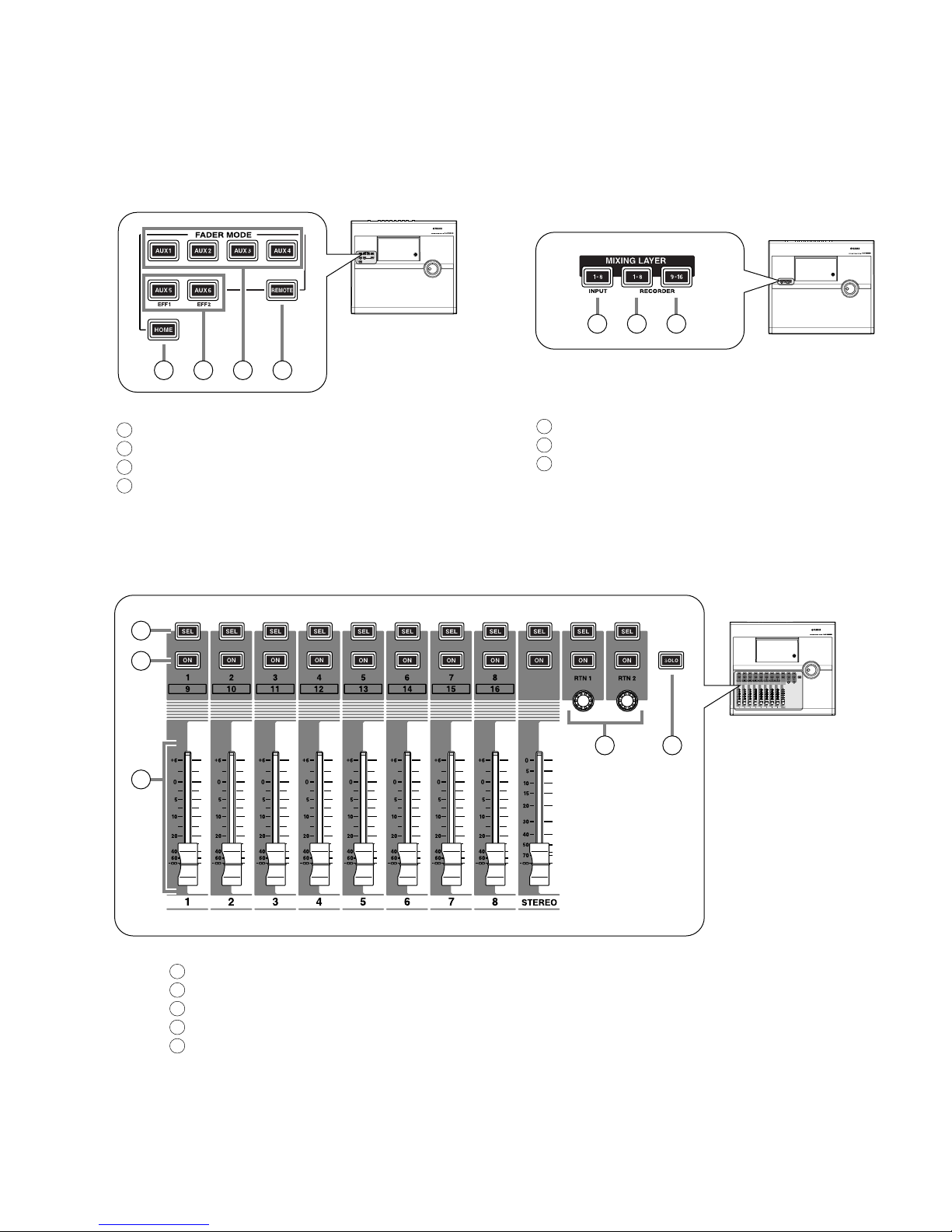

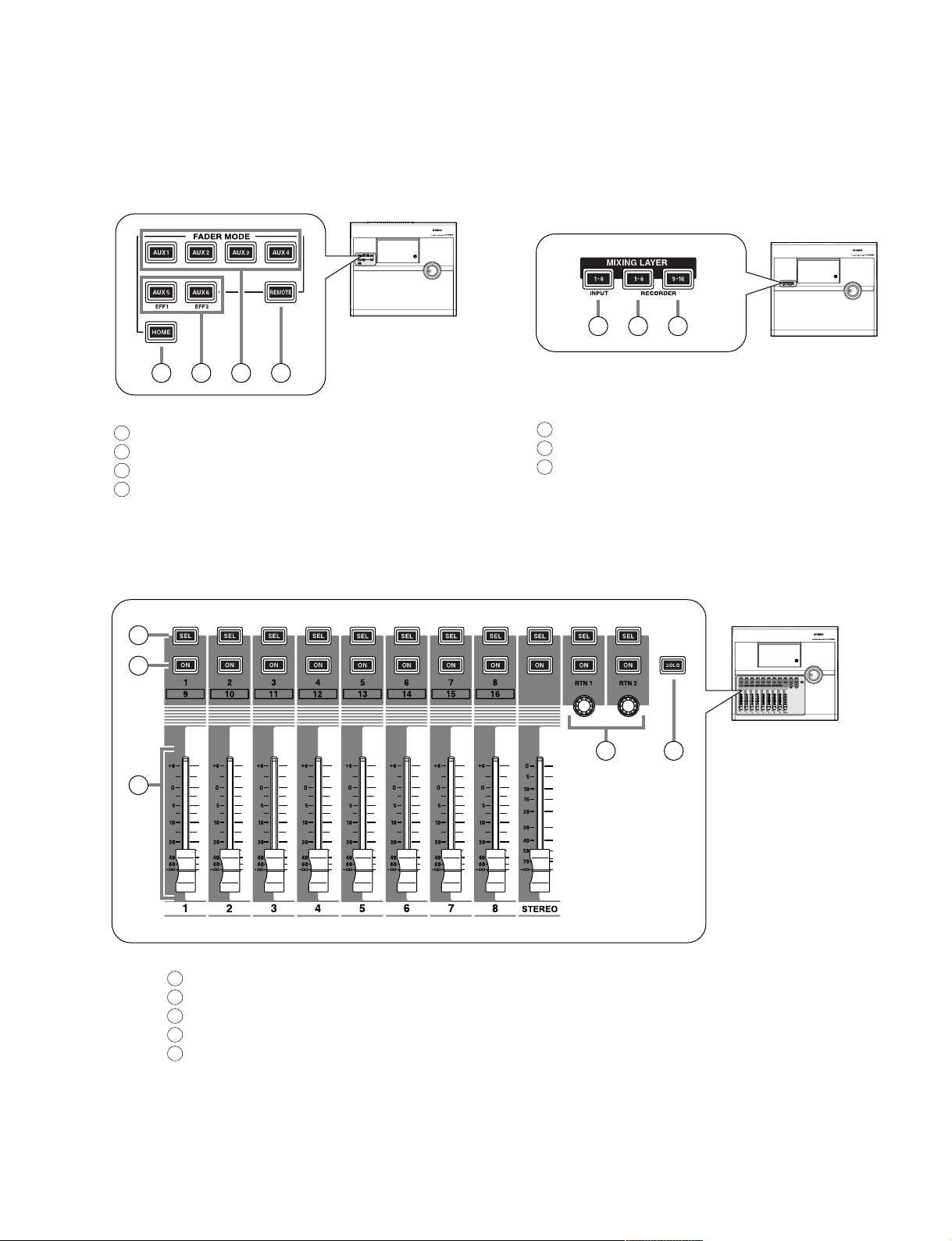

FADER MODE section
1234
1
2
3
4
[HOME] key
[AUX 5]/[AUX 6] keys
[AUX 1]~[AUX 4] keys
[REMOTE] key
MIXING LAYER section
1
2
3
INPUT [1-8] key
RECORDER [1-8] key
RECORDER [9-16] key
123
Fader section
1
2
3
4 5
1
2
3
4
5
[SEL] keys (1-8/STEREO/RTN 1/RTN 2)
[ON] keys (1-8/STEREO/RTN 1/RTN 2)
Faders (1-8/STEREO)
[RTN 1]/[RTN 2] controls
[SOLO] key (1-16/STEREO/RTN 1/RTN 2)

AW2816
14
1
2
3
4
RECORDER section
1
2
3
4
[TRACK] key
[EDIT] key
[UNDO] key
[REDO] key
1
2
3 4
1 2 3 4
REC TRACK SELECT section
[CUE] key
[METER] key
RECTRACK SELECT [1]–[16]/[ST]
[ALL SAFE] key

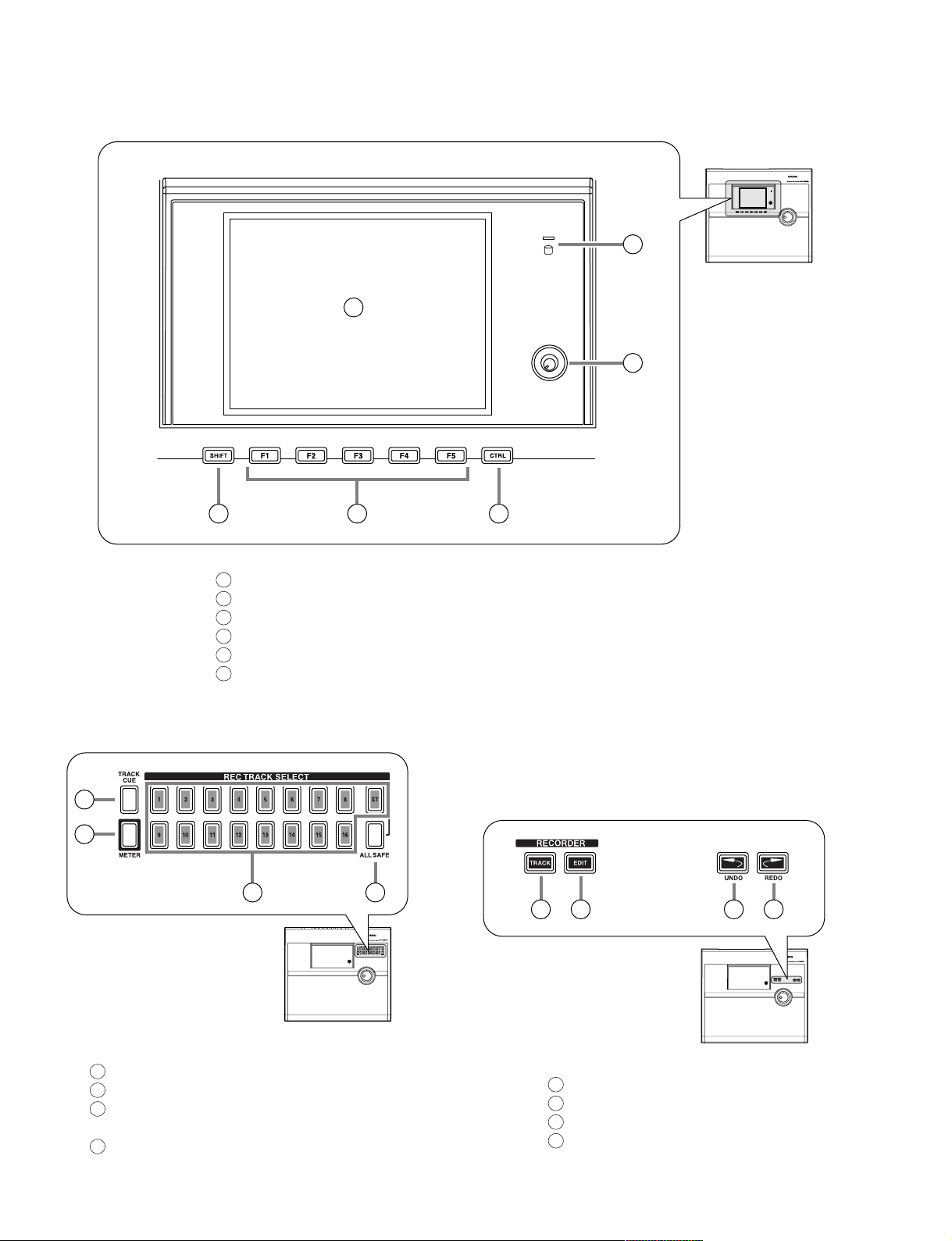

Display section
1
2
3
4
5
6
Display
[SHIFT] key
[F1]-[F5] (Function 1-5) keys
[CTRL] (Control) key
Contrast
Access indicator
1
2 3 4
5
6

AW2816
15

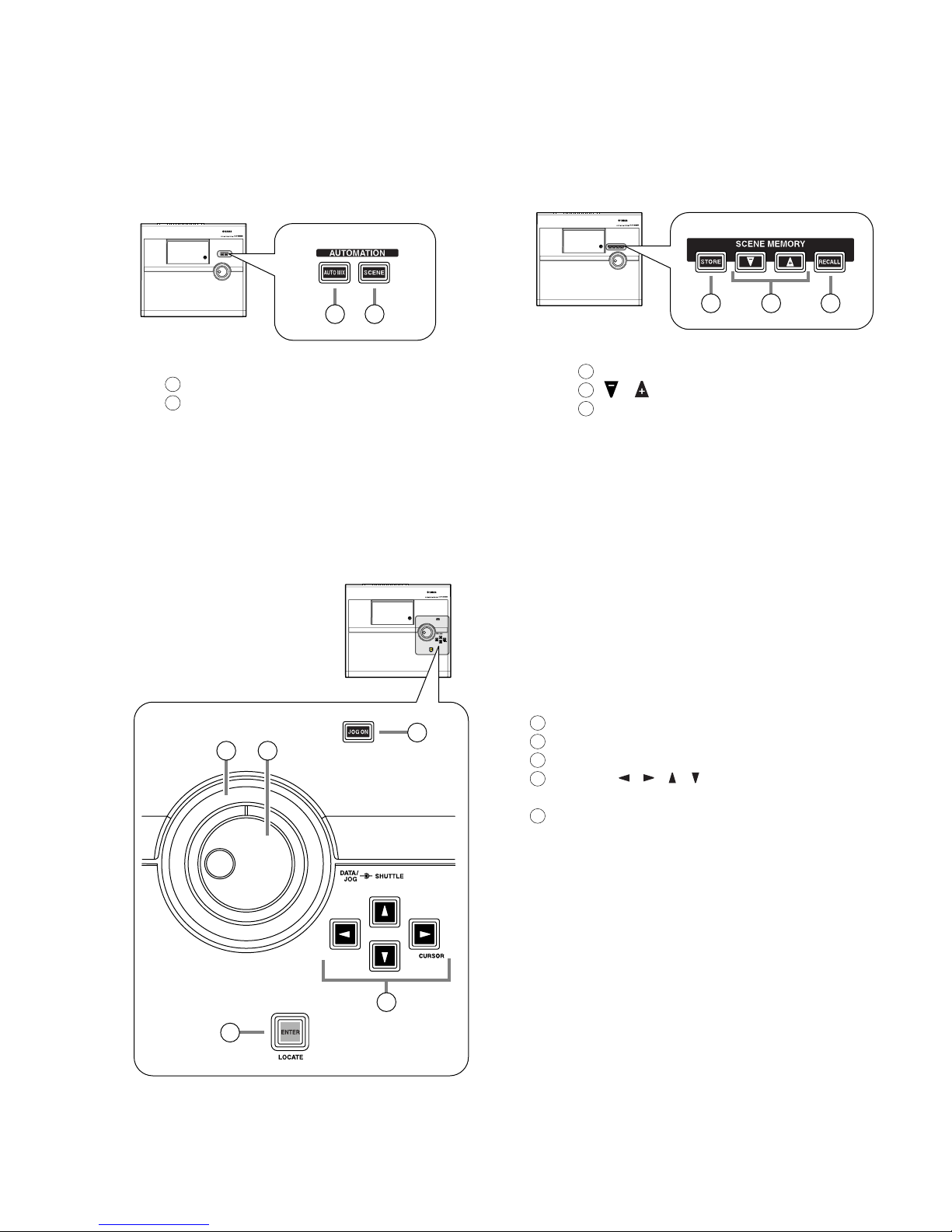

1
2[AUTOMIX] key
[SCENE] key
AUTOMATION section SCENE MEMORY section
1
2
3
[STORE] key
[]/[ ] keys
[RECALL] key
1 2
1 2 3
CURSOR/JOG&SHUTTLE section
1
2
3
4
5
[JOG ON] key
[DATA/JOG] dial
[SHUTTLE] dial
CURSOR [ ]/[ ]/[ ]/[ ] keys
[ENTER] key
1
23
4
5

AW2816
16
7
8
9
10
11
12
13
1
2
3
4
5
6
1 2 3 4 5
10 11 12 13
1
4
7
89
5
6
2 3
Transport section
1
2
3
4
5
REW [ ] (Rewind) key
FF [ ] (Fast-forward) key
STOP [ ] key
PLAY [ ] key
REC [ ] (Record) key
[NUM LOCATE] key
MARK SEARCH [ ]/[ ] keys
[MARK] key
[AUTO PUNCH] key
LAST REC [IN]/[OUT] (Last recording in/out) key
[SET] key
LOCATE section
[REPEAT] key
[A]/[B] keys
[ROLL BACK] key
[] key
[RTZ] (Return to zero) key
[] key
[CANCEL] key

AW2816
17
12
13
14
15
16
17
18
19
20
21
1
2
3
4
5
6
7
8
9
10
11

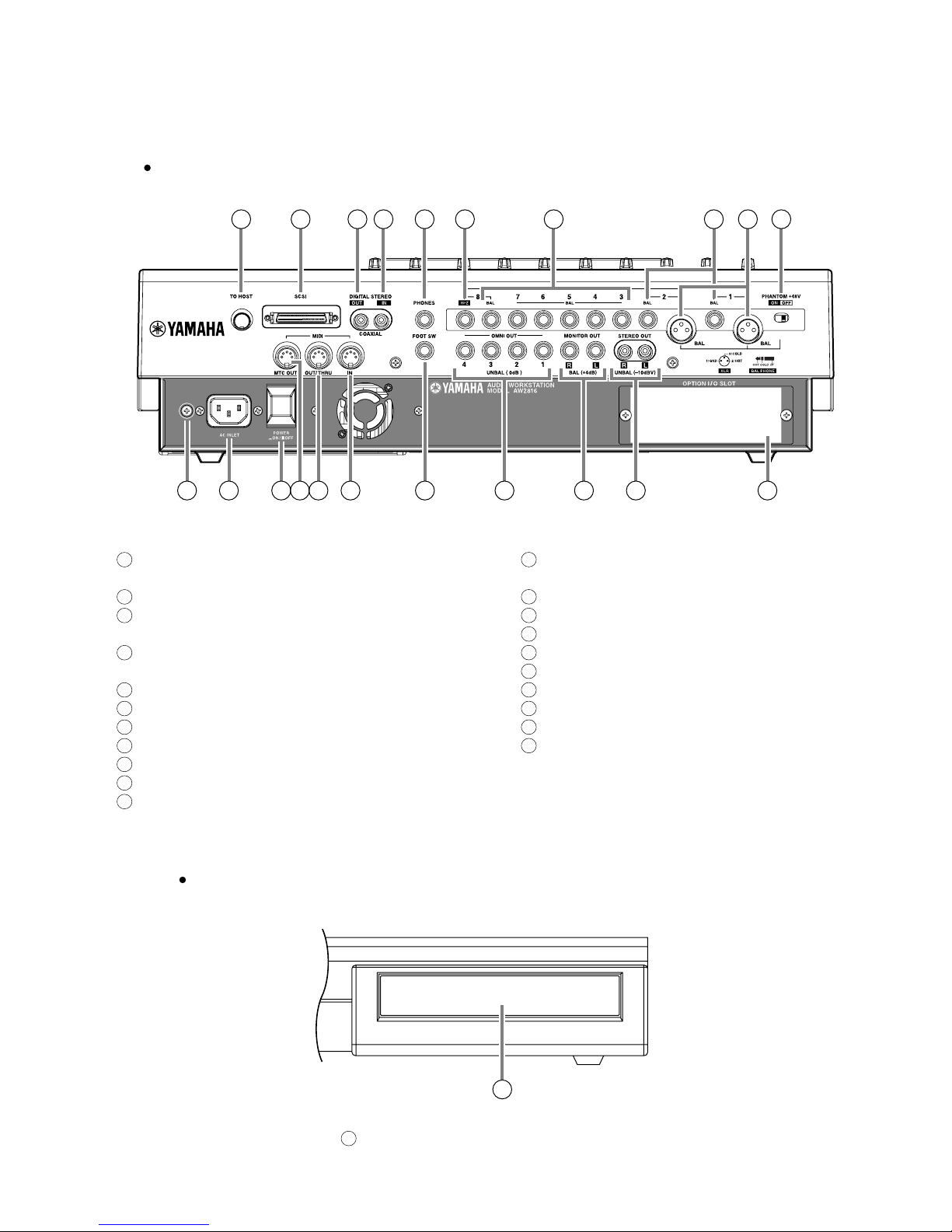

Front panel
1CD-RW drive cover
1
[PHANTOM +48V ON/OFF] switch
INPUT 1/2 (XLR) jacks
INPUT 1/2 (TRS phone) jacks
INPUT 3–8 (TRS phone) jacks
INPUT 8 (Hi-Z) jack
OPTION I/O slot
STEREO OUT jacks
MONITOR OUT jacks
OMNI OUT jacks
PHONES jack
DIGITAL STEREO IN jack
DIGITAL STEREO OUT jack
SCSI connector
TO HOST connector
FOOT SW jack
MIDI IN connector
MIDI OUT/THRU connector
MTC OUT connector
POWER switch
AC INLET connector
Grounding terminal
Rear panel
1
6789
2345
1011121314
15161718192021

AW2816
18
CIRCUIT BOARD LAYOUT
〈Bottom view〉
Power Supply Unit
SUB-MY
SUB-FADER
MAIN
CN503
CN2 CN3
CN1
CN4
CN504
SUB-MY
CN5
SEC A-A
AA
CN403
CN402

19
AW2816
CN502
CN503
CN101
CN303
CN201
CN401
CN305
CN301
CN601
CN702 CN703
CN307 CN302
CN101
CN306
CN103 CN104 CN102
CN501
CN101
PN
SUB-INV
SUB-FADER
SUB-CPU
MAIN
LCD
CN301
CN502
〈Bottom view〉
〈Bottom view〉

AW2816
20

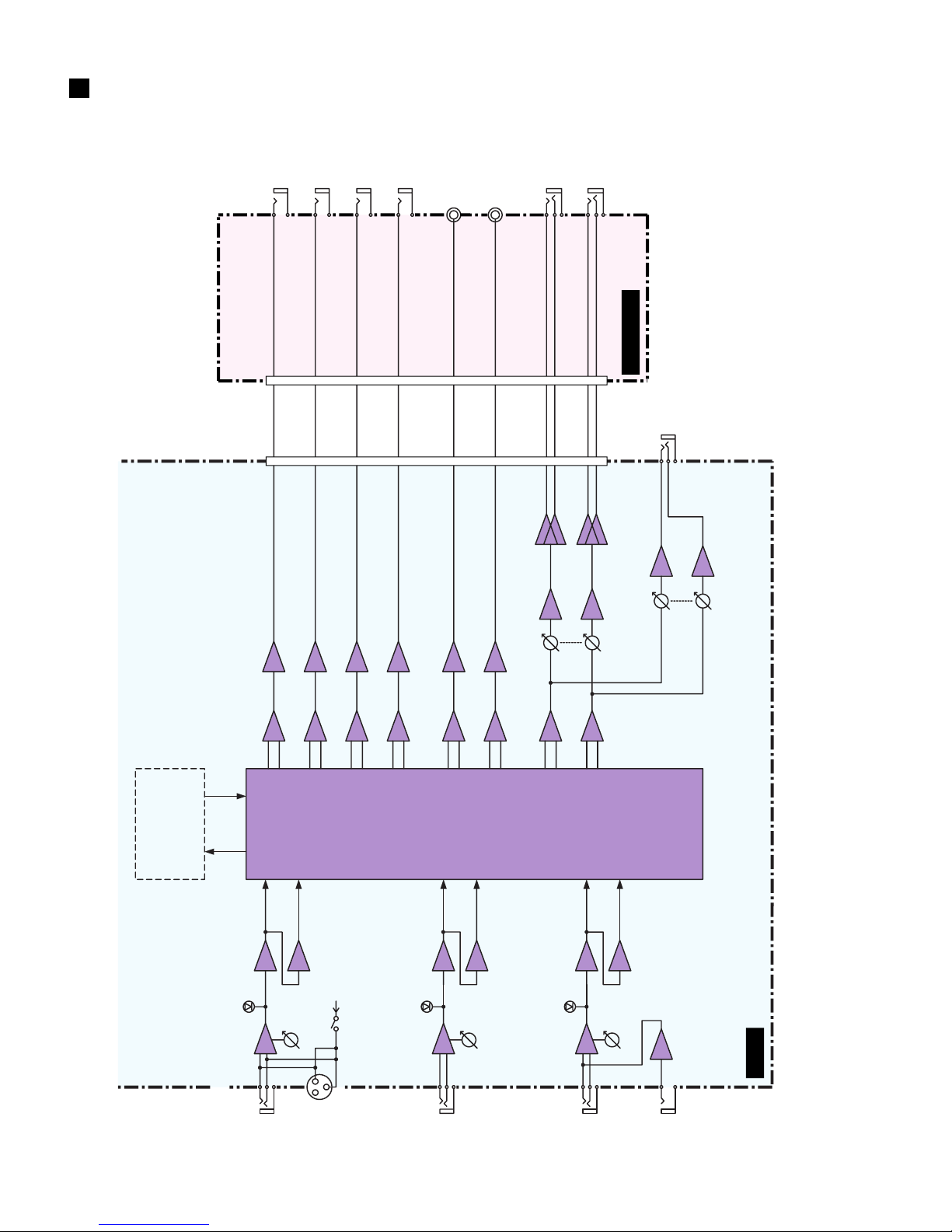

BLOCK DIAGRAM
〈ANALOG Section〉
PEAK
-1 BA
HA
+48V
PHANTOM
HA
PEAK
-1 BA
HA
PEAK
-1 BA
BA
MIC/LINE
CH 1,2
MIC/LINE
CH 3~7
MIC/LINE
CH 8 Hi-Z
DSP Section
8CH ADC/DAC
IC 301(28P)
CH INPUT 1,2 OMNI OUT 1,2
IC 304(28P)
CH INPUT 3,4 OMNI OUT 3,4
IC 307(28P)
CH INPUT 5,6
STEREO OUT L,R
IC 310(28P)
CH INPUT 7,8
MONITOR OUT L,R
AK4528
LPF BA
IC 302 (8P)
IC101,103
IC105,107,201, 203,205 (8P)
IC207
IC209 (8P)
IC208 (8P) IC208 (8P)
IC106,108,202,204,206 (8P) IC106,108,202,204,206 (8P)
21 3
67 5
21 3
26 25
31 2 57 6
31 2 57 6 31 2 57 6 31 2 5
2,3 1
7
5,6 2,3 1
7
5,6
7
6
31 2 57 6
31 2 57 6
31 2 57 6 31 2 57 6 31 2 57 6
28 27 26 25 28 27 26 25 28 27 26 25 28 27
67 5
21 3
21 3
67 5
IC102,104 (8P) IC201,104 (8P)
IC 303 (8P)
LPF BA
IC 308 (8P) IC 309 (8P)
LPF BA
IC 308 (8P) IC 309 (8P)
LPF BA
IC 305 (8P) IC 306 (8P)
LPF BA
IC 305 (8P) IC 306 (8P) IC 302 (8P) IC 303 (8P)
LPF BA
LPF
IC 311 (8P)
LPF
IC 311 (8P)
BA
IC 312 (8P)
BA
IC 312 (8P)
BA
IC 315 (8P)
BA
IC 315 (8P)
PHONES
MONITOR
OUT
IC 314 (8P) IC 313 (8P)
PHONES
MONITOR OUT
STEREO OUT
OMNI OUT
L R
1 2 3 4
L
R
LINE MIC LINE MIC LINE MIC
CN301(12P) CN201(12P)
MAIN
SUB-CPU
38CA1-8820185-3
(8P)
(8P)
