ごあいさつ
このたびは、ヤマハ管楽器をお買い上げいただき、まことにありがとうございます。
楽器を正しく組み立て性能をフルに発揮させるため、また永く良い状態で楽器を
お使いいただくために、この取扱説明書をよくお読みください。
P.15
Congratulations!
You are now the owner of a high quality musical instrument. Thank you for choosing Yamaha.
For instructions on the proper assembly of the instrument, and how to keep the instrument
in optimum condition for as long as possible, we urge you to read this Owner’s Manual thor-
oughly.
P.27
Wir beglückwünschen Sie!
Sie sind nun der stolze Besitzer eines hochwertigen Musikinstruments. Vielen Dank, dass Sie sich für
ein Instrument der Marke Yamaha entschiedenen haben. Um mit den Handgriffen zum Zusammen-
setzen und Zerlegen des Instruments vertraut zu werden und dieses über Jahre hinweg in optimalem
Zustand halten zu können, raten wir Ihnen, diese Anleitung aufmerksam durchzulesen.
P.39
Félicitations!
Vous êtes dès à présent le propriétaire d’un instrument de musique de haute qualité. Nous vous remer-
cions d’avoir choisi Yamaha. En ce qui concerne les instructions relatives à un assemblage adéquat de
l’instrument et sur la façon de garder l’instrument dans des conditions optimales aussi longtemps que
possible, nous vous conseillons vivement de lire entièrement le présent Mode d’emploi.
P.51
¡Enhorabuena!
Usted es ahora propietario de un instrumento musical de alta calidad. Le agradecemos su elección
de un instrumento Yamaha. Le aconsejamos que lea todo este manual de instrucciones para ver las
instrucciones para el montaje correcto del instrumento y para aprender a conservar el instrumento en
óptimas condiciones durante tanto tiempo como sea posible.
P.63
致用户 !
衷心感谢您选购雅马哈乐器。
为了保证您能够正确组装乐器 , 并尽可能长时间地将您的乐器保持在最佳状态 , 我们建议您完整地
阅读使用手册。
P.75
Поздравляем!
Вы стали обладателем высококачественного музыкального инструмента. Благодарим
Вас за выбор продукции Yamaha. Для получения инструкций по правильной сборке
данного инструмента и его длительном хранении в оптимальных условиях мы настоя-
тельно рекомендуем Вам внимательно прочитать настоящее руководство.
P.87
인사말
야마하 악기를 구입해 주셔서 감사합니다 . 악기의 알맞은 조립 방법 및 보관을 위해 본 사용설명서를
반드시 읽어주시기 바랍니다 .
P.3

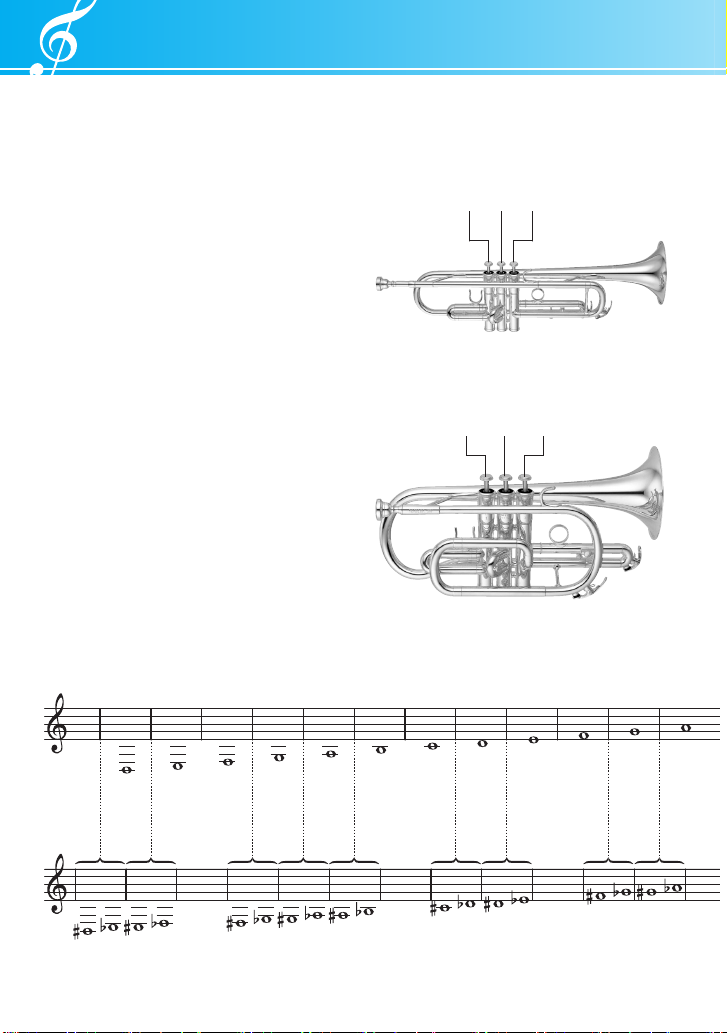

Tablature/Tabla de digitaciones/ 指法表 /Таблица аппликатуры/운지법
1.3
1.2.3 2.3 1.2.3 2.3 2 2.3 1 1.21
1.2 2 0 1.3
(3)(4) (4)
1.2 1
(3)
1.2
(3)
0 2
(1.3)
2 2 2.3 1
(2.3)(2.4) (2.4)
1
(1.3)
0
(2.3)
0 1
(1.2)
0
(1.3)
1.2 2 0
(3)
(3)
1.2.3.4 2.3.4
1.3.4 1.2.4 1.4
■ ロータリートランペット /
Rotary Trumpet/
Drehventiltrompete/
Trompette à palettes/
Trompeta de cilindros/
转阀式小号 /
Вентильная труба/
로터리 트럼펫
123
1 2 3
■ ピッコロトランペット /Piccolo
Trumpet/Piccolotrompete/Trompette
Piccolo/Trompeta píccolo/
高音小号 /
Труба пикколо/
피콜로 트럼펫
12 3 4
00_trumpet_om.indd 2-99 11/09/08 19:05

15
Trumpet/Cornet/
Fluegelhorn/Rotary Trumpet
Owner’s Manual
Precautions Please read before using
Do not throw or swing the instrument when oth-
ers are close by.
The mouthpiece or other parts may fall off hitting other
people. Always treat the instrument gently.
Keep the oil, polish, etc., out of children’s
mouths.
Keep the oil, polish, etc., out of children’s reach and do
maintenance when children are not present.
Be aware of climatic conditions such as tem-
perature, humidity, etc.
Keep the instrument away from heat sources such as
heaters, etc. Also, do not use or store the instrument
in any extreme conditions of temperature or humidity.
Doing so may result in damage to key balance, linkage,
or pads, resulting in problems during performance.
Never use benzene or thinner for maintenance on
instruments with a lacquer finish.
Doing so may result in damage to the finish’s top coat.
Take care not to disfigure the instrument.
Placing the instrument where it is unstable may cause
the instrument to fall or drop resulting in disfigure-
ment. Take care as to where and how you place the
instrument.
Do not modify the instrument.
Besides voiding the warranty, modification of the in-
strument may make repairs impossible.
The precautions given below concern the proper and safe use of the instrument, and are to pro-
tect you and others from any damage or injuries. Please follow and obey these precautions.
If children are using the instrument, a guardian should clearly explain these precautions to the child and make
sure they are fully understood and obeyed. After reading this manual, please keep it in a safe place for future re-
ference.
■ About the Icons
: This icon indicates points which should be paid attention to. : This icon indicates actions that are prohibited.
Caution Disobeying the points indicated with this mark may lead to
damage or injury.
In regards to brass instruments with a plate finish, the color of the finish may change over time however, it should
be of no concern in regards to the instrument’s performance. Discoloration in its early stage can easily be removed
with maintenance. (As discoloration progresses, it may be difficult to remove.)
* Please use the accessories that are specified for use with the particular type of finish found on the instrument. Also, metal pol-
ishes remove a thin layer of the finish’s top coat which will make the finish thinner. Please be aware of this before using polish.
Some instruments are shipped with a black cap attached to the end
of the 3rd valve slide ring (A in the diagram) to prevent the ring from
being lost during shipping.
The cap can be removed before you start playing, but leaving it in
place will not affect the operation of the instrument.
02_trumpet_om_en.indd 15 11/09/08 18:49

16

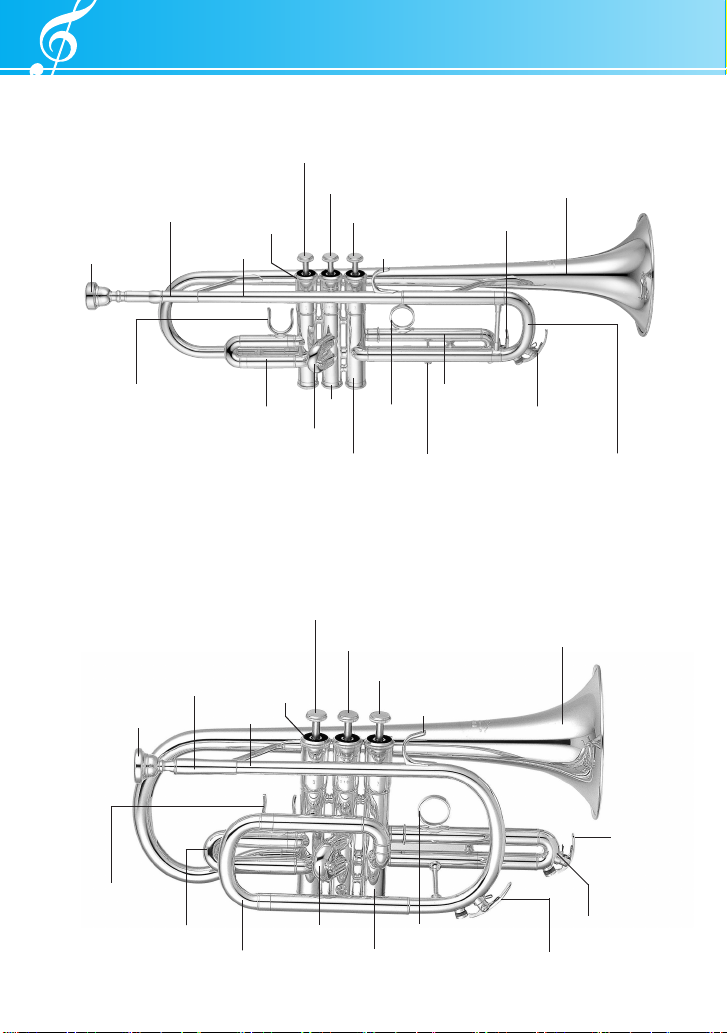

Nomenclature
Mouthpiece
■ Trumpet
■ Cornet
Mouthpiece Receiver
Lead Pipe
1st Valve
2nd Valve
3rd Valve
Finger Hook
Bell
1st Valve Slide Hook
1st Valve Slide
2nd Valve Slide
Valve
Casing
3rd Valve
Slide Ring
3rd Valve Slide
Main Water Key
Main Tuning Slide
Mouthpiece
Mouthpiece
Receiver
Lead Pipe
1st Valve
2nd Valve
3rd Valve
Finger Hook
Bell
1st Valve
Slide Hook
1st Valve Slide
Main Tuning Slide
2nd Valve Slide
Valve Casing
3rd Valve Slide Ring
Main Water Key
3rd Valve Slide
Cap
3rd Valve
Water Key
3rd Valve Slide
Stopper Screw
Cap
Cap
3rd Valve
Water Key
02_trumpet_om_en.indd 16 11/09/08 18:49

17
Nomenclature
■ Flugelhorn
■ Rotary Trumpet
Mouthpiece
Mouthpiece Receiver
1st Valve
2nd Valve
3rd Valve
Finger Hook
Bell
1st Valve Slide
Valve Casing 3rd Valve Slide
3rd Valve
Slide Trigger
Main Water Key
Mouthpiece
Mouthpiece Receiver
Lead Pipe
Bell
1st Valve
2nd Valve
3rd Valve
Main
Water Key Main Tuning Slide
3rd Valve Slide
* Specifications and/or design may change for reasons of improvement without notice.
2nd Valve Slide
3rd Valve Slide Trigger
Cap
Cap
3rd Valve
Water Key
1st Valve Water Key
3rd Valve
Water Key
02_trumpet_om_en.indd 17 11/09/08 18:49

18
Handling the Instrument
As the trumpet is made of thin metal, handle the instrument carefully. Do not apply any
excessive force, or bump the instrument so as to dent or damage it.
■ Applying Oil
Apply oil to the pistons
1. Unscrew the valve cap and pull the piston
straight out of the valve casing until about half
of the valve piston is exposed.
2. Apply a few drops of valve oil on the piston.
* Do not apply too much oil.
3. Slowly, return the piston into the valve casing.
At this time, make sure the number stamped
on the piston is facing the mouthpiece. After
the valve cap is tightened rmly, move the pis-
ton up and down a few times to distribute the
oil over the piston evenly.
Piston
Valve oil
* If all pistons have been removed from the valve
casings, make sure the number stamped on the
piston matches the number stamped on the casing
before returning the piston into the valve casing.
* e pistons must be oiled for them to function
properly and smoothly.
Number
Applying Oil To e Rotors
(Rotary Trumpets Only)
1. Hold the lever down and remove the valve
slide.
* If the valve slide is removed without holding the
lever down, air pressure in the pipe drops creating
a suction that can cause poor rotor function or
damage to the inside of the pipe.
2. Apply some rotor oil to the rotor and then move
the lever a few times to distribute the oil evenly.
* To keep oil from mixing with the slide grease or
dirt inside of the pipe, hold the oil container’s
spout so that is does not come into contact with
the inner walls of the pipe.
* Since the oil container’s spout is metallic, be care-
ful not to let the spout come into direct contact
with the rotor.
3. Hold the lever down and replace the valve
slide.
* If you replace the valve slide without holding the
lever down, pressure built up inside the pipe can
cause poor rotor function or damage to the inside
of the pipe.
Rotor oil
Before You Play
02_trumpet_om_en.indd 18 11/09/08 18:49

19
About the slide stopper
Some instruments are supplied with a
silicon Yamaha Slide Stopper to prevent ac-
cidental removal of the tuning slides. e
stopper can be left in place when playing
and used in other congurations as shown
below.
* Make sure that the ring is hooked on securely to
prevent it from coming unhooked.
* Wash with water when necessary.
* Do not expose the product to any heat source,
high temperature, or direct sunlight.
* Keep out of reach of young children.
* In rare instances, oil may seep from the silicon
rubber. is has no aect on product quality or
the instrument.
When
shipped
Example-1
Example-2
* If you remove or replace the valve slide without
holding the piston down, the drop or buildup
of air pressure in the pipe can cause poor piston
function or damage to the inside of the pipe.
* e pistons must be oiled for them to function
properly and smoothly.
After applying slide oil to valve slides equipped
with a spring type slide trigger, hold the piston
down and move the slide in and out a few times
as you did before to distribute the oil evenly.
■ CAUTION —Preventing e 3rd
Valve Slide From Falling O.
On instruments fitted with a stopper screw,
make sure the screw is tight.
Before You Play
■ Applying Oil To e Valve Slides
1. Depress the piston that corresponds to the slide
that you want to apply oil and partially remove
the slide. Apply a few drops of tuning slide oil.
Tuning slide oil
* Do not apply too much oil.
2. Hold the piston down and move the slide in
and out a few times.
3rd valve slide
3rd valve
■ Setting e Mouthpiece
Insert the mouthpiece into the mouthpiece
receiver so that the mouthpiece is not loose in
the receiver.
Stopper screw
* Never force the mouthpiece into the mouthpiece
receiver. e mouthpiece may become jammed
making removal dicult.
Mouthpiece
02_trumpet_om_en.indd 19 13/10/08 17:35

20
Before You Play
■ Tuning
Slide the main tuning slide in or out to
tune the instrument. Since changes in
temperature can have an effect on the
pitch, blow some warm air into the instru-
ment to warm it up before tuning.
Trumpet/Rotary Trumpet
Slide the main tuning slide in or out to tune the
instrument.
Main tuning slide
When the instrument’s
pitch is low
When the instrument’s
pitch is high
Cornet
Slide the main tuning slide in or out to tune the
instrument.
When the instrument’s
pitch is high
When the instrument’s
pitch is low
Flugelhorn/Piccolo Trumpet/
Eb Cornet
Loosen the mouthpipe screw and slide the mouth-
pipe in or out to tune the instrument.
Main tuning
slide
Mouthpipe screw
Mouthpipe
When the instrument’s
pitch is low
When the instrument’s
pitch is high
Always store the instrument in its case
when taking a break, during transport,
and after playing.
About the mouthpiece
e mouthpiece that is supplied with your
instrument is a standard mouthpiece for the
instrument. The mouthpiece is designed
to t into the mouthpiece receiver without
being loose. Do not treat the mouthpiece
roughly, drop, or damage it.
02_trumpet_om_en.indd 20 11/09/08 18:49

21
Maintenance
■ After playing
After playing, make sure that moisture or dirt is removed from the instrument using the
method described below.

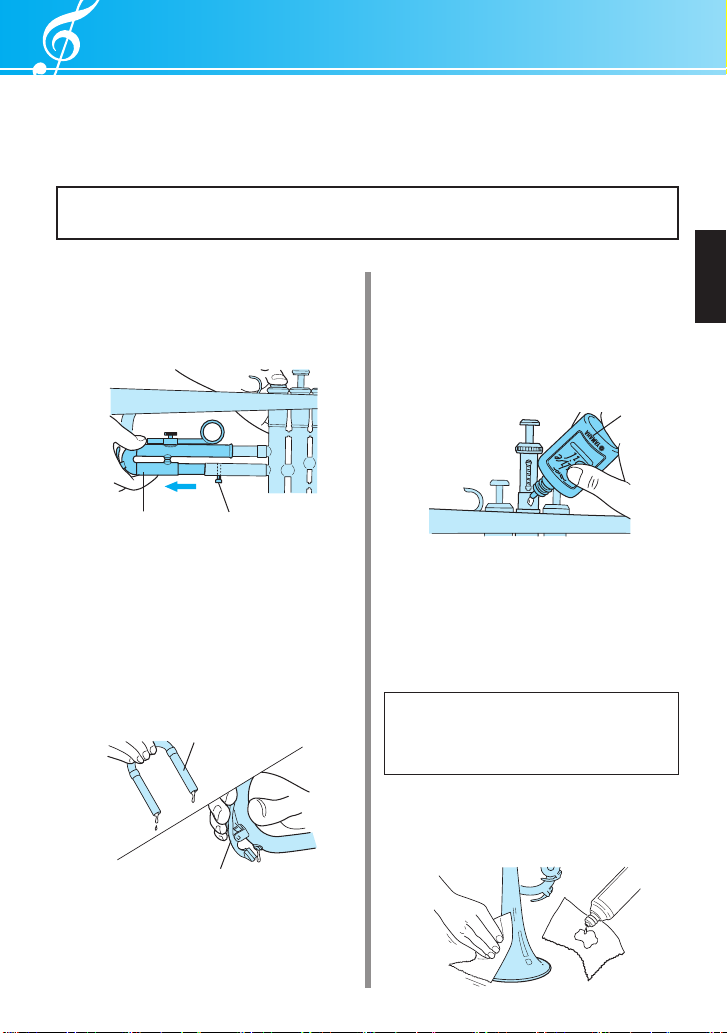

● Valve slide maintenance
1. Depress the piston that corresponds to the
valve slide you want to clean, and remove the
slide.
* If you remove the valve slide without holding the
piston down, air pressure in the pipe drops creat-
ing a suction that can cause poor piston function
or damage to the inside of the pipe.
* If the instrument is equipped with a slide stopper
screw, loosen the screw before removing the slide.
2. Remove moisture from the slide. Also, remove
moisture from the water key.
3rd valve slide 3rd valve slide stopper screw
Main tuning slide
Water key
* Valve slides are made of brass or nickel silver
that is excellent at resisting corrosion however,
corrosion may appear if moisture is left in the
instrument for an extended period of time. Please
use caution.
● Other maintenance
Apply some valve oil to the pistons and move the
piston up and down a few times, the same as you
do before playing the instrument.
Likewise, apply some rotor oil to the rotors on
rotary trumpets and move the levers a few times.
Valve oil
* Do not apply too much oil.
● Body maintenance
Gently wipe the surface of the instrument with a
polishing cloth. If dirt or tarnish is obvious, the
following products can be used.
For lacquer nishes
Polishing cloth + lacquer polish
For silver plate
Silver cloth + silver polish
For a beautiful shine, polish the instrument with a
silicone cloth.
Please consult with a wind instrument technician in regard to disassembling and mainte-
nance the spring trigger.
02_trumpet_om_en.indd 21 11/09/08 18:49

22
Maintenance
■ Once a week maintenance
●
Piston and valve casing maintenance
The trumpet’s valves are designed with very little
clearance between the piston and the casing there-
fore, it is very important that these precision parts be
handled with care.
1. Wrap the cleaning rod with gauze leaving no
bare metal exposed.
Cleaning
rod
* Exposed metal can result in damaged valve casings
or pistons.
2. Remove dirt from the inside of the valve cas-
ings.
Gauze
3. Remove dirt from the pistons.
4. Return the piston to its corresponding valve
casing.
After confirming that the number stamped
on the piston matches the number stamped
on the valve casing, carefully insert the piston
straight into the valve casing with the number
stamped on the piston facing the mouthpiece.
Do not rotate the piston in the valve casing.
Number
5. Apply valve oil to the piston.
Valve oil
* Do not apply too much oil.
* If air does not pass through the instrument when
the piston is fully depressed, the piston may be
placed in the wrong valve casing. Make sure that
the numbers stamped on the piston and valve
casing match.
The piston is the most important part of
the trumpet.
Never treat the pistons roughly, drop
the piston, or let the piston fall, etc. If
the piston becomes damaged or dented,
never return it to the valve casing. Con-
tact the dealer from whom you purchased
the instrument.
02_trumpet_om_en.indd 22 11/09/08 18:49

23
Maintenance
● Rotor maintenance
(Rotary trumpets only)
1. Remove the rotary valve cap and apply some
rotor spindle oil to the place to the spindle in
the center of the rotor.
Rotor spindle oil
2. Apply some rotor spindle oil to point where
the rotor rotates. Replace the rotary valve cap
and move the lever a few times to distribute
the oil evenly.
● Valve slide maintenance
1. Apply a thin coating of slide grease to the main
tuning slide, 2nd valve slide, and valve slides
that are not equipped with a slide trigger.
Slide grease
Main tuning slide
2. Slide the main tuning slide back and forth a
few times to distribute the grease evenly.
Main tuning slide
3. On the 1st and 3rd valves, which are equipped
with slide triggers, apply a small amount of
tuning slide oil to the tuning slides.
3rd Valve Slide
Apply here.
Tuning slide oil
02_trumpet_om_en.indd 23 11/09/08 18:49

24
Maintenance

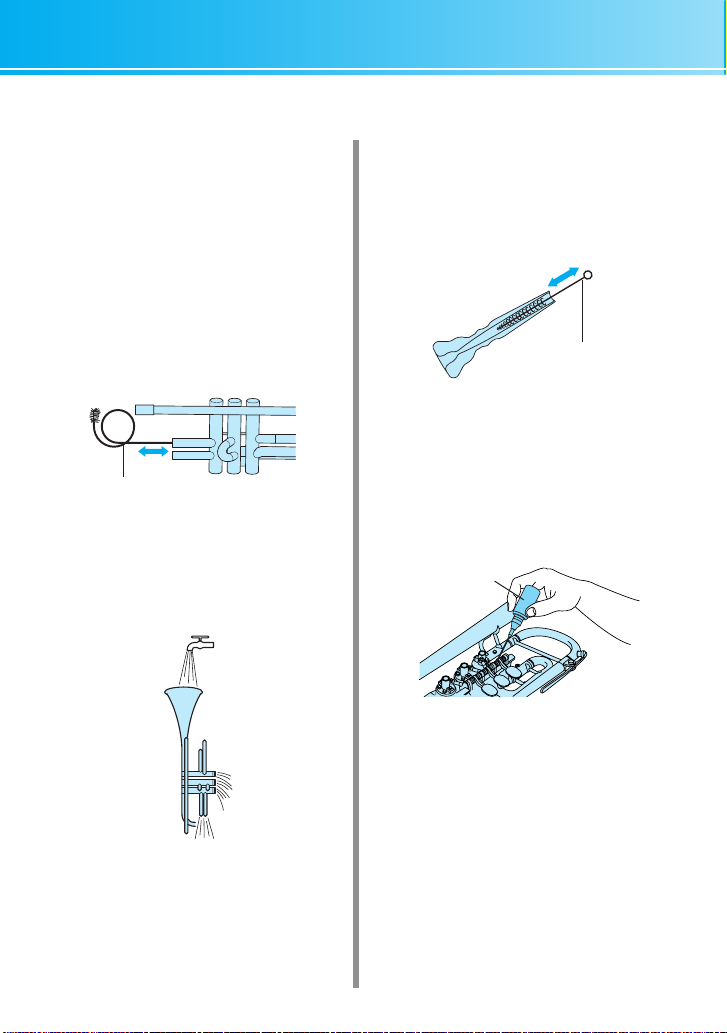

■ Twice Yearly Maintenance
● Cleaning the instrument
1. Make a brass soap water solution.
Prepare a brass soap water solution using be-
tween 10 to 15 parts warm water (30° to 40° C)
and 1 part brass soap. Before putting the in-
strument into the soap water solution, remove
the pistons, valve casing covers, slide valves.
2. With the instrument removed from the water,
apply some soap water solution to a flexible
cleaner and use the cleaner to clean the inside
of the instrument’s pipes.
Flexible cleaner
3. After cleaning the instrument, use clean water
and thoroughly rinse out the brass soap water
solution. After that, apply valve oil and slide
grease and reassemble the instrument.
● Rotor maintenance
(Rotary trumpets only)
1. Apply some lever oil to the lever shaft.
Lever oil
● Cleaning the mouthpiece
1. Dip the mouthpiece brush in the brass soap
water solution and clean the mouthpiece
throat with the brush. Rinse the mouthpiece
out with clean water.
Mouthpiece brush
02_trumpet_om_en.indd 24 11/09/08 18:49

25
Troubleshooting
Tone is not clear and pitch is poor.
• e valves are dirty.
➞ Clean the valves.
• ere is a large dent or air is leaking from
the trumpet.
• e mouthpiece doesn’t t the mouthpiece
receiver and air is leaking.
➞ Contact the dealer from whom you pur-
chased the instrument.
• e felt or cork is damaged.
➞ Contact the dealer from whom you pur-
chased the instrument.
No sound.
• e holes in the piston are not aligned with
the holes in the valve casing.
➞ Make sure the number stamped on the
piston matches the number stamped on the
valve casing.
e pistons are sluggish.
• Dirt has accumulated between the pistons
and valve casings.
➞ Clean the inside of the valve casing.
• Dropping or hitting the piston has damaged
it.
➞ Do not use the instrument with a damaged
piston.
Contact the dealer from whom you pur-
chased the instrument.
• e piston or valve casing is corroded.
➞ Contact the dealer from whom you pur-
chased the instrument.
e valve slide is stuck and cannot be
removed. e slide is sluggish.
• Dirt has accumulated between the valve slide
and inner tube.
➞ oroughly remove dirt and apply some
slide grease that matches the type of slide,
or apply some tuning slide oil.
• Dropping or hitting the slide has caused a
dent, or the slide was bent while cleaning.
➞ Contact the dealer from whom you pur-
chased the instrument.
e screw is too tight and cannot be
removed.
• e screw is corroded.
• Dropping or hitting the instrument has dam-
aged the screw.
➞ Contact the dealer from whom you pur-
chased the instrument.
Air does not pass thorough the instru-
ment.
• e piston is in the wrong valve casing.
➞ Set the piston into the proper valve casing.
e mouthpiece cannot be removed.
• e instrument was dropped or hit with the
mouthpiece attached. Or, the mouthpiece
was inserted with force.
• e instrument has been left for a long
period of time with the mouthpiece inserted
in the instrument.
➞ Contact the dealer from whom you pur-
chased the instrument.
e instrument makes a strange sound
when played.
• Solder on the instrument has come loose, or
a foreign object is inside it.
➞ Contact the dealer from whom you pur-
chased the instrument.
e piston makes a metallic noise when
pressed.
• e felt is torn or lost.
➞ Please contact the dealer from whom you
purchased the instrument.
• e cover on the piston valve or valve casing
is loose.
➞ Firmly tighten the covers.
• e piston’s shaft is bent.
➞ Please contact the dealer from whom you
purchased the instrument.
02_trumpet_om_en.indd 25 11/09/08 18:49

98
フィンガリングチャート/Fingering Chart/Grifftabelle/
★ ( )はかえ指です。
1.3
1.2.3 2.3 1.2.3 2.3 2 2.3 1 1.21
1.2 2 0 1.3
(3)(4) (4)
1.2 1
(3)
1.2
(3)
0 2
(1.3)
2 2 2.3 1
(2.3)(2.4) (2.4)
1
(1.3)
0
(2.3)
0 1
(1.2)
0
(1.3)
1.2 2 0
(3)
(3)
1.2.3.4 2.3.4
1.3.4 1.2.4 1.4
12 3
■コルネット /Cornet/Kornett/Cornet/
Corneta/
短号
/Корнет/코넷
12 3
■トランペット /Trumpet/Trompete/
Trompette/Trompeta/
小号
/
Труба/트럼펫
★ Alternate fingerings are given in paren-
thesis ( ).
★ Alternative Griffe stehen in Klammern
( ).
★ Les autres doigtés de remplacement
sont indiqués entre parenthèse ( ).
★ Se muestran digitaciones alternativas
entre paréntesis ( ).
★ 圆括号中的指法也可采用。
★ Дополнительная аппликатура
указана в круглых скобках ( ).
★ 괄호 ( )안은 핑거링 또는 대체 핑거링
을 나타냅니다 .
98_trumpet_om.indd 98 11/09/08 19:08

2 99
■ フリューゲルホルン /Flugelhorn/
Flügelhorn/Bugle/Fliscorno/
富鲁格号 /Флюгельгорн/ 후루겔혼
ごあいさつ
このたびは、ヤマハ管楽器をお買い上げいただき、まことにありがとうございます。
楽器を正しく組み立て性能をフルに発揮させるため、また永く良い状態で楽器を
お使いいただくために、この取扱説明書をよくお読みください。
P.15
Congratulations!
You are now the owner of a high quality musical instrument. Thank you for choosing Yamaha.
For instructions on the proper assembly of the instrument, and how to keep the instrument
in optimum condition for as long as possible, we urge you to read this Owner’s Manual thor-
oughly.
P.27
Wir beglückwünschen Sie!
Sie sind nun der stolze Besitzer eines hochwertigen Musikinstruments. Vielen Dank, dass Sie sich für
ein Instrument der Marke Yamaha entschiedenen haben. Um mit den Handgriffen zum Zusammen-
setzen und Zerlegen des Instruments vertraut zu werden und dieses über Jahre hinweg in optimalem
Zustand halten zu können, raten wir Ihnen, diese Anleitung aufmerksam durchzulesen.
P.39
Félicitations!
Vous êtes dès à présent le propriétaire d’un instrument de musique de haute qualité. Nous vous remer-
cions d’avoir choisi Yamaha. En ce qui concerne les instructions relatives à un assemblage adéquat de
l’instrument et sur la façon de garder l’instrument dans des conditions optimales aussi longtemps que
possible, nous vous conseillons vivement de lire entièrement le présent Mode d’emploi.
P.51
¡Enhorabuena!
Usted es ahora propietario de un instrumento musical de alta calidad. Le agradecemos su elección
de un instrumento Yamaha. Le aconsejamos que lea todo este manual de instrucciones para ver las
instrucciones para el montaje correcto del instrumento y para aprender a conservar el instrumento en
óptimas condiciones durante tanto tiempo como sea posible.
P.63
致用户 !
衷心感谢您选购雅马哈乐器。
为了保证您能够正确组装乐器 , 并尽可能长时间地将您的乐器保持在最佳状态 , 我们建议您完整地
阅读使用手册。
P.75
Поздравляем!
Вы стали обладателем высококачественного музыкального инструмента. Благодарим
Вас за выбор продукции Yamaha. Для получения инструкций по правильной сборке
данного инструмента и его длительном хранении в оптимальных условиях мы настоя-
тельно рекомендуем Вам внимательно прочитать настоящее руководство.
P.87
인사말
야마하 악기를 구입해 주셔서 감사합니다 . 악기의 알맞은 조립 방법 및 보관을 위해 본 사용설명서를
반드시 읽어주시기 바랍니다 .
P.3
Tablature/Tabla de digitaciones/ 指法表 /Таблица аппликатуры/운지법
1.3
1.2.3 2.3 1.2.3 2.3 2 2.3 1 1.21
1.2 2 0 1.3
(3)(4) (4)
1.2 1
(3)
1.2
(3)
0 2
(1.3)
2 2 2.3 1
(2.3)(2.4) (2.4)
1
(1.3)
0
(2.3)
0 1
(1.2)
0
(1.3)
1.2 2 0
(3)
(3)
1.2.3.4 2.3.4
1.3.4 1.2.4 1.4
■ ロータリートランペット /
Rotary Trumpet/
Drehventiltrompete/
Trompette à palettes/
Trompeta de cilindros/
转阀式小号 /
Вентильная труба/
로터리 트럼펫
123
1 2 3
■ ピッコロトランペット /Piccolo
Trumpet/Piccolotrompete/Trompette
Piccolo/Trompeta píccolo/
高音小号 /
Труба пикколо/
피콜로 트럼펫
12 3 4
00_trumpet_om.indd 2-99 11/09/08 19:05

この取扱説明書は大豆インクで印刷しています。
Printed in Japan
2500854 1310POCP-C0
This document is printed on chlorine free (ECF) paper with soy ink.
Auf Umweltpapier mit Sojatinte gedruckt.
Ce document a été imprimé sur du papier non blanchi au chlore avec de l’encre d’huile de soja.
Este documento se ha impreso en papel sin cloro alguno, con tinta de soja.
此说明书纸张为无氯漂染纸 (ECF), 使用大豆油墨印制。
Документ отпечатан на не содержащей хлора (ECF) бумаге соевыми чернилами.
본 사용설명서는 무염소 (ECF) 용지에 소이 잉크로 인쇄한 것입니다 .
この取扱説明書はエコパルプ（ECF: 無塩素系漂白パルプ）を使用しています。
00_trumpet_om.indd 1 13/10/10 15:11
