Important manual information
EMU25108
To the owner
Thank you for selecting a Yamaha outboard
motor. This Owner’s Manual contains infor-
mation needed for proper operation, mainte-
nance and care. A thorough understanding of
these simple instructions will help you obtain
maximum enjoyment from your new Yamaha.
If you have any question about the operation
or maintenance of your outboard motor,
please consult a Yamaha dealer.
In this Owner’s Manual particularly important
information is distinguished in the following
ways.
: This is the safety alert symbol. It is used
to alert you to potential personal injury haz-
ards. Obey all safety messages that follow
this symbol to avoid possible injury or death.
WARNING
EWM00782
A WARNING indicates a hazardous situa-
tion which, if not avoided, could result in
death or serious injury.
NOTICE
ECM00702
A NOTICE indicates special precautions
that must be taken to avoid damage to the
outboard motor or other property.
TIP:
A TIP provides key information to make pro-
cedures easier or clearer.
Yamaha continually seeks advancements in
product design and quality. Therefore, while
this manual contains the most current prod-
uct information available at the time of print-
ing, there may be minor discrepancies
between your machine and this manual. If
there is any question concerning this manual,
please consult your Yamaha dealer.
To ensure long product life, Yamaha recom-
mends that you use the product and perform
the specified periodic inspections and main-
tenance by correctly following the instruc-
tions in the owner’s manual. Any damage
resulting from neglect of these instructions is
not covered by warranty.
Some countries have laws or regulations re-
stricting users from taking the product out of
the country where it was purchased, and it
may be impossible to register the product in
the destination country. Additionally, the war-
ranty may not apply in certain regions. When
planning to take the product to another coun-
try, consult the dealer where the product was
purchased for further information.
If the product was purchased used, please
consult your closest dealer for customer re-
registration, and to be eligible for the speci-
fied services.
TIP:
The 2DMH and the standard accessories are
used as a base for the explanations and illus-
trations in this manual. Therefore some items
may not apply to every model.
EMU45001
2D
OWNER’S MANUAL
©2019 by Yamaha Motor Co., Ltd.
1st Edition, January 2023
All rights reserved.
Any reprinting or unauthorized use
without the written permission of
Yamaha Motor Co., Ltd.
is expressly prohibited.
Printed in Thailand
U6GD22E0.book Page 1 Friday, January 13, 2023 10:22 AM

Table of contents
Safety information ............................. 1
Outboard motor safety.................... 1
Propeller ............................................. 1
Rotating parts..................................... 1
Hot parts ............................................ 1
Electric shock..................................... 1
Engine shut-off cord (lanyard)............ 1
Gasoline ............................................. 1
Gasoline exposure and spills ............. 1
Carbon monoxide .............................. 1
Modifications...................................... 2
Boating safety ................................. 2
Alcohol and drugs .............................. 2
Personal flotation devices (PFDs) ...... 2
People in the water ............................ 2
Passengers......................................... 2
Overloading........................................ 2
Avoid collisions .................................. 2
Collisions with floating or submerged
objects ............................................ 3
Weather.............................................. 3
Passenger training ............................. 3
Boating safety publications................ 3
Laws and regulations ......................... 3
General information .......................... 4
Identification numbers record ......... 4
Outboard motor serial number........... 4
Compliance mark label ................... 4
Read manuals and labels................ 5
Warning labels ................................... 5
Specifications and requirements ..... 8
Specifications.................................. 8
Installation requirements................. 9
Boat horsepower rating...................... 9
Mounting outboard motor .................. 9
Propeller selection .......................... 9
Engine oil requirements .................. 9
Why Yamalube ................................. 10
Fuel requirements ......................... 10
Gasoline ........................................... 10
Anti-fouling paint .......................... 10
Outboard motor disposal
requirements.............................. 11
Emergency equipment.................. 11
Components.................................... 12
Components diagram ................... 12
Fuel tank (built-in fuel tank) .............. 13
Fuel cock.......................................... 13
Tiller handle ..................................... 14
Throttle lever .................................... 14
Throttle friction adjuster ................... 15
Engine shut-off cord (lanyard) and
clip ................................................ 15
Engine stop button .......................... 15
Choke knob ...................................... 15
Manual starter handle....................... 16
Steering friction adjuster .................. 16
Trim rod (tilt pin) ............................... 16
Tilt lock mechanism ........................ 17
Tilt support knob .............................. 17
Installation ....................................... 18
Installation..................................... 18
Mounting the outboard motor .......... 18
Clamping the outboard motor.......... 19
Operation ......................................... 20
First-time operation ...................... 20
Breaking in engine............................ 20
Getting to know your boat ............... 20
Checks before starting engine...... 20
Fuel level .......................................... 20
Fuel system ...................................... 21
Controls............................................ 21
Engine shut-off cord (lanyard) .......... 21
Oil ..................................................... 21
Engine .............................................. 21
Filling fuel and engine oil .............. 21
Filling fuel for built-in tank ................ 21
Gasoline and oil mixing (100:1) ........ 22
Operating engine .......................... 23
Supplying fuel to engine................... 23
U6GD22E0.book Page 1 Friday, January 13, 2023 10:22 AM

Table of contents
Starting engine ................................. 24
Checks after starting engine ......... 25
Cooling water ................................... 25
Warming up engine ....................... 26
Direct drive models .......................... 26
Checks after engine warm up ....... 26
Stop switches................................... 26
Shifting .......................................... 26
Forward ............................................ 26
Reverse ............................................ 26
Stopping boat ............................... 26
Stopping engine............................ 27
Procedure......................................... 27
Trimming outboard motor ............. 27
Adjusting trim angle for manual tilt
models .......................................... 28
Adjusting boat trim........................... 28
Tilting up and down ...................... 29
Procedure for tilting up (manual tilt
models) ......................................... 30
Procedure for tilting down (manual
tilt models) .................................... 30
Cruising in other conditions .......... 31
Maintenance .................................... 32
Transporting and storing outboard
motor.......................................... 32
Clamp screw mounting models ....... 32
Storing outboard motor.................... 33
Procedure......................................... 33
Lubrication ....................................... 34
Cleaning the outboard motor ........... 34
Checking painted surface of
outboard motor............................. 34
Periodic maintenance ................... 34
Replacement parts........................... 35
Severe operating conditions ............ 35
Maintenance chart 1 ........................ 36
Maintenance chart 2 ........................ 37
Greasing........................................... 38
Cleaning and adjusting spark plug... 39
Inspecting idling speed .................... 39
Inspecting wiring and connectors .... 40
Checking propeller ........................... 40
Removing propeller .......................... 41
Installing propeller ............................ 41
Changing gear oil ............................. 41
Inspecting and replacing anode
(external) ....................................... 42
Trouble Recovery............................ 43
Troubleshooting............................ 43
Temporary action in emergency ... 45
Impact damage ................................ 45
Starter will not operate ..................... 45
Emergency starting engine............... 46
Treatment of submerged motor.... 47
INDEX ............................................... 48
U6GD22E0.book Page 2 Friday, January 13, 2023 10:22 AM

1
Safety information
EMU33623
Outboard motor safety
Observe these precautions at all times.
EMU37661
Propeller
People can be injured or killed if they come in
contact with the propeller. The propeller has
sharp edges and can cause injuries even
when it is stationary.
Shut off the engine when a person is in the
water near you.
Keep people out of reach of the propeller,
even when the engine is off.
EMU40272
Rotating parts
Hands, feet, hair, jewelry, clothing, personal
flotation device (PFD) straps, etc., can be-
come entangled with internal rotating parts of
the engine, resulting in serious injury or
death.
Keep the top cowling in place whenever pos-
sible. Do not remove or replace the top cowl-
ing with the engine running.
Only operate the engine with the top cowling
removed according to the specific instruc-
tions in the manual. Keep hands, feet, hair,
jewelry, clothing, PFD straps, etc., away from
any exposed moving parts.
EMU33641
Hot parts
During and after operation, engine parts are
hot enough to cause burns. Avoid touching
any parts under the top cowling until the en-
gine has cooled.
EMU33651
Electric shock
Do not touch any electrical parts while start-
ing or operating the engine. They can cause
shock or electrocution.
EMU33672
Engine shut-off cord (lanyard)
Attach the engine shut-off cord so that the
engine stops if the operator falls overboard or
leaves the helm. This prevents the boat from
running away under power and leaving peo-
ple stranded, or running over people or ob-
jects.
Always attach the engine shut-off cord to a
secure place on your clothing or your arm or
leg while operating. Do not remove it to leave
the helm while the boat is moving. Do not at-
tach the cord to clothing that could tear
loose, or route the cord where it could be-
come entangled, preventing it from function-
ing.
Do not route the cord where it is likely to be
accidentally pulled out. If the cord is pulled
during operation, the engine will shut off and
you will lose most steering control. The boat
could slow rapidly, throwing people and ob-
jects forward.
EMU33811
Gasoline
Gasoline and its vapors are highly flamma-
ble and explosive. Always, refuel according
to the procedure on page 23 to reduce the
risk of fire and explosion.
EMU33821
Gasoline exposure and spills
Take care not to spill gasoline. If gasoline
spills, wipe it up immediately with dry rags.
Dispose of rags properly.
If any gasoline spills onto your skin, immedi-
ately wash with soap and water. Change
clothing if gasoline spills on it.
If you swallow gasoline, inhale a lot of gaso-
line vapor, or get gasoline in your eyes, get
immediate medical attention. Never siphon
fuel by mouth.
EMU33901
Carbon monoxide
This product emits exhaust gases which con-
tain carbon monoxide, a colorless, odorless
gas which may cause brain damage or death
when inhaled. Symptoms include nausea,
U6GD22E0.book Page 1 Friday, January 13, 2023 10:22 AM

Safety information
2
dizziness, and drowsiness. Keep cockpit and
cabin areas well ventilated. Avoid blocking
exhaust outlets.
EMU33781
Modifications
Do not attempt to modify this outboard mo-
tor. Modifications to your outboard motor
may reduce safety and reliability, and render
the outboard unsafe or illegal to use.
EMU33742
Boating safety
This section includes a few of the many im-
portant safety precautions that you should
follow when boating.
EMU33711
Alcohol and drugs
Never operate after drinking alcohol or taking
drugs. Intoxication is one of the most com-
mon factors contributing to boating fatalities.
EMU40281
Personal flotation devices (PFDs)
Have an approved PFD on board for every
occupant. Yamaha recommends that you
must wear a PFD whenever boating. At a
minimum, children and non-swimmers
should always wear PFDs, and everyone
should wear PFDs when there are potentially
hazardous boating conditions.
EMU33732
People in the water
Always watch carefully for people in the wa-
ter, such as swimmers, skiers, or divers,
whenever the engine is running. When some-
one is in the water near the boat, shift into
neutral and stop the engine.
Stay away from swimming areas. Swimmers
can be hard to see.
The propeller can keep moving even when
the motor is in neutral. Stop the engine when
a person is in the water near you.
EMU33752
Passengers
Consult your boat manufacturer’s instruc-
tions for details about appropriate passenger
locations in your boat and be sure all passen-
gers are positioned properly before acceler-
ating and when operating above an idle
speed. Standing or sitting in non-designated
locations may result in being thrown either
overboard or within the boat due to waves,
wakes, or sudden changes in speed or direc-
tion. Even when people are positioned prop-
erly, alert your passengers if you must make
any unusual maneuver. Always avoid jump-
ing waves or wakes.
EMU33763
Overloading
Do not overload the boat. Consult the boat
capacity plate or boat manufacturer for max-
imum weight and number of passengers. Be
sure that weight is properly distributed ac-
cording to the boat manufacturer’s instruc-
tions. Overloading or incorrect weight
distribution can compromise the boat’s han-
dling and lead to an accident, capsizing or
swamping.
EMU33773
Avoid collisions
Scan constantly for people, objects, and oth-
er boats. Be alert for conditions that limit your
visibility or block your vision of others.
ZMU06025
U6GD22E0.book Page 2 Friday, January 13, 2023 10:22 AM

Safety information
3
Operate defensively at safe speeds and keep
a safe distance away from people, objects,
and other boats.
Do not follow directly behind other boats or
waterskiers.
Avoid sharp turns or other maneuvers that
make it hard for others to avoid you or un-
derstand where you are going.
Avoid areas with submerged objects or
shallow water.
Ride within your limits and avoid aggres-
sive maneuvers to reduce the risk of loss of
control, ejection, and collision.
Take early action to avoid collisions. Re-
member, boats do not have brakes, and
stopping the engine or reducing throttle
can reduce the ability to steer. If you are not
sure that you can stop in time before hitting
an obstacle, apply throttle and turn in an-
other direction.
EMU48140
Collisions with floating or submerged
objects
If the outboard motor hits a floating object or
an obstacle in the water while cruising, the
following could occur:
The passengers and any loose equipment
or luggage could be thrown forward due to
the sudden deceleration.
Parts of the outboard motor could come
loose as a result of the impact and could be
thrown into the boat.
The boat or outboard motor could be dam-
aged as a result of the impact.
If the outboard motor hits a floating object or
an obstacle in the water, make sure that there
are no abnormalities with the boat and the
outboard motor. If anything abnormal is
found, return to the nearest harbor at low
speed and have a Yamaha dealer inspect the
outboard motor.
EMU33791
Weather
Stay informed about the weather. Check
weather forecasts before boating. Avoid
boating in hazardous weather.
EMU33881
Passenger training
Make sure at least one other passenger is
trained to operate the boat in the event of an
emergency.
EMU33891
Boating safety publications
Be informed about boating safety. Additional
publications and information can be obtained
from many boating organizations.
EMU33602
Laws and regulations
Know the marine laws and regulations where
you will be boating—and obey them. Several
sets of rules prevail according to geographic
location, but all are basically the same as the
International Rules of the Road.
U6GD22E0.book Page 3 Friday, January 13, 2023 10:22 AM

General information
4
EMU25172
Identification numbers record
EMU31292
Outboard motor serial number
The outboard motor serial number is
stamped on the label attached to the upper
part of the swivel bracket.
Record your outboard motor serial number in
the spaces provided to assist you in ordering
spare parts from your Yamaha dealer or for
reference in case your outboard motor is sto-
len.
EMU46133
Compliance mark label
Engines affixed with this label conform to the
regulations for each country.
This label is affixed to the clamp bracket or
swivel bracket.
Regulatory Compliance Mark (RCM)
Engines affixed with this mark conform to
certain portion(s) of the Australian Radio
Communications Act.
ICES-002 Compliance Label
Engines affixed with this mark meet all re-
quirements of the Canadian Interference
Causing Equipment Regulations.

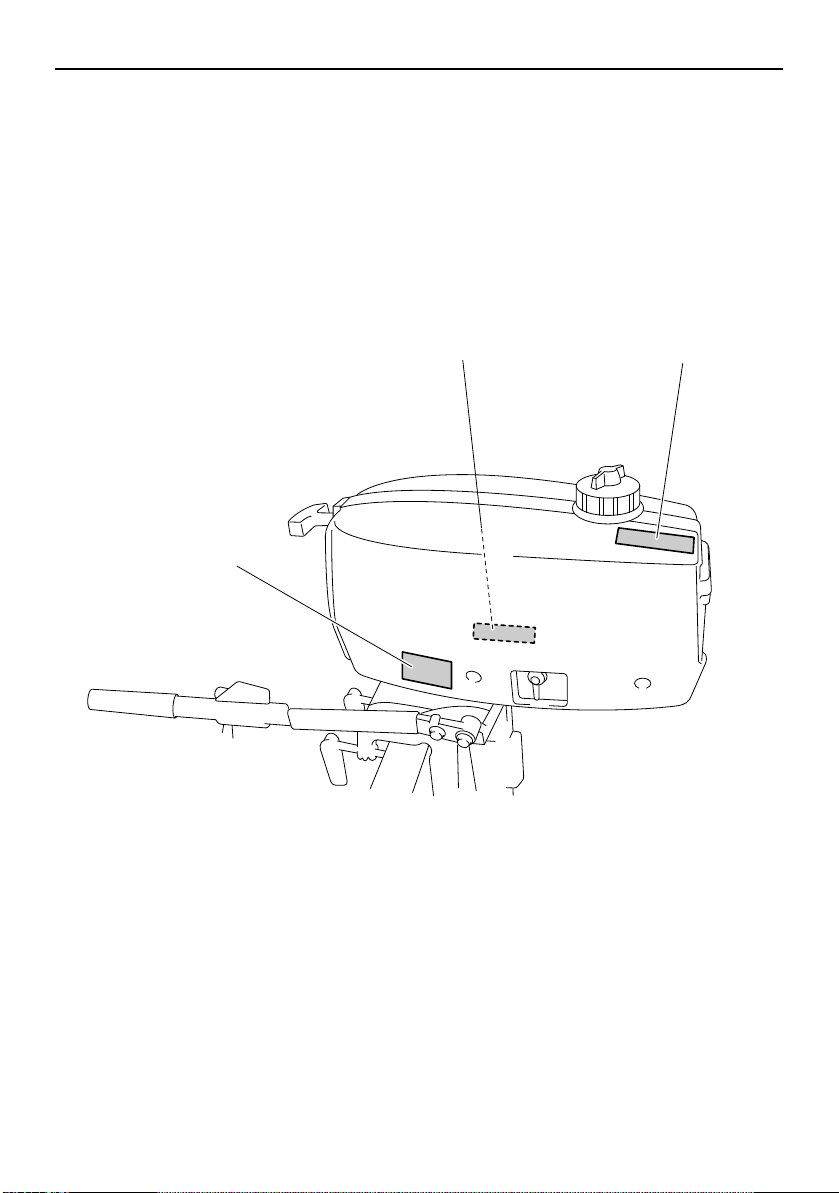

1. Outboard motor serial number location
1. Serial number
2. Model name
3. Motor transom height
4. Approved model code
1
ZMU02586
YAMAHA
THAI YAMAHA MOTOR CO.,LTD.
MADE IN THAILAND
PAYS D’ORIGINE THAÏLANDE
3412
ZMU08144
1. Compliance mark label location
1. Regulatory Compliance Mark (RCM)
1. ICES-002 Compliance Label
1
ZMU03977
ZMU08190
1
ZMU08191
1
U6GD22E0.book Page 4 Friday, January 13, 2023 10:22 AM

General information
5
EMU33524
Read manuals and labels
Before operating or working on this outboard motor:
Read this manual.
Read any manuals supplied with the boat.
Read all labels on the outboard motor and the boat.
If you need any additional information, contact your Yamaha dealer.
EMU33836
Warning labels
If these labels are damaged or missing, contact your Yamaha dealer for replacements.
ZMU06031
21
3
U6GD22E0.book Page 5 Friday, January 13, 2023 10:22 AM

General information
6
EMU46960

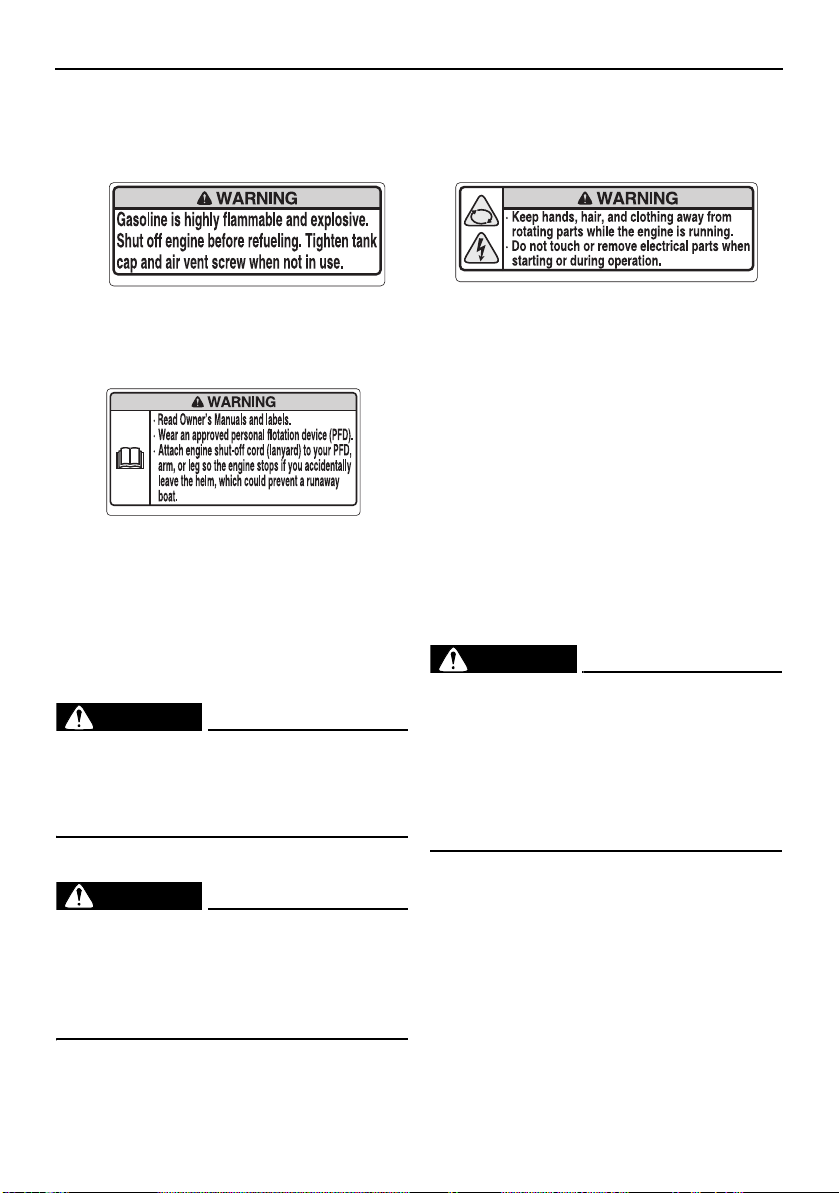

Contents of labels
The above warning labels mean as follows.
1
WARNING
EWM01702
Gasoline is highly flammable and explo-
sive. Shut off engine before refueling.
Tighten tank cap and air vent screw when
not in use.
2
WARNING
EWM01682
Keep hands, hair, and clothing away
from rotating parts while the engine is
running.
Do not touch or remove electrical parts
when starting or during operation.
3
WARNING
EWM01672
Read Owner’s Manuals and labels.
Wear an approved personal flotation de-
vice (PFD).
Attach engine shut-off cord (lanyard) to
your PFD, arm, or leg so the engine
stops if you accidentally leave the helm,
which could prevent a runaway boat.
ZMU08654
6EE-H1994-40
12
3
6EE-G2698-40
6EE-G2794-40
U6GD22E0.book Page 6 Friday, January 13, 2023 10:22 AM

General information
7
EMU35133

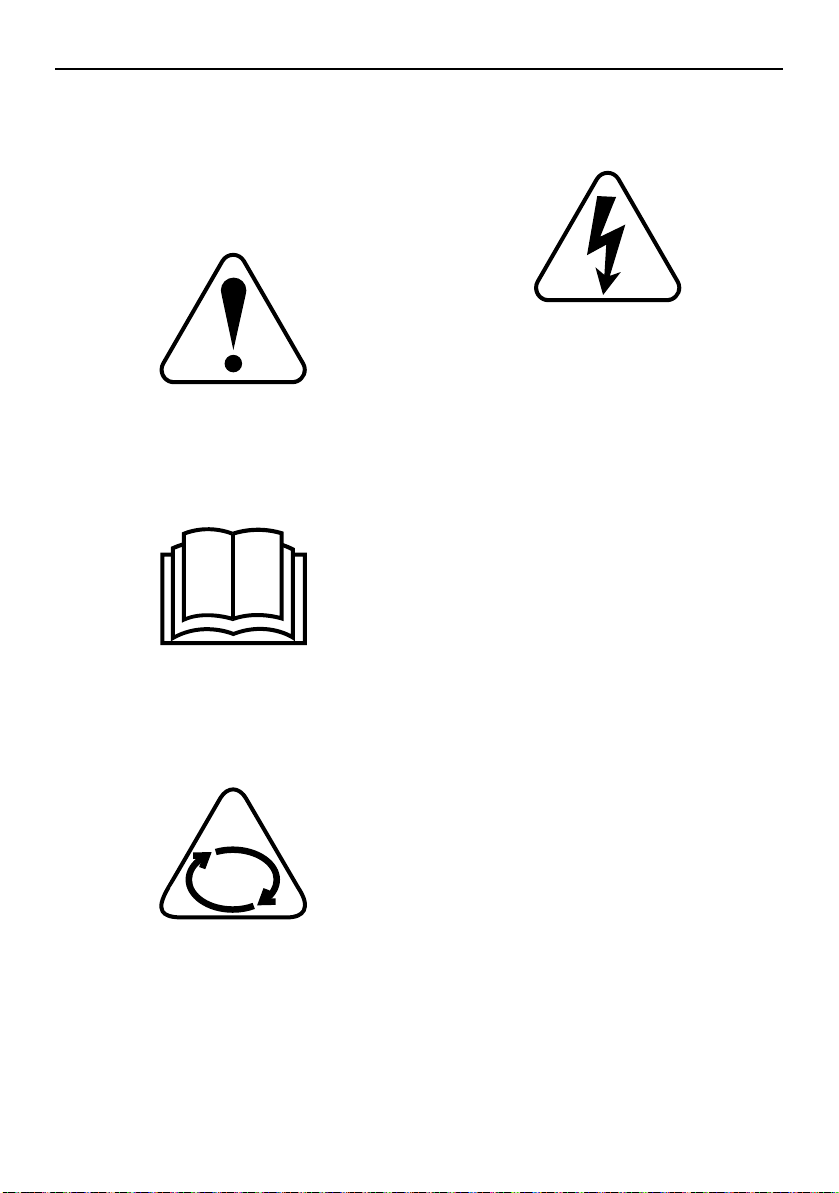

Symbols
The following symbols mean as follows.
Notice/Warning
Read Owner’s Manual
Hazard caused by continuous rotation
Electrical hazard
ZMU05696
ZMU05664
ZMU05665
ZMU05666
U6GD22E0.book Page 7 Friday, January 13, 2023 10:22 AM

Specifications and requirements
8
EMU38092
Specifications
TIP:
“(AL)” stated in the specification data below
represents the numerical value for the alumi-
num propeller installed.
EMU2821Z
Dimension and weight:
Overall length:
609 mm (24.0 in)
Overall width:
244 mm (9.6 in)
Overall height S:
920 mm (36.2 in)
Motor transom height S:
419 mm (16.5 in)
Dry weight (AL) S:
10 kg (22 lb)
Performance:
Full throttle operating range:
4500–5500 r/min
Rated power:
1.5 kW (2 HP)
Idle speed (in neutral):
1100–1200 r/min
Power unit:
Type:
2-stroke S1
Total displacement:
50 cm³ (3.1 c.i.)
Bore ×stroke:
42.0 ×36.0 mm (1.65 ×1.42 in)
Ignition system:
CDI
Spark plug (NGK):
BR7HS
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)
Steering system:
Tiller handle
Starting system:
Manual starter
Starting carburetion system:
Choke valve
Lower unit:
Gear shift positions:
Forward
Gear ratio:
2.08 (27/13)
Trim and tilt system:
Manual tilt
Propeller mark:
A
Fuel and oil:
Recommended fuel:
Regular unleaded gasoline
Min. research octane number (RON):
90
Fuel tank capacity (built in type):
1.1 L (0.29 US gal, 0.24 Imp.gal)
Recommended engine oil:
YAMALUBE 2-stroke outboard motor oil
Recommended engine oil:
TC-W3
Gasoline:oil mixing ratio:
100 : 1
Lubrication system:
Pre-mixed fuel and oil
Recommended gear oil:
YAMALUBE outboard gear oil or Hypoid
gear oil
Recommended gear oil grade:
SAE 90 API GL-4
Gear oil quantity:
0.045 L (0.048 US qt, 0.040 Imp.qt)
U6GD22E0.book Page 8 Friday, January 13, 2023 10:22 AM

Specifications and requirements
9
EMU33556
Installation requirements
EMU33566
Boat horsepower rating
WARNING
EWM01561
Overpowering a boat can cause severe in-
stability.
Before installing the outboard motor(s), con-
firm that the total horsepower of your out-
board motor(s) does not exceed the boat’s
maximum horsepower rating. See the boat’s
capacity plate or contact the manufacturer.
EMU40491
Mounting outboard motor
WARNING
EWM02501
Improper mounting of the outboard mo-
tor could result in hazardous conditions
such as poor handling, loss of control,
or fire hazards.
Because the outboard motor is very
heavy, special equipment and training is
required to mount it safely.
Your dealer or other person experienced in
proper rigging should mount the outboard
motor using correct equipment and complete
rigging instructions. For further information,
see page 18.
EMU34196
Propeller selection
Next to selecting an outboard motor, select-
ing the right propeller is one of the most im-
portant purchasing decisions a boater can
make. The type, size, and design of your pro-
peller have a direct impact on acceleration,
top speed, fuel economy, and even engine
life. Yamaha designs and manufactures pro-
pellers for every Yamaha outboard motor and
every application.
Your outboard motor came with a Yamaha
propeller selected to perform well over a
range of applications, but there may be uses
where a different propeller would be more
appropriate.
Your Yamaha dealer can help you select the
right propeller for your boating needs. Select
a propeller that will allow the engine to reach
the middle or upper half of the operating
range at full throttle with the maximum boat-
load. Generally, select a larger pitch propeller
for a smaller operating load and a smaller
pitch propeller for a heavier load. If you carry
loads that vary widely, select the propeller
that lets the engine run in the proper range for
your maximum load but remember that you
may need to reduce your throttle setting to
stay within the recommended engine speed
range when carrying lighter loads.
To check the propeller, see page 40.
EMU25653
Engine oil requirements

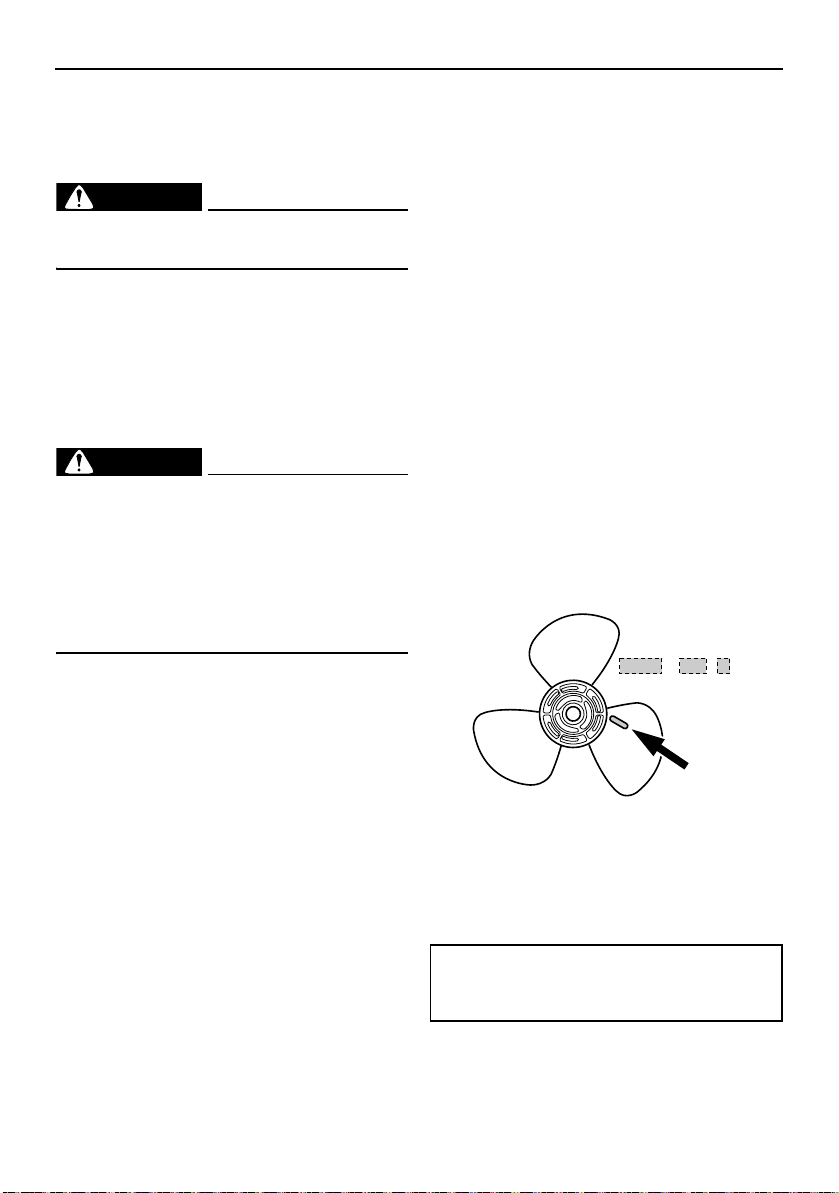

1. Propeller diameter in inches
2. Propeller pitch in inches
3. Type of propeller (propeller mark)
Recommended engine oil:
YAMALUBE 2-stroke outboard motor
oil
ZMU04604
-
x
123
U6GD22E0.book Page 9 Friday, January 13, 2023 10:22 AM

Specifications and requirements
10
If the recommended engine oil is not avail-
able, another 2-stroke engine oil with an
NMMA-certified TC-W3 rating may be used.
EMU48120
Why Yamalube
YAMALUBE oil is a Genuine YAMAHA Part
born of the engineers’ passion and belief that
engine oil is an important liquid engine com-
ponent. We form teams of specialists in the
fields of mechanical engineering, chemistry,
electronics and track testing, and have them
develop the engine together with the oil it will
use. Yamalube oils take full advantage of the
base oil’s qualities and blend in the ideal bal-
ance of additives to make sure the final oil
clears our performance standards. Thus,
Yamalube mineral, semisynthetic and syn-
thetic oils have their own distinct characters
and value. Yamaha’s experience gained over
many years of research and development
into oil since the 1960’s helps make
Yamalube the best choice for your Yamaha
engine.
EMU36361
Fuel requirements
EMU44820
Gasoline
Use a good quality gasoline that meets the
minimum octane rating. If knocking or ping-
ing occurs, use a different brand of gasoline
or premium unleaded fuel. Yamaha recom-
mends that you use alcohol-free (see Gaso-
hol) gasoline whenever possible.
NOTICE
ECM01982
Do not use leaded gasoline. Leaded
gasoline can seriously damage the en-
gine.
Avoid getting water and contaminants in
the fuel tank. Contaminated fuel can
cause poor performance or engine dam-
age. Use only fresh gasoline that has
been stored in clean containers.
Gasohol
There are two types of gasohol: gasohol con-
taining ethanol (E10) and that containing
methanol. Ethanol can be used if the ethanol
content does not exceed 10% and the fuel
meets the minimum octane ratings. All etha-
nol blends containing more than 10% ethanol
can cause fuel system damage or cause en-
gine starting and running problems. Yamaha
does not recommend gasohol containing
methanol because it can cause fuel system
damage or engine performance problems.
EMU36331
Anti-fouling paint
A clean hull improves boat performance. The
boat bottom should be kept as clean of ma-
rine growth as possible. If necessary, the
boat bottom can be coated with an anti-foul-
ing paint approved for your area to inhibit ma-
rine growth.
Do not use anti-fouling paint which includes
copper or graphite. These paints can cause
more rapid engine corrosion.
Recommended fuel:
Regular unleaded gasoline
Min. research octane number (RON):
90
U6GD22E0.book Page 10 Friday, January 13, 2023 10:22 AM

Specifications and requirements
11
EMU40302
Outboard motor disposal re-
quirements
Never illegally discard (dump) the outboard
motor. Yamaha recommends consulting the
dealer about discarding the outboard motor.
EMU36353
Emergency equipment
Keep the following items onboard in case
there is trouble with the outboard motor.
A tool kit with assorted screwdrivers, pliers,
wrenches (including metric sizes), and
electrical tape.
Waterproof flashlight with extra batteries.
An extra engine shut-off cord (lanyard) with
clip.
Spare parts, such as an extra set of spark
plugs.
Consult your Yamaha dealer for details.
U6GD22E0.book Page 11 Friday, January 13, 2023 10:22 AM

Components
12
EMU46722

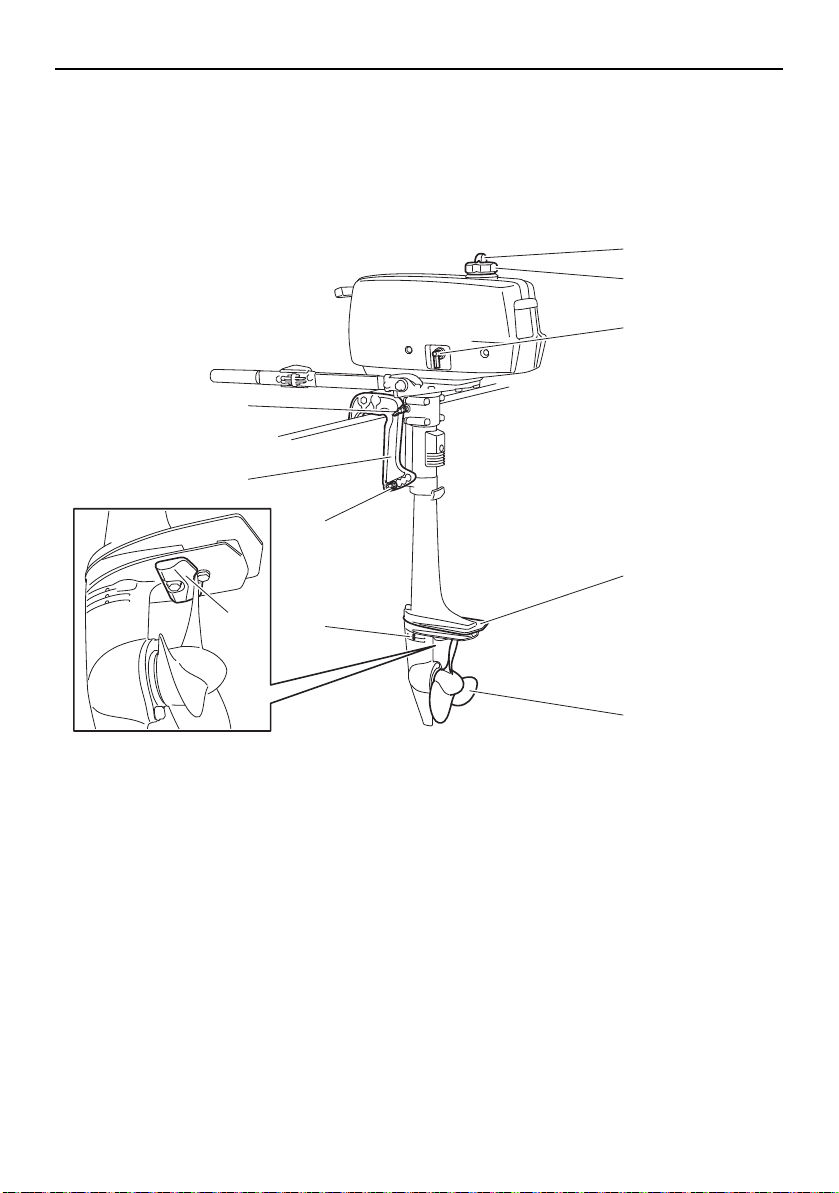

Components diagram
TIP:
* May not be exactly as shown; also may not be included as standard equipment on all models
(order from dealer).
1
10
67
8
9
2
3
5
4
ZMU02591
1. Air vent screw
2. Fuel tank cap
3. Fuel cock
4. Anti-cavitation plate
5. Propeller
6. Anode
7. Cooling water inlet
8. Trim rod
9. Clamp bracket
10.Steering friction adjuster
U6GD22E0.book Page 12 Friday, January 13, 2023 10:22 AM

Components
13
EMU39545
Fuel tank (built-in fuel tank)
This outboard motor is equipped with a built-
in fuel tank and its parts are as follows.
Fuel tank cap
This cap seals the fuel tank. When removed,
the tank can be filled with fuel. To remove the
cap, turn it counterclockwise.
Air vent screw
This screw is on the fuel tank cap. To loosen
the screw, turn it counterclockwise.
EMU42995
Fuel cock
The fuel cock turns on and off the supply of
fuel from the fuel tank to the engine.
1
6
7
8
9
2
3
5
4
ZMU08677
1. Manual starter handle
2. Choke knob
3. Engine stop button
4. Tiller handle
5. Engine shut-off cord (lanyard)
6. Clamp screw
7. Restraint cable attachment
8. Tilt support knob
9. Throttle lever
1. Air vent screw
2. Fuel tank cap
1 2
ZMU08648
U6GD22E0.book Page 13 Friday, January 13, 2023 10:22 AM

Components
14
Closed position

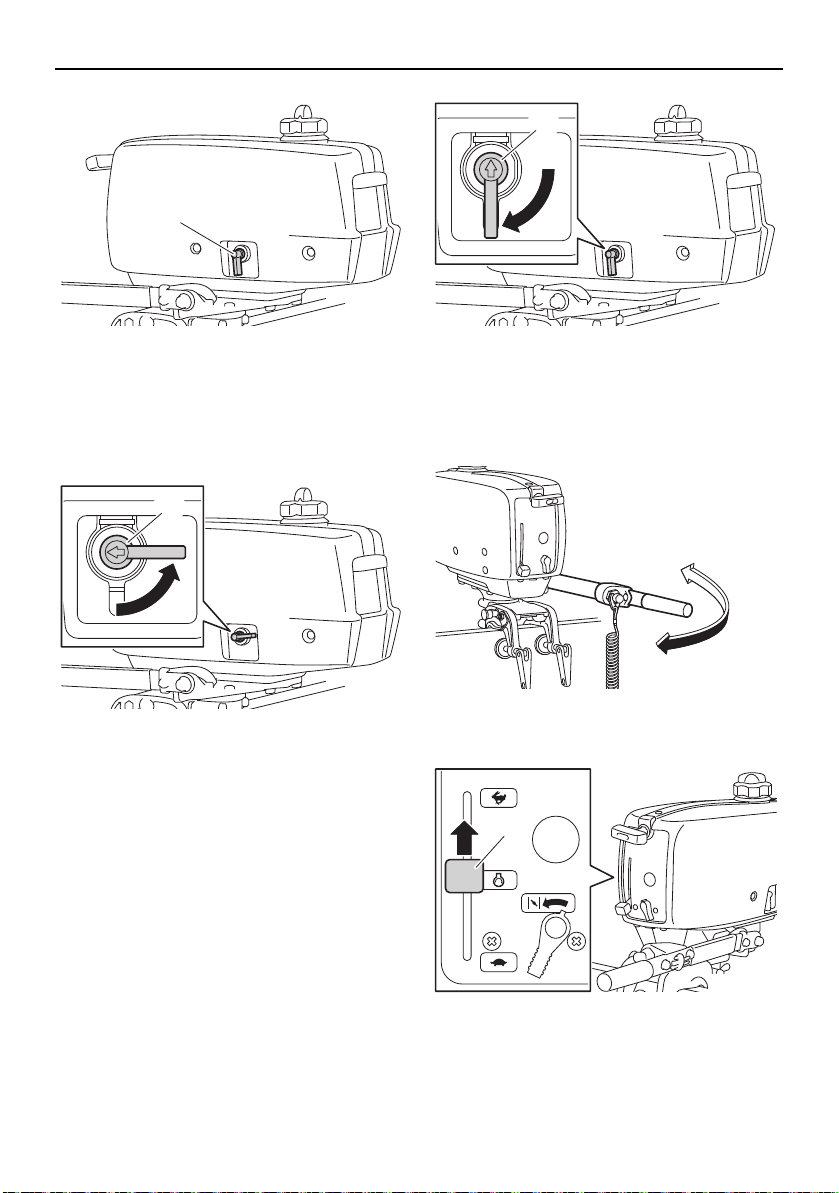

To stop the fuel flow to the engine, turn the
fuel cock to the closed position.
Always turn the fuel cock to the closed posi-
tion when the engine is not running.
Open position
To send fuel from the fuel tank to the carbu-
retor, turn the fuel cock to the open position.
Normal running is done with the fuel cock in
this position.
EMU25914
Tiller handle
To change direction, move the tiller handle to
the left or right as necessary.
EMU25954
Throttle lever
To increase speed, push the lever upward.
1. Fuel cock
1. Closed position
1
ZMU02592
ON
OFF
1
ZMU08649
1. Open position
1. Throttle lever
ON
OFF
1
ZMU02593
ZMU08650
1
ZMU02594
U6GD22E0.book Page 14 Friday, January 13, 2023 10:22 AM

Components
15
EMU25982
Throttle friction adjuster
An adjustable friction device within the
aprons restricts movement of the throttle le-
ver according to the operator’s preference.
When constant speed is desired, tighten the
adjuster to maintain the desired throttle set-
ting.
WARNING
EWM01481
Do not overtighten the friction adjuster. If
there is too much resistance, it could be
difficult to move the throttle lever, which
could result in an accident.
EMU25996
Engine shut-off cord (lanyard) and clip
The clip must be attached to the engine shut-
off switch for the engine to run. The cord
should be attached to a secure place on the
operator’s clothing, or arm or leg. Should the
operator fall overboard or leave the helm, the
cord will pull out the clip, stopping ignition to
the engine. This will prevent the boat from
running away under power. WARNING! At-
tach the engine shut-off cord to a secure
place on your clothing, or your arm or leg
while operating. Do not attach the cord to
clothing that could tear loose. Do not
route the cord where it could become en-
tangled, preventing it from functioning.
Avoid accidentally pulling the cord during
normal operation. Loss of engine power
means the loss of most steering control.
Also, without engine power, the boat
could slow rapidly. This could cause peo-
ple and objects in the boat to be thrown
forward. [EWM00123]
EMU26004
Engine stop button
The engine stop button stops the engine
when the button is pushed.
EMU26051
Choke knob
To supply the engine with the rich fuel mix-
ture required to start, turn this knob counter-
clockwise.
ZMU02597
1. Engine shut-off switch
2. Clip
3. Engine shut-off cord (lanyard)
1. Engine stop button
1
3
2
ZMU02598
1
ZMU02650
U6GD22E0.book Page 15 Friday, January 13, 2023 10:22 AM
