Yamaha FL200C User manual

Read this manual carefully before operating this
outboard motor.
OWNER’S MANUAL
F200C
FL200C
F225B
FL225B
F225C
6P2-28199-7A-E0
U6P27AE0.book Page 1 Friday, December 6, 2013 6:17 PM

Read this manual carefully before operating this outboard motor. Keep this
manual onboard in a waterproof bag when boating. This manual should stay
with the outboard motor if it is sold.
U6P27AE0.book Page 1 Friday, December 6, 2013 6:17 PM

Important manual information
EMU25108
To the owner
Thank you for selecting a Yamaha outboard
motor. This Owner’s Manual contains infor-
mation needed for proper operation, mainte-
nance and care. A thorough understanding of
these simple instructions will help you obtain
maximum enjoyment from your new Yamaha.
If you have any question about the operation
or maintenance of your outboard motor,
please consult a Yamaha dealer.
In this Owner’s Manual particularly important
information is distinguished in the following
ways.
: This is the safety alert symbol. It is used
to alert you to potential personal injury haz-
ards. Obey all safety messages that follow
this symbol to avoid possible injury or death.
WARNING
EWM00782
A WARNING indicates a hazardous situa-
tion which, if not avoided, could result in
death or serious injury.
NOTICE
ECM00702
A NOTICE indicates special precautions
that must be taken to avoid damage to the
outboard motor or other property.
TIP:
A TIP provides key information to make pro-
cedures easier or clearer.
Yamaha continually seeks advancements in
product design and quality. Therefore, while
this manual contains the most current prod-
uct information available at the time of print-
ing, there may be minor discrepancies
between your machine and this manual. If
there is any question concerning this manual,
please consult your Yamaha dealer.
To ensure long product life, Yamaha recom-
mends that you use the product and perform
the specified periodic inspections and main-
tenance by correctly following the instruc-
tions in the owner’s manual. Any damage
resulting from neglect of these instructions is
not covered by warranty.
Some countries have laws or regulations re-
stricting users from taking the product out of
the country where it was purchased, and it
may be impossible to register the product in
the destination country. Additionally, the war-
ranty may not apply in certain regions. When
planning to take the product to another coun-
try, consult the dealer where the product was
purchased for further information.
If the product was purchased used, please
consult your closest dealer for customer re-
registration, and to be eligible for the speci-
fied services.
TIP:
The F200CET, FL200CET, F225BET,
FL225BET, F225CET and the standard ac-
cessories are used as a base for the explana-
tions and illustrations in this manual.
Therefore some items may not apply to every
model.
EMU25122
F200C, FL200C, F225B, FL225B, F225C
OWNER’S MANUAL
©2013 by Yamaha Motor Co., Ltd.
1st Edition, November 2013
All rights reserved.
Any reprinting or unauthorized use
without the written permission of
Yamaha Motor Co., Ltd.
is expressly prohibited.
Printed in Japan
U6P27AE0.book Page 1 Friday, December 6, 2013 6:17 PM

Table of contents
Safety information............................. 1
Outboard motor safety.................... 1
Propeller ............................................. 1
Rotating parts..................................... 1
Hot parts ............................................ 1
Electric shock..................................... 1
Power trim and tilt .............................. 1
Engine shut-off cord (lanyard)............ 1
Gasoline ............................................. 2
Gasoline exposure and spills ............. 2
Carbon monoxide .............................. 2
Modifications...................................... 2
Boating safety ................................. 2
Alcohol and drugs .............................. 2
Personal flotation devices (PFDs) ...... 2
People in the water ............................ 2
Passengers......................................... 2
Overloading........................................ 2
Avoid collisions .................................. 3
Weather.............................................. 3
Passenger training ............................. 3
Boating safety publications................ 3
Laws and regulations ......................... 3
General information .......................... 4
Identification numbers record ......... 4
Outboard motor serial number........... 4
Key number........................................ 4
EC Declaration of Conformity
(DoC) ........................................... 4
CE Marking .................................... 4
Read manuals and labels................ 6
Warning labels ................................... 6
Specifications and requirements..... 9
Specifications.................................. 9
Installation requirements............... 10
Boat horsepower rating.................... 10
Mounting outboard motor ................ 11
Remote control requirements ....... 11
Battery requirements..................... 11
Battery specifications....................... 11
Mounting battery .............................. 11
Multiple batteries.............................. 11
Propeller selection ........................ 11
Counter rotation models .................. 12
Start-in-gear protection ................ 12
Engine oil requirements ................ 12
Fuel requirements ......................... 13
Gasoline ........................................... 13
Anti-fouling paint .......................... 13
Outboard motor disposal
requirements.............................. 14
Emergency equipment.................. 14
Components.................................... 15
Components diagram ................... 15
Remote control box.......................... 16
Remote control lever ........................ 17
Free accelerator ............................... 17
Throttle friction adjuster ................... 18
Engine shut-off cord (lanyard) and
clip ................................................ 18
Main switch ...................................... 19
Power trim and tilt switch on remote
control........................................... 19
Power trim and tilt switch on bottom
cowling.......................................... 19
Power trim and tilt switches (twin
binnacle type)................................ 20
Trim tab with anode ......................... 20
Tilt support lever for power trim and
tilt model ....................................... 21
Cowling lock lever (pull up type) ...... 21
Flushing device ................................ 22
Fuel filter/Water separator................ 22
Instruments and indicators ............ 24
Digital tachometer......................... 24
Tachometer ...................................... 24
Trim meter ........................................ 24
Hour meter ....................................... 24
Low oil pressure-alert indicator........ 25
Overheat-alert indicator ................... 25
Digital speedometer...................... 25
Speedometer.................................... 25
U6P27AE0.book Page 1 Friday, December 6, 2013 6:17 PM

Table of contents
Fuel gauge........................................ 26
Trip meter / Clock / Voltmeter.......... 26
Fuel level-alert indicator ................... 27
Low battery voltage-alert
indicator ........................................ 27
Fuel management meter ............... 27
Fuel flow meter................................. 27
Fuel consumption meter / Fuel
economy meter / Twin engine
speed synchronizer....................... 28
Water separator-alert indicator ........ 30
6Y8 Multifunction meters .............. 30
6Y8 Multifunction tachometers ..... 30
Start-up checks................................ 31
Low oil pressure-alert....................... 31
Overheat alert................................... 32
Water separator alert........................ 32
Engine trouble alert .......................... 32
Low battery voltage-alert ................. 33
6Y8 Multifunction speed & fuel
meters ........................................ 33
6Y8 Multifunction
speedometers ............................ 34
6Y8 Multifunction fuel
management meters .................. 35
Engine control system .................... 36
Alert system .................................. 36
Overheat alert................................... 36
Low oil pressure alert....................... 36
Installation ....................................... 38
Installation ..................................... 38
Mounting the outboard motor.......... 38
Operation ......................................... 40
First-time operation....................... 40
Fill engine oil .................................... 40
Breaking in engine............................ 40
Getting to know your boat ............... 40
Checks before starting engine ...... 40
Fuel level .......................................... 41
Remove cowling............................... 41
Fuel system ...................................... 41
Controls............................................ 42
Engine shut-off cord (lanyard) .......... 42
Engine oil.......................................... 42
Engine .............................................. 42
Flushing device ................................ 42
Install cowling................................... 43
Checking power trim and tilt
system........................................... 44
Battery.............................................. 45
Filling fuel ..................................... 45
Operating engine .......................... 46
Sending fuel ..................................... 46
Starting engine ................................. 46
Checks after starting engine......... 48
Cooling water ................................... 48
Warming up engine....................... 48
Electric start models......................... 48
Checks after engine warm up....... 49
Shifting ............................................. 49
Stop switches................................... 49
Shifting.......................................... 49
Stopping boat ............................... 50
Stopping engine............................ 50
Procedure......................................... 50
Trimming outboard motor............. 50
Adjusting trim angle (Power trim and
tilt) ................................................. 51
Adjusting boat trim ........................... 51
Tilting up and down ...................... 52
Procedure for tilting up..................... 53
Procedure for tilting down................ 54
Shallow water .............................. 55
Power trim and tilt models ............... 55
Cruising in other conditions.......... 56
Maintenance.................................... 57
Transporting and storing outboard
motor ......................................... 57
Storing outboard motor.................... 57
Procedure......................................... 58
Lubrication ....................................... 59
Flushing power unit .......................... 59
U6P27AE0.book Page 2 Friday, December 6, 2013 6:17 PM

Table of contents
Cleaning the outboard motor ........... 60
Checking painted surface of
outboard motor............................. 60
Periodic maintenance ................... 61
Replacement parts........................... 61
Severe operating conditions ............ 61
Maintenance chart 1 ........................ 62
Maintenance chart 2 ........................ 64
Greasing........................................... 65
Cleaning and adjusting spark plug... 67
Inspecting idle speed ....................... 68
Changing engine oil.......................... 68
Inspecting wiring and connectors .... 73
Checking propeller ........................... 73
Removing propeller .......................... 73
Installing propeller ............................ 74
Changing gear oil ............................. 75
Inspecting and replacing anode(s) ... 78
Checking battery (for electric start
models) ......................................... 79
Connecting the battery..................... 79
Disconnecting the battery ................ 81
Trouble Recovery ............................ 82
Troubleshooting ............................ 82
Temporary action in emergency ... 85
Impact damage ................................ 85
Running single engine (twin
engines) ........................................ 85
Replacing fuse ................................. 86
Power trim and tilt will not
operate.......................................... 87
Water separator-alert indicator
blinks while cruising...................... 87
Treatment of submerged motor .... 89
INDEX ............................................... 90
U6P27AE0.book Page 3 Friday, December 6, 2013 6:17 PM

1
Safety information
EMU33623
Outboard motor safety
Observe these precautions at all times.
EMU36502
Propeller
People can be injured or killed if they come in
contact with the propeller. The propeller can
keep moving even when the motor is in neu-
tral, and sharp edges of the propeller can cut
even when stationary.
Stop the engine when a person is in the
water near you.
Keep people out of reach of the propeller,
even when the engine is off.
EMU40272
Rotating parts
Hands, feet, hair, jewelry, clothing, personal
flotation device (PFD) straps, etc., can be-
come entangled with internal rotating parts of
the engine, resulting in serious injury or
death.
Keep the top cowling in place whenever pos-
sible. Do not remove or replace the top cowl-
ing with the engine running.
Only operate the engine with the top cowling
removed according to the specific instruc-
tions in the manual. Keep hands, feet, hair,
jewelry, clothing, PFD straps, etc., away from
any exposed moving parts.
EMU33641
Hot parts
During and after operation, engine parts are
hot enough to cause burns. Avoid touching
any parts under the top cowling until the en-
gine has cooled.
EMU33651
Electric shock
Do not touch any electrical parts while start-
ing or operating the engine. They can cause
shock or electrocution.
EMU33661
Power trim and tilt
Body parts can be crushed between the mo-
tor and the clamp bracket when the motor is
trimmed or tilted. Keep body parts out of this
area at all times. Be sure no one is in this area
before operating the power trim and tilt
mechanism.
The power trim and tilt switches operate even
when the main switch is off. Keep people be
away from the switches whenever working
around the motor.
Never get under the lower unit while it is tilted,
even when the tilt support lever is locked. Se-
vere injury could occur if the outboard motor
accidentally falls.
EMU33672
Engine shut-off cord (lanyard)
Attach the engine shut-off cord so that the
engine stops if the operator falls overboard or
leaves the helm. This prevents the boat from
running away under power and leaving peo-
ple stranded, or running over people or ob-
jects.
Always attach the engine shut-off cord to a
secure place on your clothing or your arm or
leg while operating. Do not remove it to leave
the helm while the boat is moving. Do not at-
tach the cord to clothing that could tear
loose, or route the cord where it could be-
come entangled, preventing it from function-
ing.
Do not route the cord where it is likely to be
accidentally pulled out. If the cord is pulled
during operation, the engine will shut off and
you will lose most steering control. The boat
could slow rapidly, throwing people and ob-
jects forward.
U6P27AE0.book Page 1 Friday, December 6, 2013 6:17 PM

Safety information
2
EMU33811
Gasoline
Gasoline and its vapors are highly flamma-
ble and explosive. Always, refuel according
to the procedure on page 46 to reduce the
risk of fire and explosion.
EMU33821
Gasoline exposure and spills
Take care not to spill gasoline. If gasoline
spills, wipe it up immediately with dry rags.
Dispose of rags properly.
If any gasoline spills onto your skin, immedi-
ately wash with soap and water. Change
clothing if gasoline spills on it.
If you swallow gasoline, inhale a lot of gaso-
line vapor, or get gasoline in your eyes, get
immediate medical attention. Never siphon
fuel by mouth.
EMU33901
Carbon monoxide
This product emits exhaust gases which con-
tain carbon monoxide, a colorless, odorless
gas which may cause brain damage or death
when inhaled. Symptoms include nausea,
dizziness, and drowsiness. Keep cockpit and
cabin areas well ventilated. Avoid blocking
exhaust outlets.
EMU33781
Modifications
Do not attempt to modify this outboard mo-
tor. Modifications to your outboard motor
may reduce safety and reliability, and render
the outboard unsafe or illegal to use.
EMU33741
Boating safety
This section includes a few of the many im-
portant safety precautions that you should
follow when boating.
EMU33711
Alcohol and drugs
Never operate after drinking alcohol or taking
drugs. Intoxication is one of the most com-
mon factors contributing to boating fatalities.
EMU40281
Personal flotation devices (PFDs)
Have an approved PFD on board for every
occupant. Yamaha recommends that you
must wear a PFD whenever boating. At a
minimum, children and non-swimmers
should always wear PFDs, and everyone
should wear PFDs when there are potentially
hazardous boating conditions.
EMU33732
People in the water
Always watch carefully for people in the wa-
ter, such as swimmers, skiers, or divers,
whenever the engine is running. When some-
one is in the water near the boat, shift into
neutral and stop the engine.
Stay away from swimming areas. Swimmers
can be hard to see.
The propeller can keep moving even when
the motor is in neutral. Stop the engine when
a person is in the water near you.
EMU33752
Passengers
Consult your boat manufacturer’s instruc-
tions for details about appropriate passenger
locations in your boat and be sure all passen-
gers are positioned properly before acceler-
ating and when operating above an idle
speed. Standing or sitting in non-designated
locations may result in being thrown either
overboard or within the boat due to waves,
wakes, or sudden changes in speed or direc-
tion. Even when people are positioned prop-
erly, alert your passengers if you must make
any unusual maneuver. Always avoid jump-
ing waves or wakes.
EMU33762
Overloading
Do not overload the boat. Consult the boat
capacity plate or boat manufacturer for max-
imum weight and number of passengers. Be
sure that weight is properly distributed ac-
cording to the boat manufacturer’s instruc-
U6P27AE0.book Page 2 Friday, December 6, 2013 6:17 PM

Safety information
3
tions. Overloading or incorrect weight
distribution can compromise the boats han-
dling and lead to an accident, capsizing or
swamping.
EMU33773
Avoid collisions
Scan constantly for people, objects, and oth-
er boats. Be alert for conditions that limit your
visibility or block your vision of others.
Operate defensively at safe speeds and keep
a safe distance away from people, objects,
and other boats.
Do not follow directly behind other boats or
waterskiers.
Avoid sharp turns or other maneuvers that
make it hard for others to avoid you or un-
derstand where you are going.
Avoid areas with submerged objects or
shallow water.
Ride within your limits and avoid aggres-
sive maneuvers to reduce the risk of loss of
control, ejection, and collision.
Take early action to avoid collisions. Re-
member, boats do not have brakes, and
stopping the engine or reducing throttle
can reduce the ability to steer. If you are not
sure that you can stop in time before hitting
an obstacle, apply throttle and turn in an-
other direction.
EMU33791
Weather
Stay informed about the weather. Check
weather forecasts before boating. Avoid
boating in hazardous weather.
EMU33881
Passenger training
Make sure at least one other passenger is
trained to operate the boat in the event of an
emergency.
EMU33891
Boating safety publications
Be informed about boating safety. Additional
publications and information can be obtained
from many boating organizations.
EMU33601
Laws and regulations
Know the marine laws and regulations where
you will be boating- and obey them. Several
sets of rules prevail according to geographic
location, but all are basically the same as the
International Rules of the Road.
ZMU06025
U6P27AE0.book Page 3 Friday, December 6, 2013 6:17 PM

General information
4
EMU25172
Identification numbers record
EMU25185
Outboard motor serial number

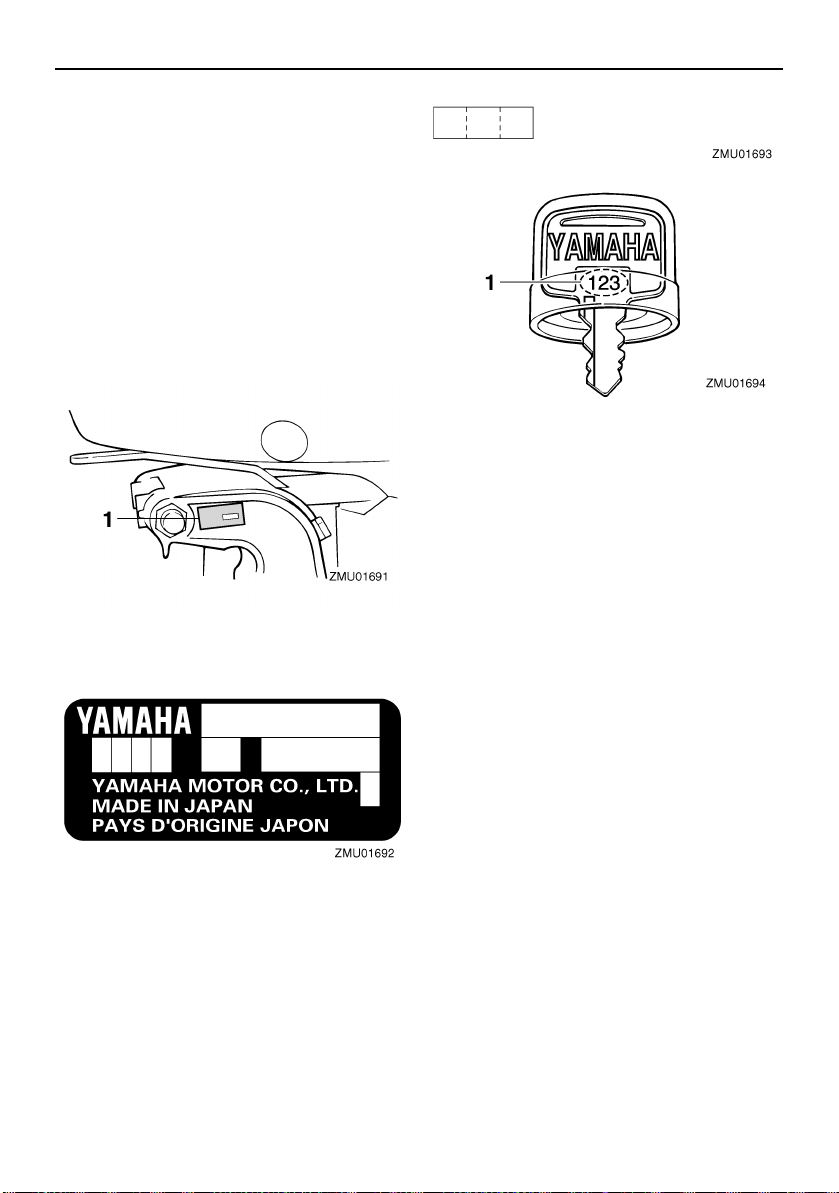

The outboard motor serial number is
stamped on the label attached to the port
side of the clamp bracket.
Record your outboard motor serial number in
the spaces provided to assist you in ordering
spare parts from your Yamaha dealer or for
reference in case your outboard motor is sto-
len.
EMU25192
Key number
If a main key switch is equipped with the mo-
tor, the key identification number is stamped
on your key as shown in the illustration. Re-
cord this number in the space provided for
reference in case you need a new key.
EMU37292
EC Declaration of Conformity
(DoC)
This outboard motor conforms to certain por-
tions of the European Parliament directive re-
lating to machinery.
Each conformed outboard motor accompa-
nied with EC DoC.EC DoC contains the fol-
lowing information;
Name of Engine Manufacture
Model name
Product code of model (Approved model
code)
Code of conformed directives
EMU25207
CE Marking
Outboard motors affixed with this “CE”mark-
ing conform with the directives of;
2006/42/EC, 94/25/EC - 2003/44/EC and
2004/108/EC.

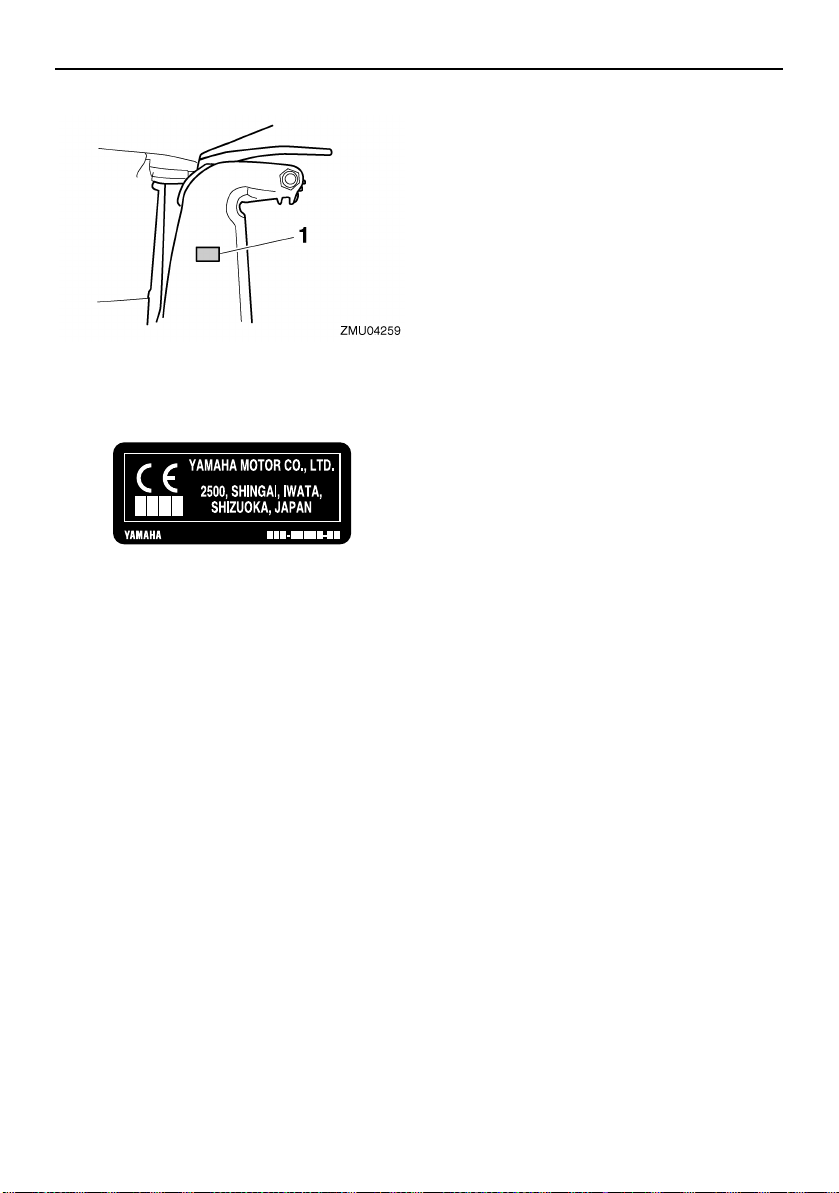

1. Outboard motor serial number location
1. Key number
U6P27AE0.book Page 4 Friday, December 6, 2013 6:17 PM

General information
5
1. CE marking location
ZMU06040
U6P27AE0.book Page 5 Friday, December 6, 2013 6:17 PM

General information
6
EMU33524
Read manuals and labels
Before operating or working on this outboard motor:
Read this manual.
Read any manuals supplied with the boat.
Read all labels on the outboard motor and the boat.
If you need any additional information, contact your Yamaha dealer.
EMU33834
Warning labels
If these labels are damaged or missing, contact your Yamaha dealer for replacements.
U6P27AE0.book Page 6 Friday, December 6, 2013 6:17 PM

General information
7
EMU34652
Contents of labels

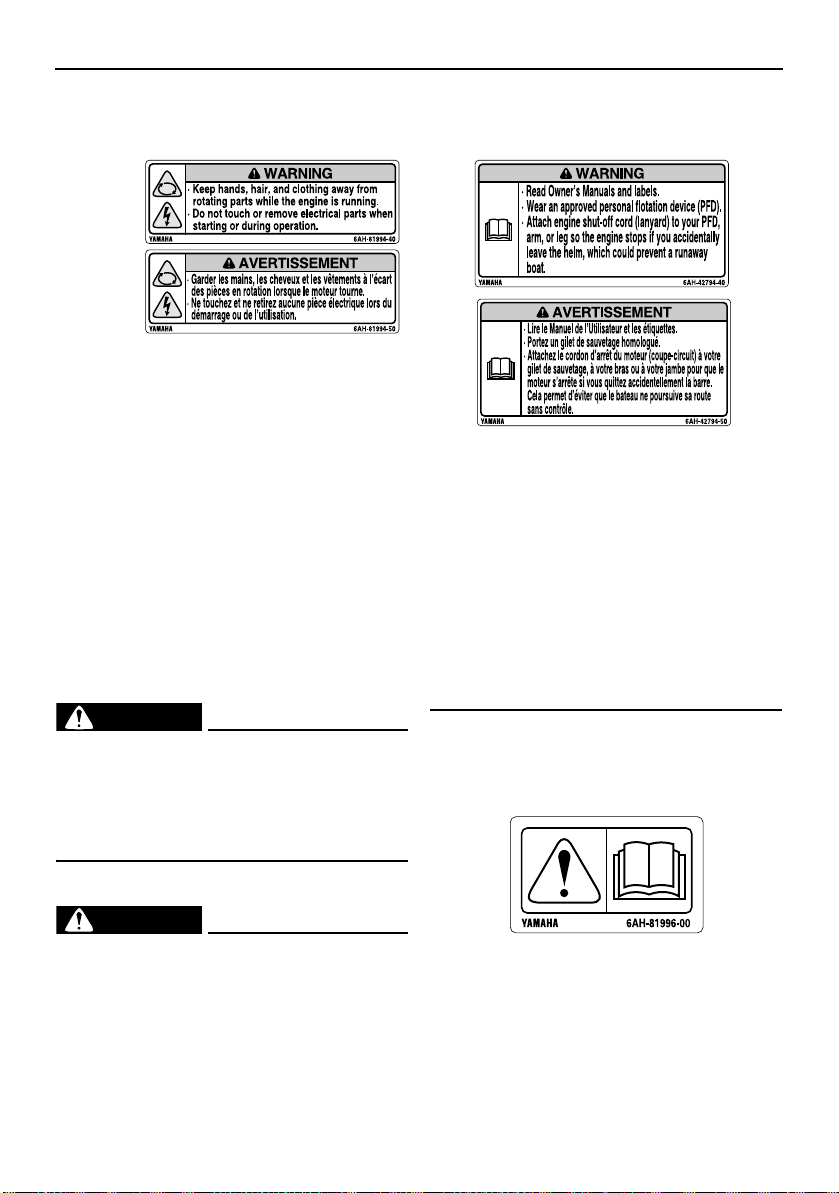

The above warning labels mean as follows.
1
WARNING
EWM01682
Keep hands, hair, and clothing away
from rotating parts while the engine is
running.
Do not touch or remove electrical parts
when starting or during operation.
2
WARNING
EWM01672
Read Owner’s Manuals and labels.
Wear an approved personal flotation de-
vice (PFD).
Attach engine shut-off cord (lanyard) to
your PFD, arm, or leg so the engine
stops if you accidentally leave the helm,
which could prevent a runaway boat.
EMU33851
Other labels
12
ZMU06191
3
ZMU05710
U6P27AE0.book Page 7 Friday, December 6, 2013 6:17 PM

General information
8
EMU35133
Symbols
The following symbols mean as follows.
Notice/Warning
Read Owner’s Manual
Hazard caused by continuous rotation
Electrical hazard
ZMU05696
ZMU05664
ZMU05665
ZMU05666
U6P27AE0.book Page 8 Friday, December 6, 2013 6:17 PM

Specifications and requirements
9
EMU40501
Specifications
TIP:
“(SUS)” indicates that the specification is for
the outboard motor when it is equipped with
a stainless steel propeller.
EMU2821U
Dimension and weight:
Overall length:
868 mm (34.2 in)
Overall width:
634 mm (25.0 in)
Overall height L:
F225CET 1705 mm (67.1 in)
Overall height X:
F200CET 1829 mm (72.0 in)
F225BET 1829 mm (72.0 in)
FL200CET 1829 mm (72.0 in)
FL225BET 1829 mm (72.0 in)
Motor transom height L:
F225CET 516 mm (20.3 in)
Motor transom height X:
F200CET 643 mm (25.3 in)
F225BET 643 mm (25.3 in)
FL200CET 643 mm (25.3 in)
FL225BET 643 mm (25.3 in)
Dry weight (SUS) L:
F225CET 273 kg (602 lb)
Dry weight (SUS) X:
F200CET 283 kg (624 lb)
F225BET 283 kg (624 lb)
FL200CET 283 kg (624 lb)
FL225BET 283 kg (624 lb)
Performance:
Full throttle operating range:
5000–6000 r/min
Rated power:
F200CET 147.1 kW (200 HP)
F225BET 165.5 kW (225 HP)
F225CET 165.5 kW (225 HP)
FL200CET 147.1 kW (200 HP)
FL225BET 165.5 kW (225 HP)
Idle speed (in neutral):
600–700 r/min
Power unit:
Type:
4-stroke DOHC V6 24 valves
Total displacement:
3352 cm³ (204.5 c.i.)
Bore ×stroke:
94.0 ×80.5 mm (3.70 ×3.17 in)
Ignition system:
TCI
Spark plug (NGK):
LFR6A-11
Spark plug gap:
1.0–1.1 mm (0.039–0.043 in)
Steering system:
Remote steering
Starting system:
Electric starter
Starting carburetion system:
Fuel injection
Valve clearance IN (cold engine):
0.17–0.24 mm (0.0067–0.0094 in)
Valve clearance EX (cold engine):
0.31–0.38 mm (0.0122–0.0150 in)
Cold cranking amps (CCA/EN):
510–1080 A
Min. rated capacity (20HR/IEC):
80 Ah
Maximum generator output:
44 A
Lower unit:
Gear shift positions:
Forward-neutral-reverse
U6P27AE0.book Page 9 Friday, December 6, 2013 6:17 PM

Specifications and requirements
10
Gear ratio:
2.00(30/15)
Trim and tilt system:
Power trim and tilt
Propeller mark:
F200CET M/T
F225BET M/T
F225CET M/T
FL200CET ML/TL
FL225BET ML/TL
Fuel and oil:
Recommended fuel:
F200CET Regular unleaded gasoline
F225BET Regular unleaded gasoline
F225CET Premium unleaded gasoline
FL200CET Regular unleaded gasoline
FL225BET Regular unleaded gasoline
Min. research octane number (RON):
F200CET 90
F225BET 90
F225CET 94
FL200CET 90
FL225BET 90
Recommended engine oil:
YAMALUBE 4 or 4-stroke outboard
motor oil
Recommended engine oil grade 1:
SAE 10W-30/10W-40/5W-30
API SE/SF/SG/SH/SJ/SL
Engine oil quantity (without oil filter
replacement):
4.5 L (4.76 US qt, 3.96 Imp.qt)
Engine oil quantity (with oil filter
replacement):
4.7 L (4.97 US qt, 4.14 Imp.qt)
Lubrication system:
Wet sump
Recommended gear oil:
YAMALUBE outboard gear oil or Hypoid
gear oil
Recommended gear oil grade:
SAE 90 API GL-4
Gear oil quantity:
F200CET 1.150 L (1.216 US qt,
1.012 Imp.qt)
F225BET 1.150 L (1.216 US qt,
1.012 Imp.qt)
F225CET 0.920 L (0.972 US qt,
0.810 Imp.qt)
FL200CET 1.000 L (1.057 US qt,
0.880 Imp.qt)
FL225BET 1.000 L (1.057 US qt,
0.880 Imp.qt)
Tightening torque:
Spark plug:
25 Nm (2.55 kgf-m, 18.4 ft-lb)
Propeller nut:
54 Nm (5.51 kgf-m, 39.8 ft-lb)
Engine oil drain bolt:
27 Nm (2.75 kgf-m, 19.9 ft-lb)
Engine oil filter:
18 Nm (1.84 kgf-m, 13.3 ft-lb)
Noise and vibration level:
Operator sound pressure level (ICOMIA
39/94):
79.7 dB(A)
EMU33555
Installation requirements
EMU33565
Boat horsepower rating
WARNING
EWM01561
Overpowering a boat can cause severe in-
stability.
Before installing the outboard motor(s), con-
firm that the total horsepower of your out-
board motor(s) does not exceed the boats
maximum horsepower rating. See the boat’s
capacity plate or contact the manufacturer.
U6P27AE0.book Page 10 Friday, December 6, 2013 6:17 PM

Specifications and requirements
11
EMU40491
Mounting outboard motor
WARNING
EWM02501
Improper mounting of the outboard mo-
tor could result in hazardous conditions
such as poor handling, loss of control,
or fire hazards.
Because the outboard motor is very
heavy, special equipment and training is
required to mount it safely.
Your dealer or other person experienced in
proper rigging should mount the outboard
motor using correct equipment and complete
rigging instructions. For further information,
see page 38.
EMU33582
Remote control requirements
WARNING
EWM01581
If the engine starts in gear, the boat can
move suddenly and unexpectedly, pos-
sibly causing a collision or throwing
passengers overboard.
If the engine ever starts in gear, the
start-in-gear protection device is not
working correctly and you should dis-
continue using the outboard. Contact
your Yamaha dealer.
The remote control unit must be equipped
with a start-in-gear protection device(s). This
device prevents the engine from starting un-
less it is in neutral.
EMU25695
Battery requirements
EMU25723
Battery specifications
The engine cannot be started if battery volt-
age is too low.
EMU36291
Mounting battery
Mount the battery holder securely in a dry,
well-ventilated, vibration-free location in the
boat. WARNING! Do not put flammable
items, or loose heavy or metal objects in
the same compartment as the battery.
Fire, explosion or sparks could result.
[EWM01821]
EMU36301
Multiple batteries
To connect multiple batteries, such as for
multiple engine configurations or for an ac-
cessory battery, consult your Yamaha dealer
about battery selection and correct wiring.
EMU41602
Propeller selection
Next to selecting an outboard motor, select-
ing the right propeller is one of the most im-
portant purchasing decisions a boater can
make. The type, size, and design of your pro-
peller have a direct impact on acceleration,
top speed, fuel economy, and even engine
life. Yamaha designs and manufactures pro-
pellers for every Yamaha outboard motor and
every application.
Your Yamaha dealer can help you select the
right propeller for your boating needs. Select
a propeller that will allow the engine to reach
the middle or upper half of the operating
range at full throttle with the maximum boat-
load. Generally, select a larger pitch propeller
for a smaller operating load and a smaller
pitch propeller for a heavier load. If you carry
loads that vary widely, select the propeller
that lets the engine run in the proper range for
your maximum load but remember that you
may need to reduce your throttle setting to
stay within the recommended engine speed
range when carrying lighter loads.
Cold cranking amps (CCA/EN):
510–1080 A
Min. rated capacity (20HR/IEC):
80 Ah
U6P27AE0.book Page 11 Friday, December 6, 2013 6:17 PM

Specifications and requirements
12
Yamaha recommends to use a propeller suit-
able for the “Shift Dampener System (SDS)”.
For further information, consult your Yamaha
dealer.
To check the propeller, see page 73.
EMU36312
Counter rotation models
Standard outboard motors rotate clockwise.
Counter rotation models rotate counterclock-
wise and are typically used in multiple motor
setups.
On counter rotation models, be sure to use a
propeller intended for counterclockwise rota-
tion. These propellers are identified with the
letter “L” after the size indication on the pro-
peller. WARNING! Never use a standard
propeller with a counter rotation motor, or
a counter rotation propeller with a stan-
dard motor. Otherwise the boat could go
in the direction opposite of that expected
(for example, reverse instead of forward),
which could lead to an accident. [EWM01811]
For instructions on propeller removal and in-
stallation, see page 73 and 74.
EMU25771
Start-in-gear protection
Yamaha outboard motors or Yamaha-ap-
proved remote control units are equipped
with start-in-gear protection device(s). This
feature permits the engine to be started only
when it is in neutral. Always select neutral be-
fore starting the engine.
EMU41953
Engine oil requirements
Select an oil grade according to the average
temperatures in the area where the outboard
motor will be used.
If oil grades listed under Recommended en-
gine oil grade 1 are not available, select an al-
ternative oil grade listed under
Recommended engine oil grade 2.
Recommended engine oil grade 1
1. Propeller diameter in inches
2. Propeller pitch in inches
3. Type of propeller (propeller mark)
ZMU07044

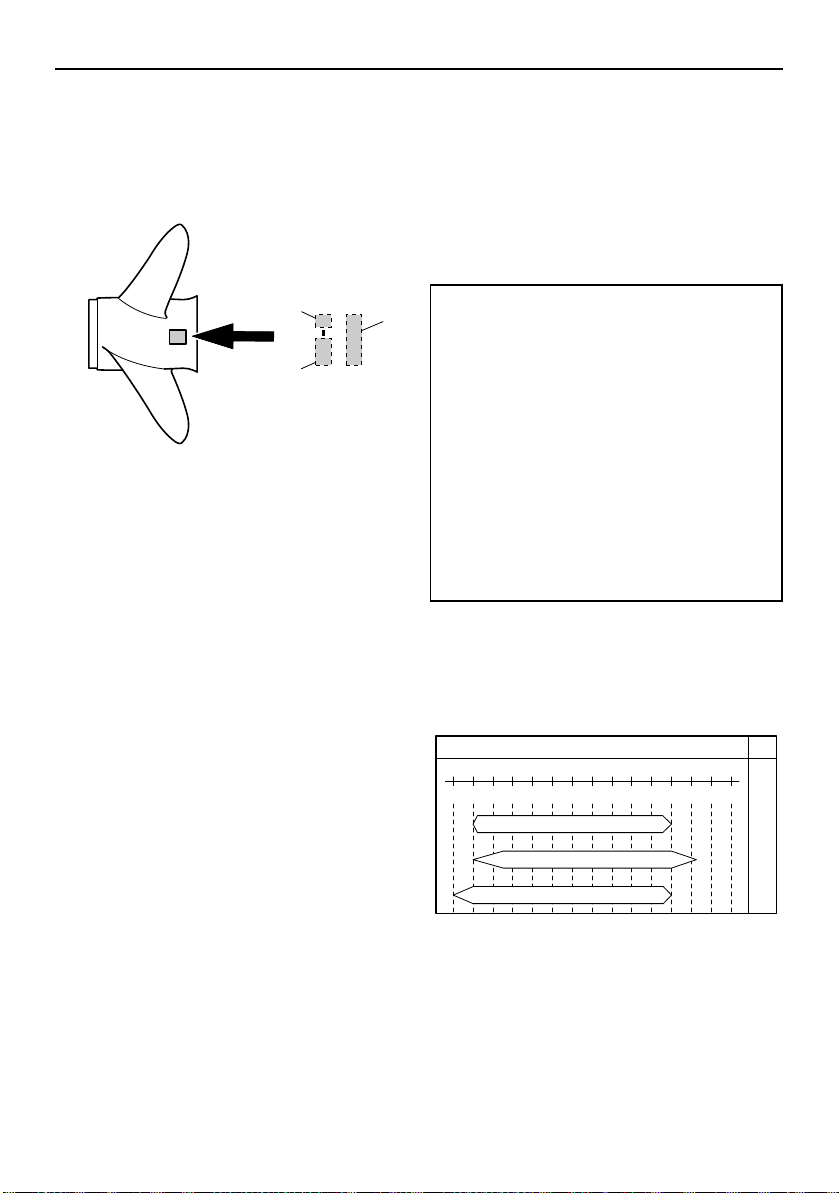

31
2
Recommended engine oil:
YAMALUBE 4 or 4-stroke outboard
motor oil
Recommended engine oil grade 1:
SAE 10W-30/10W-40/5W-30
API SE/SF/SG/SH/SJ/SL
Recommended engine oil grade 2:
SAE 15W-40/20W-40/20W-50
API SH/SJ/SL
Engine oil quantity (without oil filter
replacement):
4.5 L (4.76 US qt, 3.96 Imp.qt)
Engine oil quantity (with oil filter re-
placement):
4.7 L (4.97 US qt, 4.14 Imp.qt)
ZMU06854
122˚F
50˚C
104
40
86
30
68
SAE API
SE
SF
SG
SH
SJ
SL
20
50
10
32
0
14
-10
-4
-20
10W–30
10W–40
5W–30
U6P27AE0.book Page 12 Friday, December 6, 2013 6:17 PM

Specifications and requirements
13
Recommended engine oil grade 2
EMU36361
Fuel requirements
EMU40202
Gasoline
Use a good quality gasoline that meets the
minimum octane rating. If knocking or ping-
ing occurs, use a different brand of gasoline
or premium unleaded fuel.
NOTICE
ECM01982
Do not use leaded gasoline. Leaded
gasoline can seriously damage the en-
gine.
Avoid getting water and contaminants in
the fuel tank. Contaminated fuel can
cause poor performance or engine dam-
age. Use only fresh gasoline that has
been stored in clean containers.
Gasohol
There are two types of gasohol: gasohol con-
taining ethanol (E10) and that containing
methanol. Ethanol can be used if the ethanol
content does not exceed 10% and the fuel
meets the minimum octane ratings. E85 is a
fuel containing 85% ethanol and must not be
used in your outboard motor. All ethanol
blends containing more than 10% ethanol
can cause fuel system damage or cause en-
gine starting and running problems. Yamaha
does not recommend gasohol containing
methanol because it can cause fuel system
damage or engine performance problems.
It is recommended that you install a water-
separating marine fuel filter assembly (10 mi-
cron minimum) between your boat’s fuel tank
and outboard motor when using ethanol. Eth-
anol is known to allow moisture to be ab-
sorbed into boat fuel tanks and systems.
Moisture in the fuel can cause corrosion of
metallic fuel system components, starting
and running complaints and require addition-
al fuel system maintenance.
EMU36331
Anti-fouling paint
A clean hull improves boat performance. The
boat bottom should be kept as clean of ma-
rine growth as possible. If necessary, the
boat bottom can be coated with an anti-foul-
ing paint approved for your area to inhibit ma-
rine growth.
Do not use anti-fouling paint which includes
copper or graphite. These paints can cause
more rapid engine corrosion.
Recommended fuel:
F200CET Regular unleaded gasoline
F225BET Regular unleaded gasoline
F225CET Premium unleaded gasoline
FL200CET Regular unleaded gasoline
FL225BET Regular unleaded gasoline
Min. research octane number (RON):
F200CET 90
F225BET 90
F225CET 94
FL200CET 90
FL225BET 90
ZMU06855
122˚F
50˚C
104
40
86
30
68
SAE API
SH
SJ
SL
20
50
10
32
0
14
-10
-4
-20
15W–40
20W–40
20W–50
U6P27AE0.book Page 13 Friday, December 6, 2013 6:17 PM

Specifications and requirements
14
EMU40302
Outboard motor disposal re-
quirements
Never illegally discard (dump) the outboard
motor. Yamaha recommends consulting the
dealer about discarding the outboard motor.
EMU36353
Emergency equipment
Keep the following items onboard in case
there is trouble with the outboard motor.
A tool kit with assorted screwdrivers, pliers,
wrenches (including metric sizes), and
electrical tape.
Waterproof flashlight with extra batteries.
An extra engine shut-off cord (lanyard) with
clip.
Spare parts, such as an extra set of spark
plugs.
Consult your Yamaha dealer for details.
U6P27AE0.book Page 14 Friday, December 6, 2013 6:17 PM
