Yamaha EF2800i - Inverter Generator User manual

Generator
LIT-19626-01-70
7VU-28199-16
PRINTED ON RECYCLED PAPER
PRINTED IN JAPAN
2011.03-0.3×1 !
(E)
EF2800i
OWNER’S MANUAL
Read this manual carefully before operating this machine.
7VU-28199-16 hyoshi 2/18/11 1:27 PM Page 1

Read this manual carefully before operating this machine. This manual
should stay with this machine if it is sold.
7VU-28199-16 hyoshi 2/18/11 1:27 PM Page 2

AE00012
IDENTIFICATION NUMBER RECORDS
Record your Primary I.D., and serial num-
bers in the spaces provided, to assist you
in ordering spare parts from a Yamaha
dealer.
Also record and keep these I.D. numbers
in a separate place in case your machine
is stolen.
AE00011
MACHINE IDENTIFICATION
The machine serial number is stamped in
the location as shown.
TIP
The first three digits of these numbers are
for model identification; the remaining dig-
its are the unit production number. Keep a
record of these numbers for reference
when ordering parts from a Yamaha deal-
er.
AE00002
INTRODUCTION
Congratulations on your purchase of your new Yamaha.
This manual will provide you with a good basic understanding of the operation and
maintenance of this machine.
If you have any questions regarding the operation or maintenance of your machine,
please consult a Yamaha dealer.
PRI-I.D. NUMBER:
PRI-I.D.
CODE SERIAL No.
EF2800i
OWNER’S MANUAL
© 2011 by Yamaha Motor Corporation, U.S.A.
1st Edition, February 2011
All rights reserved.
Any reprinting or unauthorized use
without the written permission of
Yamaha Motor Corporation, U.S.A.
is expressly prohibited.
Printed in Japan.
P/N LIT-19626-01-70
MODEL
790-057a
AE00022
7VU-9-16-A 2/18/11 9:45 AM Page A

Particularly important information is distin-
guished in this manual by the following
notations.
This is the safety alert symbol. It is
used to alert you to potential personal
injury hazards. Obey all safety mes-
sages that follow this symbol to avoid
possible injury or death.
A WARNING indicates a hazardous sit-
uation which, if not avoided, could
result in death or serious injury.
A NOTICE indicates special precau-
tions that must be taken to avoid dam-
age to the machine or other property.
TIP
A TIP provides key information to make
procedures easier or clearer.
NOTICE
WARNING
PLEASE READ AND UNDERSTAND
THIS MANUAL COMPLETELY BEFORE
OPERATING THE MACHINE.
TIP
9Yamaha continually seeks advance-
ments in product design and quality.
Therefore, while this manual contains
the most current product information
available at the time of printing, there
may be minor discrepancies between
your engine and this manual. If there
is any question concerning this manu-
al, please consult a Yamaha dealer.
9This manual should be considered a
permanent part of this engine and
should remain with this engine when
resold.
* Product and specifications are subject to
change without notice.
WARNING
7VU-9-16-A 2/18/11 9:45 AM Page B

LOCATION OF IMPORTANT
LABELS ..................................................1
SAFETY INFORMATION........................2
EXHAUST FUMES ARE
POISONOUS .......................................2
FUEL IS HIGHLY FLAMMABLE AND
POISONOUS .......................................3
ENGINE AND MUFFLER MAY
BE HOT................................................3
ELECTRIC SHOCK PREVENTION .....4
CONNECTION NOTES .......................5
CONNECTION.....................................5
EXTENSION CORD NOTES ...............5
CONTROL FUNCTION ...........................6
DESCRIPTION ....................................6
CONTROL PANEL...............................6
OIL WARNING LIGHT (red).................7

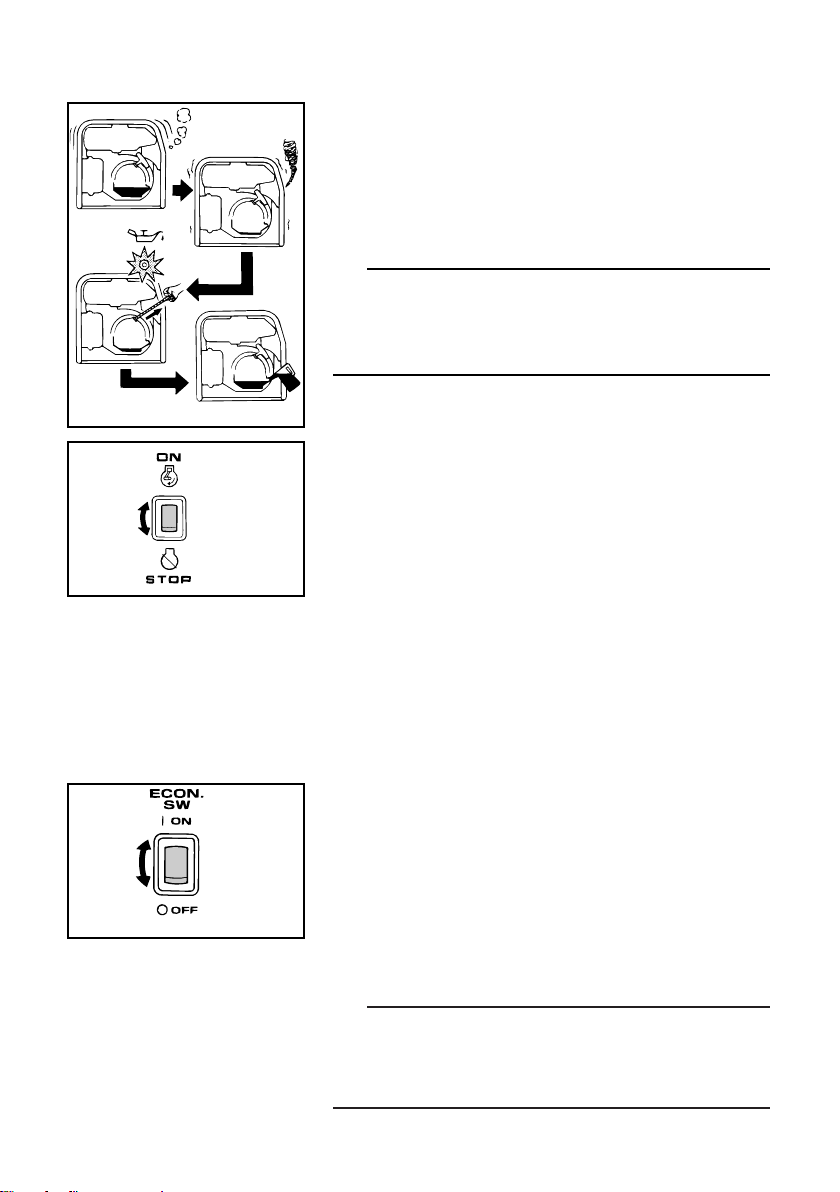

ENGINE SWITCH ................................7
ECONOMY CONTROL SWITCH.........7

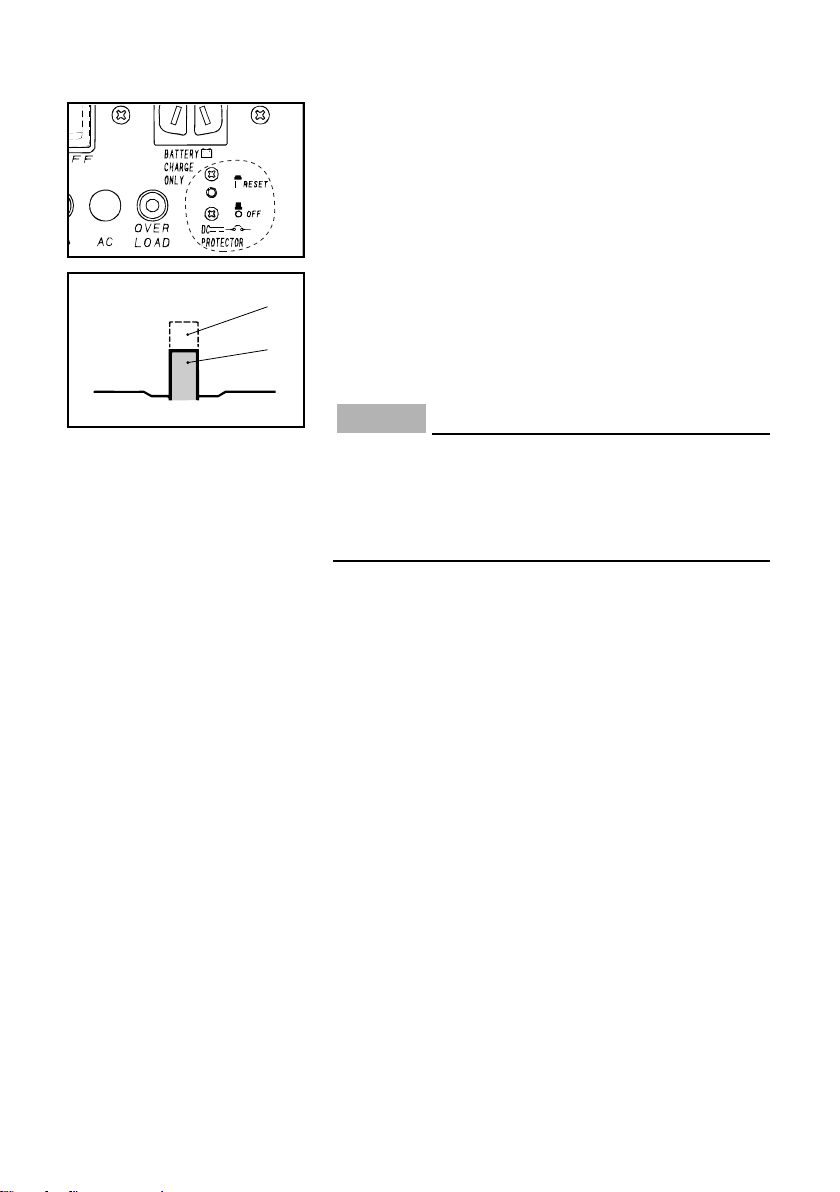

DC PROTECTOR ................................8

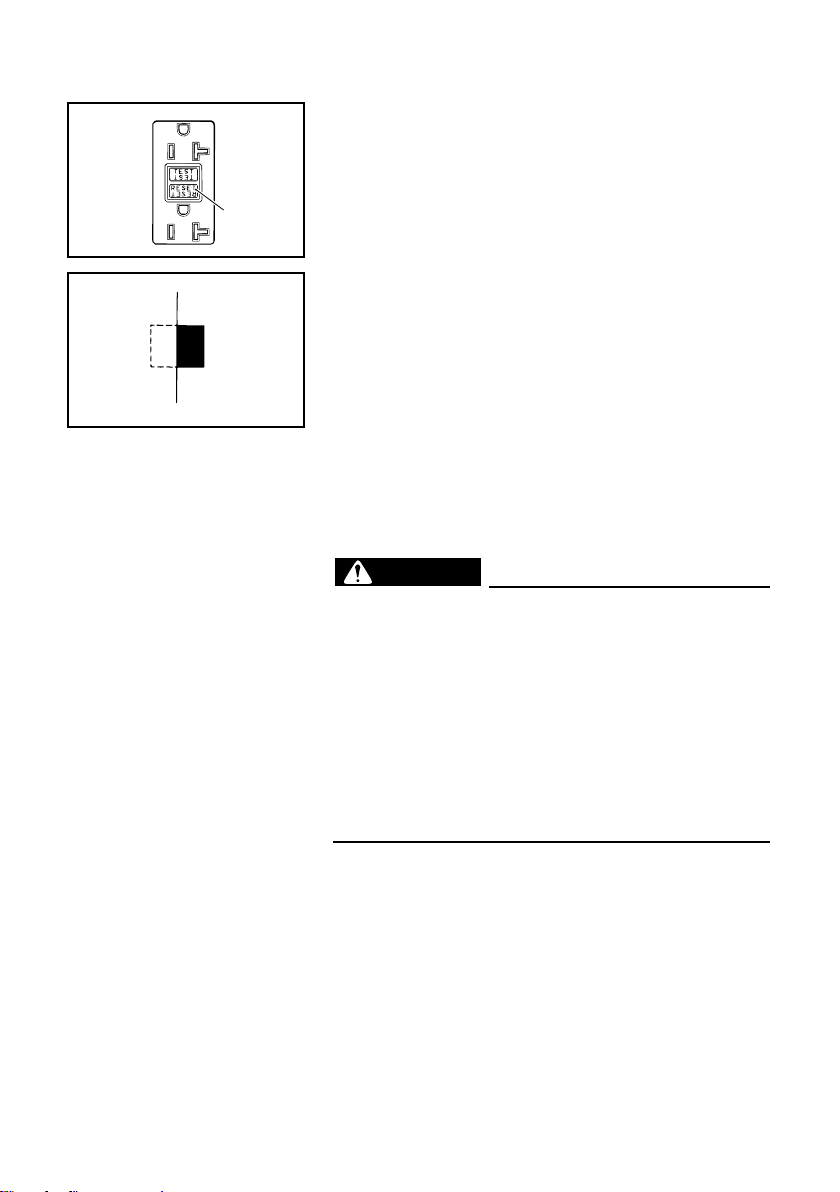

G.F.C.I. RECEPTACLE .......................9
PRE-OPERATION CHECK...................10
FUEL..................................................10
ENGINE OIL ......................................11
GROUND (earth) TERMINAL ............12
OPERATION .........................................13
STARTING THE ENGINE..................13
APPLICATION RANGE .....................15
CONNECTION...................................16
BATTERY CHARGING ......................18
STOPPING THE ENGINE .................22
PERIODIC MAINTENANCE .................23
MAINTENANCE CHART ...................23
SPARK PLUG INSPECTION .............25
CARBURETOR ADJUSTMENT.........25
ENGINE OIL REPLACEMENT ..........26
MUFFLER SCREEN AND SPARK
ARRESTER .......................................27
AIR FILTER........................................29
FUEL COCK ......................................30
FUEL TANK FILTER..........................30
G.F.C.I. RECEPTACLE TEST ...........31
TROUBLESHOOTING..........................32
STORAGE.............................................34
DRAIN THE FUEL .............................34
ENGINE .............................................35
EXHAUST EMISSION CONTROL
SYSTEM AND COMPONENTS ............36
SPECIFICATIONS ................................37
DIMENSIONS ....................................37
ENGINE .............................................37
GENERATOR ....................................37
WIRING DIAGRAM...............................38
EF2800i..............................................38
YAMAHA MOTOR CORPORATION,
U.S.A.
EF SERIES GENERATORS
3-YEAR LIMITED WARRANTY............39
YAMAHA OUTDOOR POWER
EQUIPMENT
CALIFORNIA EVAPORATIVE
EMISSION CONTROL
WARRANTY STATEMENT ..................42
YAMAHA MOTOR CORPORATION,
U.S.A.
SMALL OFF ROAD ENGINES
CALIFORNIA EMISSION
CONTROL WARRANTY.......................43
YAMAHA EXTENDED SERVICE
(Y.E.S.)..................................................47
AE00041
CONTENTS
7VU-9-16-A 2/18/11 9:45 AM Page C

– 1 –
156
3
24
WARNING
qqAVERTISSEMENT
7VU-24162-10
8
Read the owner's manual and all labels before operating.
8
Only operate in well-ventilated areas.
Exhaust gas contains poisonous carbon monoxide.
8
Check for spilled fuel or fuel leaks.
8
Stop engine before refueling.
8
Do not operate near flammable materials.
8
Electrocution can occur if generator is used in rain,
snow, or near water, keep this unit dry at all times.
8
When operating the generator:
Never place a partition or other barrier around
the generator.
Do not cover the generator with a box.
Do not place any objects on the generator.
8
Lisez le mode d'emploi et toutes les etiquettes avant de
faire fonctionner la machine.
8
Faites fonctionner uniquement dans des lieux bien aeres.
Les gaz d'echappement contiennent du monoxyde de carbone.
8
Verifiez si du carburant a ete renverse ou s'il fuit.
8
Arretez le moteur avant de faire le plein de carburant.
8
N'utilisez pas a proximite de materiaux inflammables.
8
Il y a risque d'electrocution si le generateur fonctionne sous
la pluie, dans la neige, ou pres de l'eau, Gardez la machine
ausec en toutes circonstances.
8
Quand la generatrice est en marche:
Ne jamais entourer la generatrice de cloisons ou d'ecrans.
Ne jamais recouvrir la generatrice d'une boite.
Ne jamais disposer d'objets sur la generatrice.
AE00062
LOCATION OF IMPORTANT LABELS
Please read the following labels carefully before oper-
ating this generator.
TIP
Maintain or replace safety and instruction labels, as
necessary.
DANGER
Using a generator indoors CAN KILL YOU IN MINUTES.
Generator exhaust contains carbon monoxide.
This is a poison you cannot see or smell.
NEVER use inside a home
or garage, EVEN IF doors
and windows are open.
Only use OUTSIDE and
far away from windows,
door, and vents.

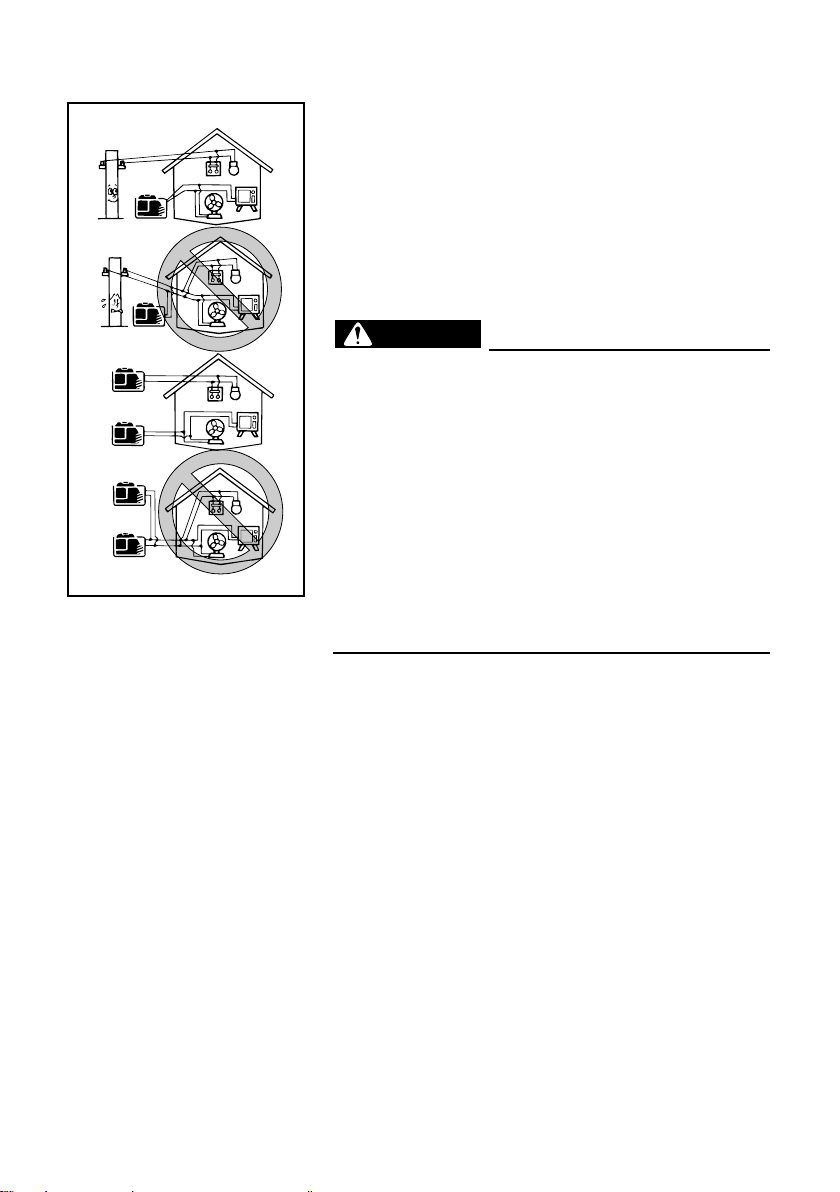

WARNING
Electrocution or property damage
can occur: Do not connect this
generator to any building ’s electrical
system unless an isolation switch
has been installed by a licensed elec-
trician. Refer to the owner’s manual.
q
7XF-2415A-10
24
1
3
5
The air index of this engine is 3
(California only)
MOST CLEAN LEAST CLEAN
0246810
Note: The lower the air index, the less the pollution.
This engine is certified to be emissions compliant
for the following use:
Check owner's manual for further details.
( *** HOURS) ( *** HOURS) ( *** HOURS)
MODERATE INTERMEDIATE EXTENDED
X
EMISSION CONTROL INFORMATION
YAMAHA MOTOR POWERED PRODUCTS CO.,LTD.
emission regulations for small off-road engines.
This engine meets 20** California exhaust and evaporative
THIS ENGINE MEETS U.S. EPA EXH EVP REGS FOR 20**.
EVAP F: ********
EF: ***********
EMISSION CONTROL SYSTEM: **
DISPLACEMENT: *** cc
EMISSION COMPLIANCE PERIOD : *** HOURS
This engine is certified to operate on unleaded gasoline.
No other adjustments needed.
ENGINE OIL: SAE***** TYPE : **
NOTICE
Use the specified spark plug only.
Specified plug:BPR4ES(NGK)
6
7VU-9-16-A 2/18/11 9:45 AM Page 1

AE00071
SAFETY INFORMATION
9This generator is not designed for on-board use.
Do not use it while installed on the vehicle.
– 2 –
9Do not modify the generator or use it with its parts
removed.
9Do not allow children to operate the generator.
741-057
1
9Do not place any obstacles on the generator.
9Be sure to carry the generator only by its carrying
handle(s).
1Carrying handle(s) (shaded)
AE00072
EXHAUST FUMES ARE POISONOUS
9Never operate the engine in a closed area or it
may cause unconsciousness and death within a
short time. Operate the engine in a well ventilated
area.
741-002
7VU-9-16-A 2/18/11 9:45 AM Page 2

–3 –
AE00075
FUEL IS HIGHLY FLAMMABLE AND POISONOUS
9Always turn off the engine when refuelling.
9Never refuel while smoking or in the vicinity of an
open flame.
9Take care not to spill any fuel on the engine or
muffler when refuelling.
9Do not leave the generator inside the vehicle or in
the trunk.
9If you swallow any fuel, inhale fuel vapor, or allow
any to get in your eye(s), see your doctor immedi-
ately. If any fuel spills on your skin or clothing,
immediately wash with soap and water and
change your clothes.
9When operating or transporting the generator, be
sure it is kept upright. If it tilts, fuel may leak from
the carburetor or fuel tank.
741-003
741-005
741-004
741- 006
741-007
AE00843
ENGINE AND MUFFLER MAY BE HOT
9Place the generator in a place where pedestrians
or children are not likely to touch the generator.
9Avoid placing any flammable materials near the
exhaust outlet during operation.
741-008a
a
9Keep the generator at least 1 m (3 ft) from build-
ings or other equipment, or the engine may over-
heat.
a1 m (3 ft)
7VU-9-16-A 2/18/11 9:45 AM Page 3

–4 –
741-010
741-011
AE00083
ELECTRIC SHOCK PREVENTION
9Never operate the engine in rain or snow.
9Never touch the generator with wet hands or elec-
trical shock will occur.
9Do not operate the engine with a dust cover or
other objects covering it.
9When covering the generator, be sure to do so
only after the engine and muffler have completely
cooled down.
7VU-002
741-009
1
9Connect the ground lead of the generator to the
ground terminal and connect the end to the
ground electrode buried in the ground.
1Ground (earth) terminal
7VU-9-16-A 2/18/11 9:45 AM Page 4

1
2
1
2
741-040
AE00088
CONNECTION NOTES
9Avoid connecting the generator to commercial
power outlet.
9Avoid connecting the generator in parallel with any
other generator.
1Correct
2Incorrect
AE00091
CONNECTION
Before the generator can be connected to a build-
ing’s electrical system, a licensed electrician must
install an isolation (transfer) switch in the build-
ing’s main fuse box. The switch is the connection
point for generator power and allows selection of
generator or main line power to the building. This
will prevent the generator from charging the main
power line (backfeeding) when the main power
supply has failed or has been turned off for line
repair. Backfeeding can electrocute or injure line
maintenance personnel. Also, generator and build-
ing electrical system damage can occur when nor-
mal operating power returns if unit is used without
an isolation switch.
AE00086
EXTENSION CORD NOTES
Extension cords should be protected by a tough flexi-
ble rubber sheath (IEC 245) or the equivalent to with-
stand mechanical stresses.
WARNING
–5 –
7VU-9-16-A 2/18/11 9:45 AM Page 5

–6 –
AE00101
CONTROL FUNCTION
AE00102
DESCRIPTION
1Carrying handles (shaded)
2Fuel tank
3Fuel tank cap
4Fuel level gauge
5Ground (earth) terminal
6Oil filler cap
7Oil drain bolt
8Recoil starter
9Choke knob
0Fuel cock
qAir filter cover
wMuffler
eSpark plug
0
q
11
e
w
4
6
7
8
9
05
321
793-085
AE00103
CONTROL PANEL
1Engine switch
2Economy control switch
3DC receptacle
4AC receptacle
5G.F.C.I. receptacle
6Ground (earth) terminal
7DC protector
8Overload indicator light
9AC pilot light
0Oil warning light
3
2
5
6
114
87
9
793-084
EF2800i
7VU-9-16-A 2/18/11 9:45 AM Page 6

AE00111
OIL WARNING LIGHT (red)
When the oil level falls below the lower level, the oil
warning light (red) comes on and then the engine
stops automatically. Unless you refill with oil, the
engine will not start again.
TIP
If the engine stalls or does not start, turn the engine
switch to “ON”and then pull the recoil starter. If the oil
warning light flickers for a few seconds, the engine oil
is insufficient. Add oil and restart.
–7 –
1
2
763-124a
700-027c
763-084f
1
2
AE00122
ENGINE SWITCH
The engine switch controls the ignition system.
1 7“ON”
Ignition circuit is switched on.
The engine can be started.
2 5“STOP”
Ignition circuit is switched off.
The engine will not run.
AE00787
ECONOMY CONTROL SWITCH
1 I “ON”
When the economy control switch is turned “ON”, the
economy control unit controls the engine speed
according to the connected load. The results are better
fuel consumption and less noise.
2 3“OFF”
When the economy control switch is turned “OFF”, the
engine runs at the rated r/min (3,600 r/min) regardless
of whether there is a load connected or not.
TIP
The economy control switch must be turned to “OFF”
when using electric devices that require a large start-
ing current, such as a compressor or a submergible
pump.
7VU-9-16-A 2/18/11 9:45 AM Page 7

AE00780
DC PROTECTOR
The DC protector turns off automatically when electric
device being connected to the generator is operating
and current above the rated flows. To use this equip-
ment again, turn on the DC protector by pressing its
button to “RESET”.
1“RESET”
Direct current is output. (This is the default position.)
2“OFF”
Direct current is not output.
Reduce the load of the connected electric device
below the specified rated output of the generator if
the DC protector turns off. If the DC protector
turns off again, stop using the device immediately
and consult a Yamaha dealer.
NOTICE
–8 –
763-188a
2
1
763-006
7VU-9-16-A 2/18/11 9:45 AM Page 8

–9 –
2
1
763-105a
763-060a
3
AE00848
G.F.C.I. RECEPTACLE
The G.F.C.I. (Ground Fault Circuit Interrupter) shuts
off power to the protected receptacles if a ground fault
(electrical leak) is detected.
If the reset button pops out, the equipment plugged
into the receptacle may be faulty. If this happens,
check the equipment carefully. If the equipment
appears to be in good condition, press the reset button
firmly until a click is heard. This will restore power. If
the reset button pops out again, unplug the equipment
immediately. Have the equipment inspected and
repaired by a qualified repairperson before attempting
to use it again.
1G.F.C.I (Ground Fault Circuit Interrupter)
2Reset button
3Pops out
TO REDUCE THE CHANCE OF ELECTRICAL
SHOCK:
9Do not attempt to operate equipment if the
ground fault circuit interrupter reset button
pops out repeatedly during use.
9Test the ground fault circuit interrupter during
the pre-operation checks according to the
maintenance instructions on page 31.
9Remember that only receptacles labeled
“GFCI”have ground fault circuit interrupter
protection.
WARNING
7VU-9-16-A 2/18/11 9:45 AM Page 9

741-001
707-001
AE00845
PRE-OPERATION CHECK
Pre-operation checks should be made each time the
generator is used.
The engine and muffler will be very hot after the
engine has been run.
Avoid touching the engine and muffler while they
are still hot with any part of your body or clothing
during inspection or repair.
AE00856
FUEL
Make sure there is sufficient fuel in the tank.
Your Yamaha engine has been designed to use regu-
lar unleaded gasoline with a pump octane number ((R
+ M)/2) of 86 or higher, or research octane number of
91 or higher.
1Fuel level gauge
WARNING
–10 –
707-033a
1
Recommended fuel:
Unleaded gasoline
Fuel tank capacity:
Total: 9.7 L (2.55 US gal, 2.12 Imp gal)
2“F”Full
3“E”Empty
23
7DF-020
7VU-9-16-A 2/18/11 9:45 AM Page 10

700-108a
1
700-103c
2
AE00222
ENGINE OIL
Make sure the engine oil is at the upper level of the oil
filler hole.
Add oil as necessary.
1Oil filler hole
2Upper level
–11 –
4
707-051
9Fuel is highly flammable and poisonous.
Check “SAFETY INFORMATION”(See page 2)
carefully before refueling.
9Do not fill above the top of the fuel filter or it
may overflow when the fuel warms up and
expands.
9After refueling, make sure the tank cap is tight-
ened securely.
4Fuel filter
9Immediately wipe off spilled fuel with a clean,
dry, soft cloth, since fuel may deteriorate
painted surfaces or plastic parts.
9Use only unleaded gasoline. The use of leaded
gasoline will cause severe damage to internal
engine parts.
NOTICE
WARNING
7VU-9-16-A 2/18/11 9:45 AM Page 11

–12 –
1
AE00241
GROUND (earth) TERMINAL
Make sure to Ground (earth) terminal the generator.
Check “SAFETY INFORMATION”(see page 2).
1Ground (earth) terminal
700-006
0°C
åYAMALUBE 4 (10W-40)
∂SAE 10W çSAE #20 ∫SAE #30
32°F
25°C
80°F
The generator has been shipped without engine
oil. Do not start the engine till fill with the suffi-
cient engine oil.
NOTICE
Recommended engine oil:
åYAMALUBE 4 (10W-40),
SAE 10W-30 or 10W-40
∫SAE #30
çSAE #20
∂SAE 10W
Recommended engine oil grade:
API Service SE type or higher
Engine oil quantity:
0.6 L (0.63 US qt, 0.53 lmp qt)
7VU-9-16-A 2/18/11 9:45 AM Page 12

700-006a
1
763-126b
1
705-037
1
763-084h
1
–13 –
AE00955
OPERATION
9Never operate the engine in a closed area or it
may cause unconsciousness and death within
a short time. Operate the engine in a well ven-
tilated area.
9Before starting the engine, do not connect any
electric devices.
9Clean dusts, dirt or water off the receptacle
before use.
The generator has been shipped without engine
oil. Do not start the engine till fill with the suffi-
cient engine oil.
1Upper level
NOTICE
WARNING
761-073
AE00989
STARTING THE ENGINE
1. Turn the economy control switch to “OFF”.
13“OFF”
3. Turn the engine switch to “ON”.
17“ON”
2. Turn the fuel cock lever to “ON”.
1“ON”
7VU-9-16-A 2/18/11 9:45 AM Page 13

704-016
–14 –
701-047a
701-047b
1
4. Pull the choke knob fully out.
1Choke knob
TIP
The choke is not required to start a warm engine.
Push the choke knob in to the original position.
5. Pull slowly on the recoil starter until it is engaged,
then pull it briskly.
6. After the engine starts, warm up the engine until
the engine does not stop when the choke knob is
returned to the original position.
7. Push the choke knob back to the original position.
TIP
When starting the engine in areas where the ambient
temperature is below 0°C (32°F), the engine automati-
cally operates at the rated r/min (3,600 r/min) for three
minutes to warm up the engine regardless of the econ-
omy control switch position. The economy control unit
operates normally afterwards if the economy control
switch is turned to “ON”.
7VU-9-16-A 2/18/11 9:45 AM Page 14

–15 –
AE00812
APPLICATION RANGE
When using the generator, make sure the total load is within rated output of a generator.
Otherwise, generator damage may occur.
9Do not overload. The total load of all electrical appliances must not exceed
the supply range of the generator. Overloading will damage the generator.
9When supplying precision equipment, electronic controllers, PCs, electronic
computers, microcomputer-based equipment or battery chargers, keep the
generator a sufficient distance away to prevent electrical interference from
the engine. Also ensure that electrical noise from the engine does not inter-
fere with any other electrical devices located near the generator.
9If the generator is to supply medical equipment, advice should first be
obtained from the manufacturer, a medical professional or hospital.
9Some electrical appliances or general-purpose electric motors have high
starting currents, and cannot therefore be used, even if they lie within the
supply ranges given in the above table. Consult the equipment manufacturer
for further advice.
NOTICE
TIP
9“–” means below.
9Application wattage indicates when each device is
used by itself.
9The simultaneous usage of AC and DC power is
possible but total wattage should not exceed the
rated output.
EX:
9The overload indicator light comes on when total
wattage exceeds the application range. (See page
17 for more details.)
1Overload indicator light
DC
AC
Power factor 1 0.8–0.95 0.4–0.75
(Efficiency 0.85)
–2,500W –2,000W –850W
Rated voltage
12V
Rated current
10A
Generator rated output 2,500VA
Frequency Power factor
1.0 –2,380W
AC 0.8 –1,880W
120W
DC —(12V/10A)
EF2800i
760-021a
1
7VU-9-16-A 2/18/11 9:45 AM Page 15
