OWNER’S MANUAL
MANUEL D’UTILISATION
BEDIENUNGSANLEITUNG
MANUALE PER IL PROPRIETARIO
E
F
D
I
Read this manual carefully before operating this machine.
Il convient de lire attentivement ce manuel avant la première utilisation de la machine.
Bitte lesen Sie diese Bedienungsanleitung sorgfältig durch, bevor Sie die Maschine in Betrieb nehmen.
Leggere attentamente questo manuale prima di utilizzare questa macchina.
Leia este manual cuidadosamente antes de conduzir a máquina.
Lea este manual atentamente antes de utilizar este equipo.
Lees deze handleiding aandachtig door voordat u deze machine gaat gebruiken.
Baca buku petunjuk ini secara teliti sebelum mengoperasikan mesin.
P

7P6-F8199-U0-E0
EF7200DE
EF7200E
EF7200
OWNER’S MANUAL
Read this manual carefully before operating this machine.

Read this manual carefully before operating this machine. This manual should
stay with this machine if it is sold.

INTRODUCTION
Congratulations on your purchase of your new Yamaha.
This manual will provide you with a good basic understanding of the operation and
maintenance of this machine.
If you have any questions regarding the operation or maintenance of your machine,
please consult a Yamaha dealer.
EF7200DE/EF7200E/EF7200
OWNER’S MANUAL
©2014 by Yamaha Motor Powered
Products Co., Ltd.
1st Edition, January 2014
All rights reserved.
Any reprinting or unauthorized use
without the written permission of
Yamaha Motor Powered
Products Co., Ltd.
is expressly prohibited.
Printed in China

Particularly important information is distin-
guished in this manual by the following
notations.
This is the safety alert symbol. It is
used to alert you to potential personal
injury hazards. Obey all safety messag-
es that follow this symbol to avoid pos-
sible injury or death.
WARNING
A WARNING indicates a hazardous sit-
uation which, if not avoided, could
result in death or serious injury.
NOTICE
A NOTICE indicates special precau-
tions that must be taken to avoid dam-
age to the machine or other property.
TIP
A TIP provides key information to make
procedures easier or clearer.
WARNING
PLEASE READ AND UNDERSTAND
THIS MANUAL COMPLETELY BEFORE
OPERATING THE MACHINE.
TIP
9 Yamaha continually seeks advance-
ments in product design and quality.
Therefore, while this manual contains
the most current product information
available at the time of printing, there
may be minor discrepancies between
your machine and this manual. If
there is any question concerning this
manual, please consult a Yamaha
dealer.
9 This manual should be considered a
permanent part of this machine and
should remain with this machine
when resold.
* Product and specifications are subject to
change without notice.
IMPORTANT MANUAL INFORMATION

SAFETY INFORMATION ...................... 1
Exhaust fumes are poisonous ............ 2
Fuel is highly flammable and
poisonous ........................................... 2
Engine and muffler may be hot .......... 2
Electric shock prevention ................... 3
Connection notes ............................... 4
Connection ......................................... 4
Extension cord notes .......................... 4
LOCATION OF IMPORTANT
LABELS ................................................ 5
DESCRIPTION ...................................... 7
Control panel (For EF7200DE) .......... 8
Control panel (For EF7200E) ............. 8
Control panel (For EF7200) ............... 8
CONTROL FUNCTION ......................... 9
Engine switch ..................................... 9
Oil warning light (Red)........................ 9
AC switch (N.F.B.) ............................ 10
Fuel tank cap .................................... 10
Fuel cock lever ................................. 11
Ground (earth) terminal.................... 11
Economy control switch
(Except for EF7200) ......................... 12
Choke lever (For EF7200) ................ 12
Recoil starter .................................... 13
Voltage adjuster ............................... 13
PREPARATION ................................... 14
Fuel .................................................. 14
Engine oil ......................................... 15
Battery (Except for EF7200) ............. 16
Ground (earth) terminal.................... 17
PRE-OPERATION CHECK ................. 18
Pre-operation check ......................... 18
OPERATION ....................................... 19
Starting the engine ........................... 19
Stopping the engine ......................... 22
Connection ....................................... 24
Application range ............................. 26
PERIODIC MAINTENANCE ................ 27
Maintenance chart ........................... 27
Carburetor adjustment ..................... 29
Spark plug inspection ....................... 29
Engine oil replacement ..................... 30
Air filter ............................................. 32
Muffler screen .................................. 33
Fuel cock .......................................... 34
Fuel tank filter ................................... 35
Battery (Except for EF7200) ............. 36
Recommended battery
(Except for EF7200) ......................... 37
Fuse replacement
(Except for EF7200) ......................... 37
STORAGE ........................................... 38
Drain the fuel .................................... 38
Engine .............................................. 40
Battery (Except for EF7200) ............. 41
TROUBLESHOOTING ........................ 42
SPECIFICATIONS ............................... 48
Dimensions ...................................... 48
Engine .............................................. 48
Generator ......................................... 49
CONSUMER INFORMATION.............. 50
Identification number records ........... 50
Machine identification ....................... 50
WARRANTY ........................................ 51
WIRING DIAGRAM ............................. 52
EF7200DE ........................................ 52
EF7200E .......................................... 53
EF7200 ............................................. 54
CONTENTS

– 1 –
SAFETY INFORMATION

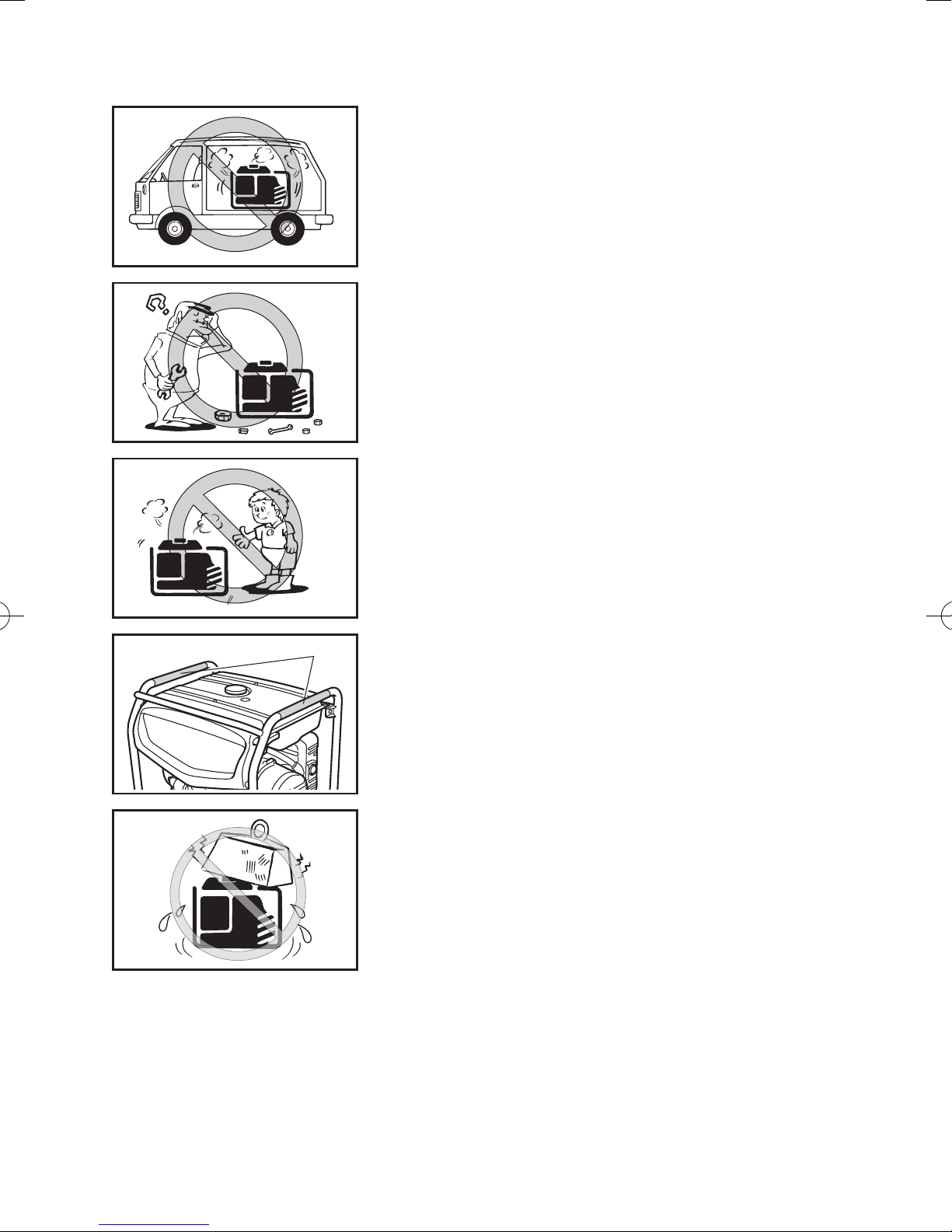

9 This generator is not designed for on-board use.
Do not use it while installed on the vehicle.
9 Do not modify the generator or use it with its parts
removed.
9 Do not allow children to operate the generator.
9 Be sure to carry the generator only by its carrying
handle(s).
1 Carrying handle(s) (shaded)
9 Do not place any obstacles on the generator.
1

– 2 –
741-003
741-005
741-004
741- 006
Fuel is highly flammable and poisonous
9 Always turn off the engine when refuelling.
9 Never refuel while smoking or in the vicinity of an
open flame.
9 Take care not to spill any fuel on the engine or
muffler when refuelling.
9 Do not leave the generator inside the vehicle or in
the trunk.
9 If you swallow any fuel, inhale fuel vapor, or allow
any to get in your eye(s), see your doctor immedi-
ately. If any fuel spills on your skin or clothing,
immediately wash with soap and water and
change your clothes.
9 When operating or transporting the generator, be
sure it is kept upright. If it tilts, fuel may leak from
the carburetor or fuel tank.
Engine and muffler may be hot
9 Place the generator in a place where pedestrians
or children are not likely to touch the generator.
741-002
Exhaust fumes are poisonous
9 Using a generator indoors CAN KILL YOU IN
MINUTES. Generator exhaust contains carbon
monoxide. This is a poison you cannot see or
smell.
9 NEVER use inside a home or garage, EVEN IF
doors and windows are open.
9 Only use OUTSIDE and far away from windows,
doors, and vents.

– 3 –
741-007
9 Avoid placing any flammable materials near the
exhaust outlet during operation.
741-008a
9 In order to prevent overheating, ensure adequate
airflow by keeping the machine at least 1 m (3 ft)
from objects or other equipment.
7CC-001
741-010
741-011
9 Do not operate the engine with a dust cover or
other objects covering it.
9 When covering the generator, be sure to do so
only after the engine and muffler have completely
cooled down.
Electric shock prevention
9 Never operate the engine in rain or snow.
9 Never touch the generator with wet hands or elec-
trical shock will occur.
9 Connect the ground (earth) terminal to a ground
source. In order to prevent electrical shock, the
generator must be grounded when using a
grounded electrical device.
1 Ground (earth) terminal
1

– 4 –
741-040a
1
2
1
2
Connection notes
9 Avoid connecting the generator to commercial
power outlet.
9 Avoid connecting the generator in parallel with any
other generator.
1 Correct
2 Incorrect
Connection
WARNING
Before the generator can be connected to a build-
ing’s electrical system, a licensed electrician must
install an isolation (transfer) switch in the build-
ing’s main fuse box. The switch is the connection
point for generator power and allows selection of
generator or main line power to the building. This
will prevent the generator from charging the main
power line (backfeeding) when the main power
supply has failed or has been turned off for line
repair. Backfeeding can electrocute or injure line
maintenance personnel. Also, generator and build-
ing electrical system damage can occur when nor-
mal operating power returns if unit is used without
an isolation switch.
Extension cord notes
Extension cords should be protected by a tough flexi-
ble rubber sheath (IEC 245) or the equivalent to with-
stand mechanical stresses.

– 5 –
LOCATION OF IMPORTANT LABELS
Please read the following labels carefully before oper-
ating this generator.
TIP
Maintain or replace safety and instruction labels, as
necessary.
2 (For EF7200DE)
3
OIL
READ THE OWNER'S MANUAL AND ALL LABELS BEFORE OPERATING.
ONLY OPERATE IN WELL-VENTILATED AREAS.
EXHAUST GAS CONTAINS POISONOUS CARBON MONOXIDE.
CHECK FOR SPILLED FUEL OR FUEL LEAKS.
STOP ENGINE BEFORE REFUELING.
DO NOT OPERATE NEAR FLAMMABLE MATERIALS.
ELECTROCUTION CAN OCCUR IF GENERATOR IS USED IN RAIN,
SNOW, OR NEAR WATER. KEEP THIS UNIT DRY AT ALL TIMES.
LISEZ LE MODE D'EMPLOI ET TOUTES LES ETIQUETTES AVANT DE
FAIRE FONCTIONNER LA MACHINE.
FAITES FONCTIONNER UNIQUEMENT DANS DES LIEUX BIEN AERES.
LES GAZ D'ECHAPPEMENT CONTIENNENT DU MONOXIDE DE CARBONE.
VERIFIEZ SI DU CARBURANT A ETE RENVERSE OU S'IL FUIT.
ARRETEZ LE MOTEUR AVANT DE FAIRE LE PLEIN DE CARBURANT.
N'UTILISEZ PAS A PROXIMITE DE MATERIAUX INFLAMMABLES.
IL Y A RISQUE D'ELECTROCUTION SI LE GENERATEUR FONCTIONE
SOUS LA PLUIE, DANS LA NEIGE, OU PRES DE L'EAU. GARDEZ LA
MACHINE AUSEC EN TOUTES CIRCONSTANCES.
7C3-F4162-10
4 (For OCEANIA)
4 (Except for OCEANIA)
1
2
3
4
56 7
HOT EXHAUST
1
2 (Except for EF7200DE)

– 6 –
7 (For OCEANIA)
5 (For OCEANIA)
6 (For OCEANIA)
WARNING
q
THE OUTPUT OF THIS GENERATING SET IS
POTENTIALLY LETHAL. THE SET SHOULD
NOT BE CONNECTED TO A FIXED ELECTRICAL
INSTALLATION EXCEPT BY AN APPROPRIATELY
LICENSED PERSON.

– 7 –
DESCRIPTION
1 Carrying handles (shaded)
2 Fuel tank cap
3 Fuel level gauge
4 Fuel tank
5 Voltage adjuster
6 Ground (earth) terminal
7 Battery (For EF7200E, EF7200DE)
8 Oil filler cap
9 Oil drain bolt
0 Spark plug
q Fuel cock
w Recoil starter handle
e Air filter case cover
r Choke lever (For EF7200)
t Muffler
EF7200E, EF7200DE
2
8
9
5
6
7
11
34
2
8
9
5
6
11
34
EF7200
0q
w
e
t
0q
w
re
t

– 8 –
Control panel
(For EF7200DE)
1 Oil warning light (Red)
2 Economy control
switch
3 Engine switch
4 Voltage/hour meter
5 AC receptacle
6 AC switch (N.F.B.)
EF7200DE
32 41 5 6
000-000
Control panel
(For EF7200E)
1 Oil warning light (Red)
2 Economy control
switch
3 Engine switch
4 Voltage/hour meter
5 AC receptacle
6 AC switch (N.F.B.)
Control panel
(For EF7200)
1 Oil warning light (Red)
2 Engine switch
3 Voltage/hour meter
4 AC receptacle
5 AC switch (N.F.B.)
EF7200E (For OCEANIA)
32 41 5 6
000-000
EF7200E (Except for OCEANIA)
32 41 5 6
000-000
EF7200
2 31 4 5
000-000

– 9 –
CONTROL FUNCTION
Engine switch
The engine switch controls the ignition system.
1 “7” (ON)
Ignition circuit is switched on.
The engine can be started.
2 “5” (STOP)
Ignition circuit is switched off.
The engine will not run.
3 “6” (START)
Starting circuit is switched on.
After starting the engine, take your hand off the switch
immediately.
å EF7200E/EF7200DE
∫ EF7200
700-027c
Oil warning light (Red)
When the oil level falls below the lower level, the oil
warning light comes on and then the engine stops
automatically. Unless you refill with oil, the engine will
not start again.
TIP
If the engine stalls or does not start, turn the engine
switch to “7” (ON) and then pull the recoil starter or
turn the engine switch to “6” (START). If the oil warn-
ing light comes on, the engine oil is insufficient. Add oil
and restart.
763-119
1
23
A
1
2
B

– 10 –
AC switch (N.F.B.)
The AC switch (Non-Fuse Breaker) turns off automati-
cally when the load exceeds the generator rated out-
put.
1 “I” (ON)
2 “3” (OFF)
å EF7200/EF7200E
∫ EF7200DE
ç supplies AC 120 V (EF7200DE)
∂ supplies AC 120 V and 240 V (EF7200DE)
NOTICE
Reduce the load to the specified generator rated
output if the AC switch (N.F.B.) turns off. If it turns
off again, consult a Yamaha dealer.
1
2
763-252a
A
1
2
1
2
B
2
1
C
1
1
D
Fuel tank cap
Remove the fuel tank cap by turning it counterclock-
wise.

– 11 –
7DF-106
1
22
Fuel cock lever
The fuel cock supplies fuel from the fuel tank to the
carburetor.
The fuel cock has two positions.
1 ON
With the lever in this position, fuel flows to the carbure-
tor. Normal using is done with the lever in this position.
2 OFF
With the lever in this position, fuel will not flow. Always
turn the lever to this position when the engine is not
running.
1
Ground (earth) terminal
Ground (earth) terminal connects the earth line for
prevention of electric shock.
When the electric device is earthed, always the gener-
ator must be earthed.
1 Ground (earth) terminal

– 12 –
1
Choke lever (For EF7200)
Starting a cold engine requires a richer air-fuel mix-
ture, which is supplied by the choke lever.
1 Choke lever
1
2
240V
120V
120V
GR
WX
G
Y
Economy control switch (Except for EF7200)
1 “I” (ON)
When the economy control switch is turned to “I” (ON),
the economy control unit controls the engine speed
according to the connected load. The results are better
fuel consumption and less noise.
2 “3” (OFF)
When the economy control switch is turned to “3”
(OFF), the engine runs at the rated r/min (3600 r/min)
regardless of whether there is a load connected or not.
TIP
9 The economy control switch must be turned to “3”
(OFF) when using electric devices that require a
large starting current, such as a compressor or a
submersible pump.
9 The economy control switch must be turned to “3”
(OFF) to increase engine speed to rated r/min
when:
- using a load of 0.8 A or less.
- supplying AC 120 V only from W with X.

– 13 –
Recoil starter
The recoil starter is used to start the engine.
Pull the recoil starter slowly until it is engaged, then
pull it briskly.
1 Recoil starter handle
NOTICE
9 Pull the recoil starter handle straight.
9 Return the recoil starter handle slowly.
9 Do not touch the recoil starter handle while the
generator is operating.
1
000-000
Voltage adjuster
The voltage adjuster is equipped for adjusting output
voltage to rated voltage.
TIP
Turn the voltage adjuster clockwise or counterclock-
wise to increase or decrease output voltage.
