INTRODUCTION
Congratulations on your purchase of your new Yamaha.
This manual will provide you with a good basic understanding of the operation and
maintenance of this machine.
If you have any questions regarding the operation or maintenance of your machine,
please consult a Yamaha dealer.
EF4000DFW/EF4000FW
OWNER’S MANUAL
©2014 by Yamaha Motor Powered
Products Co., Ltd.
1st Edition, April 2014
All rights reserved.
Any reprinting or unauthorized use
without the written permission of
Yamaha Motor Powered
Products Co., Ltd.
is expressly prohibited.
Printed in China

Particularly important information is distin-
guished in this manual by the following
notations.
This is the safety alert symbol. It is
used to alert you to potential personal
injury hazards. Obey all safety messag-
es that follow this symbol to avoid pos-
sible injury or death.
WARNING
A WARNING indicates a hazardous sit-
uation which, if not avoided, could
result in death or serious injury.
NOTICE
A NOTICE indicates special precau-
tions that must be taken to avoid dam-
age to the machine or other property.
TIP
A TIP provides key information to make
procedures easier or clearer.
WARNING
PLEASE READ AND UNDERSTAND
THIS MANUAL COMPLETELY BEFORE
OPERATING THE MACHINE.
TIP
9 Yamaha continually seeks advance-
ments in product design and quality.
Therefore, while this manual contains
the most current product information
available at the time of printing, there
may be minor discrepancies between
your machine and this manual. If
there is any question concerning this
manual, please consult a Yamaha
dealer.
9 This manual should be considered a
permanent part of this machine and
should remain with this machine
when resold.
* Product and specifications are subject to
change without notice.
IMPORTANT MANUAL INFORMATION

SAFETY INFORMATION ...................... 1
Exhaust fumes are poisonous ............ 2
Fuel is highly flammable and
poisonous ........................................... 2
Engine and muffler may be hot .......... 2
Electric shock prevention ................... 3
Connection notes ............................... 4
Connection ......................................... 4
Extension cord notes .......................... 4
LOCATION OF IMPORTANT
LABELS ................................................ 5
DESCRIPTION ...................................... 6
Control panel ...................................... 6
CONTROL FUNCTION ......................... 7
Engine switch ..................................... 7
Oil warning light (Red)........................ 7
AC switch (N.F.B.) .............................. 8
Fuel tank cap ...................................... 8
Fuel cock ............................................ 9
Ground (earth) terminal...................... 9
Choke lever ........................................ 9
Recoil starter .................................... 10
PREPARATION ................................... 11
Fuel .................................................. 11
Engine oil ......................................... 12
Ground (earth) terminal.................... 13
PRE-OPERATION CHECK ................. 14
Pre-operation check ......................... 14
OPERATION ....................................... 15
Starting the engine ........................... 15
Stopping the engine ......................... 17
Connection ....................................... 18
Application range ............................. 20
PERIODIC MAINTENANCE ................ 21
Maintenance chart ........................... 21
Carburetor adjustment ..................... 23
Spark plug inspection ....................... 23
Engine oil replacement ..................... 24
Air filter ............................................. 26
Muffler screen .................................. 27
Fuel cock .......................................... 28
Fuel tank filter ................................... 29
STORAGE ........................................... 30
Drain the fuel .................................... 30
Engine .............................................. 32
TROUBLESHOOTING ........................ 33
SPECIFICATIONS ............................... 35
Dimensions ...................................... 35
Engine .............................................. 35
Generator ......................................... 36
CONSUMER INFORMATION.............. 37
Identification number records ........... 37
Machine identification ....................... 37
WARRANTY ........................................ 38
WIRING DIAGRAM ............................. 39
EF4000DFW .................................... 39
EF4000FW ....................................... 40
CONTENTS

– 1 –
SAFETY INFORMATION

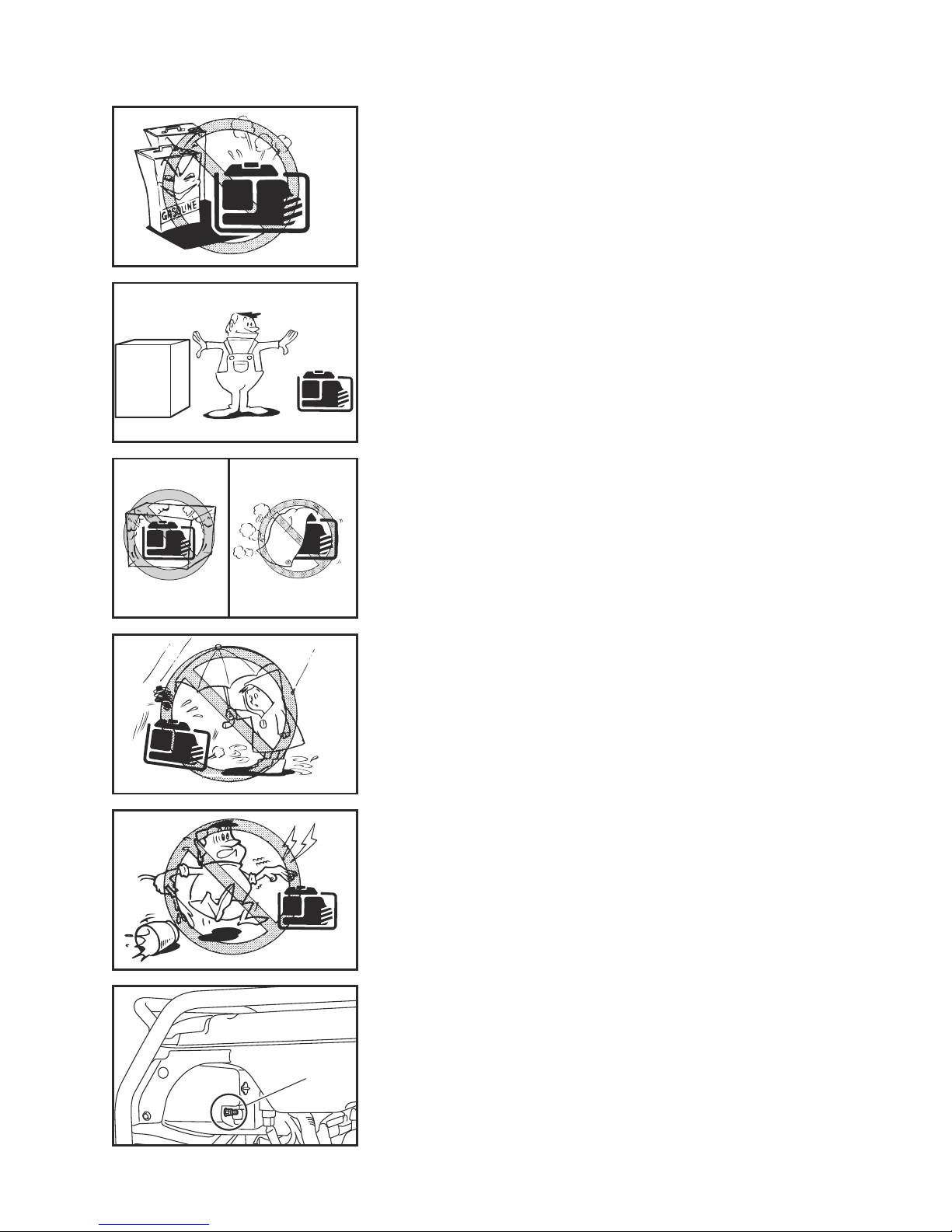

9 This generator is not designed for on-board use.
Do not use it while installed on the vehicle.
9 Do not modify the generator or use it with its parts
removed.
9 Do not allow children to operate the generator.
9 Be sure to carry the generator only by its carrying
handle(s).
1 Carrying handle(s) (shaded)
9 Do not place any obstacles on the generator.
1

– 2 –
741-003
741-005
741-004
741- 006
Fuel is highly flammable and poisonous
9 Always turn off the engine when refuelling.
9 Never refuel while smoking or in the vicinity of an
open flame.
9 Take care not to spill any fuel on the engine or
muffler when refuelling.
9 Do not leave the generator inside the vehicle or in
the trunk.
9 If you swallow any fuel, inhale fuel vapor, or allow
any to get in your eye(s), see your doctor immedi-
ately. If any fuel spills on your skin or clothing,
immediately wash with soap and water and
change your clothes.
9 When operating or transporting the generator, be
sure it is kept upright. If it tilts, fuel may leak from
the carburetor or fuel tank.
Engine and muffler may be hot
9 Place the generator in a place where pedestrians
or children are not likely to touch the generator.
741-002
Exhaust fumes are poisonous
9 Using a generator indoors CAN KILL YOU IN
MINUTES. Generator exhaust contains carbon
monoxide. This is a poison you cannot see or
smell.
9 NEVER use inside a home or garage, EVEN IF
doors and windows are open.
9 Only use OUTSIDE and far away from windows,
doors, and vents.

– 3 –
741-007
9 Avoid placing any flammable materials near the
exhaust outlet during operation.
741-008a
9 In order to prevent overheating, ensure adequate
airflow by keeping the machine at least 1 m (3 ft)
from objects or other equipment.
7CC-001
741-010
741-011
9 Do not operate the engine with a dust cover or
other objects covering it.
9 When covering the generator, be sure to do so
only after the engine and muffler have completely
cooled down.
Electric shock prevention
9 Never operate the engine in rain or snow.
9 Never touch the generator with wet hands or elec-
trical shock will occur.
9 Connect the ground (earth) terminal to a ground
source. In order to prevent electrical shock, the
generator must be grounded when using a
grounded electrical device.
1 Ground (earth) terminal
1

– 4 –
741-040a
1
2
1
2
Connection notes

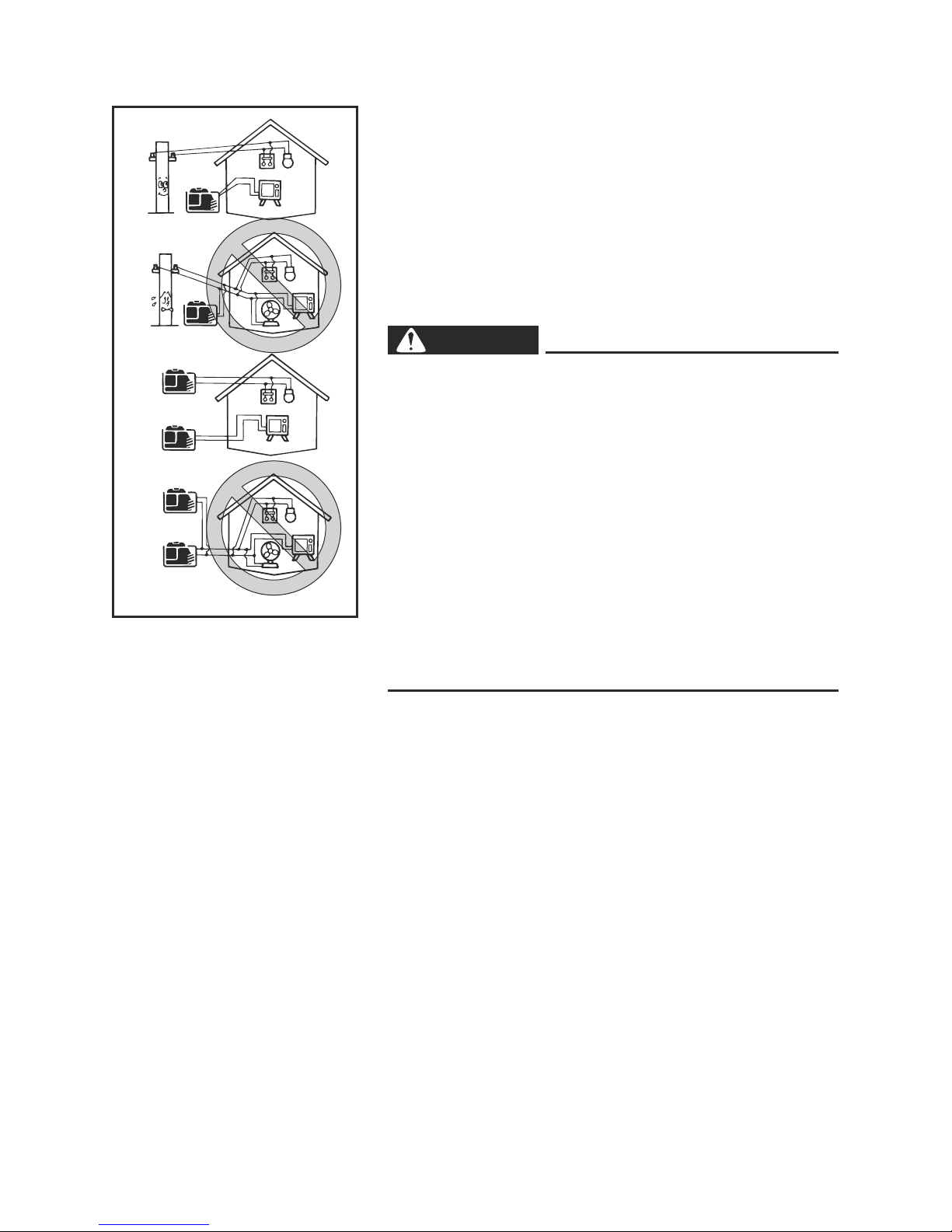

9 Avoid connecting the generator to commercial
power outlet.
9 Avoid connecting the generator in parallel with any
other generator.
1 Correct
2 Incorrect
Connection
WARNING
Before the generator can be connected to a build-
ing’s electrical system, a licensed electrician must
install an isolation (transfer) switch in the build-
ing’s main fuse box. The switch is the connection
point for generator power and allows selection of
generator or main line power to the building. This
will prevent the generator from charging the main
power line (backfeeding) when the main power
supply has failed or has been turned off for line
repair. Backfeeding can electrocute or injure line
maintenance personnel. Also, generator and build-
ing electrical system damage can occur when nor-
mal operating power returns if unit is used without
an isolation switch.
Extension cord notes
Extension cords should be protected by a tough flexi-
ble rubber sheath (IEC 245) or the equivalent to with-
stand mechanical stresses.

– 5 –
LOCATION OF IMPORTANT LABELS

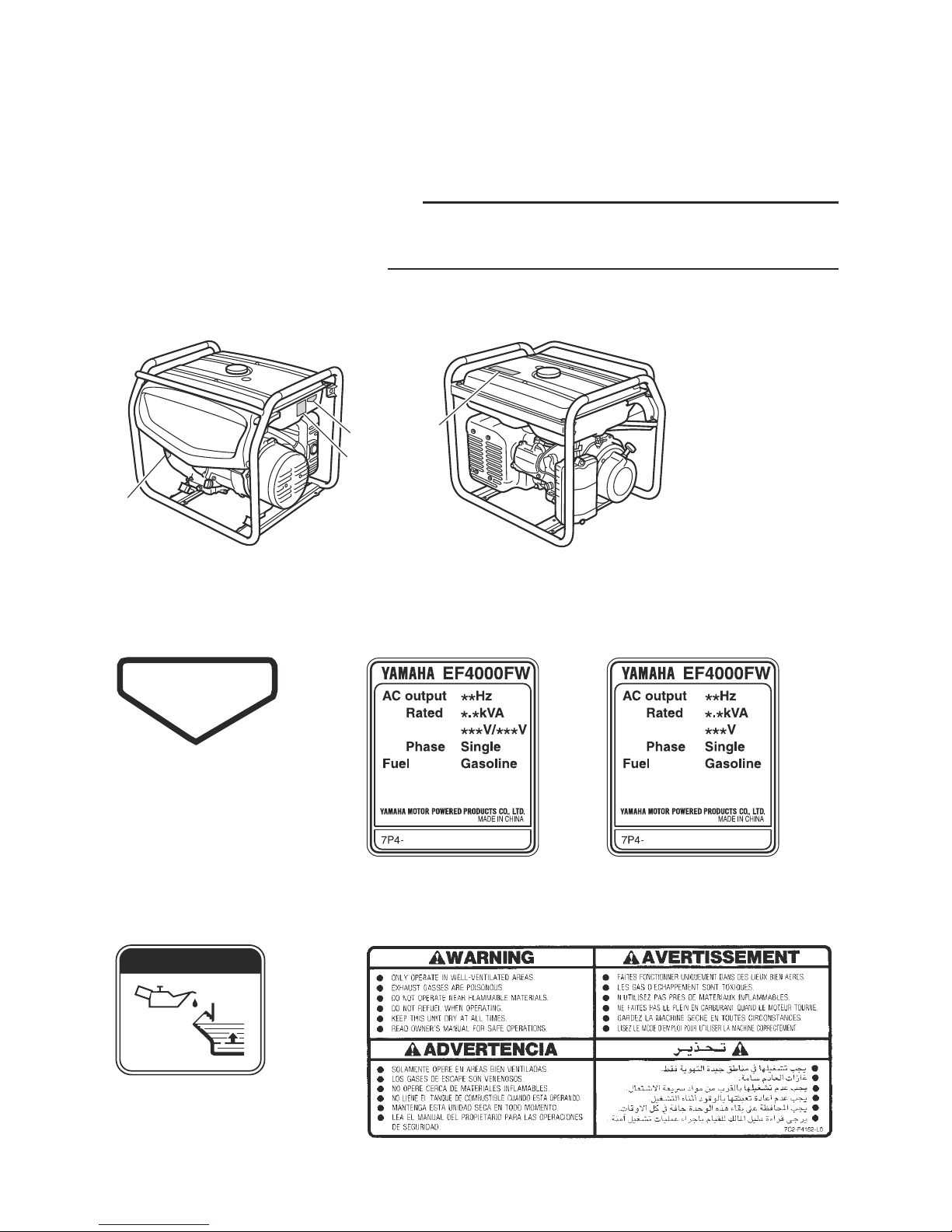

Please read the following labels carefully before oper-
ating this generator.
TIP
Maintain or replace safety and instruction labels, as
necessary.
2 (For EF4000FW)
3
OIL
4
1
2
3
4
HOT EXHAUST
1 2 (For EF4000DFW)

– 6 –

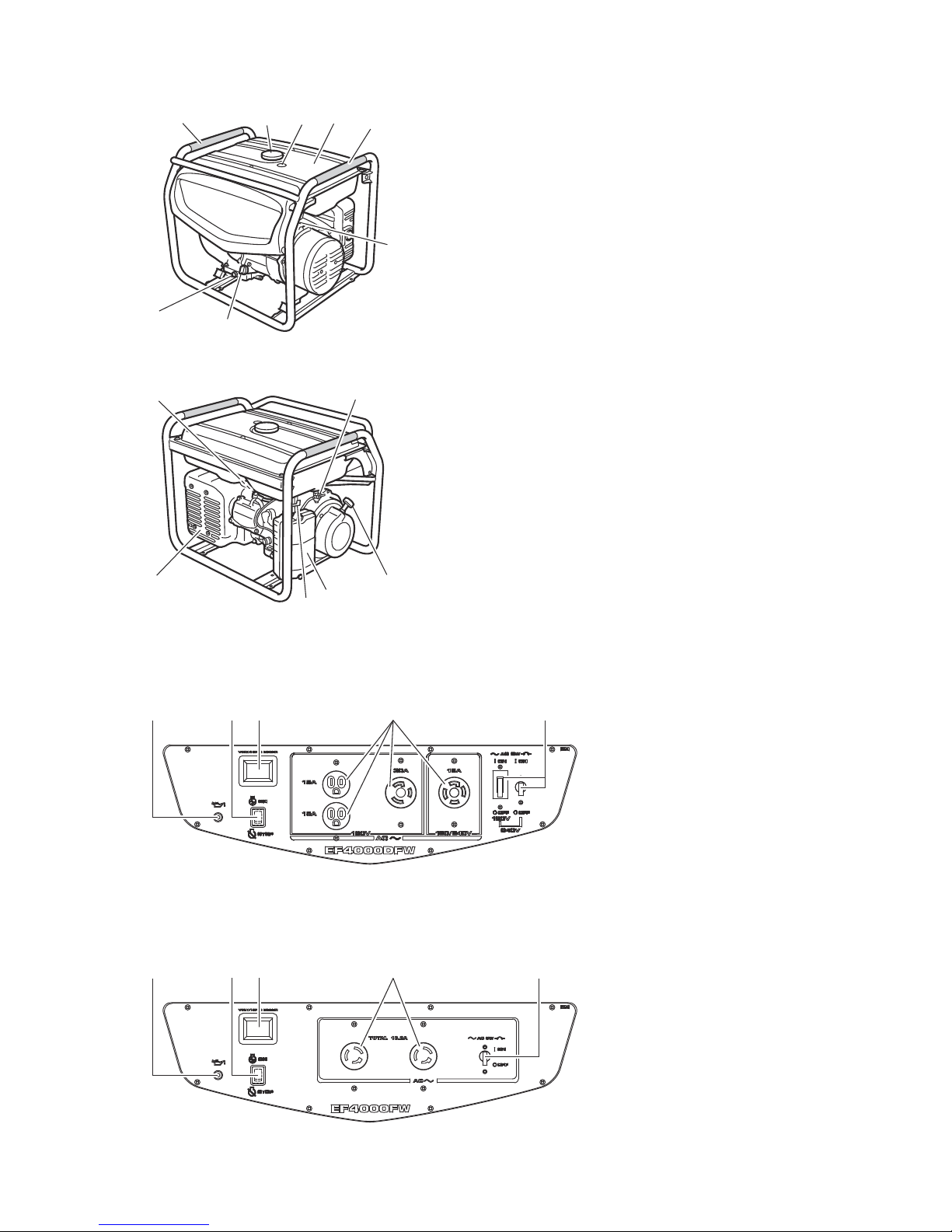

DESCRIPTION
1 Carrying handles (shaded)
2 Fuel tank cap
3 Fuel level gauge
4 Fuel tank
5 Ground (earth) terminal
6 Oil filler cap
7 Oil drain bolt
8 Spark plug
9 Fuel cock
0 Recoil starter
q Air filter case cover
w Choke lever
e Muffler
2
6
7
5
11
34
89
0
wq
e
Control panel
1 Oil warning light (Red)
2 Engine switch
3 Voltage/hour meter
4 AC receptacle
5 AC switch (N.F.B.)
EF4000DFW
32 41 5
000-000
EF4000FW
32 41 5
000-000

– 7 –
CONTROL FUNCTION

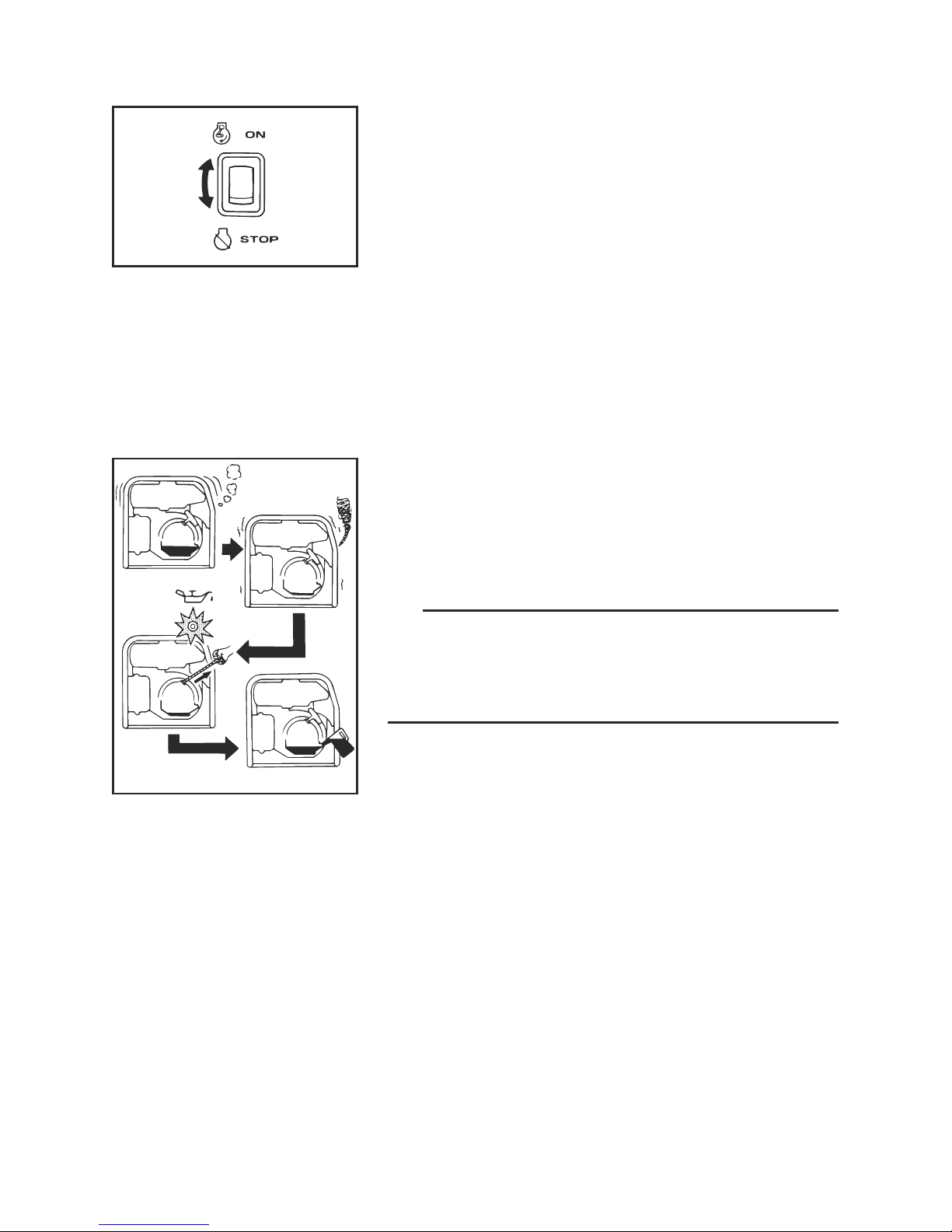

Engine switch
The engine switch controls the ignition system.
1 “7” (ON)
Ignition circuit is switched on.
The engine can be started.
2 “5” (STOP)
Ignition circuit is switched off.
The engine will not run.
700-027c
Oil warning light (Red)
When the oil level falls below the lower level, the oil
warning light comes on and then the engine stops
automatically. Unless you refill with oil, the engine will
not start again.
TIP
If the engine stalls or does not start, turn the engine
switch to “7” (ON) and then pull the recoil starter. If the
oil warning light comes on, the engine oil is insufficient.
Add oil and restart.
1
2

– 8 –
AC switch (N.F.B.)
The AC switch (Non-Fuse Breaker) turns off automati-
cally when the load exceeds the generator rated out-
put.
1 “I” (ON)
2 “3” (OFF)
å EF4000FW
∫ EF4000DFW
ç supplies AC 120 V (EF4000DFW)
∂ supplies AC 120 V and 240 V (EF4000DFW)
NOTICE
Reduce the load to the specified generator rated
output if the AC switch (N.F.B.) turns off. If it turns
off again, consult a Yamaha dealer.
1
2
763-252a
A
1
2
1
2
B
2
1
C
1
1
D
Fuel tank cap
Remove the fuel tank cap by turning it counterclock-
wise.

– 9 –
7DF-106
1
22
Fuel cock
The fuel cock supplies fuel from the fuel tank to the
carburetor.
The fuel cock has two positions.
1 ON
With the lever in this position, fuel flows to the carbure-
tor. Normal using is done with the lever in this position.
2 OFF
With the lever in this position, fuel will not flow. Always
turn the lever to this position when the engine is not
running.
1
1
Choke lever
Starting a cold engine requires a richer air-fuel mix-
ture, which is supplied by the choke lever.
1 Choke lever
Ground (earth) terminal
Make sure to ground (earth) the generator.
Check “SAFETY INFORMATION” (See page 3).
1 Ground (earth) terminal

– 10 –
Recoil starter

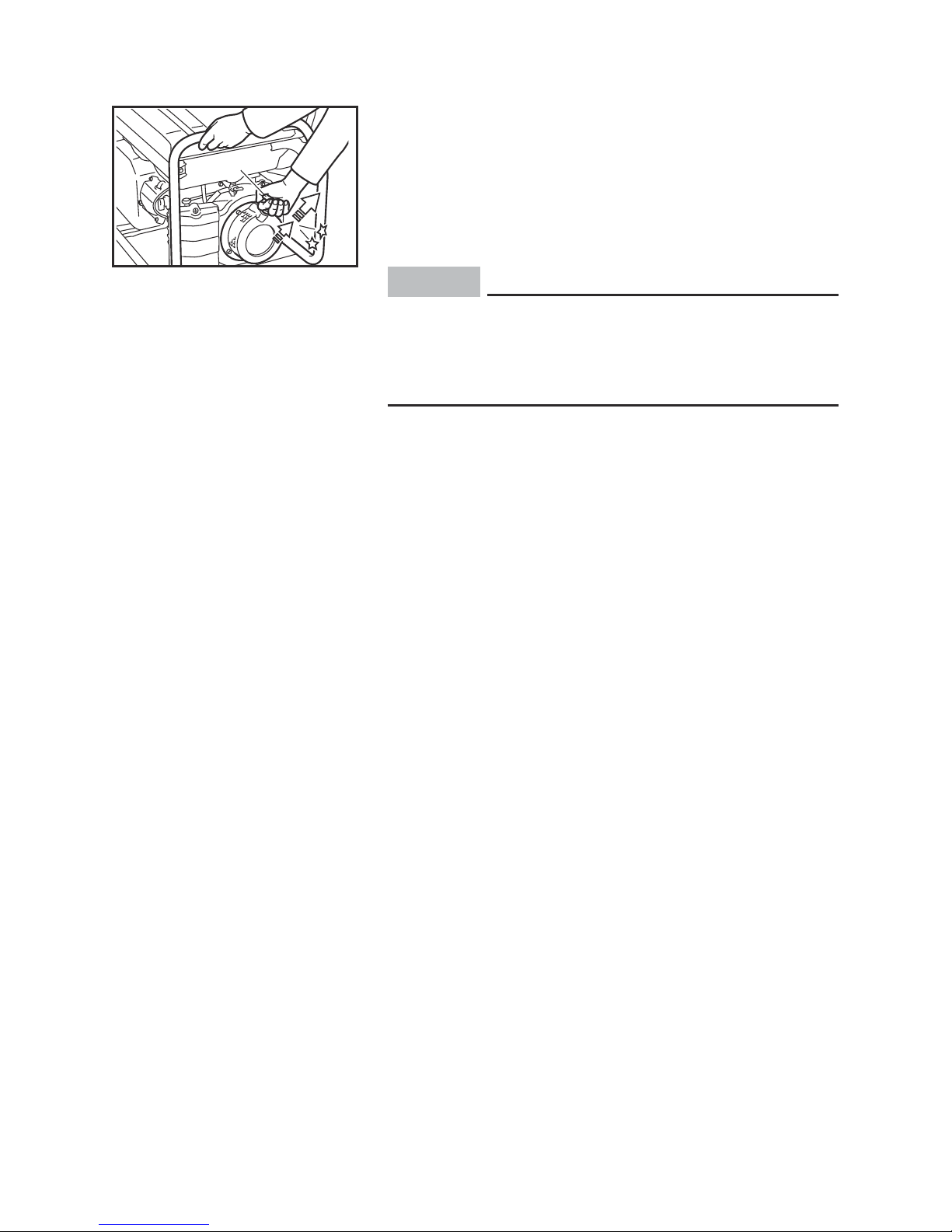

The recoil starter is used to start the engine.
Pull the recoil starter slowly until it is engaged, then
pull it briskly.
1 Recoil starter handle
NOTICE
9 Pull the recoil starter handle straight.
9 Return the recoil starter handle slowly.
9 Do not touch the recoil starter handle while the
generator is operating.
1

– 11 –
12
PREPARATION
Fuel
WARNING
9 Fuel is highly flammable and poisonous.
Check “SAFETY INFORMATION” (See page 2)
carefully before filling.
9 Do not overfill the fuel tank, otherwise it may
overflow when the fuel warms up and expands.
9 Wipe up any spilled fuel immediately.
9 After filling the tank with fuel, make sure the
fuel tank cap is tightened securely.
1. Stop the engine.
2. Place the generator on a level surface.
3. Remove the fuel tank cap.
4. Check the fuel level.
5. If low, fill the tank with fuel.
NOTICE
9 Immediately wipe off spilled fuel with a clean,
dry, soft cloth, since fuel may deteriorate paint-
ed surfaces or plastic parts.
9 Use only unleaded gasoline. The use of leaded
gasoline will cause severe damage to internal
engine parts.

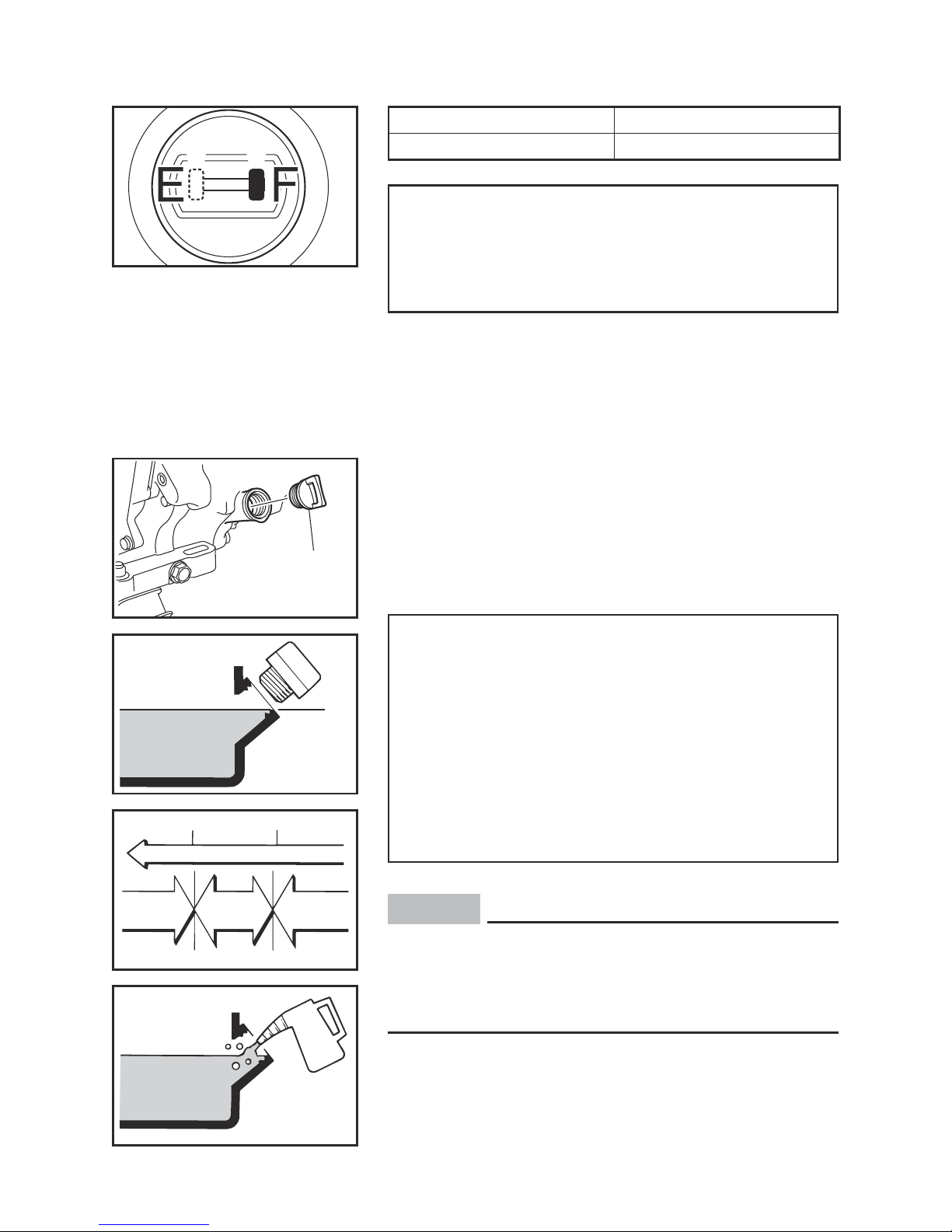

Make sure there is sufficient fuel in the tank.
When refueling, do not fill the tank up above the top
edge of the fuel tank filter.
1 Fuel level
2 Fuel tank filter
3 Fuel level gauge
3

– 12 –
4 “F” Full
5 “E” Empty
Recommended fuel:
Unleaded gasoline
Fuel tank capacity:
Total:
28 L (7.40 US gal, 6.16 Imp gal)
4
5
7DK-093
1
700-110a
2
0°C
A YAMALUBE 4 (10W-40)
D SAE 10W C SAE #20 B SAE #30
32°F
25°C
80°F
700-006
Engine oil
Make sure the engine oil is at the correct level of the
oil filler hole.
1 Oil filler cap
2 Correct level
Recommended engine oil:
å YAMALUBE 4 (10W-40),
SAE 10W-30 or 10W-40
∫ SAE #30
ç SAE #20
∂ SAE 10W
Recommended engine oil grade:
API Service SE type or higher
Engine oil quantity:
1.1 L (1.16 US qt, 0.97 Imp qt)
NOTICE
The generator was shipped from the factory with-
out engine oil. Do not start the engine for the first
time until the oil level has been checked and oil
added if necessary.

– 13 –
1
Ground (earth) terminal
Make sure to ground (earth) the generator.
Check “SAFETY INFORMATION” (See page 3).
1 Ground (earth) terminal
