QUICK-CONNECT GUIDE
YHT-22

YHT-22 QUICK-CONNECT GUIDE
2
INTRODUCTION
Yamaha developed the YHT-22 A/V Home Theater
package to turn your home into a theater. In addition
to enhancing the sound of a video source, like your
TV, DVD player, or VCR, the YHT-22 also superbly
reproduces audio sources, such as a CD player or a
cassette deck.
This Quick-Connect Guide will help you get started.
Study the speaker system plan (below), and then use
the interconnect diagrams (on the following pages) to
connect the receiver and speakers to your system.
For the video portion, you will need a DVD (or LD)
player or a hi-fi stereo VCR and a television or monitor.
Refer to the Yamaha HTR-5140 Owner’s Manual, as well as
the owner’s manuals that came with your other compo-
nents, for complete instructions and cautions. Be sure to
turn off all power while making connections.
Please keep this guide handy for future reference.
NOTE: Label the end of each speaker wire (i.e., left rear, right
front, etc.) before connecting them to the A/V receiver. For wire
runs over 30 feet, use larger 18- or 16-gauge speaker wire.
• Toggle bolts, molly anchor screws, sheet metal screws,
and/or speaker brackets (for securing the NS-A327
speakers to walls)
NOTE: If you are unsure of how to securely and safely fasten
speakers to a wall, please contact a reliable source about the best
type of hardware for your particular wall's construction.
Secure installation is the purchaser's responsibility.
TOOLS AND PARTS
The YHT-22 Home Theater package consists of (1) HTR-5140
A/V receiver with RAV200 remote control, (1) NS-AP327
package containing (4) 2-way NS-A327 front/rear channel
speakers, (1) NS-AC327 2-way center-channel speaker,
100' of speaker wire, (1) YST-SW45 Powered Subwoofer,
and related owner’s manuals. You will also need:
• Wire strippers (optional)
SPEAKER SYSTEM PLAN
C
L
NS-A327
(left side, same height as TV)
R
NS-A327
(right side, same height as TV)
S
L = Left Channel
R = Right Channel
C = Center Channel
S = Surround Channel
NS-A327
(on stand or wall, at least
ear level or preferably higher)
S
NS-A327
(on stand or wall, at least
ear level or preferably higher)
8'~10' apart
NS-AC327
(on top or below TV)
6'~8' apart
Couch
Listening Area
Sub
YST-SW45 Subwoofer (on floor)

YHT-22 QUICK-CONNECT GUIDE
3

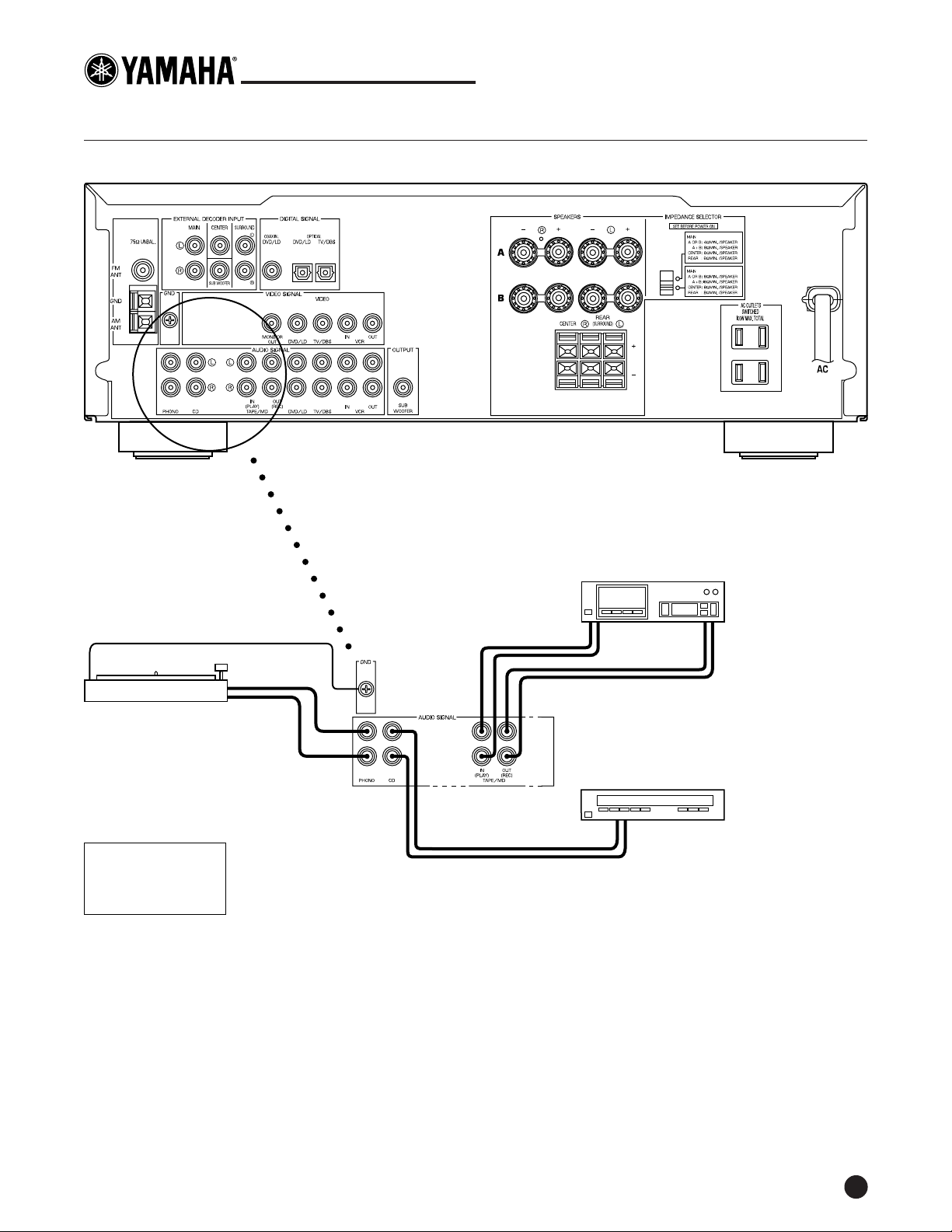

CONNECTING AUDIO COMPONENTS
Yamaha HTR-5140 Receiver (Rear Panel)
NOTE: For your convenience, the Yamaha HTR-5140 receiver is equipped with
two switched ac outlets (100 W max.). If desired, use them to power on connected
components (e.g., CD player or turntable) each time the receiver is turned on.
However, do not use them for components equipped with clocks (e.g.,VCR).
R
L
R
L
L Out
Ground
Use RCA Audio Cables For Audio Interconnections
R Out
L Out R Out
L Out* R Out*
* Use Playback Or Line Out
** Use Line In
L In** R In**
RCA Cable Color Codes
Yellow = Video
White = Left Audio
Red = Right Audio
Turntable
CD Player (Changer)
Cassette Deck

YHT-22 QUICK-CONNECT GUIDE
4

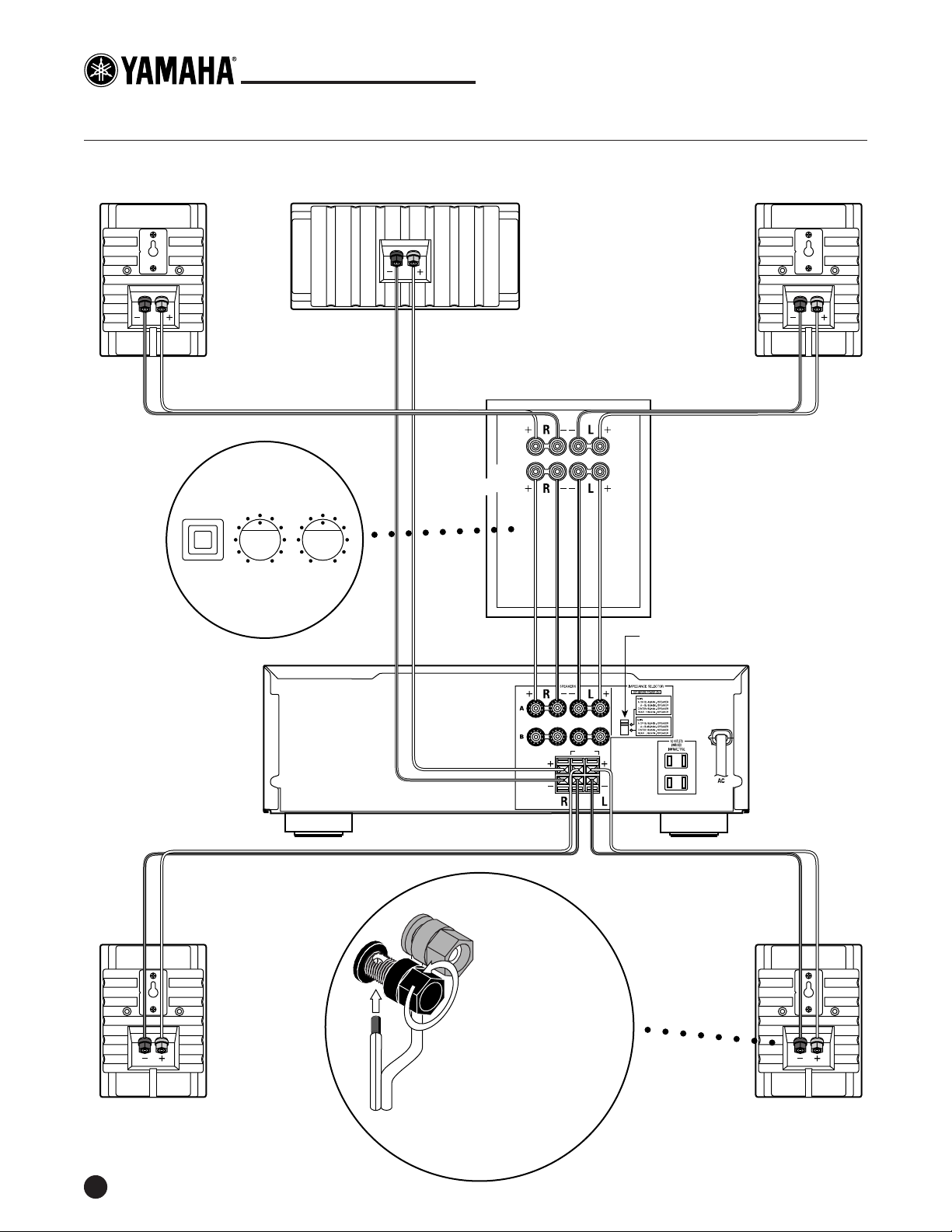

CONNECTING THE YHT-22 SPEAKERS
NS-A327
(Front Right)
NS-AC327
(Center Channel)
NS-A327
(Surround Right)
NS-A327
(Surround Left)
NS-A327
(Front Left)
Set IMPEDANCE Selector
to top position
RearCenter
YST-SW45
(Subwoofer)
From
Amplifier
To Speakers
Clear
Wire
Clear/
Stripe
Wire
Clear
Wire
Clear/
Stripe
Wire
Clear
Wire
Clear/
Stripe
Wire
Clear
Wire
Clear/
Stripe
Wire
Clear
Wire
Clear/
Stripe
Wire
Speaker
Wiring
Initial
Settings
(on Front
Panel)
❶ Strip 1⁄4" off ends of
speaker wires.
❷Loosen terminals.
❸Insert speaker wires;
tighten terminals.
❶
❸
❷
RED = positive (+)
use clear wire
BLK = negative (–)
use clear with
white stripe wire
HIGH CUT STANDBY/ON
50 Hz 150 Hz
VOLUME
010

YHT-22 QUICK-CONNECT GUIDE
5

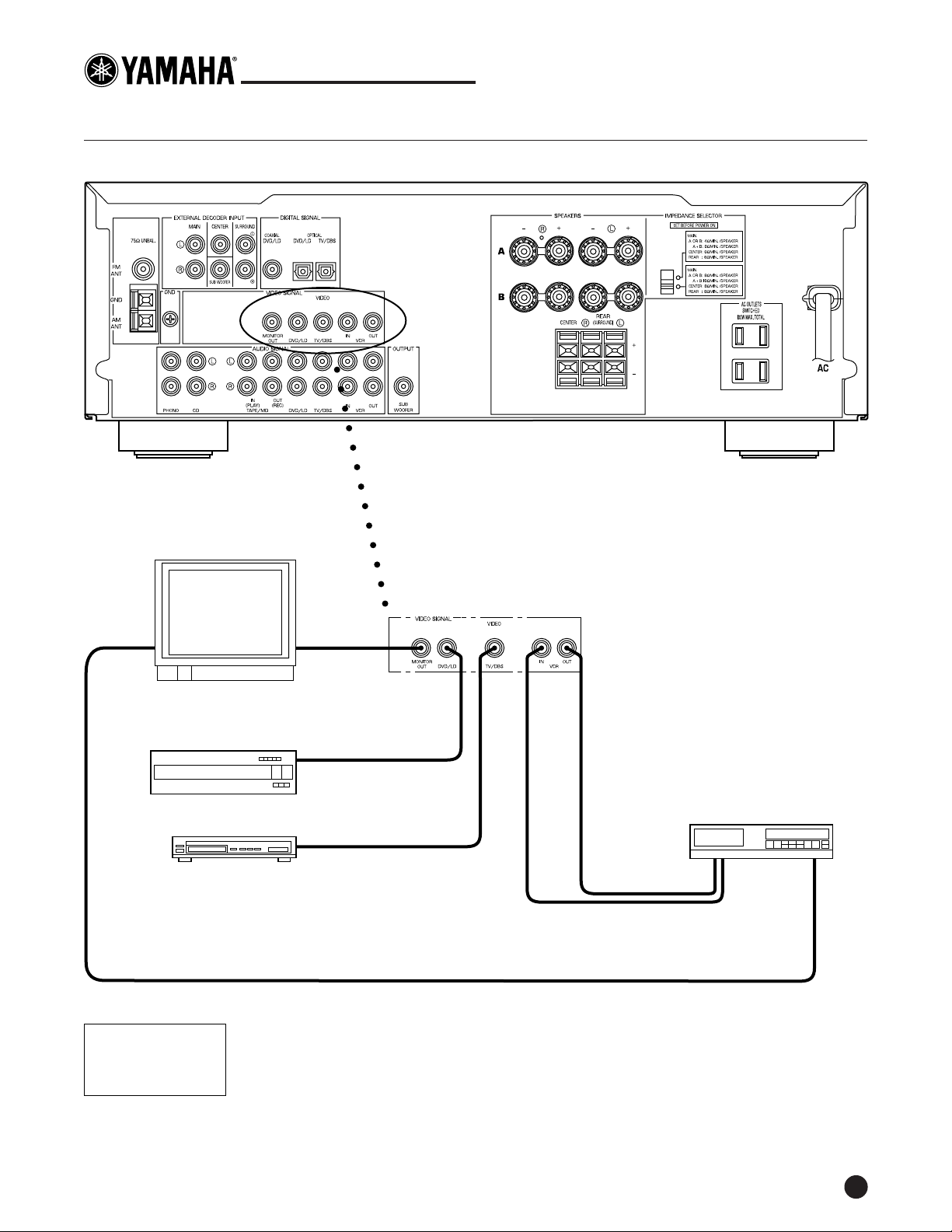

CONNECTING VIDEO CABLES FOR VIDEO COMPONENTS
Yamaha HTR-5140 Receiver (Rear Panel)
NOTE: When using a hi-fi stereo VCR, set the Tuner/Line switch (on the VCR) to Line
position to record from another source connected to the Yamaha HTR-5140 receiver.
RCA Cable Color Codes
Yellow = Video
White = Left Audio
Red = Right Audio
Use RCA Video Cables And Jacks For Video Interconnections
Optional 75-ohm Coaxial Cable
Hi-Fi Stereo VCR
DVD or LD Player (or
Video Game Player)
Video In Video Out
Video Out
Video Out
Video InANT In
ANT Out
(RF Out)
Monitor/TV
Satellite Receiver

YHT-22 QUICK-CONNECT GUIDE
6

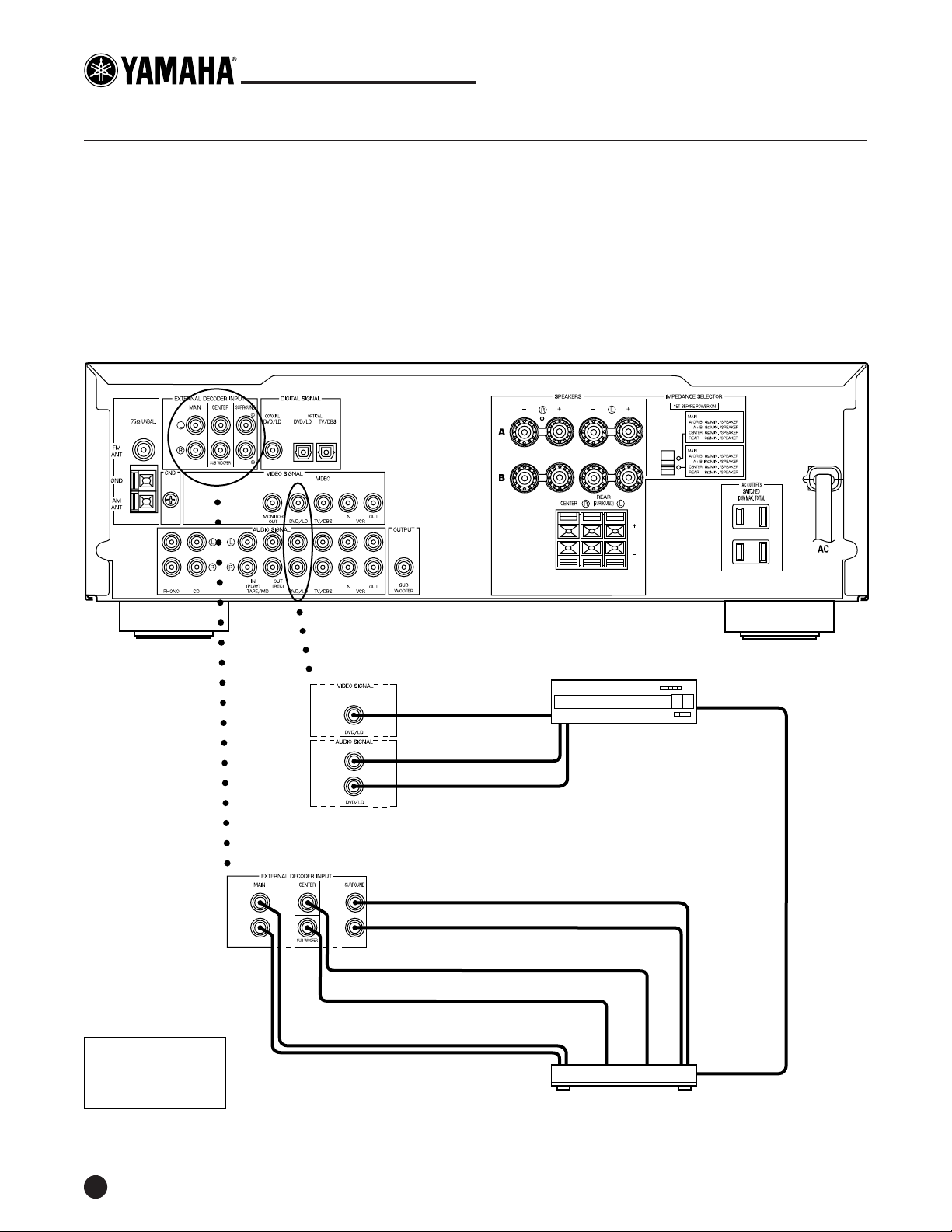

CONNECTING A 5.1-CHANNEL DECODER
If you own a 5.1-channel decoder (or a unit which
incorporates a 5.1-channel decoder), you can connect
its discrete outputs to the HTR-5140 as shown below.
• To hear playback of a stereo or mono audio source
or one encoded with Dolby Pro Logic Surround*,
connect the unit (e.g., DVD player) to the DVD/LD
(or TV/DBS) AUDIO SIGNAL input terminals.
• The discrete signals feeding to the HTR-5140 cannot
be recorded by a tape deck, MD recorder, or VCR.
To record programs from a source (e.g., laserdisc
player), connect the source unit to the DVD/LD (or
TV/DBS) AUDIO SIGNAL input terminals.
• If your audio system does not include a subwoofer
(i.e., SUBWOOFER input terminals are not used), set
signal routing on the 5.1-Channel Decoder so that
the LFE channel feeds both LEFT and RIGHT MAIN
output terminals. For details, refer to the owner's
manual for your 5.1-Channel Decoder unit.
*Dolby Pro Logic Surround is a trademark of Dolby Laboratories Licensing Corp.
Yamaha HTR-5140 Receiver (Rear Panel)
R
L
V
L
R
L
R
RCA Cable Color Codes
Yellow = Video
White = Left Audio
Red = Right Audio
Use an RCA Video Cable And Jacks For Video Interconnections
Digital Audio Cable
(Optical or Coaxial)
DVD Player
Audio L Out Audio R Out
R Main Out
L Main Out
Sub Out
Center Out
R Surround Out
L Surround Out
Video Out
5.1-Channel Decoder

YHT-22 QUICK-CONNECT GUIDE
7

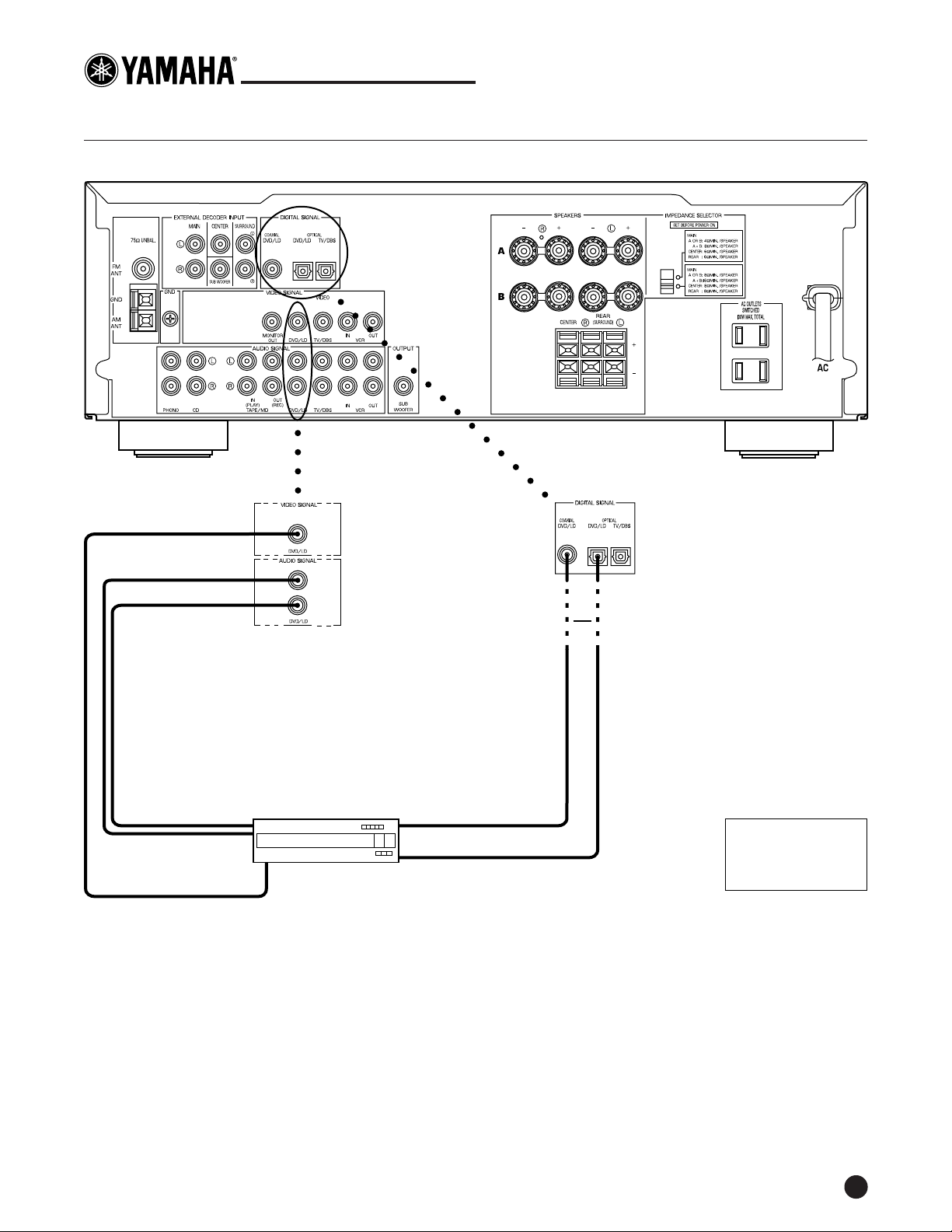

CONNECTING A DVD PLAYER
Yamaha HTR-5140 Receiver (Rear Panel)
R
L
V
RCA Cable Color Codes
Yellow = Video
White = Left Audio
Red = Right Audio
Use an RCA Video Cable And Jacks
For Video Interconnections
DVD Player
Video Out
Audio R Out*
Audio L Out*
Digital Audio Out (coaxial)
OR
Digital Audio Out (optical)
*Analog Audio Out connections are required for playback of CD-Rs and recording
from DVD to VCR.

YHT-22 QUICK-CONNECT GUIDE
8
CONNECTING AUDIO CABLES FOR VIDEO COMPONENTS
Yamaha HTR-5140 Receiver (Rear Panel)
NOTE: When using a hi-fi stereo VCR, set the Tuner/Line switch (on the VCR) to Line
position to record from another source connected to the Yamaha HTR-5140 receiver.
Audio
R Out
Audio
L Out
Use RCA Audio Cables And Jacks For Audio Interconnections
RCA Cable Color Codes
Yellow = Video
White = Left Audio
Red = Right Audio
R
L
R
L
Audio L Out
Audio R Out
Audio
L In
Audio
R In
Audio
L Out
Audio
R Out
Hi-Fi Stereo VCR
DVD or LD Player (or
Video Game Player)
Satellite Receiver

YHT-22 QUICK-CONNECT GUIDE
9

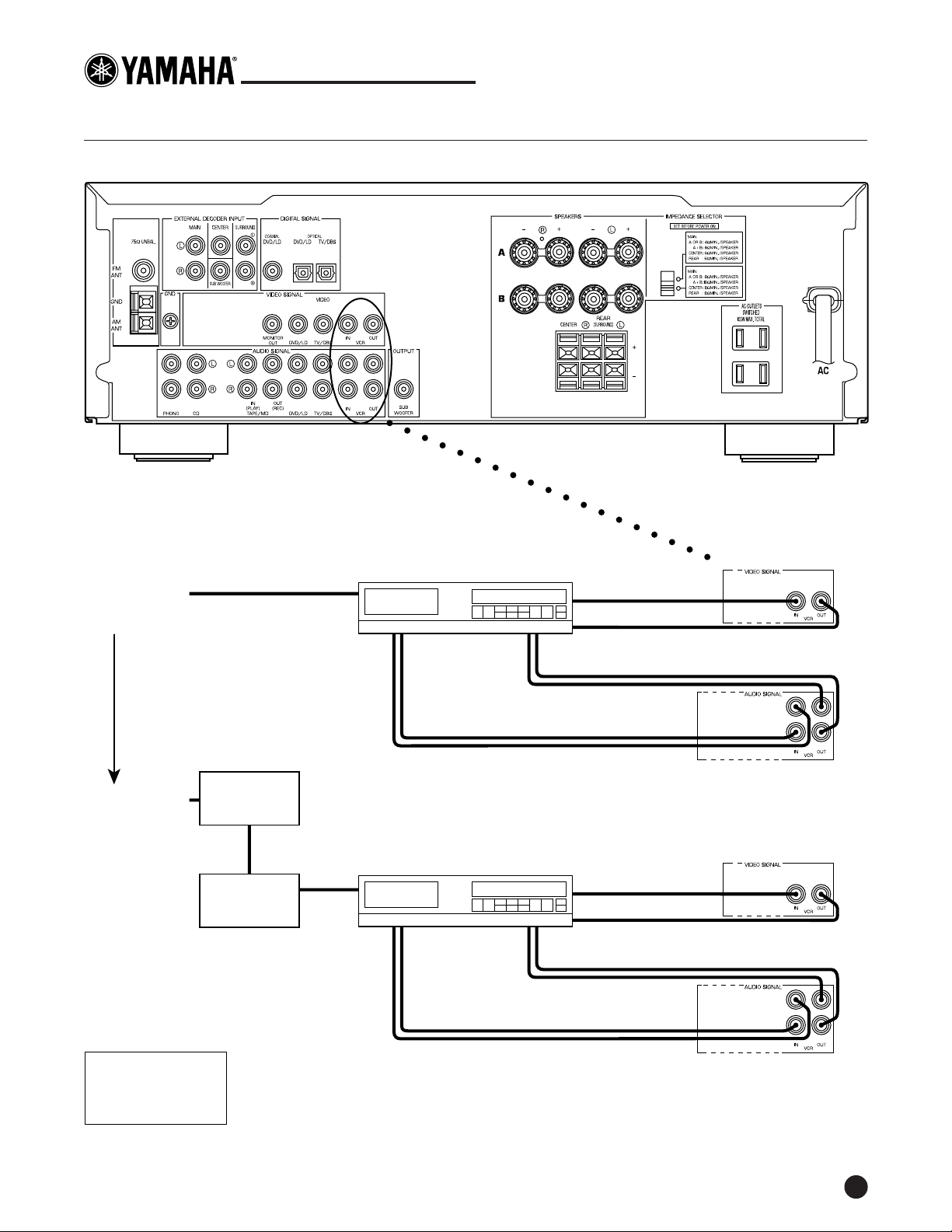

CABLE HOOK-UP(BASIC AND PREMIUM CHANNELS)
Yamaha HTR-5140 Receiver (Rear Panel)
NOTE: When using a hi-fi stereo VCR, set the Tuner/Line switch
(on the VCR) to Line position to record from another source
connected to the Yamaha HTR-5140 receiver.
R
L
R
L
Audio
L In
Audio
R In
Audio
L Out
Audio
R Out
RCA Audio Cables
ANT In Video Out
Video In
Basic Cable
(From Wall Jack)
ANT In
Premium Cable
(From Wall Jack)
OR
RCA Cable Color Codes
Yellow = Video
White = Left Audio
Red = Right Audio
RCA Video Cables
Audio
L In
Audio
R In
Audio
L Out
Audio
R Out
RCA Audio Cables
Video Out
Video In
RCA Video Cables
Hi-Fi Stereo VCR
Hi-Fi Stereo VCR
(Tuner set to Channel 3 or 4)
Descrambler
(Channel 3 or 4
Output)
Converter
Box

YHT-22 QUICK-CONNECT GUIDE
10

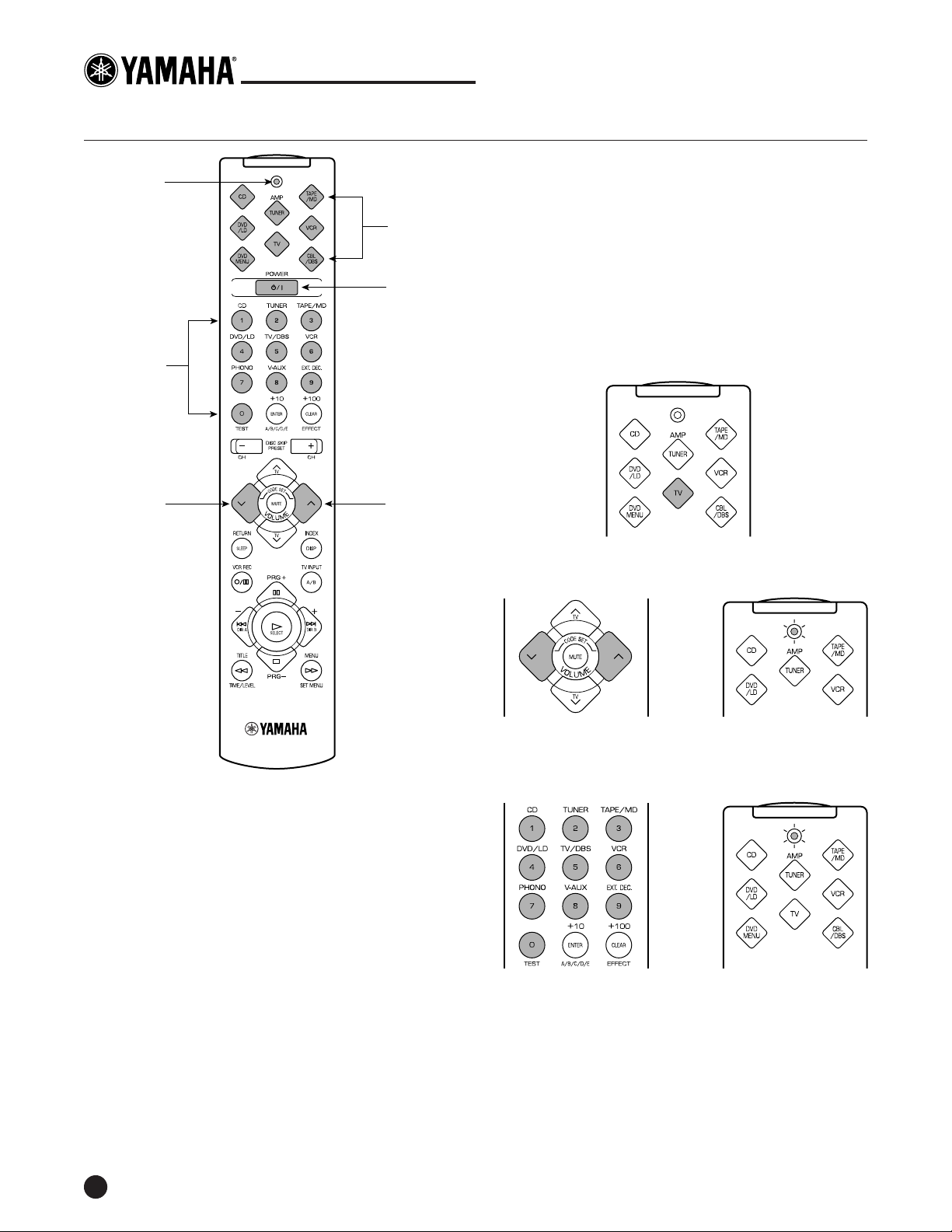

PROGRAMMING THE RAV200 REMOTE CONTROL
SETTING UPCOMPONENTS
Perform the procedure for each component you own.
At the end of each step 5, the remote control’s processor
will automatically assign the selected component’s
control functions to its own buttons, ready for your use.
SETTING UPYOUR TV
1. Turn on the television set and look up a setup code
for your brand of television (see pages 113 and 114
of the HTR-5140 Owner’s Manual).
2. On the RAV200, press TV.
3. Press and hold both VOLUME buttons at least four
seconds until the indicator LED flashes twice.
4. Using the keypad, enter the four-digit setup code.
The indicator LED will flash twice after your entry.
If the LED did not flash twice, repeat steps 3 and 4.
5. To verify the code works, aim the RAV200 at the
television set, press TV, and then press POWER. The
television set should turn off. If it doesn’t respond,
use another code for the same manufacturer and
repeat steps 3 through 5.
The YHT-22 Home Theater package includes the
RAV200 pre-programmed remote control with factory
codes to control your HTR-5140 receiver and most
Yamaha audio components. To program other brands of
components (i.e., TV, VCR, etc.) or if your Yamaha unit
does not respond, you will need to program the remote
control with the manufacturer’s codes (listed on pages
113 through 117 of the HTR-5140 Owner’s Manual).
NOTE: The RAV200 is designed to control most major
brands of audio and video components. For other units, use
the original remote control supplied with the product.
POWER ON
1. Load the supplied batteries into the RAV200.
2. Aim the remote control at the HTR-5140, press
AMP/TUNER, and then press POWER.
3. The receiver should turn on.
Indicator LED
Use Keypad
To Enter
Setup Codes
Turns On
Component’s
Power
Component
Selector
Buttons
Use To Enter
Setup Mode
Use To Enter
Setup Mode

YHT-22 QUICK-CONNECT GUIDE
11
SETTING UPYOUR CABLE BOX (OR DSS)
1. Turn on the cable box (or DSS) and look up a setup
code for your brand of cable box (or DSS) – see pages
114 and 115 of the HTR-5140 Owner’s Manual.
2. On the RAV200, press CBL/DBS.
3. Press and hold both VOLUME buttons at least four
seconds until the indicator LED flashes twice.
4. Using the keypad, enter the four-digit setup code.
The indicator LED will flash twice after your entry.
If the LED did not flash twice, repeat steps 3 and 4.
5. To verify the code works, aim the RAV200 at the
cable box (or DSS), press CBL/DBS, and then press
POWER. The unit should turn off. If it doesn’t
respond, use another code for the same manufac-
turer and repeat steps 3 through 5.
SETTING UPYOUR VCR
1. Turn on the VCR and look up a setup code for your
brand of VCR (see pages 115 and 116 of the HTR-
5140 Owner’s Manual).
2. On the RAV200, press VCR.
3. Press and hold both VOLUME buttons at least four
seconds until the indicator LED flashes twice.
4. Using the keypad, enter the four-digit setup code.
The indicator LED will flash twice after your entry.
If the LED did not flash twice, repeat steps 3 and 4.
5. To verify the code works, aim the RAV200 at the
VCR, press VCR, and then press POWER. The VCR
should turn off. If it doesn’t respond, use another
code for the same manufacturer and repeat steps 3
through 5.
PROGRAMMING THE RAV200 REMOTE CONTROL (CONTINUED)
SETTING UPYOUR DVD (OR LD) PLAYER
1. Turn on the DVD (or LD) player and look up a
setup code for your brand of DVD (or LD) player
(see page 116 of the HTR-5140 Owner’s Manual).
2. On the RAV200, press DVD/LD.
3. Press and hold both VOLUME buttons at least four
seconds until the indicator LED flashes twice.
4. Using the keypad, enter the four-digit setup code.
The indicator LED will flash twice after your entry.
If the LED did not flash twice, repeat steps 3 and 4.
5. To verify the code works, aim the RAV200 at the
DVD (or LD) player, press DVD/LD, and then press
POWER. The unit should turn off. If it doesn’t
respond, use another code for the same manufac-
turer and repeat steps 3 through 5.
SETTING UPOTHER COMPONENTS
1. Turn on the component (e.g., CD player, tape deck,
or MD player) and look up a setup code for your
brand of component (see pages 113 through 117 of
the HTR-5140 Owner’s Manual).
2. On the RAV200, press the desired component
button (e.g., CD or TAPE/MD).
3. Press and hold both VOLUME buttons at least four
seconds until the indicator LED flashes twice.
4. Using the keypad, enter the four-digit setup code.
The indicator LED will flash twice after your entry.
If the LED did not flash twice, repeat steps 3 and 4.
5. To verify the code works, aim the RAV200 at the
component, press the appropiate component button,
and then press POWER. The unit should turn off. If
it doesn’t respond, use another code for the same
manufacturer and repeat steps 3 through 5.

YHT-22 QUICK-CONNECT GUIDE
12
OPERATING THE RAV200 REMOTE CONTROL
OVERVIEW
The RAV200 remote control will control up to seven
different types of components (including the HTR-5140
receiver), each of which becomes active when you press
a selection (e.g., TV, VCR, etc.). We can only briefly
describe some functions here, and we encourage you
use the HTR-5140 Owner’s Manual to gain additional
experience with this powerful unit.
PLAYING A VIDEOCASSETTE
1. Aim the remote control at the HTR-5140, press
AMP/TUNER to select the component, and then
press POWER to turn the receiver on. Press VCR (i.e.,
6 on the keypad) as the input for the receiver.
2. Aim the remote control at the TV, press the TV to
select the component, and then press POWER to
turn the television on. Press TV INPUT (or A/B) to
select the correct input.
3. Aim the remote control at the VCR, press VCR to
select the component, and then press POWER to turn
the VCR on. Put a tape in the VCR, press PLAY.
NOTE: At this point, the VCR controls are assigned to the
remote control, since VCR was the last selected compo-
nent. If you now press the VOLUME up (down) buttons,
the TV/VCR volume will be raised (or lowered). To adjust
the receiver’s volume, you must press AMP/TUNER to
activate its functions.
PLAYING A DVD
1. Aim the remote control at the HTR-5140, press AMP/
TUNER to select the component, and then press
POWER to turn the receiver on. Press DVD/LD (i.e., 4
on the keypad) as the input for the receiver.
NOTE: If the DVD player is connected to an external
decoder, press EXT.DEC. (i.e., 9 on the keypad) as the
input for the receiver.
2. Press DVD/LD and then press POWER to turn the
DVD (or LD) player on.
NOTE: If the DVD player is plugged into the switched ac
outlet (on the back of the receiver) and its power switch
was already engaged, the unit will come on each time the
receiver is powered on.
3. Load a DVD (or LD) into the DVD (or LD) player.
4. Aim the remote control at the DVD (or LD) player,
and press > (forward button) to start play.
NOTE: The DVD player’s controls are now assigned to
the remote control buttons, since DVD was the last
selected component.
RESETTING THE RAV200 TOFACTORY CODES
You can reset the RAV200 to factory codes for all
components or a desired component, as follows:
RESETTING CODES FOR ALL COMPONENTS
1. Press any component selector button other than
AMP/TUNER.
2. Press and hold both VOLUME buttons at least four
seconds until the indicator LED flashes twice.
3. Using the keypad, enter the code “9990”.
4. The indicator LED will flash twice to confirm all
codes have been reset to factory values. If the LED
does not flash twice, repeat steps 1 through 3.
RESETTING CODES FOR A DESIRED COMPONENT
1. Press a component selector button that matches the
component you wish to reset to factory codes.
2. Press and hold both VOLUME buttons at least four
seconds until the indicator LED flashes twice.
3. Using the keypad, enter the code “0000”.
4. The indicator LED will flash twice to confirm all
codes have been reset to factory values. If the LED
does not flash twice, repeat steps 1 through 3.
5. For your convenience, the following reference chart
lists the factory codes:
Component Component Code
Selector Button
TV TV 0101
CBL/DBS DBS tuner 0006
VCR VCR 0002
DVD/LD DVD player 0008 Yamaha
CD CD player 0005 Yamaha
TAPE/MD Tape deck 0004 Yamaha
©1999 YAMAHA ELECTRONICS CORPORATION, USA
6660 Orangethorpe Avenue, Buena Park, CA 90620
PH: [phone]; FAX: [phone]
http://www.yamaha.com
