YANGZI YZ-X5 User manual

YZ-X5
Floor Scrubber
operation instructions

YZ-X5
Yangzi.Make cleaning easier

YZ-X5
1
Content
Content........................................................................................................1
Chapter 1 Description............................................................................... 3
Chapter 2 Use of the Machine.................................................................. 4
Chapter 3 Routine Maintenance and Disassembly and Replacement
of Wearing Parts........................................................................................ 8
Chapter 4 Analysis Table of Common Problems of Floor Scrubber.13
Chapter 5 Maintenance...........................................................................14
Warranty card..........................................................................................15
Warranty Conditions...............................................................................15

YZ-X5
2
Parts
1Armrest ②Lift rocker ③Water level gauge ④Left brush
⑤Recovery tank cover ⑥Wastewater tank ⑦Sewage discharge pipe ⑧Hinge
⑨Clean water tank ⑩Suction pipe ⑪Squeegee ⑫Sewage outlet
⑬Center control panel ⑭Clean water inlet ⑮Right brush ⑯Tires
Performance parameters
Category
Double Brush
Double Brush
Dosing
Single Brush
Single Brush
Dosing
Cleaning efficiency
3650㎡/h
3650㎡/h
Brush size
13 inch *2
21 inch
Squeegee width
1000mm
1000mm
Brush speed
230rpm
230rpm
Brush motor power
380w*2
550w
Suction motor
power
500w
500w
Drive motor power
500w
500w
Fresh water tank
capacity
80L
80L
Recovery tank
capacity
85L
85L
Power unit
24V/100Ah
24V/100Ah
Operating hours
2-3h
2-3h
Total Weight
211kg
198kg
Product Size
1480*1000*1100mm
1480*1000*1100mm

YZ-X5
3
Chapter 1 Description
1.1 Content and Purpose
The following content points out potentially dangerous situations, please
read these instructions carefully and take necessary precautions. The essence
of this machine operating manual is to prevent injuries, and most accidents are
caused at work by not heeding basic safety rules. A careful and careful user is
the best guarantee against accidents, even stronger than some other
precautions. When using the machine, be sure to pay attention to your
surroundings and people nearby, especially children.
1.2 General Instructions
● Before any maintenance and repair, please turn the start switch to the off
position, and please remove the key from the main power switch.
●The machine must be used by qualified and authorized personnel. Children
and disabled persons are not allowed to use the machine.
●Keep the battery away from sparks, flames and smoke.
●Do not use it in a place where dangerous, flammable or explosive gas, liquid
or water vapor is present.
●This machine can clean general garbage. It is strictly forbidden to clean silk
ropes, belts, high-temperature sundries, accumulated water, flammable or
toxic and harmful substances, so as to avoid corrosion and damage to the
brush plate and water-absorbing strip, making them unable to work normally.
●Please keep loose clothing, hair, fingers and other body parts away from the
machine's air vents and any moving parts.
●When the machine stops, remember to turn off the power.
●Do not use the machine where the inclination exceeds the rated value of the
machine.
●Please do not smoke while charging the battery.
● Do not use the machine in a very dirty area. If the road garbage is thick,
please repeat the sweeping work twice or more.
●The machine should be between -10°C and 40°C, and the water inside the
machine is frozen at minus 10°C
●When using the machine, the temperature should be between -10°C and 40°
C, and the humidity should be between 30% and 95%.
●Do not use the machine as a means of transportation.
● When the machine is not moving forward, do not let the brush continue to
rotate to avoid damage to the ground.
●In case of fire, please remember to use powder fire extinguisher instead of
water.
●When the machine operation fails, make sure that the failure is not caused by
lack of regular maintenance.
●If some parts need to be replaced, you can buy spare parts from the original
manufacturer or authorized dealer.
● Confirming that the machine is in proper operation and safe condition,
professionals or service center must work in accordance with the maintenance
section of this manual.

YZ-X5
4
●Even if the machine is to be dismantled and scrapped, someone should be
there to pay attention. Because some harmful substances (such as batteries,
waste oil, etc.) have met the standards, they should be sent to a specific center
for processing.
1.3 Safety requirements for batteries
●It is necessary to avoid the battery being in a low voltage state, and it should
be charged as soon as possible.
● To avoid leakage of electricity, please keep the battery dry and clean,
especially to remove contaminants such as metal dust.
●It is forbidden to put metal parts (such as tools) on the battery to prevent the
battery from being short-circuited and burnt out.
●The charging room should be well ventilated.
● Do not connect or remove the battery when the key switch is in the ON
position.

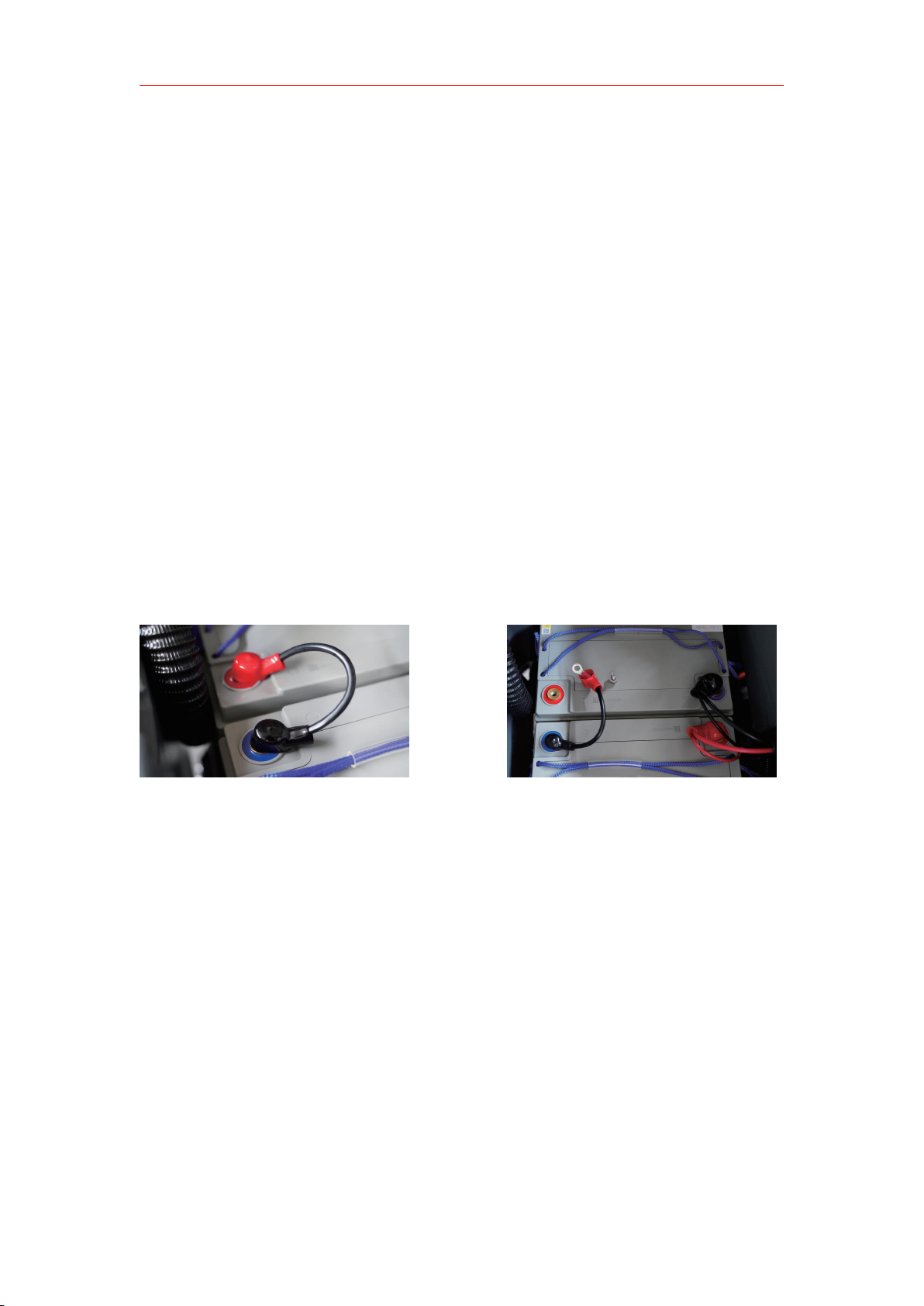

● Before removing or installing batteries, first disconnect the negative (-)
battery wire, and then disconnect the positive (+) battery wire. When rewiring,
be sure to pay attention to the polarity of the battery, as wrong connection will
damage electrical components.
● Avoid direct contact between the positive electrode and the negative
electrode, because it will cause a large current short circuit, generate high heat
and even cause a fire.
Warning: When the machine is not used for a long time, the battery should be
fully charged and then disconnected from the battery
1.4 General safety regulations
In addition to the provisions made in this manual, the required general
safety regulations and accident prevention guidelines must also be observed.
Even if you have used a similar sweeper before, please read the instructions
carefully. Reading the instructions beforehand will save you a lot of time in the
future. It is vital that you become familiar with all accessories and controls and
their functions before you start using them. Read through this manual so you
don't get scrambled when you turn it on.
Chapter 2 Use of the Machine
2.1 Keys/Panels of the Machine
2.1.1 The core control keys of the machine
●Charge/Voltmeter (The display device can display the current battery voltage,

YZ-X5
5
Please charge when the voltage is lower than 21V)
●Power switch (start this switch, the device is powered on)
●Water suction button (start this button, the suction motor starts to work)
●Brushing button (start this button, the brushing motor starts to work)
● Forward and backward switch (start this button to control the machine to
move forward or backward)
●Accelerator pedal (control the driving speed of the machine, the greater the
pressure, the faster the driving speed)

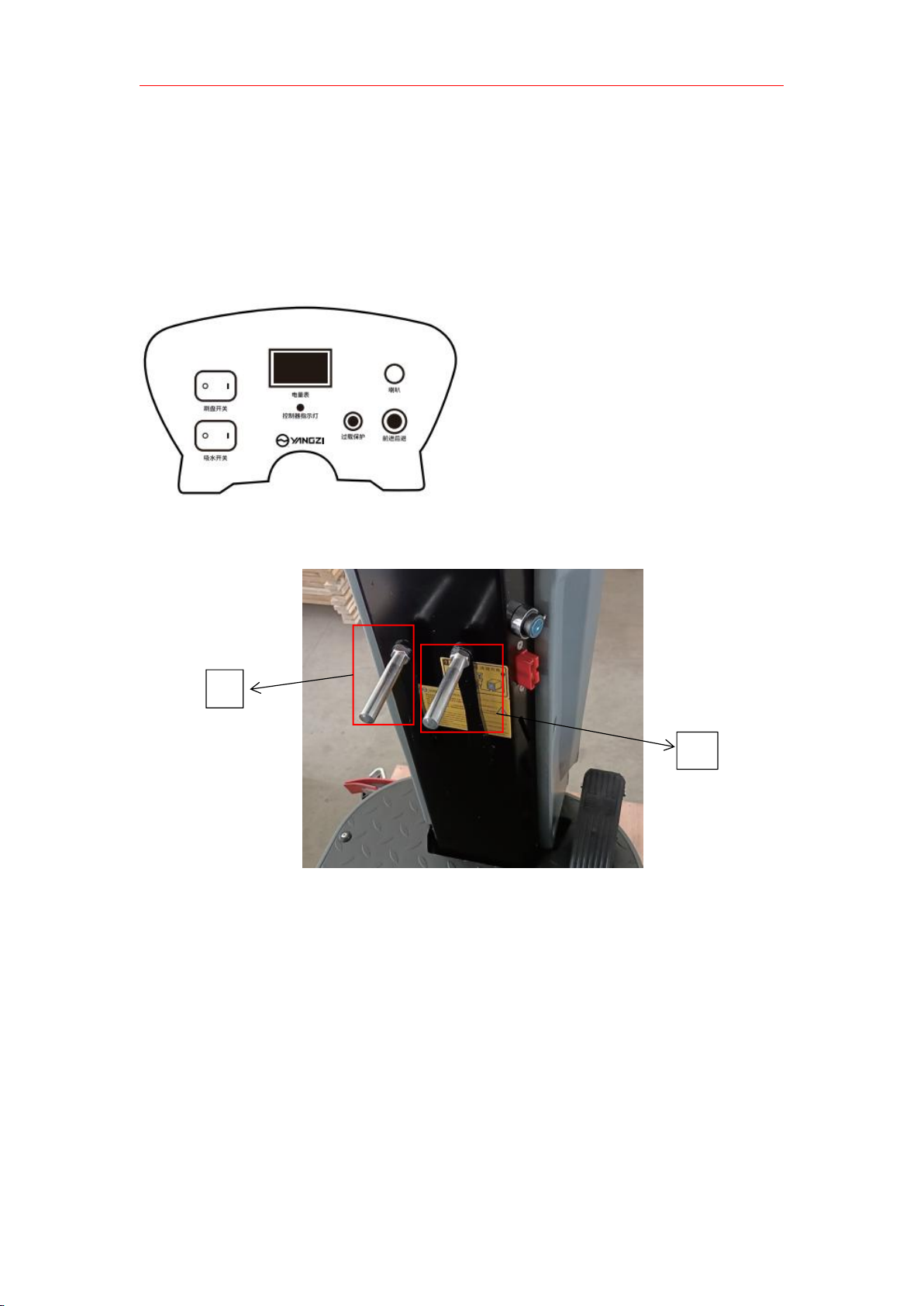

X5 single/dual control panel
●Suction lift handle (Figure ①: Lift the handle to lift the suction lift)
●Brush plate lift handle (Figure ②: Lift the handle to lift the brush plate)
2.1.2 Charging the battery
●The charging socket cable requires at least a power cable with a diameter of
4mm.
● Note: The charger is placed on a stable platform, and pay attention to
moisture-proof, waterproof and drop-proof.
● The charging time must be guaranteed for 6 to 10 hours each time it is
charged. Make sure the battery is fully charged when working.
●During the transportation of the charger, please do not carry the power cord
by hand to avoid loosening the terminals.
2.1.3 Adding water to the water tank
①
②

YZ-X5
6
Before using the machine, close the water valve, and pour clean water into the
water tank. Pay attention to the clean water quality to prevent the waterway
from being blocked.
●When the machine is used to clean the epoxy floor, it is necessary to replace
the ordinary brush plate with the needle plate and add a cleaning pad for
cleaning, which can effectively protect the ground from wear and tear. For
installation, refer to "3.2 Brush plate replacement and installation" for
operation.
2.2 The operation process of the machine
Before the normal operation of the machine, make sure that the squeegee
is installed correctly, and the sewage suction pipe is inserted into the suction
port.
The squeegee has been debugged at the factory and can be used after installation.
●Confirm that the water valve switch at the bottom of the right side of the
machine is turned on when driving normally.
Step 1: Put down the
squeegee tripod through
the handle;
Step 2: Pass the squeegee
fixing screw through the
eyelet of the tripod and
tighten it with the plastic
knob;
Step 3: Insert the conical mouth
of the suction pipe into the
sewage hole of the water tank,
and insert the other end into the
suction port of the squeegee.
Power display
● After turning on the main power switch, the
voltmeter will display the battery voltage value.
When the voltage is lower than 21V, please charge
it in time.

YZ-X5
7
Start the machine
Step 1: Pull down the left and right lift handles and put down the squeegee
head;
Step 2: Pull down the right lift handle and put down the scrubbing plate;
Step 3: Turn on the main power switch, start the brush switch button and the
water suction motor switch button.
● Firmly hold the steering wheel and lightly step on the accelerator pedal to
keep the machine running smoothly. (Note: do not wash too fast)
Instruction 1: In the forward direction of the machine, the forward and
backward switch button is toggled forward.
Instruction 2: In the backward direction of the machine, the forward and
backward switch button is toggled backward. (Note: When backing up, please
raise the squeegee head and the scrubber plate)
Instruction 3: If you need to stop quickly or operate on an inclined surface, you
can control the machine by releasing the accelerator.
Stop of the machine
●Close the brush switch button first;
●Raise the right lift handle to lift the scrubber plate;
●Close the switch button of the water suction motor;
● Lift the left lift handle to lift the squeegee head;
●Turn off the main power switch.
2.3 Precautions for machine operation
● Avoid stopping the machine for a long time in the same place and let the
brush clean; this will leave unnecessary marks on the ground.
●When cleaning the floor is epoxy floor, it is necessary to add a cleaning pad
to avoid the abrasion of the epoxy floor by the brush.
●The machine is filled with clean water, and attention should be paid to the
clean water, so as not to block the water discharge valve with impurities.
●After the machine works for a period of time, it is necessary to discharge the
sewage from the sewage tank in time to prevent the sewage from immersing in
the suction motor and causing it to burn.
● To clean the ground with serious oil pollution, please put an appropriate
amount of detergent in the clean water tank to achieve better cleaning effect,
and at the same time drop an appropriate amount of detergent into the sewage
tank
Foaming agent to prevent the recovery tank foam from immersing in the
suction motor and causing burns.
●After each work is completed, please flush the sewage tank in time to keep
the machine well maintained.

YZ-X5
8
● After the operation in winter, please drain the clean water tank in time to
avoid freezing and affect the reuse.
Sewage tank discharge sewage
●Turn off the main power to ensure that the machine stops;
●Open the cover of the sewage pipe and discharge the water;
●The sewage tank can be properly rinsed with clean water.
Machine storage and maintenance
●If the machine will not be used within 30 days, store the machine in a clean
and dry place and disconnect the battery connector.
Chapter 3 Routine Maintenance and
Disassembly and Replacement of Wearing Parts
3.1 Periodic Inspection
3.2 Brush disk replacement and installation
Regular maintenance and inspection
Intervals（h）
4
50
100
200
500
1
Battery level detection
2
Motor carbon brush inspection
3
Whether the main brush is wired, the silk is
entangled
4
Check for debris in the tank
5
Check the buttons and electronics on the
control panel
6
Check the brush for wear
7
Check the filter for impurities
8
Check the sprinkler joint for leaks

YZ-X5
9
● Park the machine on a flat ground and put down the scrubber;
●Rotate the plastic handle counterclockwise to remove the water retaining strip brush;
● Lift up the scrubbing brush plate, grab the bristles, lift it up slightly, shake it left and
right, and the brush plate can be removed;
When installing the brush plate, make sure that the flange plate is aligned with the
button hole of the brush plate, and the installation can be completed by rotating in any
direction.
Noted: Ride-on brush discs are made of positive and negative buckles, and the
installation can be completed no matter which direction is rotated.
●When the machine is used to clean the epoxy floor, it is necessary to replace the
ordinary brush plate with the needle plate and add a cleaning pad for cleaning, which
can effectively protect the ground from wear and tear. Please refer to the installation
instructions for operation.
3.3 Replacement and installation of the absorbent strip
●Place the machine on a flat ground, turn off the main power switch, and ensure that
the machine is powered off.
●Put down the squeegee through the handle; after rotating the plastic handle in the
opposite direction, take out the squeegee assembly.
●Unscrew the squeegee assembly nut, remove the bottom plate of the squeegee
assembly, and remove the front and rear rubber strips of the squeegee.
●Install the squeegee blade.
Step 1: Align the holes of the front rubber strip
with the protrusions of the plastic assembly of the
squeegee;

YZ-X5
10
3.4 Battery maintenance
The power system of this washing machine is powered by two 12V
maintenance-free lead-acid batteries in series, and the system voltage is 24V.
●When the machine works for a period of time, the battery power drops, when the
power display meter is lower than 21V, it means that the power is insufficient and
needs to be charged in time;
●When maintaining the battery, please wear protective gloves to avoid contact with
the acid substance of the battery;
● Check whether the battery connecting wire is worn and the contact parts are loose,
and replace it if necessary;
●The terminal of the battery should be kept clean and dry, and there should be no
sundries and dust covering it, which is extremely unfavorable to the battery, and will
burn the battery in severe cases.

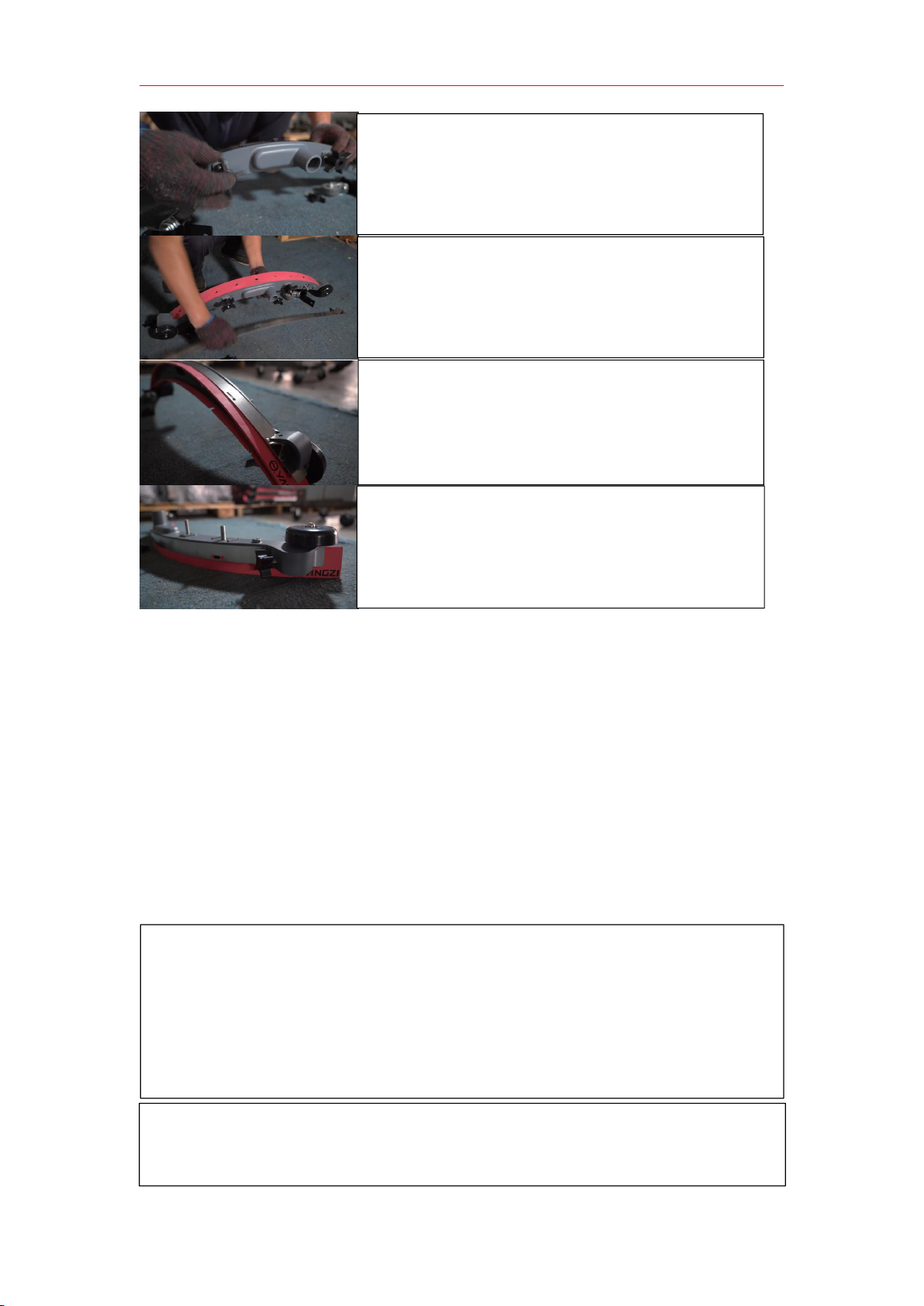

Step 2: Attach Plastic Assembly to Squeegee Cast
Aluminum Base Plate;
Step 3: Align the holes of the rear rubber strip with
the plastic components of the squeegee to the
protrusions;
Step 4: Use both ends of the bead to snap
together;
Step 5: Tighten the Nuts.
! ! Notice
◆In order to make the battery have a long service life, it should be charged in time
after the machine is finished, and deep discharge is strictly prohibited.
◆The correct charging method of the lead-acid battery: first insert the battery, then
plug in the mains; when fully charged, first cut off the mains, and then pull out the
battery plug.
◆If the machine is not used for a long time, please fully charge the battery,
disconnect the positive pole of the battery, and store it.
! ! Warn
During the use of the battery, the capacity of the deeply discharged battery will
decrease and the life span will be shortened.

YZ-X5
11
3.5 Maintenance and disassembly of suction motor
●After the daily use of the machine, please discharge the sewage from the sewage
tank in time to prevent the water level from being too high, being sucked into the
suction motor and burning the motor.
●During the use of the machine, if there is too much foam, it is recommended to use a
defoamer solution to prevent the foam from entering the filter screen and into the
suction motor, causing the motor to burn.
●Removal of suction motor:
The suction motor is fixed at the bottom of the sewage tank. Before removing:
1. Empty the sewage tank first, turn off the main power switch, and keep the
machine powered off;
2. Turn the sewage tank sideways and pull out the suction motor pair socket;
3. Loosen the fixing nut of the suction motor and take out the suction motor.
●Installation of suction motor:
1. Align the mounting holes of the suction motor with the screw of the sewage tank,
and then tighten it with a non-slip nut.
2. The installation can be completed by plugging the suction motor pair socket with
the machine line.
3.6 Controller function, diagnosis and disassembly
●X5 controller is CM2010C type; fixed inside the machine head, it is a
high-performance permanent magnet brushless motor controller.
●Drive function: Full-bridge power MOSFET control, realizes stepless control of
forward, backward, driving and braking, and realizes soft start and flexible braking.
● Downhill speed limit and anti-backslip function: Do not exceed the maximum
allowable speed when going downhill, and reverse the speed limit when parking on a
slope.
●Brake function: When the brake switch is valid, the vehicle decelerates and brakes
immediately, and finally stops.
●Diagnostic function: You can observe the number of flashes of the panel indicator
lights to determine the corresponding fault cause. For example: when the controller
fails, the control panel indicator will flash 7 times continuously, then pause for 2-3
seconds and then flash 7 times continuously, and so on.

YZ-X5
12

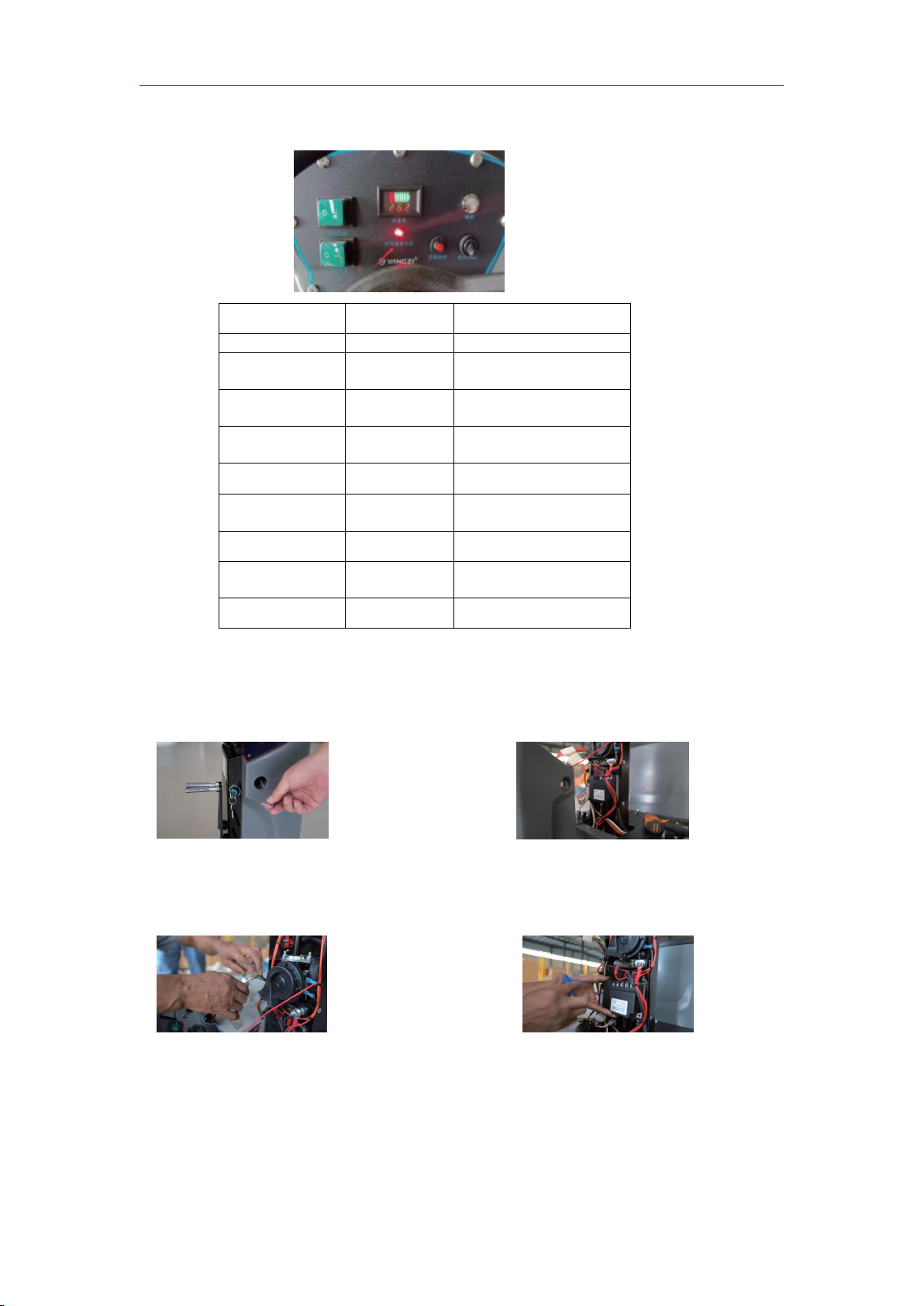

Controller Troubleshooting Instructions
● Controller disassembly:
1. Unscrew the battery cable to keep the machine powered off; use an M4 Allen
key to unscrew the plastic head fixing screw and open the plastic head box.
2. Unplug the control panel cable and the connector port of the controller, unscrew
the positive and negative wiring of the controller, and the positive and negative
wiring of the walking motor; unscrew the fixing screws of the controller and the iron
plate of the machine head, and the controller can be disassembled.
3. The reverse process of controller installation and removal.
(Note: When the controller is wired, the positive and negative wires cannot be wrongly
connected)
Tip: When the machine is out of power or cannot be moved due to failure, push down
the handle of the drive motor to release the electromagnetic brake function, which can
be easily pushed.
Controller LED
flashes
Fault description
possible reason
Flash 1 time
low voltage fault
Battery voltage is too low
Flashes 2 times in a
row
Motor open
circuit fault
Motor wiring is open
Blink 3 times in a
row
Overcurrent/Mot
or Short Circuit
1. Long-term overload
operation;
Flashes 5 times in a
row
High/low
temperature
2. Motor short circuit/motor
wiring short circuit
Blink 6 times in a
row
Charge inhibition
1. Long-term overload
operation;
Blink 7 times in a
row
Jerk failure
2. The electromagnetic
brake is not released
Blink 8 times in a
row
Control failure
Charging
Blink 9 times in a
row
Electromagnetic
failure
1. Force speed high/low out
of range;
Blink 10 times in a
row
High voltage fault
2. The accelerator tap is off

YZ-X5
13

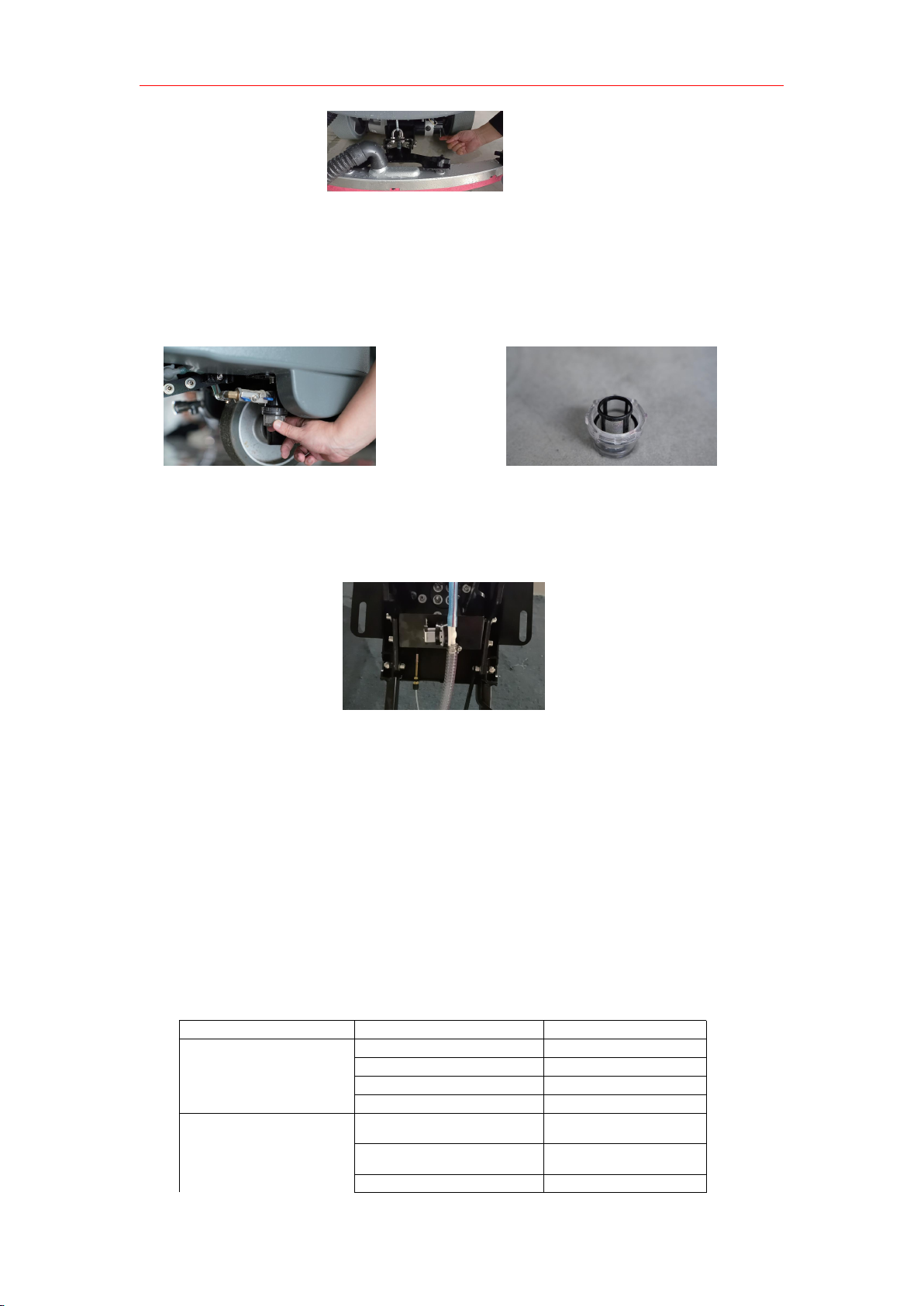

3.7 Disassembly and assembly of solenoid valve and filter
●Filter disassembly: The filter is located on the right side of the front wheel of the machine.
After using for a period of time, if it is found that the water output of the machine is small or
there is no water, most of the reasons are that the filter particles are blocked by impurities.
It is necessary to unscrew the transparent cover at the lower part of the filter and pull out
the inner filter to clean it.
●Solenoid valve disassembly: The solenoid valve is located in front of the brush plate
motor, and the solenoid valve is fixed to the iron plate by a nylon tie; when replacing,
just cut off the tie and pull out the solenoid valve outlet pipe. (Note: During installation,
the clean water pipe should be completely in and out of the solenoid valve outlet to
prevent loosening.)
Chapter 4 Analysis Table of Common Problems
of Floor Scrubber
Problem
Reasons
Approach
Machine is inoperable
battery dead
battery charging
battery failure
Replace the battery
Battery wiring loose
Tighten the battery wiring
Main fuse blown
better fuse
Brush motor does not work
The brush head is lifted off the
ground
Lower the brush head
Brush disc motor circuit
breaker tripped
Reset brush circuit
breaker button
Main brush switch failure
Please contact the

YZ-X5
14
service center
Motor carbon brush wear
Please contact the
service center
fan not working
Suction motor noise is too
loud
Please contact the
service center
Suction motor burned out
Replace the suction motor
carbon brush wear
Please contact the
service center
Little or no water flow out
Clogged water tank drain
valve or water pipe
Clean or replace the
solution tank drain valve
Drain valve closed
Open the drain valve
Inefficient recycling of
sewage
recovery tank full
Drain the recovery tank
Absorbent strip wear
Replace the absorbent
strip
Suction motor failure
Replace the suction motor
Damaged recovery tank seal
Replace the seal
The voltages of the two
batteries are not equal
Please contact the
service center
Battery charging failure
Repair or replace the
charger
Chapter 5 Maintenance
Machine life and operational safety must be ensured by proper and routine
maintenance of the machine. The routine maintenance requirements are tabulated below.
Under suitable working conditions, the maintenance interval can be changed, which must
be determined by the professional responsible for the maintenance.
To perform maintenance operations, the machine must be stopped (remove the start
switch key), so please read the safety section of the manual carefully.
Conditions of Use
●Ambient temperature: -10℃～40℃
●The relative humidity of the air: 5%～70%
●No conductive dust, no explosion hazard environment
● An environment that does not contain gases or vapors that corrode metals
●Indoor use, ventilated, non-vibration environment, front and rear space at least 300mm
Maintenance schedule
Maintenance operation
On
handover
Every10h
Every50h
Every100
h
Every200
h
Every500
h
Brush Disc Height Adjustment Check
Whether the brush plate is wired or
entangled
Squeegee Cleaning Complete
Inspection
Tank cover seal inspection
Screw and nut tightening inspection
Check the wear of the brush disc
Replacement of absorbent strips

YZ-X5
15
Main brush and drive system motor
carbon brush inspection and
replacement
Warranty
Warranty is not covered under the following conditions of use:
● Failure to perform maintenance in accordance with the maintenance manual may result
in mechanical damage or failure.
●The mechanical appearance or structure is obviously damaged due to improper
operation.
●Disassembly or modification not approved by the original factory.
●Damage due to weather or force majeure.
●More than 1 year of warranty or more than 1500 hours of use.
Warranty card
Warranty Conditions
1. Within the day when the user purchases this product, the motor is guaranteed for
one year (more than 7 days from the date of purchase, no replacement, only
warranty);
2. Before using the equipment, you must understand the instructions and safety
instructions;
3. Man-made damage to the warranty parts will not be guaranteed within the
warranty;
Name
Tell
Postal address
Bill No
Purchase time
Number
Product model
Date
Replace
Fault description

YZ-X5
16
4. During the warranty period, users who do not follow the operating instructions or
those who dismantle and repair by themselves will not be covered by the warranty (if
repair is required, a cost will be charged);
5. The buyer can go to the designated point of the seller for maintenance with the
invoice, or send the machine back to our company for repair (return freight and
insurance premiums are paid by themselves).
