YANGZI YZ-X6 User manual

YZ-X6
FLOOR SCRUBBER
Operating instruction
安徽扬子工业科技有限公司
ANHUI YANGZI INDUSTRIAL TECHNOLOGY CO., LTD.

1

2
YZ-X5
Instruction Manual Instruction Manual
e machine is packaged in ve parts: fuselage (water tank, rack, brush plate xing
assembly), suction pickling assembly,Brush plate, charger.
Machine installation and commissioning
1. Installation of water-absorbing pickles:
◆ Remove the package and take out the water-absorbing gripper assembly, as shown
in the figure below
Fix the suction head on the pendulum tail and tighten the cross handle
◆ Water absorption adjustment
2. If the suction scraper is pressed too low, the resistance is great
◆ Unscrew the setting screw of the small wheel with open head
◆ Reduce the roller, visually check the water absorption strip to the ideal position, and
tighten the screw;
◆ Repeat the above steps to the other pickpocket wheel and adjust the height to the
appropriate position;
3. Too high water absorption of the small wheel support rod is not effective
◆ Unscrew the support rod screw of the small wheel;
Water inlet

3
Machine usage
Before the rst use, adjust the equipment to the best cleaning eect.Before each
use, routine inspection is required:
◆ Whether the seal strip of sewage tank cover comes off
◆ Is the sewage tank cleaned
1. Insert the suction pipe
Insert one end of the suction pipe into the inlet of the sewage tank and the other end
into the exit of the tail flap.This is shown on the right
2. Fill with water
Please observe the water level through the water level pipe. If the water is insufficient,
Please fill it with clear water
◆ Open the lid of the clean water tank
◆ Put clean water into the water tank (put the water pipe into the tank first, then open
the water valve, the water temperature is not higher than 50℃ , the water level can be
observed through the water level pipe)
◆ Add detergent, the amount can be added according to the needs of the ground
◆ Close the water tank cover
3. Water regulation
◆ Open the discharge valve and adjust the water amount according to the actual needs
Pull out the rubber plug
Remove the screw with
a Phillips screwdriver
Open the
chassis
fuse
Relay 1:
Control
the brush
motor
Relay 2:
Control the
suction
motor

4
YZ-X5
Instruction Manual Instruction Manual

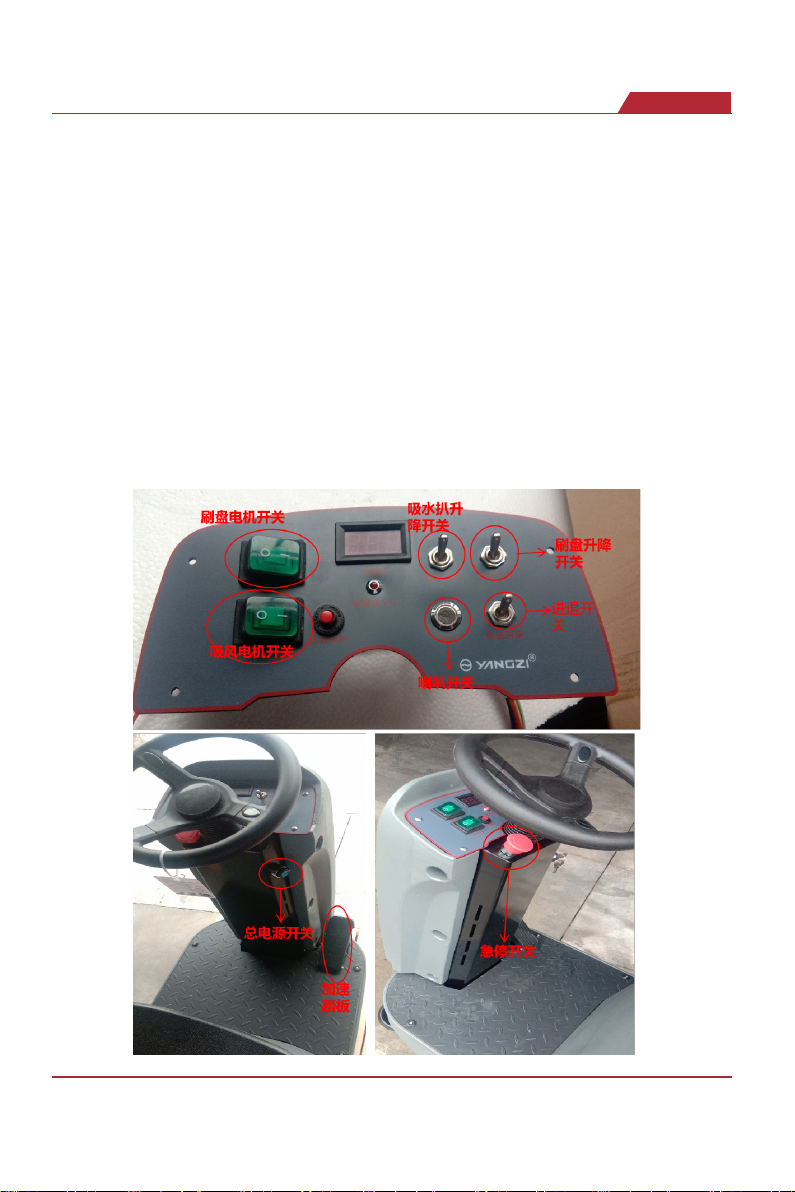

1. Suction motor switch: turn on this switch and the suction motor starts to work;
2. Power master switch: Start this switch and the device is in the state of power on;
3. Brush plate switch: press this switch to start the brush plate;
4. Voltage display meter: it can display the electric quantity of the device in reality, and
the electric quantity increases during charging.
5. Back and forth switch: Start this switch to control the machine forward or backward
6. Emergency stop switch: In case of emergency, this button can be quickly pressed to
achieve protection measures.
7. Accelerator pedal: Control the speed of the machine with pedal pressure
8. Brush plate lifting switch: two-gear switch, press upward, brush plate slowly lifting;
Press down and brush plate slowly down
9. Suction lift switch: two-gear switch, press upward, slowly lift the head, press
downward, slowly put the head
Under the
Brush motor switch
Suction motor switch
Squeegee lift switch
Brush lift switch
Advance and retreat switch
Horn switch
Main power switch
acceleration pedal
Emergency stop switch:

5
Specification: Rated voltage: 24VDC, maximum current: 110A
CM2010C controller is a high performance permanent magnet brushless motor
controller with the following functions:
Driving function: full bridge power MOSFET control, realizing stepless control of
forward, rear, drive and braking.Realize the soft start and soft brake Ø
Downhill speed limit and anti-backsliding function: driving downhill without
exceeding the maximum allowed speed limit, and backsliding speed limit when
standing uphill
Diagnostic function: The running state of the vehicle can be observed by LED status
light, 10-bar electrical meter and handheld programmer
Cart function: close the cart switch and release the electromagnetic brake to facilitate
the cart
Brake function: when the brake switch is in effect, the vehicle will decelerate and brake
immediately and finally stop
Head
Take out the
screw with an
Allen wrench to
open the machine
head
Controller
Controller:
Power cord: red
positive pole,
black negative
pole
Drive motor
wire: red
positive pole,
black negative
pole

6
YZ-X5
Instruction Manual Instruction Manual

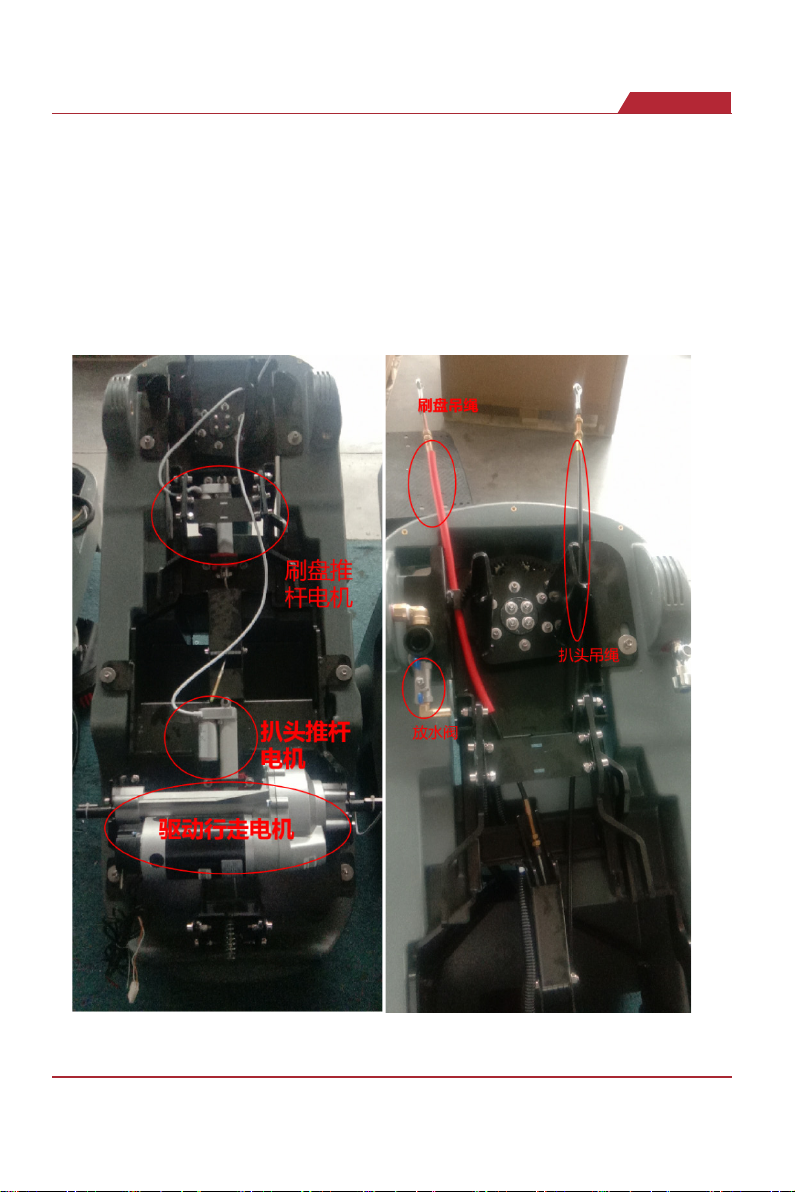

Push rod motor for pickpocket:
When starting the lift switch, the push rod has extension/pull back process, wait 3-4
seconds before the machine is used
Brush disk push rod motor:
When the brush plate lifting switch is started, the push rod has an extension/pull back
process, and it needs to wait 3-4 seconds before the machine is used
Drive walking motor
Head push rod
motor
Drain valve
Brush plate
push rod
motor
Sling for
brush plate
Head sling

7
Notes for use of the floor washer
1. The voltage display meter should not be lower than 21V charging. Charging less than
21V will seriously damage the battery life, resulting in smaller battery capacity, too short
machine use time, and even can not charge
2. During the use of the machine, sewage should be discharged first, and clean water
should be injected into the machine's water box. If sewage is not discharged, clean
water should be injected and continued to be used, and the sewage level will be raised,
which will go into the suction motor along with the suction outlet and burn the motor.
3. It is strictly prohibited to use the machine without water. If the machine is changed
without water, dry dust will be washed into the sewage tank and then into the suction
air motor through the suction air outlet, resulting in slow motor speed.
4. The machine is strictly prohibited to drive into the road surface similar to the
The machine charges its batteries
Note: In order to extend battery life and ensure optimum performance of the machine, it
must be exceeded at least within the machine life
Charge the battery for more than 30 minutes.
Do not leave the battery uncharged for a long time.
The following charge says
It is applicable to the charger attached to the machine.
Be sure to use the following chargers to avoid battery damage.
Type of charger: charger for lead-acid battery
Output voltage: 24V
Output current: 15A
◆ Automatic power off circuit
◆ Suitable for deep circulating battery charging
The charging items
1. Digital electric meter display number & LT;
21. Please charge it immediately
2. When charging, please plug the charger into the charging docking port of the
machine and connect the 220V power supply.
3. When charging, please move the machine to a well-ventilated place for charging, and
open the sewage tank side for ventilation.
4. When the digital electricity meter shows the number reaches 26, it means the
charging is completed

8
YZ-X5
Instruction Manual Instruction Manual
separation belt. Long time will damage the sheet metal parts and drive axle of the machine..
5. The switch of the suction motor should be turned off when the machine enters the steep
road surface to prevent splashing sewage and entering the suction tuyere, which will burn
down the suction motor.
6. After the use of the machine, sewage should be immediately discharged, sewage tends to
be acidic, even strong acid, no discharge of sewage on time will corroded sewage pipe, so
that the service life of sewage pipe is reduced..
7. If the machine is not used for a long time, the machine should be fully charged and
placed in the storage room to avoid air drying and sun exposure.
8. If the machine is not in use for more than 15 days, flush the machine with full power,
remove the battery power line and place it in the storage room to avoid air drying and
sun exposure.Before removing the battery power line, turn off the switch and key of the
machine to prevent electric shock.
9. In the cleaning process of the machine, the key switch should be turned off first. It is
strictly prohibited to flush the battery, motor, wiring harness, controller computer board
and other positions directly from the water pipe.
10. After the machine is finished working, let the battery of the machine cool down before
charging, the continuous charging time should not exceed 10 hours, if no one is watching,
it is recommended to equip with intelligent timing socket.
11. Charge the machine in a ventilated and warm condition. Do not charge it in a high
temperature sealed environment to prevent the battery from bulging at high temperature
12. The battery of the machine must be charged with the original charger provided by
our company. It is forbidden to use fast charging, high voltage charging and low voltage
charging, which will cause the battery to bulge
13. When the machine is equipped with detergent, defoaming agent must be added to
the sewage tank for defoaming to prevent the sewage bubble from being sucked into the
suction motor and burning the motor
14. The towing machine should be suitable for 1.5-2 hours in continuous use. If it needs to
work for a long time, wait for the motor temperature to cool down before starting to work
15. The sequence of starting machine switches is: main power switch → brush plate switch
→ water absorption switch. Inversion will cause instantaneous current to be too large and
burn down the voltage display table.
16. During continuous operation of the machine, do not switch on and off at times, which
will lead to excessive starting current for many times, accelerate insulation aging of the
motor, and reduce the service life of the motor

9
troubleshooting
Same problem cause solution
The machine is
inoperable
The battery is dead The battery is charged
Battery failure replace battery
Battery wiring is loose Tighten the battery wiring
Replace the main fuse when it blows
The brush
motor is not
working
Lift the brush head off the
ground lower the brush head
The battery meter is locked
and not started The battery is charged
The brush plate motor circuit
breaker triggers the power
switch reset the brush circuit breaker button
Brush (up/down) switch
failure please contact service center
Motor carbon brush wear please contact service center
The vacuum
motor does not
work
Water suction steak rises off
the ground drops water suction steak
Vacuum motor fuse blown replace the fus
Vacuum motor or wiring fault please contact service center
Motor carbon brush wear please contact service center
Little or no flow
out
Drain tank filter or solution
pipe is blocked clean drain tank filter
The flow control knob is set
too low 0 adjust the flow control knob
Loosen the screw of the
control-system knob lubricate the knob and tighten the screw

10
YZ-X5
Instruction Manual Instruction Manual
Waste water
recovery is
inefficient
The sump is full drain the sump
Water absorbing strip wear replace water absorbing strip
The suction pipe is blocked remove the blocked debris
If the seal of sewage tank is
damaged replace the seal
Vacuum motor fault please contact service center
Reduced
running time
Battery defective replace battery
Battery charging failure repair or replace the charger

11
Instruction Manual
YZ-X5
Clean efficiency ㎡ /h 4500
Brush plate width mm 430*2
Water absorption scraping
width mm 1000
Cleaning width mm 860
The rotation speed of brush
plate RPM 230
Brush plate motor power W 380*2
Water absorption motor
power W550
Cleaning/sewage tank
capacity L85/90
The capacity of the battery V/AH 24V140ah
Working hours H 3
The machine weight KG 236
Product size MM 1400*1000*1100

Instruction Manual
Warranty Card
Inspection Certificate
Model Motor Accessories
Power cable Switch Shell
Suction Control Fuselage
Function Manual Package
Number：
Number：
Name Tell
Mailing address
Purchase time Bill
number
Product number Fuselage
number
Replacement
parts Date
Fault description:
Warranty conditions:
1. Within the date of purchase, the motor is guaranteed for one year (if it is more than 7 days from the date of
purchase, no replacement, only warranty).
2. Before using the equipment, you must understand the instructions and safety instructions.
3. During the warranty period, the artificial damage of warranty accessories will not be guaranteed.
4. During the warranty period, users who do not follow the operation instructions or dismantle and repair by
themselves will not be guaranteed. (if repair is needed, the cost of production will be charged)
5. The buyer shall take the invoice to the place designated by the seller for repair, or send the machine back to our
company for repair. (return freight, insurance paid by yourself)
