YANGZI YZ-X8 User manual

YZ-X8
FLOOR SCRUBBER
Operating instruction
安 徽 扬 子 工 业 科 技 有 限 公 司
ANHUI YANGZI INDUSTRIAL TECHNOLOGY CO., LTD.

1

Instruction Manual
YZ-X8
10
This manual provides necessary instructions for machine operation and maintenance.
Please read and understand this manual carefully before operating or using the
machine.
When ordering replacement parts, refer to the spare parts manual that comes with the
machine.
Before selecting parts or accessories, please confirm your machine model number and
serial number.
You can order parts and accessories by telephone or by mail from any authorized
service center or distributor.
This machine can provide excellent service.
If you can then do the following, you will be able to achieve the best results at the lowest
cost:
● Operate the machine with care and care.
● Regular maintenance of the machine according to the maintenance instructions
provided in the operation manual.
● The use of the original factory or the same grade of parts for maintenance.
To protect the environment
Dispose of packaging materials, batteries and other old machine components,
a nti fr eeze , oi l an d ot he r to xi c liq ui ds i n ac co rd an ce w it h lo ca l wa ste di sp osa l re gu la ti on s
and in the premise of maintaining environmental safety.
Make sure you do a good job of recycling.

Instruction Manual
YZ-X8
3
catalog
Note...................................................................................................................................................
Machine operation in....................................................................................................................
Receiving machine.........................................................................................................................
Unpack the machine
Install the battery
The machine cleaning method....................................................................................................
Brush with wool pad information..............................................................................................
Machine installation.....................................................................................................................
Install the suction pickling assembly
Install brush/clean pad
Machine operation........................................................................................................................
Pre-operation inspection
Operating the machine
During machine operation
Battery meter
Cistern drainage.............................................................................................................................
Discharge tank
Drain tank
Battery charging.............................................................................................................................
Machine maintenance..................................................................................................................
The daily maintenance
Monthly maintenance
Quarterly maintenance
Handling machine.........................................................................................................................
Storage machine.............................................................................................................................
Troubleshooting.............................................................................................................................
The machine parameters..............................................................................................................

4
Matters needing attention
This machine is suitable for industrial and commercial use. It is specially used for
cleaning the hard floor in the room. It cannot be used for other purposes.
Please use the recommended cleaning MATS and brushes, as well as the floor cleaners
available on the market for this machine.
All operators must read, understand and follow the following safety precautions.
The following is a description of the safety warning symbols and "for safety" headings
used in this manual:
Warning: Used to warn of a risk or unsafe operation that could result in serious
personal injury or death.
To be on the safe side: To indicate what must be observed when using the machine to
ensure safety.
Failure to follow these warnings may result in personal injury, electric shock, fire or
explosion.
Warning: Fire or explosion danger:
Inflammable liquid shall not be used;
Do not operate the machine near or in places where flammable liquids, gases or dust
are present.
This machine is not equipped with explosion-proof motor.
Ifusedinplaceswithinflammable gas, liquid orash, theelectric motorwillgenerate
sparks during starting and operation, which may lead to flash fire or explosion.
Do not pick up inflammable materials or active metals.
A battery emits hydrogen gas.
Stay away from sparks or open fires.
Keep the battery compartment open while charging.
Warning: Electric shock hazard.
Disconnect the battery before repairing the machine.
Warning: Swivel brush running.
Keep your hands away.
Please turn off the power before repairing the machine.

Instruction Manual
YZ-X8
5
The following information indicates conditions that may pose a potential hazard to
operators or equipment,To be safe:
1. Do not operate themachine:
Contact with flammable liquids or near flammable gases, otherwise it may cause an
explosion or flash fire.
Unless you are trained and authorized to operate the machine.
Unless you have read and understood the operation manual.
Except in the case of correct operation.
2. Before starting the machine:
Make sure all safety devices are located and operated correctly.
3. When using the machine:
Walk slowly on slopes and slippery surfaces.
Wear non-slip shoes.
Slow down when you turn.
Damage to the machine or failure of operation should be reported immediately.
Never allow children to play on or near the machine.
Follow the mixing ratio and treatment instructions on thechemical container.
4. Before leaving or repairing the machine:
Place the machine on a level ground.
Once the machine is shut down.
5. When repairing machines:
Avoid moving parts.
Do not wear loose-fitting tops, shirts or cuffs.
Disconnect the battery before operating the machine.
Please wear protective gloves and eye protection equipment when handling battery or
battery wiring.
Avoid contact with battery acid.
Do not flush the machine with high-pressure spray or water pipe.
Use replacement parts provided or approved by the manufacturer.
All repairs must be carried out by qualified maintenance personnel.
Do not modify the original design of the machine.
6. When moving machines:
Please shut down the machine.
Do not move the machine while the battery is installed.
Please move the machine with the help of others.
Whenloadingand unloadingmachinesfromtrucksortrailers,usethesuggested
loading level.
To attach the machine to a truck or trailer by means of a rope.
Lower the brush head to the lower position.

6
To receive the machine
Unpack the machine
1. Please check the packing case carefully for any damage.Report any damage to the freight
forwarder immediately.
2. Check the contents of freight but only. If there is any missing items, please contact the
dealer.
Freight contents:
● 6V battery 4 with one standard
● 24V battery charger 1 with one standard
● A set of battery cable _ standard
● Water absorption strip 1 pay a standard
● Wash the ground brush 1 with a standard
● One pin disc with one standard
● Other accessories are also available
3. Before unpacking the machine, please remove the shipping fasteners and ropes that fix
the machine to the warehouse.
With the assistance of others, careful from the stack to remove the machine.
Note: :If the loading and unloading flat is not used, do not push the machine directly
to avoid damage to the machine.
Note:Toavoiddamage tothemachine, pleaseunloadthemachine fromthewarehouse
before installing the battery.
Install the battery
Warning: Fire or explosion danger.
The battery emits hydrogen gas.
Please use high spark or open ignition source.
Keep the cap open while charging.
black
red
Forsafetyreasons:Whenrepairingthemachine,pleasewearprotectiveglovesandeye
protection equipment when handling battery and battery wiring.Avoid contact with
battery acid.
1. Place the machine on the level ground and take the spoon.
2. Lift the sewage tank to expose the battery

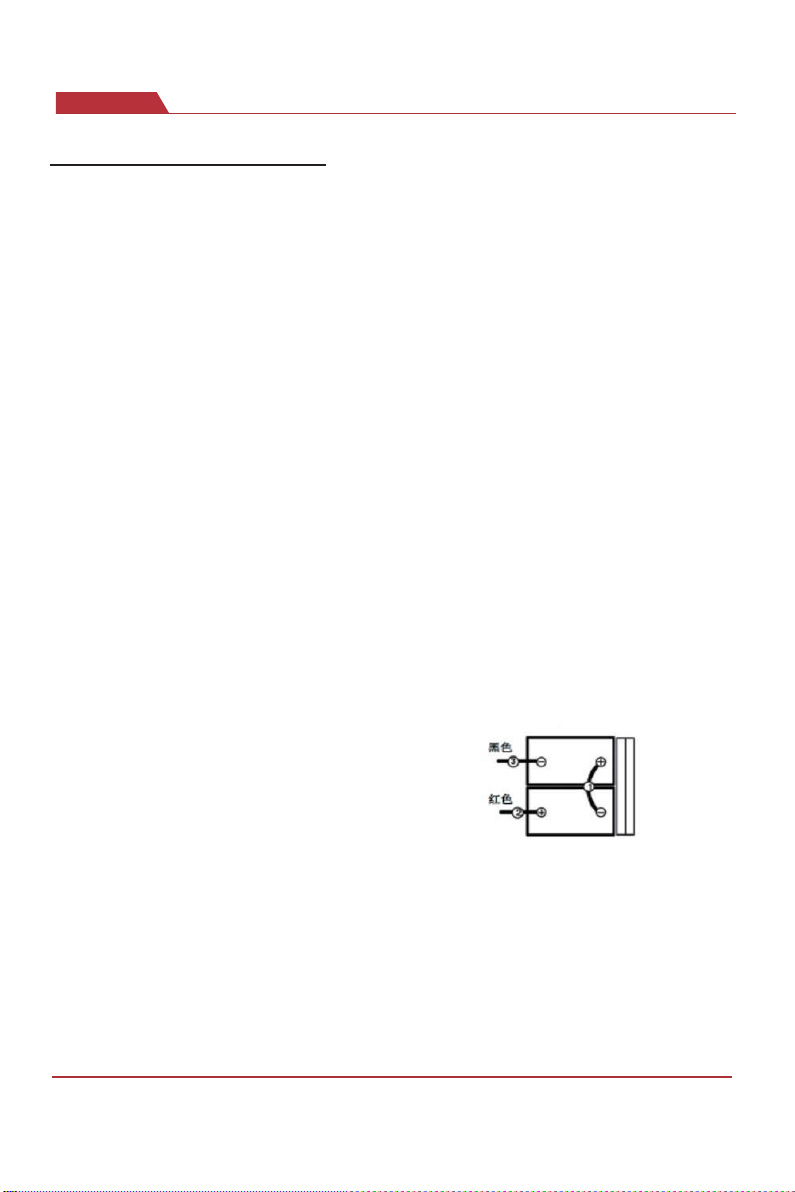

3. Carefully install the battery in the battery compartment and connect the battery cable as
shown in the picture below

Instruction Manual
YZ-X8
7
Note: Do not put the battery into the battery compartment to avoid damage to the
battery and the machine.
4. Before connecting the battery, please make sure the electrode and electric terminal
are clean.
Use electrode cleaning fluid and wire brush as required.
Note: Apply athin layer of metal-free lubricating oil or protective spray to the
wiring to prevent battery decay.
5. After the electric bottle is finished, please check the power scale of the battery.
Charge the battery as needed.
Machine cleaning mode
Cleaning method:
Manually control the water valve to adjust the amount of water in the water tank and
the amount of detergent that flows to the ground.
The brush cleans the floor with a solution of detergent and water.
At the same time as the machine is moving forward, with water suction scraper will be
on the floor of the sewage suction tank.
Brush and hundred clean mat information
For best performance, use the correct brush type for cleaning.Recommended brushes
and clean pads are as follows:
Soft nylon brush, white
Itisrecommended thatthe coated floorbecleaned withoutdamaging the floor.Clean
without scratches.
Polished pad, white
Used to maintain highly polished smooth or polished floors.
Cushion, red
Used for scrubbing slight dirt without harming the ground.
Gravity mat, black
Usedtoforcibly removeheavycoatingorsubstrate,orforultrastrongscrubbing

8
The machine installation
Install suction harrow assembly
1. Park the machine on the level ground and take out the key.
2. Lower the suction lift lever to the lower position.
As shown in the figure, install the water absorption gripper to the water absorption
gripper mounting bracket. Make sure to place the fastening knob into the jack
completely before tightening the knob
4. Connect vacuum suction hose to suction scraper assembly.
5. Check water absorption strip and make appropriate adjustment
Install brush and clean pad
Note: Please refer to the "Information on Brushes and MATS"section of this
manual,or contact your local authorized dealer formore information.
1. Place the machine on the level floor and take out the key.
Step on the lift pedal of the brush head to lift the brush head off the ground
3. Putthebaiqingpadontheneedle seatbeforeinstalling thedrive plate.
Fasten the central lock to secure the clean pad.
4. Align the pin holder/brush mounting pin into the motor drive disc clasp and press
the brush disc motor switch.
5. To remove the pin base and brush, step on the lifting pedal of the brush head to lift
the brush head off the ground and press the motor switch of the brush plate.
Machine operation
Forsafety: Do not operate the machine until you have read and understood the
operation manual.
Warning: Do not operate near or in areas with flammable liquids, gases or dust.
Pre-operation inspection
Dust the ground with your mouth.
Check the power scale of the battery.
(Refer to battery meter)
Check the wear of the pads/brushes.
Check the wear condition of the suction strip and adjust the Angle appropriately.
Make sure the tank is empty and a clean floating screen has been installed.

Instruction Manual
YZ-X8
9
Check for wear on the brush head skirt.
Operating the machine
1. Turn the main power key to the position (I).
2. Pull down the suction scraper lifting lever to lower the suction scraper assembly to
the ground.
3. Step on the lifting pedal of the brush head to lower the brush head to the ground.
4. Turn on the water control knob.
5. Press the brush plate motor switch, and then press the suction motor switch.
6. Motor driven model: Adjust the speed control knob to your desired cleaning speed
Note: Itis recommendedtouseacleaningspeedof45-60metersperminute.
Machine operation period
Warning: Fire or explosion danger.
Do not pick up inflammable materials or active metals.
1. Each cleaning path overlaps by 5cm.
2. Keep the machine moving so as not to damage the ground.
If after absorbing water, there is drag mark on the ground, wipe test tape with a rag
Remove the laksa.
Clean beforehand to prevent drag marks.
3. Do not operate the machine with a slope of more than 5% (3° ).
4. Forsafety: When usingthemachine, move slowlyonslopes and slipperysurfaces.
5. If there is too much foam, pour the recommended antifoaming agent solution into the
sewage tank.
Note: Do not let foam into the filter to avoid damaging the vacuum motor.
The foam will prevent the filter switch from failing.
6. Use double cleaning to clean extremely dirty areas.
First lift the water absorbent steak for cleaning, let the solution soak for 3-5 minutes, then
lower the water absorbent steak and clean again.
7. Replace or rotate the baijie mat as necessary.
8. Observe the electricity consumption of the battery power meter (see "Battery power
meter").
9. Check the amount of remaining liquid through the tank level gauge.
About 10 litres per 10 minutes for conventional washing;
10. When the water tank runs out of solution, empty the sewage tank and refill the
solution.
11. When staff leave the machine, please park it on the level floor and take out the key.
After cleaning, perform daily maintenance procedures.

10
Battery meter
The battery meter will show how much power the battery has.
All the indicators go on when the battery is fully charged.
The indicator lights will go off from right to left as power is consumed.
To extend battery life, do not let the indicator light go off below the power
consumption.
Note: In order toextend the life ofthe battery, please besure tocharge the battery after
the total service hours of the machine exceed 3o minutes.
Cistern drainage
The sewage tank should be drained and cleaned after each use.
Thecleanwatertankshouldbecleanedregularlytoremoveanycorrodedareas.
Transfer the machine to the drainage location, turn off the power key, and drain according
tothefollowingdischargeinstructions:Forsafety:Beforeopeningorrepairingthe
machine, please park the machine on the level ground, turn off the machine and take out
the key.
Discharge tank
1. Unscrew the drain pipe cover of the sewage tank in the direction of reverse clock and
remove it
2. Open the cover of the sewage tank and flush the tank
3. Remove and rinse the floating filter screen in the sewage tank.
Battery charging
Note: Inorder to extend battery life and ensure optimal performance of the machine,
the battery must be charged at least 30 minutes after the machine is in use.
Do not leave the battery uncharged for a long time.
The following charging instructions apply to the charger attached to the machine.
Be sure to use the following chargers to avoid battery damage.
Battery charger Specifications:
● Charger type: charger for lead-acid battery
● The output voltage is 24 volts
● Output current 1 15 amperes
● Automatic power off circuit
● It is suitable for deep circulating battery charging
1. Move the machine to a well-ventilated place for charging.
Warning: Fire or explosion danger.
The battery emits hydrogen gas.

Instruction Manual
YZ-X8
11
Please use high spark or open ignition source.
Keep the battery compartment open while charging.
2. Park the machine on the level ground and turn the key to the closed position.
3. Check the electrolyte level in each battery unit before charging.
For safety reasons: When repairing the machine, please wear protective gloves and eye
protection equipment when handling battery and battery wiring.
Avoid contact with battery acid.
4. When charging, open the sewage tank to the side for ventilation
5. Plug the charger's AC(AC) power cord into a well-grounded power outlet.
6. Insert the DC line of the charger into the charging socket of the battery behind the
sewage tank.
7. The charger will automatically start charging and will automatically close when it is full.
Note: the machine will not operate when connected to the charger.
Note: During charging, do not pull out the Dc cable of the charger from the socket.
To avoid arc discharge.
If you must stop charging during the charging process, please remove the AC power cord
first.
Warning: Fire or explosion danger.
Thebatteryemitshydrogengas.
Stay away from sparks or open fires.
Keep the battery compartment open while charging.
9.After charging, check the electrolyte level again.
The machine maintenance
As long as the daily, weekly and monthly maintenance procedures are followed, the
machine can be kept in top working condition.
Warning: Electric shock hazard.
Disconnect the battery before maintaining the machine.
Daily maintenance after each use
1. Drain and clean the sewage tank
2. Remove and rinse the floating filter screen located in the sewage tank
3. Drain the clean water tank and flush the tank with hot water not higher than 60° C
as required
4. Remove the clean pad/brush for cleaning.
If there is wear, roll over or replace the clean mat
5. Wipe the absorbent paddle.
The water-absorbing gripper assembly shall be placed in the raised position to prevent
damage to the rubber strip.

12
6. Check the abrasion condition of suction scraper blade edge.
Ifthere is any wearout,change the twoends of the tape.
7. Wipe the machine with a multi-purpose cleaner and wet cloth.
For the sake of safety, do not spray the machine with high pressure
Spray or hose down the machine to avoid electronic parts failure.
8. Check the wear condition of the skirt edge of the brush head, and replace it if it is
worn or damaged.
9. Charge the battery. In order to extend the service life of the battery and ensure the
optimal performance of the machine, the battery must be charged after the machine has
been used for more than 30 minutes.
Monthly maintenance per 80 hours of use
1. Remove the clean water tank filter from under the machine and clean the filter screen,
making sure to empty the water before removing the filter
Box.
2. Clean the top of battery to prevent electrode corrosion (refer to "Battery Maintenance").
3. Check whether the battery wiring is loose.
4. Check and clean the seal of the sewage tank cover.
Replacement in case of damage.
5. Spray silicone dry lubricant on all pivots and rollers and cover with a waterproof
lubricant to protect
Smooth operation of the wheel shaft.
Check whether the nuts and bolts on the machine are loose.
6. Check the machine for leakage.
Quarterly maintenance
Checkbrushwear of drive motors(drive models), vacuummotors andbrush motors
every 250 hours.
When the brush length is less than 10 mm wear, it is necessary to replace the brush.
If the machine needs repair, please contact the authorized service center.
Warning: Electric shock hazard.
Disconnect the battery before repairing the machine.

Instruction Manual
YZ-X8
13
Handling machine
When using a truck or trailer to move the machine, follow the following
procedures:
1. Raise the brush head to the handling position.
2. Use the suggested loading platform and loading machine.
3. Position the front of the machine close to the front of the truck or trailer.
When the machine is in place, lower the brush head and turn the key to the closed
position.
4. Place obstacles behind each drive wheel to prevent the machine from sliding.
5. Use a rope to secure the top of the machine to prevent it from leaning.
You must install brackets on the chassis of a truck or trailer.
Forsafety:When handling machines, use the recommended loading and unloading
loading and unloadingmachines from trucks ortrailers, andattach themachines to
the boards with ropes.
Storage of the machine
1. Please charge the battery before storage.
2. Do not store when the battery has run out.
3. Drain and rinse the sink thoroughly.
Store the machine in a dry place and keep the brush head in the raised position.
4. Open the cover of sewage tank for ventilation.
Caution: do not let the machine be exposed to rain. Store it indoors.
5. Such as
5. Store the machine in a cold environment, and make sure to drain all the liquid inside
the machine.

14
troubleshooting
Same problem
cause
solution
The machine is
inoperable
The battery is dead
The battery is charged
Battery failure
replace battery
Battery wiring is loose
Tighten the battery wiring
Replace the main
fuse when it blows
The brush
motor is not
working
Lift the brush head off the
ground
lower the brush head
The battery meter is locked
and not started
The battery is charged
The brush plate motor circuit
breaker triggers the power
switch
reset the brush circuit breaker button
Brush (up/down) switch
failure
please contact service center
Motor carbonbrush wear
please contact service center
The vacuum
motor does not
work
Water suction steak rises off
the ground
drops water suction steak
Vacuum motor fuse blown
replace the fus
Vacuum motor or wiring fault
please contact service center
Motor carbonbrush wear
please contact service center
Little or no flow
out
Drain tank filter or solution
pipe is blocked
clean drain tank filter
The flow control knob is set
too low
0 adjust the flow control knob
Loosen the screw of the
control-system knob
lubricate the knob and tighten the
screw

15
YZ-X8
Instruction Manual
Waste water
recovery is
inefficient
The sump is full
drain the sump
Water absorbing strip wear
replace water absorbing strip
The suction pipe is blocked
remove the blocked debris
Iftheseal ofsewagetankis
damaged
replace the seal
Vacuum motor fault
please contact service center
Reduced
running time
Battery defective
replace battery
Battery charging failure
repair or replace the charger
Clean efficiency
㎡ /h
6440
Brush plate width
mm
570*2
Water absorption scraping
width
mm
920
Cleaning width
mm
1000
The rotation speed of brush
plate
RPM
230
Brush plate motor power
W
550*2
Water absorption motor
power
W
600
Cleaning/sewage tank
capacity
L
150/160
The capacity of the battery
AH
24/200
Working hours
H
4-5
Product size
MM
1650*1180*1450

16
Warranty conditions:
Inspection Certificate
Warranty Card
Number：
Number：
Name
Tell
Mailing address
Purchase time
Bill
number
Product number
Fuselage
number
Replacement
parts
Date
Fault description:
1. Withinthedateofpurchase,the motorisguaranteed foroneyear(if itis morethan7daysfromthedate of
purchase, no replacement, only warranty).
2. Before using the equipment, you must understand the instructions and safety instructions.
3. During the warranty period, the artificial damage of warranty accessories will not be guaranteed.
4. During the warranty period, users who do not follow the operation instructions or dismantle and repair by
themselves will not be guaranteed. (if repair is needed, the cost of production will be charged)
5. The buyer shall take the invoice to the place designated by the seller for repair, or send the machine back to our
company for repair. (return freight, insurance paid by yourself)
Model
Motor
Accessories
Power cable
Switch
Shell
Suction
Control
Fuselage
Function
Manual
Package
