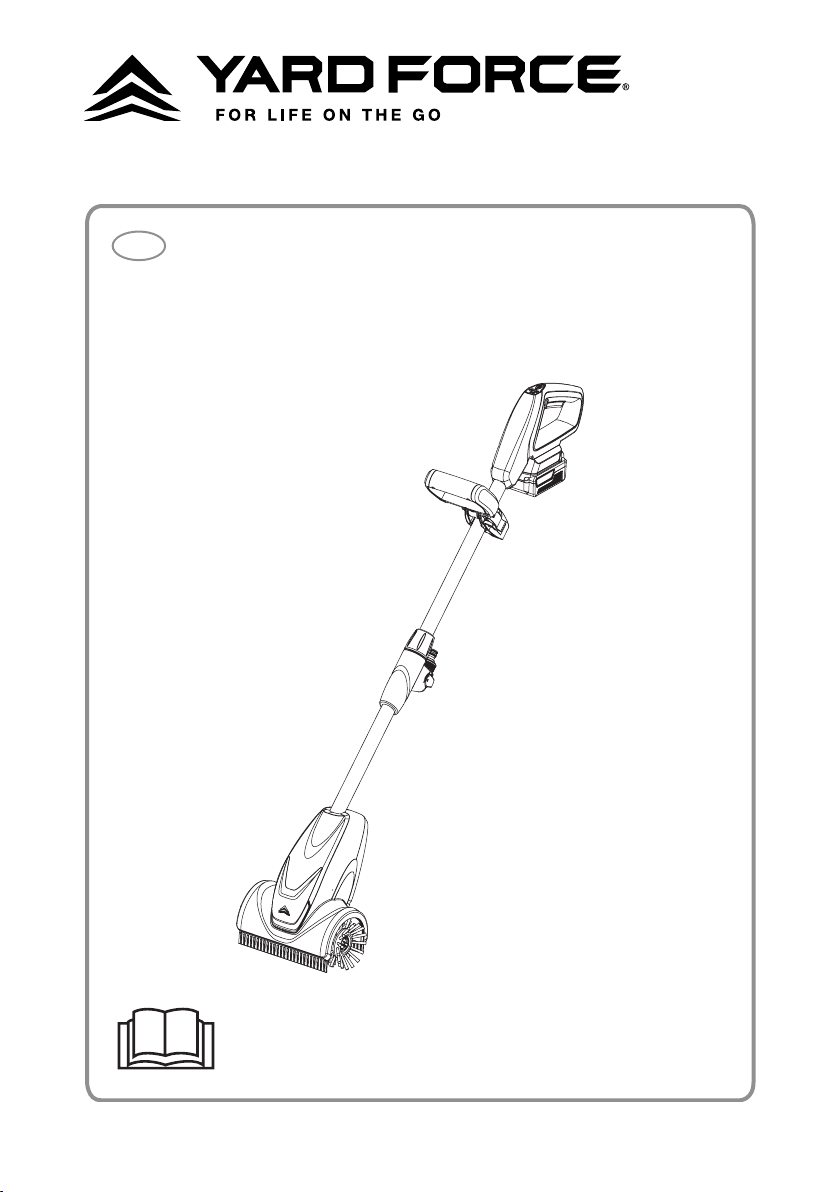

Yard force LW CPC1 User manual

1
20V CORDLESS PATIO CLAENER
Original Instructions
GB
LW CPC1
Q0QS-SP02-220
READ & UNDERSTAND
INSTRUCTION MANUAL
Save all warnings and instructions for future reference.

2 3

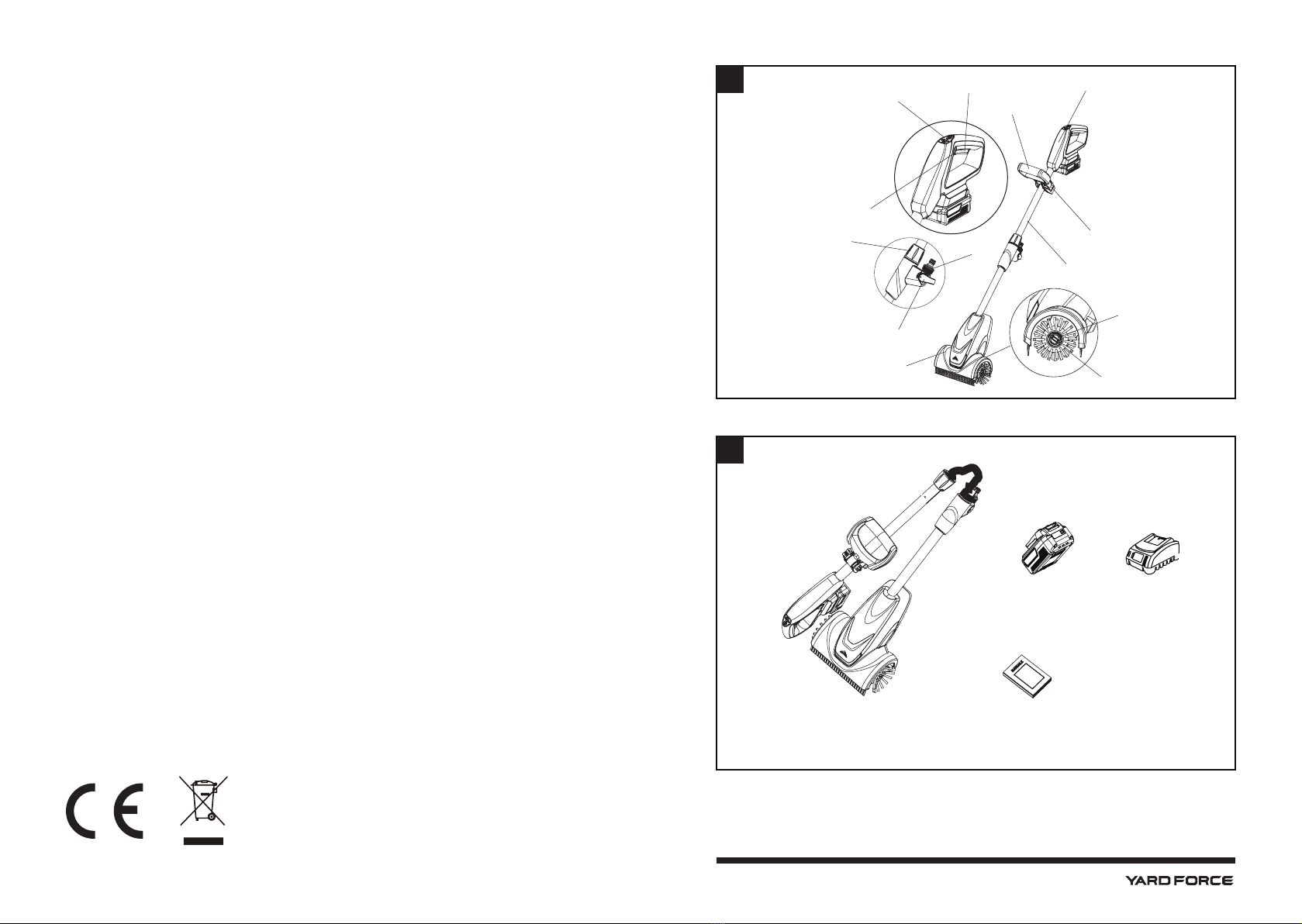

A
B
a
b c
d
1
2
3
4
5
13
6
7
8
9
10
11
12

4 5
C K
E M
O
Q R
P
N
G
F
H
D L
I J
1
3
2
1400 rpm
1200 rpm
1
1
2
2
2
2
1
1
99

6 7
LW CPC1 Original Instructions
CONTENT
Intended use 07
General safety warnings 07
Product safety warnings 13
Symbols 15
Technical data 20
Description of product 21
Operation 22
Maintenance and storage 25
Troubleshooting 26
Declaration of conformity 27
INTENDED USE
Use the device only on pre-cleaned surfaces and observe the safety instructions.
The device is intended for the removal of soiling from outdoor surfaces, such as e.g. terraces.
The device is suitable for wooden, stone or composite material (WPC) surfaces, according to
the brushes used.
Any type of improper use is prohibited. The operating personnel are liable for damage
resulting from incorrect use.
Do not use the device for cleaning planted areas.
GENERAL SAFETY WARNINGS
WARNING
Read all safety warnings, instructions, illustrations and
specications provided with this power tool. Failure to
follow ah' instructions listed below may result in electric
shock, re and/or serious injury.
Save all warnings and instructions for future reference
The term “power tool” used in the warnings refers to your
mains-operated (corded) power tool or battery-operated
(cordless) power tool.
Work place safety
1. Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
2. Do not operate power tools in explosive atmospheres,
such as in the presence of ammable liquids, gases
or dust. Power tools create sparks which may ignite
the dust or fumes.
3. Keep children and bystanders away while operating
a power tool. Distractions can cause you to lose
control.

8 9
Electrical safety
1. Power tool plugs must match the outlet. Never modify
the plug in any way. Do not use any adapter plugs
with earthed (grounded) power tools. Unmodied
plugs and matching outlets will reduce risk of electric
shock.
2. Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
3. Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
4. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool. Keep
cord away from heat, oil, sharp edges or moving
parts. Damaged or entangled cords increase the risk
of electric shock.
5. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric
shock.
6. If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of
electric shock
NOTE: The term "residual current device (RCO)" can
be replaced by the term "ground fault circuit Iterrupter
(GFCI)"- "earth leakage circuit breaker (ELCS)".
GENERAL SAFETY WARNINGS
Personal safety
1. Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under the
inuence of drugs, alcohol or medication. A moment
of inattention while operating power tools may result
in serious personal injury.
2. Use personal protective equipment. Always wear
eye protection. Protective equipment such as a dust
mask, non-skid safety shoes, hard hat or hearing
protection used for appropriate conditions will reduce
personal injuries.
3. Prevent unintentional starting. Ensure the switch is in
the off-position before connecting to power source
and/or battery pack, picking up or carrying the tool.
Carrying power tools with your nger on the switch or
energising power tools that have the switch on invites
accidents.
4. Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached
to a rotating part of the power tool may result in
personal injury.
5. Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power
tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or jewellery.
Keep your hair and clothing away from moving parts.
Loose clothes, jewellery or long hair can be caught in
moving parts.
7. If devices are provided for the connection of dust
GENERAL SAFETY WARNINGS

10 11
GENERAL SAFETY WARNINGS GENERAL SAFETY WARNINGS
extraction and collection facilities, ensure these are
connected and properly used. Use Of dust collection
can reduce dust-related hazards.
8. Do not let familiarity gained from frequent use of tools
allow you to become complacent and ignore tool
safety principles. A careless action can cause severe
injury within a fraction of a second.
Power tool use and care
1. Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it was
designed.
2. Do not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
3. Disconnect the plug from the power source and/
or remove the battery pack, if detachable, from the
power tool before making any adjustments, changing
accessories, or storing power tools. Such preventive
safety measures reduce the risk of starting the power
tool accidentally.
4. Store idle power tools out of the reach of children and
do not allow persons unfamiliar with the power tool or
these instructions to operate the power tool. Power
tools are dangerous in the hands of untrained users.
5. Maintain power tools and accessories. Check for
misalignment or binding of moving parts, breakage
Of parts and any other condition that may affect the
power tool's operation. If damaged, have the power
tool repaired before use. Many accidents are caused
by poorly maintained power tools.
6. Keep cutting tools sharp and clean. properly
maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
7. Use the power tool, accessories and tool bits etc.
in accordance with these instructions, taking into
account the working conditions and the work to be
performed. Use of the power tool for operations
different from those intended could result in a
hazardous situation.
8. Keep handles and grasping surfaces dry, clean
and free from oil and grease. Slippery handles and
grasping surfaces do not allow for safe handling and
control of the tool in unexpected situations.
Battery tool use and care
1. Recharge only with the charger specied by the
manufacturer. A charger that is suitable for one type
of battery pack may create a risk of re when used
with another battery pack.
2. Use power tools only with specically designated
battery packs. Use of any other battery packs may
create a risk of injury and re.
3. When battery pack is not in use, keep it away from
other metal objects, like paper clips, coins, keys,
nails, screws or other small metal objects, that can
make a connection from one terminal to another.
Shorting the battery terminals together may cause

12 13
GENERAL SAFETY WARNINGS PRODUCT SAFETY WARNINGS
burns or a re.
4. Under abusive conditions, liquid may be ejected from
the battery; avoid contact. If contact accidentally
occurs, ush with water. If liquid contacts eyes,
additionally seek medical help. Liquid ejected from
the battery may cause irritation or burns.
5. Do not use a battery pack or tool that is damaged or
modied. Damaged or modied batteries may exhibit
unpredictable behaviour resulting in re, explosion or
risk of injury.
6. Do not expose a battery pack or tool to re
or excessive temperature. Exposure to re or
temperature above 130 °C may cause explosion.
7. Follow all charging instructions and do not charge the
battery pack or tool outside the temperature range
specied in the instructions. Charging improperly
or at temperatures outside the specied range may
damage the battery and increase the risk of re.
service
1. Have your power tool serviced by a qualied repair
person using only identical replacement parts.
This will ensure that the safety of the power tool is
maintained.
2. Never service damaged battery packs. Service of
battery packs should only be performed by the
manufacturer or authorized service providers.
Safety instructions
1. Please observe the requirements of EN 1717 when
connecting this product to the drinking water network
and contact your sanitation specialists if you have
any queries.
2. Operate the device only with untreated, clean fresh
water. The device must not under any circumstances
be operated with explosive, corrosive or inammable
substances.
3. The water temperature must not exceed 35°C.
4. Never fully immerse the device in liquids.
5. Only operate the device outdoors.
6. Regularly check the device for damage. Do not
operate the device if you discover visible damage.
7. Do not use the device on surfaces where water is
already present.
8. Ensure that the surface to be cleaned is free of sand,
stones or loose elements before starting work. These
can be ung away during cleaning or damage the
surface and the device.
9. Do not pull on the connected hose.
10. Only switch the device on when the brushes are on
the oor.
11. Do not lift the device off the oor when switched on.
12. All live parts in the work area must be protected
against spray water.
13. Protect the device from frost and excessive heat
(permitted ambient temperature range of 5 °C to 40
°C).
14. Do not operate the device in the vicinity of devices
that are connected to electrical power.

14 15
Maintenance and storage
1. Keep all nuts, bolts and screws tight to be sure the
product is in a safe working condition.
2. Be careful when adjusting the product to prevent
trapping ngers between moving parts or other xed
parts of the product.
3. Always allow the product to cool down before storing.
4. Replace worn or damaged parts for safety. Use only
genuine replacement parts and accessories.
5. DO NOT attempt to open the charger and battery
pack. There are no customer serviceable parts inside.
Return to any authorised service centre.
6. Store the appliance with battery pack fully charged at
room temperature (around 20 ºC).
7. Every deep discharge cycle decreases the capacity
of battery pack. To prolong battery life, it is
recommended that you charge the battery every six
months within extended periods of time when the
product is not in use.
PRODUCT SAFETY WARNINGS SYMBOLS

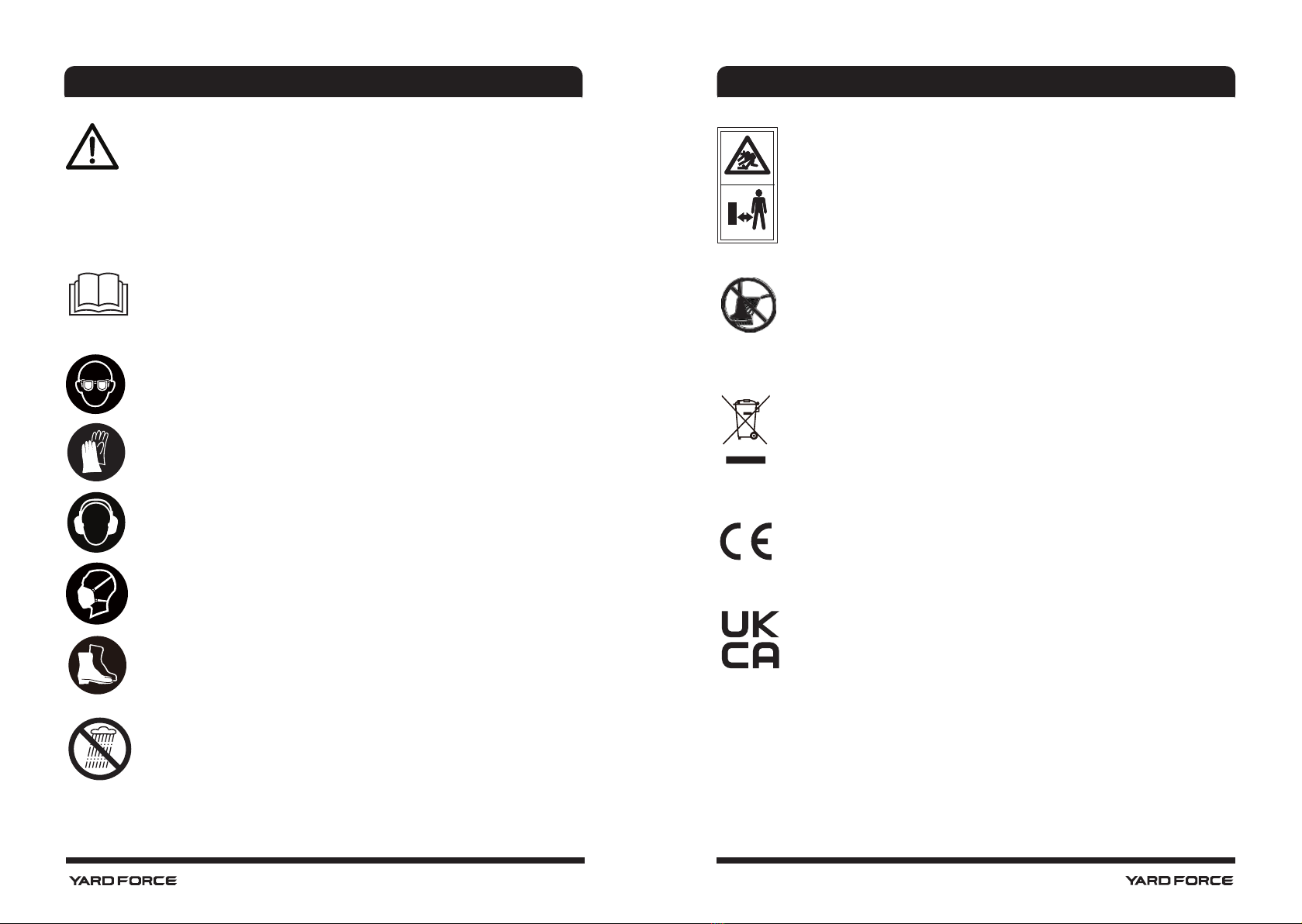

Safety symbols
The purpose of safety symbols is to attract your attention
to possible dangers. The safety symbols and the
explanations with them require your careful attention
and full understanding. The symbol warnings do not, by
themselves, eliminate any danger. The instructions and
warnings they give are no substitutes for proper accident
prevention measures.
WARNING: Be sure to read and understand all safety
instructions in this operator’s manual, including all safety
alert symbols such as “DANGER,” “WARNING,” and
“CAUTION” before using this tool. Failure to follow all
instructions listed below may result in electric shock, re
and/or serious personal injury.
SAFETY ALERT SYMBOL: Indicates DANGER,
WARNING, or CAUTION. May be used in
conjunction with other symbols or pictographs.
Symbol meaning
This page depicts and describes safety symbols that may
appear on this product. Read, understand and follow
all instructions on the machine before attempting to
assemble and operate.

16 17
SYMBOLS
This symbol, before a safety comment, indicates
a precaution, a warning or a danger. Ignoring
this warning can lead to an accident for yourself
or for others. To limit the risk of injury, re, or
electrocution always apply the recommendations
indicated.
To reduce the risk of injury, user must read the
instruction manual carefully.
Wear protective goggles.
Wear suitable protective gloves.
Wear ear protection
Wear a dust mask.
Wear foot protection
Protect against rain and wet.
Do not expose and operate the tool in rain.
SYMBOLS
Ensure that other people and pets remain at least
15m away from the device when it is in use.
Risk of damage. Do not clean the device with a
hose or high-pressure water jet!
WEEE symbol. Waste electrical products should
not be disposed of with household waste. Please
recycle where facilities exist. Check with your
Local Authority or local store for recycling advice.
The product complies with the applicable
European directives and an evaluation method of
conformity for these directives was done.
Conforms to relevant UK regulatory requirements

18 19
SYMBOLS
Warning symbols on the battery pack
To reduce the risk of injury, user must read the
instruction manual carefully.
Do not throw into water.
Do not throw to re.
Do not subject the battery to strong sunlight over
long periods of time. Do not leave on a heater
(max.50°C).
Batteries contain Li-ion. Do not dispose of
waste batteries in domestic waste. Contact local
authority to nd out how to dispose of batteries.
WEEE symbol. Waste electrical products should
not be disposed of with household waste. Please
recycle where facilities exist. Check with your
Local Authority or local store for recycling advice.
SYMBOLS
Warning symbols on the charger
To reduce the risk of injury, user must read the
instruction manual carefully.
The charger is for indoor use only.
Double insulation
WEEE symbol. Waste electrical products should
not be disposed of with household waste. Please
recycle where facilities exist. Check with your
Local Authority or local store for recycling advice.
The product complies with the applicable
European directives and an evaluation method of
conformity for these directives was done.
Protective 3.15 A limited
T3.15A
50

20 21
TECHNICAL DATA
Model LW CPC1
Mains voltage 20 V
No load speed 1200/ 1400 min-1
Working width 200 mm
Brush diameter 100 mm
Inlet pressure Max. 1 MPa
Weight: 4.9 kg
Battery pack model B0P-SP06-20ZL
Capacity 20 V , 4 Ah
Charger model VDE: B0Q-SP06-20ZA
BS: B0Q-SP06-20ZB
Input 220–240 V~, 50/60 Hz 65 W
Output: 20 V , 2.4 A
Protection class II
Parts description (Fig. A)
1. Power ON/OFF trigger
2. Safety lock off button
3. Control panel
4. Main handle
5. Auxiliary handle
6. Aluminum tube
7. Locking collar
8. Working head
9. Rotating brushes
10. Brush locking knob
11. Water volume regulation valve
12. Inlet connector
13. Hose support
Delivery contents (Fig. B)
Carefully unpack the appliance and check that it is complete. Dispose of the packaging
material correctly.
a. Patio cleaner
b. Battery pack
c. Charger
d. Instruction manual
WARNING: If any parts are damaged or missing, do not operate this tool until
these parts are replaced. Failure to heed this warning could result in serious
personal injury.
NOTE: Always recycle the packaging in accordance with local recycling
guidelines.
DESCRIPTION OF PRODUCT

22 23
OPERATION
Installation
Assembly of the handle and housing
1. Align and insert the upper tube with the lower housing tube as shown in Fig C (make
sure the connecting cable is not twisted)
2. Rotate the Locking collar clockwise until the lock collar is fully secured in place.
3. Check the upper and lower are fully locked & secured in place.
Adjust Auxiliary handle (Fig. D)
1. Release the locking lever.
2. Rotate the auxillary handle and adjust the position of the handle on the tube.
3. Now close the locking lever to fully lock the handle into position.
Initial startup
1. Close the water volume regulation valve. (Fig. E)
2. Connect the water hose to the device. The coupling must audibly engage fully.
3. Secure the water hose to the hose hook. (Fig. F)
4. Connect the water hose to the water tap and open the water tap. Please observe the
maximum water pressure (see "Technical data"). (Fig. G)
Charging the battery pack
NOTE: Remove the battery pack from the charger after it has been fully charged.
NOTE: Battery should be fully charged before rst use.
NOTE: Make sure the mains voltage is the same as rating label which is located on the
charger.
1. Connect the charger to a power supply. Red LED will light up.
2. To insert the battery pack into the charger, align the raised ribs of the battery pack with
the grooves of the charger then push it in. (Fig. H)
3. The red LED light of the charger will go off and then the green light ashes during normal
charging.
4. After charging is complete, the charger light will turn to a solid green light.
5. Once the battery is fully charged ,remove the battery pack.
Battery power indicator (Fig. I)
This Li-Ion battery pack is equipped with a power indicator which is used to show the battery
pack’s remaining charge. Press the power indicator button to check battery charge as picture
showed. The indicator will stay lit for approximately 4 seconds.
OPERATION
To obtain the best life from the battery
1. Never allow the battery to completely discharge before recharging. The battery pack
should be placed on the charger whenever the battery pack is noticeably running down
or the tool no longer performs a task it previously performed.
2. Avoid conducting short charges. Make sure that the battery is fully charged each time by
allowing the charger to complete its full charging cycle.
3. Avoid allowing loose items like screws or nails etc. to be stored with battery packs as
these or similar items can short battery packs and cause a re or explosion.
4. Always unplug the charger when not in use and store in a dry and secure place.
5. Avoid charging or storing your battery in temperatures below 5 °C and above 45 °C.
6. After use, allow the battery pack to cool down for approximately 30 minutes before
attempting to recharge.
Attaching/Detaching the battery pack
Fully charge before first use.
To Attach
Align the battery ribs with the mounting slots and push the battery pack into place until you
hear a “click”. (Fig. J)
To Detach (Fig. K)
Depress the battery release button and remove the battery pack
Before operating, look around you to ensure a safety working area without other people,
animals or any loose objects. And then check for eye protection, proper clothing and
balanced footing.
Before starting

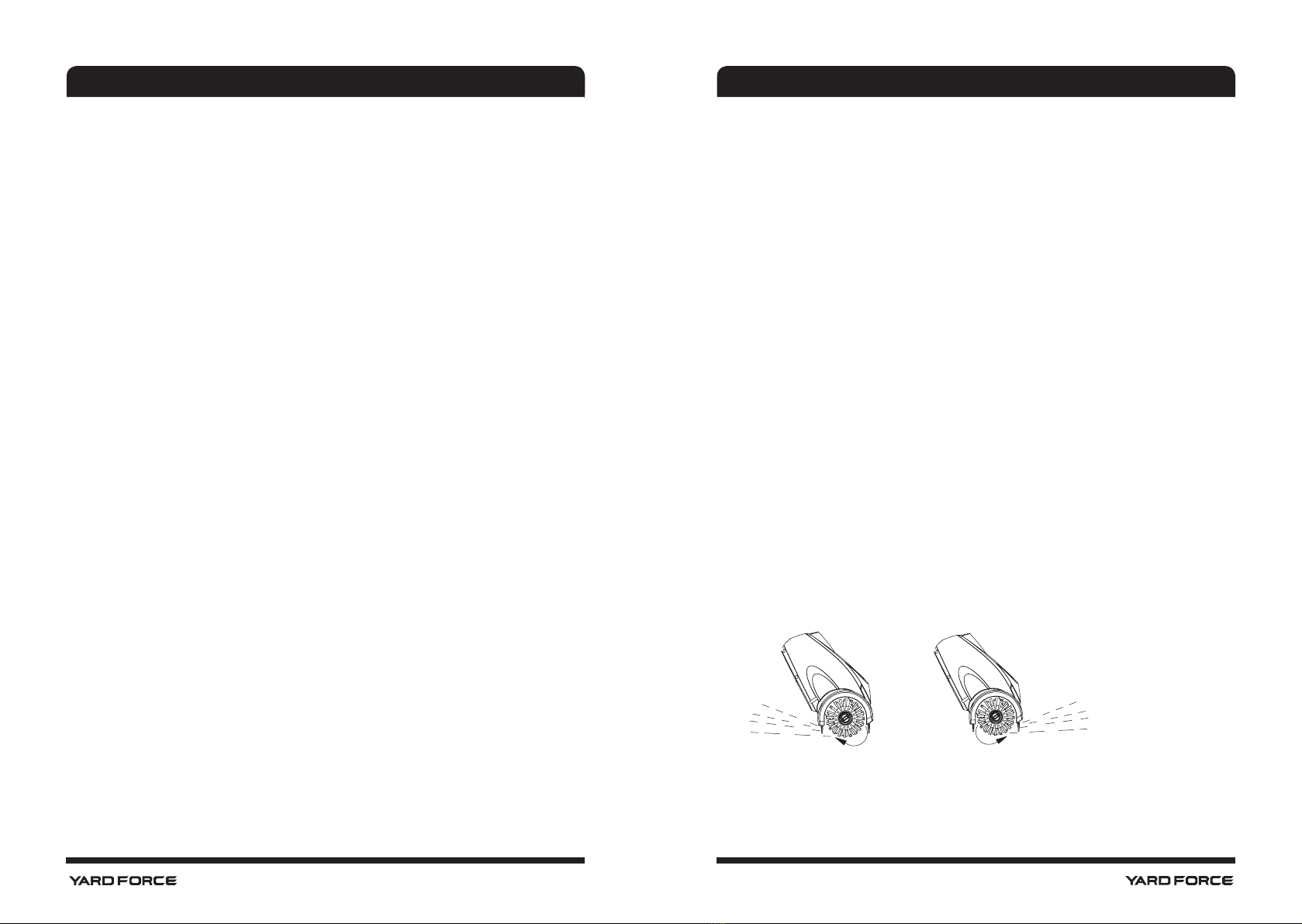

1. Select the speed and cleaning direction, default high speed, forward cleaning. (Fig. L)
2. Open the water volume regulation valve. (Fig. M)
Switching ON/OFF the device (Fig. N)
1. Depress the safety lock off button
2. Depress the Power ON/OFF lever
3. Release the Power ON/OFF lever to stop the device
Forward
Direction
Reversed
Direction

24 25
Overload warning indicator (Fig. L)
This machine equipped with an overload warning indicator, the indicator will ashing when:
- The patio cleaner is overloaded.
- The patio cleaner is overheated.
- battery pack low capicity.
Cleaning wooden surfaces
Test the device on an inconspicuous area before using on sensitive surfaces, e. g. wood.
Do not allow the machine to be stationary in one area and keep the product moving to
increase the cleaning efciency
NOTE: Pre-treatments may be removed from pre-treated surfaces. Uneven light-dark effects
result from the type of wood or its treatment. It is a desirable result to remove the lm on
weathered wooden surfaces.
Apply a suitable care agent or preservative after cleaning for optimum results!
Correct handling of the brushes
Use only the brushes suitable for the surface to be cleaned.
Observe the following instructions for correct use of the brushes.
Position the brushes evenly on the surface to be cleaned. (FIG. O)
Guide the brushes over the surface with light pressure.
Cleaning and replacing brushes
DANGER
Danger of electric shock Injuries due to touching live parts.
Switch off the device. Remove the battery pack.
NOTE
Always replace both brushes at the same time.
The brushes must be replaced when the gearbox housing touches the ground while cleaning
the surface without exerting pressure on the device.
ATTENTION
Danger of burns
The gearbox can be very hot after use. Allow the device to cool down before replacing the
brushes.
1. Rotate the knob 1/4 turn that holds the roller brush. (FIG. P)
2. Remove the brush. (FIG. P)
3. Re-assemble the clean or new brush. (FIG. Q)
OPERATION MAINTENANCE AND STORAGE
WARNING: Before performing any repair work, always remove the battery pack and
wait until the cutting blade has come to a standstill.
CLEANING
1. Clean the unit using a damp cloth with a mild detergent.
2. Do not use any strong detergents on the plastic housing or the handle. They can be
damaged by certain aromatic oils, such as pine and lemon, and by solvents such as
kerosene. Moisture can also cause a shock hazard. Wipe off any moisture with a soft dry
cloth.
3. Use a small brush to clean the air vents on the rear housing.

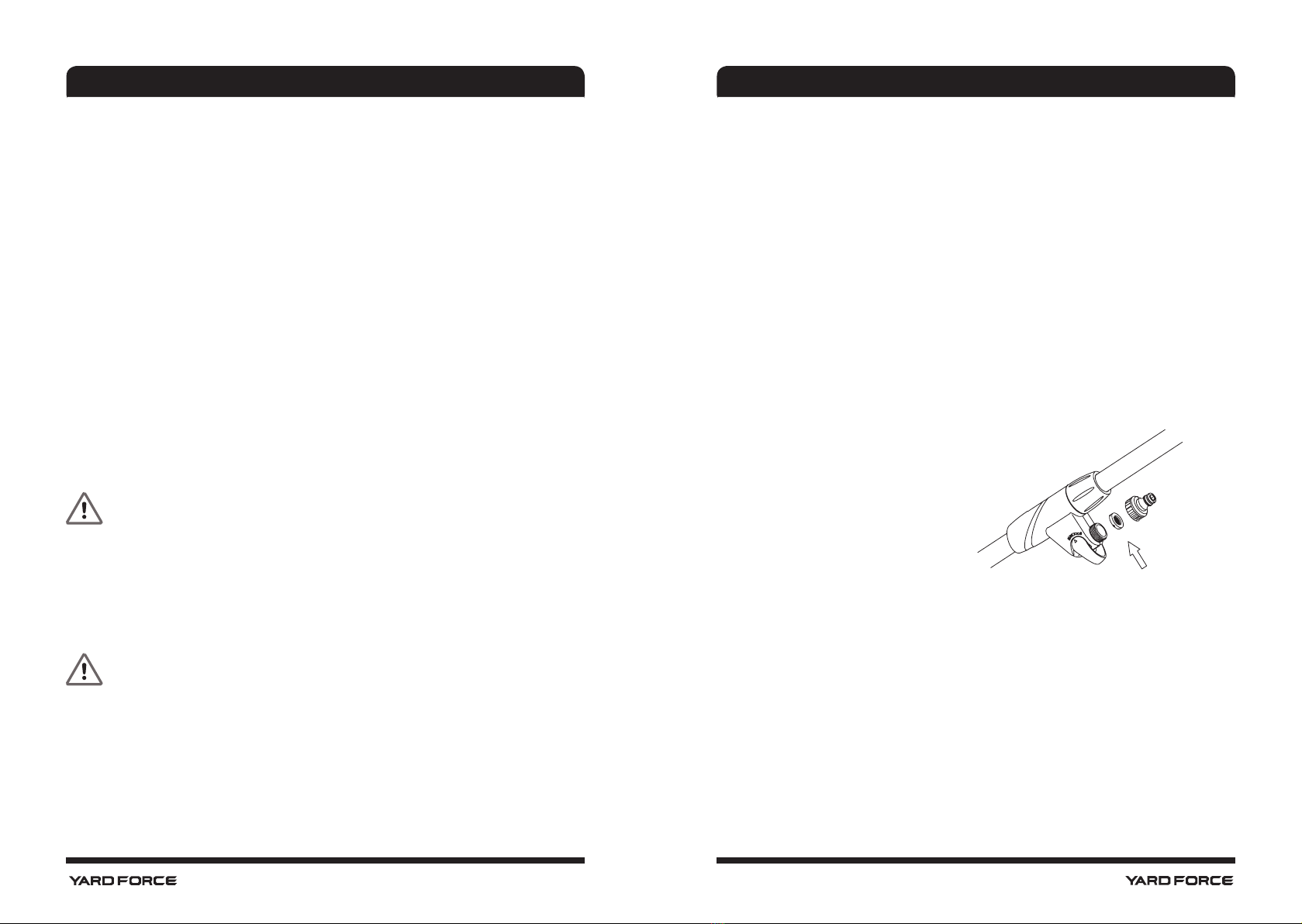

CLEANING THE WATER FILTER
If the water ow is inadequate then the water lter in the device must be cleaned.
1. Unscrew the hose connector at the water connection.
2. Pull out the water lter. (FIG. R)
3. Clean the water lter under running water against the normal ow direction.
4. Fit the water lter.
5. Screw on the hose connector.
NOTE: Ensure that the sealing ring in the plug connector has been inserted correctly.
STORING THE UNIT
1. Remove the battery pack from the line trimmer when it is not in use.
2. Clean the tool thoroughly before storing it.
3. Store the unit in a dry, well-ventilated area, locked-up or up high, out of the reach of
children. Do not store the unit on or adjacent to fertilizers, petrol, or other chemicals.
TRANSPORT
Use the original packaging to ship whenever possible.

26 27
WARNING: Before performing any repair work, always ensure that the battery pack
has been removed.
WARNING: Always wear heavy duty gloves when adjusting or cleaning, especially
when handling sharp objects.
Fault/malfunction Cause Remedy
Machine does not
start
Battery pack not properly
attached Attach properly
Battery pack discharged Remove and charge the battery
pack
Battery pack damaged Contact our service centre
Other electrical defect to the
product Contact our service centre
Overload LED activated
Overload-Wait until the Overload
resets
Overheat- cool down for 10min
Battery pack lack of power- charge
the battery pack
Poor cleaning
performance
Dirty brushes Clean the brushes
Worn brushes Replace the brushes
No water is being
sprayed
Water volume regulation valve
closed Open the valve
Clogged water lter Clean water lter
MAINTENANCE AND STORAGE DECLARATION OF CONFORMITY
To the provisions of Council Directives
We
SUMEC UK
Unit A&B Escrick Business Park Escrick, York YO19 6FD
United Kingdom
Declare that the product:
Description: 20V Patio cleaner
Model No. LW CPC1/ Q0QS-SP02-220
Function: Floor cleaning
Complies with the essential health and safety requirements of the
following directives:
Supply of Machinery (Safety) Regulations 2008
Electrical Equipment (Safety) Regulations 2016
The Restriction of the Use of Certain Hazardous Substances in Electrical and
Electronic Equipment Regulations 2012
Standards and technical specification referred to:
EN 62841-1: 2014, COR1:2014, COR2:2015
EN 62841-1: 2015
EN ISO 12100: 2010
EN 62233: 2008
EN 55014-1: 2017+A11:2020
EN 55014-2: 2015
Authorized Signatory
Date: 18.07.2021
Signature:________________________
Place: York
Name: Mariana Hall
General Manager
SUMEC UK Co.,Ltd.
Unit A&B Escrick Business Park
Escrick,York YO19 6FD
United Kingdom

28
To the provisions of Council Directives
We
SUMEC France Sarl
59 bis Rue du Mûrier
37540 Saint Cyr Sur Loire, France
Declare that the product:
Description: 20V Patio cleaner
Model No. LW CPC1/ Q0QS-SP02-220
Function: Floor cleaning
Complies with the essential health and safety requirements of the
following directives:
Machinery Directive 2006/42/EC
Electromagnetic Compatibility Directive 2014/30/EU
EC Directive 2011/65/EU and its amendment Directive (EU) 2015/863 (RoHS)
Standards and technical specification referred to:
EN 62841-1: 2015
EN ISO 12100: 2010
EN 62233: 2008
EN 55014-1: 2017+A11:2020
EN 55014-2: 2015
Authorized Signatory
Date: 18.07.2021
Signature:________________________
Place: Saint Cyr Sur Loire
Name: Rodolphe Dubois
General Manager
SUMEC France Sarl
59 bis Rue du Mûrier
37540 Saint Cyr Sur Loire, France
DECLARATION OF CONFORMITY
