MyPBX U510 Installation Guide
http://www.yeastar.com 1/17
MyPBX U510 Installation Guide
Version: V1.1
Yeastar Technology Co., Ltd
Date:Aug 9th,2013

MyPBX U510 Installation Guide
http://www.yeastar.com 2/17
Contents
1. Preparation before Installation ....................................................4
2. Hardware Specifications ...........................................................5
2.1 Overview ............................................................................................................................................................. 5
2.2 LED Indicators and Ports ..................................................................................................................................... 5
2.3 Specifications and Operating Environment......................................................................................................... 7
3. MyPBX U510 Installation...........................................................8
3.1 Placement Instructions ....................................................................................................................................... 8
3.2 Installation Instructions....................................................................................................................................... 8
3.2.1 Connection of Ethernet Ports ....................................................................................................................... 8
3.2.2 Connection of E1/T1/FXO/GSM/UMTS/BRI ports ........................................................................................ 9
3.2.3 Connection of FXS ports ............................................................................................................................. 12
3.2.4 Power Connection ...................................................................................................................................... 12
3.2.5 Overall Flow Chart...................................................................................................................................... 12
4. MyPBX U510 Basic Configurations ..............................................13
4.1 Factory Defaults ................................................................................................................................................ 13

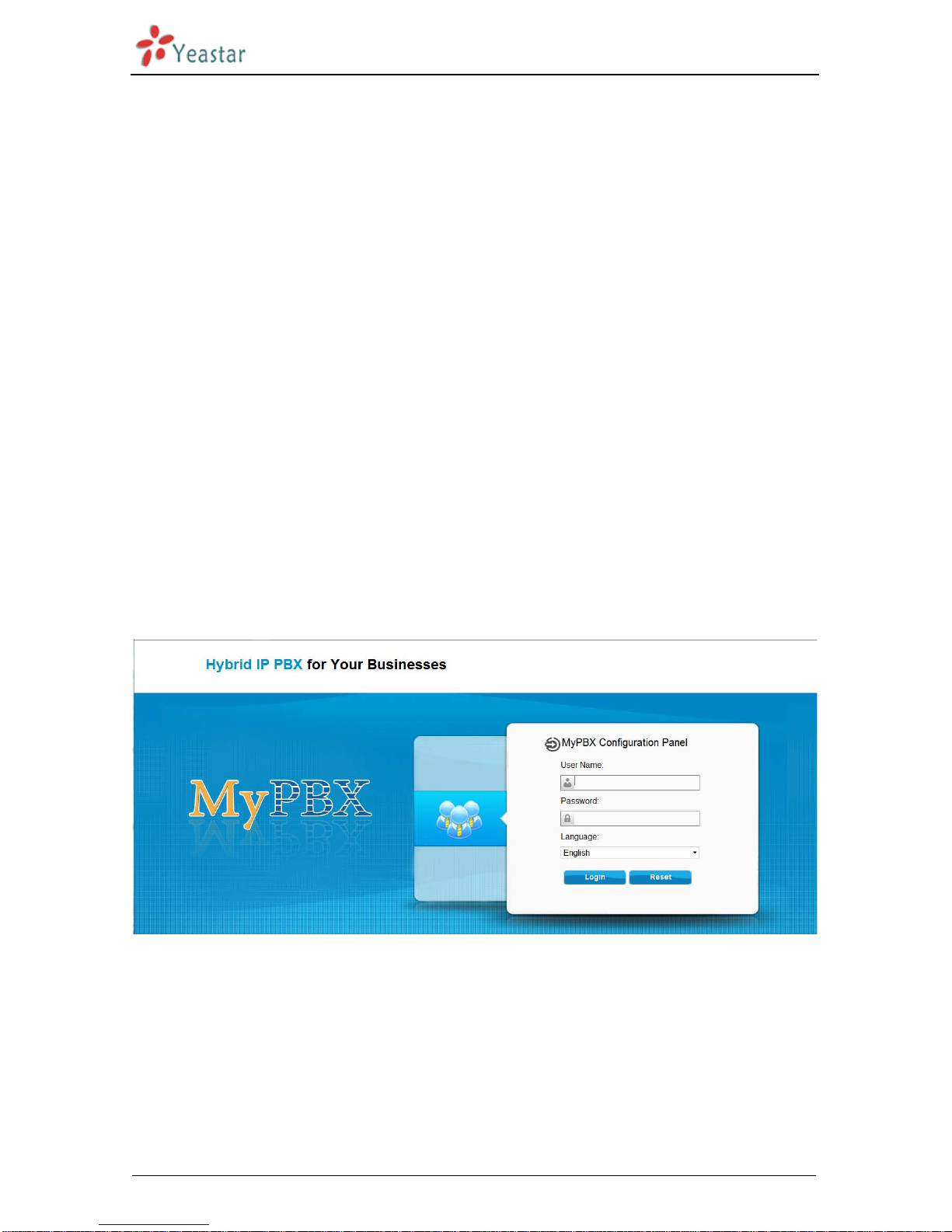

4.2 Logging in the Web Configuration Panel........................................................................................................... 13
4.3 Network Settings............................................................................................................................................... 15
4.4 Extensions Setup and management.................................................................................................................. 15
4.5 Configuring Terminals ....................................................................................................................................... 15
4.6 Making/Receiving calls...................................................................................................................................... 16
4.7 Reset to Factory Defaults .................................................................................................................................. 16
5. Conclusion.........................................................................17

MyPBX U510 Installation Guide
http://www.yeastar.com 3/17
About MyPBX U510
MyPBX U510 is a standalone embedded hybrid PBX with one embedded E1/T1/J1 port. It is specially designed
for businesses and offices up to 300 users which are characterized by flexible compatibility with PSTN/ISDN
BRI lines, GSM/UMTS network and IP lines with powerful functionality. It enables the company to benefit
from the latest VoIP technology and traditional reliability at the same time.
MyPBX U510’s scalability is impressive too. With the deployment of MyPBX U510, the company will no more
worry about the high expansion costs and the waste of their previous investment. The modular technology
enables the company to freely choose the combination of FXO, FXS, BRI, GSM, and UMTS modules as
required, and just add on the type of modules that are needed for future expansion. For example, if 2 more
PSTN lines are required, they needn’t bother to buy a new PBX. Just add another O2 module (2 FXO ports) is
OK. Also, the new user account is free of charge. The company is not going to pay any license fees for new
employees.
Moreover, MyPBX U510 has perfect interoperability with mainstream IP Phone brands such as Yealink, Snom,
Grandstream, Aastra, Polycom and Cisco. Auto provisioning of Yealink, Snom, Cisco, Aastra and Polycom IP
phones would greatly save time on configurations when there is bulk extensions to register.
Besides, customers from different countries will all feel comfortable while using MyPBX U510. Because they
are able to select their local language for Web GUI and Voice Prompt. Furthermore, it is renowned for its
user-friendly web configuration panel which is easy accessible and self-evident making configuration a
trouble-free job.
This Guide explains how to install MyPBX U510, how to configure MyPBX U510 via web interface, how to add
extensions, and make/receive calls via trunks.

MyPBX U510 Installation Guide
http://www.yeastar.com 4/17
1. Preparation before Installation
Please make sure the following devices are available before installation:
Contents of the box
Upon receiving MyPBX U510 gift box, please open the package and check if all the items are supplied as
MyPBX U510 Packing List (See Sheet 1). If there is any problem, please contact your provider.
Item Unit QTY Description
MyPBX U510 PC 1 MyPBX U510 main box
Power cord PC 1 For the input of 220V AC power
Warranty card PC 1 With Series Number printed for Repair & Return
Phone line PC 2
Network Cable PC 1
Serial Line PC 1
SATA data line PC 2
SATA power cord PC 1
Mounting ear PC 2
Screws PC 16 8 screws (φ3.0*6mm) for mounting ears; 8 screws
(φ3.0*8mm) for hard disk brackets
Grounding stud and nut
Pair
1
Sheet 1 MyPBX U510 Packing List

MyPBX U510 Installation Guide
http://www.yeastar.com 5/17
2. Hardware Specifications
2.1 Overview
Figure 2-1 MyPBX U510
2.2 LED Indicators and Ports
Figure 2-2 MyPBX U510 Front Panel
Figure 2-3 MyPBX U510 Back Panel

MyPBX U510 Installation Guide
http://www.yeastar.com 6/17
LED
Indication
Status
Description
Power Power status
On
The power is switched on
Off The power is switched off
RUN MyPBX status Blinking MyPBX is running properly
Not Blinking/Off MyPBX goes wrong
1-16 FXO port status Red light The red light is blinking: no PSTN line connected
the lights are blinking red and green alternately: there
is incoming call
The lights are blinking red and green alternately and
rapidly: the call is connected and the trunk is in use.
GSM/
UMTS port
status
Red light The red light is blinking: no SIM card inserted
The lights are blinking red and green alternately: there
is incoming call
The lights are blinking red and green alternately and
rapidly: the call is connected and the trunk is in use.
BRI port status Orange light Orange light: indicates the BRI port
The orange light is blinking: no BRI line connected
The orange light is on: the BRI line is connected or in
use
FXS port status Green light The lights are blinking green and red alternately: the
FXS port is ringing
The lights are blinking green and red alternately and
rapidly: the call is connected and the FXS port is in use
Ports Description
RJ11 ports FXO port (red light): For the connection of PSTN lines or FXS ports of traditional PBX.
MyPBX users could make or receive calls via FXO port.
FXS port (green light): For the connection of analog phones.
BRI port (orange light): For the connection of ISDN BRI lines. MyPBX users could make or
receive calls via BRI port.
Note: The sequence number of the ports corresponds to that of the Indicator lights in the
front panel. (I.e. the
LED lights in the front indicate the connection status of the
corresponding ports at the front panel.)
Antenna ports For the connection of GSM/UMTS Antenna.
E1/T1 port
For the connection to E1 line or the E1 port of traditional PBX.
Console port For debugging
USB port
Ethernet ports MyPBX U510 provides two 10/100/1000M adaptive RJ45 Ethernet ports, marked as LAN
and WAN.
-LAN port: LAN port is for the connection to Local Area Network (LAN).
-WAN port: WAN port is the network port for the connection to internet. It supports ‘DHCP
server’, ‘PPPoE/dynamic DNS’, and “static IP” for IP address assignment.
Reset Button Press the reset button to restore the factory defaults
Please make sure that you’d like to reset because once reset, the previous configurations
would be erased automatically.
Power port For the connection of a power adapter to input 100~240V, 50~60HZ AC power

MyPBX U510 Installation Guide
http://www.yeastar.com 7/17
2.3 Specifications and Operating Environment
Description
Size L 438 * W 280 * H 44 (mm)
Power Supply 220V, 50~60Hz
Operating Temperature 0°C~50°C (32°F~122°F)
Storage Temperature -10°C~65°C (14°F~149°F)
Operating Humidity 5%~90% (Non-condensing)
Storage Humidity 0%~95% (Non-condensing)
Weight 3.4kg

MyPBX U510 Installation Guide
http://www.yeastar.com 8/17
3. MyPBX U510 Installation
To avoid unexpected accident, personal injury or device damage, please read the following instructions
before installing MyPBX U510.
3.1 Placement Instructions
Ambient Temperature: to avoid overheating, please do not run MyPBX U510 in the place where the
ambient temperature is above 122℉(50℃).
Ventilation: please make sure that the device has good ventilation around.
Anti-jamming—there may be some sources of interference that might affect the normal running of
MyPBX U510. It’s highly recommended that the device
Should be placed away from high-power radio, radar transmitters and high frequency, and
high-current devices.
Is using independent power junction box and effective anti-grid interference measures have been
taken.
Mechanical load--Please make sure that the device is placed steadily to avoid any accident that might
cause damage. If placed on the desktop, please ensure it is horizontally placed.
3.2 Installation Instructions
After placing MyPBX U510 in a suitable place, please connect the power adapter and all other cables to
complete the installation.
3.2.1 Connection of Ethernet Ports
MyPBX U510 provides two 10/100/1000M adaptive RJ45 Ethernet ports, that is, LAN port and WAN port.
WAN Port Connection
Connect one end of a network cable to the WAN port of MyPBX U510, and the other end to the Ethernet
port of a hub, switch or ADSL modem.
LAN Port Connection
Connect one end of a network cable to the LAN port of MyPBX U510, and the other end to any port of
company’s LAN switch/router.
If the LAN port is connected to PC directly (not via a switch), please use cross-over cable.

MyPBX U510 Installation Guide
http://www.yeastar.com 9/17
3.2.2 Connection of E1/T1/FXO/GSM/UMTS/BRI ports
MyPBX U510 supports various outside lines (e.g. E1/T1, FXO, GSM/UMTS, or BRI). Below are the connection
instructions of each kind of outside line taking the device installed with 1 E1/T1, 2 FXO ports, 2 GSM ports,
and 2 BRI ports as an example.
1. Connection of E1/T1 port
The E1/T1 port could be connected to the E1 line or the E1 port of traditional PBX.
Note: the E1/T1 port of MyPBX U510 is RJ45 port, and the pins are defined as below table:
Item Description
1 RX- Receive Data-
2 RX+ Receive Data+
3 Not used
4 TX- Transmit Data-
5 TX+ Transmit Data+
6 Not used
7 Not used
8 Not used
Note: Please follow the below steps to make RJ45 cable to connect it to the E1 port.
Step 1: Connect MyPBX U510 E1 port to the E1 line according to the line sequence of E1 port.
From the above table, we can see that the No.1 and No.2 pins of MyPBX U510 E1 port is for receiving
data (No.1 for receiving data -, No.2 for receiving data +), while No.4 and No.5 is for transmitting data
(No.4 is for transmitting data -, No.5 is for transmitting data +).
When connected to the E1 line, RX- of E1 port should be connected to TX- of E1 line; RX+ of E1 port
should be connected to TX+ of E1 line; TX- of E1 port should be connected to RX- of E1 line; TX+ of E1
port should be connected to RX+ of E1 line.
For example, the line sequence o f the E1 line (RJ45 port) provided by the telecom company is: No.4 for
TX-, No.5 for TX+, No.7 for RX- and No.8 for RX+ which apparently can’t correspond to that of MyPBX
U510 E1 port. So you need jumper, which could be depicted as below:
Figure 3-1 E1 Cable Cord Sequence

MyPBX U510 Installation Guide
http://www.yeastar.com 10/17

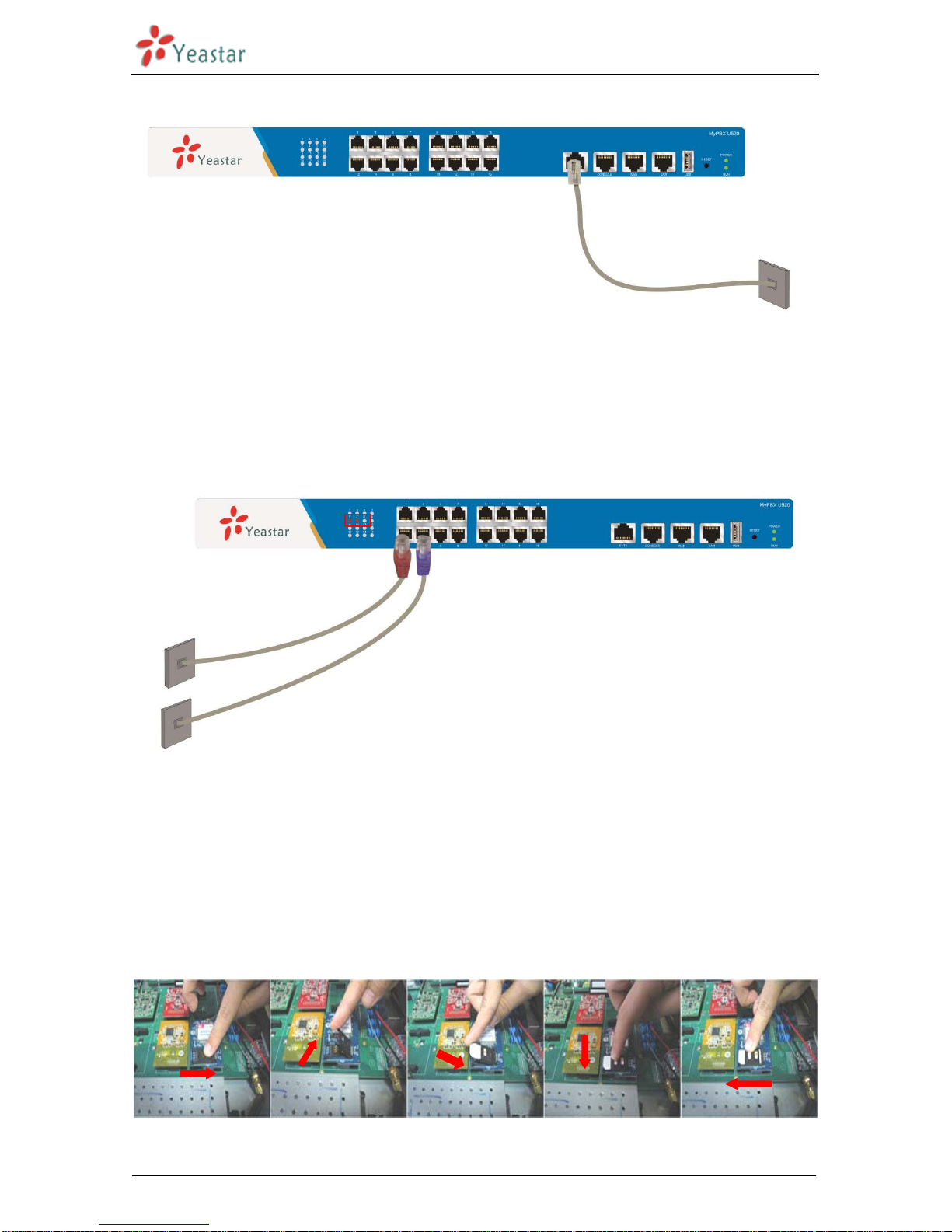

Step 2: Connect the self-made RJ45 cable to E1 port.
Figure 3-2 Connection of E1/T1 port
2. Connection of FXO ports
The FXO port could be connected to the PSTN line or the FXS port of a traditional PBX with a phone line.
For instance, if No.2 and No.4 connectors are FXO ports, the connection could be depicted as below:
Figure 3-3 Connection of FXO ports and status LED
3. Connection of GSM/UMTS ports
If No.3 and No.7 connectors are GSM/UMTS Ports, the steps of connection are as below:
Step 1: Open the Upper case of MyPBX U510
Step 2: Insert the SIM card as below:
Figure 3-4 Inserting the SIM Card

MyPBX U510 Installation Guide
http://www.yeastar.com 11/17
Step 3: Connect the antenna
Once completed, the No.3 and No.7 LED lights would turn red as below figure:
Figure 3-5 Connection of GSM/UMTS ports and Status LED
4. Connection of BRI ports
The BRI port could be connected to the BRI line and the BRI port of a traditional PBX with a BRI RJ45-RJ11
cable.
For instance, if No.14 and No.16 connectors are BRI ports, the connection could be depicted as below:
Figure 3-6 Connection of BRI ports and Status LED

MyPBX U510 Installation Guide
http://www.yeastar.com 12/17
3.2.3 Connection of FXS ports
The FXS port could be connected to an analog phone with a phone line.
For instance, if No.6 and No.8 connectors are FXS ports, the connection could be depicted as below:
Figure 3-7 Connection of FXS ports and Status LED
3.2.4 Power Connection
Once users have made sure that device installation, cable connection and power type is correct, please
switch on the power. Then MyPBX U510 will start booting. In the meantime, users would see that the
‘POWER’ and ‘RUN’ indicator lights would turn on.
Please switch off the power before plugging or unplugging the cables.
3.2.5 Overall Flow Chart
Figure 3-8 Overall Flow Chart

MyPBX U510 Installation Guide
http://www.yeastar.com 13/17
4. MyPBX U510 Basic Configurations
4.1 Factory Defaults
MyPBX U510 provides web-based configuration interface for administrator and account user. The user can
manage the device by log in the web interface.
The factory default IP address:
LAN: 192.168.5.150;
Access path: http://[IP address]
User Name: admin;
Password: password
Default SIP UDP port: 5060
There are 6 extensions set up by default. The user could use these extensions directly, edit or delete them.
Their extension numbers are “300”-“305” (6 numbers in a row) whose passwords are “pincode + respective
extension number”.
4.2 Logging in the Web Configuration Panel
Firstly, please check if the IP address that assigned to the network port (LAN or WAN) is in the same segment
with the PC and which can be connected when commit ‘Ping +MyPBX IP address’ command. Start the
browser on PC. In the address bar, enter the IP address, click ‘enter’ button and then you can see MyPBX
Web Configuration Panel login page (See Figure 4-1).
Figure 4-1 MyPBX Web Configuration Panel Login Page
Enter the Admin User Name and Password to log in.

MyPBX U510 Installation Guide
http://www.yeastar.com 14/17
Figure 4-2 MyPBX Admin Configuration Interface
Via the configuration interface, the admin can make all the system configurations, including network settings
(LAN, WAN, Firewall, VPN, DDNS, VLAN, etc.); system parameters configuration (system prompts, time zone,
password, etc.); internal settings (Web access port, user extension range, business hours, conference room,
paging and intercom, music on Hold, etc.); inbound routes; outbound routes; user account management (add
or delete an extension account, IP restriction, features setup, etc.); extended function management (call
queue, conference room, IVR, etc.); call logs (search, download); firmware update and reset, etc.
Please note that after saving the changes, remember to click the “Apply changes” button to make the
changes take effect.

MyPBX U510 Installation Guide
http://www.yeastar.com 15/17
4.3 Network Settings
After logging in the admin configuration interface, generally the first step is to configure the IP address. If
both the WAN and LAN ports are connected to the network, their IP addresses need to be configured. If not,
just configuring the IP address of the LAN port which is connected to the local area network of the company
is OK.
WAN Settings
Click “Network Preference”->”WAN Settings” on the left menu bar.
1. If the network that the WAN port is connected to is using DHCP server as connection method, please
select the “DHCP” (dynamic IP) option.
2. If the network connection method is “Static IP address”, please select this option and enter the WAN
parameters (IP address, subnet mask, default gateway, DNS, etc.)
3. If MyPBX is connected to ADSL adapter directly, please select “PPPoE” option and enter the ADSL
user name and password.
LAN Settings
Click “Network Preference”->”LAN Settings” on the left menu bar of the web configuration interface.
LAN port is used for the interoperability of IP terminals and MyPBX. If the LAN port is connected to the
company’s LAN, please configure the correct IP address and corresponding subnet mask.
Please note that after changing the IP address of LAN port, MyPBX should be rebooted to make the new
changes take effect.
4.4 Extensions Setup and management
MyPBX has already set up 6 extensions which are extensions “300-305” by default. The password is “pincode
+ extension number”. It’s up to the user to decide whether to directly use these default extensions or after
changing the password. Of course, they could be deleted.
The admin could add, edit or delete the extensions via the Web Configuration Panel.
In the “FXS/VOIP Extensions” page, there are “Add Extension”, “Add Bulk Extensions”, “Delete the Selected
Extension” and “Edit Extension”(configure the features such as call forwarding and voicemail) subpages, etc.
4.5 Configuring Terminals
MyPBX could be connected with SIP-based audio and video IP terminal devices (e.g. IP Phone, voice gateway,
and soft terminal, etc.). The steps of configuring terminals are as below:
Step 1: Make sure the IP terminal and MyPBX are interconnected
Step 2: Enter the IP address of MyPBX when configuring “SIP server”, “Proxy server”, or “Registration server”
of the IP terminals, and the default SIP UDP port is 5060.
Step 3: Enter the account registration information with the “extension number/password” of the default or
newly setup extensions of MyPBX.
For more information on terminal configuration, please refer to
http://www.yeastar.com/Solutions/SIP_Phones.asp
Step 4: Reboot the IP terminal after configuration, and click “Status”-> “Line Status”-> “Extension Status”on
the menu bar of MyPBX web configuration interface to check if it has registered successfully to MyPBX.

MyPBX U510 Installation Guide
http://www.yeastar.com 16/17
4.6 Making/Receiving calls
Note: The MyPBX default settings are sufficient to make phone calls. It is not necessary to make any changes
unless the user wants to create new extensions or trunks. Refer to Administrator’s Guide for more.
1. Internal calls between extensions
If two IP terminals have registered to MyPBX successfully, the user could make calls between extensions
just by dialing the other’s extension number.
2. Outbound calls
Firstly, please connect a PSTN line to the first FXO port. Then the default extensions are able to make
outbound calls via this trunk by simply dialing “9+phone number+#”. The “#” is Key as Send.
Note: The dial pattern of the default outbound route is “9.”. But if the user has changed it, please dial the
new prefix instead of the digit “9” when making outbound calls.
3. Inbound calls
When the user calls the trunk number of the PSTN line, MyPBX would route the call to IVR (the
“welcome” prompt) by default. Then the user can dial the extension number following the prompt.
4.7 Reset to Factory Defaults
If you forget the new IP address or the password of admin, or in other cases that you would like to restore
the factory defaults, please reset the device following the instructions below:
Please press the “RESET” button located in the back panel with a paper clip or a pencil tip, then you can see
all of the LED indicators in the front panel would keep them color first and turn orange seconds later. When
the indicator light becomes orange, the button could be released and system begins to reset. During the
process, please do not power off until the LED indicators become normal which means the reset process is
completed.
Note: After resetting, all the configurations made by the admin would be erased.

MyPBX U510 Installation Guide
http://www.yeastar.com 17/17
5. Conclusion
This Installation Guide only explains the installation and basic settings of MyPBX U510 for making and
receiving calls. For more functionality and advanced settings of MyPBX U510, please refer to the relative
documents as below:
“MyPBX U510 Datasheet”
“MyPBX U510 Administrator’s Guide”
“MyPBX U510 Extension User’s Guide”
[The End]
