YOKOGAWA YFGW610 User manual

User’s
Manual YFGW610
Field Wireless Media Converter
IM 01W02D02-01EN
IM 01W02D02-01EN
1st Edition

Blank Page

Toc-i
IM 01W02D02-01EN
YFGW610 Field Wireless Media Converter
IM 01W02D02-01EN
CONTENTS
Introduction ..............................................................................................................i
Safety Precautions ..................................................................................................ii
Copyright and Trademark Notices ........................................................................v
Information of User’s Manual Revision ...............................................................vi
Part-A. FUNCTIONS OF YFGW610
A1. Introduction .............................................................................................A1-1
A2. System Conguration ............................................................................A2-1
A3. Function Conguration .........................................................................A3-1
A4. Names of Parts .......................................................................................A4-1
A4.1 Front view ....................................................................................................... A4-1
A4.2 Side view ......................................................................................................... A4-1
A4.3 Rear view ......................................................................................................... A4-2
A4.4 Top view .......................................................................................................... A4-3
A5. LED Indications ......................................................................................A5-1
A6. Operational Element ..............................................................................A6-1
A7. Checking the Product ............................................................................A7-1
This document contains important information for using YFGW610 Field Wireless Media Convert-
er properly and safely. Please read this document thoroughly before using this product.
The conguration of the eld wireless system is described in the User’s Manual of YFGW410
Field Wireless Management Station (IM 01W02D01-01EN); read that document rst.

Toc-ii
IM 01W02D02-01EN
Part-B. Installation
B1. System Installation Specications .......................................................B1-1
B2. Power Supply and Grounding ..............................................................B2-1
B2.1 Power Supply ................................................................................................. B2-1
B2.2 Grounding ....................................................................................................... B2-2
B3. Mounting .................................................................................................B3-1
B3.1 Mounting Direction ........................................................................................ B3-1
B3.2 Mounting of DIN Rails .................................................................................... B3-2
B3.3 Installation of YFGW610 ................................................................................ B3-3
B4. Power, ground, and network cable connection ..................................B4-1
B4.1 Connection Terminals and Communication Interface ............................... B4-1
B4.2 Power Supply Cable Connection ................................................................. B4-2
B4.3 Grounding ....................................................................................................... B4-6
B4.4 Network Cable Connection ........................................................................... B4-9
B5. Explosion-Proof Wiring .........................................................................B5-1
B6. Settings....................................................................................................B6-1
Part-C. Maintenance
C1. Routine Maintenance .............................................................................C1-1
C2. Adding and replacing devices ..............................................................C2-1
C3. Maintenance in Hazardous Area ...........................................................C3-1
C4. Parts with Dened Life Spans ...............................................................C4-1
Part-D. Troubleshooting
Part-E. Specications
E1. Standard Specication ..........................................................................E1-1
E2. Model and Sufx Codes .........................................................................E2-1
E3. External Dimensions ..............................................................................E3-1

i
<Read Me First>
IM 01W02D02-01EN
Introduction
n Regarding This User’s Manual
l This manual should be provided to the end user. Please recommend end users
to keep this manual at hand and refer to it as needed.
l Before use, read this manual thoroughly to comprehend its contents.
l The purpose of the User’s Manual is to describe details of functions provided
in this product, not to warrant the product’s suitability to the specic purposes
of customers.
l No part of this manual may be reproduced in any form without Yokogawa’s
written permission.
l The contents of this manual may be changed without prior notice.
l All reasonable effort has been made to ensure the accuracy of the contents of
this manual. However, if any errors or omissions are found, please inform any
of sales ofces listed on the back cover or your local distributor.
l Special specications are not described.
l Please note that this User’s Manual may not be revised for any specication
changes, construction changes or operating part changes that are not consid-
ered to affect function or performance.

ii
<Read Me First>
IM 01W02D02-01EN
Safety Precautions
n Safety, Protection, and Modication of the Product
l In order to protect the operator, product, and system controlled by the prod-
uct, observe the safety precautions described in this User’s Manual. If users
handle contrary to these instructions, we can not guarantee the safety.
l If this instrument is used in a manner not specied in this User’s Manual, the
protection provided by this instrument may be impaired.
l Modication of the product is strictly prohibited.
l If the user attempts to repair or modify explosion-proof type products and fails
to return them to their original state, the explosion-proof structure of this prod-
uct will be lost, resulting in a hazardous state. All repairs and modications of
the product must be consulted with Yokogawa.
l If any protection or safety circuit is required for the system controlled by the
product or for the product itself, prepare it separately.
l Be sure to use the spare parts approved by Yokogawa Electric Corporation
(hereafter simply referred to as Yokogawa) when replacing parts or consuma-
bles.
l The following symbols are used in the product and User’s Manual to indicate
that there are precautions for safety:
CAUTION
Indicates that caution is required for operation. This symbol is placed on the parts necessary to
refer to the User’s Manual for protecting the operator and equipment. In the User’s Manuals you
will nd precautions to avoid physical injury or death of the operator, including electrical shocks,
Injuries of human body, and so on.
WARNING
Indicates instructions that must be observed in order to prevent the software or hardware from
being damaged or the system from becoming faulty.

iii
<Read Me First>
IM 01W02D02-01EN
IMPORTANT
Indicates important information required to understand operations or functions.
NOTE
Draws attention to information essential for understanding the operation and features.
TIP Indicates additional information.Indicates additional information.
SEE
ALSO
Indicates a reference source.
Indicates a protective grounding terminal. Before using the product, ground the terminal.
Indicates a functional grounding terminal. Before using the product, ground the terminal.
Indicates a DC supply
n Warranty
l The warranty terms of this instrument are described in the quotation. We will
make any repairs that may become necessary during the guarantee period free
of charge.
l Please contact our sales ofce or your local distributor if this instrument re-
quires repair.
l If the instrument is faulty, contact us with complete details about the prob-
lem and the length of time it has been faulty, and state the model and serial
number. We would appreciate the inclusion of drawings or additional informa-
tion.
l The results of our examination will determine whether the product will be re-
paired free of charge or on an at-cost basis.
n The guarantee will not apply in the following cases:
l Damage due to negligence or insufcient maintenance on the part of the cus
tomer.
l Problems or damage resulting from handling, operation or storage that vio-
lates the intended use and specications.

iv
<Read Me First>
IM 01W02D02-01EN
l Problems resulting from using or performing maintenance on the instrument
in a location that does not comply with the installation location specied by
Yokogawa.
l Problems or damage resulting from repairs or modications not performed by
Yokogawa or someone authorized by Yokogawa.
l Problems or damage resulting from inappropriate installation after delivery.
l Problems or damage resulting from disasters such as res, earthquakes,
storms, oods, or lightning strikes and external causes.
n Warranty and Disclaimer
l Yokogawa assumes no responsibilities for this product except as stated in the
warranty.
l Yokogawa shall have neither liability nor responsibility to any person or entity
with respect to any direct or indirect loss or damage arising from using the
product or any defect of the product that Yokogawa can not predict in ad-
vance.
n Notes on Hardware
l Appearance and Accessories
Check the following when you receive the product:
• Appearance
• Standard accessories
Contact our sales representative or your local distributor if the product’s coating has come off or
any accessories are missing.
l Model and Sufx Codes
The name plate on the product states the model and sufx codes. Compare them with those in
the general specication to make sure the product is the correct one. If you have any questions,
contact our sales ofce or your local distributor.
n Cautions for Safely Using the Device
l EMC Conformity Standards
EN61326-1 Class A, Table 2 (for use in industrial locations), EN61000-6-2, EN55011 Class A,
Group 1
* This instrument is a Class A product, and is designed for use in industrial environments. Please
use this instrument in industrial environments only.

v
<Read Me First>
IM 01W02D02-01EN
Copyright and Trademark Notices
n All Rights Reserved
The copyrights of the media and this manual are reserved.
No part of this manual may be transferred, sold, distributed (including delivery via a commercial
PC network or the like), or registered or recorded on video tape or other media.
n Trademark Acknowledgments
• CENTUM, PRM, FieldMate, STARDOM and VigilantPlant are either trademarks or regis-
tered trademarks of Yokogawa.
• Ethernet is a registered trademark of XEROX Corporation.
• All other company and product names mentioned in this User’s Manual are trademarks or
registered trademarks of their respective companies.
• We do not use TM and ® to indicate trademarks or registered trademarks in this User’s
Manual.

vi
<Read Me First>
IM 01W02D02-01EN
Information of User’s Manual Revision
Material Name : YFGW610 Field Wireless Media Converter
Material Number : IM 01W02D02-01EN
Edition Date Page Revised Item
1st Edition September 2012 New Issue

<A1. Introduction> A1-1
IM 01W02D02-01EN
Part-A. FUNCTIONS OF YFGW610
A1. Introduction
Read the User’s Manual (IM 01W02D01-01EN) of YFGW410 Field Wireless Management Sta-
tion (hereafter simply referred to as YFGW410) before this manual.
YFGW610 Field Wireless Media Converter (hereafter simply referred to as YFGW610) converts
the signals between 100BASE-TX (metal network cable) and 100BASE-FX (optical network ca-
ble) and is used when the wiring between the Field Wireless Management Station and the Field
Wireless Access Point is placed outdoors or covers a long distance.
YFGW610, installed near of YFGW410, converts the optical network connection of YFGW510
Field Wireless Access Point (hereafter simply referred to as YFGW510) to the metal network con-
nection.
For detail of YFGW510 specications, refer to GS01W02E01-01EN.

<A2. System Conguration> A2-1
IM 01W02D02-01EN

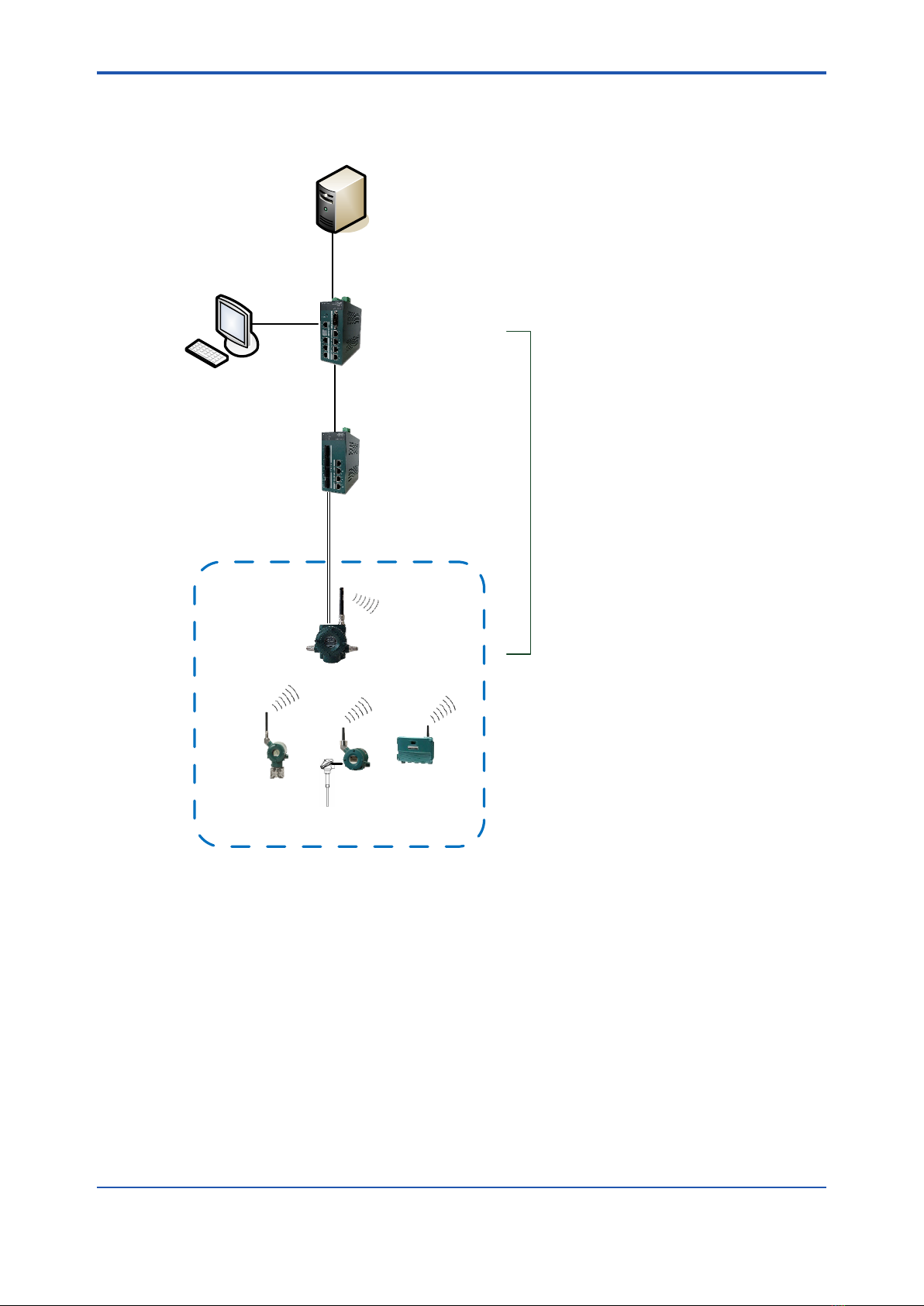

A2. System Conguration
Field wireless device
Field wireless
network
(ISA100.11a)
Field Wireless
Access Point
(YFGW510)
Field Wireless
Backbone Network
Field Wireless
Media Converter
(YFGW610)
Optical network
Metal network
Field Wireless
Management Station
(YFGW410)
Field Wireless
Management Console
Host system
FA0201
Figure A2-1 Example of system conguration
YFGW610 is installed near YFGW410 in the eld wireless backbone, and converts the optical
network connection of YFGW510 to the metal network connection for YFGW410.

<A3. Function Conguration> A3-1
IM 01W02D02-01EN
A3. Function Conguration
The block diagram below describes the communication interface functions of YFGW610.
FA0301
Communication function
Connect to YFGW510 Connect to YFGW410
Optical network interface 1 Field wireless
backbone interface 1
Optical network interface 2 Field wireless
backbone interface 2
Optical network interface 3 Field wireless
backbone interface 3
Optical network interface 4 Field wireless
backbone interface 4
Figure A3-1 YFGW610 communication interface functions
Conversion is carried out between interfaces with the same number.
When install or replace, YFGW610 is unnecessary to congure itself.

<A4. Names of Parts> A4-1
IM 01W02D02-01EN
A4. Names of Parts
A4.1 Front view
Optical network
interface 1
Field wireless
backbone
interface 1
Optical network
interface 2
Field wireless
backbone
interface 2
Optical network
interface 3
Field wireless
backbone
interface 3
Optical network
interface 4
Field wireless
backbone
interface 4
Optical network
interface
Field wireless
backbone interface
Power supply connector
Status indicator LED
Up
RX
TX
FA0401
Link/ACT
Speed
Figure A4-1 Front view
There are 13 LEDs on the front face: one status indicator LED and four status indicator LEDs for
the optical network interface are on the top, and four pairs of status indicator LEDs (for Link/ACT
and Speed status) are incorporated in the eld wireless backbone interface.
A4.2 Side view
Power supply connector
Name plate
DIN rail
mounting bracket
FA0402
Figure A4-2 Side view
There are no terminals or parts to operate on either side except for the air inlets for cooling. Place
the product at a sufcient distance from other devices so that these inlets are not blocked. For
details, see B3 Installation.

<A4. Names of Parts> A4-2
IM 01W02D02-01EN
A4.3 Rear view
DIN rail mounting bracket
FA0403
Figure A4-3 Rear view
On the back of YFGW610, there is a mounting bracket to mount to a DIN rail. YFGW610 sup-
ports DIN rail mounting alone.

<A4. Names of Parts> A4-3
IM 01W02D02-01EN
A4.4 Top view
Ground terminal
Power supply connector
FA0404
Figure A4-4 Top view
There are power supply connectors and a ground terminal on the top of YFGW610.
The spring terminals, which are the main components of the power supply connector to connect
external wiring, are xed by fastening the two screws of the terminals in the sockets of the hous-
ing.

<A5. LED Indications> A5-1
IM 01W02D02-01EN
A5. LED Indications
The LED indications are as follows.
Table A5-1 LED indications
LED Function
RDY Indicates the status of YFGW610
LINK
1Indicates the status of optical network interface 1
2Indicates the status of optical network interface 2
3Indicates the status of optical network interface 3
4Indicates the status of optical network interface 4
Link/ACT Speed
(RJ-45 connector)
1Indicates the status of eld wireless backbone interface 1
2Indicates the status of eld wireless backbone interface 2
3Indicates the status of eld wireless backbone interface 3
4Indicates the status of eld wireless backbone interface 4
The meanings of respective indications of the status indicator LED are as follows.
Table A5-2 Status indicator LED
Indication Status Description
Orange Booting
Green Normal operation
Red Abnormal operation Abnormal hardware operation
The meanings of respective indications of the status indicator LED for the optical network inter-
face are as follows.
Table A5-3 Status indicator LED for optical network interface
Indication Status
Green Enable optical communication
OFF No signals detected
The meanings of respective indications of the status indicator LED for the eld wireless backbone
interface are as follows.
Table A5-4 Status indicator LED for eld wireless backbone network interface
Indication Status
Link/ACT
Green Link up
Green blink Communicating
OFF Link down
Speed Green 100BASE-TX communicating
OFF 10BASE-T communicating

<A6. Operational Element> A6-1
IM 01W02D02-01EN
A6. Operational Element
YFGW610 does not have any switches or buttons that can be mechanically operated from the
outside of the housing.

<A7. Checking the Product> A7-1
IM 01W02D02-01EN
A7. Checking the Product
When you receive YFGW610, please check that the product specications match your order, all
items are included, and there is no damage, stains, or other problems.
Power supply connectors with
Push-in spring-cage connection
YFGW610
IM01W02D02-01EN (user's manual)
FA0701
Figure A7-1 Checking the product

<B1. System Installation Specications> B1-1
IM 01W02D02-01EN
Part-B. Installation
This section describes the installation of YFGW610.
Use YFGW610 in the following procedure.
1. Installation of YFGW610
2. Wiring of the power supply, ground and network cable
B1. System Installation Specications
The system must be installed in an appropriate environment to ensure stable system operation.
The following denes the detailed specications of YFGW610 installation environment.
Table B1-1 System installation specications
Item Specications Applicable stand-
ards
Ambient
temperature
Operating
-40 to 65°C (at altitude below 2000
meters)
-40 to 55°C (at altitude between 2000
and 3000 meters)
Transport /storage -40 to 85°C
Ambient humidity Operating 5 to 95% relative (without condensing)
Transport /storage 5 to 95% relative (without condensing)
Temperature
gradient
Operating Within +/-10°C per hour JEIDA 29 Class B
Transport /storage Within +/-20°C per hour
Protection class IP20 IEC529
Vibration resistance 0.15 mm P-P (5 to 58 Hz) IEC68-2-6
1 G (58 to 150 Hz)
Impact resistance 15 G, 11 msec (no conductive, and 3-di-
rection half sine waves) IEC68-2-27
Altitude Up to 3000 meters (due to restricted
ambient temperature)
Noise level
Electric eld 3 V/m or less (80 MHz to 1 GHz)
Electrostatic
discharge
4 kV or less (contact discharge), 8 kV or
less (aerial discharge)
Grounding Class D grounding (100 ohms or less)
Cooling Natural cooling
Mounting Mounted on DIN rails
Power supply
Voltage range 10.8 to 26.4 V DC
Rated voltage 24 V DC
Allowable ripple Less than 1% p-p
Power consumption 10 W
