York CIW01 Instruction Manual

P5415484
IMPORTANT:
READ AND UNDERSTAND
THIS MANUAL BEFORE
USING THIS WIRED
CONTROLLER.
KEEP THIS MANUAL FOR
FUTURE REFERENCE.
Installation
&
Maintenance
Manual
Wired Controller

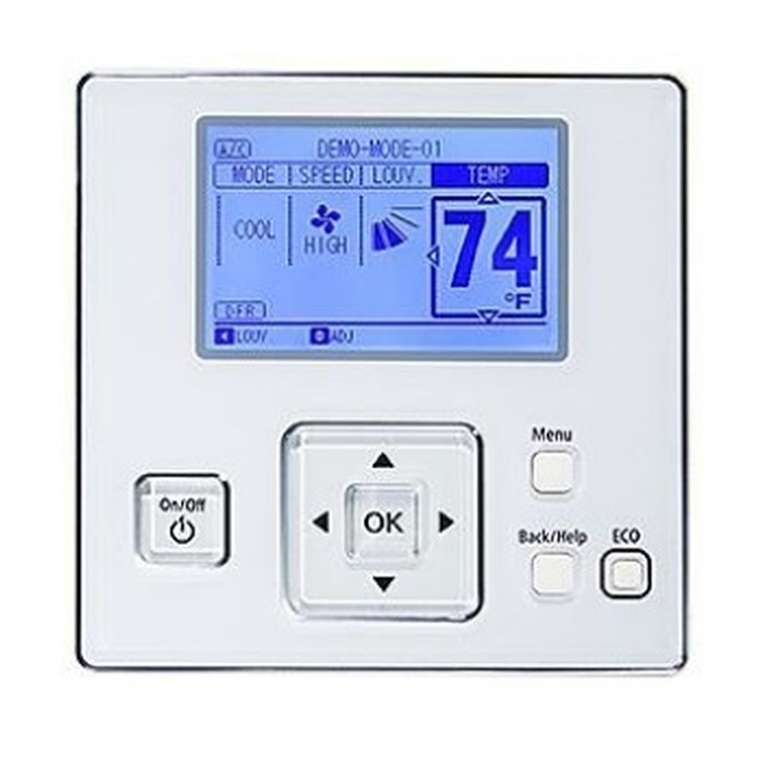

Model: CIW01
OK
Menu
Back/Help ECO
On/Off
A/C
MODE SPEED TEMP
COOL
LOUV. Adj.
Meeting Room
LOUV.
FLTR

2 P5415484
Important Notice
●Johnson Controls Inc. pursues a policy of continuing improvement in design and performance in its products.
As such, Johnson Controls Inc. reserves the right to make changes at any time without prior notice.
●Johnson Controls Inc. cannot anticipate every possible circumstance that might involve a potential hazard.
●This heat pump air conditioning unit is designed for standard air conditioning applications only.
Do not use this unit for anything other than the purposes for which it was intended for.
●The installer and system specialist must safeguard against leakage in accordance with local pipefitter and
electrical codes. The following standards may be applicable, if local regulations are not available. International
Organization for Standardization: (ISO 5149 or European Standard, EN 378). No part of this manual may be
reproduced in any way without the expressed written consent of Johnson Controls Inc.
●This heat pump air conditioning unit is operated and serviced in the United States of America and comes with a full
complement of the appropriate Safety, Danger, and Caution, warnings.
●If you have questions, please contact your distributor or dealer.
●This manual provides common descriptions, basic and advanced information to maintain and service this heat
pump air conditioning unit which you operate as well for other models.
●This manual should be considered as a permanent part of the air conditioning equipment and should remain with
the air conditioning equipment.
Product Inspection upon Arrival
1. Upon receiving this product, inspect it for any damages incurred in transit. Claims for damage, either apparent or
concealed, should be filed immediately with the shipping company.
2. Check the model number, electrical characteristics (power supply, voltage, and frequency rating), and any
accessories to determine if they agree with the purchase order.
3. The standard utilization for this unit is explained in these instructions. Use of this equipment for purposes other
than what it designed for is not recommended.
4. Please contact your local agent or contractor as any issues involving installation, performance, or maintenance
arise. Liability does not cover defects originating from unauthorized modifications performed by a customer without
the written consent of Johnson Controls, Inc. Performing any mechanical alterations on this product without the
consent of the manufacturer renders your warranty null and void.
TABLE OF CONTENTS
1. Safety Summary ..............................................................................................................................................3
2. Brand Label......................................................................................................................................................6
3. Installation Work ..............................................................................................................................................6
4. Electrical Wiring ...............................................................................................................................................8
5. Checking Procedures.......................................................................................................................................8
6. Function Selection and Input/Output Setting from the Controller.....................................................................9
7. Individual Louver Setting................................................................................................................................21
8. Adjusting Date/Time.......................................................................................................................................22
9. Room Name Registration...............................................................................................................................22
10.Setting of Main Controller ..............................................................................................................................23
11. Main/Sub Non-display Setting........................................................................................................................24
12.Setback Trigger Unit.......................................................................................................................................25
13.Operation Mode/Setting Temperature Priority Setting ...................................................................................26
14.Contact Information Registration ...................................................................................................................27
15.Check Menu...................................................................................................................................................27

P5415484 3
1. Safety Summary
Signal Words
Indicates a hazardous situation that, if not avoided, could result in death or serious injury.
Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.
Indicates information considered important, but not hazard-related (for example,
messages relating to property damage).
General Precautions
To reduce the risk of serious injury or death, read these instructions thoroughly and
follow all warnings or cautions included in all manuals that accompanied the product and
are attached to the unit. Refer back to these safety instructions as needed.
●This system, including this controller, should be installed by personnel certified by Johnson Controls, Inc.
Personnel must be qualified according to local, state and national building and safety codes and regulations.
Incorrect installation could cause leaks, electric shock, fire or an explosion. In areas where Seismic Performance
requirements are specified, the appropriate measures should be taken during installation to guard against
possible damage or injury that might occur in an earthquake. If the unit is not installed appropriately correctly,
injuries may occur because of a falling unit.
●Use appropriate Personal Protective Equipment (PPE), such as gloves, protective goggles and electrical
protection equipment and tools suited for electrical operation purposes.
●When transporting, be careful when picking up, moving and mounting these units. Although the controller may be
packed using plastic straps, do not use them for transporting from one location to another.
Do not stand on or put any material on the controller.
●When installing the controller cabling to the units, do not touch or adjust any safety devices inside the indoor
or outdoor units. All safety features, disengagement, and interlocks must be in place and functioning correctly
before the equipment is put into operation. If these devices are improperly adjusted or tampered with in any way,
a serious accident can occur. Never bypass, wire around, or jump-out any safety device or switch.
●Use only Johnson Controls recommended, provided as standardized, or replacement parts.
●Johnson Controls will not assume any liability for injuries or damage caused by not following steps outlined or
described in this manual. Unauthorized modifications to Johnson Controls products are prohibited as they…
◦May create hazards which could result in death, serious injury or equipment damage;
◦Will void product warranties;
◦May invalidate product regulatory certifications;
◦May violate OSHA standards;
Take the following precautions to reduce the risk of property damage.
●Do not touch the main circuit board or electronic components in the controller or remote devices.
Make sure that dust and/or steam does not accumulate on the circuit board.
●When installing the unit in a hospital or other facility where electromagnetic waves are generated from
nearby medical and/or electronic devices, be prepared for noise and electronic interference Electromagnetic
Interference (EMI). Do not install where the waves can directly radiate into the electrical box, controller cable, or
controller. Inverters, appliances, high-frequency medical equipment, and radio communications equipment may
cause the unit to malfunction. The operation of the unit may also adversely affect these same devices. Install the
unit at least 10 ft. (approximately 3m) away from such devices.
●Locate the controller at a distance of at least 3 ft. (approximately 1m) between the indoor unit and electric
lighting. Otherwise, the receiver part of the unit may have difficulty receiving operation commands.
●If the wired controller is installed in a location where electromagnetic radiation is generated, make sure that the
wired controller is shielded and cables are sleeved inside conduit tubing.
●If there is a source of electrical interference near the power source, install noise suppression equipment (filter).

4 P5415484
●During the test run, check the unit’s operation temperature. If the unit is used in an environment where the
temperature exceeds the operation boundary, it may cause severe damage. Check the operation temperature
boundary in the manual. If there is no specified temperature, use the unit within the operation temperature
boundary of 35° to 104°F (0 to 40°C).
●Read this installation and maintenance manual for proper electrical wiring work.
Installation Precautions
Take the following precautions to reduce the risk of electric shock, fire or explosion
resulting in serious injury or death:
●If the remote sensors are not used with this controller, then do not install this controller…
▫In a room where there is no thermostat.
▫Where the unit is exposed to direct sunshine or direct light.
▫Where the unit is in close proximity to a heat source.
▫Where hot/cold air from the outdoors, or a draft from elsewhere (such as air vents, diffusers or grilles) can
affect air circulation.
▫In areas with poor air circulation and ventilation.
●Perform a test run using the controller to ensure normal operation. Safety guards, shields, barriers, covers, and
protective devices must be in place while the compressor/unit is operating. During the test run, keep fingers and
clothing away from any moving parts.
After installation work for the system has been completed, explain the “Safety Precautions,” use, and maintenance
of the unit to the customer according to the information in all manuals that accompanied the system. All manuals and
warranty information must be given to the user or left near the Indoor Unit.
Electrical Precautions
Take the following precautions to reduce the risk of electric shock, fire or explosion
resulting in serious injury or death:
●Only use electrical protection equipment and tools suited for this installation.
●Insulate the wired controller against moisture and temperature extremes.
●Use specified cables between units and the controller.
●Communication cabling must be a minimum of 18-Gauge, 2-Conductor, Stranded Copper.
Shielded cable must be considered for applications and routing in areas of high EMI and other sources of
potentially excessive electrical noise to reduce the potential for communication errors. When shielded cabling
is applied, proper bonding and termination of the cable shield is required as per Johnson Controls guidelines.
Plenum and riser ratings for communication cables must be considered per application and local code
requirements.
●The polarity of the input terminals is important, so be sure to match the polarity when using contacts that have
polarity.
●Highly dangerous electrical voltages may be used in this system. Carefully refer to the wiring diagram and these
instructions when wiring. Improper connections and inadequate grounding can cause serious injury or death.
●Before installing the controller or remote devices, ensure that the indoor and outdoor unit operation has been
stopped. Further, be sure to wait at least five minutes before turning off the main power switch to the indoor or
outdoor units. Otherwise, water leakage or electrical breakdown may result.
●Do not open the service cover or access panel to the indoor or outdoor units without turning OFF the main
power supply. Before connecting or servicing the controller or cables to indoor or outdoor units, open and tag all
disconnect switches. Never assume electrical power is disconnected. Verify with a meter and equipment.
●Use an exclusive power supply at the controller’s rated voltage.
●Be sure to install circuit breakers (ground fault interrupter, isolating switch, molded case circuit breaker, and so
forth) with the specified capacity. Ensure that the wiring terminals are tightened securely to recommended torque
specifications.
●Clamp electrical wires securely with a cord clamp after all wiring is connected to the terminal block.
In addition, run wires securely through the wiring access channel.
●When installing the power lines, do not apply tension to the cables. Secure the suspended cables at regular
intervals, but not too tightly.
●Make sure that the terminals do not come into contact with the surface of the electrical box.
If the terminals are too close to the surface, it may lead to failures at the terminal connection.

P5415484 5
●Do not clean with, or pour water into, the controller as it could cause electric shock and/or damage the unit.
Do not use strong detergent such as a solvent. Clean with a soft cloth.
●Verify that the ground wire is securely connected. Do not connect ground wiring to gas piping, water piping,
lighting conductor, or telephone ground wiring.

6 P5415484
[3.3 Installation Procedures]
1. Insert the edge of the slotted screwdriver into the groove at the bottom of the holding bracket, push and turn the
slotted screwdriver to separate and remove the controller from the holding bracket.
Groove Part
Groove for Attaching Controller
Back Cover
3. Installation Work
[3.1 Selection of Installation Place]
1. Select a suitable staging area in which to assemble the unit. With the customer’s approval, determine the best
placement of the assembled unit. Choose a safe, sequestered area where the inquisitive can't reach it, and keep it
out the way of any direct air discharge.
[3.2 Prior to Installation]
1. This packing contains the following parts.
[A] Wired Controller (Qty.: 1 - For Operation Control)
[B] Screw <M4x16L> (Qty.: 2, For securing the mounting bracket to the wall.)
[C] Operation Manual (Qty.: 1)
The box is to verify your work. Each task to verify that it has been done.
2. Brand Label
Select the accessory brand label according to the production order.
Attach the accessory brand logo label to this area.
OK
Menu
Back/Help ECO
On/Off
O
This Area
Figure Seen from Bottom Side
Slotted
Screw Driver
Approx. 0-15/64 inch
(6mm)
Approx. 5/16 Inch
(8mm)
More than
2 Inches
(51mm)

P5415484 7
A. In Case of Exposing the Controller Cable
2. Attach the controller to the holding bracket and connect the cable as follows.
3. Cut away the insulation at the end of the cable and
clamp the M3 solderless terminals (field-supplied).
3. Attach the controller body to the mounted holding bracket. Be careful not to pinch the
cable when attaching it.
1. Prepare the optional field-supplied Implanted
Junction Box.
Band Stopper
(Field-Supplied)
Cable
Attach the stopper (plastic band)
to the cable at the inside of
the draw-out hole.
Trace-out Hole
Feed the cable with its
sheath peeled through
the groove.
Peel away the insulation
at the end of the cable
and clamp the M3 (field-
supplied) solderless
terminals .
Fix the holding bracket
onto the wall with
screws (accessory).
B. When Using Junction Box
Optional M-size
Junction Box
M4 Screws
(Field-Supplied)
Optional S-size
Junction Box
Connect the terminals.
Remove the
protective film.
2. Feed the cable through the conduit tubing in the wall.
4. Peel away the protective film from the liquid crystal display.
Secure the holding bracket
onto the wall with
screws (accessory).

8 P5415484
ATTENTION:
Disconnect all power at the main power source before performing electrical work. Failure to do this can result in fire,
damage to internal components, and severe or fatal electrical shock.
Max. 16 Indoor Units
Controller
AB
AB
Controller
(Secondary)
M3
Screws
Electrical Box
of Indoor Unit
Electrical Box
of Indoor Unit
Terminal Board Terminal Board
M3.5
Screws
M3.5
Screws
Twist Pair Cable with Shield Tube: 1P- AWG 18(0.82mm2) or more
AA
BB
4. Electrical Wiring
Example of Communication Cabling:
A.
Communication cabling must be a minimum of 18-Gauge, 2-Conductor, Stranded Copper. Shielded cable must be
considered for applications and routing in areas of high EMI and other sources of potentially excessive electrical noise
to reduce the potential for communication errors. When shielded cabling is applied, proper bonding and termination
of the cable shield is required as per Johnson Controls guidelines. Plenum and riser ratings for communication cables
must be considered per application and local code requirements.
The use of any other grade of cable other than that
specified above can result in damage from electronic interference (EMI).
B. Maintain a distance more than 11-13/16 inches (30cm) between the communication cables (controller cable and
communication cables) and power source of the indoor units. If this is not done, the unit can malfunction due to
electromagnetic interference (EMI) generated by incoming power cables from the power source.
C. In systems where multiple indoor units are in synchronized control under a single controller, assign the refrigerant
cycle numbers and address for indoor units without duplication.
D. Refer to the "Unit No. Setting" of each Installation and Maintenance manual provided with indoor unit when
performing electrical wiring work between the controller and indoor units for setting the refrigerant cycle number and
the indoor unit address.
E. No gap should exist between the controller cable and the cable access inlet of the controller box casing. If there is a
gap, cover and seal the gap with vinyl tape. Failure to insulate against the penetration of moisture and insects can
result in degraded performance and damage to the unit.
F. If case of operating with two controllers (Primary and Secondary), set the primary and secondary controllers by
selecting the appropriate function for those controllers. Refer to Section 6. After this is set, turn OFF the power
supply to all indoor units connected to these controllers.
Back
Test Run Setting: 2 units
MODE : COOL
SPEED :
ON Rtrn
Sel. Adj.
5. Checking Procedures
1. Turn ON the power supply
for all the indoor units.
2. For models equipped with an
auto-address function, wait
approximately 3 minutes.
This function is being
automatically performed.
(There is a built-in 5 minute
requirement according to the
setting condition.)
Next, select using language
from the “Menu”.
Refer to the “Language
Setting” of the CIW01’s
operation manual for details.
3. Press and hold “Menu”
and “Back/Help”
simultaneously for at least
3 seconds. The Test Run
menu is displayed.
4. Select “Test Run” by
pressing “ ” and press
“OK”. The Test Run screen
is displayed.
●The Test Run screen is displayed.
6. Canceling “Test Run” Mode
When “00” is displayed,
the auto-address function
may be activated.
Cancel “Test Run” mode
and set it again.
* The total number of the indoor units connected is indicated
on the LCD (liquid crystal display).
* If a number other than a correct number is displayed,
the auto-address function does not work properly due to
improper wiring or electrical interference and so forth.
Turn OFF the power supply, check the following items and
perform the correct connection.
(Do not repeat turning ON and OFF within 10 seconds.)
1. The power supply to the indoor unit was not turned ON or
there is an incorrect wiring issue.
2. There was an incorrect connection issue regarding
interconnecting cables between indoor units or of the
controller cable.
3. There was an incorrect setting of the rotary switch and
DIP switches (the settings were overlapped), on the
printed circuit board (PCB) for the indoor unit.
5. Test Run
●Press “ ” (On/Off) again to activate Test Run.
●Press “ ” and set each item.
NOTE
1. When the unit is not in operation, press “Back/Help”.
2. When the unit is in operation, press “ ” (On/Off).
Use AWG 18 (0.82mm2) cable, (18-Gauge, 2-Conductor, Stranded Copper).

P5415484 9
7. Select “Yes” and press “OK”.
The Test Run menu is displayed after the setting is
confirmed.
If “No” is selected, the screen returns to "4".
• Setting from Test Run Menu
OK
Function Selection:01-03
b1 00 01
31
b2 00
b3 00
b4 00
b5 00
Item Setting
/
Adj. Entr Rtrn
Sel. Back
Function Selection:01-03
01
31
b1 00
b2 00
b3 01
b4 00
b5 00
Item Setting
/
Adj. Entr Rtrn
Sel. Back
OK Back
OK
Input/Output:01-03
Input 1 00 CN3 1-2
Input 2 00 CN3 2-3
Output1 00 CN7 1-2
Output2 00 CN7 1-3
Output3 00 CN8 1-2
Item Setting Connector
Adj. Entr Rtrn
Sel. Back
OK
Input/Output:01-03
Input 1 00 CN3 1-2
Input 2 00 CN3 2-3
Output1 01 CN7 1-2
Output2 00 CN7 1-3
Output3 00 CN8 1-2
Item Setting Connector
Adj. Entr Rtrn
Sel. Back
1. Press and hold “Menu” and “Back/Help” simultaneously
for at least 3 seconds during the normal mode (when unit
is not operated). The Test Run menu is displayed.
2. Select “Function Selection” or “Input/Output” from the
Test Run menu and press “OK”.
OK
Test Run Menu
Elevating Grille Setting
Input/Output
Thermistor Selection
Function Selection 01
/
03
Test Run
Entr Rtrn
Sel. Back
OK
Function Selection
01-01
All
01-02
01-03
01-04
Entr RtrnSel. Back
3. Select the indoor unit by pressing “ ” and touch
“OK”.
(This screen is NOT displayed when the number of an
indoor unit connected with the controller is
"1". In this case, "4" is displayed.)
Function Selection
4. Press “ ” and select the item.
5. Press “ ” and change the setting.
Input/Output Setting
4. Press “ ” and select the item.
5. Press “ ” and change the setting.
OK
Confirm function
selection setting?
Function Selection:01-03
Yes No
Sel. Entr Rtrn
Back
6. Press “OK” so that the confirmation screen is displayed.
8. Press “Back/Help” on the Test Run menu to return to the
normal mode. (Figure for Function Selection)
To set other units, press “Back/Help” at "4" and "5" so that the screen returns to "3".
(If the number of an indoor unit connected with the controller is "1", the screen returns to "1".)
6. Function Selection and Input/Output Setting from the Controller

10 P5415484
●Table A: Optional Setting Items for Function Selection
No. Items Optional Function Individual
Setting
Setting
Condition Contents Setting
1b1
Cancellation of Heating
Temperature Compensation
due to Uneven Heat Load
○
00
01
02
03
04
Standard (Set Temp. +7oF (+4oC)) (*1)
Removal (Set Temp.)
Set Temp. +3oF (+2oC) (*2)
Set Temp. +5oF (+3oC)
Set Temp. +2oF (+1oC)
2b2
Circulator Function during
Heating Thermo-OFF ○00
01
Not Available
Available
3 b3 Not Prepared - - Not Used (Use as 00 setting conditions)
4 b4 Change of Filter Cleaning Time ○
00
01
02
03
04
Standard 1,200 hrs (Factory-Setting)
100 hrs
1,200 hrs
2,500 hrs
No Indication
5 b5 Fixing (Locking) Operation Mode ×00
01
Standard
Fixed (Locked)
6b6
Fixing (Locking) Setting Temperature
(*2) ×00
01
Standard
Fixed (Locked)
7b7
Fixing (Locking) Operation as
Exclusive Cooling Unit ×00
01
Standard
Fixed (Locked)
8 b8 Automatic COOL/HEAT Operation ×00
01
Not Available
Available
9 b9 Fixing (Locking) Fan Speed ×00
01
Standard
Fixed (Locked)
10 bA Not Prepared - - Not Used
11 bb Cooling Temperature Compensation
due to Uneven Heat Load ×
00
01
02
Standard (No Compensation)
Set Temp. –2oF (–1oC)
Set Temp. –3oF (–2oC)
12 bC Not Prepared - - Not Used (Use as 00 setting conditions)
13 bd Not Prepared - - Not Used (Use as 00 setting conditions)
14 bE Not Prepared - - Not Used (Use as 00 setting conditions)
15 C1 Not Prepared - - Not Used (Use as 00 setting conditions)
16 C2 Not Prepared - - Not Used
17 C3 Not Prepared - - Not Used
18 C4 Not Prepared - - Not Used
19 C5
Hi Speed
(Except for Hi Speed during Heating
Thermo-OFF)
○
00
01
02
Not Available
Hi Speed 1 (*3)
Hi Speed 2
20 C6 Hi Speed during Heating Thermo-
OFF ○00
01
Not Available
Available
21 C7
Canceling of Enforced 3 Minutes
Minimum Operation Time of
Compressor
○00
01
Standard
Cancelation
22 C8 Thermistor of Wired Controller ○
00
01
02
00
01
02
< If Wired Controller Thermistor is Selected ˃
Not Available
Control by Thermistor of Wired Controller
Control by Average Value of Indoor Suction
Thermistor and Thermistor of Wired Controller
< If Remote Sensor is Selected ˃
Control by Average Value of Indoor Suction
Thermistor and Remote Sensor
Control by Remote Sensor
Same as "00"
23 C9 Not Prepared - - Not Used
24 CA Not Prepared - - Not Used
25 Cb Selection of Forced Stoppage Logic ○00
01
Forced Stoppage Input: A Contact
Forced Stoppage Input: B Contact
26 CC Not Prepared - - Not Used (Use as 00 setting conditions)
27 Cd Not Prepared - - Not Used (Use as 00 setting conditions)
28 CE Not Prepared - - Not Used (Use as 00 setting conditions)

P5415484 11
No. Items Optional Function Individual
Setting
Setting
Condition Contents Setting
29 CF Change of Louver Swing Angle ○
00
01
02
< Wall Mounted Type >
Standard (7-Step Operation)
(5 steps for cooling / dry mode)
Cold Draft Prevention
(5 Steps: lower 2 steps cut off)
(Heating and fan only)
Not Used
00
01
02
< Other than Wall Mounted Type with louvers >
Standard (7-Step Operation)
Cold Draft Prevention
(5 Steps: lower 2 steps cut off)
High Ceiling (higher 2 steps cut off)
30 d1 Power Supply ON/OFF 1 ○00
01
Not Available
Available
31 d2 Not Prepared - - Not Used
32 d3 Power Supply ON/OFF 2 ○00
01
Not Available
Available
33 d4 Prevention for Cooling Discharge Air
Temp. Decrease (*4) ○00
01
Not Available
Available
34 d5 Prevention for Heating Discharge Air
Temp. Decrease ○00
01
Not Available
Available
35 d6 Not Prepared - - Not Used (Use as 00 setting conditions)
36 d7 Not Prepared - - Not Used
37 E1 Not Prepared - - Not Used (Use as 00 setting conditions)
38 E2 Not Prepared - - Not Used (Use as 00 setting conditions)
39 E3 Not Prepared - - Not Used (Use as 00 setting conditions)
40 E4 Not Prepared - - Not Used (Use as 00 setting conditions)
41 E5 Not Prepared - - Not Used (Use as 00 setting conditions)
42 E6 Indoor Fan Operation Time After
Cooling Operation Stoppage ○
00
01
02
Not Available
60 min.
120 min.
43 E7 Not Prepared - - Not Used (Use as 00 setting conditions)
44 E8 Fan Operation Control during
Heating Thermo-OFF ○00
01
Not Available (LOW)
SLOW
45 E9 Not Prepared - - Not Used (Use as 00 setting conditions)
46 EA Not Prepared - - Not Used (Use as 00 setting conditions)
47 Eb Fan Operation Control during
Cooling Thermo-OFF ○
00
01
02
Not Available
LOW
SLOW
48 EC Forced Thermo-ON Stoppage during
Cooling ○00
01
Not Available
Available
49 Ed Not Prepared - - Not Used (Use as 00 setting conditions)
50 EE Automatic Fan Speed Control ○00
01
Not Available
Available
51 EF Automatic Fan Speed Control
(High 2) ○00
01
Not Available
Available
52 F0 Not Prepared - - Not Used
53 F1 Automatic OFF Timer Setting
* Do not set the functions “0C”~“0F”
when 2 (two) wired controllers are
used in the same controller group.
×
00
01
02
•
•
23
24
0A
0B
0C
0D
0E
0F
No Function
OFF Timer by 1 hr
OFF Timer by 2 hrs
•
•
OFF Timer by 23 hrs
OFF Timer by 24 hrs
OFF Timer by 30 min.
OFF Timer by 90 min.
OFF Timer by 40 min.
OFF Timer by 45 min.
OFF Timer by 50 min.
OFF Timer by 55 min.
}
Do not set them when
two wired controllers
are used.

12 P5415484
No. Items Optional Function Individual
Setting
Setting
Condition Contents Setting
54 F2 Wired Controller Primary-Secondary
Setting ×00
01
Primary
Secondary
55 F3 Automatic Reset of Setting
Temperature (*5) ×00
01
Not Available
Available
56 F4 Automatic Reset Time ×
00
01
02
03
30 min. (Factory-Setting)
15 min.
60 min.
90 min.
57 F5 Automatic Reset Temperature
for Cooling (*6) ×
66 (19)
68 (20)
70 (21)
72 (22)
74 (23)
76 (24)
77 (25)
78 (26)
80 (27)
82 (28)
84 (29)
86 (30)
66oF (19oC)
68oF (20oC)
70oF (21oC)
72oF (22oC)
74oF (23oC)
76oF (24oC)
77oF (25oC) (Factory-Setting)
78oF (26oC)
80oF (27oC)
82oF (28oC)
84oF (29oC)
86oF (30oC)
58 F6 Automatic Reset Temperature
for Heating (*7) ×
62 (17)
64 (18)
66 (19)
68 (20)
70 (21)
72 (22)
74 (23)
76 (24)
77 (25)
78 (26)
80 (27)
82 (28)
84 (29)
86 (30)
62oF (17oC)
64oF (18oC)
66oF (19oC)
68oF (20oC)
70oF (21oC) (Factory-Setting)
72oF (22oC)
74oF (23oC)
76oF (24oC)
77oF (25oC)
78oF (26oC)
80oF (27oC)
82oF (28oC)
84oF (29oC)
86oF (30oC)
59 F7
Operation Stoppage Prevention by
Wired Controller Operational Error
(*8) ×00
01
Not Available
Available
60 F8 Lock Function for Operation Mode
Selection ×00
01
Not Available
Available (Factory-Setting)
61 F9 Lock Function for Temperature
Setting ×00
01
Not Available
Available (Factory-Setting)
62 FA Lock Function for Fan Speed
Selection ×00
01
Not Available
Available (Factory-Setting)
63 Fb Lock Function for Swing Louver
Operation ×00
01
Not Available
Available (Factory-Setting)
64 FC Cooling Lower Limit for Setting
Temperature (*6) ×
00
01
02
03
04
05
06
07
08
09
10
66oF (19oC)
68oF (20oC)
70oF (21oC)
72oF (22oC)
74oF (23oC)
76oF (24oC)
77oF (25oC)
78oF (26oC)
80oF (27oC)
82oF (28oC)
84oF (29oC)

P5415484 13
No. Items Optional Function Individual
Setting
Setting
Condition Contents Setting
65 Fd Heating Upper Limit for Setting
Temperature (*7) ×
00
01
02
03
04
05
06
07
08
09
10
11
12
86oF (30oC)
84oF (29oC)
82oF (28oC)
80oF (27oC)
78oF (26oC)
77oF (25oC)
76oF (24oC)
74oF (23oC)
72oF (22oC)
70oF (21oC)
68oF (20oC)
66oF (19oC)
64oF (18oC)
66 FE Not Prepared - - Not Used (Use as 00 setting conditions)
67 FF Not Prepared - - Not Used (Use as 00 setting conditions)
68 H1 Not Prepared - - Not Used (Use as 00 setting conditions)
69 H2 Indication of Hot Start ×00
01
Indication
No Indication
70 H3 Not Prepared - - Not Used (Use as 00 setting conditions)
71 H4 Not Prepared - - Not Used (Use as 00 setting conditions)
72 J1 Not Prepared - - Not Used (Use as 00 setting conditions)
73 J2 Not Prepared - - Not Used
74 J3 Run Indicator Color ×00
01
Green
Red
75 J4 Wired Controller Run/Stop
Prohibit by Central Controller (*8) ×
00
01
02
No Setting (Factory Default)
Wired Controller Run/Stop Operation Prohibited
Wired Controller Run Operation Prohibited
76 J5 Not Prepared - - Not Used (Use as 00 setting conditions)
77 J6 Not Prepared - - Not Used (Use as 00 setting conditions)
78 J7 Not Prepared - - Not Used (Use as 00 setting conditions)
79 J8 Eco-operation (*9) ×00
01
Not Available
Available
80 J9 Not Prepared - - Not Used (Use as 00 setting conditions)
81 JA Not Prepared - - Not Used (Use as 00 setting conditions)
82 Jb Not Prepared - - Not Used (Use as 00 setting conditions)
83 JC Calibration for Thermistor of Wired
Controller ×
00
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
0oF (-0oC)
-1oF (-0.5oC)
-2oF (-1.0oC)
-3oF (-1.5oC)
-3oF (-2.0oC)
-4oF (-2.5oC)
-5oF (-3.0oC)
-6oF (-3.5oC)
+1oF (+0.5oC)
+2oF (+1.0oC)
+3oF (+1.5oC)
+3oF (+2.0oC)
+4oF (+2.5oC)
+5oF (+3.0oC)
+6oF (+3.5oC)
0oF (-0oC)
84 K1 Not Prepared - - Not Used (Use as 00 setting conditions)
85 K2 Not Prepared - - Not Used (Use as 00 setting conditions)
86 K3 Not Prepared - - Not Used (Use as 00 setting conditions)
87 K4 Not Prepared - - Not Used (Use as 00 setting conditions)
88 K5 Motion Sensor Detection Level ○
00
01
02
Standard
High
Low

14 P5415484
No. Items Optional Function Individual
Setting
Setting
Condition Contents Setting
89 K6
Operation Setting during
Thermistor of Wired Controller
or Remote Sensor
○
00
01
02
03
ALL
COOL/DRY
HEAT
ALL
90 K7 Radiation Temperature Sensor
Calibration ○
00
01
02
03
Normal
Upper
Lower
Normal
91 K8
Control of Dew Condensation
Prevention
(Only for Mini Cassette Type) (*10)
○00
01
Not Available
Available
92 K9 Not Prepared - - Not Used (Use as 00 setting conditions)
93 KA Not Prepared - - Not Used (Use as 00 setting conditions)
94 L1 Setting Position of Motion Sensor ○
00
01
02
03
A
B
-
D
95 L2 Not Prepared - - Not Used (Use as 00 setting conditions)
96 L3
Louver Setting during Energy-Saving
Forced Thermo-OFF
(Only for Mini Cassette Type) (*11)
○
00
01
02
03
Receive Air: Low (Standard)
Receive Air: Medium
Receive Air: High
Not Available
97 L4 Fan Speed during Energy-Saving
Forced Thermo-OFF ○00
01
Not Available (Standard)
Available
98 L5 Louver Swing Operation
Energy-Saving Forced Thermo-OFF ○00
01
Not Available
Available
99 L6 Not Prepared - - Not Used (Use as 00 setting conditions)
100 L7 Not Prepared - - Not Used (Use as 00 setting conditions)
101 L8 Not Prepared - - Not Used (Use as 00 setting conditions)
102 L9 Auxiliary Heater at Defrosting
Operation ○00
01
ON
OFF
103 LA Not Prepared - - Not Used (Use as 00 setting conditions)
104 Lb Not Prepared - - Not Used (Use as 00 setting conditions)
105 P1 Setting Temperature ×00
01
Every 1oF (0.5oC)
Every 2oF (1oC)
106 P2 Not Prepared - - Not Used (Use as 00 setting conditions)
107 P3 Thermistor Selection (*12) ×
00
01
02
03
Inlet Air Thermistor
Outlet Air Thermistor
Thermistor of Wired Controller
Remote Sensor
108 P4 Display of Thermistor Temperature
(*13) ×00
01
Not Available
Available
109 P5 Temperature while FAN Mode ×00
01
Show
Hide
110 P6 ECO Button Operation ×00
01
Available
Not Available
111 P7 Menu Screen Transition Prohibited ×00
01
Not Available
Available
112 P8 Not Prepared - - Not Used (Use as 00 setting conditions)
113 P9 Not Prepared - - Not Used (Use as 00 setting conditions)
114 PA Daylight Saving Time ×00
01
1 hr
2 hrs
115 Pb Not Prepared - - Not Used (Use as 00 setting conditions)
116 PC Not Prepared - - Not Used (Use as 00 setting conditions)
117 q1 Auxiliary Heater Setting ×00
01
Not Available
Available

P5415484 15
No. Items Optional Function Individual
Setting
Setting
Condition Contents Setting
118 q2 Auxiliary Heater ON Compensation ×
-3(-1.5)
-4(-2.5)
-5(-3.0)
-6(-3.5)
-7(-4.0)
-8(-4.5)
-9(-5.0)
-1(-0.5)
-2(-1.0)
-3oF (-1.5oC)
-4oF (-2.5oC)
-5oF (-3.0oC)
-6oF (-3.5oC)
-7oF (-4.0oC)
-8oF (-4.5oC)
-9oF (-5.0oC)
-1oF (-0.5oC)
-2oF (-1.0oC)
119 q3 Auxiliary Heater OFF Compensation ×0(0.0)
1(0.5)
0oF (0.0oC)
1oF (0.5oC)
120 q4 Ambient Temperature Restriction
Setpoint ×
-4 (-20.0)
2 (-17.0)
8 (-13.0)
14 (-10.0)
20 (- 7.0)
26 (- 3.0)
32 ( 0.0)
-13 (-25.0)
-8 (-22.0)
-4oF (-20.0oC)
2oF (-17.0oC)
8oF (-13.0oC)
14oF (-10.0oC)
20oF (- 7.0oC)
26oF (- 3.0oC)
32oF ( 0.0oC)
-13oF (-25.0oC)
-8oF (-22.0oC)
121 q5 Ambient Temperature Restriction
Setpoint Compensation ×
4(2.5)
5(3.0)
6(3.5)
1(0.5)
2(1.0)
3(1.5)
4oF (2.5oC)
5oF (3.0oC)
6oF (3.5oC)
1oF (0.5oC)
2oF (1.0oC)
3oF (1.5oC)
122 q6 Heater Select ×00
01
Duct Heater
Baseboard Heater
123 q7 Emergency Heat Control ×00
01
Available
Not Available
124 q8 Not Prepared - - Not Used (Use as 00 setting conditions)
125 q9 Not Prepared - - Not Used (Use as 00 setting conditions)
126 qA Not Prepared - - Not Used (Use as 00 setting conditions)
127 qb Mode with Setback ×
00
01
02
03
Not Available
COOL only
HEAT only
COOL HEAT
128 qC Temp. Difference during Setback
Operation ×
00
01
02
03
04
3°F (2.0°C)
5°F (3.0°C)
7°F (4.0°C)
9°F (5.0°C)
2°F (1.0°C)
129 qd Minimum Setback (Stop) Time ×
00
01
02
03
04
05
06
07
08
09
10
11
10 min.
20 min.
30 min.
40 min.
50 min.
60 min.
70 min.
80 min.
90 min.
100 min.
110 min.
120 min.
130 qE Setback Mode ×
00
01
02
03
Always
Input
Scheduling
Manual
131 qF Operation State after Terminating
Setback Operation ×
00
01
02
Stop
Run
State before Setback Operation
132 r1 Dual Setpoint ×00
01
Not Available
Available

16 P5415484
No. Items Optional Function Individual
Setting
Setting
Condition Contents Setting
133 r2 Cooling/Heating Changeover
Temperature ×
2(1.0)
3(1.5)
4(2.5)
5(3.0)
1(0.5)
2oF (1.0oC)
3oF (1.5oC)
4oF (2.5oC)
5oF (3.0oC)
1oF (0.5oC)
134 r3 Setback Temperature Compensation ×
4(2.5)
5(3.0)
6(3.5)
7(4.0)
8(4.5)
9(5.0)
10(5.5)
1(0.5)
2(1.0)
3(1.5)
4oF (2.5oC)
5oF (3.0oC)
6oF (3.5oC)
7oF (4.0oC)
8oF (4.5oC)
9oF (5.0oC)
10oF (5.5oC)
1oF (0.5oC)
2oF (1.0oC)
3oF (1.5oC)
135 r4 Not Prepared - - Not Used (Use as 00 setting conditions)
136 r5 Not Prepared - - Not Used (Use as 00 setting conditions)
137 r6 Not Prepared - - Not Used (Use as 00 setting conditions)
138 r7 Not Prepared - - Not Used (Use as 00 setting conditions)
139 r8 Not Prepared - - Not Used (Use as 00 setting conditions)
140 r9 Wired Controller Prohibit Function
while Setback Operation ×
00
01
02
Run/Stop both Available on Wired Controller
Run/Stop both Unavailable on Wired Controller
Run Unavailable/Stop Available on Wired
Controller
141 rA Not Prepared ×- Not Used (Use as 00 conditions)
142 rb Minimum Cool/Heat Time for
Auto Cool/Heat Operation ×
00
01
02
03
04
05
06
07
08
09
10
11
12
Not Available
10 min.
20 min.
30 min.
40 min.
50 min.
60 min.
70 min.
80 min.
90 min.
100 min.
110 min.
120 min.

P5415484 17
No. Items Optional Function Individual
Setting
Setting
Condition Contents Setting
143 rC
Threshold for Outdoor Temperature
for Heat Control in Auto Cool/Heat
Dual Setpoint ×
00
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
Not Available
68°F (20.0°C)
70°F (21.0°C)
72°F (22.0°C)
74°F (23.0°C)
75°F (24.0°C)
77°F (25.0°C)
78°F (26.0°C)
80°F (27.0°C)
82°F (28.0°C)
84°F (29.0°C)
86°F (30.0°C)
88°F (31.0°C)
90°F (32.0°C)
92°F (33.0°C)
94°F (34.0°C)
95°F (35.0°C)
96°F (36.0°C)
99°F (37.0°C)
100°F (38.0°C)
102°F (39.0°C)
104°F (40.0°C)
32°F ( 0.0°C)
34°F ( 1.0°C)
36°F ( 2.0°C)
38°F ( 3.0°C)
40°F ( 4.0°C)
41°F ( 5.0°C)
42°F ( 6.0°C)
44°F ( 7.0°C)
46°F ( 8.0°C)
48°F ( 9.0°C)
50°F (10.0°C)
52°F (11.0°C)
54°F (12.0°C)
56°F (13.0°C)
58°F (14.0°C)
59°F (15.0°C)
61°F (16.0°C)
62°F (17.0°C)
64°F (18.0°C)
66°F (19.0°C)

18 P5415484
No. Items Optional Function Individual
Setting
Setting
Condition Contents Setting
144 rd
Threshold for Outdoor Temperature
for Cool Control in Auto Cool/Heat
Dual Setpoint ×
00
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
Not Available
50°F ( 10.0°C)
52°F ( 11.0°C)
54°F ( 12.0°C)
56°F ( 13.0°C)
58°F ( 14.0°C)
59°F ( 15.0°C)
60°F ( 16.0°C)
62°F ( 17.0°C)
64°F ( 18.0°C)
66°F ( 19.0°C)
68°F ( 20.0°C)
70°F ( 21.0°C)
72°F ( 22.0°C)
74°F ( 23.0°C)
76°F ( 24.0°C)
77°F ( 25.0°C)
78°F ( 26.0°C)
80°F ( 27.0°C)
82°F ( 28.0°C)
84°F ( 29.0°C)
86°F ( 30.0°C)
88°F ( 31.0°C)
90°F ( 32.0°C)
92°F ( 33.0°C)
94°F ( 34.0°C)
95°F ( 35.0°C)
96°F ( 36.0°C)
98°F ( 37.0°C)
100°F ( 38.0°C)
102°F ( 39.0°C)
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
104°F ( 40.0°C)
-4°F (-20.0°C)
-2°F (-19.0°C)
0°F (-18.0°C)
2°F (-17.0°C)
4°F (-16.0°C)
5°F (-15.0°C)
6°F (-14.0°C)
8°F (-13.0°C)
10°F (-12.0°C)
12°F (-11.0°C)
14°F (-10.0°C)
16°F (- 9.0°C)
18°F (- 8.0°C)
20°F (- 7.0°C)
22°F (- 6.0°C)
23°F (- 5.0°C)
24°F (- 4.0°C)
26°F (- 3.0°C)
28°F (- 2.0°C)
30°F (- 1.0°C)
32°F ( 0.0°C)
34°F ( 1.0°C)
36°F ( 2.0°C)
38°F ( 3.0°C)
40°F ( 4.0°C)
41°F ( 5.0°C)
42°F ( 6.0°C)
44°F ( 7.0°C)
46°F ( 8.0°C)
48°F ( 9.0°C)

P5415484 19
No. Items Optional Function Individual
Setting
Setting
Condition Contents Setting
145 rE Setback Activating Temp.
for Heat Mode ×
00
01
02
03
04
05
06
07
08
09
59°F (15.0°C)
60°F (16.0°C)
62°F (17.0°C)
64°F (18.0°C)
66°F (19.0°C)
50°F (10.0°C)
52°F (11.0°C)
54°F (12.0°C)
56°F (13.0°C)
58°F (14.0°C)
146 rF Setback Activating Temp.
for Cool Mode ×
00
01
02
03
04
05
06
07
08
09
10
78°F (26.0°C)
80°F (27.0°C)
82°F (28.0°C)
84°F (29.0°C)
86°F (30.0°C)
88°F (31.0°C)
90°F (32.0°C)
92°F (33.0°C)
94°F (34.0°C)
95°F (35.0°C)
77°F (25.0°C)
147 S1 Not Prepared - - Not Used (Use as 00 setting conditions)
148 S2 Not Prepared - - Not Used (Use as 00 setting conditions)
149 S3 Not Prepared - - Not Used (Use as 00 setting conditions)
150 S4 Not Prepared - - Not Used (Use as 00 setting conditions)
151 S5 Not Prepared - - Not Used (Use as 00 setting conditions)
152 S6 Not Prepared - - Not Used (Use as 00 setting conditions)
153 S7 Not Prepared - - Not Used (Use as 00 setting conditions)
154 S8 Not Prepared - - Not Used (Use as 00 setting conditions)

20 P5415484
●Table B: Input and Output Number Display and Connectors
●Table C: Input and Output Settings and Display Codes
Input Number Display Port Factory Setting Setting
Input/Output Indication Setting Item Indication
Input 1 CN3 1-2 Remote ON/OFF 1 (Level) 03
Input 2 CN3 2-3 Prohibiting Remote Control after Manual Stoppage 06
Output 1 CN7 1-2 Operation 01
Output 2 CN7 1-3 Alarm 02
Output 3 CN8 1-2 Thermo-ON for Heating 06
Code Indicated Input Output
00 Not set Not set
01 Room Thermostat (for Cooling) Operation
02 Room Thermostat (for Heating) Alarm
03 Remote ON/OFF 1 (Level) Cooling
04 Remote ON/OFF 2 (Operation) Thermo-ON for Cooling
05 Remote ON/OFF 2 (Stoppage) Heating
06 Forbidding Remote Control after Manual Stoppage Thermo-ON for Heating
07 Remote Cooling / Heating Change Not set
09 Setback Operation
NOTES:
* Change the optional setting after waiting at least 3 minutes elapsed time after start-up.
* Do not set the elevating grille for the total heat exchanger.
* Record the setting conditions for each input and output in the “Setting” column of the table.
NOTES:
1. Power ON, wait 3 minutes and then change the optional setting.
2. When changing the “CF” setting (change of louver swing angle), restore the power supply or allow the louver to
make one complete swing fully in the auto-swing mode to apply the optional setting.
3. The optional settings may be different according to the indoor and outdoor unit models.
Check to ensure that the unit has the optional setting.
4. Record the setting conditions for each optional setting in the “Setting” column of the table below.
5. The above optional functions marked with an “X” at the individual setting can change the condition only when “All
Rooms” is set.
(*1): Temperatures for Floor Exposed Type & Floor Concealed Types are not offset. Setting temperature are used as
they are.
(*2): The “02”, “03”, “04” settings may not be available depending on the type of indoor unit.
When connecting multiple indoor units, do separate settings.
(*3): If Duct type models, 00: Increasing fan speed 1 (standard), 01: Increasing fan speed 2 (high static pressure),
02: Standard (low static pressure).
(*4): Since it depends on the model, please refer to the Service Manual of each model.
(*5): If the set temperature is changed and kept within the set time at “F4”, the temperature is automatically changed
to “F5” and “F6”. (If the set temperature is out of range at “F5” and “F6”, it is applied within the upper and lower
limits for the set temperature.)
(*6): Applicable to the fan, cooling and dry operation modes.
(*7): Applicable to the heating operation mode.
(*8): If the operation on the wired controller is locked by this function (J4), Run/Stop state cannot be changed even in
the emergency. Make sure that this lock will NOT cause any inconvenience.
(*9): When the unit is restarted by the controller, the temperature automatically changes to the setting temperature of
“F5” or “F6”.
(*10): Available only for 4-Way Cassette Compact Type, 2-Way Cassette Type, 1-Way Cassette Type.
(*11): Available only for 4-Way Cassette Type, 4-Way Cassette Compact Type, 2-Way Cassette Type, 1-Way Cassette
Type, Ceiling Type.
(*12): Turning “P4” to “01” can select thermistor (sensor) that can show temperature setpoint.
(*13): Function “01” can show up sensor temperature selected by “P3”.
