YOTRIO MS Two Person Swing User manual
Warranty Coverage Requirements :
1. Copy of your Original Store Receipt.
2. Pictures of the damaged parts.
3. You must know the name of your product and any corresponding item
numbers as well as the name of the store where you purchased the item.
4. Please gather all of this information BEFORE you call customer service.
DO NOT RETURN TO RETAILER
IF YOU HAVE ANY QUESTIONS OR CONCERNS
PLEASE VISIT OUR WEBSITE
AT:
www.yotrioint.com
www.yotrioint.com
www.yotrioint.com
www.yotrioint.com
OR TOLL FREE
AT:
1-866-905-4107
1-866-905-4107
1-866-905-4107
1-866-905-4107
MONDAY-FRIDAY 8:30 AM TO 5:00 PM PACIFIC STANDARD TIME / 11:30
AM TO 8:00PM EASTERN STANDARD TIME
YOTRIO
YOTRIO
YOTRIO
YOTRIO CUSTOMER
CUSTOMER
CUSTOMER
CUSTOMER CARE
CARE
CARE
CARE
CAREANDMAINTENANCE
Beforeusing,wipetheproductcompletelywithasoft,drycloth.
Spot‐cleanCushionsandslingsusingasponge,mildsoapandwater.Rinsethoroughlywithcleanwater.To
preventmildew,allowtoairdrycompletelybeforeusingorstoring.
Nevermachinewashortumbledrycushions,slingsorumbrellacoversasthiswillresultinshrinkageor
damage.
Rinsewickerpatiofurniturewithahoseorpressurewasher.Ifthewickerisreallydirty,youcanusemild
soapwithwater.Allowtodrycompletelybeforeusingorstoring.
Tocleanyourpatioumbrella,useasoftbrushandmildsoapandwater.Allowtodrycompletelybefore
storing.
Avoidplacinghotobjectsdirectlyontotabletopsurfacewithoutaheatprotector.
Alwaysstoreand/orcoveryourpatiofurnitureinacooldryplacewhennotinusedandawayfromdirect
sunlight.
Whenstoring,neverwrapcushionsinplastic.Plasticdoesn'tallowthecushiontobreatheandcancauseit
tomildewifthere'sanymoisturepresent.
Alwaysplaceyourpatiofurnitureawayfromfire,extremeheat,freezingconditionsandinclementweather
suchasrain,hail,sleet,snoworwind.
Neverusebleachorstrongsolventstocleanasthiswillcausedamagetobothfabricandmetalfinishes.
Donotallowwatertobuildupinframesasthiswillcausecorrosionanddamage.
ONE‐YEARFRAMEANDONE‐YEARFABRIC/WICKER/FINISHETC.LIMITEDWARRANTY
Youmustretaintheoriginalreceipttoobtainwarrantyservice.
Framesarewarrantedagainstdefectsinmaterialsandworkmanshipforaperiodofoneyearfromthedate
oforiginalpurchase.
Thiswarrantydoesnotcoverdamagetoframesorweldsduetocommercialuse,improperassembly,acts
ofnature,fire,freezingandabusiveuse.
Rust,corrosion,and/orruststainsarenotcoveredbywarranty.
Purchasedpartsarenotcoveredunderthiswarranty.
Fabriconcushions,slingsandumbrellaiswarrantedoneyearagainstseparationattheseams.
Fading,mildew,andcolordiscolorationduetoexposuretotheelements,chemicalsandspillsarenot
covered.
ThePowdercoatand/orpaintarewarrantedoneyearagainstblistering,peeling,orcrackling.
Fadingduetoexposuretoelements,chemicalsandspillsisnotcovered.Scratchesandchipsduetonormal
wearandusearenotcovered.
WickerWeavearewarrantedoneyearagainstbreakage,separation,ortearing.
Fadingordiscolorationduetoexposurefromchemicals,spillsand/ortheelementsisnotcovered.
Warrantycoversfreereplacementofitemwithinoneyearofpurchase.Aftertheoneyearitremainsthe
customer'sresponsibilityforfreightandpackagingchargestoandfromourservicecenter.
Wedonotcompensatetheindividualoranyoutsidepartyforassemblingordisassemblingtheproduct.
Anyreplacementofwarranteditemswillbeintheoriginalstyleandcolor,orsimilarstyleandcolorifthe
originalisun‐availableorhasbeendiscontinued.
Questions,problems,missingparts?Beforereturningtoyourretailer,callourcustomerservicedepartment
at(866)905‐4107,8:30a.m.–5:00p.m.PST/11:30a.m.‐8:00p.m.,EST,Monday‐Friday.
Questions, problems, missing parts? Before returning to your retailer, call our customer service department
at (866) 905 - 4107, 8:30 a.m. - 5:00 p.m. PST/11:30 a.m. - 8:00 p.m., EST, Monday - Friday.
4
4
14
FF
2
1
AA
BB
CC
EE
A1
B2
C2
D1
E4
F1
G
H
2
I
2
J1
K2
4
DD
GG
1
2
HH
II
JJ
KK
LL
MM
4
34
16
4
18
16
PART
NO. DESCRIPTION QTY
Seat&back
Top bar
Front leg
Rear leg
Leg connector
Foot cap
Arm
Short hanging bar
Long hanging bar
Canopy
Knob
M8x40 bolt
M6x70 bolt
M6x50 bolt
M8 washer
M6 washer
M6 nut
M8 Bolt Cover
M6 Bolt cover 1
M6 Bolt cover 2
Plastic washer
Hook
Allen wrench
Wrench
Walmart Assembly Instruction
MS Two Person Swing
Stock# MS17-301-004-01 / MS17-301-004-03 (GSS00240A)
NOTE: The M8 bolt cover (GG), M6 bolt cover 1 (HH), M6 bolt cover 2 (II)
in step 1 to 6 are only for reference. Please attach them to bolts in step 7.
Questions, problems, missing parts? Before returning to your retailer, call our customer service department
at (866) 905 - 4107, 8:30 a.m. - 5:00 p.m. PST/11:30 a.m. - 8:00 p.m., EST, Monday - Friday.
C
D
C
HH
BB
EE FF
II
2X
EE
Step 1: Insert the front leg (B) and the rear leg (C) into the
top bar (A), connet with the M6 x 50 bolt (CC), the M6
washer (EE) and the M6 nut (FF) as shown in the picture.
Step 2: Attached the leg connector (D) to the rear leg (C),
using the M6 x 70 bolt (BB), the M6 washer (EE) and the
M6 nut (FF) as shown in the picture. Do not tighten completely.
Walmart Assembly Instruction
MS Two Person Swing
Stock# MS17-301-004-01 / MS17-301-004-03 (GSS00240A)
NOTE: The M8 bolt cover (GG), M6 bolt cover 1 (HH), M6 bolt cover 2 (II)
in step 1 to 6 are only for reference. Please attach them to bolts in step 7.
A
C
E
B
B
C
E
E
E
CC
HH
EE FF
II
2X
EE
Do not tighten completely.
Insert the foot cap (E) into the leg (B&C).
C
I
B
B
C
I
HH
CC
EE FF
II
HH
CC
EE
FF
II
2X
2X
EE
EE
Step 3: Connect the front leg (B) and rear leg (C)
with the long hanging bar (I), using the M6 x 50
bolt (CC), the M6 washer (EE) and the M6 nut (FF)
as shown in the picture. Do not tighten completely.
F
G
G
CC
HH
EE JJ
GG
AA DD
GG AA DD
2X
2X
G
GF
Step 4: Attach the arm (G) to the back of seat & back (F),
using the M6 x 50 bolt (CC), the M6 washer (EE)
and the plastic washer (JJ). Attach the arm (G) to
the seat, using the M8 x 40 bolt (AA) and the M8
washer (DD). Do not tighten completely.
Questions, problems, missing parts? Before returning to your retailer, call our customer service department
at (866) 905 - 4107, 8:30 a.m. - 5:00 p.m. PST/11:30 a.m. - 8:00 p.m., EST, Monday - Friday.
Walmart Assembly Instruction
MS Two Person Swing
Stock# MS17-301-004-01 / MS17-301-004-03 (GSS00240A)
NOTE: The M8 bolt cover (GG), M6 bolt cover 1 (HH), M6 bolt cover 2 (II)
in step 1 to 6 are only for reference. Please attach them to bolts in step 7.
Questions, problems, missing parts? Before returning to your retailer, call our customer service department
at (866) 905 - 4107, 8:30 a.m. - 5:00 p.m. PST/11:30 a.m. - 8:00 p.m., EST, Monday - Friday.

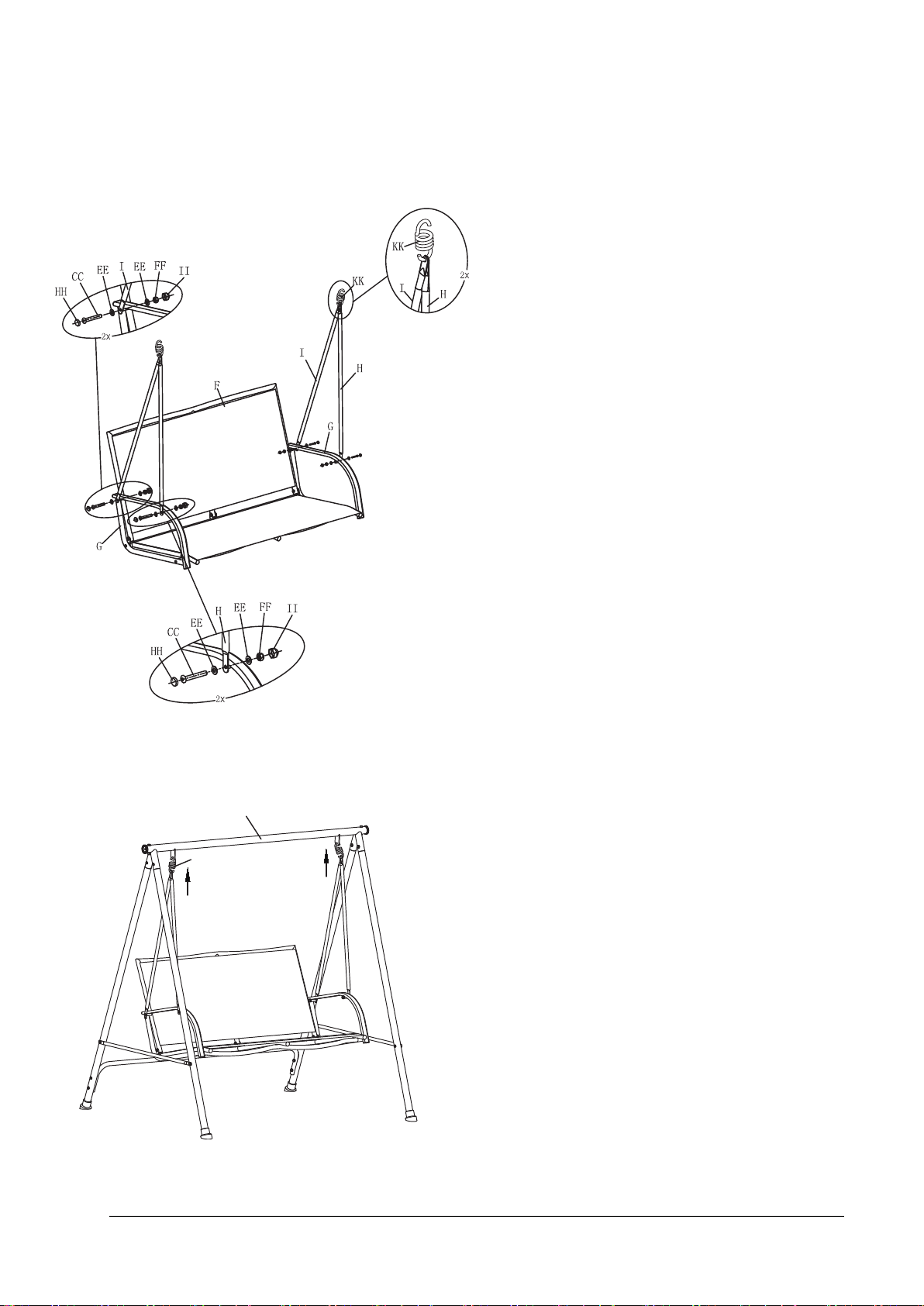

Step 5: Attach the long hanging bar (I) and the
short hanging bar (H) to the arm (G), using the M6 x 50
bolt (CC), the M6 washer (EE) and the M6 nut (FF).
Do not tighten completely.
Bring the holes in the free ends of hanging bars (H & I)
together and thread them onto the hook (KK).
Step 6: Hang the hook (KK) in the holes on the top bar (A).
Walmart Assembly Instruction
MS Two Person Swing
Stock# MS17-301-004-01 / MS17-301-004-03 (GSS00240A)
NOTE: The M8 bolt cover (GG), M6 bolt cover 1 (HH), M6 bolt cover 2 (II)
in step 1 to 6 are only for reference. Please attach them to bolts in step 7.
KK
A
Questions, problems, missing parts? Before returning to your retailer, call our customer service department
at (866) 905 - 4107, 8:30 a.m. - 5:00 p.m. PST/11:30 a.m. - 8:00 p.m., EST, Monday - Friday.

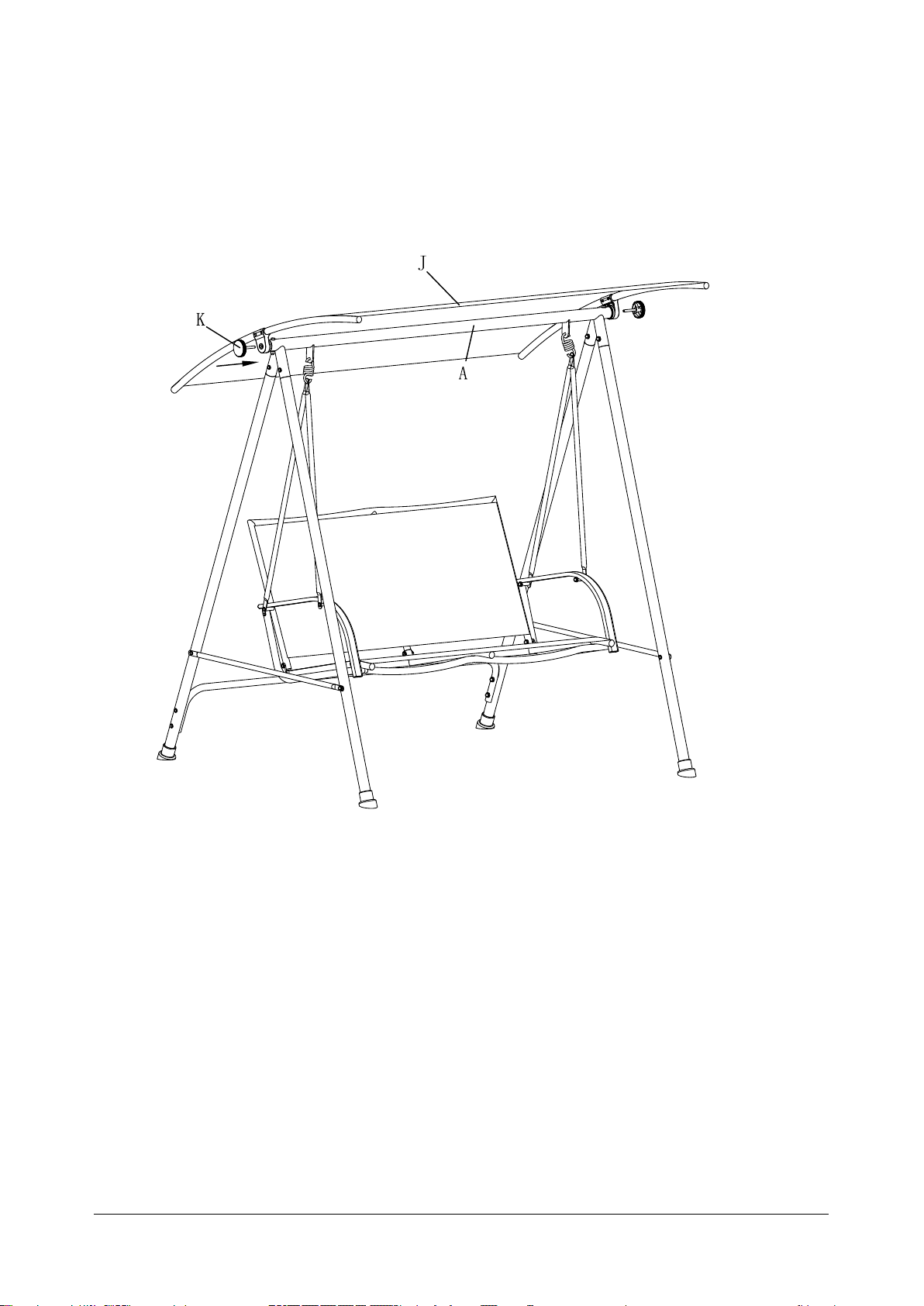

Step 7: Attach the canopy (J) to the top bar (A) using the knob (K), turning the knob (K) clockwise tightly.
Ensure all connections are secure before use.
Attach the M8 bolt cover (GG), M6 bolt cover 1 (HH), M6 bolt cover 2 (II) to all bolts as shown in previous
pictures.
Walmart Assembly Instruction
MS Two Person Swing
Stock# MS17-301-004-01 / MS17-301-004-03 (GSS00240A)
NOTE: The M8 bolt cover (GG), M6 bolt cover 1 (HH), M6 bolt cover 2 (II)
in step 1 to 6 are only for reference. Please attach them to bolts in step 7.
