Young Electric Fellow User manual

Parts
1
2
x
x
x
3
6
x
x
x
1
0
1
0
8
4
5
7
1
0
1
0
9
1
0
1
0
10
1
0
1
0
11
1
0
1
0
15
1
0
1
0
18
12
1
0
13
1
0
14
1
0
16
1
0
17
1
0
19
1
0
20
1
0
21
1
0

Parts List
Part# Description Qty
1 Rotating Group 1
2 Bottom Fixing Bracket 1
3 φ16 Bent Pin 1
4 M16x85 Hexagon Boltt 1
5 M16 Lock Nut 1
6 φ3.8 Pin 2
7 M10 Short Outer Hexagon Bolt 1
8 Beam Assembly 2
9 Left Wheel Holder 2
10 Right Wheel Holder 2
11 Reinforcement Plate 2
12 M8 Carriage Bolt 4
13 8 Flat Pad 4
14 M8 Lock Nut 4
15 Middle Support Tube 2
16 M10x60 Bolt 2
17 M10 Lock Nut 2
18 Connecting Block 2
19 M16 Shockproof Bolt 1
Part# Description Qty
20 φ16 Spring Washer 1
21 φ16 Flat Washer 1
Requied Tools（Not included）
Name Imperial Metric
Monkey Wrench 12’’ 300mm
Open Wrench 7/16’’ 11mm
Open Wrench 11/16’’ 17mm
Open Wrench 15/16’’ 24mm

STEP1
Align the Bottom Fixing Bracket (2) with the hol e of the Rotating
Group (1), insert the M16*85 Outer Hexagon Bolt (4), and then
screw on the M16 Lock Nut (5). Insert φ16 Bent Pin (3) and φ3.8
Pin (6) at the same time, and use M10 Short Outer Hexagon Bolt
(7) to screw into the bottom as shown in the figure to eliminate
the gap between Bottom Fixing Bracket (2) and Rotating Group
(1).
Note: Do not overtighten the bolts to prevent Bottom Fixing
Bracket (2) and Rotating Group (1) components from rotating
easily.

STEP2
Insert the Left and Right Wheel Holder (9, 10)into the Beam
Assembly (8) respectively, then center them appropriately to fit
the distance between bike tire.
STEP3
Insert the component in step 2 into the component in step 1, and
fasten them with the Reinforcement Plate (11), put the 8 Flat
Plate (13)under the plate, then align the holes, insert the M8
Carriage Bolt (12)and screw it into the M8 locknut (14)tightly
for fixing, as shown in the figure.
Note: Two hand wheels are on the same side.

STEP4
Insert Middle Support Tube (15)into the base of Bottom Fixing
Bracket (2), then fix them with M10x60 Bolt (16)and M10 Lock
Nut (17).
STEP5
Install the adjustable Connecting Block (18)to the Middle
Support Tube (15), then tighten the knob from the Connecting
Block (18).
50Nm

STEP6
Align the holes of the folding tube with the holes on the vehicle’s
2’’ hitch receiver, then connect the two parts as shown below.
Place an M16 Shockproof Bolt (19), through the φ16 Spring
Washer (20), φ16 Flat Washer (21)and the align the holes.
Secure the bolt in place with the Lock (22), making sure to place
the pin through the holes on the bolt.
The diameter of lock beam
should be less than 7mm.
The lock is not included.
2"

Folding Steps
·
∶
∴ ∷

Bike Installation Instructions

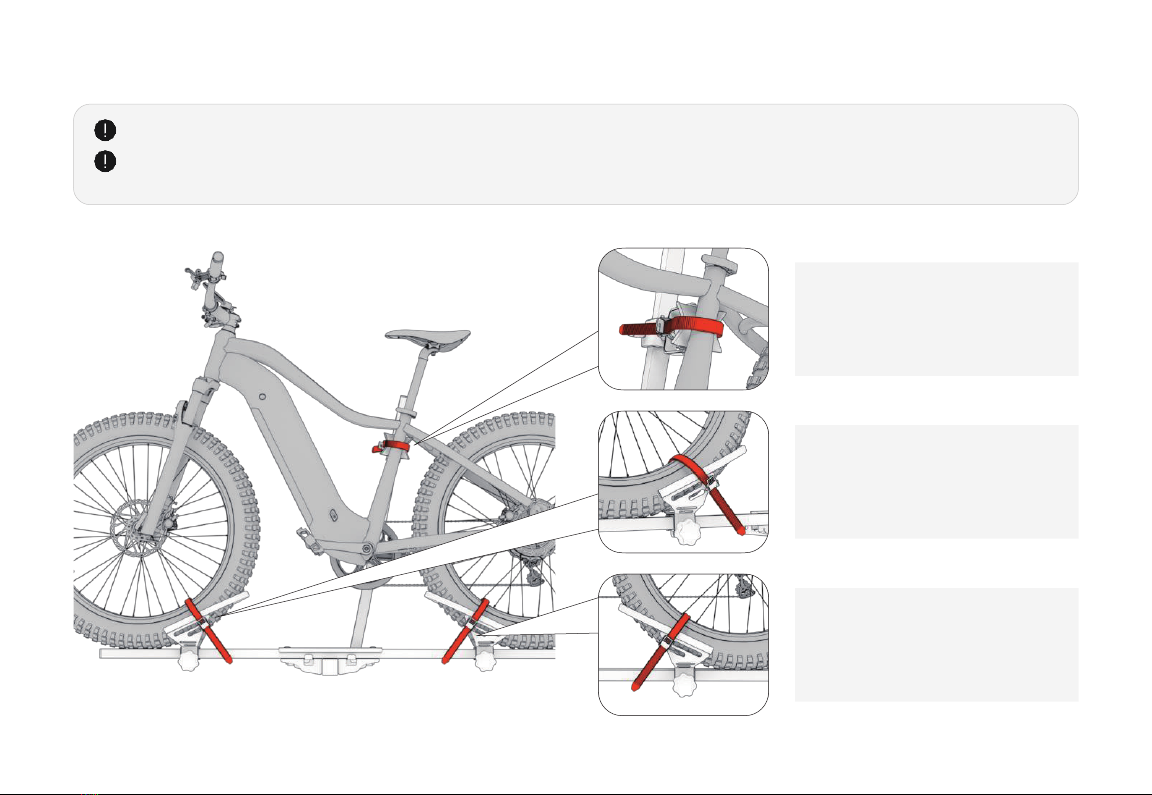

Note: Use the ratchet wheel strap
to fix and tighten the seat tube or
horizontal tube of the bicycle.
Note: Tighten the strap from the
Front Wheel Holder.
Note: Tighten the strap from the
Rear Wheel Holder.
It will be easier to install if turning the Middle Support Tube (15) to be a horizontal position before placing bike(s) on platform.
It should place the first bike or a bike to the side which is close to the vehicle.

Dimension Technical Specifications
Maximum weight bicycle capacity 200LBS
Maximum bicycle wheelbase 50''
Applicable Hitched Bike Types: Electric Bike/Regular Bike
Not intended for use with mopeds, motorcycles or 3
wheels bikes
Universal sized up to 5'' wide tire
Model Name YOUNG ELECTRIC Fellow
Description 2'' Hitch 2-Bike Rack
Material Steel
Maximum Weight Capacity 200lbs
Applicable Vehicles Vehicles with 2'' receiver
Package Size 57.7x14.7x7.3in
Package Weight 64.6lbs

Do not overload beyond the bike rack’s weight capacity of 200lbs.
Do not carry more than 2 bikes on the carrier.
The bike rack is not intended for transporting humans or animals.
If you are planning to load only one bike, it is recommended to place it in the position closest to the vehicle.
All bikes must be secured properly before operating the vehicle.
Make sure the front of the bike(s), when mounted, are at or above the bottom of the bumper to avoid damage to the bike(s).
Do not carry flammable items on the bike rack.
If using the bike rack to transport electric bicycles, please remove the batteries from the bicycles prior to transporting them. This will
help reduce the weight supported by the carrier.
During long trips, frequently check the straps and bike position, especially if traveling on rough terrain.
Please do not make alterations to the product, as it can pose potential hazards to your safety.
Failure to heed these warnings may result in personal injury and/or property damage.
To prevent serious injury or death, inspect the bike rack for any signs of wear, corrosion and fatigue before each use. Do not use the
bicycle rack if parts are bent, broken, deformed or missing. If parts are bent, broken, damaged or missing, remove the rack from your
vehicle before operating the vehicle.
