User manual
Thank you for choosing this product.
For information, technical support and assistance, contact your dealer or visit the
website www.urbanchicemobility.it
English

02
Index
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
Safety instructions
Quick guide
Contents of the package
Product overview
Command information / Control panel
Assembly and set-up
Folding and carrying
Battery charging
Brakes
Autonomy
Storage and cleaning
General warnings
Learning to ride the scooter
Battery (Warnings)
Responsibility
Daily maintenance and care
Technical data sheet
Troubleshooting
Error code table

03
1. Safety instructions
Please read the following instructions carefully before using the scooter. Keep this manual for future
reference or new users.
• The company will not assume any liability arising from misuse of the product or non-compliance
both with regard to road regulations and the instructions in this manual.
• This electric scooter is not a toy. Use it responsibly, with care and respect for others.
• Check local current regulations on the use of these products before riding it, and complywith local
traffic regulations. Ride responsibly and pay attention to persons and obstacles to avoid accidents.
• Always use the recommended clothing: non-slip gloves, knee and elbow pads andwear a helmet.
• When holding the handlebars at the correct height, the person riding this scooter must be able to
place both feet on the ground easily.
• When stopping or parking yourvehicle, be sure to do so on a flat and safe surface
• The maximum load capacity for the scooter is 100 kg.
• This scooter may not be used by more than one person at a time.
• Misuse of the scooter or non-compliance with the instructions provided in this manual may cause
serious injury.
• To resolve any technical problems, contact theTechnical Assistance Service through your dealer.
• Do not attempt to disassemble or repair the scooter yourself.
• Do not leave the battery near fire or heat sources.
• Avoid using used, defective and/or non-original batteries.
• Do not sit on the scooter both while riding it or when it is parked.
• If the user who is going to use the scooter is not familiarwith this type ofvehicle, they should be
instructed on the basics of riding by an adult before using it for the first time.Training should cover
the following topics:
1. Acceleration
2. Deceleration
3. Braking
4. Basic riding principles

04
2. Quick guide
• Before using the scooter for the first time, fully charge the battery.
• Press the power button for a few seconds to start it.
• Check the battery indicator: if the battery is dead, charge it before use.The electric scooter is a
device that needs to be charged periodically to be able towork.
• Place the scooter on a flat surface
• Place your hands on the handlebars. Step onto the footrest with one foot and use the other to give
yourself a gentle push and accelerate.
• When the scooter begins to move, place both feet on the footrest and press the accelerator.
• To steer the scooter, tiltyour body in the direction of travelwhen turning and slowly turn the
handlebar.
• To stop the scooter, release the accelerator and press the electronic brake or lever on the left side
of the handlebar.
• To get off, stop the scooter completely first.Trying to get off a moving scooter may result in injuries.
• When riding at night or in dark places, press the power button once to turn on the lights,wear a
reflective vest.
For your own safety, wear a helmet and knee pads to protect yourself against falls and injuries
while learning to ride the electric scooter.
The rider assumes all responsibility for any injury suffered when not wearing a helmet or other
protective gear.
The accelerator is activated once the speed of travel exceeds 3 km/h.
For safety reasons, the scooter is initially set up to avoid standing starts.
IMPORTANT

05
3. Contents of the package
no.1 Battery charger
no. 3 Allen key
The electric scooter is mostly supplied assembled inside packaging. A little assembly is required
before riding. All the parts and tools are included.

06

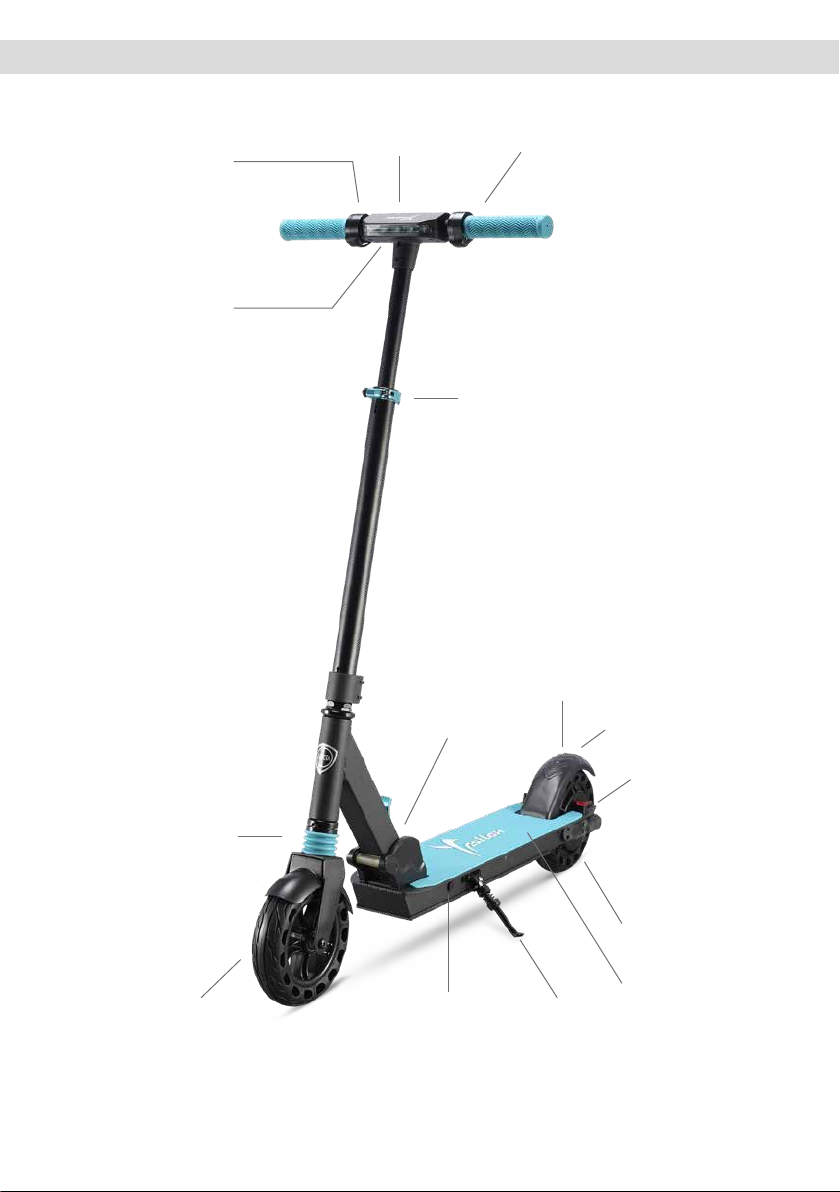

4. Product overview
handlebar height adjustment
rear light
electronic brake
mudguard /
pedal brake
drive wheel
footrest
kickstand
charging port
front wheel
folding system
electronic brake lever
display
accelerator lever
front light
suspension

07

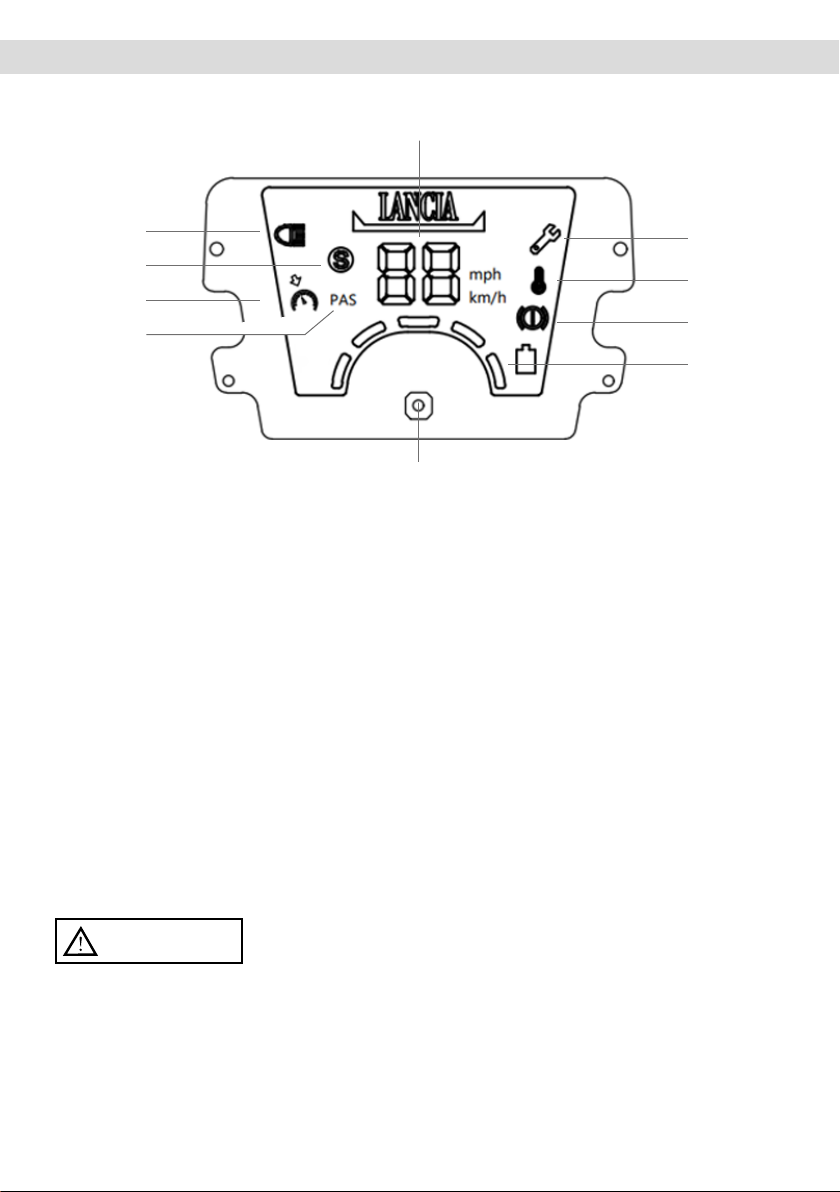

5. Command information / Control panel
1
A
3
5
4
2
A. ON/OFF and functions button.
1. Speedometer: Displays the current speed of the scooter.
2. PAS: Zero Start active.
3. Lights: Indicates that the lights are on.
4. Cruise control: Indicates that theCruise control is active
5. Speed Mode: white “S”: 6Km/h (eco) - orange“S”: 20Km/h (standard) - red “S”: 25Km/h (sports mode)
6. Anomaly signal:Thewrench icon indicates that the scooter has identified an electrical problem.
7. Motor temperature: Indicates that the motor is overheating.
8. Brake: Indicates that the brake isworking.
9. Battery level indicator: The battery level is indicated by 5 bars, each representing approximately
20% of the battery.
6
7
8
9
When the battery level is low, stop riding it, turn off the electric scooter and fully recharge it before
riding again.
IMPORTANT

08
Information on the controls:
• ON/OFF and functions button press and hold for approximately 5 seconds to turn the electric
scooter on/off.
• Cruise Control: Keep the electric scooter at a constant speed (> 6KM/H) and press and hold the
accelerator lever (right) for 6 seconds. An acoustic signal/warning light will signal that “Cruise
Control” is active, so itwill no longer be necessary to hold the accelerator lever down.
Press the accelerator lever or the brake lever again to deactivate it.To activate/deactivate
the Cruise Control function, press button A 4 times.
• Speed mode: press button (A) once to switch from one mode to another.
• Lights: press button (A) twice consecutively to turn on/off the front light and press once to switch
from one mode to another.
• Speedometer unit: press button (A) three consecutive times to switch the unit of measurement
between km/h or mph.
• Zero start function:To activate/deactivate it, press button A 5 times.
electronic brake lever accelerator leverON/OFF and functions
button (A)

09
6. Assembly and set-up
Press the lever of the folding mechanism, lift the handlebar stem until you hear a click.
1. Make sure the electric scooter is turned off.
2. Insert the handlebar stem on the fork column, being careful not to compress the cable.
Once the stem has been inserted, press until it reaches the end point.
3. Tighten the screws on the hingewith the supplied Allen key.
4. Place your foot on the lever on the folding mechanism.
5. Apply a slight downward pressure, release the handlebar and bring it to a vertical position.
6. Locate the kickstand on the footrest side.
7. Push the kickstand downwardswith your foot and bring it to the end of stroke position.
8. Place the electric scooter carefully on the kickstand.
9. If necessary, loosen the screws previously tightened to allow alignment between thewheel/
handlebar. Retighten the screws on the hinge.
After assembly, press the ON/OFF button (A) to check that the electric scooter works correctly.

10

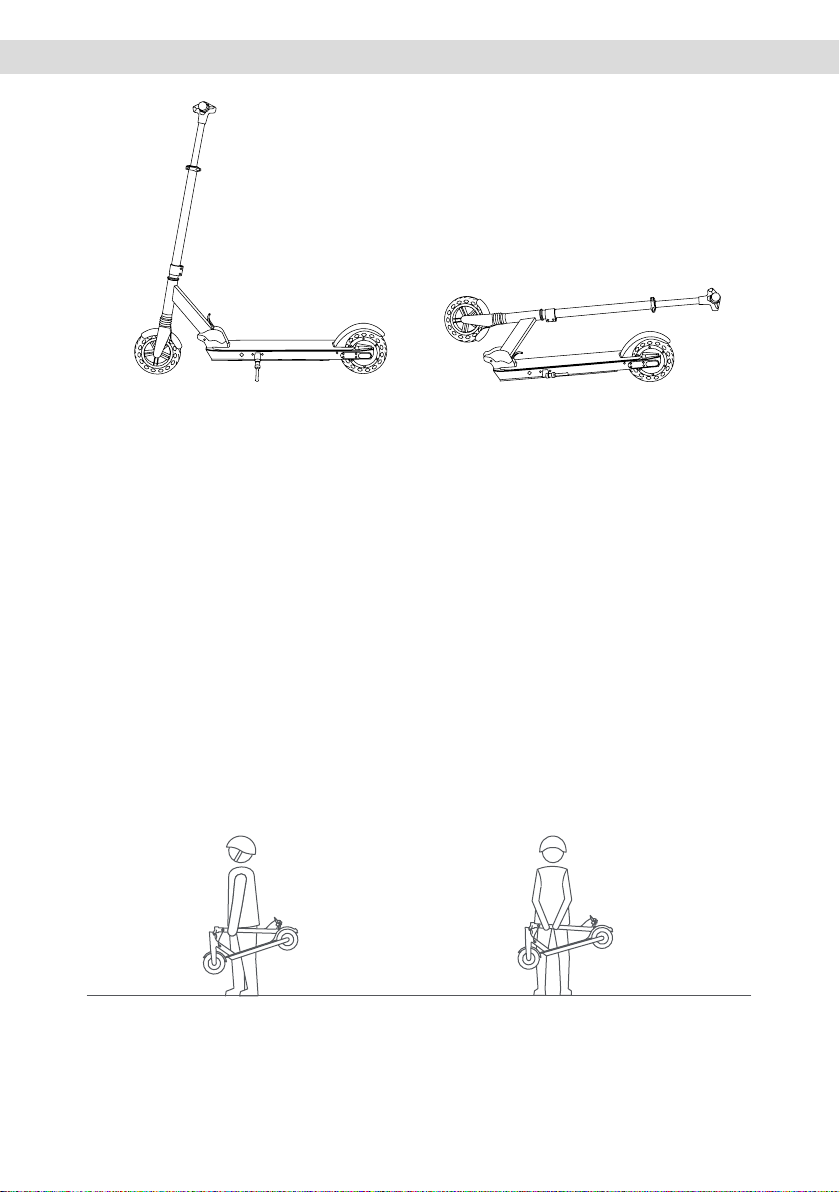

Opening the electric scooter:
• Place your foot on the lever on the folding mechanism.
• Apply a slight downward pressure, release the handlebar and bring it to a vertical position untilyou
hear a click that confirms locking.
• Locate the kickstand on the footrest side.
• Push the kickstand down as far as it will go.
• Place the electric scooter carefully on the kickstand.
Closing the electric scooter:
• Close the kickstand by bringing it upwards as far as it will go.
• Place your foot on the lever on the folding mechanism
• Apply a slight downward pressure. Release the stem and bring it to a horizontal position untilyou
hear a click that confirms locking.
Before moving, lifting or otherwise transporting the electric scooter, make sure it is turned off. After
folding, hold the handlebar stemwith one or both hands.
7. Folding and carrying
Transportation

11
The charging port is located at the front/side of the footrest (see image).
1. Lift the rubber cap.
2. Insert the power supply connector into the charging port.
3. After charging is complete, unplug the connector from the charging port.
4. Refit the rubber cap.
Do not leave it connected for a long time after charging, as this may damage the battery and affect its
service life.
The device is usually delivered partially charged. However,we
recommend charging it for 6 to 8 hours before using it for the first time.
We also recommend charging it after each use and before storing it.
Do not allow the scooter to discharge completely as this may damage
the battery.
8. Battery charging
charging port
IMPORTANT

12
This product features a dual braking system, an electronic brake and a food pedal brake.
The electronic system* is based on the use of the motor itself for braking and includes an electronic
and regenerative braking system.
The foot pedal system, combinedwith the electronic one, allows to reduce the braking time/distance.
In humid conditions** this systemwill be less performing.
*An electronic system is convenient because it does not require adjustments or regular
maintenance.
**This product must not be used in adverse weather conditions (such as rain, snow or ice).
9. Brakes
foot pedal brake
electronic brake
Before using this product under any circumstances, check that the
brake is working properly.
IMPORTANT

13
The maximum autonomy depends on several variables:
Terrain: riding on a smooth surface promotes a longer autonomy than riding on rough roads and
slopes.
User weight: the heavier the user, the shorter the autonomy.
Temperature: riding the scooter in a very cold or hot environment affects its autonomy.
Speed and riding style: riding smoothly and at constant speed extends the autonomy. Acceleration
and manoeuvring aggressively reduce range. A lower speed extends the autonomy.
Maintenance: timely recharging and correct maintenance increase the autonomy.
Charge the scooter to 50%- 60% before storing it for extended periods of time. Recharge it to 50%-
60% every 2-3 months. If not used daily, the scooter should be stored at a temperature of 15-25°C. Do
not expose the scooter to extreme temperatures (below 0°C or above 45°C). Avoid leaving it outdoors,
as it is not water-resistant.
When the scooter gets dirty, clean it with a damp cloth. Before cleaning it, make sure that it is
turned off and cover the charging port to prevent damage to the electronic components. Do not use
alcohol, petrol, kerosene or other corrosive and volatile chemical solvents.This may damage both the
appearance and the internal structure of the electric scooter. Do not use pressurized water jets or
running water to clean the scooter.The electric scooter is not waterproof.
Do not expose it to rain orwater or immerse it inwater to wash it.
10. Autonomy
11. Storage and cleaning

14
12. General warnings
• Check the brakes, the condition of thewheels and the throttle before each use. Ifyou notice
unusual noises or any anomalies, do not use the product and contact theTechnical Assistance
Service through your dealer.
• It is forbidden to modify the scooter in anyway as this could alter its efficiency or damage its
structure and cause damage as well asvoiding the warranty.
• Make sure the scooter is off before parking it.
• Do not ride the vehicle in the rain, snow or fog.
• Make sure the electrical components of thevehicle do not come into contactwith water or other liquids.
• Avoid riding near rivers or lakes.
• Supervise children to make sure they do not playwith the product. Strict supervision is required if
the product is being used by or near children.
• For information, technical support and help, contact your dealer.
Instructions on riding behaviour
• Do not use the phone or listen to musicwhile riding the scooter.
• Only ride if there is enough light to ride safely.When riding in unfavourable light conditions,
remember to turn on the scooter lights and to wear a reflective jacket.
• Always hold the handlebarwith both hands when riding.
• Always ridewith both feet on the footrest in a safe and comfortable position.
• Do not become distracted while riding and always look ahead.
• Always ride at a speed that allows braking safely.
• Start braking early enough to avoid obstacles, bends and areas that differ in terms of road type.
Remember to release the accelerator before braking.
• Do not race with other riders.
• Keep a minimum safety distance of 5 m from other vehicles.

15
Follow the safety instructions before riding the
scooter.
Use approved equipment such as helmets and
knee pads.
Do not use the electric scooter in the rain.
The electric scooter may not be used by more
than one person at a time.
13 Learning to ride the scooter
Children under the age of 14* and pregnant
women should not use this electric scooter.
*In Italy the matter is currently governed by Law L
27/12/2019 No.160
14

16
Minimum weight permitted on the electric
scooter: 20 kg.
Maximum weight permitted on the electric
scooter: 100 kg.
Do not ride the electric scooter ifyou have been
drinking alcohol or if you are on medication.
Do not use the phone or listen to musicwhile
riding the electric scooter.
Take extra care if you are riding where there are
bumps, sand, puddles, frost, snow, or steps, or in
dark places, at night, or in wet conditions.
10020

17
Do not use the electric scooter in dangerous
areas, near flammable and/or explosive
substances, liquids and/or dirt.
This electric scooter is not designed to be ridden
on roads and motorways. Consult the laws in force
in your municipality onwhere the use of electric
scooters is permitted.
Do not hang heavy objects on the handlebar.
Do not use the electric scooter to go up or down
steps or stairs.

18
Always hold the handlebarwith both hands.
Do not ride the electric scooterwith just one foot
on the footrest.
Do not press the accelerator when walking with
the electric scooter.
Mind your headwhen passing under canopies,
through doorways or similar places.
