YS FZ120 User manual

FEATURES
The FZ120 was designed for the pattern competiton, scale and large sports
models. As aircraft increases in size, so does the need for power.
With a few modifications internally, YS was able to generate more power
in the same 120 case. The YS 4 cycles are so unique, almost every square
inch is used in some way to produce power.
* Supercharged
* Fuel Injected
* Regulated and Pressurized Fuel System
* High and Low Speed Adjustments
GLOW PLUG
Select the most appropriate glow plug from those designed specifically for
4 cycle engines. Glow plug selection greatly affects the maximum engine
output and low idle. If RPM’s decrease or stop when the booster cord is
removed, replace the plug. We recommend the OS Type F plug for
maximum performance.
INSTALLATION
1. Connect the engine to the tank as shown in fig.1.Since high pressure
is applied to the tank, tighten all connections carefully. Care must be
taken to prevent pressure leakage due to undertightening of the check
valve or by kinking the fuel lines.
2. Always use a fuel filter. We recommend YS filter.
3. Match the direction of the check valve arrow in fig.1, with the arrow
facing towards the tank.
PROPELLER INSTALLATION
Due to the high torque of the 120 engine, we have equipped it with
a double locknut system for safety.
1. Mount the propeller and tighten the rear nut. Next, tighten the front nut
as shown in fig.2. The rear nut has a offset shoulder so the front nut
will secure itself to the rear nut.
2. Select a good quality propeller that will allow the engine to run at
maximum speed between 8,000 to 9,000rpm range. We recommend
sizes 14x12~14,15x10~12, 16x8~10 .
START UP
1. Remove tube A from the check valve, (CAUTION) Tank pressure must
be release first before tube B is opened. Remove tube B and begin to
fill fuel tank.
2. Open the high speed needle 2 1/2 turns from the closed position.
3. Open the throttle fully and slowly turn the propeller 10 times. This will
prime the engine and pressurized the fuel tank.
4. Close the throttle to the idle position and connect the glow driver.
The engine is now ready for starting.
DO NOT ATTEMPT TO START ENGINE AT FULL THROTTLE, AS THIS
IS VERY DANGEROUS. ALWAYS USE EXTREME CAUTION WHEN
ENGINE IS RUNNING.
BREAK-IN
To maximum engine performance and increase durability, please follow
this break-in procedure.
1. Use the same size (or slightly smaller) propeller than you intend to
use in flying.
2. Use a good quality fuel which contain 15-30% nitromethane and an
oil content of Low Viscosity oil 20-24% oil. Synthetic or castor oil can
be used, or a combination of both.
DO NOT USE FOUR CYCLE FUEL DUE TO LOW OIL CONTENT.
3. After the engine has started, slowly bring the throttle up to full.
Set high speed needle so it is running at a good rich setting without
the glow driver. Run engine at this setting for approximately 20
minutes with the throttle moving from low to high speed.
4. After the initial 20 minute break-in, mount the engine in the aircraft
and set the high speed to a richer than normal setting for the first 10
flights. This will help to lubricate all moving parts.
HIGH SPEED NEEDLE ADJUSTMENT
1. Adjustment of the high speed is done by the carburetor needle valve.
When the needle valve is turned clockwise, the mixture is leaner. When
it is turned counterclockwise, the mixture is richer. A good starting
position for the high speed needle valve is 2 1/2 turns open from the
fully close position.
2. When the engine is started, open the throttle gradually. Next, find the
peak position (highest RPM) by adjusting the needle valve. Then the
needle valve should be opened approximately 1/8-1/4 turns from
full RPM to achieve best performance. The engine may stop if the
throttle is opened to full immediately after starting. Wait until the
engine has warning up and pressure has developed in the tank.
LOW SPEED ADJUSTMENT
This engine is equipped with a new low speed needle valve to adjust the
mixture from low to mid throttle. See fig.1 for location.
1. Factory starting position is 1 1/2 turns open from the fully closed
position. The low speed needle should be set after the high speed
needle has been adjusted.
2. Close the throttle gradually to an idle (approximately 2,000rpm). Let it
idle for 15-20 seconds and then slowly advance the throttle.
The adjustment is set when low to high speed has a smooth transition.
3. If the engine is running rough at idle or to rich, turn the low speed
needle counterclockwise to lean out the low end.
4. If the engine speeds up at idle , the low speed mixture is to lean.
Turn the low speed needle clockwise to richen the mixture.
5. If the engine is to lean on the low end, it can detonate and stop when
transition from low to high RPM.
REGULATOR ADJUSTMENT
The regulator is preset at the factory. The top of the brass adjusting screw
is flush with the top of the regulator housing. Turning the regulator screw
will not change the pressure the engine develops. The adjustment screw
is used to adjust the amount of fuel to the carburetor. Turning the screw in
will decrease the amount of fuel and turning the screw out will increase
the amount of fuel to the carburetor.
   
SPECIFICATIONS
Bore 30.4mm
Stroke 27.5mm
Diaplacement 19.96cc
weight 880g
Practical rpm 2,000 -12,500rpm
TAPPET ADJUSTMENT
Tappet clearance is preset at the factory. Adjustment if needed should be
checked after the initial break-in. For maximum performance, valves should
be checked as normal maintenance.
1. Clearance adjustment should be done when the engine is cool.
2. The proper clearance should be set 0.04-0.1mm or 0.002-0.004 in.
The adjustment is achieved by losing the locknut (fig.3) and turning
the adjustment screw. The engine must be at top dead center on the
compression stroke before any adjustment are made.
CAM GEAR TIMING
If for some reason you have to disassemble your engine, please follow
these important steps on reassembling the cam gear.
1. Remove the carburetor and backplate assembly. Notice the
impression mark or dot opposite the rod journal on the crankshaft. This
mark is to point straight down or lined up with the outer case seam line at
the bottom.
2. Reinstall the cam with the dot facing you and is pointing slightly to the
left. This will allow the cam to turn to the right when properly installed.
The dot should be pointing starting up when cam is fully installed.
Reinstall cam cover and timing is now set.
DIAPHRAGM AND CHECK VALVE DISASSEMBLY
Diaphragm;
1. Remove the regulator assembly by removing the two allen head screws.
2. Disassemble the regulator and clean with alcohol or appropriate cleaner.
3. When reinstalling the regulator, use a new gasket and note that the
small casting tab on the regulator goes towards the propeller.
Check Valve;
1. Open the check valve by rotating the body counterclockwise.
Note the small clear silicone disc. DO NOT LOSE.
2. Clean and reassemble. Check to make sure air will only past though
the check valve one way.
IMPORTANT! Silicone rubber is used in the YS engine. Only use glow
fuel or methanol for cleaning. Gasoline and other volatile solutions will
damage the silicone if used. Do not use petroleum based oils as after run
lubricants.

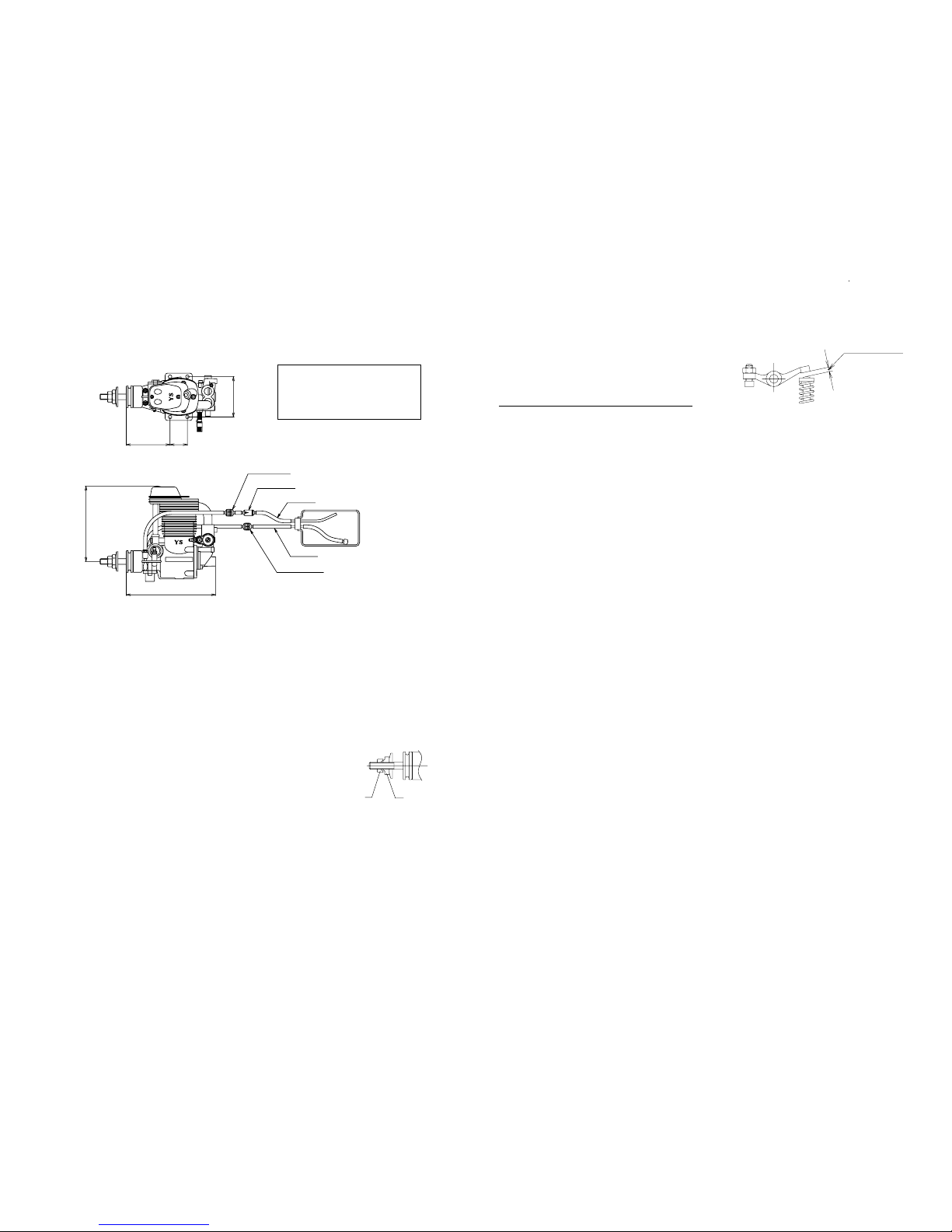

OPERATOR’S MANUAL
FZ120
Supercharged
fig.1
fig.2
fig.3
Front Nut Rear Nut
Tappet Clearance
58
YS Fuel Filters
Check Valve
Tube(B)
YS Fuel Filters
63 25
108.5
128
Tube(A)
2
4
3
10
11
13
12
7
9
6
5
17
16
24
25
8
20
21
18
23
23 22
36
34 32
37
35
38
40

42
41
39
72
72
73
70
69
74
68
71
1
43
43
44
44
44
47
66
63
27
39
19
46
45
48
49
49
50
51
14
15
61 60
59 58
52
64
54

56

57
55

67

65
62
26
31
31
31
28
30
29
75
33
WARRANTY
Strict quality control is implemented by our factory in all phases, from parts
manufactiring to final assembly. If performance deteriorates or a part fails with-in
one year of purchase due to a manufacturing error,YS will repair or replace the
engine at no charge. Warranty will not cover normal wear.
Should the engine be modified or incorrectly assembled, there will be a normal
charge for parts and labor. The use of four cycle fuel due to low oil content will also
void warranty.
YAMADA MFG.CO.,LTD
67 Tsuchitori Inuyama Aichi 484-0917 JAPAN
TEL: 0568 67 0265 FAX: 0568 67 7801
FZ120 Parts LIST
# Part# Description QTY
 
1 F1801 Crankcase 1
F1202S Head Cover Set
2 F1202 Head Cover 1
3 F1203 Head Cover Gasket 1
4 F1204 Valve Cover Screw Set 2
5 F1205 Head Gasket 1
F1806A Head Assembly
6 F1806 Cylinder Head 1
7 F1407 Intake Valve 1
8 F1408 Exhaust valve 1
9 F1409 Valve Spring Set 2
10 F1410 Spring Retainer Set 2
11 F1411 Valve Spring Retainer Clips 4
12 F1212 Rocker Arm Set 2
13 F1213 Tappet Adjusting Screw Set 2
14 F1214 Tappet Adjusting Rock Nuts 2
15 F1215 Rocker Arm Shaft 1
16 F1216 RockerArm Shaft Screw 1
17 F1217 E Ring Set 2
18 F1218 Head Screws 5
19 F1919 Crankshaft 1
20 F1520 Cylinder Liner 1
21 F1421 Piston 1
22 F1222 Wrist Piston 1
23 F1323 Wrist Pin Retainer Set 2
24 F1224 Piston Ring 1
25 F1225 Connecting Rod 1
F1826A Back Plate Assembly
26 F1826 Back Plate 1
27 F1427 Disc valve 1
28 F1492 Rear Disc Valve Retainer 1
29 F1429 Retainer Screw 1
30 F1230 Back Plate Gasket 6
32 F1232 Cam Gear Cover 1
33 F1233 Cam Gear Cover O-Ring 1
34 F1234 Cam Gear Cover Screw 2
35 F1535 Cam gear 1
36 F1236 Cam Followers Set 2
37 F1237 Push Rod Set 2
38 F1238 Push Rod Cover Set 2
39 F1239 Push Rod Cover O-Ring 4
40 F1240 Front Bearing 1
41 F9122 Front Bearing Oil Seal 1
42 F1341 Rear Bearing 1
43 F1242 Cam Gear Bearing Set 2
44 F1243 Fuel Nipples Set With Washers 6
F1244A Regulator Assembly
45 F1244 Regulator Body 1
46 F1245 Regulator Adjusting Screw 1
47 F1246 Regulator Adjusting Screw O-Ring 1
48 F1247 Diaphragm 1
49 F1248 Regulator Plunger 1
50 F1249 Plunger Spring 1
51 F1250 Regulator Gasket 1
52 F1251 Regulator Screw Set 2
F1752A Carburetor Assenbly
54 F1752 Carburetor Body 1
55 F1753 Throttle Barrel 1
56 F9156 Low Speed Needle Valve 1
57 F9157 Low Speed Needle Valve O-Ring 1
F1545S Needle Valve Assembly
58 F1545 High Speed Needle Valve 1
59 F1546 High Speed Needle Valve O-Ring 1
60 F1555 High Speed Needle Valve Seat 1
61 F1556 Needle Valve Socket O-Ring Set 2
62 F1557 Needle Valve Detent 1
63 F1483 Throttle Barrel Seal 1
64 R6124 Throttle Barrel Retainer 1
65 F1258 Throttle Stop Screw 1
66 F1259 Throttle Stop Spring 1
67 F1260S Throttle Arm Set 1
68 F1463 Carburetor Gasket 1
69 F1564 Drive Washer 1
70 F1565 Drive Washer Retainer 1
71 F1268 Intake Pipe 1
72 F1269 Intake Pipe O-Ring 4
73 F1382 Wrist PinAccess Plug 1
74 F1266 Propeller Washer 1
# Part# Description QTY
75 F1267 Propeller Nut Set 2
F1473S Gasket Set 4
F1574S O-Ring Set 14
F1497S Muffler Assembly
F1497 Muffler 1
F1971 Rock Nut 1
F1498 Exhaust Pipe 1

Other manuals for FZ120

1

Other YS Engine manuals

YS 50ST User manual

YS

YS 50ST User manual

YS 140 LIMITED User manual

YS

YS 140 LIMITED User manual

YS DZ185zero User manual

YS

YS DZ185zero User manual

YS FZ110S User manual

YS

YS FZ110S User manual

YS FZ53 User manual

YS

YS FZ53 User manual

YS 91SR S User manual

YS

YS 91SR S User manual

YS DZ170 User manual

YS

YS DZ170 User manual

YS FZ63S User manual

YS

YS FZ63S User manual

YS DZ140 User manual

YS

YS DZ140 User manual

YS FZ140-2 User manual

YS

YS FZ140-2 User manual

YS FZ110S User manual

YS

YS FZ110S User manual

YS DZ185cdi RED User manual

YS

YS DZ185cdi RED User manual

YS DZ160 User manual

YS

YS DZ160 User manual

YS YS FZ110S User manual

YS

YS YS FZ110S User manual

YS FZ70S User manual

YS

YS FZ70S User manual

YS 61ST-2 User manual

YS

YS 61ST-2 User manual

YS 80ST User manual

YS

YS 80ST User manual

YS 56SR User manual

YS

YS 56SR User manual

YS FZ91 User manual

YS

YS FZ91 User manual

YS FZ110 User manual

YS

YS FZ110 User manual

YS FZ63 User manual

YS

YS FZ63 User manual

YS 91SR User manual

YS

YS 91SR User manual

YS 91ST User manual

YS

YS 91ST User manual

YS FZ140-SPORT User manual

YS

YS FZ140-SPORT User manual

Popular Engine manuals by other brands

Wassermann WSM-2/ 500 W user manual

Wassermann

Wassermann WSM-2/ 500 W user manual

CHERUBINI Plug & Play 3000 instructions

CHERUBINI

CHERUBINI Plug & Play 3000 instructions

LOMBARDINI MARINE LDW 1603 M Use and maintenance manual

LOMBARDINI MARINE

LOMBARDINI MARINE LDW 1603 M Use and maintenance manual

de Wijs 2007 user manual

de Wijs

de Wijs 2007 user manual

FUTABA BLS171SV manual

FUTABA

FUTABA BLS171SV manual

Westerbeke 55B-FOUR Service manual

Westerbeke

Westerbeke 55B-FOUR Service manual

FENDT MAN D 0836 LE Workshop manual

FENDT

FENDT MAN D 0836 LE Workshop manual

Taylor DIABLO 88 Installation and operation

Taylor

Taylor DIABLO 88 Installation and operation

Yamaha MX-800 owner's manual

Yamaha

Yamaha MX-800 owner's manual

O.S. engine FS-30S Owner's instruction manual

O.S. engine

O.S. engine FS-30S Owner's instruction manual

Danfoss EM-PMI300-T310 user guide

Danfoss

Danfoss EM-PMI300-T310 user guide

MTHTrains HO 4-8-2 Mohawk Engineer's guide

MTHTrains

MTHTrains HO 4-8-2 Mohawk Engineer's guide

Moons' TSM11 Series Hardware manual

Moons'

Moons' TSM11 Series Hardware manual

Lenze IE2 g500-H Mounting and switch-on instructions

Lenze

Lenze IE2 g500-H Mounting and switch-on instructions

Robin EH63D Instructions for use

Robin

Robin EH63D Instructions for use

LCI Above Floor Slide-out owner's manual

LCI

LCI Above Floor Slide-out owner's manual

Oxygen CASTOR installation manual

Oxygen

Oxygen CASTOR installation manual

Briggs & Stratton Vanguard 245400 Operator's manual

Briggs & Stratton

Briggs & Stratton Vanguard 245400 Operator's manual

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
