Yujin Robot iCLEBO O5 User manual

User Manual
iCLEBO O5
Please read "Precautions for Safety" carefully before use for correct operations.
The user manual includes the product warranty.
Product appearance and specifications are subject to change for product improvement without notice.
www.iclebous.com

3
Contents
1. Precautions for Safety 1-1. Power-Related Issues 4
1-2. Preparation Before Use 4
1-3. Using Robot 5
1-4. Maintenance After Use 5
2. Product Composition 2-1. Components 6
2-2. Specific Names for Each Part 7
3. Preparation for Use 3-1. Side Brush Installation 9
3-2. Charging Station Installation 9
3-3. Initial Power Switch On/Off 9
3-4. Charging 10
4. Using Robot 4-1. To Start/Stop Cleaning 11
4-2. Cleaning Mode 12
4-3. Cleaning Option 13
4-4. Suction Power Settings and Smart Turbo 13
4-5. Moving/Manual Cleaning 14
4-6. Automatic Charging 15
4-7. Mop Cleaning 16
4-8. Boundary Strip Installation (Sold Separately) 16
5. Care and Maintenance 5-1. Emptying Dust Bin and Changing Filter 17
5-2. Side Brush Care 18
5-3. Main Brush Care 19
5-4. Sensor Care 20
5-5. Front Wheel Care 21
5-6. Mop Care 22
5-7. Storage 22
5-8. Parts Exchange Period 22
5-9. Reset Settings 23
6. Troubleshooting 6-1. Resolving Inspection Messages 24
6-2. Notice Messages 24
6-3. Items to Check Before Reporting a Problem 25
7. Product Warranty 26
8. Open Souce 28

4
1. Precautions for Safety
This is for the user's safety and to prevent property damage.
Read the following carefully and use safely.
We recommend keeping this manual for future reference.
1-1. Power-Related Issues
Be aware that there is a risk of electric shock or fire in case of carelessness.
Do not touch the adapter with wet hands.
Be sure to hold the adapter while unplugging it in.
Do not insert or unplug the power adapter unreasonably.
Do not use a damaged plug/cord or outlet.
Do not use surge protector outlets lower than 5 amp.
Do not use the adapter for other products or other purposes.
Check that the contact terminals are correctly connected.
󾖴If there is any foreign material on the adapter pins, wipe it off before usage.
1-2. Preparation Before Use
Read carefully for the safe and correct usage of the product.
Remove fragile and small objects in advance.
If there is any water, oil, or animal waste on the floor, clean it before using the product.
Do not place the product near a heating device (such as a heater or on electric pot).
Arrange the cords neatly before use.
If you operate the product on a staircase or an area where there is a risk of falling from a height greater
than 4 cm, please use the Boundary Strip (provided).
Long fringes of carpets should be arranged inward before you start cleaning.
Refrain from using if the carpet fiber is long or easily damaged.
Make sure that the main parts of the device are assembled well.
Empty the dust bin before operating.
Guarantee space around the charging station by removing any obstacles.
Remove small items from the surface that the cleaning robot is used on.
Leave shoes at a distance from the edge of the shoe compartment, so the robot doesn’t get on the shoe
and slide down.

5
1-3. Using Robot
Read carefully for the safe and correct use of the product.
Be careful not to let foreign objects such as plastic bags, blades, tackles, etc get inside the area.
If the inlet is clogged by vinyl or anything of the like, please remove the blockage immediately.
Be careful that the robot does not touch or ingest volatile substances.
Be careful not to get any part of your body under the robot.
If the cleaning robot makes strange noises, smells, or smokes, stop using it immediately.
Turn off the power switch on the side and contact the service center (855-926-1601).
Do not use on floors with a slope greater than 10 degrees.
Do not apply strong force or drop the robot.
Do not use at high altitudes where there is a risk of it falling.
Do not let children play with the robot.
If left unused for long periods, please charge the robot for 2 hours before using it.
Do not disturb the robot while it is in operation.
If damage occurs on materials such as wooden floors, please discontinue using the robot on such
surfaces.
1-4. Maintenance After Use
Be aware that there is a risk of electric shock and fire in cases of carelessness.
Do not disassemble or modify the robot.
Do not allow metal objects to come into contact with the product or the charging terminal.
When cleaning or managing the product, turn off the power or remove the plug.
Do not sprinkle water on the cleaning robot or wipe it with volatile materials such as thinner and
benzene.
When disposing of the battery, do not throw it near a fire.
Regularly clean the sensors to prevent malfunctions.
If the robot and components are damaged, please contact Customer Support (855-926-1601).

6
2-1. Components
2. Product Composition
Cleaning Robot
User Manual
Mop Plate
Boundary Strip
* Sold Separately
Charging Station
Quick Guide
Mop Pad (2)
Remote Control
(Includes Batteries)
Cleaning Brush
Side Brush -L, R
UserManual


Adapter
*There is a risk of fire if the adapter plug is not fully assembled.
* The specifications and the form of the components may change due to the circumstances of the company.

7

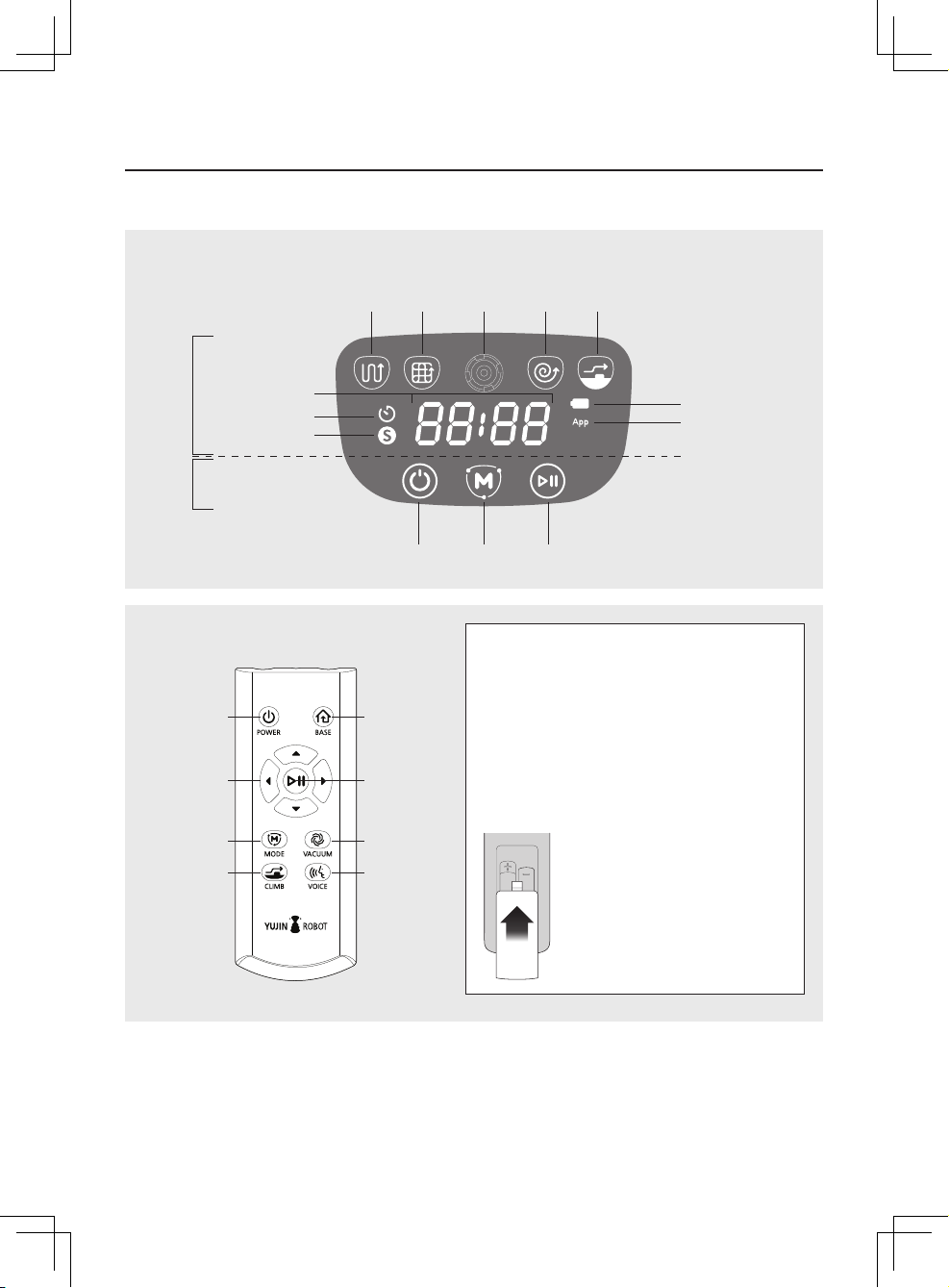

2-2. Specific Names of Each Part
2. Product Composition
EPA Filter Mesh Filter Dust Bin
Top
Side
Charging Station
Dust Bin
Bottom
Display
Window
Camera Side Brush
Wheel
Front Sensor Unit
Handle
Manual Charging Port
Power Switch
Inductive Charging Sensor
Anti-slip
Pad
Adapter
Jack
Charging Jack
Charging Terminal
(Front)
EPA filter Mesh filter Dust bin
(Back)
Bumper
Charging Pin
Front Wheel
Main Brush
Lithium Ion
Battery
Remote
Control
Receiver
Air Outlet
Dust Bin

8
2-2. Specific Names of Each Part
2. Product Composition
Display Window
Remote Control
Power
Navi
Mode
Status
Display
Button
Max
Mode Camera
Spot
Mode
Climb
Mode
Battery
Wi-Fi Connection Display
Smart Turbo Mode
Scheduled Time Display
Time Display
Change
Mode
Start/
Stop
Power Base / Charge
Start / Stop
Suction Power
Voice Guide
Cleaning Mode
Climb Mode
Direction
Control
Installing the Remote Control Batteries
Please assemble and use the two AAA batteries included
with the remote control at the time of purchase.
1. Slide the cover on the back of the remote control
downward to open it.
2. Check the positive (+) and negative (-) terminals of the
battery and assemble them accordingly.
3. Align the cover with the groove and slide it shut till it
clicks into place.
* The remote control does not work
when the robot’s main power switch
is off (O). Turn on the power switch (I)
on the side of the main unit and use
the remote control.
* Please use the remote control pointed
toward the robot.

9
3-1. Side Brush Installation
ㆍYou can reduce the scratching on the top plate by laying a soft cloth on the floor.
ㆍIf the side brush is not fully seated in the groove; it may come off during cleaning.
3-2. Charging Station Installation
3. Preparation for Use
Align the side brush marked L towards the groove with the same marking (L)
under the robot.
Align the side brush marked R with the groove with the same marking (R) under
the robot. Then, push the fixing pins in firmly to secure the side brush.
Side Brush Fixing Pin Side Brush Groove
+
Connect the adapter jack to the
charging station.
Connect the power plug into the
outlet.
*You can connect the adapter cord in the space behind the charging station.
Install the charging station with
0.5m of space to the left and right
and 1.5m of space to the front.
1 2 3
3-3. Initial Power Switch On / Off
Turn on (I) the power switch on the side of the main unit.
It turns off when O is pushed.
(Press ON for products with an ON / OFF switch.)
ON OFF

10
3. Preparation for Use
3-4. Charging
1) Initial Charging
ㆍFully charge the product before the first usage.
1
2
3
1. Make sure that the switch on the side of the Main Unit is turned on.
> Refer to P8 <Initial Power Switch On/Off>
2. Start charging the battery by aligning the charging pins on the
bottom of the main unit with the terminal of the charging station.
3. Check the charging status. When charging, the lamp blinks in the
display window. When charging is completed, the battery status lights
up green.
Connect the adapter jack of the adapter directly to
the main unit.
2) Manual Charging
Charging Status Display Charging Charging Complete
Display Window Red Light Yellow Light Green Light
Display Window Red Light Yellow Light Green Light
Battery Charging
Status Below 20% Below 50% Above 51%

11
4. Using Robot
4-1. To Start/Stop Cleaning
Press the corresponding button on the robot or the remote control to start cleaning.
Please do the same to stop cleaning.
OR
Robot Remote Control

12
4. Using Robot
4-2. Cleaning Mode
ㆍThe “Navigation” mode is set by default if no other operation is selected.
Press the MODE button on the robot or the remote control to select the desired
cleaning mode.
OR
Robot Remote Control
Mode Types Display Window Explanation
Navi Mode
(Default Setting)
This is a zigzag cleaning method through camera navigation mapping.
The display window shows the time of cleaning.
Max Mode
After the navi mode cleaning is finished, the cleaning robot rotates 90 degrees and
repeats cleaning.
It continues to clean until the battery runs out.
Spot Mode This is a concentrated cleaning in a circular whirlpool manner within a 1-2m range.
It cannot be set if the robot is charging.

13
4. Using Robot
4-3. Cleaning Option
4-4. Suction Power Settings and Smart Turbo
ㆍThe suction power can be adjusted within 3 levels. Level 2 is the default setting.
Press the VACUUM button on
the remote control to adjust
the suction power.

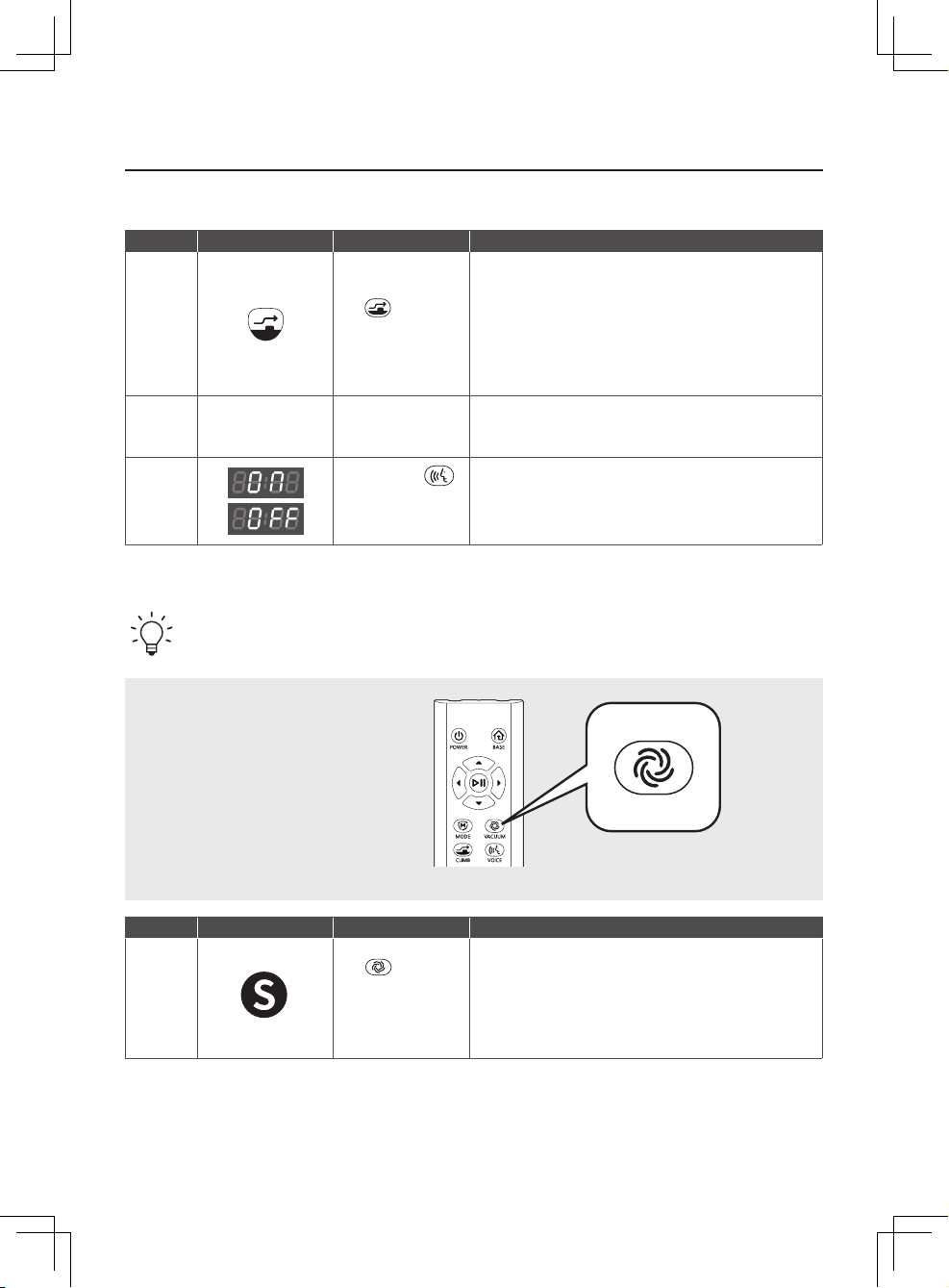

Option Display Window Setting Method Explanation
Climb
Press the CLIMB
( ) button on
the remote control
to set and cancel
accordingly.
Used in carpet or covered environments (climbs up to 15mm).
Climb mode is automatically released when the mop plate is
mounted.
If you cancel the Climb mode during carpet or mat cleaning, the
robot may not come down from the carpet or mat.
It is recommended to not operate in Climb mode for carpets with
long or special material fibers. This may damage the carpet or cause
additional problems.

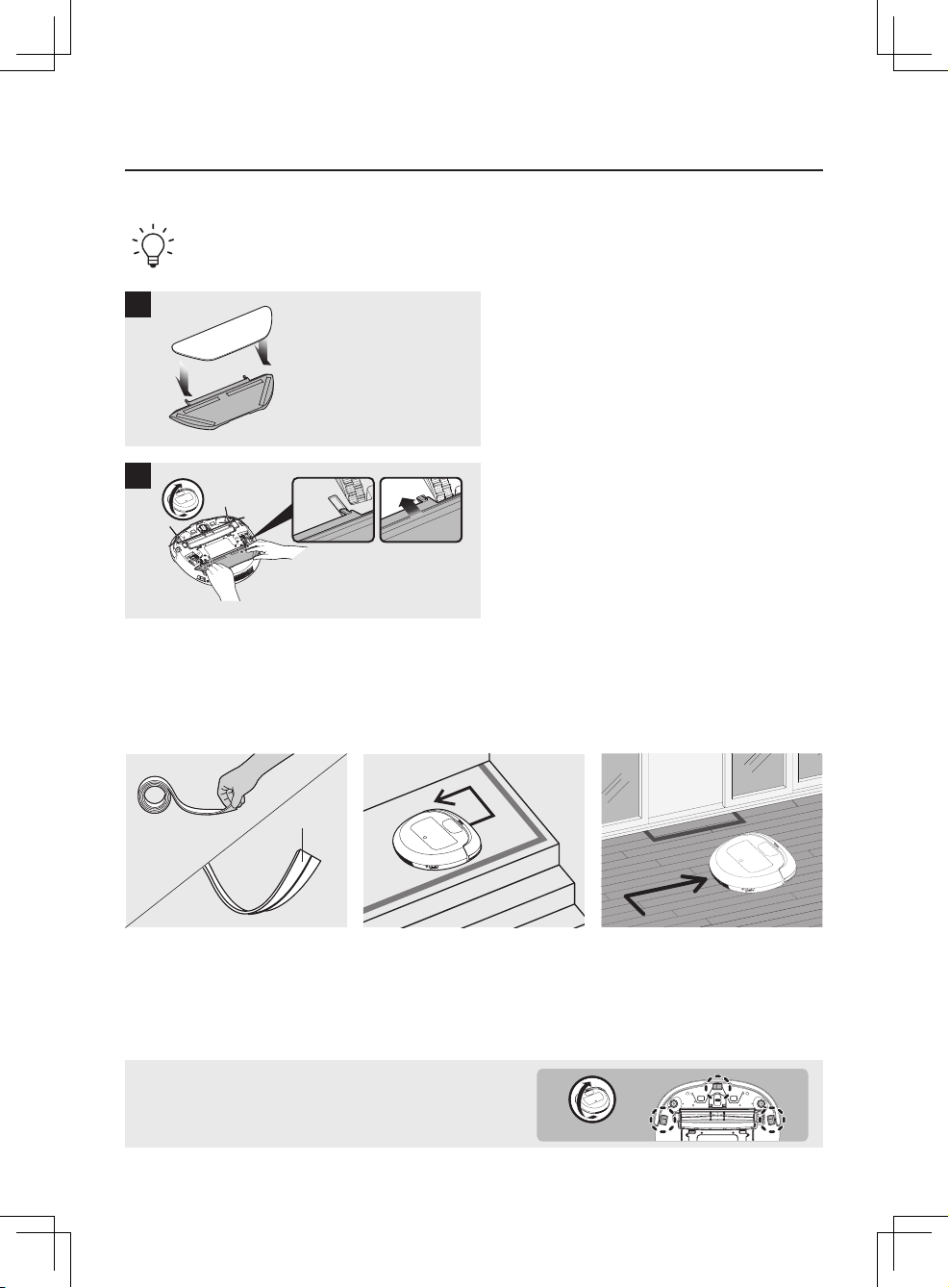

Mop
Mount the mop plate
at the bottom of the
robot.
It is possible to mop and vacuum at the same time by attaching the
mop plate.
󾖴Refer to P15 <Mop Cleaning>
Voice
Guidance
Press the VOICE( )
button on the
remote control to set
and cancel.
It informs the robot status or error situation by voice.
It is set as default.
Option Display Window Setting Method Explanation
Smart
Turbo
(Default
Setting)
Press the VACUUM
( ) button on
the remote
control for more
than 3 seconds to
set and cancel the
Turbo mode.
The robot recognizes the dusty area and automatically
raises the suction power to Level 3.
When the carpet or cleaning of the dusty area is completed, the
suction power returns to the default position.
If you want to use the Level 1 suction power without the Smart
Turbo function, you can turn off the Smart Turbo.
Remote Control

14
4. Using Robot
4-5. Moving/Manual Cleaning
ㆍIf you press the control button during cleaning, you can perform manual cleaning.
ㆍWhen the control button is pressed in the standby mode, the cleaning robot
simply moves.
You can use the control buttons on the remote control to move the robot to a desired location.
1
3
2
4
1
4
3
2
1
2
3
4
Forward
Left
Right
180° direction change
Remote ControlProduct

15
4. Using Robot

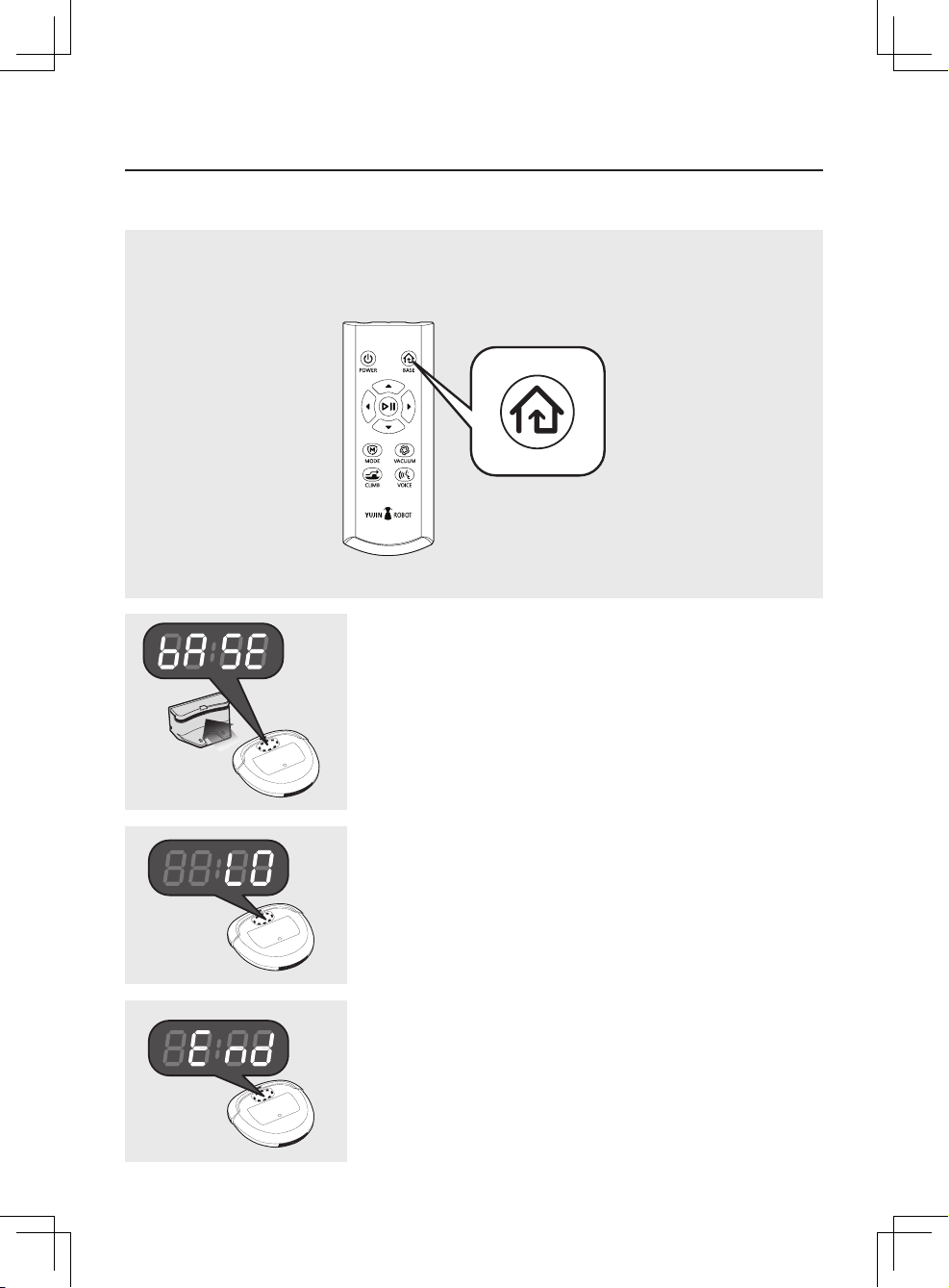

4-6. Automatic Charging
If you want to charge the robot while in use, press the BASE (charge) button on the remote control.
When cleaning is complete, it automatically returns to the charging
station.
If the remaining battery is low during cleaning, it automatically
returns to the charging station and charges itself.
After charging, the robot returns to the remaining cleaning area to
resume cleaning.
If the battery is discharged and the 'LO' message appears,
transfer the robot to the charging station to charge it.
If cleaning has not started at the charging station,
the robot returns to the point where cleaning started.
(If the cleaning robot recognizes the charging station while returning
to the starting point, automatically returns to the charging station.)
Remote Control
Charge Button

16
4. Using Robot
4-7. Mop Cleaning
ㆍBy attaching the mop pad, you can vacuum and mop at the same time.
ㆍIf you install the mop plate, it cannot cross thresholds.
4-8. Boundary Strip Installation (Sold Separately)
ㆍWhen installing the boundary strip, attach the strip 15cm away from the area you want to block.
ㆍBoundary Strip can be ordered via our website (iclebous.com).
1
2
Mop Pad
Mop Plate
1 2
1. Attach the mop pad to the mop plate.
2. After turning the robot over, push the mop
plate in the direction of the arrow and attach it.
If the mop plate is not attached correctly, it may
detach.
floor Side
Please install the boundary strip around railings, toilets, and staircase entrances where there is a danger of
a fall. Install the strip so that the grooved side of the tape faces the floor.
Please use the enclosed double-sided tape to fix the boundary strip.
󾖴
If the boundary strip is not fixed to the floor, the robot may not recognize it properly.
If dust accumulates on the fall prevention sensor of the product, the robot may
not recognize the prohibited area and may fall.
Fall prevention sensor

17
5. Care and Maintenance
ㆍPlacing a soft cloth on the floor while managing the robot reduces
scratches on the product.
ㆍTurn off the power switch on the side of the robot for safety while
managing the robot.
5-1. Empty Dust Bin and Change the Filter
1. Separate the dustbin from the
main unit of the robot.
2. Remove the filter as is shown in
the picture and clean the inside
properly.
However, if the filter is cleaned
with water, make sure it is
completely dry before assembly.
3. When replacing the filter, replace
only the EPA filter and reassemble
it.
The filter can be washed with
water. (1 time per month)
To maintain the filter
performance, it is recommended
to empty the bin every time
cleaning is completed.
EPA
Filter
EPA
Filter
Mesh
Filter
Mesh
Filter
Dust
Bin
Dust
Bin
1
2
3

18
5. Care and Maintenance
5-2. Side Brush Care
1. Place the robot, so the bottom side is facing up.
2. Hold the side brush with both hands and pull
upward to disassemble.
When cleaning with water, wait until the side brush is completely dry before use.
3. Use the cleaning brush to remove dust and foreign
materials.
1
2
3

19
5. Care and Maintenance
5-3. Main Blade Care
1. Place the robot so that the bottom side
is facing up and take out the side brush.
2. Unlock the fixing clip of the main brush
cover and take out the cover.
3. Take out the main brush and remove
foreign materials.
4. After cleaning the main
blade, identify the sides
and reassemble the
main unit.
Click
1
2
3
4

20
5. Care and Maintenance
5-4. Sensor Care
ㆍUse a cotton swab or a soft cloth to wipe the front and bottom sensor areas of the robot.
1
2
