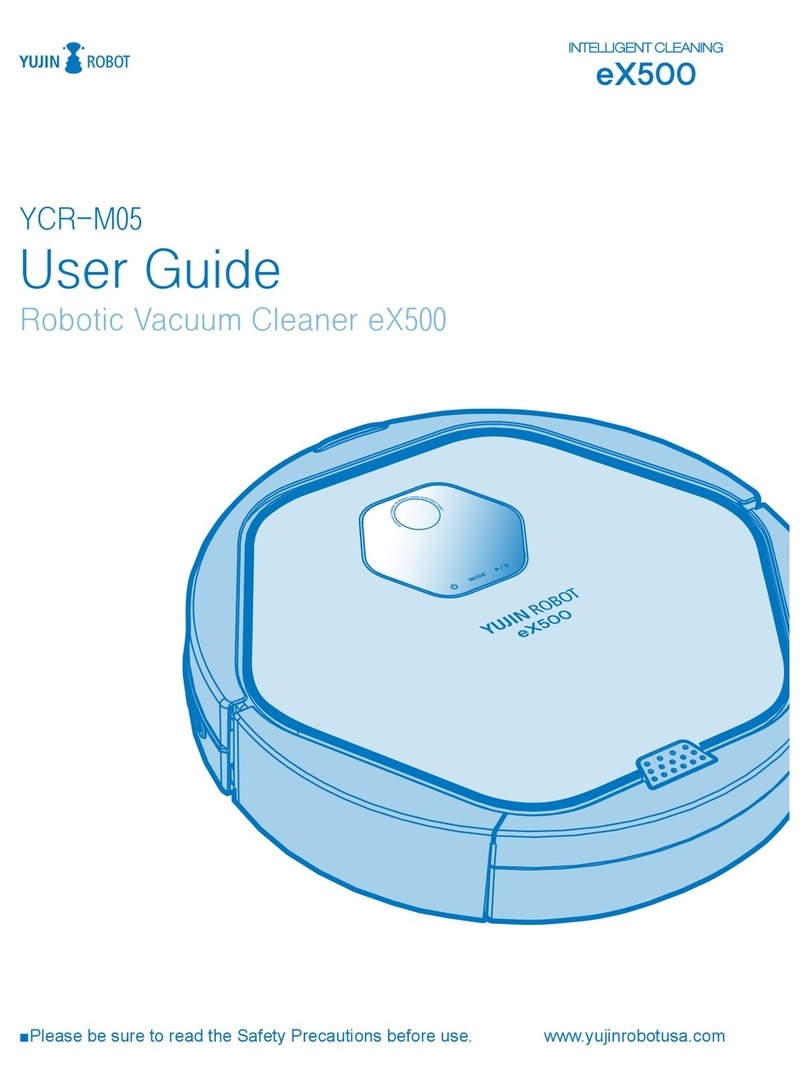

Yujin Robot YCR-M05 User manual

2. Cleaning the main brush
3. Display window error messages & solutions
Check
display Cause Solution
C 1 Move eX500 to a flat area.
C 2 Move eX500 to a flat area in case the wheel was stuck on a
obstacle.
C 3 Dust bin is not properly assembled or installed.
C 4 Check if a foreign material such as hair or lint is caught in the wheel
and remove the material.
C 5 Check if a foreign material such as hair or lint is caught in the main
brush or side brush and remove the material.
C 6 Clean filter, empty the dust bin.
C 7 Turn off the power switch of the robot cleaner then turn it on again.
Lifted wheel
Cannot detect floor
Dust bin error
Wheel motor overload
Brush motor overload
Suction motor overload
Internal system error
YCR-M05
Quick Start Guide
Robotic Vacuum Cleaner eX500
■The complete user manual is also available to download on our website www.yujinrobotusa.com
www.yujinrobotusa.com
eX500 care & maintenance
1. Regularly empty the dust bin and replace the antibacterial filter
Magnetic Sensor Check that the front wheel and magnetic sensor are clean and
correctly installed.
C 8
iAQG.USA.500.V1
Furrow
CLICK

Climbing mode
Using eX500
1. Changing vacuum modes
① Press the“Clock”button on the remote control.
② Use the +/- buttons to set the hour, then press“Enter”
③ Use the +/- buttons to set the minute, then press“Enter”
④ The iClebo will confirm the time is set with a beep.
⑤ Press the set button when correct time is displayed.
.
.
2. Setting the current time
StartMethod
On Device
Changing cleaning mode
※ CLIMB is set
MAX or SPOT cleaning. When CLIMB is set eX500 can cross obstacles up to 0.79 inches in height. Sometimes the
shape of a surface of an obstacle may prevent the robot from climbing over it even when it is less than 0.79 inches in height.
“on” by default but can be deselected on the remote control in AUTO or RANDOM modes and also within
※ Deselect CLIMB when circumstances require cleaning without climbing over obstacles of 0.2 inches or higher that need to
be avoided (shag rug for example). eX500 will always climb over obstacles up to 0.2 inches in height
※ If you wish to clean without eX500 climbing over obstacles of 0.20 inches or higher such as rugs or doorsills, deselect
climbing mode by pressing CLIMB before using.
※ Note: SPOT and MAX modes are only available via the remote control.
Installing eX500
1. Preparation of the robotic vacuum cleaner
2. Installing the Charging Station and start charging
Remote
control
Remote
control
eX500
Display
Window Set "hour" Set "minute"
3. Setting a scheduled cleaning
Setting the time (Remote control is required to set the time)
Bottom
side
Entrance
prevention tape
Cleaning
mode
Set the
mode with
Cleaning
mode
Explanation Explanation
Status StatusExplanation Explanation
AUTO is the default cleaning
mode that uses Smart
Navigation to move in a
systematic cleaning pattern
to cover the entire cleaning
area.
RANDOM cleans for a set time (60 min. by default).
In RANDOM mode eX500 often covers areas
one or more times increasing the quality of the
cleaning. After selecting RANDOM mode use the
+/- buttons on the remote control to set the
cleaning duration.
In MAX cleaning mode the iClebo first operates in
AUTO mode where it uses its camera to
systematically navigate the entire accessible
area. After that eX500 enters RANDOM mode
and continues cleaning until the battery runs low
making sure you will be happy with its double
cleaning job.
eX500 cleans within
a range of 1.6 ㎡with a
zigzag pattern.
This cleaning mode is automatically
entered once the mop plate is mounted
on the bottom of eX500. It is
recommended that CLIMB mode be
deselected when in mopping mode.
By using the CLIMB function the iClebo’
ability will be increased from 0.20 inches to cross
obstacles up to a height of about 0.79 inches.
Sometimes the shape of the surface of an obstacle
may prevent eX500 from climbing over it even
when the obstacle is less than 0.79 inches in height.
s climbing
Remote
control
& iClebo
Only with
the
remote
control
To check the start time: press the TIMER button once.
To cancel the set time: press the TIMER button twice.
1) Before setting a scheduled cleaning’
2) For timer cleaning, use +/- buttons to set“hour”and press Enter button and use +/- buttons to set“minutes”
and press Enter button. Once the time setting completes, select the cleaning mode and press Enter button.
※
s start time, make sure to set the clock with the current time.
※ eX500 starts cleaning at the set time every day, completes a cleaning cycle, and then returns to the charging station.
Remote
control
Display
Window
Set "hour" Set "minute"
Setting the TIMER (Remote control is required to set the time)
On Device
MODE
CLOCK TIMER
MAX
MODE
CLOCK TIMER
MAX
MODE
CLOCK TIMER
MAX
www.yujinrobotusa.com
