YURAKU GI07 User manual

GI 07 User Manual v02
1
GI07
Instruction Manual
http://www.Yuraku.com.sg
GI 07 User Manual v02
2
Connection Diagram

GI 07 User Manual v02
3
Declaration of Conformity
EC-Declaration of conformity to the essential requirements to the applicable EMC Directive 2004/108/EC
We, Yuraku GmBH of Germany declare under our sole responsibility as authorized representative that the
following product
Brand Name:
Model Name:
Model Number:
Is fully conformity with the essential requirement of the European Directive 2004/108/EC. This declaration is
based on the full compliance of the product with the following European standards:
EN 55013 : 2001 + A1 : 2003
EN 55022: 2006
EN 55020: 2002 + A1: 2003 + A2: 2005
EN 55024: 1998 + A1: 2001 + A2: 2003
Lorsch, 04.23.07
Yuraku GmBH Industriestraβe 2, 64653 Lorsch, Germany
GI 07 User Manual v02
4
Information
•Do not violate or infringe the copyright law and other
international copyright laws while using this player for
recording.
•The copyright law forbids unauthorized reproduction of
copyrighted music for any other purpose other than
self-entertainment without the author’s permission.
•For the purpose of self-entertainment, it is strictly prohibited to
compile and disseminate copyrighted music to a third party
without the author’s permission.
•If copyrighted music is intentionally disseminated by means of
information network without the author’s permission, the
infringer will violate “the right of communications to the public”
and “the right of distribution” and shall be subject to the criminal
charges.
•The Company, and the manufacturers, distributors and dealers
of this player are not liable for any of the above infringement
acts.
•The Company shall not be liable for any loss or damage
(whether anticipated or unanticipated loses) of customers or
other third parties due to the usage of the player.
•Before introducing or using the player, please back-up all
essential information stored in PCs. The Company shall not be
liable for any loss or damage due to the usage of the player.

GI 07 User Manual v02
5
Safety Rules
•Please follow the rules depicted in this manual closely to
ensure your safety. Before using the player, we would strongly
encourage you to read through this user manual
•Be more wary of any edges, uneven surfaces, metal parts,
accessories and its packaging so as to prevent any possible
injury or damage.
•Keep this player out of reach of children. Take note that this
player is not edible and should not be placed in your mouth.
•Do not modify, repair or dismantle the player. Doing so may
result in fires, electric shocks, complete breakdown of the
player, etc. All of which, are not covered under warranty.
•Do not use any diluents or volatile liquid to clean the player.
Keep in mind that the surface of the player should only be
wiped with a dry cloth.
•Do not use this player in locations whereby there are
high-temperatures or high humidity levels (For instance,
bathrooms); ideally, the player should be used in a location free
of dust and exposure to direct sunlight.
•Do not insert foreign objects, such as pins, into this player.
•Do not touch this player when your hands are wet as this may
result in electric shocks.
•Be extremely cautious while using headphone/earphones as
they may strangle the user when entangled.
•Turn down the volume before/while using this player as sudden
GI 07 User Manual v02
6
loud sounds may damage your ear drums.
•Refrain from dropping the player as well as any collision with
other objects.
•When plugging in/out the headphone/earphones or wires
please hold the player and jacks firmly to prevent the wires
from breaking and the player from dropping.
•If using the player while walking, do pay attention to the traffic
situations and road conditions.
•Do not use this player when in hazardous locations.
•Should any abnormal situations or problems occur while using
the player, discontinue use of player immediately.

GI 07 User Manual v02
7
FCC Statement
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications not expressly approved by the
party responsible for compliance could void the user's
authority to operate the equipment.
•
•This device and its antenna(s) must not be co-located or
operating in conjunction with any other antenna or
transmitter
GI 07 User Manual v02
8
Connecting to a PC
Operation Procedure
1) Ensure that the player is switched off before connecting the
player to a PC via the provided USB cable to upgrade
firmware or copy music into the player.
2) Use the USB cable provided to connect to computer and it
will be recognized as a USB Mass Storage Class and it can
be found in “My Computer.
3) The files stored on the player can be managed through
Windows File Explorer or “My Computer” to copy chosen
music files or data to the player. You could delete the files in
the player through your operating system as well.
4) Once all procedures have been completed, please follow
the steps below to remove the player to avoid causing
damage to your files.
Removing hardware
1.) Double-click using the left button of your mouse on the icon
that says “safely remove hardware”, as can be seen from the
image below. This icon is located at the lower right hand
corner of your computer screen.

GI 07 User Manual v02
9
2.) When the icon appears, click the “Stop” button to remove the
hardware safely. The player may then be detached from the
USB Cable.
Copying music files to the player
1. Please refer to the previous section -“Connecting to a PC” to
connect a PC to the player using a USB cable or a USB
adapter.
2. If the connection is successful, a removable drive icon (F:\) will
appear in “My Computer.”
GI 07 User Manual v02
10
3. First, locate your favorite MP3 or WMA music files in “My
Computer.” Secondly, select specific music files and click on
those files with the right button of the mouse and select “Copy.”
Next, locate the Removable Drive (F:\) in “My Computer”. After
doing so, right click on the mouse to “Paste” the selected files to
F:\. . Another way is to hold the left button of the mouse on the
files you wish to copy, and drag the files to the Removable
Drive. To finish the copying process, release the button of your
mouse.

GI 07 User Manual v02
11
4. After the file copy process has been completed, please refer
to the steps as mentioned in previous page so as to remove
the player safely.
GI 07 User Manual v02
12
Accessory List:
MP3 Player
Stereo Earphone
USB Cable
Driver CD
User’s manual
Product accessories may vary according to different shipment
packages and retailers. You may contact your retailer for further
details.
The accessories list is subjected to change without prior notice
by the Company. Actual accessories provided may vary from
those stated in this document.

GI 07 User Manual v02
13
Table of Contents
1. Product Overview
1.1 Features
1.2 Hardware Description
1.3 External View of Product and Features
2. Basic Operation
2.1 Overview of Button Events vs. Corresponding Actions
2.2 LED Indicator
2.3 Operating in Music Mode
2.4 Operating as a Bluetooth Headset
2.5 Operating as a USB Drive
2.6 Power Charge
3. Trouble Shooting
4. Product Specification
GI 07 User Manual v02
14
1. Product Overview
1.1 Features
•Supports MP3 and WMA music file.
•LED Indicator
•Plug-and-Play USB Flash Disk function.
•Normal or Random mode for music play.
•Supports Bluetooth Headset (HSP) and Hands-free (HFP)
profile.
•USB2.0 Full speed

GI 07 User Manual v02
15
1.2 Hardware description
This player comes with:-
•6 control buttons
9One on the line of the stereo earphones ÆPLAY button
95 buttons on the player ÆUP/DOWN, NEXT/PREV and
STOP
•One RESET button hidden under behind the 3.5mm
headphone jack.
•One 3.5mm headphone jack hidden under the rubber stopper.
•One Mic on the line of the stereo earphones
•LED indicators (red and blue 2 colours) on top of the front
surface of the player.
GI 07 User Manual v02
16

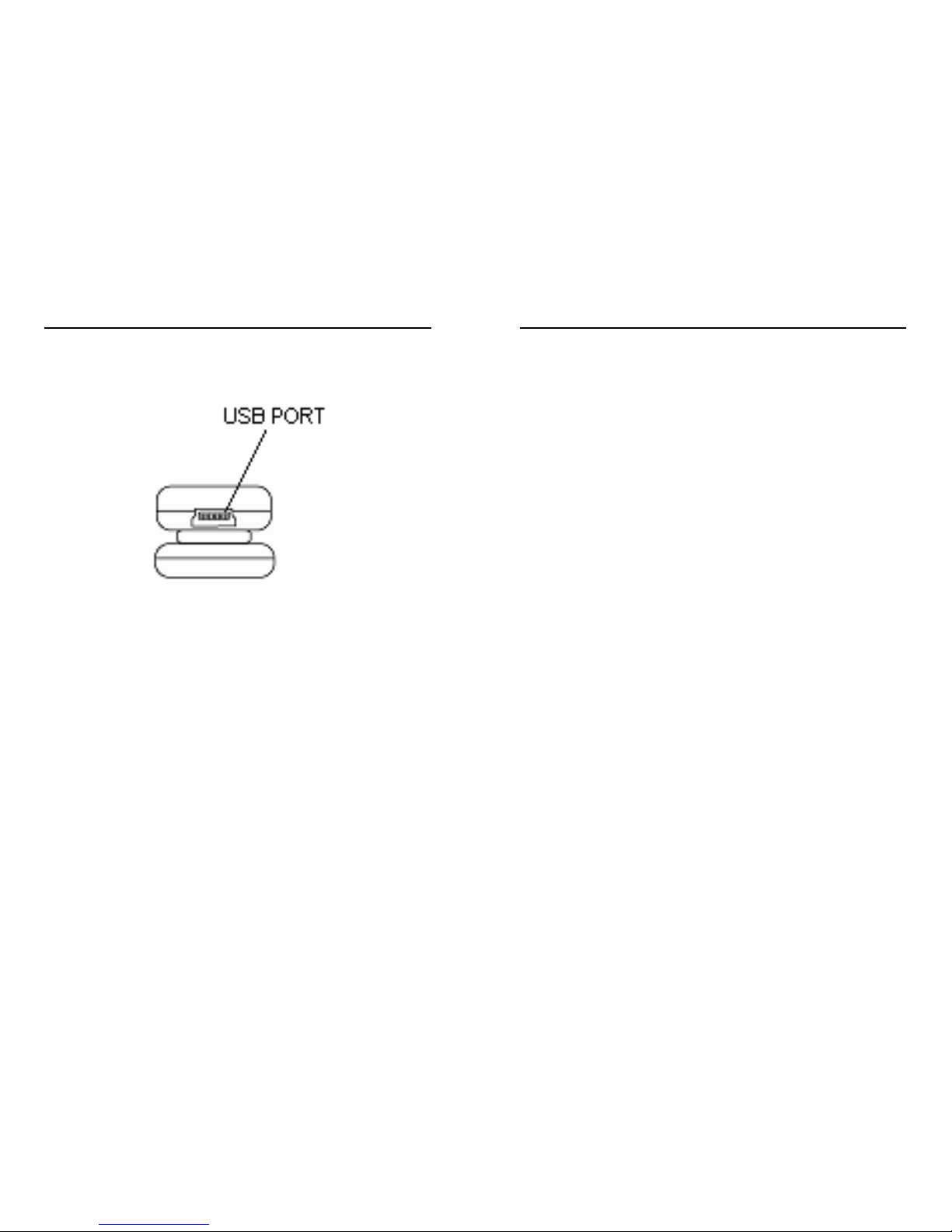

1.3 External View of Product and
Features

GI 07 User Manual v02
17
Headphone Jack
GI 07 User Manual v02
18
PREVIOUS
N
EXT

GI 07 User Manual v02
19
GI 07 User Manual v02
20
2. Basic Function
Switching the player On/Off
Switching on the player
•Press and release PLAY to turn on the player
•The player takes about 3 sec to start up, depending on the
number of songs stored in it
•Once it has started, a welcome message, “Enjoy your
Bluetooth Headset with Music!”, will be played
Shutting down the player
•Press and hold the STOP button until you hear the shutdown
message “See you again…”
Resetting the Player
For resetting the player, please use a stick or something that is able
to press the RESET button which is at the end of the headphone jack.
Press the RESET button ONCE.
NOTE: Only use this button when the player has totally hanged and
is not able to function.

GI 07 User Manual v02
21
2.1 Overview of Button Events vs. Corresponding Actions
Buttons Events Actions
PLAY PR 1. Power On when it is at standby
2. Play/Pause while playing
3. Pick up phone when there’s
incoming call.
PLAY PH<5sec Give Battery level indication
PLAY PH>5sec Enter Pairing Mode
STOP PR 1. Stop music while playing
2. Reject an incoming call or hang
up the call.
GI 07 User Manual v02
22
STOP PH<5sec Change playmode (Normal ÙRandom)
STOP PH>5sec Shutdown
PREV PR Previous song
PREV PH Rewind
NEXT PR Next song
NEXT PH Fast Forward
UP PR or PH Volume Up
DOWN PR or PH Volume Down
NOTE: PR = Press and Release
PH = Press and Hold

GI 07 User Manual v02
23
2.2 LED Indicator
State LED status
Playing with battery
>30%
Blue LED blinks every 10 sec
Playing with battery
<30%
Red LED blinks every 10 sec
During Pairing Blue and Red alternating moderately
During USB read and
write
Blue and Red alternating moderately
During USB idle
with battery >30%
Blue LED blinks moderately
GI 07 User Manual v02
24
During USB idle
with battery <30%
Red LED blinks moderately
During charging with
battery >30%
Blue LED blinks moderately
During charging with
battery <30%
Red LED blinks moderately
After fully charged Blue LED blinks very quickly

GI 07 User Manual v02
25
2.3 Operating in Music Mode
Once the player is turned on, press the NEXT or
PREV button to search for the desired track.
Press the PLAY button to pause the music, press
again to resume playing.
Normal playing operation
•Press and release the NEXT button to forward
to the next song or press and hold the NEXT
button to fast forward the current song.
•Press and release the PREV button to
backtrack the previous the song or press and
hold the PREV button to fast rewind the current
sing.
•Press “vol +” or “vol -” to increase or decrease
the volume of the music
GI 07 User Manual v02
26
Change play mode
•Press and hold the STOP button for about 1
sec then release
•You will hear the selected playmode, which is
either “Normal” or “Random
NOTE: Please refer to the “Button events vs
Corresponding Actions” table.

GI 07 User Manual v02
27
2.4 Operating as a Bluetooth Headset
Pairing with your Handphone
9Press and hold the PLAY button until you
hear the message “Enter pairing…”
9Use your handphone to look for this
Device (Snafu-Clip)
9Once it is found, select this device and
key in the password: “0000”.
9Once has been paired successfully, the
message “Pair Success!” will be played
GI 07 User Manual v02
28
9To disconnect, press and hold the STOP
button to shutdown the player
NOTE: If pairing has failed, a message “Pair
Failed!” will be played within the pairing period of
60seconds
Answer incoming call
9Press and release the PLAY button
Reject incoming call
9Press and release the STOP button
Stop a call session
9Press and release the STOP button

GI 07 User Manual v02
29
2.5 Operating as a USB Drive
9Shutdown the player first.
9Use the USB cable provided to connect
to your computer
9The computer will recognize it as a USB
Mass Storage Class and it can be found
in “My Computer”
GI 07 User Manual v02
30
2.6 Power Charge
•Use the USB charger provided to charge the
player.
•Charge until the Blue LED blinks very quickly
NOTE: Turn off the power when it is not in use.

GI 07 User Manual v02
31
3. Trouble Shooting
3.1 There is no sound when playing.
Possible fault and remedy: Check to find if the
volume is adjusted too low. If it is too low, turn it
up .Make sure that the earphones are properly
connected, or they are working properly.
GI 07 User Manual v02
32
3.2 Sometimes abnormity occurs on
the PC when disconnecting the player.
Possible fault and remedy: This is mainly caused
by unplugging during data transmission. It is
advised to never disconnect the player while data
and files are being transmitted between the player
and your PC.

GI 07 User Manual v02
33
Why music files cannot be
downloaded when linked to a PC?
Possible fault and remedy:
•Management driver not installed. Install
again.
•Installed driver damaged. Install again.
•PC main board does not support USB
connection. Upgrade the main board.
GI 07 User Manual v02
34
4. Product Specification
Chipset STMP3507 BGA for FULL SPEED
STMP3550 BGA for HIGHSPEED
Bluetooth CSR BC03 V1.2
Music
Format mp3,wav, wma
Capacity 128MB/ 256MB/ 512MB/ 1GB/ 2GB
USB type USB2.0 interface
Compress
rate
MP3: 8kbps~320kbps,
WMA: 5Kbps~192kbps

GI 07 User Manual v02
35
SNR ≥90dB
Output
Frequency (L) 10mW+ (R) 10mW (320hm)
Battery Lithium Rechargeable Battery 200mAh
