YX MOIP Series User manual

GSM/CDMA/WCDMA/4G(LTE) MOIP Gateway
YX Technical department ~ 1 ~
YX
Series MOIP User Manual
V5.1.5 YX Technical department
www.yx19999.com; www.yx19999.net
Huizhou :Huizhou YueXun Network Technology Co., Ltd (YX)
Hong Kong: YX International Information Co., Ltd
TEL: [phone] FAX: [phone]
Email: [e-mail]
Address: 613,Bomeitang Building,NO.13 Maixin Road, Huicheng District, Huizhou,
Guangdong, China

GSM/CDMA/WCDMA/4G(LTE) MOIP Gateway
YX Technical department ~ 2 ~
CONTENT
1 Introduction.........................................................................................................................5
1.1 Overview.............................................................................................................................................. 5
1.2 Glossary ............................................................................................................................................... 5
2 Equipment Information.......................................................................................................6
2.1 Product Brief........................................................................................................................................ 6
2.2 Appearance.......................................................................................................................................... 6
2.3 Special Features................................................................................................................................... 7
2.4 Specification ........................................................................................................................................ 8
2.5 Mobile Features................................................................................................................................... 8
2.6 Maintenance and Management .......................................................................................................... 9
3 Equipment Installation........................................................................................................9
3.1 Network Setup..................................................................................................................................... 9

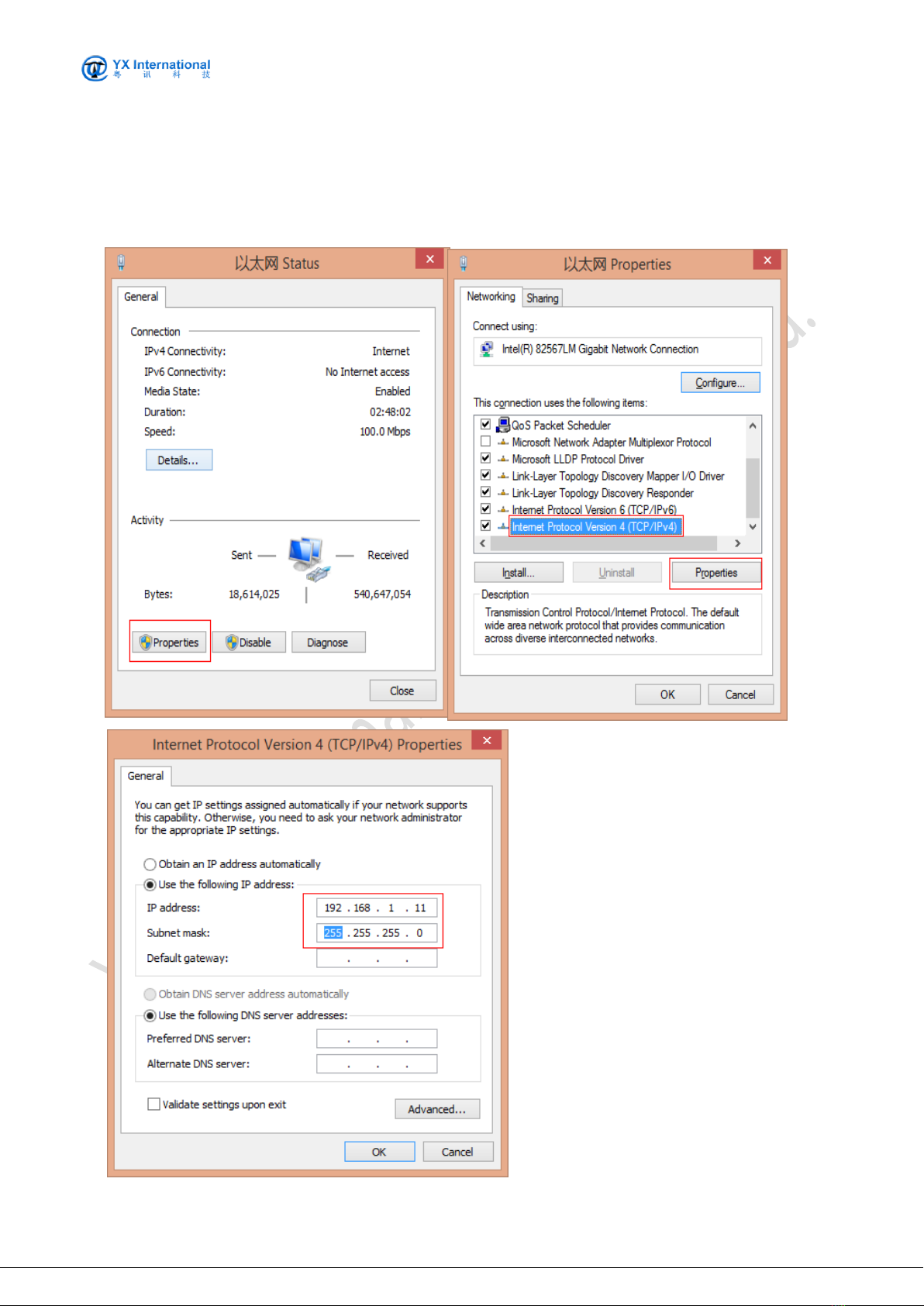

3.2 Equipment IP Address........................................................................................................................ 10
3.3 Equipment Connection...................................................................................................................... 10
3.4 LED Indicators .................................................................................................................................... 10
4 Web Settings .....................................................................................................................10
4.1 Login .................................................................................................................................................. 11

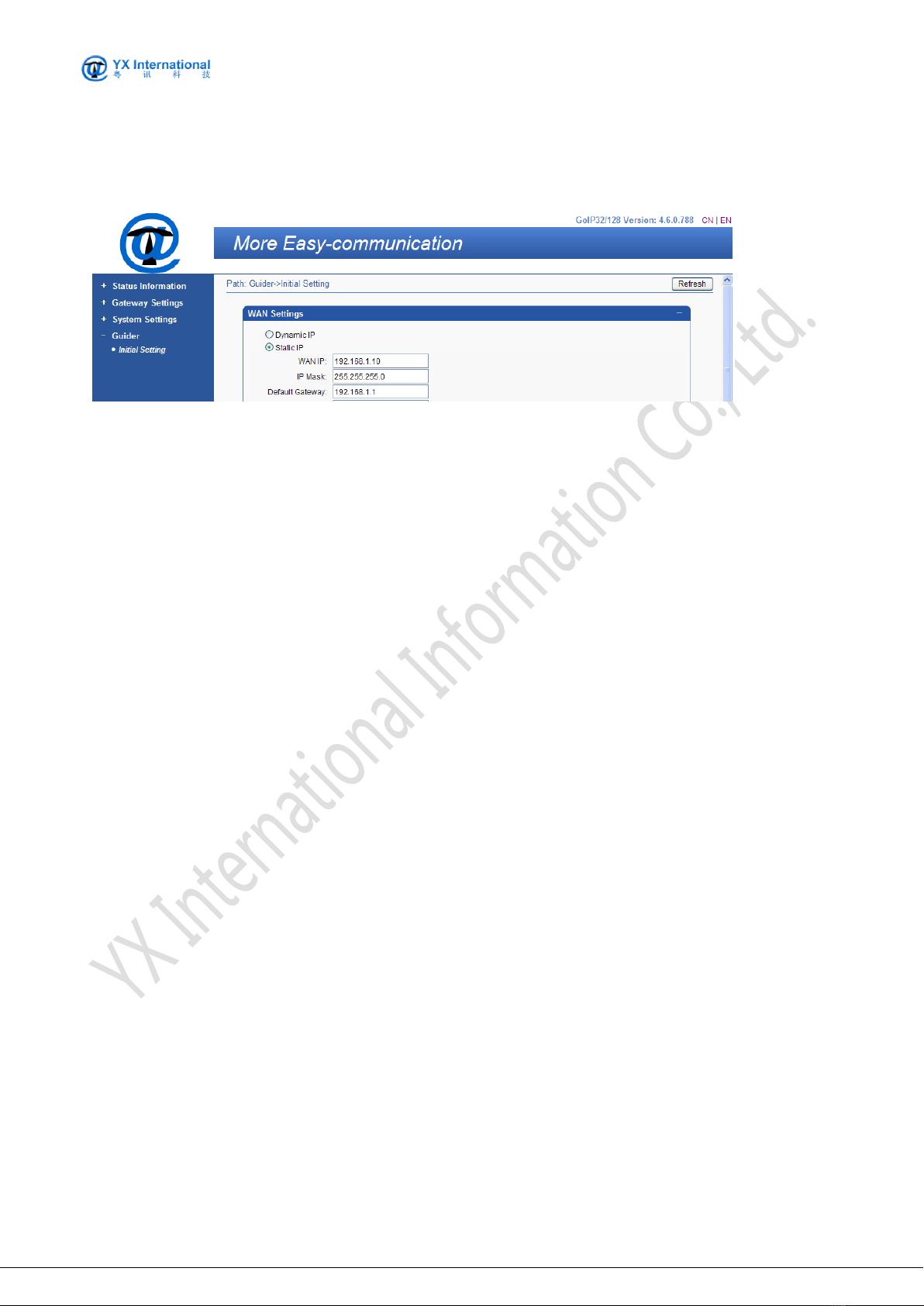

5 Guider ................................................................................................................................13
6 Status Information.............................................................................................................14
6.1 Call Status .......................................................................................................................................... 14
6.1.1 Call Status ............................................................................................................................... 14

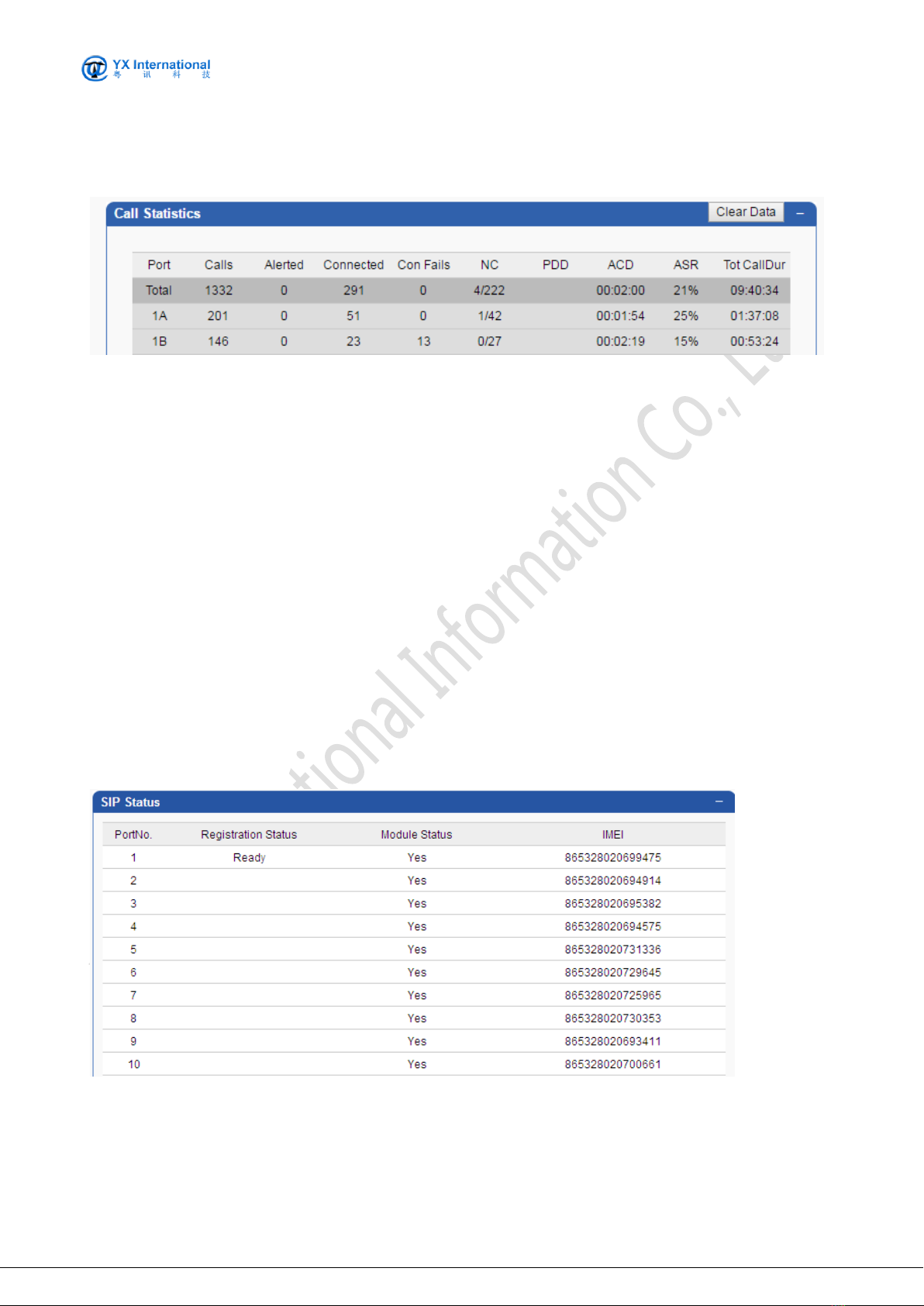

6.1.2 Call Statistics........................................................................................................................... 15
6.2 Device Status ..................................................................................................................................... 15
6.3 System Status .................................................................................................................................... 16
6.4 Traffic Statistics.................................................................................................................................. 16
6.5 Media Statistics.................................................................................................................................. 17
6.6 SMS Statistics..................................................................................................................................... 17
6.7 InterCall Statistics .............................................................................................................................. 17
7 Gateway Settings ..............................................................................................................18
7.1 Network Settings ............................................................................................................................... 18
7.2 SIP Setting.......................................................................................................................................... 19
7.3 Port Setting........................................................................................................................................ 20
7.3.1 USSD Operations .................................................................................................................... 20
7.3.2 Base Station ............................................................................................................................ 20
7.3.3 Hardware properties .............................................................................................................. 21
7.4 Basic Station(Only 2G) ....................................................................................................................... 22
7.4.1 Basic Settings.......................................................................................................................... 22
7.4.2 Base stations Settings/Operations ......................................................................................... 22
7.5 IMEI Setting ....................................................................................................................................... 23
7.6 Rules Setting ...................................................................................................................................... 25
7.6.1 Prefix....................................................................................................................................... 25
7.7 Mobile Setting ................................................................................................................................... 26
7.7.1 PIN Setting .............................................................................................................................. 26

GSM/CDMA/WCDMA/4G(LTE) MOIP Gateway
YX Technical department ~ 3 ~
7.7.2 Billing Setting.......................................................................................................................... 26
7.7.3 USSD/SMS Query Keyword List .............................................................................................. 28
7.7.4 Tariff List ................................................................................................................................. 28
7.8 USSD Setting ...................................................................................................................................... 29
7.8.1 USSD Auto Send...................................................................................................................... 29
7.8.2 USSD List ................................................................................................................................. 30
7.9 Automation........................................................................................................................................ 31
7.9.1 Scheduled Sending SMS.......................................................................................................... 31
7.9.2 SIM Online Time Checking...................................................................................................... 31
7.9.3 Accumulated SMS Count Checking......................................................................................... 32
7.9.4 Accumulated Failed SMS Count Checking .............................................................................. 32
7.9.5 Consecutive Failed SMS Count Checking................................................................................ 32
7.10 SIM Pool Setting .............................................................................................................................. 33
7.11 InterCall Setting ............................................................................................................................... 34
7.11.1 Port Inter-Calling .................................................................................................................. 34
7.11.2 Conditions Settings............................................................................................................... 34
7.12 SIM Num Settings ............................................................................................................................ 35
7.13 Auto Recharge ................................................................................................................................. 36
7.14 Status Notification ........................................................................................................................... 36
7.15 Internet Setting................................................................................................................................ 37
8 SMS Setting.......................................................................................................................37
8.1 SMS Setting........................................................................................................................................ 37
8.1.1 SMS Receive............................................................................................................................ 37
8.1.2 SMS Send ................................................................................................................................ 39
8.2 SMS Ctrl Setting ................................................................................................................................. 41
8.3 SMPP Setting ..................................................................................................................................... 42
8.4 EIMS Setting(SMS Server Registration) ............................................................................................. 43
8.5 SMS Prefix Route ............................................................................................................................... 44
9 System Setting..................................................................................................................45
9.1 LED Setting......................................................................................................................................... 45
9.2 Network Debug.................................................................................................................................. 45
9.3 Log Settings........................................................................................................................................ 46
9.4 File Management............................................................................................................................... 47
9.5 User & Device .................................................................................................................................... 48
9.5.1 User......................................................................................................................................... 48
9.5.2 Device Settings ....................................................................................................................... 49
9.5.3 Date And Time ........................................................................................................................ 49
9.5.4 Remote Mangement............................................................................................................... 49
9.5.5 SNMP ...................................................................................................................................... 50
9.6 Role Management ............................................................................................................................. 51
9.7 Update/ backup & Restore................................................................................................................ 51
9.8 Save & Reboot ................................................................................................................................... 52
10 Http API command..........................................................................................................53
10.1 SMS .................................................................................................................................................. 53
10.1.1 HTTP Send URL ..................................................................................................................... 53

GSM/CDMA/WCDMA/4G(LTE) MOIP Gateway
YX Technical department ~ 4 ~
10.1.2 HTTP Receive URL................................................................................................................. 53
10.2 USSD ................................................................................................................................................ 53
10.2.1 HTTP Send URL ..................................................................................................................... 53
10.2.2 HTTP back：......................................................................................................................... 54

GSM/CDMA/WCDMA/4G(LTE) MOIP Gateway
YX Technical department ~ 5 ~
1 Introduction
1.1 Overview
A MOIP Gateway (MOIP Gateway) is a device which reduces costs when SMS from . It
enables direct routing between IP and mobile networks.
MOIP Gateway is now used more and more for telephone carriers to land their IP SMS to
mobile network. In those areas where fixed line services are unavailable or much more expensive
than the mobile cost, MOIP Gateway is an irreplaceable alternative.

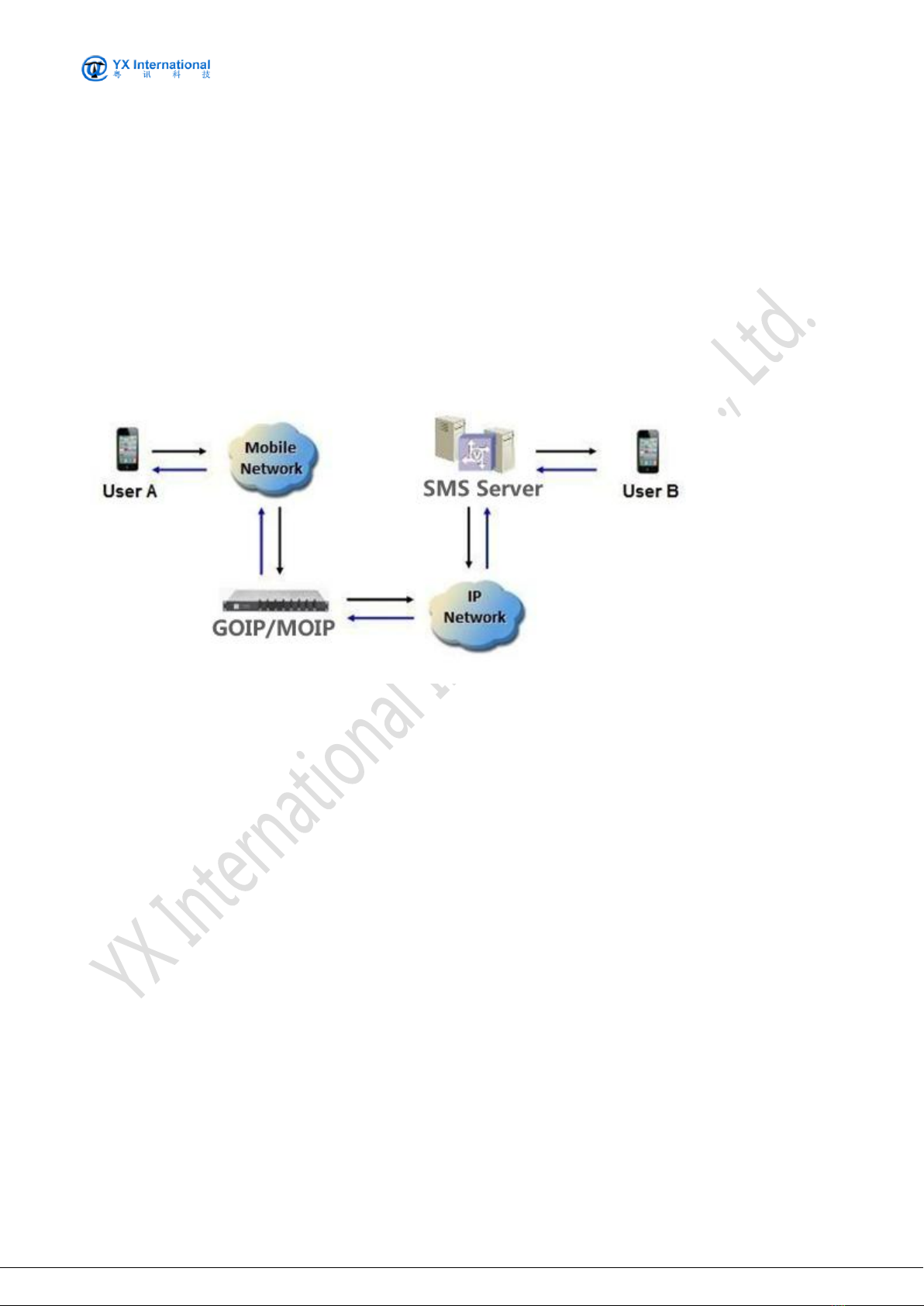

The following figure shows a basic topology of MOIP Gateway usage.
1.2 Glossary
MoIP: Modem over Internet Protocol.
SMS: Short Message Service
MMS: Multimedia Messaging Service
DTMF: Dual Tone Multiple Frequency.
IMEI: International Mobile Equipment Identity (with15 digits).
PDD: Post Dial Delay.
LCR: Least Cost Routing.
USSD: Unstructured Supplementary Service Data.
GSM: Global System Communications.
CDMA: Code Division Multiple Access.
WCDMA: Wideband Code Division Multiple Access.
CDMA: Code Division Multiple Access
LTE(FDD-LTE TDD-LTE): Long Term Evolution

GSM/CDMA/WCDMA/4G(LTE) MOIP Gateway
YX Technical department ~ 6 ~
2 Equipment Information
2.1 Product Brief
YX series MOIP Gateway is a multi-functional and high performance product, which is designed
with advanced embedded technology. YX series is able to process traditional SMS service and
internet data service.
YX series MOIP Gateway please check the following table about the difference:
Model Number
Channel
Sim capacity in
each channel
Total sim capacity
Frequency(optional)
YX MOIP 8-8
8
1
8
GSM / CDMA / WCDMA / 4G(LTE)
YX MOIP 8-32
8
4
32
GSM / CDMA / WCDMA / 4G(LTE)
YX MOIP 16-16
16
1
16
GSM / CDMA / WCDMA / 4G(LTE)
YX MOIP 16-64
16
4
64
GSM / CDMA / WCDMA / 4G(LTE)
YX MOIP 16-128
16
8
128
GSM / WCDMA / 4G(LTE)
YX MOIP 16-256
16
16
256
GSM / 4G(LTE)
YX MOIP 16-512
16
32
512
GSM / 4G(LTE)
YX MOIP 32-32
32
1
32
GSM / WCDMA / 4G(LTE)
YX MOIP 32-128
32
4
128
GSM / WCDMA / 4G(LTE)
YX MOIP 32-256
32
8
256
GSM / WCDMA / 4G(LTE)
YX MOIP 32-512
32
16
512
GSM / WCDMA / 4G(LTE)
YX MOIP 64-64
64
1
64
GSM / WCDMA / 4G(LTE)
YX MOIP 64-256
64
4
256
GSM / WCDMA / 4G(LTE)
YX MOIP 64-512
64
8
512
GSM / WCDMA / 4G(LTE)

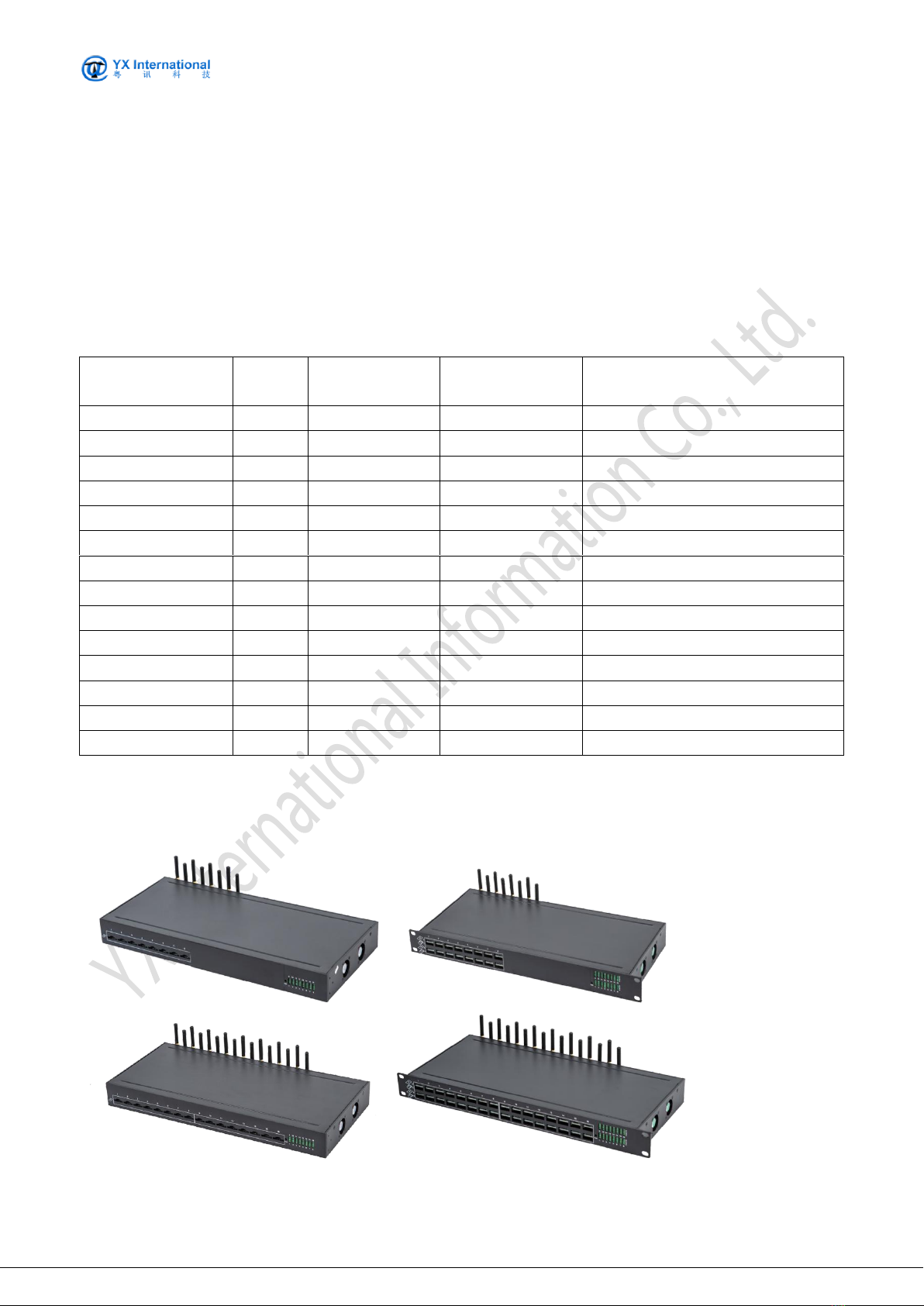

2.2 Appearance

GSM/CDMA/WCDMA/4G(LTE) MOIP Gateway
YX Technical department ~ 7 ~
8/16/32/64 Antennas
1 USB Serial Port (Baudrate 115200)
1 Network Interface (RJ45)
1 Power Interface (DC 12V 3A/5A/7.5A/8A)
1 Power light
1 Reset Button
8/16/32/64/128/256/512 SIM card slots
8/16/32/64/128/256/512 LED lights
2.3 Special Features
Support SIM Bank
VPN(pptp)
SIM Card Rotating
SIM card check and switch rules:
SIM Online Time Checking
Accumulated SMS Count Checking
Accumulated Failed SMS Count Checking
Consecutive Failed SMS Count Checking
SIM intelligent switching(By switching rules)
ERMS(Easement Remote Management System)
SMS Server: EIMS , IMFS
SMS protocol: SMPP3.4 , HTTP API
Port Inter-Calling
SMS Prefix Setting
USSD Send (Auto/Manual)
Auto Balance check(need set by USSD/SMS)
SIM card Number check (need set by USSD/SMS)
Web Browser: Firefox/Chrome /IE/Opera

GSM/CDMA/WCDMA/4G(LTE) MOIP Gateway
YX Technical department ~ 8 ~
2.4 Specification
Number of
Channels
8 channels 8/32 SIM slots
16 channels 16/64/128/256/512 SIM slots
32 channels 32/128/256/512 SIM slots
64 channels 64/256/512 SIM slots
Frequency
2G/3G/4G(Optional): YX MOIP Optional List Real-time
Network
Protocols
DHCP/PPPoE/VPN(pptp)
NTP Telnet/HTTP/FTP/TFTP
SMS protocol
SMPP3.4 , HTTP API ,YX
SMS Server
EIMS , IMFS
SMS
Capability
SMS Codecs
PDU, TXT , IS08859-1 (Support Auto)
SMS send speed
About 720P/Port/Hour(Related to network conditions)
SMPP Receive
Codecs
GSM BIT7,IA5,LARIN-1,UCS2,UTF-8
Other
characteristics
Send Interval, Delivery report, Send statistics, Receive statistics,
SMS Send Limit(day/month/total), SMPP Send, SMPP Server,
SMPP Client
MMS/Sender ID
change
Not support
Number of
Ports
1 WAN 10/100Base-T Ethernet(RJ-45 connector)
1 Console(USB)
LED
1 Power and 4/8/16/32/64groups of card online and running status indicator
Power Supply
100-240VAC, 50 - 60 Hz IN, 12VDC 3A/5A/7.5A/8A Out
Operating
Environment
Operating temperature: 0 - 50ºC
Operating humidity: 10 –90%RH
Warranty
12 Months
2.5 Mobile Features
SMS Send, Receive and Forward(GSM/SIP/HTTP/email)
SMS Inbox
AT Command , USSD
SMS Format: PDU/TXT
PIN Code Management
Carrier Selection
Caller ID Hidden(need SIM Card support)

GSM/CDMA/WCDMA/4G(LTE) MOIP Gateway
YX Technical department ~ 9 ~
2.6 Maintenance and Management
Multi-language Interface
USB Serial COM
Configuration Backup and Restore
Support HTTP/TFTP Upgrade
SMS statistics: Successful statistics, failure statistics, continuous failure statistics, success
rate
WEB Remote Management System
SMPP3.4 support
HTTP API support
3 Equipment Installation
This chapter describes how to install a new MOIP Gateway to a physical network environment,
how to initialize it and start it in a proper way.
3.1 Network Setup
Network is a prerequisite to install MOIP Gateway. The following figure shows the topology of
Network with a MOIP Gateway connected.(No LAN port)
Switch/Router
WAN
IP Network

GSM/CDMA/WCDMA/4G(LTE) MOIP Gateway
YX Technical department ~ 10 ~
3.2 Equipment IP Address
The default IP of MOIP Gateway WAN port is 192.168.1.10, while the default LAN port IP is
10.10.10.1(The Version not up the LAN port).
3.3 Equipment Connection
Follow the steps below to install the MOIP Gateway to Network.
1) Fix the antenna to the MOIP Gateway. (Optional)
2) Insert SIM card(s) to slots.
3) Connect an Ethernet Cable to the WAN port of MOIP Gateway. The other end of the
Ethernet Cable should be connected to Network port of route or switch.
4) Connect an Ethernet Cable to the Network port of MOIP Gateway. The other end of the
Ethernet Cable should be connected to PC or other network device. (Optional)
5) Plug in the MOIP Gateway.
3.4 LED Indicators
There are a set of LED lights in the front of MOIP Gateway. Lights will be on or glittering when the
MOIP Gateway is power on and running. The following table describes various meanings of status
corresponding to LED lights in different display color.
Power
It indicates whether the system is running or not.
Calling
That one Card slot light to keep bright
Lock card
That one Card slot light flashing(0.5s/times)
No balance / SMS Control
(Meet these conditions
when the lock card)
That one Card slot light flashing(2s/times)
The device did not start
successfully
All slot lights keep bright
4 Web Settings
This chapter describes how to set up MOIP Gateway through Web Page. There is a built-in web
server which can be accessed at URL: http://GATEWAY_IP/, while GATEWAY_IP is the WAN IP
address of the MOIP Gateway, such as 192.168.1.10.
As an example, the following introduction will base on the MOIP Gateway with WAN IP
192.168.1.10.

GSM/CDMA/WCDMA/4G(LTE) MOIP Gateway
YX Technical department ~ 11 ~
4.1 Login
First, connect a computer to the same LAN with MOIP, add the MOIP IP segment in the
computer.
If your computer's IP address is not 192.168.1. XXX, how to change:

GSM/CDMA/WCDMA/4G(LTE) MOIP Gateway
YX Technical department ~ 12 ~
Save it.
Open web browser and access URL http://192.168.1.10. The default login page will be displayed
as following.
The default login account and password are:
Account
root
Password
root
It is recommended to use IE/FireFox/Chrome to access the web pages. After successfully logged
in, the main page to set Gateway is as following:

GSM/CDMA/WCDMA/4G(LTE) MOIP Gateway
YX Technical department ~ 13 ~
5 Guider
Guider will be described in this paragraph. The most frequently modified parameters and most of
the individual parameters are listed in this page.
WAN port is to connect to switch or route then you can use PC that on the same LAN network to
login. There’s three types of wan connect.
Static IP: You can set WAN IP,IP Mask, Default Gateway and DNS Server of WAN port to
connect the Internet.
Dynamic IP: You can get IP address ,IP Mask ,Default Gateway and DNS Server dynamically from
your DHCP server.
PPPoE: In this mode,you can use MOIP device to dail-up network. You can set User Name and
Password which you get from your ISP. And you also can set MTU and Service Name.

GSM/CDMA/WCDMA/4G(LTE) MOIP Gateway
YX Technical department ~ 14 ~
6 Status Information
6.1 Call Status
6.1.1 Call Status
The screenshot below shows the live SIM status.
The status columns are specified as following:
Port: The physical port sequence from 1 to8/16/32/64.
SIM: SIM Card slot number in use.
Call State: Specify the call status.
Duration: Specify the call duration.
RlsRsn: Hang up the reason code(On the left is the Moblie hang-up code, on the right is the
VOIP hang-up code)
Balance: Specify the current balance of the card in this port.
SIM Led: shows the MOIP Gateway port LED status. Different LED
Provider: The mobile provider that system detects.
Net: The current mobile network model(2G/3G/4G),need device support
Signal Intensity: Specify the mobile signal intensity.
ASR: Shows the port of ASR statistics.
ACD: Shows the port of ACD statistics.
Description: Specify the card dialing number status.
Clear Data: Clear ASR and ACD data, restart statistics.
Note:
LED A/B/C/D(.01-.16) displays in accordance with the lights on the front board of MOIP Gateway.
Port 1 to 4/8/16/32/64 relate to the physical port of MOIP Gateway. The following table shows the
relationship between LED color and port status.( When registering a card, the description of the
card may not be displayed in real time. Please refer to the information displayed on the icon)

GSM/CDMA/WCDMA/4G(LTE) MOIP Gateway
YX Technical department ~ 15 ~
6.1.2 Call Statistics
The screenshot below shows the call statistics information for analysis.
The status columns are specified as following:
Port : Shows the status of each SIM card slot.
Calls: Specify the total calls made out from this port since the last start up of system.
Alerted: Specify the total number of responded alerting message for all the calls made.
Connected: Specify the total number of answer from destination for all the calls made.
Consecutive Fails: Specify the consecutive fail calls.
No Carriers(NC): The carrier did not respond to the outgoing statistics
PDD: Specify the average duration to receive the response of alerting message.
ACD ASR : Display ACD and ASR for each SIM card slot
Tot CallDur: The port total calls duration used out from this port since the last start up of
system.
Clear Data: Clear all data, restart statistics.
A total summary is displayed at the bottom of the table.
6.2 Device Status
The screenshot below shows the SIP and Module status.
The status columns are specified as following:
Port No: The physical port sequence from 1 to 4/8/16/32/64.
Registration Status: Shows the port registration to SIP server infomation status.

GSM/CDMA/WCDMA/4G(LTE) MOIP Gateway
YX Technical department ~ 16 ~
Module Status: Shows the port Module use status(Yes/No). If NO is displayed,please try
restarting. If still, Please contact YX NOC
IMEI: Specify the port current using of IMEI.

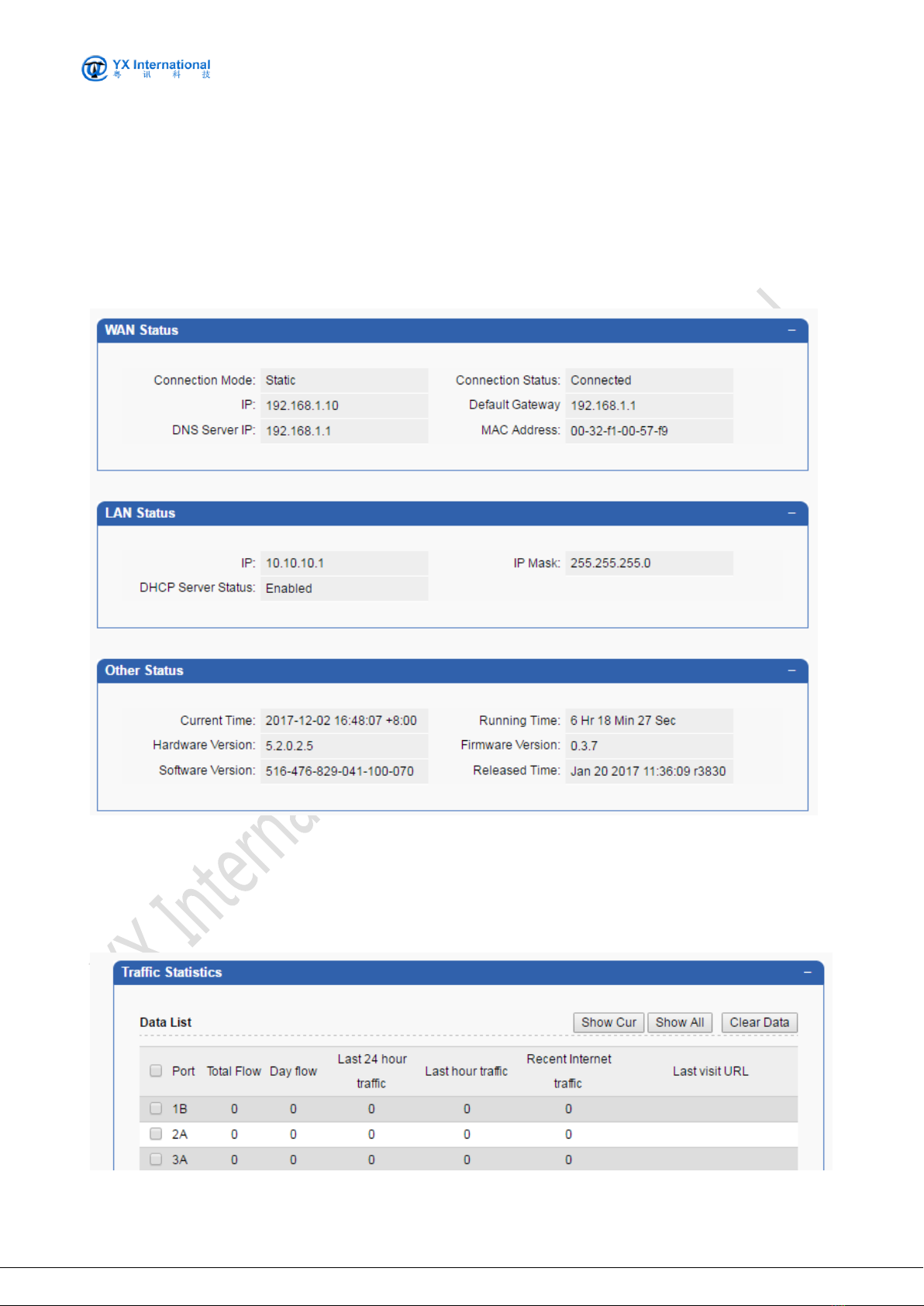

6.3 System Status
The screenshot below shows the system status. It includes WAN status, LAN(please ignore) and
others. The reported information can help you get the system status detail in a fast, simple way.
6.4 Traffic Statistics
This is used to count the internet traffic of the card in use

GSM/CDMA/WCDMA/4G(LTE) MOIP Gateway
YX Technical department ~ 17 ~
6.5 Media Statistics
Here statistics IP network media and traffic data situation
6.6 SMS Statistics
Here Statistics SMS send and receive, send failure and success of the situation
6.7 InterCall Statistics
The status columns are specified as following:
Port No: The physical port sequence from 1 to 8/16/32/64.
State: Specify the call status.

GSM/CDMA/WCDMA/4G(LTE) MOIP Gateway
YX Technical department ~ 18 ~
Duration: Specify the call duration.
Inc calls: Specify the total incoming calls since the last start up of inter calling system.
Out Calls: Specify the total outgoing calls since the last start up of the inter calling system.
Success: The number of successes in Inter-Calling
Failed: The number of failed in Inter-Calling
Rcvd SMS: Specify the total received SMSs since the last start up of the system.
Sent SMS: Specify the total sent SMSs since the last start up of the system.
Descriptions: Specify the card status.
7 Gateway Settings
7.1 Network Settings

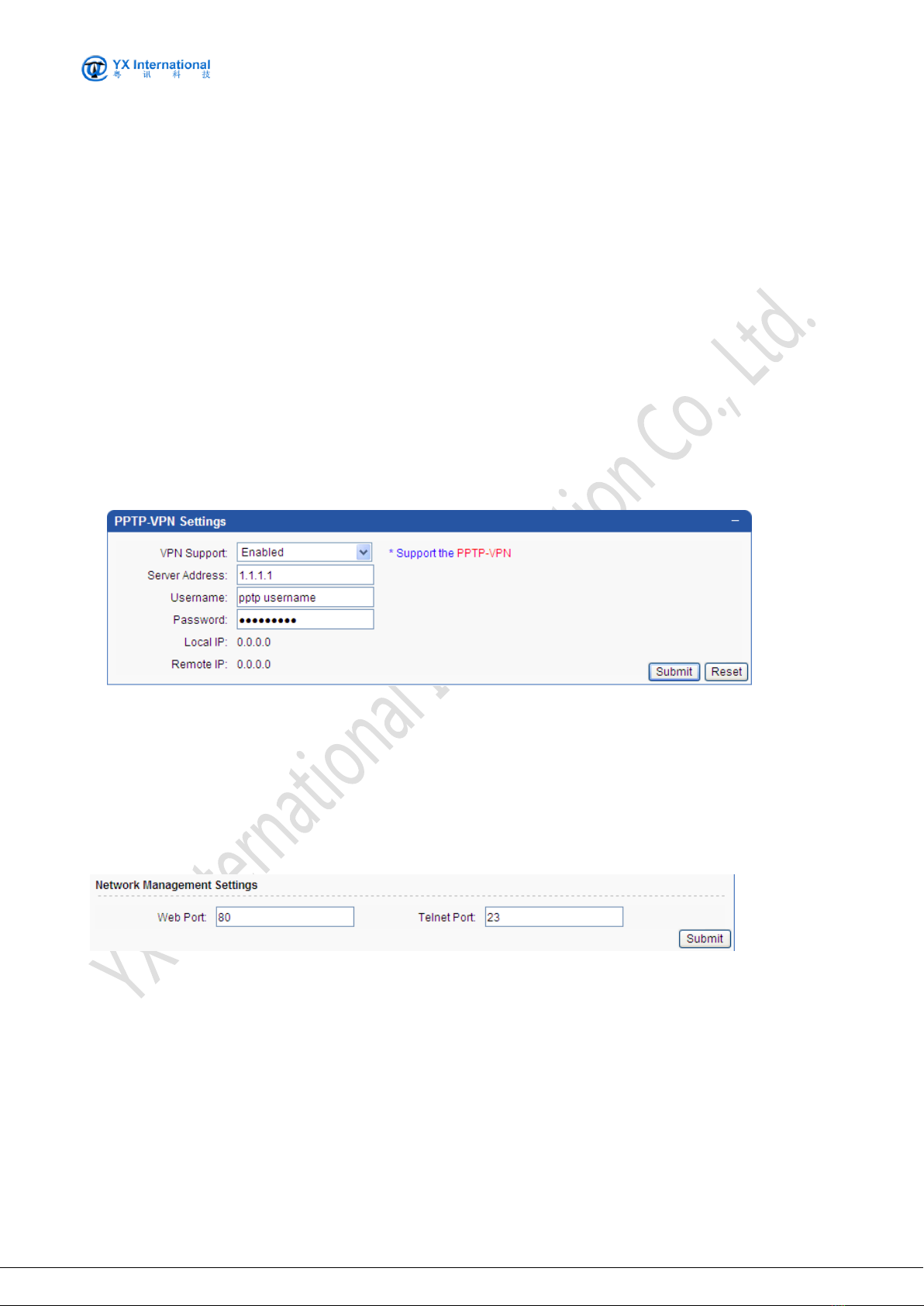

The screenshot below shows the operation mode to set VPN settings, and the protocol of vpn is
pptp.
Fields are specified as following:
VPN Support: Whether support VPN or not.
Server Address: Specify the VPN server address.
Usename: Specify the username of VPN.
Password: Specify the password of VPN.
Local IP: The VPN client ip.
Remote IP: The VPN remote ip
The default port of web server is 80. The field Web Port is used to set another different port for
web server. For example, if fieldWeb Port is set to 8080 and wan IP is 192.168.1.10, the web pages
then should be accessed through URL: http://192.168.1.10:8080 from this computer.
The field Telnet Port is used to change the default port of telnet service.

GSM/CDMA/WCDMA/4G(LTE) MOIP Gateway
YX Technical department ~ 19 ~
7.2 SIP Setting
The screenshot below shows the operation mode to set application feature：
The fields are specified as following:
Forbid GSM Call: Specify whether need to prevent the GSM incoming call. If set to enable,
any of the incoming calls whose callerid is not in the white list specified in White Number List
will be prevented.
GSM Call AutoAnswer: Specify whether need to auto-answer the call which is from GSM. If
set to Enable, AutoAnswer Time can be used to specify the delay to automatically answer the
incoming GSM call.

GSM/CDMA/WCDMA/4G(LTE) MOIP Gateway
YX Technical department ~ 20 ~
7.3 Port Setting
7.3.1 USSD Operations

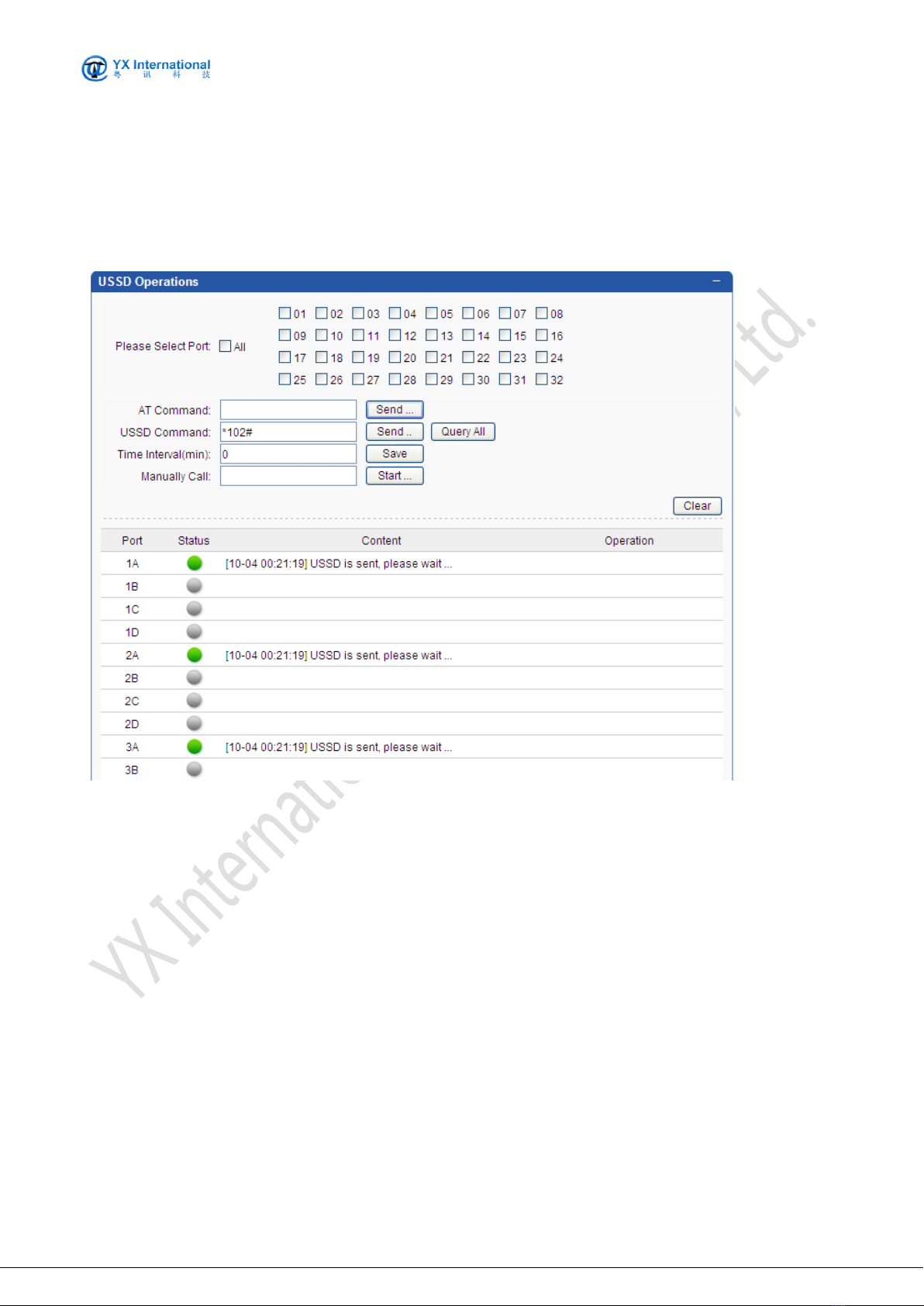

The screenshot below shows the operation mode of USSD operation to MOIP Gateway.
Fields are specified as following:
Select port: Choose some or all port to execute AT or USSD command.
At Command: You can enter AT command then execute to the port which you select.
USSD Command: Enter USSD query command.
Time Interval: Query balance regularly.
Manually Call: Manually input a number, let the sim card mark a call
7.3.2 Base Station
The screenshot below shows the operation mode to set Basic Settings of Port settings
