Z-RAY TORTUGA KAYAK User manual

PK7-20-US1
ZRAY TORTUGA KAYAK
Instruction Manual
Important safety guide lines for sport boat use,Please read & understand prior to using your boat
34089
Do not return the product to the store
Contact your local after sales service center
www.zraysports.com
STOP
ZRAY TORTUGA KAYAK

PK7-20-USwww.zraysports.com2
Thank you for purchasing your ZRAY TORTUGA Inflatable 2-person
Kayak. Please follow these instructions for correct assembly. Failure to
follow these instructions may result in drowning or serious injury.
The ZRAY TORTUGA inflatable kayak is designed for short trips over
calm lakes, seas or rivers (less than 3 hours), and is suitable for 1 - 2
adults.
Introduction
This manual contains important safety instructions. Please
read it thoroughly to ensure your understanding before using
the Kayak and retain it for future reference.
The ZRAY TORTUGA inflatable kayak is equipped with two sets of
paddles, two inatable seats, a high-pressure inating pump, backpack,
n and a repair kit.
The ZRAY TORTUGA kayak has 3 air chambers comprising two side air
chambers and a bottom air chamber. The two seats are also inatable.

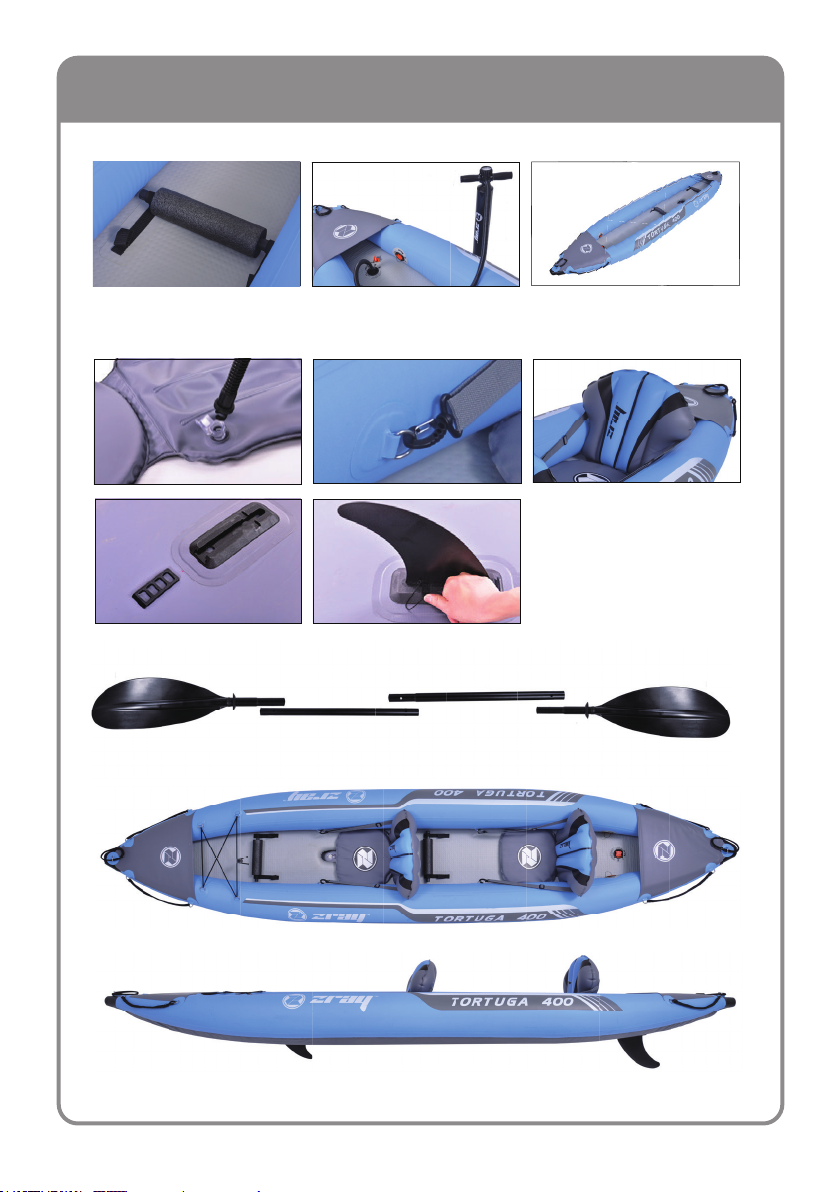

Product description
Length
Width
Number of air chambers
Maximum pressure
Load capacity
Maximum number of boaters
152”/386cm
34”/86cm
4
①&② 3.63PSI / ③8PSI
374 lbs/170 kgs
2

3www.zraysports.com PK7-20-US
WARNING
To enhance the enjoyment of your kayak and protect the safety of
passengers and operator using the kayak, always strictly observe the
following safety warning:
-This is not a life saving device. Use only under competent supervision.
Never allow diving into this product. Never leave in or near the water
when not in use. Never tow from any vehicle. Adult assembly and
operation required.
-Adults should inate the chambers in numbered.
Excessive inating the kayak can cause the chambers to burst or cause
damage to the welded seams. Not following the operator’s instructions,
which may detail important ination and assembly sequences,can cause
capsizing and drowning.
-Taking the kayaking safety course and get hands-on training from your
kayak dealer or local kayaking authorities. Review all safety requirements
regularly. Never navigate alone.
-A personal Flotation Device (PFD) is required for each passenger. It is
especially important that children and non-swimmers wear a personal
flotation device at all times. Children and non-swimmers need special
instruction in the use of PFD.
-Be careful when stepping or climbing aboard the kayak. Step into
the center of the kayak for maximum stability. Distribute the weight of
passengers, gear, tackle box and accessories evenly so that the kayak
sits even front to back and side and to side. Uneven distribution of
persons or loads in the boat can cause capsizing and drowning.
-Do not use your kayak if you suspect a puncture or leak. It might be
unsafe.
-WARNING:BEWARE OF OFFSHORE WINDS AND CURRENTS. These
could be unsafe conditions.
-Follow these rules to avoid drowning, paralysis or other serious injuries.
-WARNING: It is the responsibility of the kayak operator to identify and
obey all local and state laws pertaining to kayak safety and required
safety equipment. Please consult your local authorities to ensure
compliance.
-Do not allow unattended children in the kayak. Always make sure that
at least one responsible adult is supervising all children and those who
don’t know how to swim at all times.
-Always maintain the proper kayak safety equipment in an easily
accessible place in your kayak. Indicate clearly emergency phone
numbers as well as safety advisories and rules (such as “No jumping or
Diving”)
-The total number of persons and total weight shall not exceed
the information printed on the kayak. Do not exceed the maximum
recommended capacities. Exceeding the data given on the capacity plate
can cause capsizing and drowning.
Certain household cleaning solvents, chemicals and other liquids (such
as battery acid, oil and petrol) could damage the PVC fabric. In the
event of spill or mishandling, you should check for leaks and inspect for
structural integrity.

PK7-20-USwww.zraysports.com4

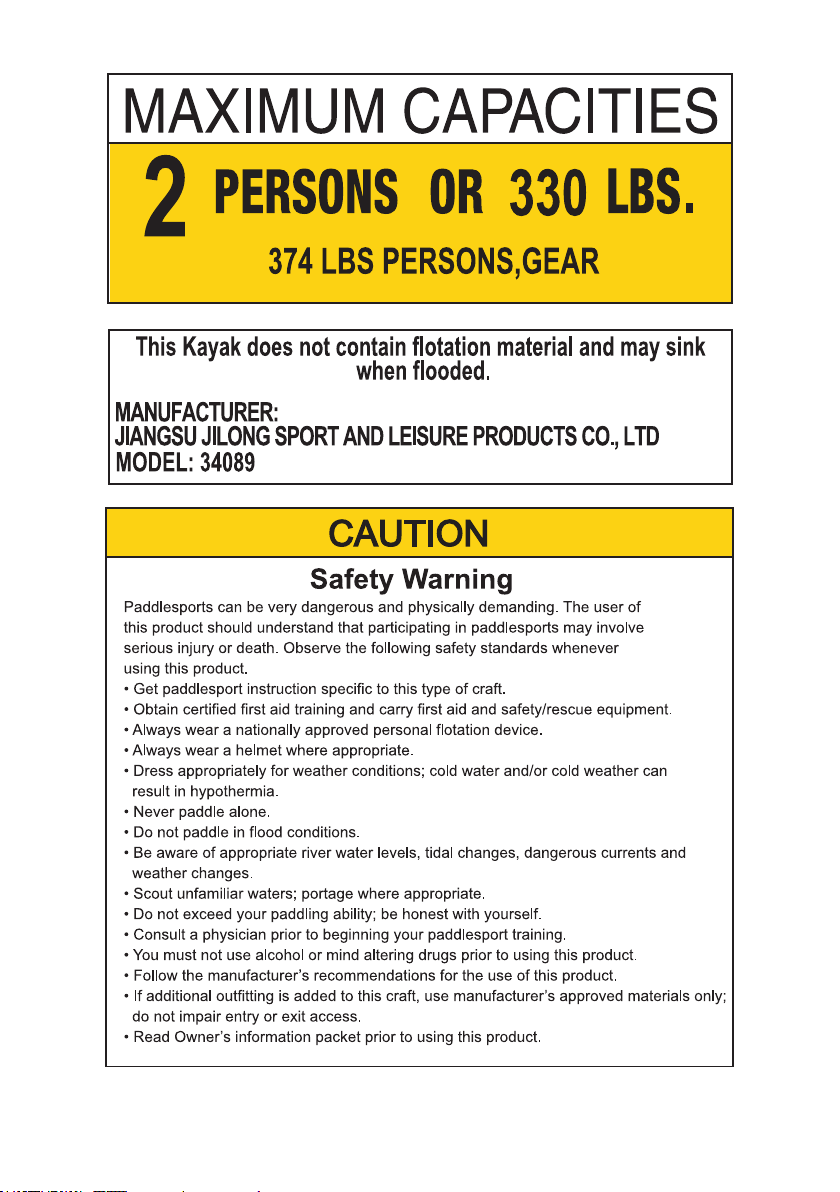

# If you found that you lost above warning lable or the warning lable became
illegible, you can contact your local after sales service center.

5www.zraysports.com PK7-20-US

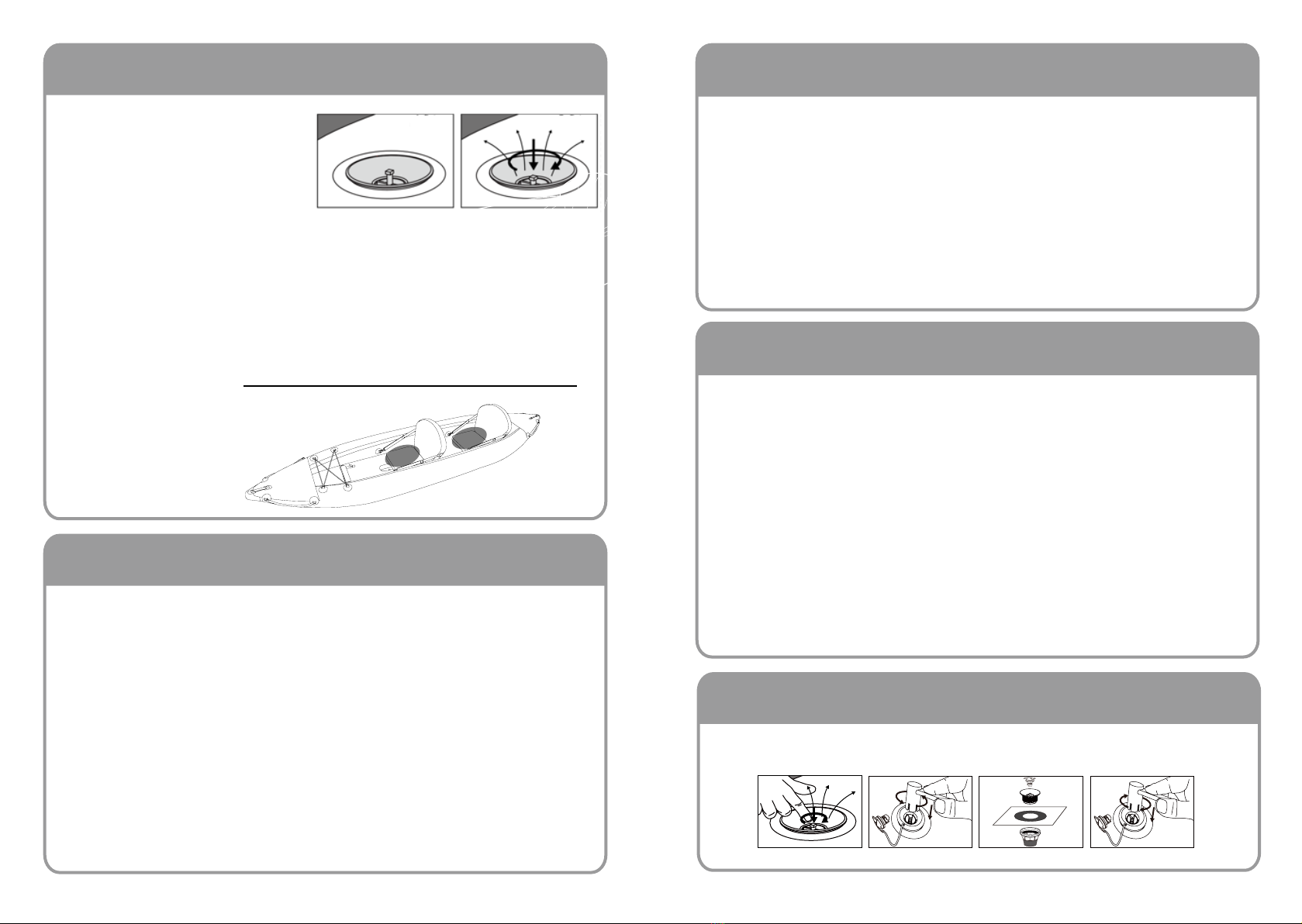

Hull ination:
1.Unfold and flatten the canoe and
install the footrest.
2.Check the air valves ①, ②and
③
and the bottom water drainage plug,
which must be in the closed positions.
Installation
• Ensure you know and understand the local laws, regulations and hazards
associated with water sports and inatable kayak operations.
• Please check local weather forecasts, local currents, tides and wind conditions
before use and only paddle in calm conditions.
• Regardless of the weather conditions, you must wear PFDs in good condition and
in line with local laws and regulations.
• Learn about the basic safety self-help methods: How to ip the kayak over? How
to get on the kayak again?
• Tell someone when you plan to return.
• Ensure all passengers understand the basic operations of the inatable kayak.
• Make sure at least one passenger can operate the inflatable kayak in an
emergency.
• Wear suitable clothing (helmets, shoes, sunscreen). Take enough water and food
and towing cables along with all items required by law.
Preparation before departure
Hull installation:
1. Inate the seat, until you feel the seat is 100% inated. Be careful not to make the seat
overinated.
2. Install the seat.
3. Install the n.
4. Install the paddle.
Recommend Seating Arrangement
3.Inate the air chambers ①, ② to 100%(3.63PSI) and
③
to 100% (8 PSI) respectively in
turn .

PK7-20-USwww.zraysports.com6
Maintenance
1. After use, please clean your inflatable kayak to prevent it from being
damaged by sand, salt water or sunlight.
2. Clean the inatable kayak with a soft detergent and water.
3. Do not use solvents such as gasoline as they can corrode the surface
materials or plastic parts of the kayak.
4. Make sure that the hull is completely cleaned and dry before storing
otherwise it may develop mold.
5. Once deated, fold the kayak, place in the backpack and store in a dry,
ventilated place above 15°C.
Repair
Small holes or punctures can be repaired with the repair kit that is provided
in conjunction with the kayak.
1. Do not inate the kayak
2. Wipe the hull with soap and water to nd holes in the kayak. The soap will
bubble over the hole.
3. Clean the area around the hole with water or alcohol.
4. Use a pencil to sketch out the outline of the patch.
5. Cut a patch of a suitable size.
6. Apply glue evenly to the damaged area and patch and then press and
hold the patch to the damaged area.
7. Leave the kayak for at least 24 hours or more before inating it.
If the valve is damaged, please follow the below instructions for replacing it.
Valve Replacement
①
②
①
②
<3psi

①&② →
③ → 8 PSI
3.63 PSI
7www.zraysports.com PK7-20-US
Figure

Z-RAY SPORTS EQUIPMENT (SHANGHAI) CO., LTD
www.zraysports.com
SHANGHAI JILONG SPORT AND LEISURE PRODUCTS CO., LTD
2555 XiuPu Road, Pudong Area,Shanghai,China.
www.JLeisure-Global.com
JIANGSU JILONG SPORT AND LEISURE PRODUCTS CO., LTD
NO.1 Industrial Area South Zhongchen Road Zhongyang Town,Suqian,Jiangsu,China

PK7-20-FRC1
KAYAK ZRAY TORTUGA
