ZAHND Schleiftechnik EC03 User manual

ZAHND Schleiftechnik GmbH
ZAHND
Knife sharpening machine
•
The new Generation
• type
EC03

ZAHND Schleiftechnik Gmb H
Parts List
1 declaration of conformity
1
operating instructions
1sharpening instructions
1assembly instructions for grinding wheels
1 list of spare parts
1set
of tools
1electric cable
1 connection piece for vacuum cleaner
1polishing paste

ZAHND Schleiftechnik GmbH
Sharpening Instructions
Before grinding clean the blades -after grinding
clean and disinfect the blades
1. Place the handle as close as possible to the
protective cover of the abrasive wheels.
2. Keep the back of the blade in a horizontal position.
3. Gently
press the knife blade down whilst moving
the knife steadily backwards.
4. Make sure the zone to be sharpened stays in the
centre of the rotating abrasive wheels.
5. In order to sharpen the curved edge of the knife, lift
the handle whilst moving the knife backwards.
6. Pull the knife point away from the abrasive wheel
horizontally
without applying downward pressure.
7. The grinding operation should be repeated until
the knife
is sharp. Grind both sides of the blade
equally.
Polishing:
8. Before the first use, apply a thin layer of polishing
paste onto the rotation disc, and repeat this
process from time to time as required.
Waming!!
Always keep the knife blade flat on the rotating
polishing disc. The cutting edge must point in the
direction of the arrow.
9. Place the blade flat in the centre of the polishing
disc; polish both sides alternately about 3 times.
Polish the cutting edge lightly. The structure of the
sharpening should be visible.

ZAHND Sc hl e ift ec hn ik GmbH
Warning!!
The EC03 is designed only to sharpen non-serrated carving and kitchen knives.
Do not sharpen hatchets, axes, saws orserrated knives.
Use only the original polishing disc and polishing paste to ensure best quality.
The grain of the abrasive wheel, the polishing disc and paste have been
carefully harmonized.
If too much pressure is applied to the knife blade, the knife can glow red while
sharpening.
Do
not touch the abrasive wheels when rotating.
Cleaning
Moisten with penetrating oil-spray on the outside and finish with a dry cloth.
Never use soap or spray with water.

ZAHND Schleiftechnik GmbH

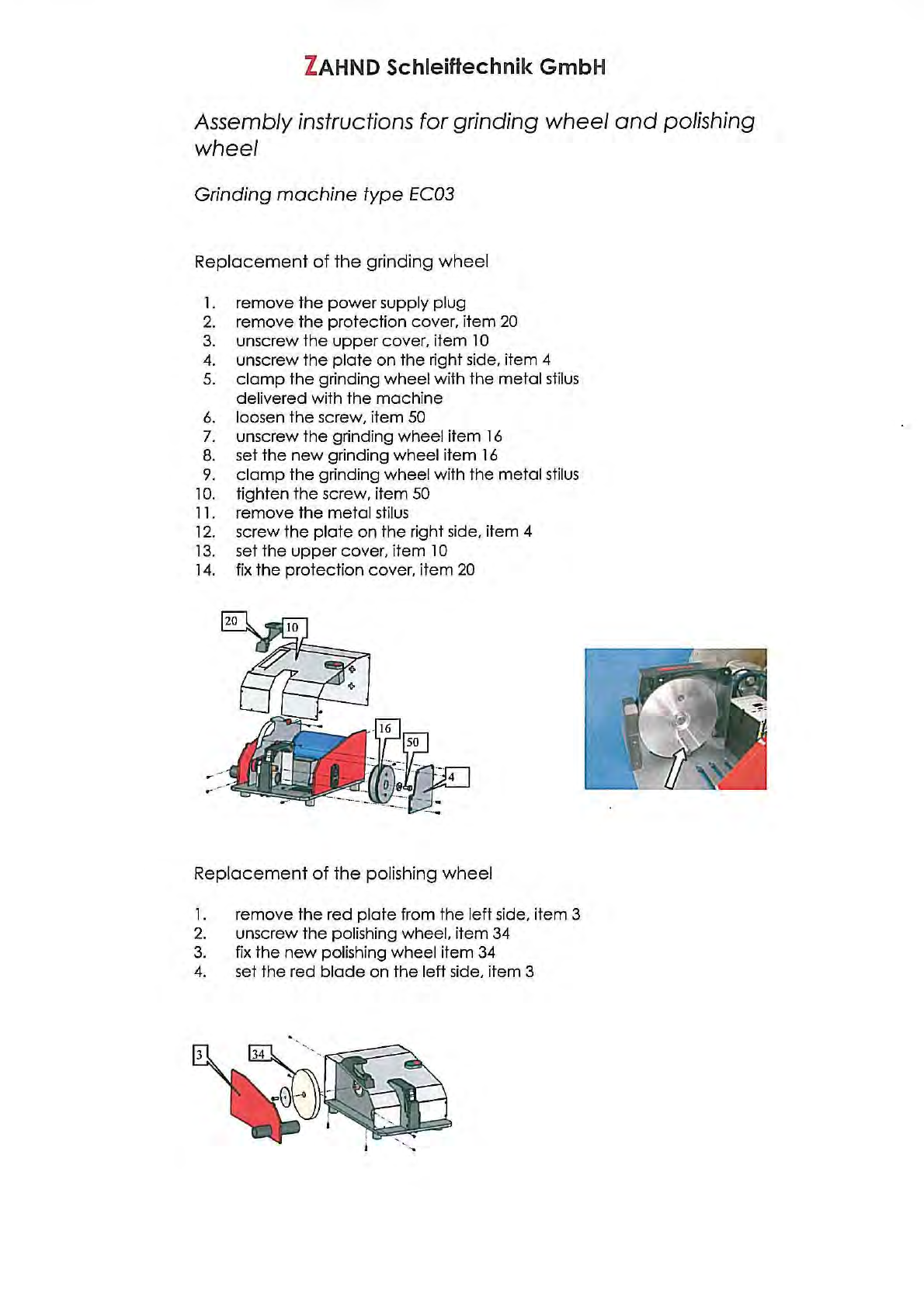

Assembly instructions for grinding wheel and polishing
wheel
Grinding machine type EC03
Replacement of the grinding wheel
1. remove the power supply plug
2. remove the protection cover, item 20
3. unscrew the upper cover, item 10
4. unscrew the plate on the right side, item 4
5. clamp the grinding wheel with the metal stilus
delivered with the machine
6. loosen the screw, item 50
7. unscrew the grinding wheel item 16
8. set the new grinding wheel item 16
9. clamp the grinding wheel with the metal stilus
10. tighten the screw, item 50
11. remove the metal stilus
12. screw the plate on the right side, item 4
13. set the upper cover, item 10
14. fix the protection cover, item 20
Replacement of the polishing wheel
1. remove the red plate from the left side, item 3
2. unscrew the polishing wheel. item 34
3. fix the new polishing wheel item 34
4. set the red blade on the left side, item 3

:I:
..c
E
l!>
~
·c
.t:
U
(])
:E
(])
.t:
U
V')
C
Z
:I:
<C
N
-
, .

ZAHND Sc hl ei ft ec hn ik GmbH
Ipos
IPart Part list grinding machine Zahnd EC03
I Number
1
Ground-plate vertical 1
2
Backplate vertical 1
3 Side
plate
4
Cover left
5
Coverright
6 Washer
7 Brocket big 1
8 Brocket small 1
9
stopper
I
10
Plate I
I I Plate
separation I
12 Angle I
13
Cover plate
I
14
Shaft-disc 1
15
Sleeve 2
16
Grinding disc I
17
Flat spring
18
Pully-small
19
V-belt
20
Cover
21 Disc
22 Disc
backside
23
Shaft-polishing wheel
25
Sleeve-motar
26
Brocket
27
Pully-big
28
Pully-big-motor
29
tube
30
Motor-small
31
Switch
32
Relay
33
Capacitor
34 Polishing wheel
35
Wedge-BN870 2
36
Brocket 4
37
Connectar I
39
Flat head screw M3x8 2
40
Boll bearing B6201_32_12 4
41
PT screw BN I3265 KA30x JO 5
42 Flat head screw M4 x JO 6
43
hex-head screw M3 x 12 4
44 hex-head screw M5 x 16 2
45 Lock washer ,,32x 1.2 2
46
hex-head screw M4x 12
2
47
hex-head screw M4x 10 4
48 Washer ,,6.2-17-3 1
49
hex-head screw M6x16 I I
50
Wedge-BN870-small 1
51 hex-head screw M8x16
52
Washer ,,5.3-15-I .2
53
Flat head screw M3xl 0 1
54
Washer ,,8.4-23-4 1
55
Cheese head screw M4 x 30
2
56
Washer ,,6.4- 18- I .6
I
57 hex-head screw M6x30 4
58 Nut M6 4
59
Washer ,,6.4- 12- I .6
4
60
Lock washer M6 4
61 Cheese head screw M3 x 8
10
62 SKF -608 -8.SI.NC.8_68 2
63 Lock washer 8 x0.8 1
64 Cheese head screw M5 x 20
2
