ZALMAN CNPS9300 AT User manual

CNPS9300 AT
*Please read this manual thoroughly before installation.
http://www.zalman.com
(English version)
AAMMDD SSoocckkeett AAMM22++//AAMM22//775544//993399//994400 CCPPUU
Phenom
Athlon 64
Athlon 64 X2 Dual-Core
Athlon 64 FX
Opteron
Dual-Core Opteron
Sempron
IInntteell SSoocckkeett 777755 CCPPUU
Core 2 Quad
Core 2 Duo
Core 2 Extreme
Pentium Dual-Core
Pentium D
Pentium 4
Celeron D

*The specifications of any product may change without prior notice to improve performance.
1
(Note 1) Measured at 1m from noise source.
1. Features
1) Does not generate noise or vibration in Silent Mode.
) Supports all single, dual and quad core CPUs of Intel’s Socket 775 and all single, dual and quad
core CPUs of AMD’s Socket AM +/AM /754/939/940.
3) Innovative, patented, and curved heatpipe design for a heat transfer capacity of up to four
heatpipes with the use of just two.
4) Pure copper heatsink with component layout optimized for maximum cooling efficiency.
5) Ultra slim fins (0. mm) for minimized weight and reduced airflow resistance.
6) Automatic Fan Speed Control feature included in the Ultra Quiet 9 mm PWM (Pulse Width
Modulation) enabled fan. (Please refer to “Cautions While Booting” on page 6.)
2. Specifications
3. Exploded Vie
Model
Spec. CNPS9300 AT
Materials Pure Copper and Aluminum
Dimensions 61.35(L) X 108(W) X 13 .5(H)mm
Heat Dissipation Area ,583 cm
Weight 407g
Bearing Type Superflo
Fan Rotation Speed 1,500rpm ±15 % ~ ,400rpm ±10 %
Noise Level(1) 0dBA ~ 30dBA ±10%
Control Method PWM Control, Auto Restart
Life Expectancy 50,000 hours
Fan
CPU Block Fixing Bolt
CPU Block Cover
Heatsink

*The specifications of any product may change without prior notice to improve performance.
2
1) Common Components
①Cooler (CNPS9300 AT)
②Thermal Grease
③Clip
④Clip Lever
⑤User’s Manual (in English and Korean)
) Components for Intel Socket 775
⑥Four (4) Clip Support Fixing Bolts
⑦One (1) Clip Support for Socket 775
⑧One (1) Backplate for Socket 775
⑨One (1) Clip (S-Type)
⑩Four (4) Bolts (for installing the cooler)
3) Components for AMD Socket AM +/AM /754/939/940
* No additional components
1) Excessive force exerted on the fan may damage the fan, resulting in damage to the system.
) Avoid inserting any objects into the fan while it is in operation.
3) Use and keep the product away from the reach of children and pets.
4) Check the components list and condition of the product before installation. If any problem is
found, contact your place of purchase to obtain a replacement.
5) Do not ingest or make oral contact with the Thermal Grease. If ingested, get medical attention.
Disclaimer) Zalman Tech Co., Ltd. is not responsible for any damages due to external causes,
including but not limited to, improper use, problems with electrical power, accident, neglect,
alteration, repair, improper installation, or improper testing.
4. Precautions
5. Components
6. Compatible CPUs
1) All CPUs conforming to Intel Socket 775 platform
) All CPUs conforming to AMD Socket AM +/AM /754/939/940 platform
⑧
②
⑥
⑨⑩
③
④⑤
①
⑦

*The specifications of any product may change without prior notice to improve performance.
3
7. Installation Requirements
Cases equipped with an Air Guide must have their Air Guide Ducts removed
before installation. Install only on systems meeting the following conditions;
①There must be no interfering components (e.g. PSU, VGA card) within 54mm distance from the
center of the PSU.
②There must be no interfering components (e.g. ODD) within 31mm distance from the center of
the CPU.
③Case chassis cover must be distanced at least 143mm away from the motherboard.
8. Installation
※※Clip Installation Depending on the Orientation of the Retention Frame
[Type-A. Vertically-oriented Retention Frame]
Retention Frame
Case Chassis Cover
③143mm
Motherboard
Air Flow
Case
Chassis
VGA Card Slot
②31mm
①54mm ①54mm
PSU
System Fan
Retention Frame Clip Clip Lever
[Type-B. Horizontally-oriented Retention Frame]

*The specifications of any product may change without prior notice to improve performance.
4
1) Intel Socket 775
①①Clip Support Installation
Align the Clip Support for Socket 775 (
⑦ ) and the Backplate for Socket 775 ( ⑧ ) with the
mounting holes on the motherboard and fasten them together with the Clip Support Fixing
Bolts (
⑥ ). The Lever Slot on the Clip Support for Socket 775 should be properly oriented on
the hinged side of the Socket Lever when installing.
※If the Lug of the Clip Support for Socket 775 interferes with any motherboard components,
install the Clip Support for Socket 775 with the Lug facing a different direction to avoid
interference.
Clip Support
Fixing Bolt,
⑥
Clip Support for
Socket 775,
⑦
Motherboard
Backplate for
Socket 775,
⑧
Socket Lever Hinge
Socket Lever
Lever Slot
Lug
Arrow marked Lug
②②Thermal Grease Application
Clear off particles and any residue from the top
of the CPU then spread an adequate amount of
the included Thermal Grease (
② ) on the CPU
surface thoroughly.
Thermal Grease
CPU(IHS)
③③Cooler Installation
a. Securing clip using bolts
Adhere to the B(Clip) installation method on page 3 to
install the CNPS9300 AT.
Insert two Bolts (
⑩ ) into the holes of the Clip (S-Type, ⑨ )
and place the CNPS9300 AT on the center of the CPU.
Slightly fasten the Bolts (
⑩ ) into the holes of the Clip
Support for Socket 775 (
⑦ ), then fasten the Bolts ( ⑩ ) in
an alternating manner until the Clip (S-Type,
⑨ ) is
completely pressed against the Clip Support for Socket
775.
※Note)
When installing the CNPS9300 AT on a motherboard with
a horizontally-oriented Retention Guide, take extra care to
not exert excessive force on the fan. Excessive force may
damage the fan.
Bolts, ⑩
Clip(S-Type), ⑨

*The specifications of any product may change without prior notice to improve performance.
5

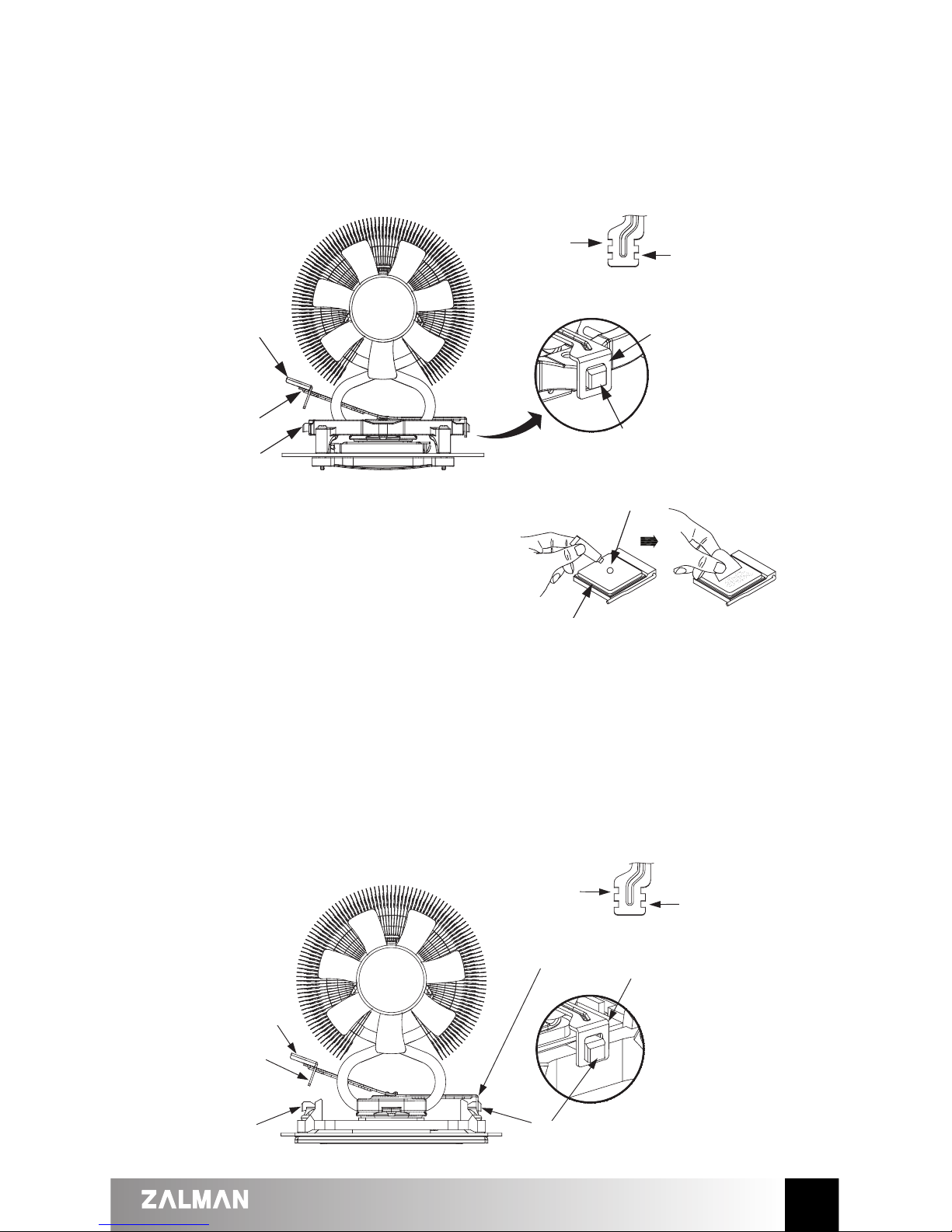

) AMD Socket AM +/AM /754/939/940
①①Thermal Grease Application
Clear off particles and any residue from the top
of the CPU then spread an adequate amount
of the included Thermal Grease(
② ) on the
CPU surface thoroughly.
②②Clip Installation
Refer to “Clip Installation Depending on the Orientation of the Retention Frame” on page 3 to
correctly install the Clip(
③ ) according to the orientation of the Retention Frame.
③③Cooler Installation
Insert the Clip Lever(
④ ) into the Groove for AMD of Clip( ③ ). Align and connect the Clip’s
Lug Slot with the Lug of the motherboard’s Retention Frame. Press onto the Clip Lever when
aligning the Lever’s Lug Slot with the Lug.
CPU(Lid)
Thermal Grease
Clip’s Lug Slot Clip,
③
Groove for Intel Groove for AMD
Lug
Lever’s Lug Slot
Clip Lever, ④
Lug
Clip Lever, ④
Clip, ③
Lug
Groove for Intel Groove for AMD
Clip’s Lug Slot
Arrow marked Lug
b. When using Clip( ③ )
Refer to
“ Clip Installation Depending on the Orientation of the Retention Frame ” on page
3 to correctly install the Clip(
③ ) according to the orientation of the Retention Frame.
Insert the Clip Lever(
④ ) into the Groove for Intel of Clip( ③ ). Align and connect the Clip's
Lug Slot with the Arrow Marked Lug of the Clip Support for Socket 775. Press onto the
Clip Lever when Aligning the Lever’s Lug Slot with the Lug. Make sure that the cooler is
installed on the center of the CPU.

*The specifications of any product may change without prior notice to improve performance.
6

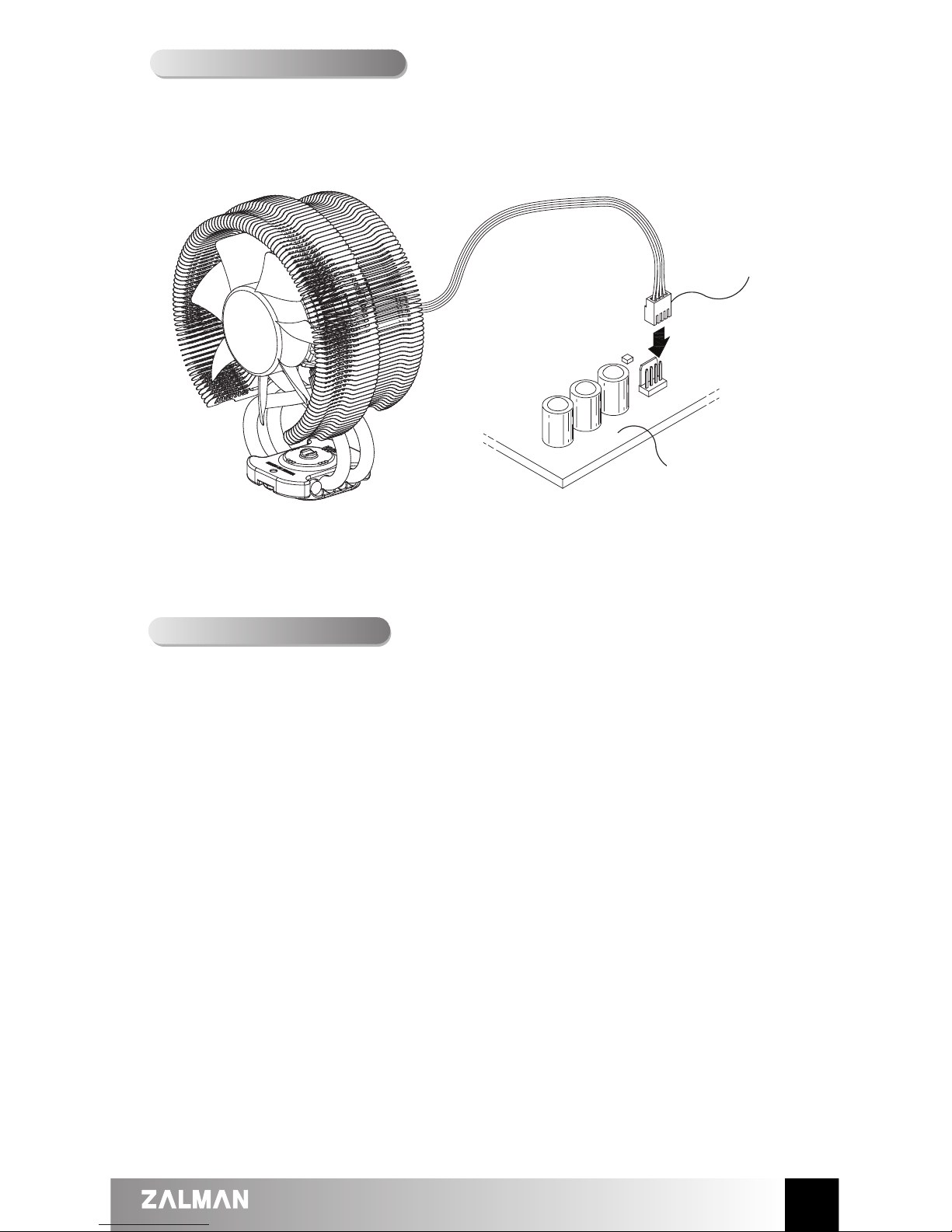

Connect the CNPS9300 AT 4-Pin Fan Connector to the Motherboard as shown in the diagram.
10. Notes on Usage
9. Po er Connection
1) Checking CPU Compatibility
Please refer to “Compatible CPUs” on page to confirm that your CPU is compatible with the
CNPS9300 AT before using it.
) Cautions While Booting
The operation of the PWM fan varies depending on the M/B setting. Please activate the PWM
Control mode from BIOS after installing. Refer to the motherboard manual for detailed
information regarding the PWM Control mode.
3) OVERCLOCKING
Zaman Tech Co., Ltd. is not responsible for any damages to the system and CPU resulting
from overclocking.
4) Caution During Transport
When transporting computers with cooler installed, extra caution is necessary. Zalman Tech
Co., Ltd. is not responsible for any damage that occurs when moving a system.
Fan Connector
(CNPS9300 AT)
Motherboard

*The specifications of any product may change without prior notice to improve performance.
7
