ZANE ARTS PS-011 User manual

PS-011 / GIGI-1
MANUAL - Ver 2.01
EN

Tent body ×1
Center pole ×1
Extension pole × 2
Carry bag ×1 Pole case ×1
Rope case
×1
3m
rope
× 8
4m
rope
× 2
■ITEMS INCLUDED
Please check the contents of the set before fully opening the
tent. If you find something missing, please contact the store
where you purchased it or us directly.
2
※Peg 󱗓Hammer is not include

3
■ABOUT THIS PRODUCT
Apply seam sealant
Please take some time to understand the characteristics of
this product before using it.
There is a place where seam tape cannot be attached to the joint
at the tip of the indoor ceiling. In the unlikely event of leakage,
you may choose to apply a
commercially available seam
sealant.
Pegs not include, please prepare the following recommended
pegs and the required number of pegs in advance.
【Recommend 󱗓Required Number】
●TO-518 / GRART STAKE 18 × 6
●TO-528 / GRART STAKE 28 × 12
Seam on the
inside at tip of
the ceiling.
Pegs not include

4
Wrinkles caused by folding are noticeable
Commonly used chemically treated fibers used in tents, shelters
and tarps are prone to creases. In particular, the fabric in this
product has noticeable wrinkles due to the color, thickness, and
surface processing of fabric. Please note that it does not affect
performance in any way.
For 3 seasons of use
This product is not designed to withstand snowfall or low
temperatures. Do not use in low temperatures where the zippers
may freezes or in snow.
Waterproofing performance is reduced
The surface is treated with silicone water repellent, but after use,
the water repellent performance will deteriorate and rain will
eventually penetrate the fabric. Please note that the water
repellency cannot be maintained long term. Waterproof
performance of the back side is not affected, so even if water
repellency deteriorates, there is no issue using it as it is.

5
Do not remove the fire prohibition tag
Do not cut or remove the fire-prohibited tag sewn into the
product. Products without a fire-prohibited tag cannot be
guaranteed or repaired.
Chemically treated fibers are used in the fabric of this product.
Chemically treated fibers may liquefy when burned, the liquefied
fabric may stick to skin and cause serious burns. Never bring fire
close to tents, shelters or tarps.
Use of a wood stove is absolutely prohibited.

6
■ PRECAUTIONS FOR SETUP AND USE
Be sure to read and understand the following contents
before use to prevent harm to the user and others, and
damage to property.
●Fire is not allowed in tents, shelters, and tarps. It is extremely
dangerous as there is a risk of fire, oxygen deficiency, carbon
monoxide poisoning, etc. Do not use firearms and keep fire
away from tents, shelters, and tarps.
●If the weather is bad, such as a typhoon or storm, or if you
anticipate such weather, stop camping immediately.
●Do not set up in a place that is easily affected by wind or
where there is a risk of falling rocks, avalanches, or rising
water.
INDICATES CONTENT THAT MAY RESULT
IN DEATH OR SERIOUS INJURY.
!
!
DANGER

7
●Not for permanent use. If this product is set up permanently, it
will deteriorate and be damaged in a short period of time due
to the effects of ultraviolet rays and other elements.
●Set up on a flat surface with good drainage. Moisture and
dirt can lead to deterioration, and rough terrain can lead to
damage to product.
●Remove any items that may damage the product, such as
rocks and branches, before setting up.
●When setting up the product, be sure to have two or more
people, and pay attention to surroundings.
●Do not set up when the wind is strong. The main body may
blow away or product may be damaged by the force of the
wind.
●When setting up, be prepared for wind gusts and be sure that
the main body and frame don’t fly away by keeping your
hands on the frame and main body while working.
INDICATES CONTENT THAT MAY CAUSE
INJURIES OR PROPERTY DAMAGE.
WARNING
!

8
●When extending poles or frames, make sure each section is
inserted securely. Assembling the product incorrectly can lead
to damage.
●When handling poles or frames, be careful not to hit or
damage something around you and pay attention to your
surroundings.
●After setup, secure the tent, shelter, and tarp to the ground
with pegs and ropes to prevent them from being blown away
by the wind.
●If the weather suddenly changes hold on to the product for as
long as needed to keep it down.

9
■PRECAUTIONS FOR TEARDOWN AND
AFTER USE CARE
Be sure to read and understand the following contents
before use to prevent harm to the user and others, and
damage to property.
●When taking down the product, be sure to have two or more
people.
●Please take down the product in the reverse order of the
setup. Not following the instructions properly may damage
the product.
●When removing poles or frames, be careful not to hit or
damage something around you and pay attention to your
surroundings.
INDICATES CONTENT THAT MAY CAUSE
MINOR INJURIES OR PROPERTY DAMAGE.
WARNING
!

10
●When folding a frame or pole with a built-in cord (cord),
begin folding from the center, this will reduce the wear on the
bungee cord by not applying extra tension to the cord.
●After use, clean the fabric and allow it to dry thoroughly
before storing. If it is stored with dirt or moisture uncleaned, it
may cause colors to transfer or mold odors to form, and may
cause the seam tape to come off and diminish its
waterproofness.
●Frames, poles, and other metal parts should also be
thoroughly dried before storage. If stored while moist or
uncleaned, they may be damaged by corrosion.
●Salt can accelerate the deterioration of fabrics. If used near
the sea, rinse with fresh water and dry well before storing.
●Use a soft towel to gently clean or wipe moisture off fabrics.
Rubbing can damage the coating of the fabric.
●Do not use solvents such as paint thinners. There is a risk of
delaminating or discoloration of the water-repellent finish.
●Please do not wash. It will lead to deterioration of the fabric
and damage to other parts.
●Please keep out of reach of infants and children.

11
Drive the pegs into the
ground to hold auxiliary
rope for strong wind and
rolling of panel
3
Panel flips up
4
Assembling the ends
2
■ SETUP PROCEDURES
Set up according to the numerical order.
【Prepare in Advance】
※Ready Pegs and Hammer
※Close all zippers
Recommend
Required number
TO-518 / GRART STAKE 18 × 6
TO-528 / GRART STAKE 28 ×12
Assembling the base
1

12
A: Drive Pegs (GRART STAKE 28) through the bungee cord loops
in the 4 corners of the building tape (webbing) in numerical order to
create a rectangle.
B: Insert the center pole from the side and stand it up create
the main structure.
ASSEMBLING THE BASE
1
AA
AA
BInsert the center pole
from the side
Drive pegs
at 45˚ angle
Building tape (webbing)
Double each bungee cord loop
and drive pegs (4 places)
IMPORTANT!
45˚
Peg
(GRART STAKE 28)

13
4 m Rope
Short end
Pull out and drive
the peg
B
D
C
E E
F F
Long end
A
Extension pole

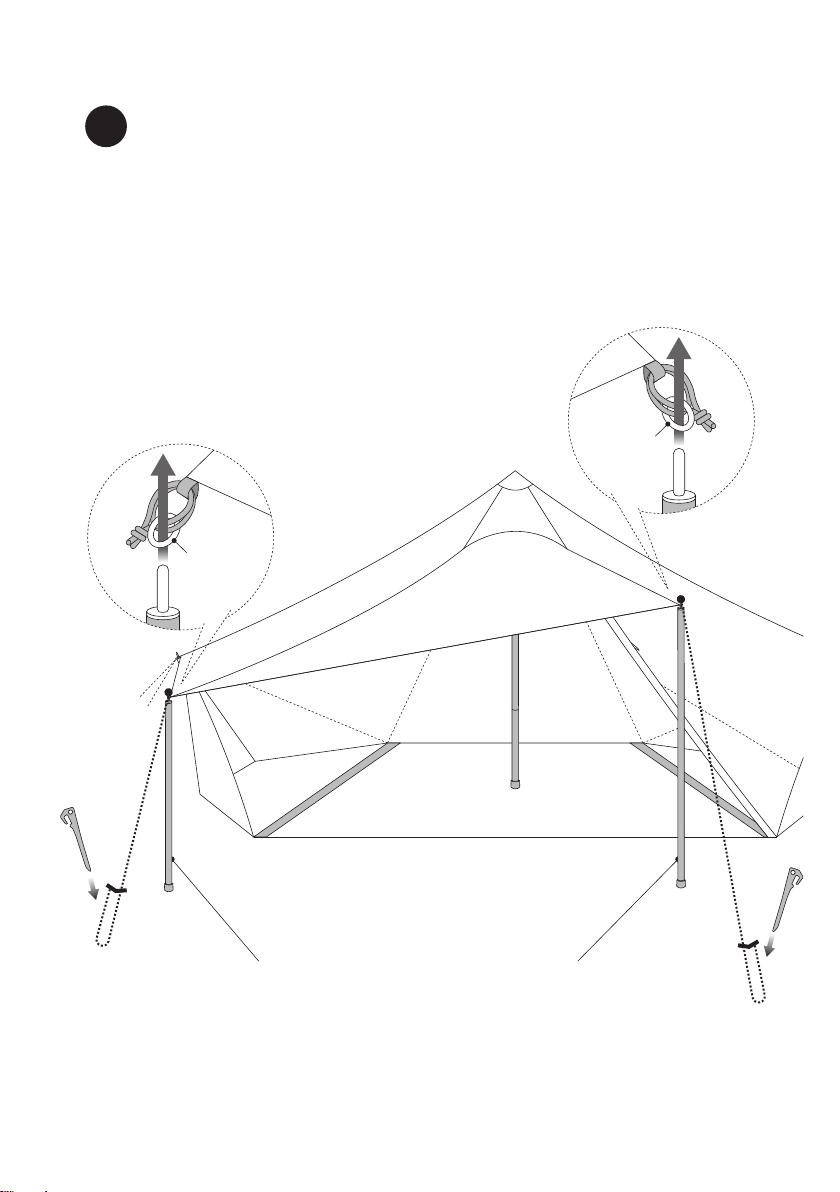

A: Insert the upper part (long end) of the extension pole into the grommet.
B: Insert the lower part (short end) of the extension pole into the grommet.
C: Drive the Pegs (GRART STAKE 18) into the ground
D: Attach 4m rope to the extension pole
E: Drive the Pegs (GRART STAKE 28) into the ground
F: Drive the Pegs (GRART STAKE 18) into the ground
Adjustment
ASSEMBLING THE ENDS
2

14
Roll up
Bungee cord loop
on the door panel side
B B
A
C
D
Drive peg
to hold 2 ropes
DRIVE THE PEGS INTO THE GROUND TO
HOLD AUXILIARY ROPE FOR
STRONG WIND AND ROLLING
OF PANEL
3
A: Attach 3m rope (auxiliary rope for strong
winds) (8places in total, front and back).
B: Drive Pegs(GRART STAKE28) into the
ground (2 in front and 2 in back).
C: Remove the door’s bungee cord loop
from the peg.
D: Roll up the panel.
Mounting
loop
Drive pegs
Rope setting
Tensioner

A
Ring
15
※The two poles and two pegs required to set up the panel awning are
sold separately.
A: Insert the tip of the pole (sold separately) into the ring and attach rope.
B: Drive pegs and use 3m ropes.
B
B
A
Ring
POPUP DOOR PANEL
4
T0-052 / Upright Pole 150 (sold separately)

16
■WARRANTY AND REPAIR
If you find any defects in the product, please contact the store where you
purchased it or us directly. We will replace or repair any item found to have
a manufacturing defect free of charge. We will repair products with damage
caused by wear and aging at a reasonable price. Please note that it may be
difficult to obtain some materials due to the discontinuation of products and
parts, and repairs may not be possible based on the condition of the
product.
※When sending a product for repair, please remove dirt and moisture from
the product before sending it. Moisture and dirt may interfere with repairs.
Items that are not clean and dry upon arrival for repair will incur additional
charges at their own expense for cleaning. Thank you for your
understanding.
Zain Arts Co., Ltd.
7190-2 Shimauchi, Matsumoto, Nagano 390-0851
Phone: [phone] FAX: [phone]
[email protected]
