ZANE ARTS ZEKU-L User manual

PS-004 / ZEKU-L
MANUAL - Ver 2.01
EN

■ITEMS INCLUDED
Please check the contents of the set before fully opening the
tent. If you find something missing, please contact the store
where you purchased it or us directly.
Tent body ×1
Living sheet ×1
Center pole ×1
Extension frame
× 3
Carry bag ×1 Pole case ×1
Rope case
×1
2.5m rope
× 9
3.5m rope
×15
2
※Peg 󱗓Hammer is not include

■ABOUT THIS PRODUCT

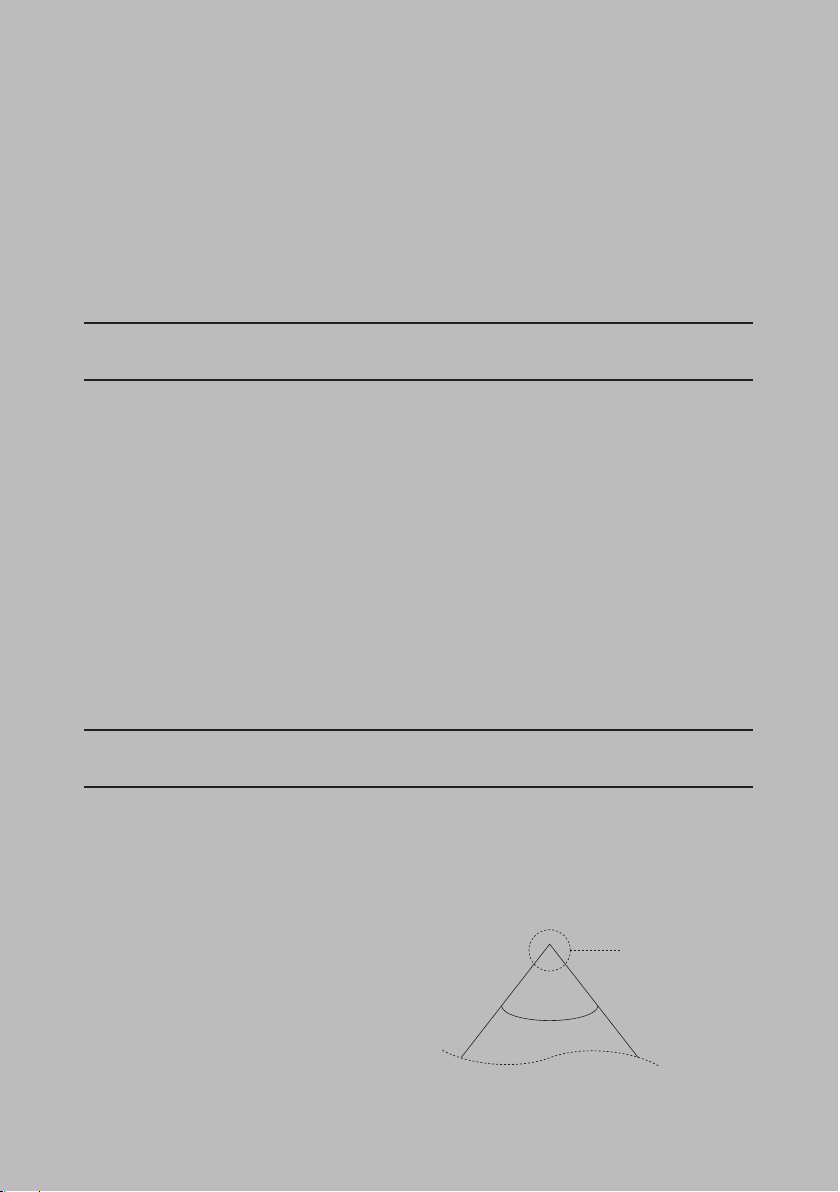

Apply seam sealant
Please take some time to understand the characteristics of
this product before using it.
There is a place where seam tape cannot be attached to the joint
at the tip of the indoor ceiling. In the unlikely event of leakage,
you may choose to apply a
commercially available seam
sealant.
3
Pegs not include, please prepare the following recommended
pegs and the required number of pegs in advance.
【Recommend 󱗓Required Number】
●TO-518 / GRART STAKE 18 × 3
●TO-528 / GRART STAKE 28 × 18
Seam on the
inside at tip of
the ceiling.
Pegs not include

Wrinkles caused by folding are noticeable
Commonly used chemically treated fibers used in tents, shelters
and tarps are prone to creases. In particular, the fabric in this
product has noticeable wrinkles due to the color, thickness, and
surface processing of fabric. Please note that it does not affect
performance in any way.
4
For 3 seasons of use
This product is not designed to withstand snowfall or low
temperatures. Do not use in low temperatures where the zippers
may freezes or in snow.
Waterproofing performance is reduced
The surface is treated with silicone water repellent, but after use,
the water repellent performance will deteriorate and rain will
eventually penetrate the fabric. Please note that the water
repellency cannot be maintained long term. Waterproof
performance of the back side is not affected, so even if water
repellency deteriorates, there is no issue using it as it is.

5
Do not remove the fire prohibition tag
Do not cut or remove the fire-prohibited tag sewn into the
product. Products without a fire-prohibited tag cannot be
guaranteed or repaired.
Chemically treated fibers are used in the fabric of this product.
Chemically treated fibers may liquefy when burned, the liquefied
fabric may stick to skin and cause serious burns. Never bring fire
close to tents, shelters or tarps.
Use of a wood stove is absolutely prohibited.

■ PRECAUTIONS FOR SETUP AND USE
Be sure to read and understand the following contents
before use to prevent harm to the user and others, and
damage to property.
●Fire is not allowed in tents, shelters, and tarps. It is extremely
dangerous as there is a risk of fire, oxygen deficiency, carbon
monoxide poisoning, etc. Do not use firearms and keep fire
away from tents, shelters, and tarps.
●If the weather is bad, such as a typhoon or storm, or if you
anticipate such weather, stop camping immediately.
●Do not set up in a place that is easily affected by wind or
where there is a risk of falling rocks, avalanches, or rising
water.
6
INDICATES CONTENT THAT MAY RESULT
IN DEATH OR SERIOUS INJURY.
!
!
DANGER

●Not for permanent use. If this product is set up permanently, it
will deteriorate and be damaged in a short period of time due
to the effects of ultraviolet rays and other elements.
●Set up on a flat surface with good drainage. Moisture and
dirt can lead to deterioration, and rough terrain can lead to
damage to product.
●Remove any items that may damage the product, such as
rocks and branches, before setting up.
●When setting up the product, be sure to have two or more
people, and pay attention to surroundings.
●Do not set up when the wind is strong. The main body may
blow away or product may be damaged by the force of the
wind.
●When setting up, be prepared for wind gusts and be sure that
the main body and frame don’t fly away by keeping your
hands on the frame and main body while working.
7
INDICATES CONTENT THAT MAY CAUSE
INJURIES OR PROPERTY DAMAGE.
WARNING
!

●When extending poles or frames, make sure each section is
inserted securely. Assembling the product incorrectly can lead
to damage.
●When handling poles or frames, be careful not to hit or
damage something around you and pay attention to your
surroundings.
●After setup, secure the tent, shelter, and tarp to the ground
with pegs and ropes to prevent them from being blown away
by the wind.
●If the weather suddenly changes hold on to the product for as
long as needed to keep it down.
8

■PRECAUTIONS FOR TEARDOWN AND
AFTER USE CARE
Be sure to read and understand the following contents
before use to prevent harm to the user and others, and
damage to property.
●When taking down the product, be sure to have two or more
people.
●Please take down the product in the reverse order of the
setup. Not following the instructions properly may damage
the product.
●When removing poles or frames, be careful not to hit or
damage something around you and pay attention to your
surroundings.
9
INDICATES CONTENT THAT MAY CAUSE
MINOR INJURIES OR PROPERTY DAMAGE.
WARNING
!

●When folding a frame or pole with a built-in cord (cord),
begin folding from the center, this will reduce the wear on the
bungee cord by not applying extra tension to the cord.
●After use, clean the fabric and allow it to dry thoroughly
before storing. If it is stored with dirt or moisture uncleaned, it
may cause colors to transfer or mold odors to form, and may
cause the seam tape to come off and diminish its
waterproofness.
●Frames, poles, and other metal parts should also be
thoroughly dried before storage. If stored while moist or
uncleaned, they may be damaged by corrosion.
●Salt can accelerate the deterioration of fabrics. If used near
the sea, rinse with fresh water and dry well before storing.
●Use a soft towel to gently clean or wipe moisture off fabrics.
Rubbing can damage the coating of the fabric.
●Do not use solvents such as paint thinners. There is a risk of
delaminating or discoloration of the water-repellent finish.
●Please do not wash. It will lead to deterioration of the fabric
and damage to other parts.
●Please keep out of reach of infants and children.
10

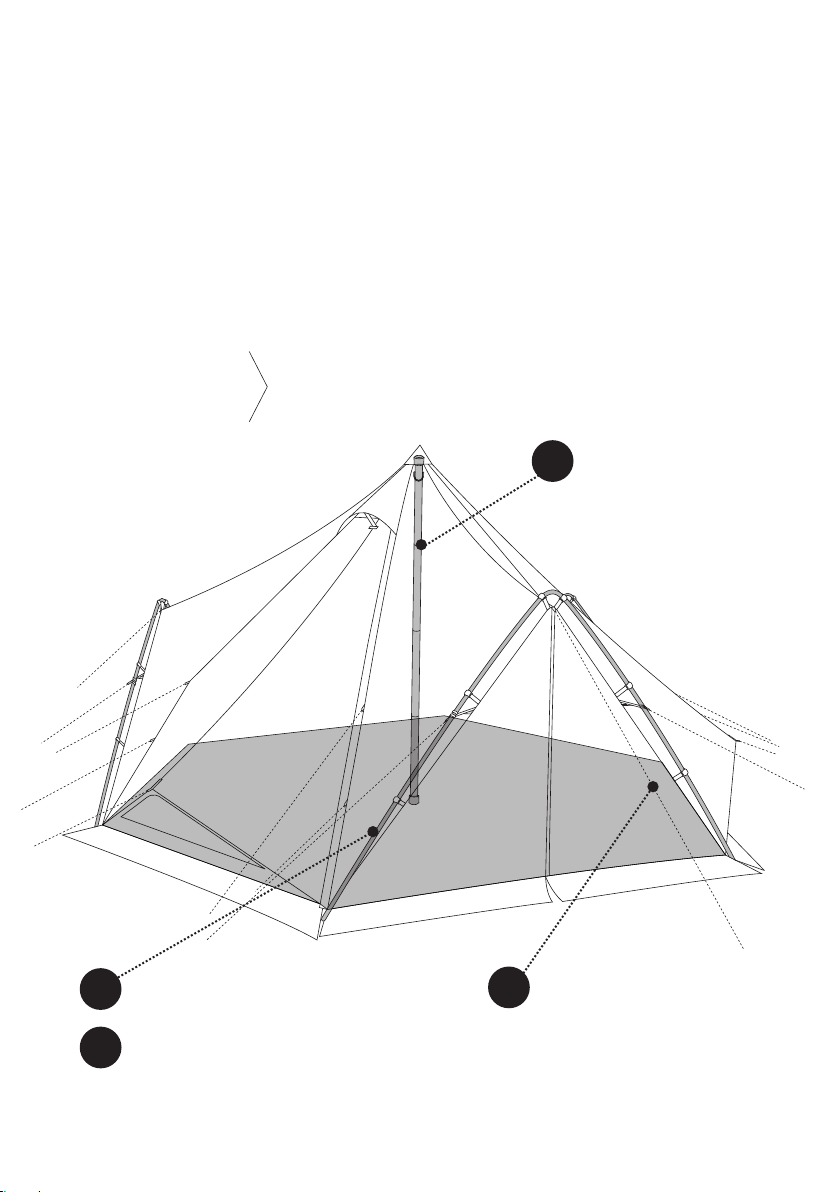

■ SETUP PROCEDURES
Set up according to the numerical order.
11
Drive base pegs
into the ground
and insert the
center pole.
1
Attach rope
and drive peg
3
Install living sheet
4
【Prepare in Advance】
※Ready Pegs and Hammer
※Close all zippers
Attach the extension frame
2
Recommend
Required number
TO-518 / GRART STAKE 18 × 3
TO-528 / GRART STAKE 28 ×18

12

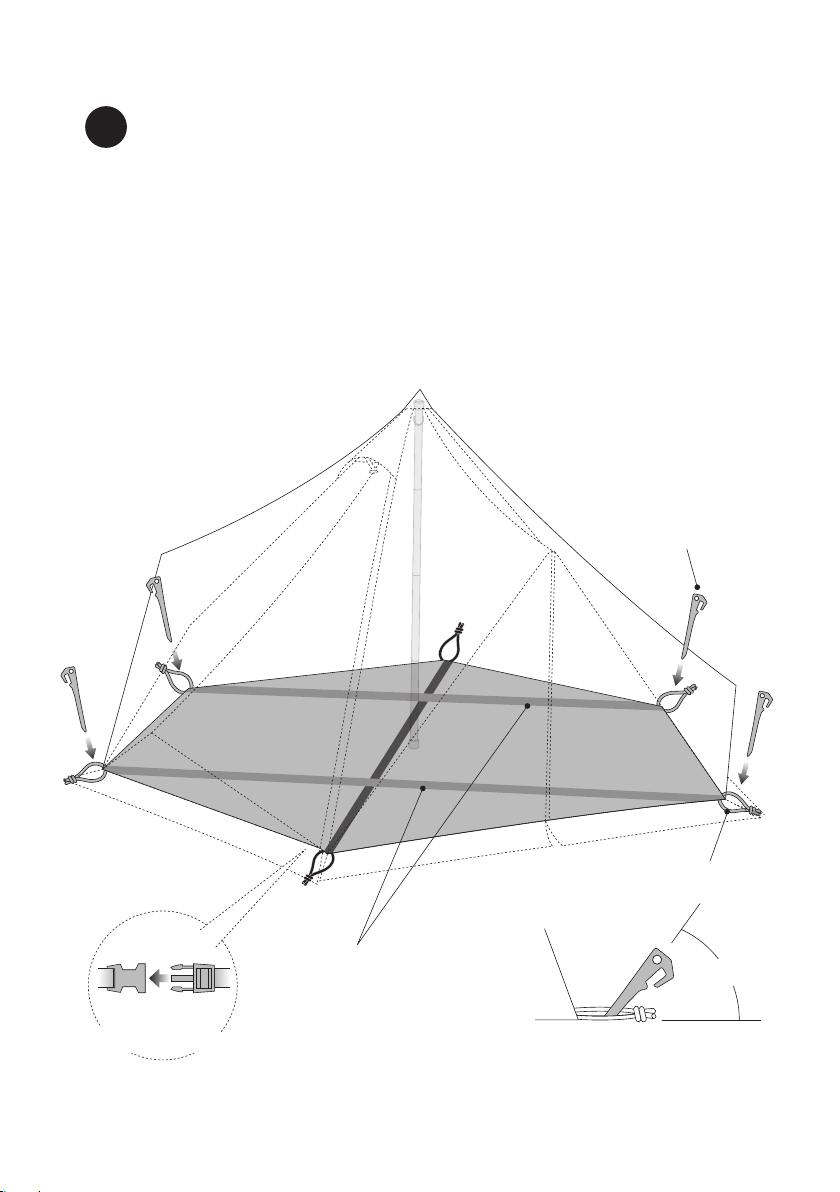

A:Make a rectangle by driving four Pegs (GRART STAKE 28)
through gray ropes in the corners attached to the gray building
tape (webbing).
1 DRIVE BASE PEGS INTO THE GROUND
AND INSERT THE CENTER POLE.
1
A A
A A
Gray building
tape (webbing)
Gray rope
Peg
(GRART STAKE 28)
Drive pegs at 45˚ angle
45˚
CHECK!
※Due to manufacturing, the position between the main unit and the
building tape (webbing) may not match the figure. In that case, set up
the position of the main body
according to the building
tape (webbing).
Buckle
(one place)

13
B: Stand the center pole in the room and push up into the apex.
C: Drive Y-Pegs into the remaining two corners to complete the hexagon.
2 DRIVE BASE PEGS INTO THE GROUND
AND INSERT THE CENTER POLE.
1
C
C
B
Center pole
Peg (GRART STAKE 28)
Drive pegs at 45˚ angle
45˚

OK
OK
NGNG
14
Two upper buckles are fixed
to the thick part of the frame
INSTALLATION OF EXTENSION FRAME
2
A
Clip
A
CAUTION!
Hook
C
A: Insert corner clip into the frame.
B: Attach the upper buckle (2 places).
C: Attach hooks (4 places).
※There are 3 places to install
the extension frame.
Fixed
Adjustment
B
Hook × 4

15

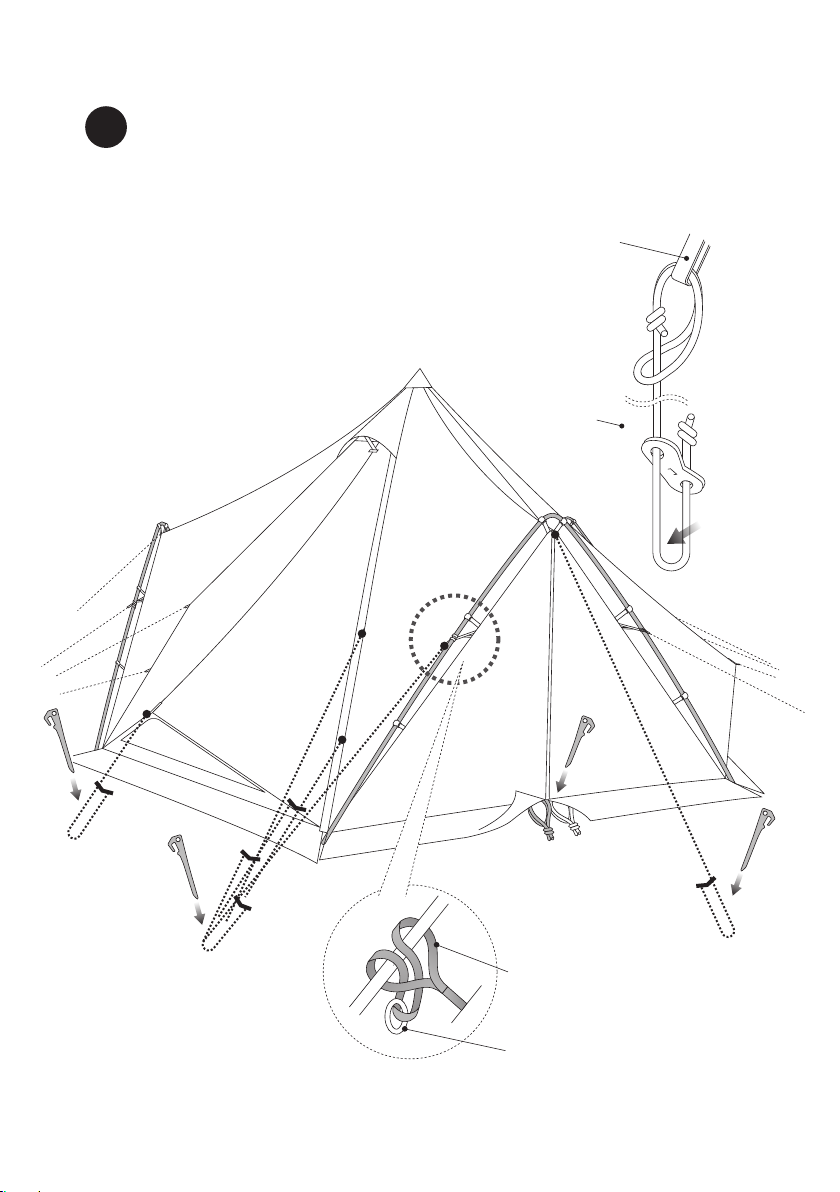

A: Install 3.5m ropes (15 places).
B: Install 2.5m ropes (9 places).
E: Drive the Pegs (GRART STAKE 28)
into ground (12 locations).
F: Drive the Pegs (GRART STAKE 18)
into ground (3 locations).
DRIVE PEGS AND ATTACH ROPES
3
B
A
B
EE
F
E
AA
Drive pegs into
ground on the left
and right
Mounting
loop
Drive pegs
Wrap the webbing
around the frame
Rope setting
Drive peg to hold 3 ropes
This rope is an auxiliary
rope for use in strong winds. Pass the rope through the ring
Tensioner

16
A C
B
Fix the 4 corners Reinforced part
Pole
Fix the remaining corner
A: Slide the end of the pole diagonally
B:Pull the sheet out
C:Place the end of the pole on reinforced
part of the living sheet.
The logo is the
reference point
INSTALLATION OF
LIVING SHEET
4

■WARRANTY AND REPAIR
If you find any defects in the product, please contact the store where you
purchased it or us directly. We will replace or repair any item found to have
a manufacturing defect free of charge. We will repair products with damage
caused by wear and aging at a reasonable price. Please note that it may be
difficult to obtain some materials due to the discontinuation of products and
parts, and repairs may not be possible based on the condition of the
product.
※When sending a product for repair, please remove dirt and moisture from
the product before sending it. Moisture and dirt may interfere with repairs.
Items that are not clean and dry upon arrival for repair will incur additional
charges at their own expense for cleaning. Thank you for your
understanding.
17
