Operating Manual
zTemp
Index
Safety information ............................................................................................................................... 2
Correct use .......................................................................................................................................... 2
Specifications ....................................................................................................................................... 2
Disassembly and disposal .................................................................................................................... 2
How to configurate the sensor ............................................................................................................ 3
Operation ........................................................................................................................................ 3
LoRaWAN preferences .................................................................................................................... 3
Integration to TTN Network ................................................................................................................ 4
Payload specification ........................................................................................................................... 6
zTrack Configuration tool for firmware upgrade ................................................................................ 7

www.zane.hu
2
Safety information
Read the operating instructions before setup the device.
Connection, mounting, and setting may only be performed by trained persons.
Not a safety component in accordance with the EU Machinery Directive.
When commissioning, protect the device from moisture and contamination.
These operating instructions contain information required during the life cycle of the sensor.
Correct use

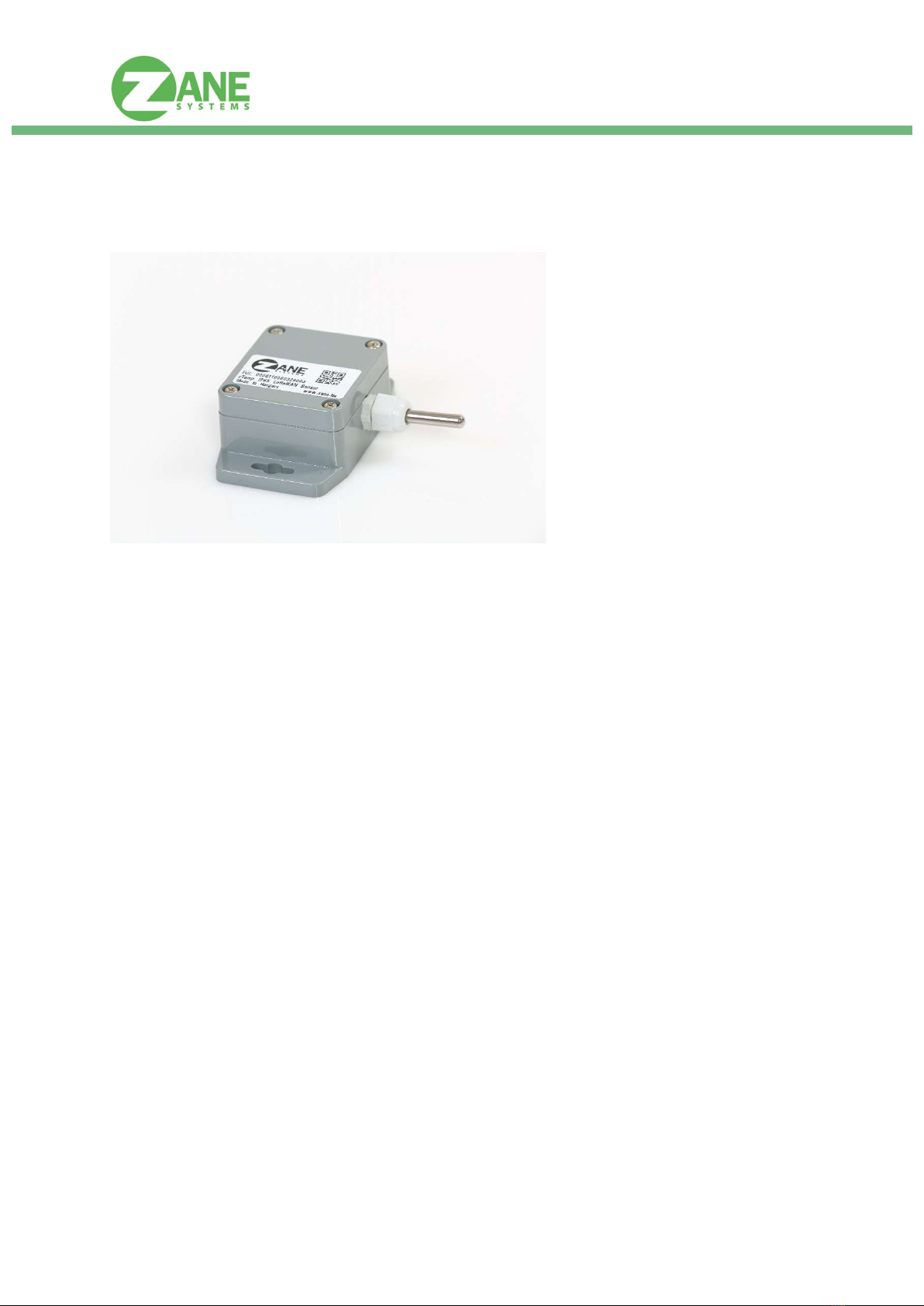

zTemp is a precise LoRaWAN temperature sensor device. The sensor element connects to the device
by cable, extendable up to 10 meters.
zTemp LoRaWan is a reliable device, thanks to the digital sensor technology (DS18B20). Not only we
can guarantee accurate results, but the monitoring is easy as well. The temperature sensor element
is located in a sealed stainless-steel tip.
Specifications
Frequency Band:
867,1 – 868,8MHz ISM (SKU-EU)
902.000 MHz to 928.000 MHz
(US)
Number of
Channels:
Configurable 8 channels (SKU-
EU)
Battery Specs: 1xAA IMR 14500 3.6V battery
(2600 mAh) Transmit Power:
+14 dBm (25 mW) (EU)
up to +18.5 dBm high efficiency
PA (US)
Receive
Sensitivity:
-141 dBm (EU)
-146 dBm (US) Antenna: Built-in
Operating
Temperature: -25ºC ~ 50ºC Protection Requirements: IP65
Dimensions: L:64 x W:58 x H:35mm
(Weight: 100g) Accuracy ±0.5°C at -10-85°C
Battery lifetime:
The device can send about 75 000 messages with a 2700mAh Li-SOCl2 battery.
Please note this value is theoretical and it is calculated considering the current consumption of 1
uplink message and sleep current.
Disassembly and disposal
The sensor must be disposed of according to the applicable country-specific regulations. Efforts
should be made during the disposal process to recycle the constituent materials (particularly
precious metals). The sensors contain a lithium battery, which must be disposed of separately.

www.zane.hu
3
How to configurate the sensor
Operation
Operational parameters can be set by downlink messages.

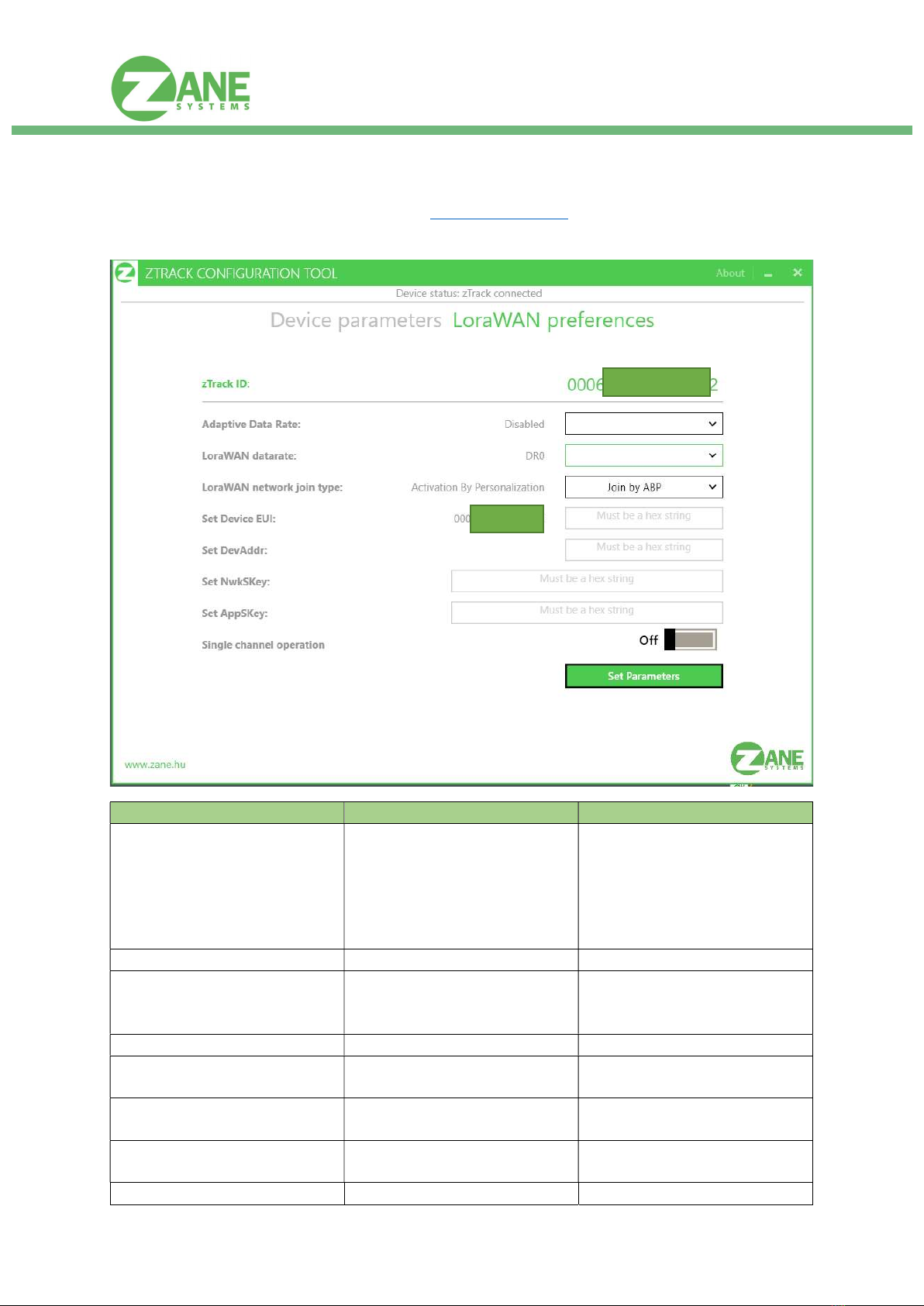

LoRaWAN preferences
LoraWan preferences
Value
Description
Adaptive Data Rate Enabled/Disabled
Adaptive Data Rate (ADR) is
a
mechanism for optimizing data
rates, airtime and energy
consumption in the network.
It is suggested to leave
disabled for proper operation
LoraWAN datarate
DR0 … DR6
LoraWAN network join type Join by ABP, join by OTAA
Activation
by
Personalization
(ABP suggested),
Over the Air Activation
Set Device EUI
Hex string
See label zT
emp
Set DevAddr Hex string
Device Address
K
ey
from integration
Set NwkSKey Hex string
Network Session Key
from integration
Set AppSKey Hex string
App Session Key
from integration
Single channel operation
1/0
?????
?????

www.zane.hu
4
Integration to TTN Network
Requirements
 Create account at THE THINGS NETWORK
www.thethingsnetwork.org
 Check if there’s a gateway near you
 Login at TTN console
add application
register device
TTN console register device
 Register your zTemp under TTN console  Application  Devices  “register device”
 Setup device under TTN console  Application  Devices  “Device Settings

www.zane.hu
5
TTN device
Label at
Config Tool
TTN
Application ID
Name of TTN application
Device ID
This is the unique identifier for
the device in this app. The
device ID will be immutable.
only lowercase alphanumeric
characters,
nonconsecutive - and _
and it cannot start or end with
a - or a _
Activation Method
LoRaWAN Network Join Type
Choose
activation
method
under device settings
Device EUI
Set Device EUI
8 bytes
written on the label of zTemp
Application EUI
8 bytes
Generated by TTN
Device Address
Set
DevAddr
Assigned by network
server
Network Session Key
Set NwkSKey
16 bytes
Network session key will be
generated
App Session Key
Set AppSKey
16 bytes
App session key will be
generated
After device registration, go back to zTrack Configuration Tool  “LoraWAN preferences” and fill the
form with the hex strings of yours TTN registration.
After this step, you can receive data from your device.

www.zane.hu
6
Payload specification
1. Uplink messages
TTTTVV: The values are ASCII characters between 0-9 for easy readability in decoded
message
TTTT: Temperature
1st digit: 0: positive temperature, 1: negative temperature
2nd digit: tens
3rd digit: ones
4th digit: tenths
VV: Battery level in percentage
Here is an example of 24.1°C, 88% payload is: 024188
Another example of -4.1°C, 33% payload is: 104133
2. Downlink messages
Message interval
port: 101
payload: 3 bytes BCD value in sec
Range: 30s to 7200s
Example payload: 003600 sets the message interval to 1 hour.

www.zane.hu
7
zTrack Configuration tool for firmware upgrade
Requirements
 USB type A cable with micro USB
 Contact Zane sales to get proper firmware file for the zTemp
 zTrack Configuration Tool software
o Download the zTrack Configuration Tool from www.zane.hu
o compressed file: setup_zTrack_Configuration_Tool_1031.rar
o Unpack file and after unzip the bootloader: en.stsw-stm32080.zip
o Run setup_zTrack_Configuration_Tool.exe
o Install: DfuSe_Demo_V3.0.5_Setup.exe
 Connect zTemp to zTrack Configuration Tool and click “Perform device firmware upgrade”
 Windows is installing correct USB driver
 If zTemp is not detected complete the following steps
o Run the device manager of Windows and find the USB device "DFU in FS Mode"
o Right click on the device and select "Uninstall device"
o When the Uninstall Device window appears check the "Delete the driver software for
this device" and click "Uninstall"
o Disconnect the device
 Connect the device to the PC again
 Choose the firmware file and upload it
