Zanussi ZCE 600 W User manual

1
ELECTRIC
COOKER
ZCE 600 W
ZCE 610 X
INSTRUCTION BOOKLET
Please read this instruction booklet before using the appliance

2
Important Safety Information
You MUST read these warnings carefully before installing or using the hob.
If you need assistance, contact our Customer Care Department
on 08705 727727
Installation
●This cooker must be installed by qualified
personnel, according to the manufacturer’s
instructions and to the relevant British Standards.
• This cooker is heavy. Take care when moving it.
●Remove all packaging before using the cooker.
●Ensure that the electrical supply complies with the
type stated on the rating plate.
●Do not attempt to modify the cooker in any way.
Child Safety
●This cooker is designed to be operated by adults.
Do not allow children to play near or with the
cooker.
●The cooker gets hot when it is in use. Children
should be kept away until it has cooled.
●Children can also injure themselves by pulling
pans or pots off the cooker.
During Use
●This cooker is intended for domestic cooking only.
It is not designed for commercial or industrial
purposes.
●Do not use this cooker if it is in contact with
water. Do not operate the cooker with wet hands.
●Ensure the control knobs are in the ‘OFF’ position
when not in use.
●When using other electrical appliances, ensure the
cable does not come into contact with the hot
surfaces of the cooker.
●Unstable or misshapen pans should not be used on
the hob hotplates as unstable pans can cause an
accident by tipping or spillage.
●Never leave the cooker unattended when cooking
with oil and fats.
●This cooker should be kept clean at all times. A
build-up of fats or foodstuffs could result in a
fire.
●Never use plastic dishes in the oven or on the hob
hotplates. Never line any part of the oven with
aluminium foil.
●Always ensure that the oven vent which is located
at the centre back of the hob is left unobstructed to
ensure ventilation of the oven cavity.
●Perishable food, plastic items and areosols may be
affected by heat and should not be stored above
the cooker.
Service
●This cooker should only be repaired or serviced by
an authorised Service Engineer and only genuine
approved spare parts should be used.
Environmental Information
●After installation, please dispose of the packaging
with due regard to safety and the environment.
●When disposing of an old appliance, make it
unusable, by cutting off the cable.
Keep this instruction book for future
reference and ensure it is passed on
to any new owner.

3
This appliance is manufactured according
to the following EEC directives:
73/23 EEC - 90/683 EEC - 93/68 EEC -
89/336 EEC current edition.
Contents
Guide to Use the instructions
The following symbols will be found in the text to
guide you throughout the Instructions:
Safety Instructions
Step by step instructions for an
operation
Hints and Tips
☞
i
Oven Door Protection Device
(Model ZCE 610 X)
All our appliances comply with the
European safety standards. Nevertheless,
in order to ensure the highest safety
level, and avoid small children to be
exposed to the heat when the appliance
is operated, it is possible to fit a special
protection device to the oven door. This
device can be purchased in our Service
Force Centres, specifying the relevant
code (35791) and the Product No. shown
on the rating plate.
Important Safety Information.............. 2
Description of the Cooker.................... 4
Control Panel ...................................... 5
The Oven Cavity.................................... 5
Accessories ........................................... 5
Operation ............................................ 6
Electric Hotplates ............................... 6
Electric Oven ...................................... 6
24 Hour Clock and Timer .................... 9
Before the First Use of the Oven........ 11
Using the Oven .................................. 11
Using the Fan Oven ........................... 13
Cooking Chart ..................................... 14
Roasting Chart .................................... 14
Defrosting ......................................... 16
Grilling.............................................. 17
Maintenance and Cleaning................. 18
Cleaning the Oven ............................. 19
Something Not Working ..................... 21
Service and Spare Parts ..................... 22
Peace of Mind for 12 Months ............. 23
Instructions for the Installer ............. 24
Important Safety Requirements......... 24
Electrical connections....................... 26
For the User For the Installer

4
STOP
SET
TIME
Description of the Cooker
Splash back
(only on model ZCE
610 X)
Back left normal
hotplate
Front left rapid
hotplate
Control panel
Shelf
Oven door
Front right rapid
hotplate
Back right normal
hotplate
Fitting the Splash back
(only on model ZCE 610 X)
A stainless steel splash back is supplied with the
appliance. This is meant to be fitted on the rear edge
of the cooker's hob. The splash back package is in the
oven cavity.
1. Unpack the splash back and dispose of the
packaging with due regard to safety and the
environment.
2. Slide the two bayonets of the splash back into the
relevant supports on the rear edge of the cooker's
hob.

5
STOP
SET
TIME
PUSH
BOTH
-+
FRONT LEFT BACK LEFT BACK RIGHT FRONT RIGHT OVEN FUNCTION TEMPERATURE
MAINS ON
THERMOSTAT
OVEN PROGRAMMER

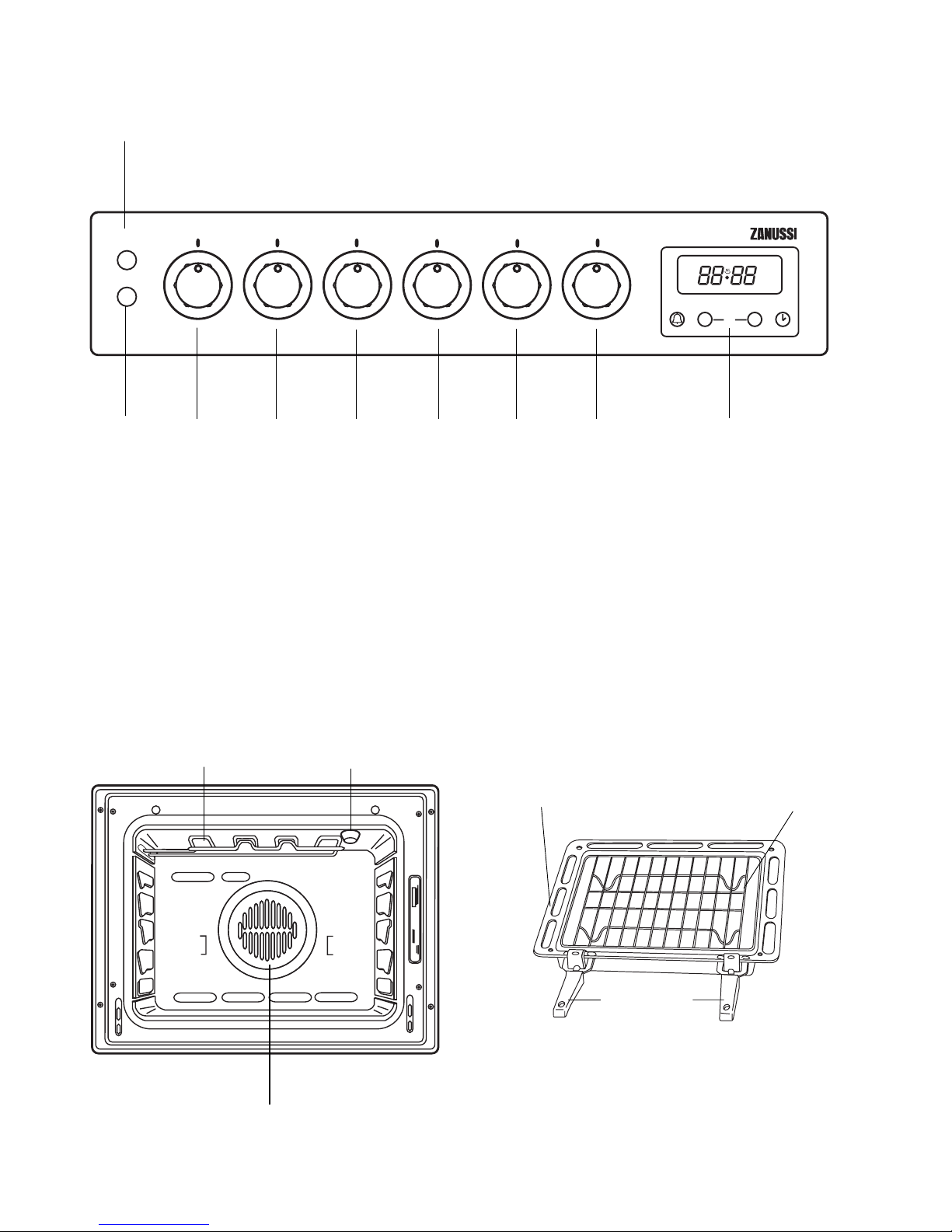

1. Oven Thermostat Pilot Light
2. Cooker Operation Pilot Light
3. Front left hotplate control knob
4. Back left hotplate control knob
5. Back right hotplate control knob
6. Front right hotplate control knob
7. Oven function control knob
8. Oven thermostat control knob
9. 24 hour clock and Timer
87654
2
13
Control Panel
The Oven Cavity
Grill element Oven Light
Accessories
Oven fan
9
Grill trivet
Grill/roasting pan
Removable
handles

6

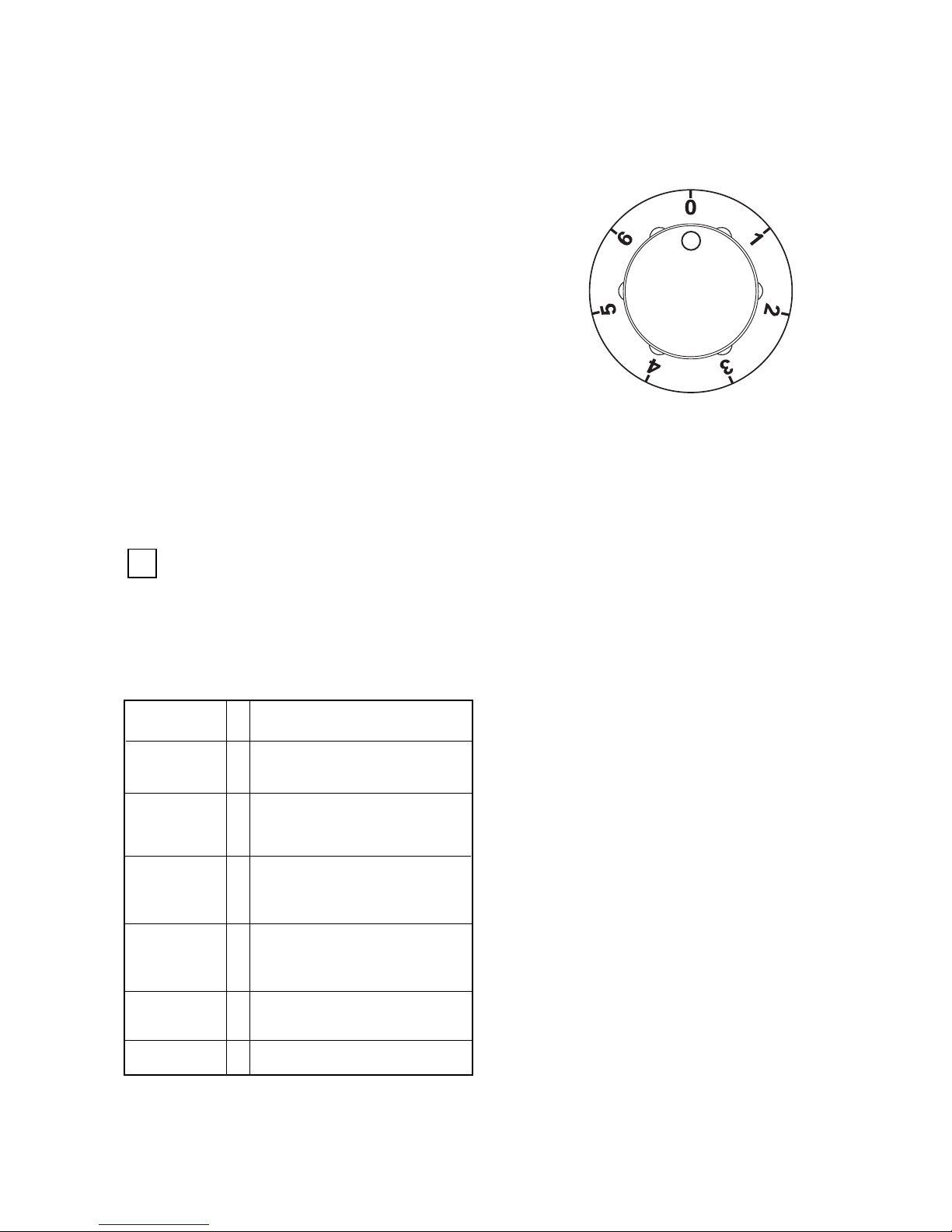

Electric Hotplates
To switch on a hotplate, turn the relevant control
knob to the required heat setting.
The control knob is numbered 1 - 6
0 - OFF
1 - Minimum
6 - Maximum.
The hob has two types of hotplates:
Normal Hotplates (Back right and left)
We recommend the plates are switched to maximum
(6) for a short while to boost the plate, and then
adjusted to the required setting.
Rapid Hotplates (Front right and left)
The rapid hotplates will heat up more quickly than a
normal plate.
It is important to note that the plate may smoke
a little and produce a slightly unpleasant odour
when used for the first time. This is quite
normal and will disappear after a few minutes.
Suggestions for the correct setting of the plates are
given in the following table.
Operation
OFF 0
Very Gentle 1To keep food warm
To melt butter and chocolate
Gentle 2To prepare cream-sauces,
stews and milk puddings
or to fry eggs
Slow 3Dried vegetables, frozen
food, fruit, boiling water
or milk
Medium 4Boiled potatoes, fresh
vegetables, pâtés, soups,
broths, pancakes or fish
High 5Larger stews, meat roll, fish,
omelettes, steaks
Fast 6Steaks, escalopes and frying.
i

7
i

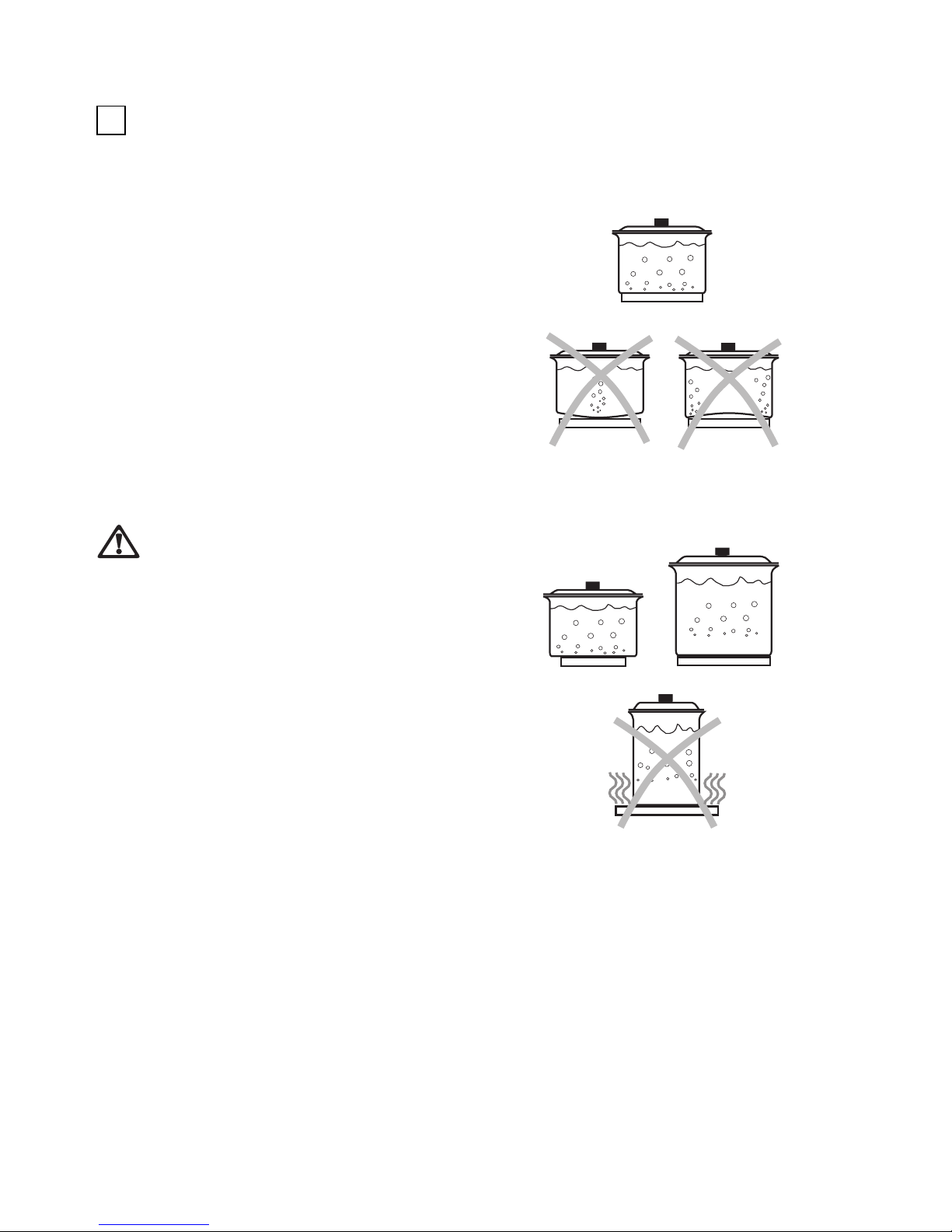

Hints andTips
Saucepans for use on solid plates should have several
characteristics:
●They should be fairly heavy duty
●They should fit the heat area exactly, or be slightly
larger for efficient use, NEVER smaller.
●They should have a flat base to ensure good
contact with the plate.
This is particularly important when using pans for
high temperature frying or pressure cooking.
As soon as liquid starts boiling, turn down the plate
control knob so that it will barely keep the liquid
simmering.
You can switch off the plate a short while before you
finish cooking, and the final stage will be completed
on the accumulated heat. Similarly, stews etc. cooked
in well covered saucepans cook at lower temperature
which is more economical.
Ensure pans are large enough to avoid
liquids being spilt onto the plates.
Never leave the plates on without a pan on
them or with an empty pan on them.
Take care never to lean or reach over a hot
electric plate. Always point pan handles
inward or over the work surface next to the
hob to avoid accidentally knocking over a
pan as you pass by.
Take care when frying food in hot oil or fat,
as the overheated splashes could easily
ignite.
If the control knobs become difficult to turn,
please contact your local Zanussi Service
Centre.

8
Oven Function Control Knob
Oven Light - The oven light will be on without
any cooking function
Defrost Setting - This setting is intended to assist
in thawing of frozen food (see page 16).
Fan cooking - This allows you to roast or roast
and bake simultaneously using any shelf, without
flavour transference.
Grill - The heat comes only from the top
element.
Electric Oven
0
OFF
Thermostat Control Knob
Turn the thermostat control knob clockwise to select
temperatures between 50°C and 250°C (max).
100
150
200
50
OFF

9
1. ( - ) DECREASE CONTROL & TIMER
SETTING BUTTON
2. ( + ) INCREASE CONTROL
( ) COOKPOT SYMBOL
( ) PUSH BOTH CLOCK SETTING
SYMBOL
1. SET THE TIME OF DAY
When the electricity supply is first switched ON, the
display will flash 0.00. See Fig. 1.
Press buttons (1) and (2) together. The display will
momentarily read 88.88. See Fig. 2. Release buttons,
0.00 will appear in the display as Fig. 3. Within 5
seconds press button (2), 12.00 will show in the
display as Fig. 4.
Within 5 seconds, press and hold either button (1) to
decrease or button (2) to increase the time until the
correct time of day on the 24 hour clock is reached,
e.g. 14.30. See Fig. 5.
NOTE
The increase and decrease control buttons
operate slowly at first and then more
rapidly. They should be pressed separately.
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
24 Hour Clock and Timer
STOP
SET
TIME
PUSH
BOTH
-+
STOP
SET
TIME
PUSH
BOTH
-+
STOP
SET
TIME
PUSH
BOTH
-+
STOP
SET
TIME
PUSH
BOTH
-+
STOP
SET
TIME
PUSH
BOTH
-+
STOP
SET
TIME
PUSH
BOTH
-+
12

10
2. THE TIMER
IMPORTANT
The timer can be used to time a set cooking period.
At the end of the cook time the timer will
automatically switch off the oven if in use.
The timer gives an audible reminder at the end of any
period of cooking up to 23 hours and 59 minutes.
To set, press button (1) and the display will read
0 . 00
,see Fig. 6.
Release button (1) and press and hold button (2). The
display will count up in one minute intervals until the
interval to be timed is reached, e.g. 30 minutes, see
Fig. 7. If necessary, press and hold button (1) to
achieve the correct time interval.
The timer will begin to count down once set. At the
end of the timed period, the timer will click,
switching the oven OFF if in use.
An audible signal will sound for up to 2 minutes.
The cookpot symbol will flash and the time of day
will show in the display. See Fig. 8.
To stop the sound press button (1). The display will
stop flashing and show the time of day, e.g. 15.00.
The cookpot symbol ( ) will go out. See Fig. 9. If
using the oven it will come on again once button (1)
has been depressed. When cooking is complete
remove food and turn OFF oven temperature control.
3. TO CANCEL THE TIMER
Press and release button (1). Then press and hold
button (1) and the display will count down in one
minute intervals to
0 . 00
. See Fig. 10. Release
button (1).
After a few seconds the cookpot symbol will flash and
the time of day will show in the display. See Fig. 11
If the oven is in use this will switch OFF after a few
seconds.
To reset, press button (1) and (2) together. See Fig. 12.
4. THINGS TO NOTE
1. The time of day must be set before the oven will
operate. There will be a few seconds delay before
the oven switches on.
2. The timer function controls the main oven only
and will switch the oven OFF at the end of a timed
period. This function is useful if you want to begin
cooking now and have the oven switch OFF
automatically.
3. If you have used the timer to time food cooking in
the oven you will need to reset the timer before
the oven can operate again.
Fig. 8
Fig. 7
Fig. 9
Fig. 6
STOP
SET
TIME
PUSH
BOTH
-+
STOP
SET
TIME
PUSH
BOTH
-+
STOP
SET
TIME
PUSH
BOTH
-+
STOP
SET
TIME
PUSH
BOTH
-+
STOP
SET
TIME
PUSH
BOTH
-+
STOP
SET
TIME
PUSH
BOTH
-+
STOP
SET
TIME
PUSH
BOTH
-+
Fig. 12
Fig. 11
Fig. 10
