Zanussi ZHC 605 User manual

COOKER HOOD
ZHC605
ZHC705
ZHC905
INSTRUCTION BOOKLET

2
Thank you for buying a Zanussi product.
To enable you to use your appliance effectively and safely, please read this instruction book carefully before using
the appliance and retain for future reference. If you require guidance in the use of the appliance or require further
information on Zanussi Products, please contact our Customer Care Department. For general enquiries concerning
your Zanussi appliance or for further information, visit our website at http://www.zanussi.co.uk
Customer Care Department
Zanussi
55 - 77 High Street
Slough
Berkshire
SL1 1DZ Tel: [phone]*
*Calls to this number may be recorded for training purposes.
To register ownership, please ensure you complete and return the guarantee card supplied with
the appliance.
For the User
Important Safety Information
Your Appliance
Operating Instructions
Cooker Hood Controls
To Operate
Recirculation
Extraction
Maintenance and Cleaning
External Cleaning
Metal Grease Filters
Charcoal Filters
To Remove/Replace Charcoal Filter
Changing the Light Bulb
Something Not Working
Service and Spare Parts
Guarantee Conditions
For the Installer
Technical Information
Electrical Connections
Electrical Requirements
Electrical Connection
Installing the Cooker Hood
Installation Requirements
Unpacking
Fitting the Wall Brackets
Fitting the Canopy Hood
Venting
Recirculation
Fitting the Chimney Stack
Service Force Centres
Guide to use the instruction book
The following Symbols will be found in the text to guide you through the instruction book
Safety instructions Step by step instructions

3
IMPORTANT SAFETY INFORMATION
These warnings are provided in the interests of your safety. Ensure that you understand them all before
installing or using this appliance. Your safety is of paramount importance. If you are unsure about any of the
meanings of these warnings contact the Customer Care Department.
Installation
• Any installation work must be undertaken by a quali-
fied electrician or a competent person.
• This hood must be installed in accordance with the
installation instructions and all measurements must
be adhered to.
• If the cooker hood is installed for use above a gas
appliance then the provision for ventilation must be
in accordance with the Gas Safety Codes of Practice
BS.6172, BS.5440 and BS.6891 (Natural Gas) and
BS.5482 (LP Gas) 1994, the Gas Safety (Installation
& Use) Regulations, the Building Regulations issued
by the Department of the Environment, the Building
standards (Scotland) (Consolidated) Regulations
issued by the Scottish Development Department.
• The fan motor of this cooker hood incorporates a
cut-out device which will operate if the cooker hood
is installed below the minimum height recommended
under section ‘Clearance Height’, or if the motor be-
comes overheated. If the cut-out device is activated,
switch off the fan motor and allow the cooker hood to
cool. The cut-out device will reset itself when the fan
motor has cooled significantly.
• It is dangerous to alter the specifications or modify
this product in any way.
• When installed between adjoining wall cabinets the
wall cabinets must not overhang the hob.
• If the room where the hood is to be used contains
a fuel burning appliance such as a central heating
boiler then its flue must be of the room sealed or
balanced flue type.
• If other types of flue or appliances are fitted ensure
that there is an adequate supply of air to the room.
• The ducting system for this appliance must not be
connected to any existing ventilation system which is
being used for any other purpose.
• Do not install above a cooker with a high level grill.
Child Safety
• This appliance is designed to be operated by adults.
Children should not be allowed to tamper with the
controls or play with the appliance.
During Use
• This product is for domestic use only.
• Never leave frying pans unattended during use as
over-heated fats and oils might catch fire.
• Never do flambé cooking under this cooker hood.
• Do not leave naked flames under the hood.
Maintenance and Service
• This appliance can be a hazard if the synthetic paper
and charcoal filters are not replaced as recommen-
ded.
• Under no circumstances should you attempt to
repair the appliance yourself. Repairs carried out
by inexperienced persons may cause injury or more
serious malfunction. Refer to your local Zanussi Ser-
vice Force Centre. Always insist on genuine spare
parts.

4
YOUR APPLIANCE
OPERATING INSTRUCTIONS
The cooker hood is designed to extract
unpleasant odours from the kitchen, it will not
extract steam. The appliance can be installed to
recirculate or extract contaminated air.
Cooker Hood Controls
The cooker hood functions are controlled by
three switches located on the underside of the hood
immediately in front of the metal grease filters.
Worktop Lighting
The switch (L) marked with the lamp symbol
operates the worktop lighting.
L 0 - OFF
1 - ON
Fan Control
The switch (M) marked with the fan symbol and
the switch (V) marked 1-2-3 operates the fan.
M 0 - OFF
1 - ON
V 1 - Low
2 - Normal
3 - Boost
LMV
0 1 0 1 1 2 3
598- 698 - 898

5
To Operate
Select the required fan speed and light if required.
Recirculation
In the recirculation mode the contaminated air enters
the cooker hood through the grease filters. The air is
cleaned by passing through the charcoal filters
before being passed back into the kitchen through
the grilles in either side of the chimney stack.
Extraction
In the extraction mode the contaminated air enters
the cooker hood passing through the grease filters
and is passed out through the ducting into the
atmosphere.
To obtain the best performance when cooking it is
advisable to switch the cooker hood on for a few
minutes before you start cooking and leave it
running for about 15 minutes after finishing.
When used in the ducting mode the charcoal
filters are not required.
Never do flambé cooking under this cooker
hood.
Never leave frying pans unattended during use,
as over-heated fats and oils can catch fire.
Do not leave naked flames under the cooker
hood.
Ensure heating areas on your hob are covered
with pots and pans when using the hob and
cooker hood simultaneously.

6
Before carrying out any maintenance or clea-
ning isolate the cooker hood from the mains
supply.
The cooker hood must be kept clean, as a build
up of grease or fat can be a fire hazard.
External Cleaning
Wipe the cooker hood frequently with warm
soapy water using a mild detergent.
Never use scouring pads or abrasive cleaners.
Never use excessive amounts of water when
cleaning particularly around the control panel.
Metal Grease Filters
The grease filters absorb grease and dust during
cooking to help keep the cooker hood clean inside,
and should be cleaned approximately once every
month or more often if the hood is used for more
than 3 hours a day.

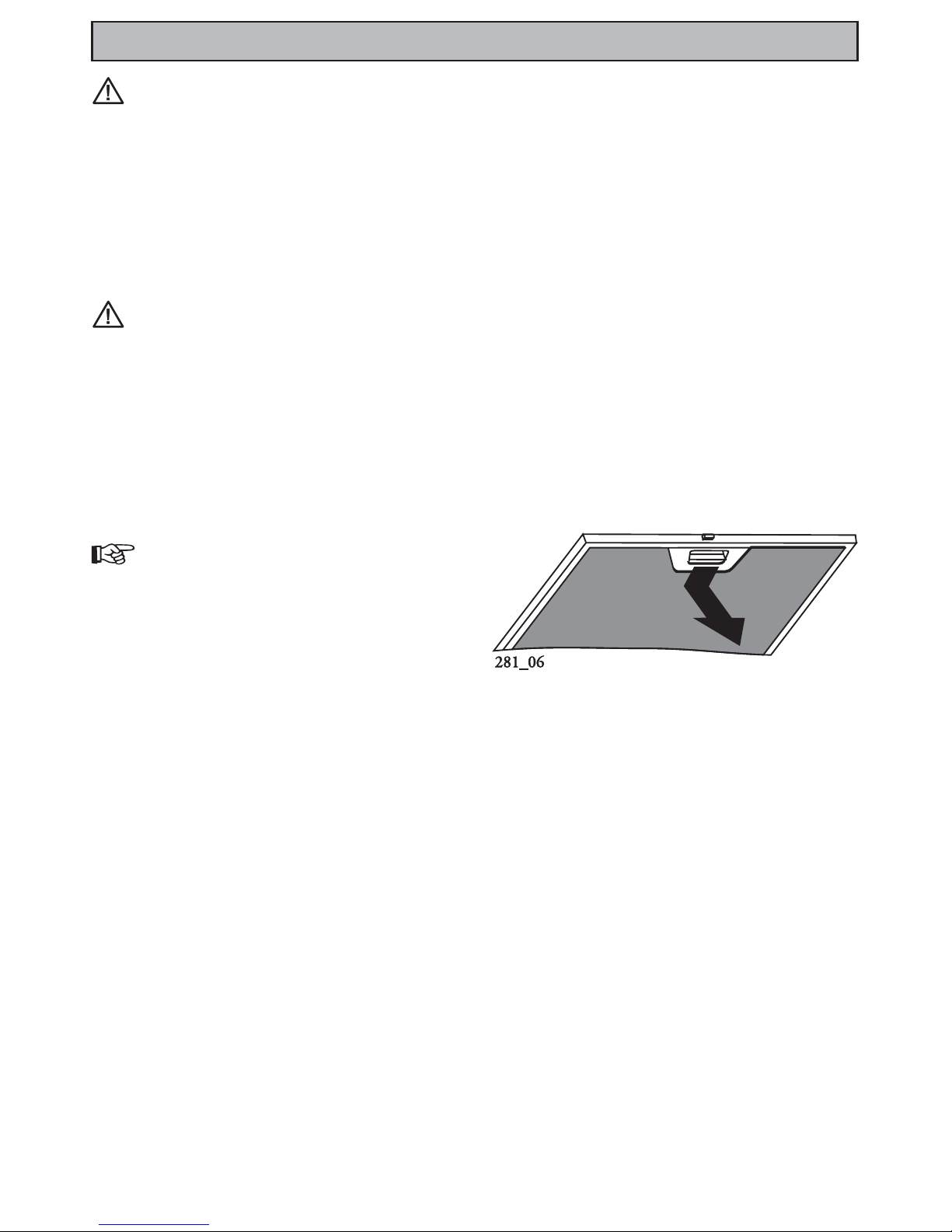

Remove the metal grease filters
one at a time by:
Releasing the catches on the filters, the
filters can be removed.
The metal grease filters should be washed, by
hand, in mild soapy water or in a dishwasher. Allow
to dry completely before replacing.
MAINTENANCE AND CLEANING

7
Charcoal Filters
In the recirculation mode the charcoal filters
absorb smells and unwanted odours.
The charcoal filters cannot be cleaned, we
recommend they should be replaced
approximately every three months or more often
if the hood is used for more than three hours per
day.
To Remove/Replace the
Charcoal Filters
1. First remove the metal grease filters.
2. Rotate the charcoal filter anti-clockwise
(A) and remove.
3. To replace the charcoal filters, remove
the metal grease filters.
4. Place the filter over the inlet grille at
either end of the fan housing and rotate
clockwise (B) into position.
This appliance can be a possible fire
hazard if the grease and charcoal filters
are not cleaned and replaced as recommended.
Changing the Light Bulb
1. Remove the screw fastening the lamp cover.
2. Rotate the light bulb anti-clockwise to
unscrew.
3. To replace the light bulb insert a
replacement into the holder then rotate
the bulb clockwise into position. Ensure
you take care not to overtighten the
bulb.
4. Replace the lamp cover.
If the light bulb fails to function check that the
bulb is fully screwed into the holder. If bulb
failure has occurred then it should be replaced
with a 220-240 Volt 40W clear globe shaped
bulb with a small E14 screw thread.
Replacement filters and light bulbs can be obtained
from your local Service Force Centre.
MAINTENANCE AND CLEANING
A
B

8
SOMETHING NOT WORKING
SERVICE AND SPARE PARTS
If, having followed these instructions carefully, your cooker hood fails to work properly please carry out
the following checks.
Symptom
The cooker hood will not start
The cooker hood is not working effectively
The cooker hood has switched off during opera-
tion
If after all these checks, the fault persists,
contact your local Service Force Centre,
quoting the model and serial number.
Please note that it will be necessary to
provide proof of purchase for any
in-guarantee service calls.
Solution
• Check the hood is connected to the electricity
supply.
• Make sure the switch is in the ‘ON’ position.
• The fan speed is set high enough for the task
• The grease filter is clean.
• The kitchen is adequately vented to allow the
entry of fresh air.
• If set up for recirculation, check that the charcoal
filter is still effective.
• If set up for extraction, check that the ducting and
outlets are not blocked.
• The safety cut-out device has been tripped.
• Tum off the hob and then wait for the device to
reset.
In-guarantee customers should ensure
that the above checks have been made as
the engineer will make a charge if the fault
is not a mechanical or electrical
breakdown.
If you require an engineer or spare parts
contact your local Service Force Centre by
telephoning:
08705 929929
Your telephone call will be routed to your local
Service Force Centre. The addresses are
listed in the back of the book.
For general assistance with your appliance or
for further information on Zanussi products
please contact our Customer Care Department.
Customer Care Department,
Zanussi
55 - 77 High Street
Slough
Berkshire
SL1 1DZ
Tel: [phone] *
* calls to this number may be recorded for training
purposes.

9
GUARANTEE CONDITIONS
We Zanussi, undertake that if within twenty four months of the date of the purchase this Zanussi built-in appliance or
any part thereof is proved to be defective by reason only of faulty workmanship or materials, the company will, at our
option repair or replace the same FREE OF ANY CHARGE for labour, materials or carriage on condition that:
• The appliance has been correctly installed and used only on the electrical supply stated on the rating plate.
• The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer’s
operating and maintenance instructions.
• The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person not
authorised by us.
• All service work under this guarantee must be undertaken by Zanussi Service Force Centre.
• Any appliance or defective part replaced shall become the property of this company.
Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these hours
in which case a premium will be charged.
EXCLUSIONS
This Guarantee does not cover:
• Damage or calls resulting from transportation, improper use or neglect, the replacement of any lilght bulbs or
removable parts of glass or plastic.
• Costs incurred for calls to put right appliances improperly installed or calls to appliances outside the United
Kingdom.
• Appliances found to be in use within a commercial environment, plus those which are the subject of rental agree-
ments.
• Products of Zanussi manufacture which are not marked by Zanussi.
This guarantee is in addition to your statutory and legal rights.
ZANUSSI EUROPEAN GUARANTEE
If you should move to another country within Europe then your guarantee moves with you to your new home subject
to the following qualifications:
• The guarantee starts from the date you first purchased your product.
• The guarantee is for the same period and to the same extent for labour and parts as exists in the new country of
use for this brand or range of products.
• This guarantee relates to you and cannot be transferred to another user.
• Your new home is within the European Community (EC) or European Free Trade Area.
• The product is installed and used in accordance with our instructions and is only used domestically, i.e. a normal
household.
Before you move please contact your nearest Customer Care Centre, listed below, to give them details of
your new home. They will then ensure that the local Service Organisation is aware of your move and able to
look after you and your appliances.
France Senlis [phone]
Germany Nurnberg [phone]
Italy Pordenone [phone]
Sweden Stockholm [phone]
UK Slough [phone]

10
INSTALLATION INSTRUCTIONS
It is dangerous to alter the specifications or attempt to modify this product in any way.
Technical Information
DIMENSIONS HEIGHT OF CANOPY: 24cm
HEIGHT OF CHIMNEY: (UPPER SECTION) 20cm
(LOWER SECTION) 56cm
WIDTH OF CANOPY - ZHC 605: 59,8cm
WIDTH OF CANOPY - ZHC 705: 69,8cm
WIDTH OF CANOPY - ZHC 905: 89,8cm
DEPTH OF CANOPY: 49cm
GROSS - ZHC 605: 16kg
GROSS - ZHC 705: 16,5kg
GROSS - ZHC 905: 17,6kg
NET - ZHC 605: 12,4kg
NET - ZHC 705: 12,8kg
NET - ZHC 905: 13,7kg
ELECTRICAL SUPPLY: VOLTAGE: 220-240 V 50Hz
POWER CONSUMPTION: 230W
FAN MOTOR: 150W
LIGHT BULB: (2 x 40 W) 80W
SUITABLE FOR INSTALLATION
ABOVE: ELECTRIC HOB: 7KW (max)
GAS HOB: 10KW (max)
SLOT-IN GAS COOKER 13.5KW (max)
SLOT-IN ELECTRIC COOKER 12.4KW (max)
Note: CE Marking certifies that this appliance complies with the requirements
laid down in EEC directive 89:336. (Electromagnetic compatibility) and
subsequent modifications and Low Voltage directive 72/23/E.
ELECTRICAL CONNECTIONS
Electrical Requirements
Any permanent electrical installation must
comply with the latest I.E.E. Regulations and
local Electricity Board regulations. For your own
safety this should be undertaken by a qualified
electrician e.g. your local Electricity Board, or a
contractor who is on the roll of the National
Inspection Council for Electrical Installation
Contracting (NICEIC).
Electrical Connection
Before connecting to the mains supply ensure
that the mains voltage corresponds to the
voltage on the rating plate inside the cooker
hood.
This appliance is fitted with a 3 core mains
cable and must be permanently connected to
the electricity supply via a double-pole switch
having 3mm minimum contact gap on each
pole. A Switched Fuse Connection Unit to
BS1363 Part 4, fitted with a 3 Amp fuse, is a
recommended mains supply connection
accessory to ensure compliance with the Safety
Requirements applicable to fixed wiring
instructions.
This appliance conforms to BS 800: 1988 and
EEC Directive No. 78 308 regarding
suppression of radio and television
interference.
DOUBLE INSULATED DO NOT EARTH

11
INSTALLING THE COOKER HOOD
Please ensure that when the appliance is installed
it is easily accessible to an engineer in the event of
a breakdown.
All installations must comply with the local
authorities requirements for the discharge of
exhaust air.
Incorrect installation may affect the safety of this
cooker hood.
Installation Requirements
Before installation check the wall to which the
cooker hood is to be fitted for electric cables,
water pipes or gas.
This cooker hood is designed to be fixed to any vertical
surface over a cooking area, and can be used in the
extraction (ducted to the outside) or recirculation mode.
The installation work must be undertaken by a qualified
and competent person.
The manufacturer disclaims any responsibility for
damage due to incorrect installation of the cooker hood
or if the hood is not installed in compliance with relevant
regulations controlling this type of installation.
Unpacking
Before unpacking the cooker hood position
the carton with the arrows pointing upwards as
illustrated on the carton.
The cooker hood is made up of the following
components:
Ref Qty Product Components
11 Hood body, complete with controls,
lighting, fan and filters.
21 Telescopic Chimney comprising:
2.1 1 Upper section
2.2 1 Lower section
91 ø150-120 Ducting spigot
10 1 ø120-125 Ducting flange
15 1 Air outlet connector
Ref Qty Installation Components
7.1 2 Hood body fixing brackets
7.2 2 Upper chimney wall fixing brackets
12c 6 Chimney fixing screws
12d 2 Screws M4x25
Ref Qty Documentation
1 Instruction booklet 1
9
12c
12c
12c
12d
7.2.1
15
2
2.1
2.2
7.1
10

12
A: Built-in Electric Hob: 650mm clearance
B: Built-in Gas hob: 700mm clearance
C: Slot-in Electric Cooker: 685mm clearance
D: Slot-in Gas Cooker: 787mm clearance
Hob
Clearance Height
The cooker hood is designed to be fitted over a cooking
appliance at the clearance heights stated, providing the
maximum output of the appliance beneath does not
exceed the maximums quoted in the Technical Speci-
fications.
If the output of the appliance below the cooker hood
exceeds the maximum outputs quoted, please refer to
the cooker manufacturer’s installation instructions.
A clearance height of 650mm (25 1/2 ”) is required when
installed above a built-in electric hob, or 700mm (27 1/2
”) when installed above a built-in gas hob.
A clearance height of 685mm (27”) is required when
installed above a slot-in electric cooker, or 787mm
(30 1/2 ”) when installed above a slot-in gas cooker.
When installed between adjoining wall cabinets, the wall
cabinets must not overhang the hob and the distance
between the underside of the cabinet and the worktop
must be 450mm. If the height of the wall cabinet is less
than 450mm, a gap of 50mm must be maintained either
side of the hob.
This cooker hood must not be installed above a
cooking appliance with a high level grill.
The hood can be installed above these heights but
for optimum performance it should be installed at the
distances quoted for the appropriate heat source.
This appliance can be used in either extraction mode
(ducting) or recycling mode (filtering).
The hood is supplied suitable for recirculation with the
charcoal filters fitted.
When used in the extraction mode (ducting) the charcoal
filters are not required and must be removed and
destroyed.
INSTALLING THE COOKER HOOD

13
Fitting the Wall Brackets
• Draw a vertical line on the supporting wall up to the
ceiling, or as high as practical, at the centre of the area
in which the hood will be installed.
• Draw a horizontal line at 650 mm above the hob for
installation without the back panel, or at height H
(H=height of the visible part of the panel) for instal-
lation with the back panel.
• Place bracket 7.2.1 on the wall as shown about 1-2
mm from the ceiling or upper limit aligning the centre
(notch) with the vertical reference line.
• Mark the wall at the centres of the holes in the
bracket.
• Place bracket 7.2.1 on the wall as shown at X mm
below the first bracket (X = height of the upper chimney
section supplied), aligning the centre (notch) with the
vertical line.
• Mark the wall at the centres of the holes in the
bracket.
• Place bracket 7.1 as shown 95 mm from the verti-
cal reference line and 210 mm above the horizontal
reference line.
• Mark the centres of the holes in the bracket.
• Repeat this operation on the other side.
REAR PANEL (OPTIONAL)
The Rear Panel must be fitted before fixing the hood body
and, if it is to be fixed at both top and bottom, must be
fitted at the correct height prior to installing the bases.
As this operation is rather complex, it should be carried
out either by the kitchen installer or a qualified person
who knows the final dimensions of the units.
For fixing at the top only, proceed as follows:
• Rest the back panel on the base, inserting the lower
plate between the upper surface and the wall, centring
it on the vertical reference line.
• Mark the centres of the two holes in the upper plate.
• Drill ø 8 mm holes at all the centre points marked.
• Insert the wall plugs (not supplied) in the holes.
• Fix the brackets using the screws (not supplied).
• Fix the back panel (where present) using the screws
(not supplied).
Note: If the hood is to be installed onto a hollow con-
struction or plaster or partition board wall then special
fixing screws will be required (not supplied).
Fitting the Canopy Hood
• Screw the two screws item 12d supplied onto the
brackets 7.1.
• Hook the hood body onto the bracket 7.1, centring
it around the vertical line.
• Use the adjusting screws item 12d underneath the
hood to level the hood body
HX1÷2
650 min.
7.2.1
7.1 95
95
210
7.1
12.d
INSTALLING THE COOKER HOOD

14
Extraction (Ducted)
The cooker hood is more effective when installed in the
extraction mode (ducted to the outside).
Venting kits may be purchased through your retailer
or DIY store or using the enclosed form, and must be
evacuated through an outside vent of ø125 (5ins) or
ø150mm (6ins).
The ducting used must be manufactured from fire
retardent material conforming to the relevant British
Standard or DIN 4102-B1.
When the cooker hood is ducted to the outside the
charcoal filter must be removed.
Fitting the Ducting
• Fit the ø150mm (6ins) ducting to the spigot on
top of the hood body as illustrated.
• When using ø125mm (5ins) ducting fit item 9
and 10 on to the spigot on the top of the hood
body as illustrated.
• For the best performance use the shortest
possible run of ducting and we recommend the
use of rigid pipe in preference to flexible hose
as this will improve the flow of air while reducing
turbulence, which causes causes noise and a
loss of performance.
• If the room where the cooker hood is to be used
contains a fuel burning appliance such as a
central heating boiler, then its flue must be be of
the room sealed or balanced flue type.
• If other types of flue or appliances are fitted
ensure that there is an adequate supply of air to
the room.
• The cooker ducting when fitted in the
evacuation mode must never be connected to
central heating flues, radiators or water heaters.
Recirculation Mode
The cooker hood is supplied specified for use in the
recirculation mode, with the charcoal filter fitted.
In the recirculation mode contaminated air is passed
through the charcoal filter to be purified and recirculated
into the kitchen through the grille outlets on either side
of the chimney.
• Push fit the air outlet connector item 15 onto onto
the air outlet.
• Ensure the activated charcoal filter has been fitted.
INSTALLING THE COOKER HOOD
9
ø 125
10
ø 150
15

15
Fitting the Upper Chimney
• Slightly widen the two sides of the upper chimney and
hook them behind the brackets item 7.2.1 ensuring
they are correctly seated.
• Secure the sides to the brackets using the 4 screws
item 12c (2.9 x 9.5mm) supplied.
Fitting the Lower Chimney
• Slightly widen the two sides of the lower chimney
and hook them between the upper chimney and the
wall, ensuring they are correctly seated.
• Fix the lower chimney to the hood body using 2
screws item 12c (2.9 x 9.5mm) supplied.
• Make sure that the air outlet connection is aligned
with the chimney outlets.
INSTALLING THE COOKER HOOD
12c
12c
12c
2.2
2.1
2

© Electrolux plc 2002 436002529_01 - 050121
